Description

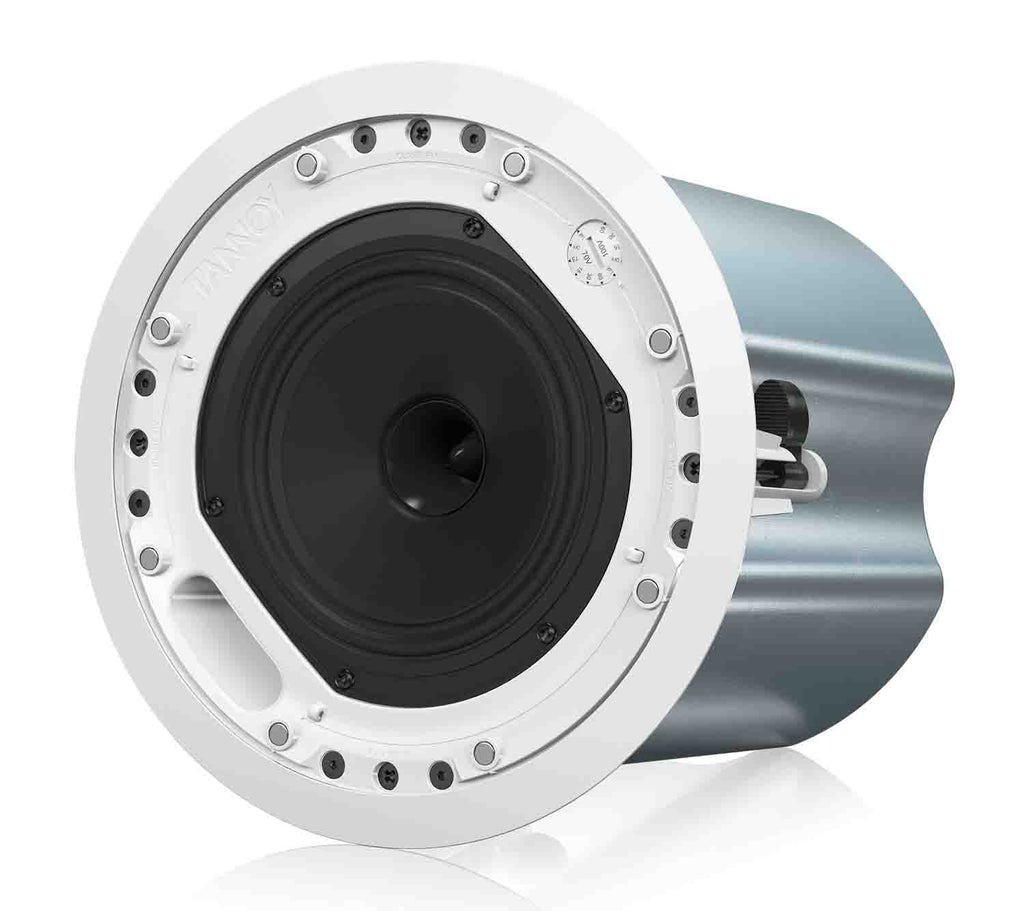

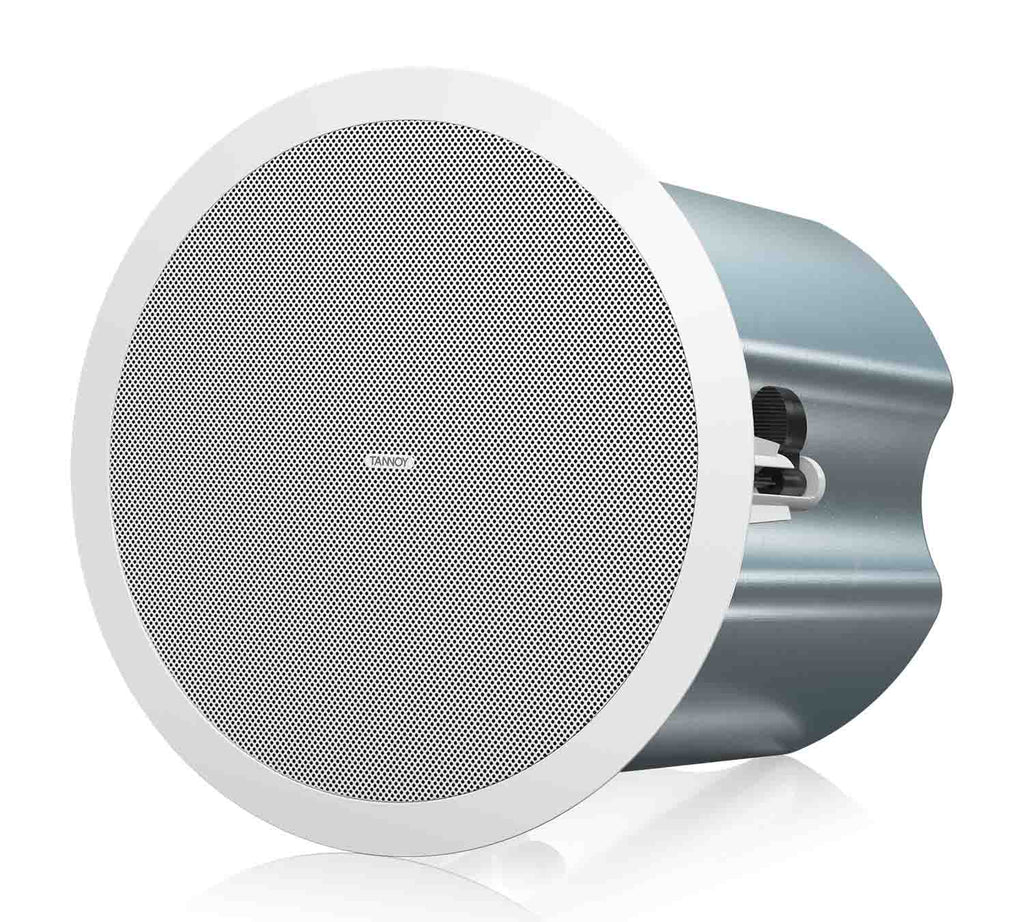

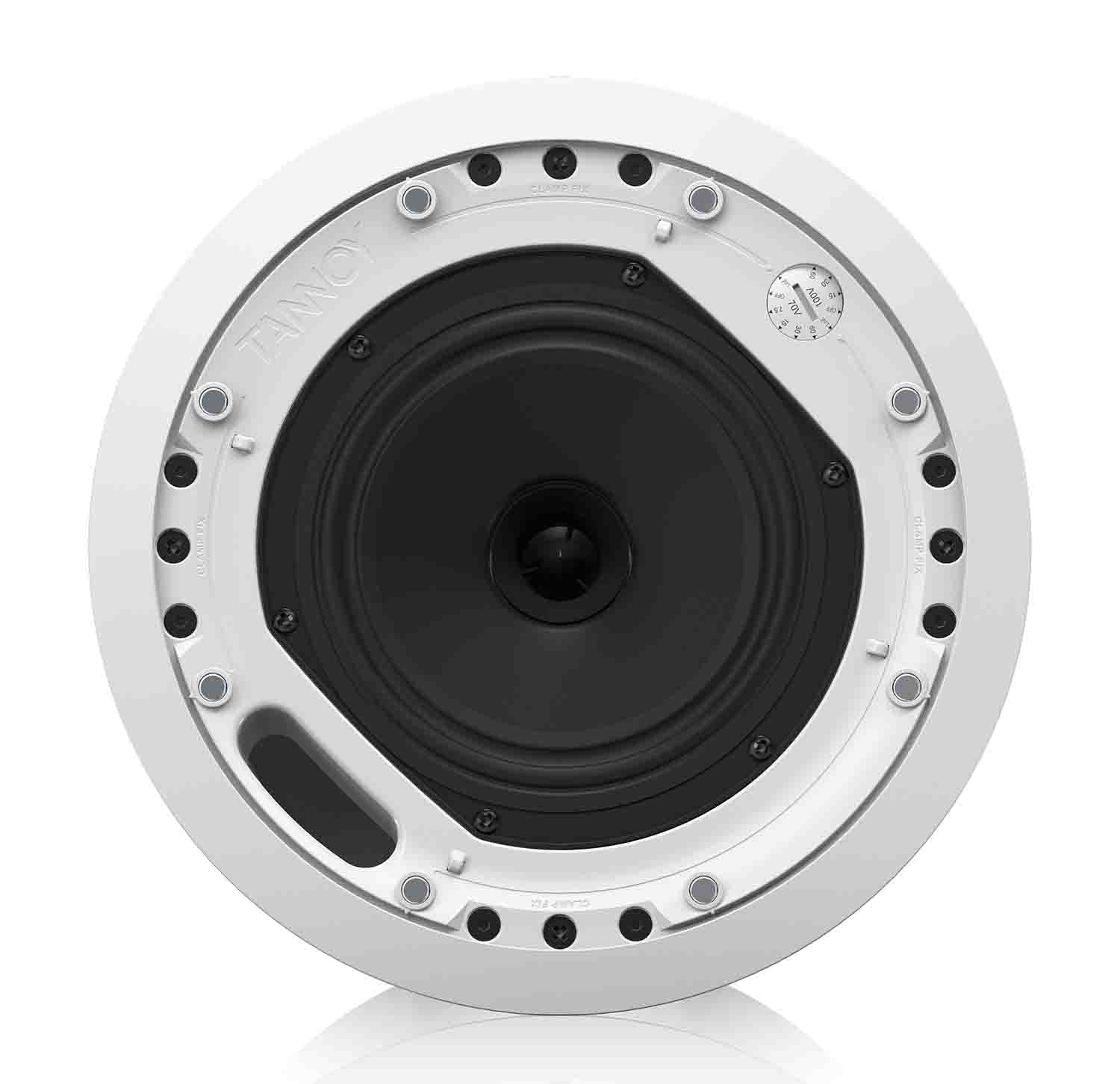

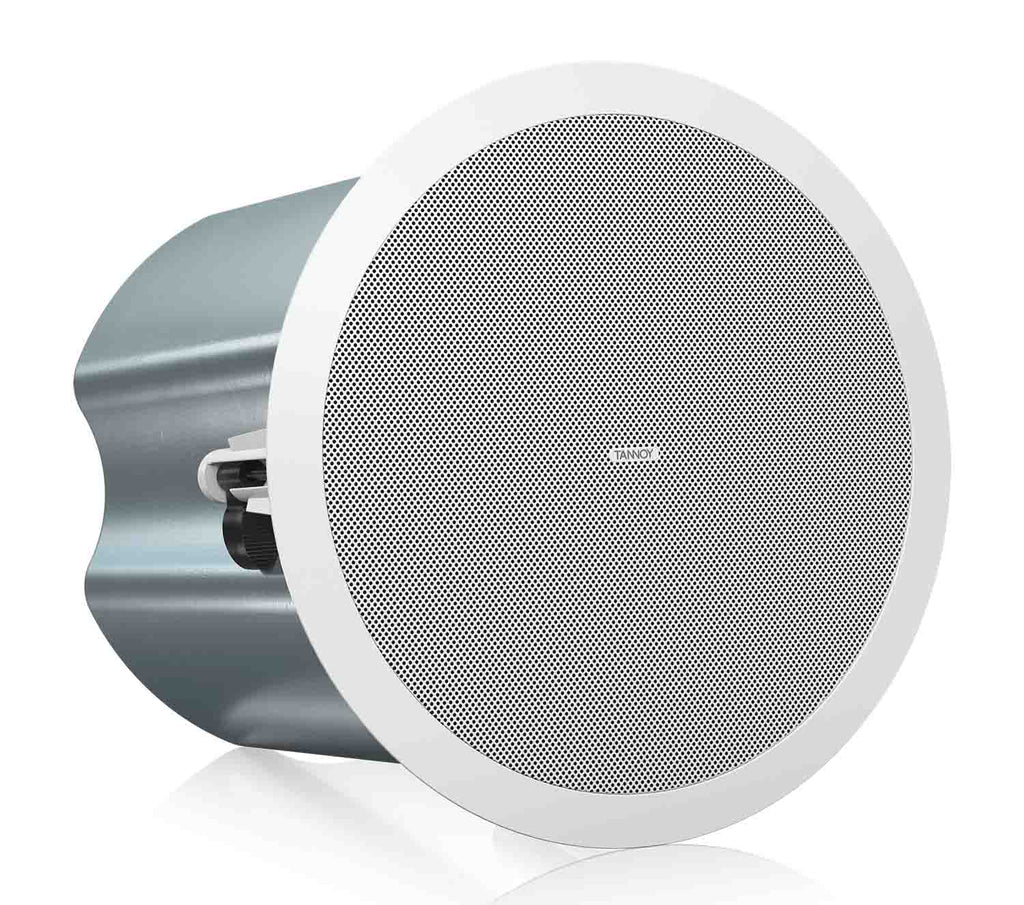

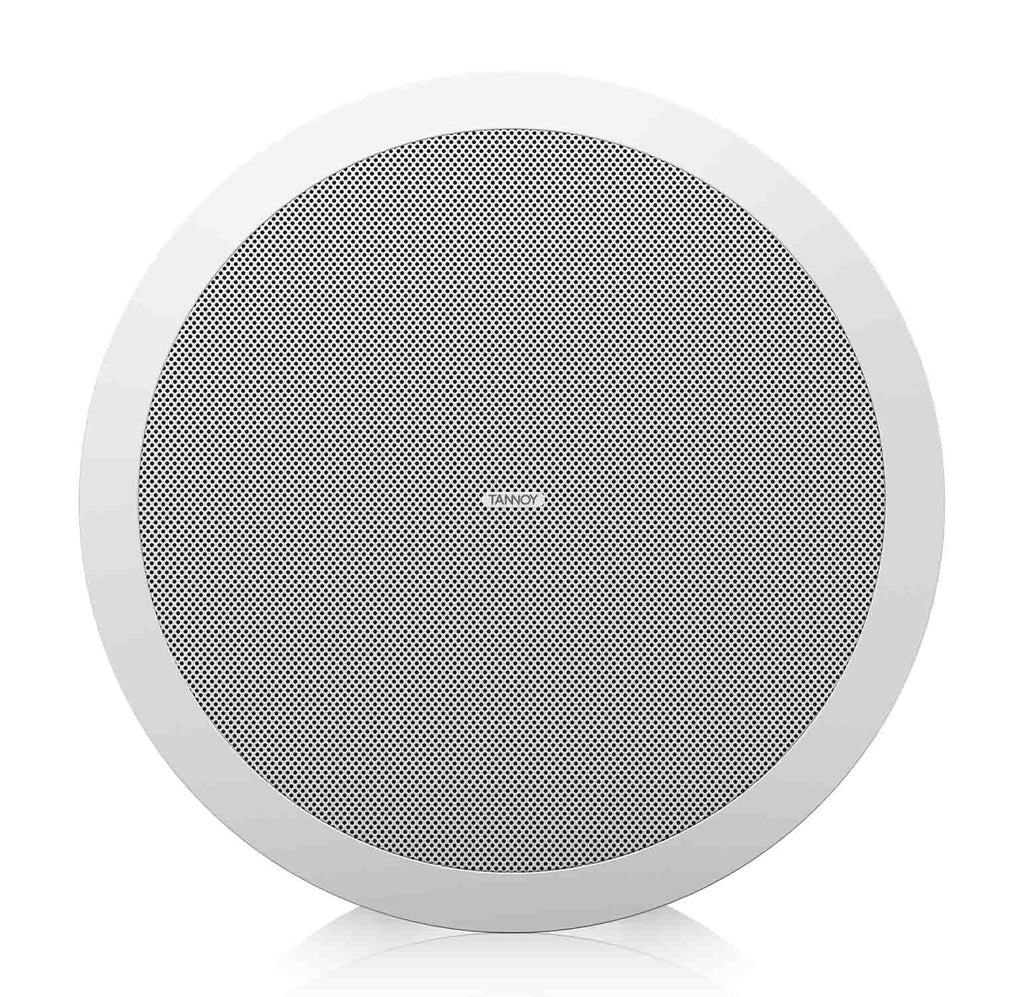

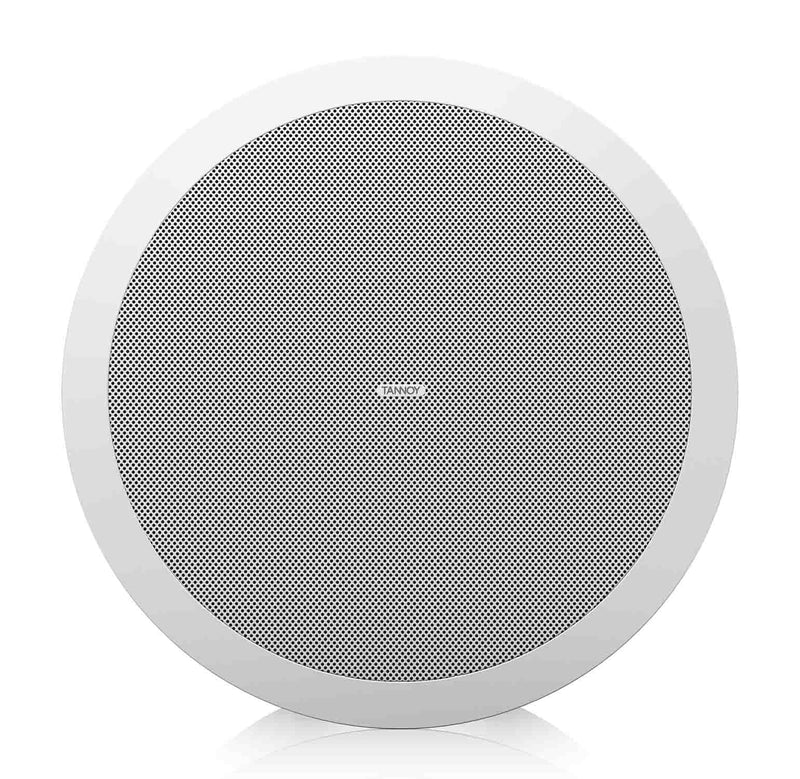

The Tannoy CMS 803DC BM, 8-Inch Full Range Ceiling Loudspeaker with Dual Concentric Driver - Blind-Mount is a full bandwidth 360-Watt high sensitivity loudspeaker that utilizes our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 8" Dual Concentric point source driver with Omni magnet technology on a Torus Ogive Waveguide, the UL certify ed CMS 803DC BM delivers wide and consistent broadband directivity with enhanced intelligibility plus highly accurate and linear response.
Optimized for Installation

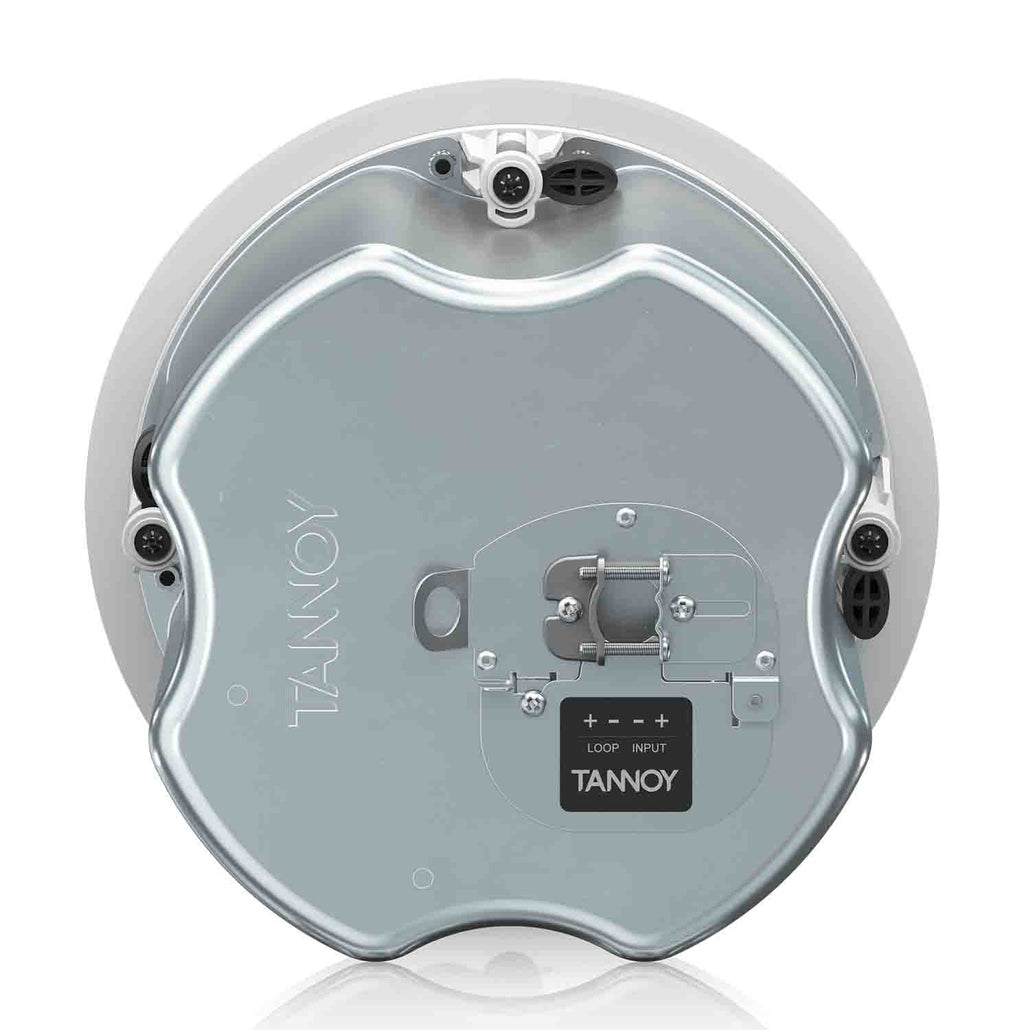

Specifically designed with a 5-way self-aligning clamp system for fast, simple and cost-effective installation, CMS 803DC BM features an acoustically enhanced zinc plated steel back can, and a removable locking screw terminal connector with loop-thru functionality. A low insertion loss 60 W transformer with convenient front panel tap switching, paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included. An Arco style grille, which conceals the entire unit for aesthetic purposes, and plaster (mud) ring are available separately.
LAB GRUPPEN Ready
The CMS 803DC BM is finished in semi matt white and optimized for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.
Product Specifications
Frequency response (-3 dB) (1): 47 Hz - 30 kHz BM Backcan
Frequency range (-10 dB) (1): 40 Hz - 35 kHz BM Backcan
Frequency range (-10 dB) (1): 41 Hz - 35 kHz PI Backcan
System sensitivity (1 W @ 1 m) (2): 92 dB (1 W = 4 V for 16 Ohms)
Nominal coverage angle: 90 degrees conical
Average: 90 W
Programme: 180 W
Peak: 360 W
Recommended amplifier power: 180 W @ 16 Ohms
Nominal impedance (Lo, Z): 16 Ohms
Average: 112 dB
Peak: 118 dB
With THP60 – average: 110 dB
Back can: Zinc plated steel
Baffle: Reflex loaded UL 94V-0 rated ABS
Grille: Steel, with weather resistant coating
Weight: 15 pounds
Dimensions: 14 x 10 x 11 inches
