Description

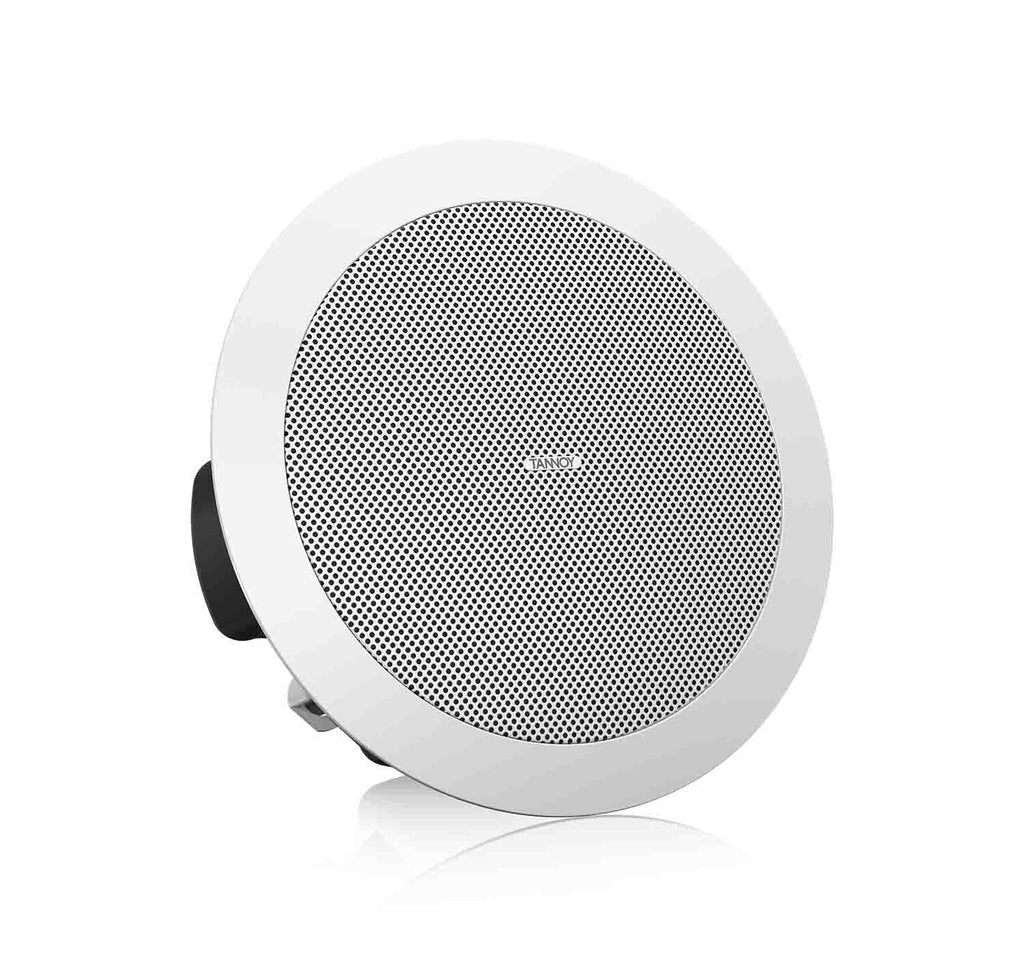

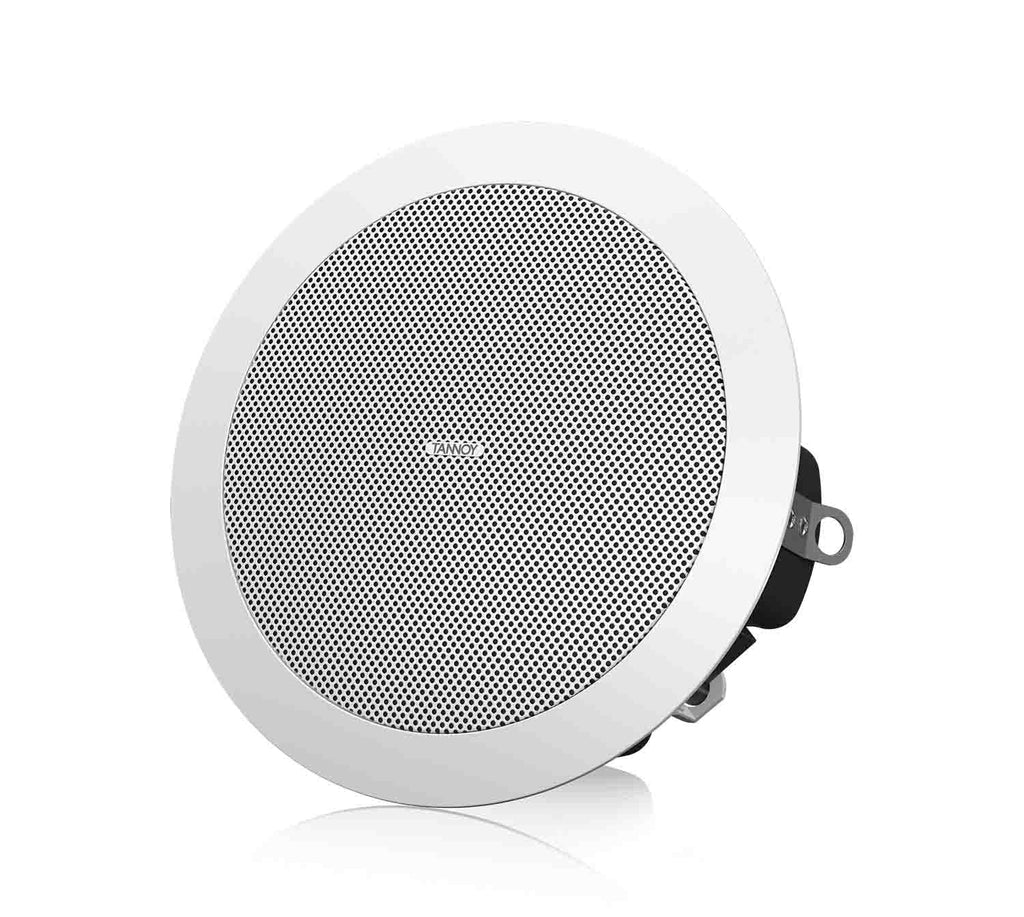

The Tannoy CVS 4 MICRO (EN 54), 4-Inch Coaxial Ceiling Loudspeaker is a compact 160-Watt shallow back can ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 4 MICRO (EN 54) offers the power handling, wide frequency response and low distortion more typically found in a studio reference monitor than a ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine clarity that envelopes the listener – without intruding. EN 54-24 certification for fire detection and fire alarm systems makes the CVS 4 MICRO (EN 54) the perfect choice where safety is a top priority.
Exceptional Sound and Reliability

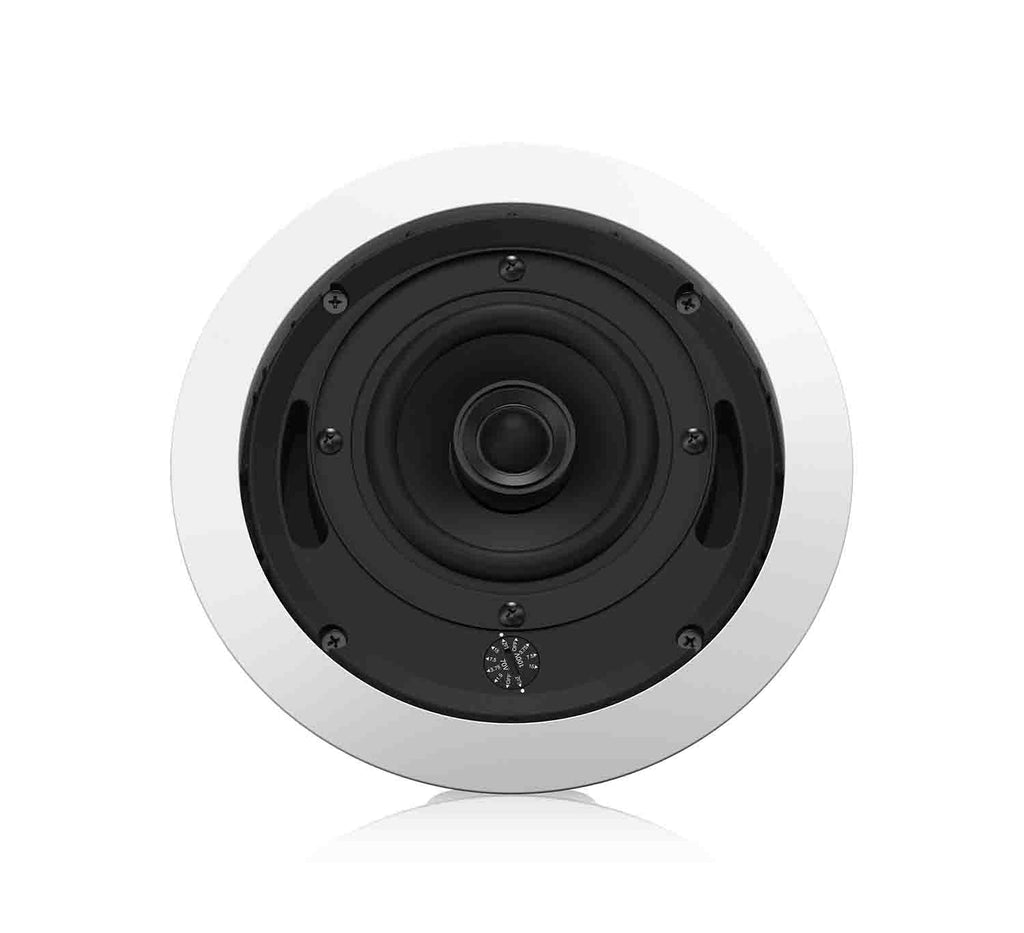

The design comprises a 100 mm (4.00") mid bass driver with a coaxially mounted 19 mm (0.75") high frequency section mounted in an injection moulded semi matt white front baffle made of UV/weather resistant UL 94 V-0 ABS material that fits unobtrusively into any environment. The mineral loaded polypropylene cone material and nitrile rubber surround enhance durability and long-term reliability. Thanks to the shallow back can depth of less than 4" (98.3 mm), CVS 4 MICRO (EN 54) is perfect for applications where above-ceiling space is limited, but exceptional sonic quality and reliability are a requirement.
Comprehensive Installation Package
Supplied with an integral plated steel shallow back can, Phoenix* connector with steel cover, and an EN 54 compliant strain relief clamping mechanism for fire rated cable, the CVS 4 MICRO (EN 54) satisfies the vast majority of installation application requirements. Input is via a low insertion loss 15 W line transformer with multiple taps for 70 V and 100 V line systems or 6 Ohm direct input. Installation is quick and easy with two tile support rails and one C-ring included in the package. A plaster (mud) ring is available as an optional accessory.
Product Specifications
| Specification | Measurement |
|---|---|
| Frequency Response (-3 dB) | 110 Hz - 19 kHz |
| Frequency Range (-10 dB) | 90 Hz - 22 kHz |
| Rated Sensitivity (1 W, Lo Z) | 87 dB |
| Directivity Factor (Q) | 5.6 averaged 1 kHz to 6 kHz |
| Directivity Index (DI) | 7.1 averaged 1 kHz to 6 kHz |
| Power (Watts) | |
| - Average | 40 W |
| - Program | 80 W |
| - Peak | 160 W |
| Recommended Amplifier Power | 80 W @ 6 Ohms |
| Nominal Impedance (Lo, Z) | 6 Ohms |
| Sound Pressure Level (dB) | |
| - Average | 103 dB |
| - Peak | 109 dB |
| Crossover Point | 2.5 kHz |
| Coverage Angles (4) | |
| - Horizontal Plane 500 Hz | 179° |
| - Vertical Plane 500 Hz | 178° |
| Driver Specifications | |
| - Low Frequency | 150 mm (6.00") |
| - High Frequency | 19 mm (0.75") coaxially mounted |
| Mounting Specifications | |
| - Min / Max Clamping Range | 0.0 mm (0.0") / 20.0 mm (0.79") |
| - Recommended Clamp Torque | 1.5 Nm |
| - Bezel Diameter | 213 mm (8.39") |
| - Front of Ceiling to Rear of Backcan | 98.3 mm (3.87") |
| - Front of Ceiling to Cable Entry Centre | 46.5 mm (1.83") |
| - Hole Cutout Diameter | 180 mm (7.09") |
| Weight | 2.0 kg (4.4 lbs) |
| Included Accessories | C Ring, Tile bridge, Paint mask, Cut out template, Grille |
| Optional Accessories | Plaster (mud) ring |
| Packed Quantity | 2 |
| Colour | White (Ral 9003) |
| Shipping Dimensions (HxWxD) | 10" x 11" x 11" |
| Shipping Weight | 6 lbs |
