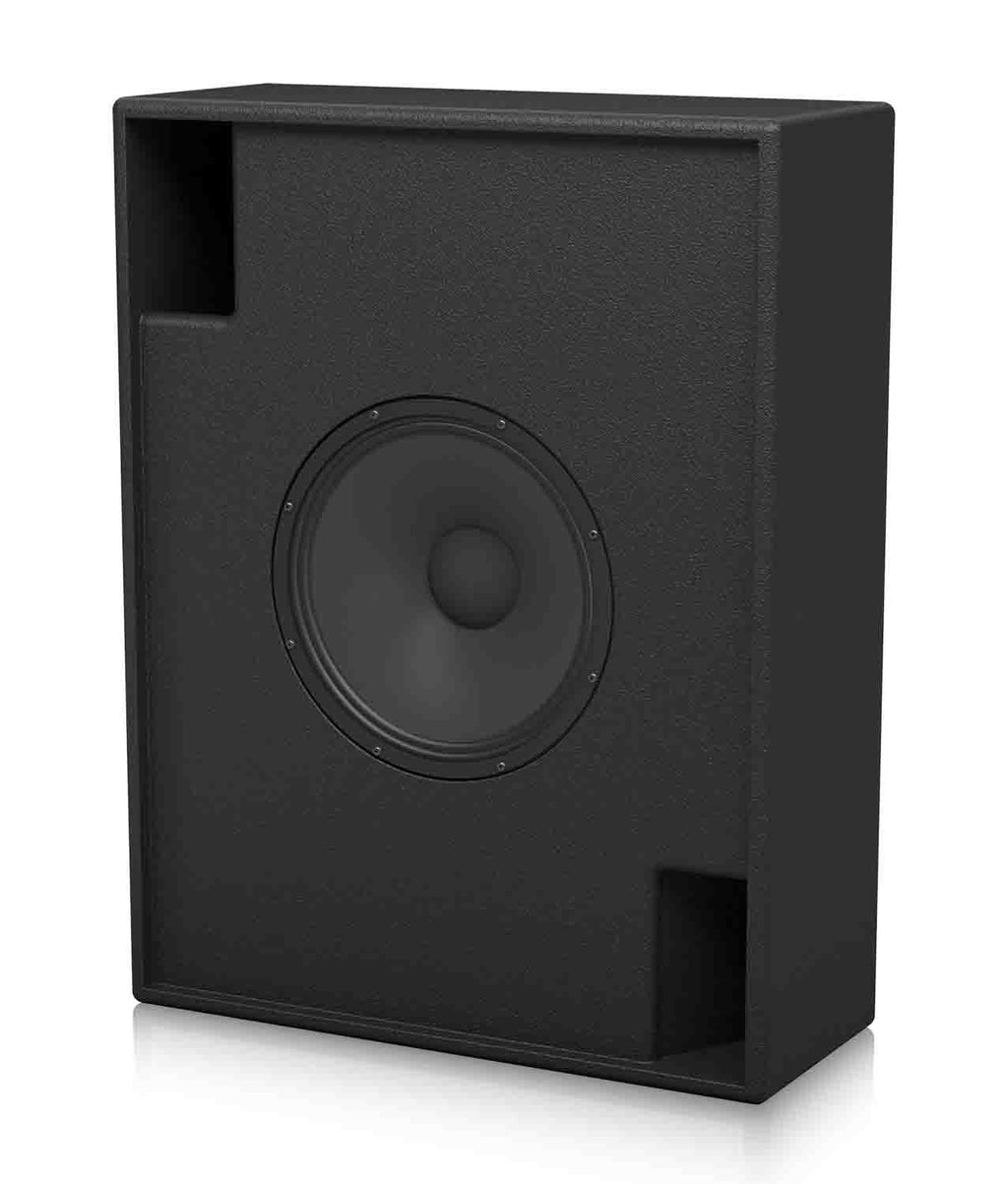

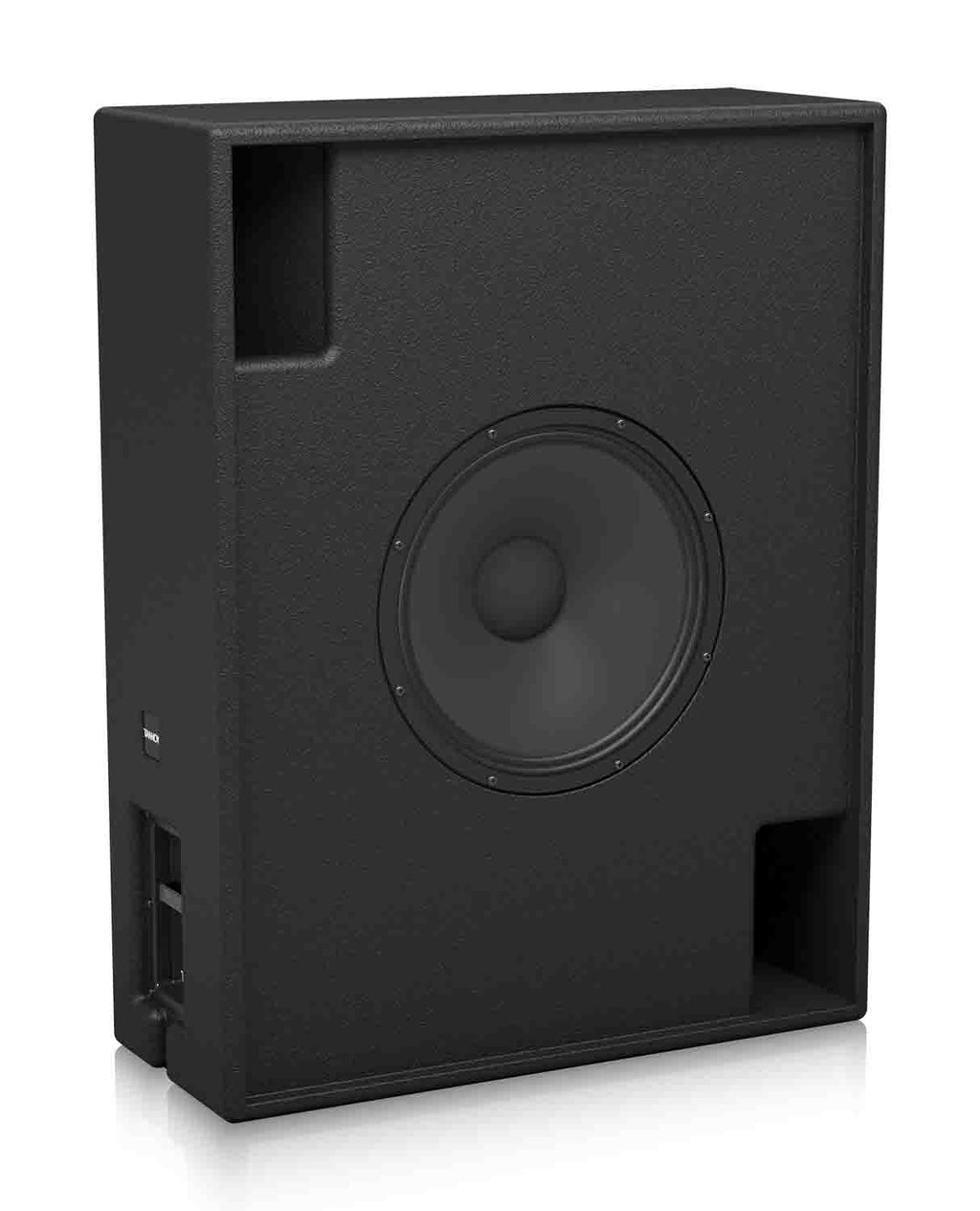

The Tannoy DCS115B Low Profile 15-Inch Subwoofer for Cinema Installation Applications designed specifically for cinema installation applications. DCS115B’s low profile enclosure makes it ideal for mounting behind the cinema viewing screen for the ultimate in discreet subwoofer placement.
A dual ported bass reflex system, the DCS115B features a high powered 15" low frequency driver that provides extended low frequency response to well below 35 Hz for chest-pounding bass. Fast and accurate transient response enables the DCS115B Subwoofer to generate copious quantities of tight low-end output that is virtually distortion-free creating a truly dynamic and immersive experience.
Very Low Profile
Designed specifically for cinema installations, DCS115B’s low profile design allows placement behind viewing screens, or in other locations where a standard size subwoofer would simply be too large. The enclosure’s port design minimizes air disturbance (“huffing”) by slowing the rush of air exiting the port, and rotating the output velocity through 90 degrees. These features converge in a slim form factor that provides nearly twice the power and output of any other subwoofer in this class.
Construction and Connectivity

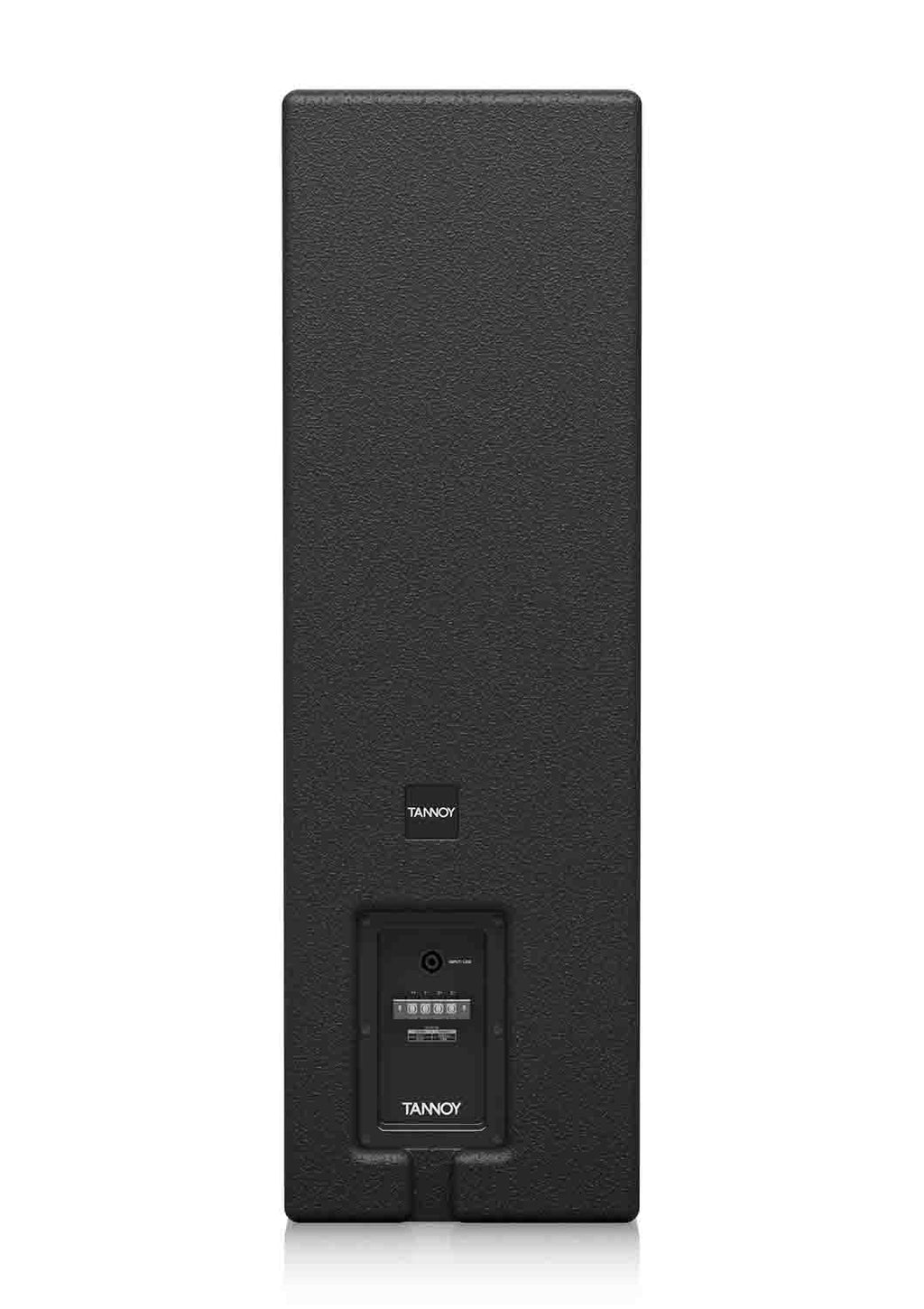

Finished in a hard wearing semi matt black paint, the cabinet is constructed of internally braced plywood, ensuring a lifetime of powerful low frequency effects and sub bass music performance. The rear panel connector plate carries Neutrik speak ON NL4 and barrier strip connectors for input and link connections to accommodate additional subwoofer, or satellite full range loudspeakers.
45 Hz - 250 Hz ±3 dB
36 Hz - 300 Hz -10 dB
Nominal dispersion: Half space
Power handling (IEC): 800 W continuous, 3,200 W peak
Sensitivity: 97 dB (1 W @ 1 m)
Maximum SPL: 126 dB continuous, 132 dB peak
Impedance: 8 Ω
Components: 1 x 15" (387 mm) LF driver
1 x Neutrik speak ON NL4,
1 x barrier strip terminals
Wiring: Pins 1+ / 1- input, pins 2+ / 2- link
Shipping Dimensions: 12 × 30 × 40 in
Shipping Weight: 90 lbs
