Tannoy DVS 4T (EN 54), 4-Inch Coaxial Surface-Mount Loudspeaker with Transformer for Installation Applications

The Tannoy DVS 4T (EN 54), 4-Inch Coaxial Surface-Mount Loudspeaker with Transformer for Installation Applications designed to excel in a wide variety of sound reinforcement applications, the full range DVS 4T (EN 54) is an ultra-compact 160-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 4T (EN 54) is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship. EN 54-24 certification for fire detection and fire alarm systems makes the DVS 4T (EN 54) the perfect choice where safety is a top priority.

Superb Point – Source Performance

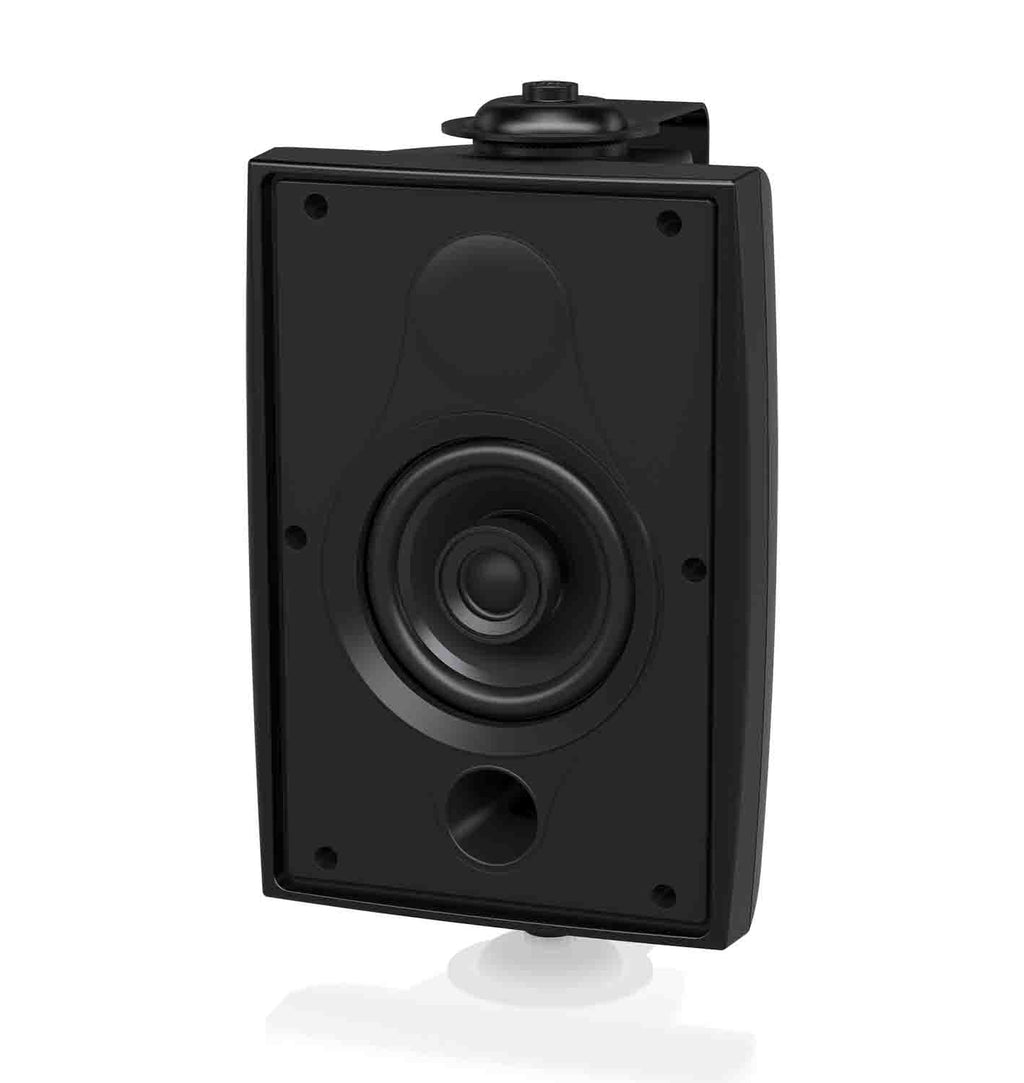

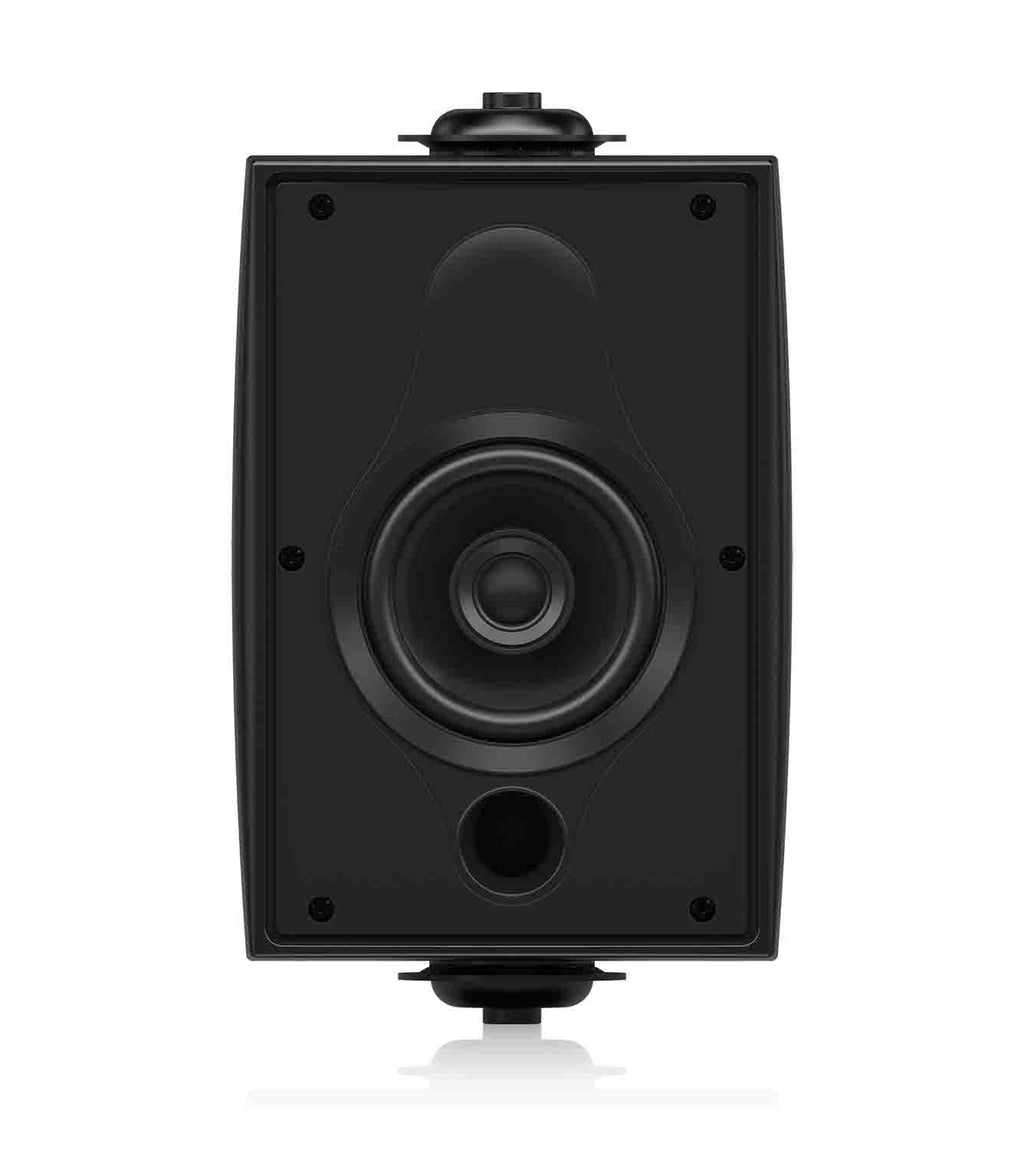

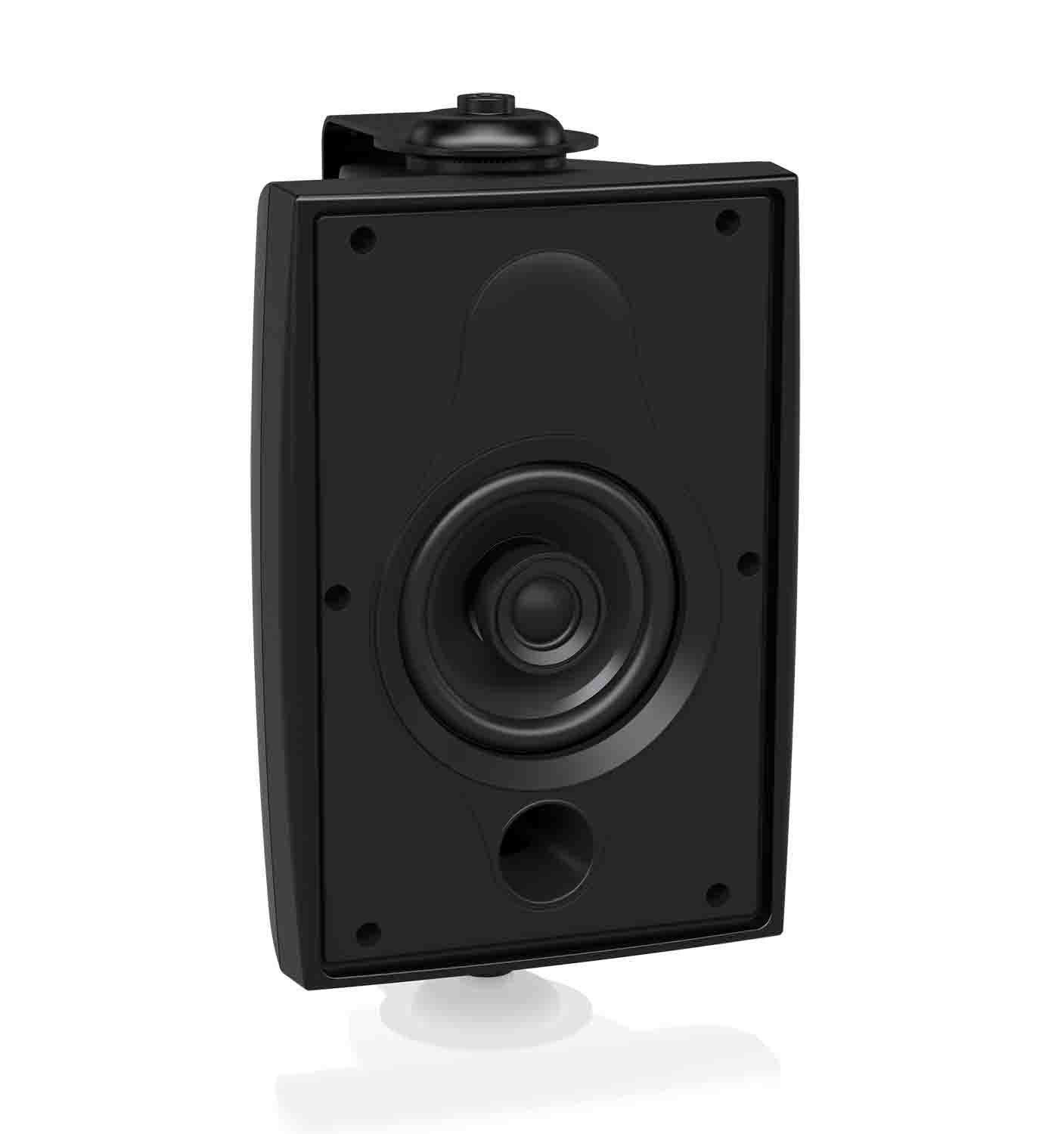

DVS 4T (EN 54)’s point-source design comprises a 100 mm (4.00") mid bass driver with a coaxially mounted 19 mm (0.75") high frequency section mounted in a stylish injection molded ABS enclosure. Certified for water and dust ingress protection to IP64 standard, the DVS 4T (EN 54) is an exceptional choice for challenging environments such as indoor swimming pools, saunas, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.

Attractive and Easy to Install

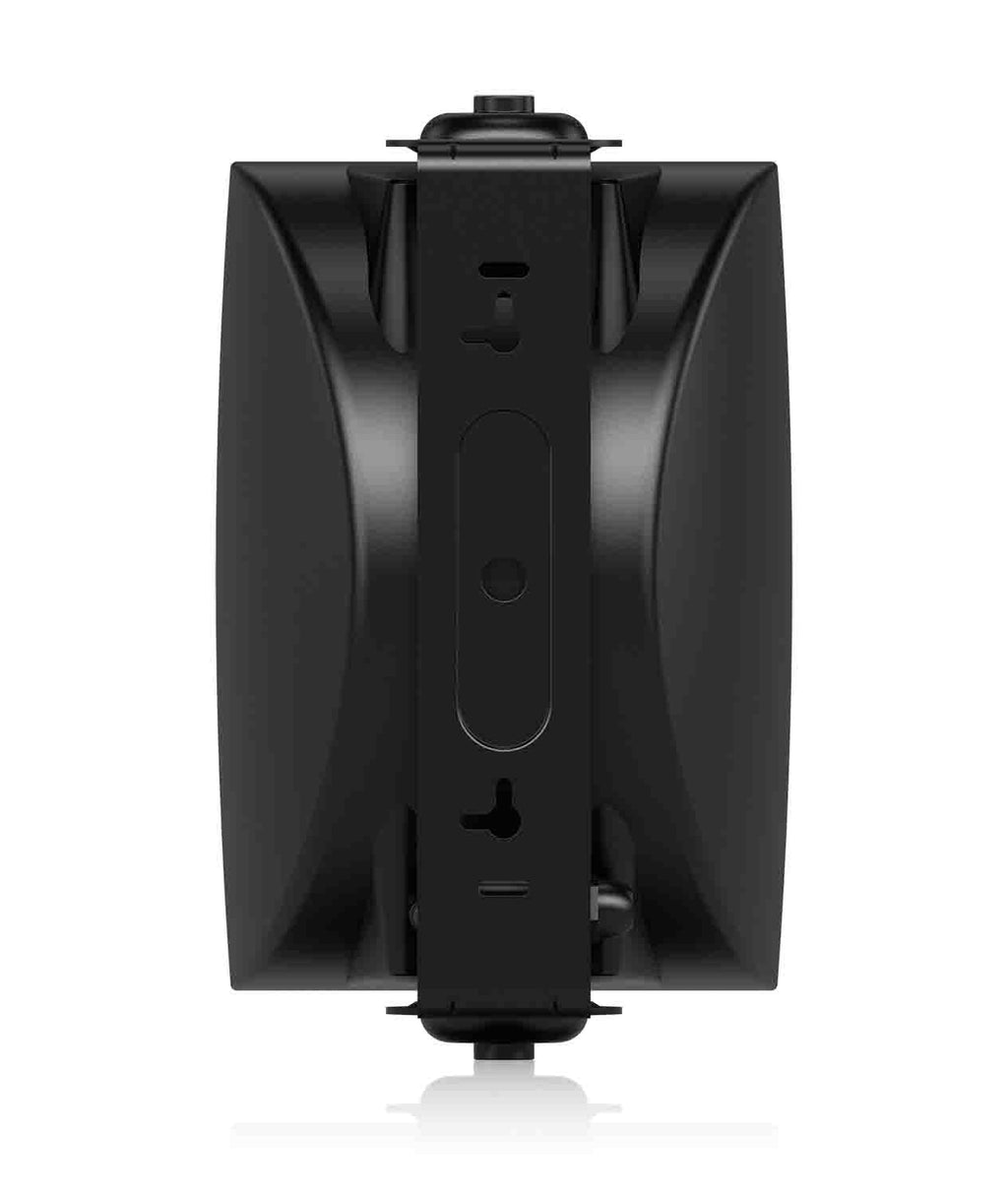

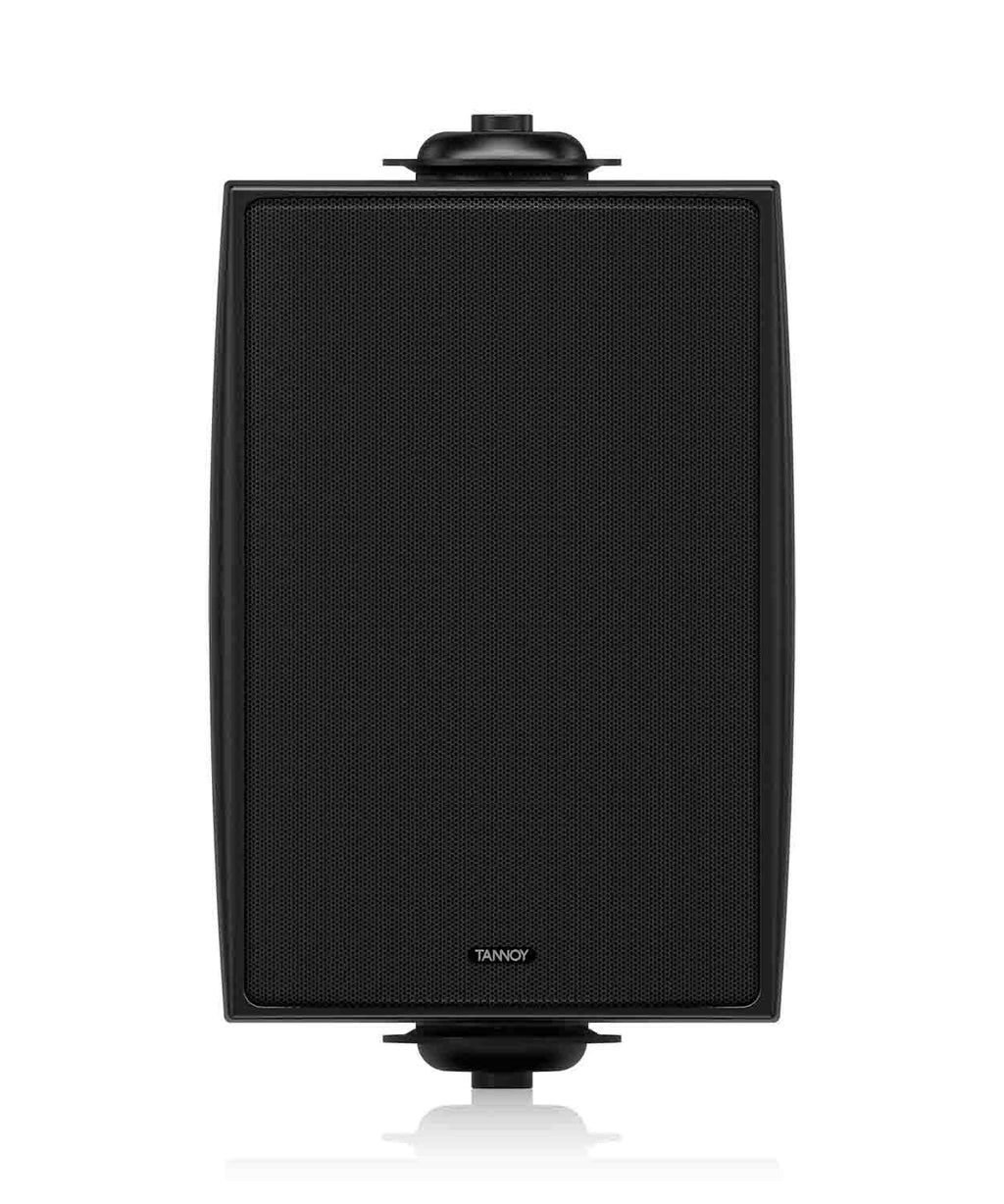

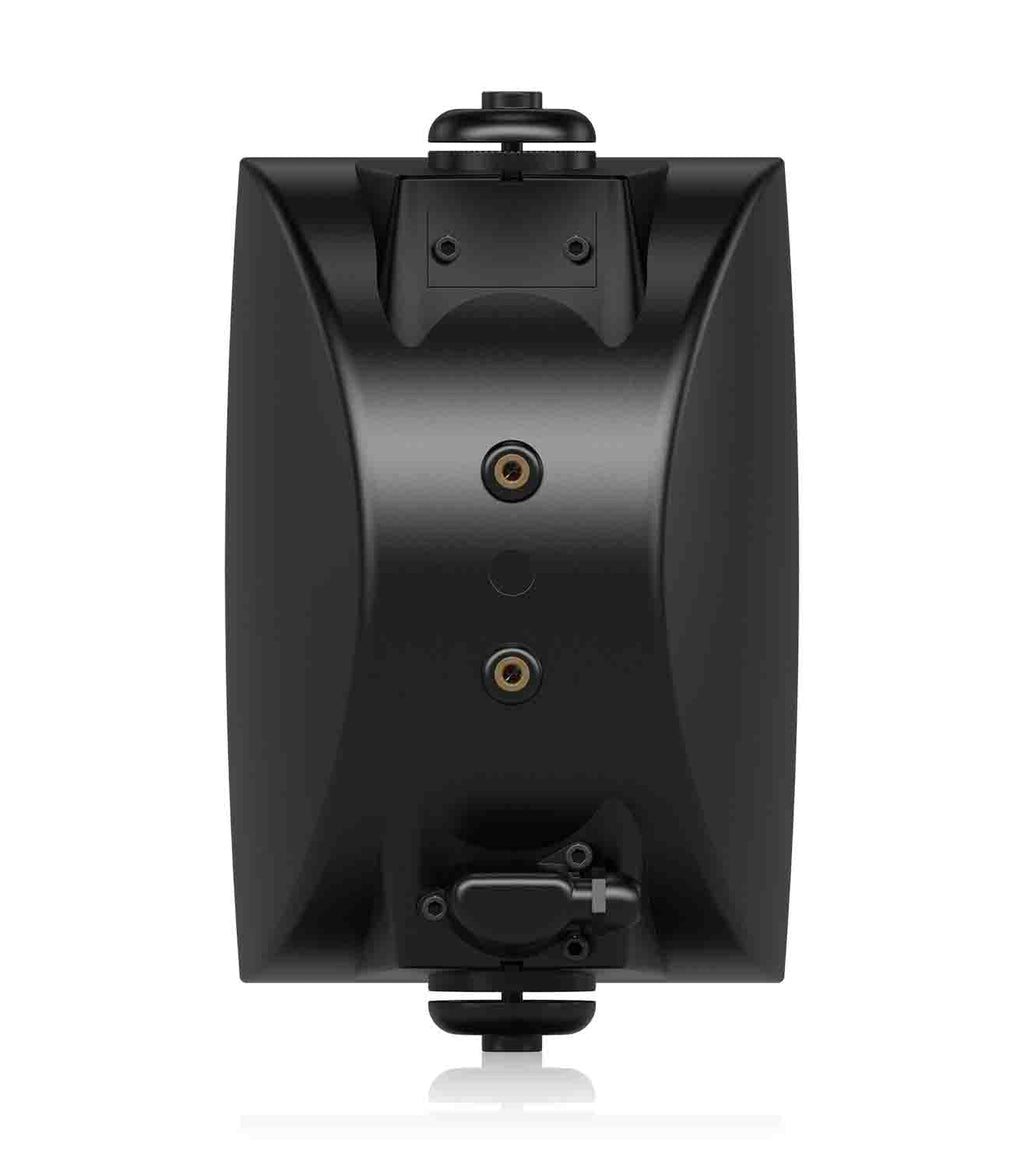

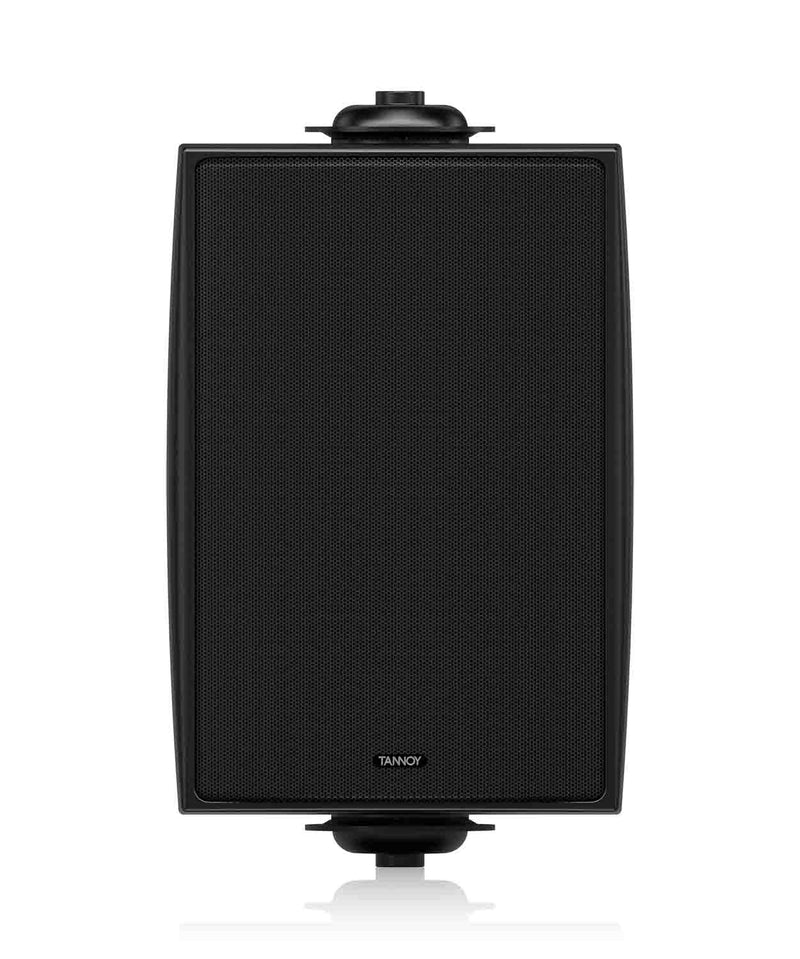

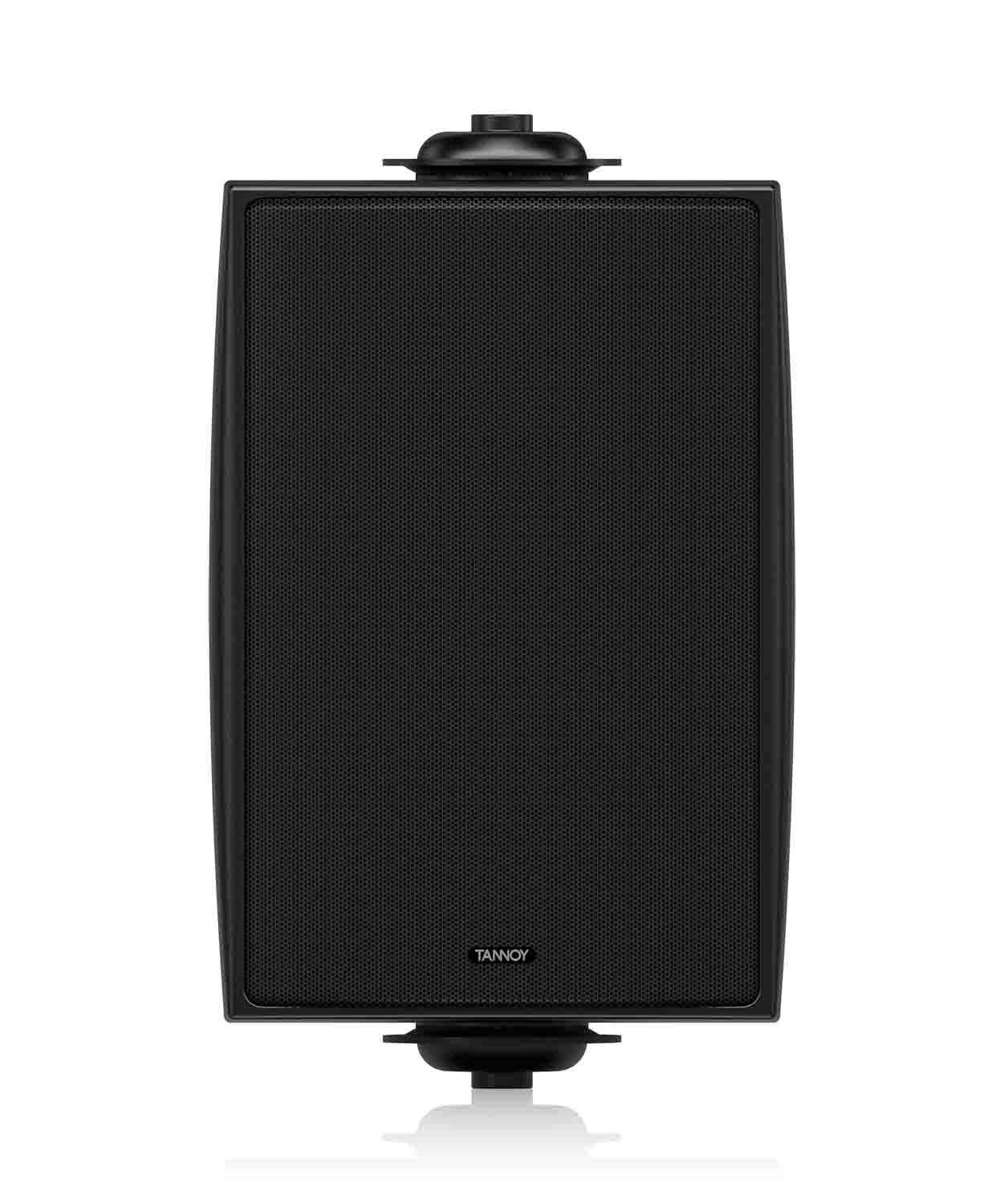

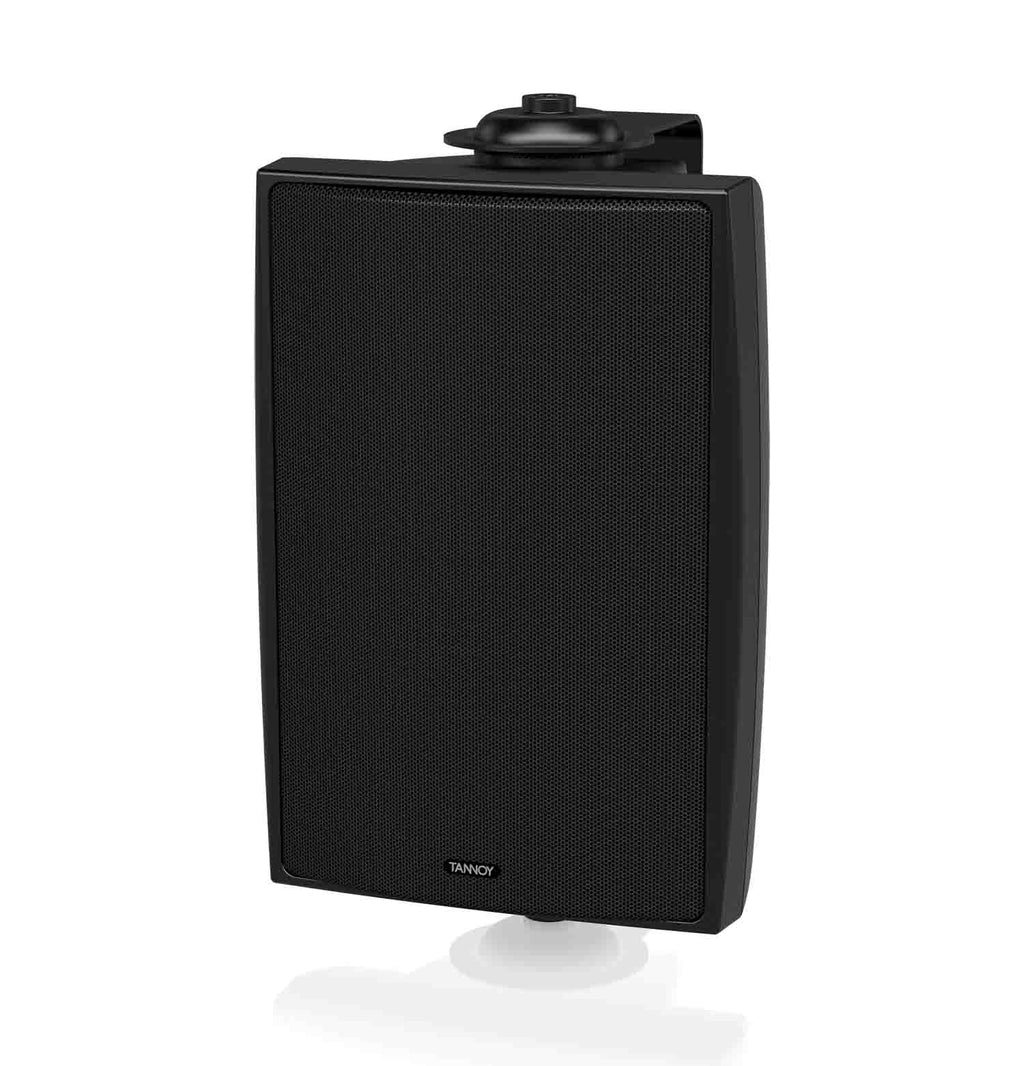

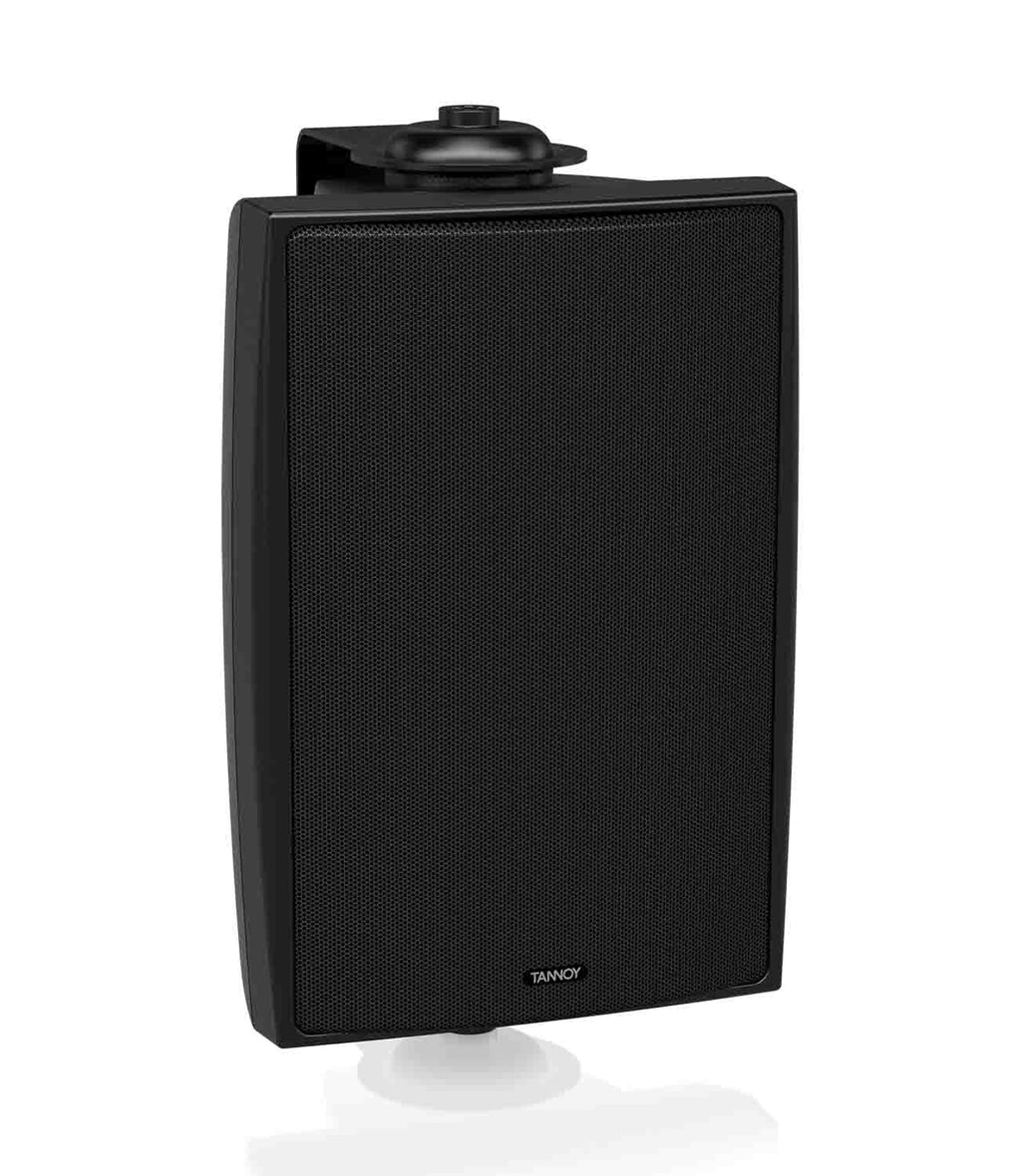

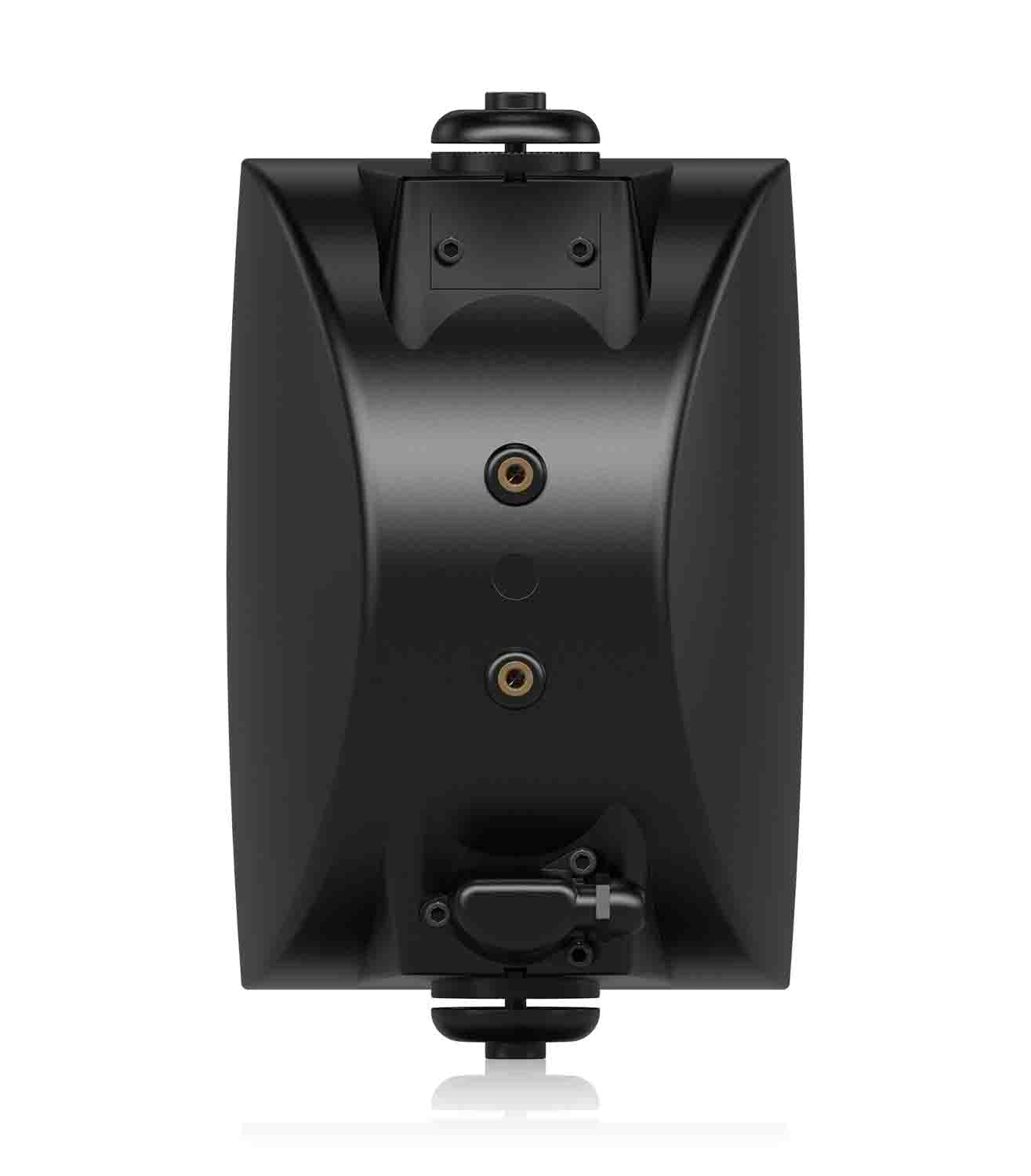

The highly durable and scuff resistant ABS enclosure features a semi mat black painted finish, and comes with an aesthetically pleasing aluminum grille. Installation is quick and easy, thanks to the included color-matched steel mounting bracket and finger-adjustable hardware on the enclosure top and bottom. Additionally, two threaded inserts are provided on the back of the cabinet, which are compatible with industry standard brackets. Phoenix* I/O connectors with ABS cover and EN 54 compliant strain relief clamping mechanism for fire rated cable are provided for added convenience.

Product Specifications

Frequency response (-3 dB): 75 Hz – 20 kHz

Frequency response (-10 dB): 60 Hz – 30 kHz

Rated sensitivity (1 W, Lo Z): 84 dB

Sensitivity as per EN54<br /> (4 m, through transformer): 70 dB

Directivity factor (Q): 6.5 averaged 1 kHz to 10 kHz

Directivity index (DI): 5.3 averaged 1 kHz to 10 kHz

Average: 40 W

Programme: 80 W

Peak: 160 W

Recommended amplifier power: 80 W @ 6 Ω

Nominal Impedance (Lo Z): 6 Ω

Maximum SPL as per EN54<br /> (4 m, through transducer): 85 dB

Average: 100 dB

Peak: 106 dB

Enclosure: ABS

Grille: Aluminum, painted

Transformer setting: Rotary switch

Dimensions: 11 x 7 x 7"

Shipped weight:  8 lbs
