Description
The Tannoy DVS 6-WH, 6-Inch Coaxial Surface-Mount Loudspeaker - White designed to excel in a wide variety of sound reinforcement applications, the full range DVS 6-WH is an ultra-compact 240-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 6-WH is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.
Superb Point-Source Performance

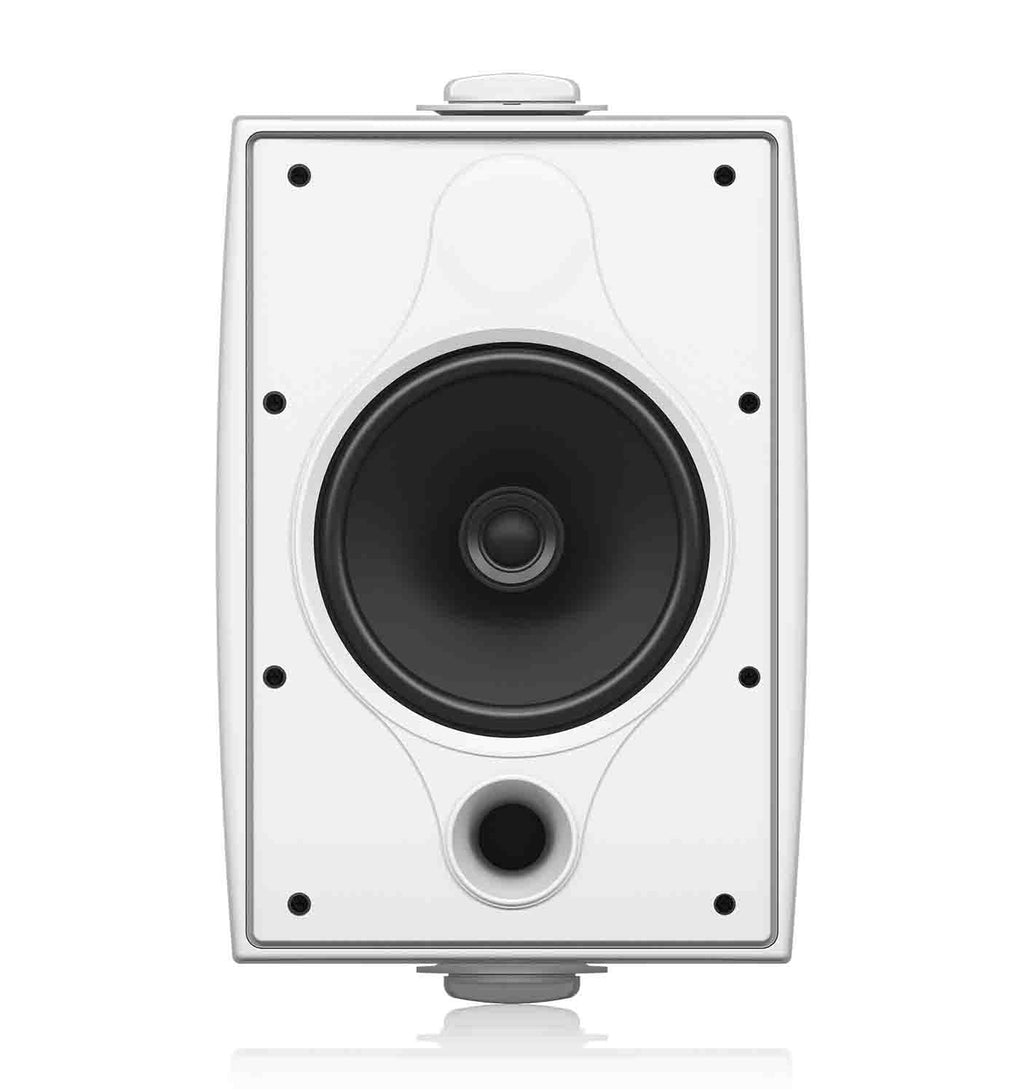

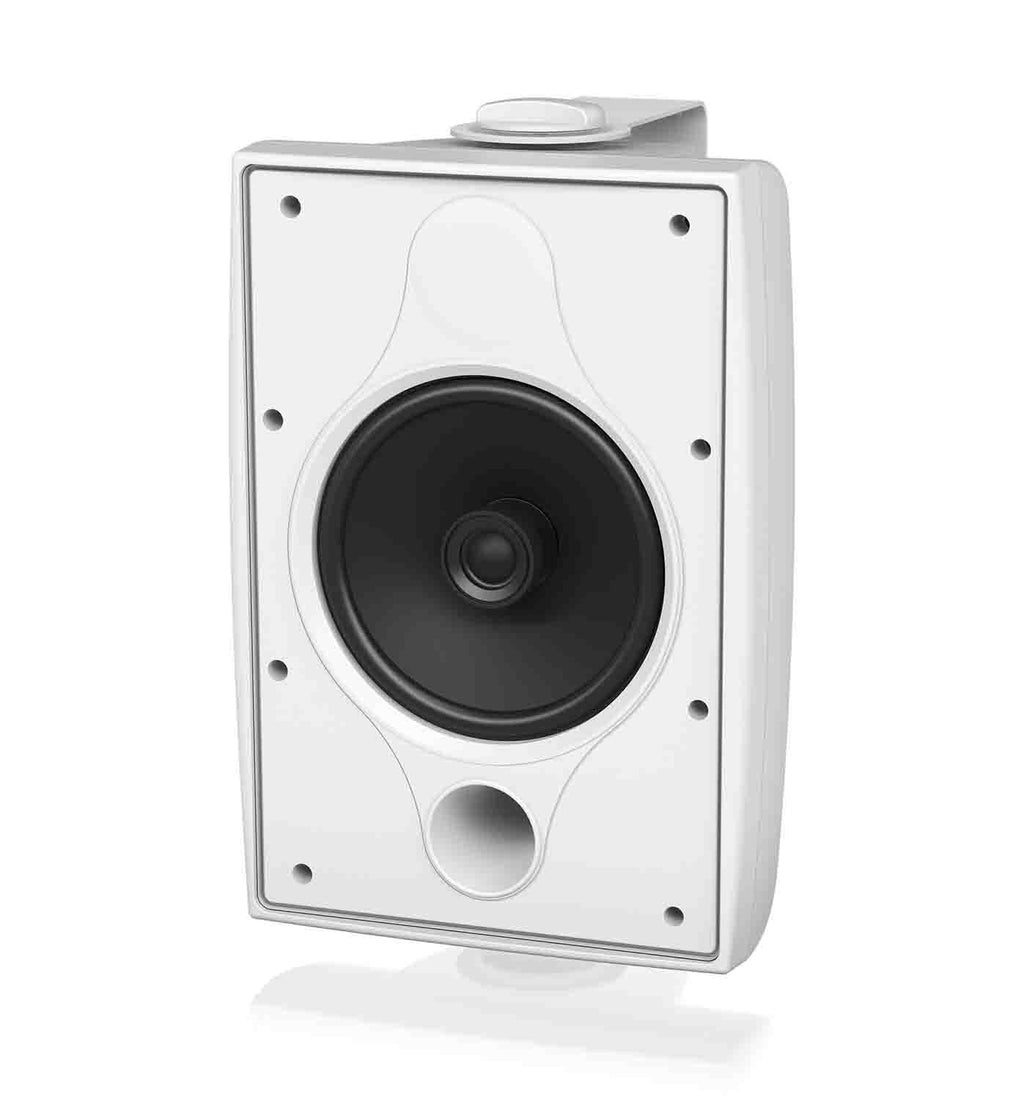

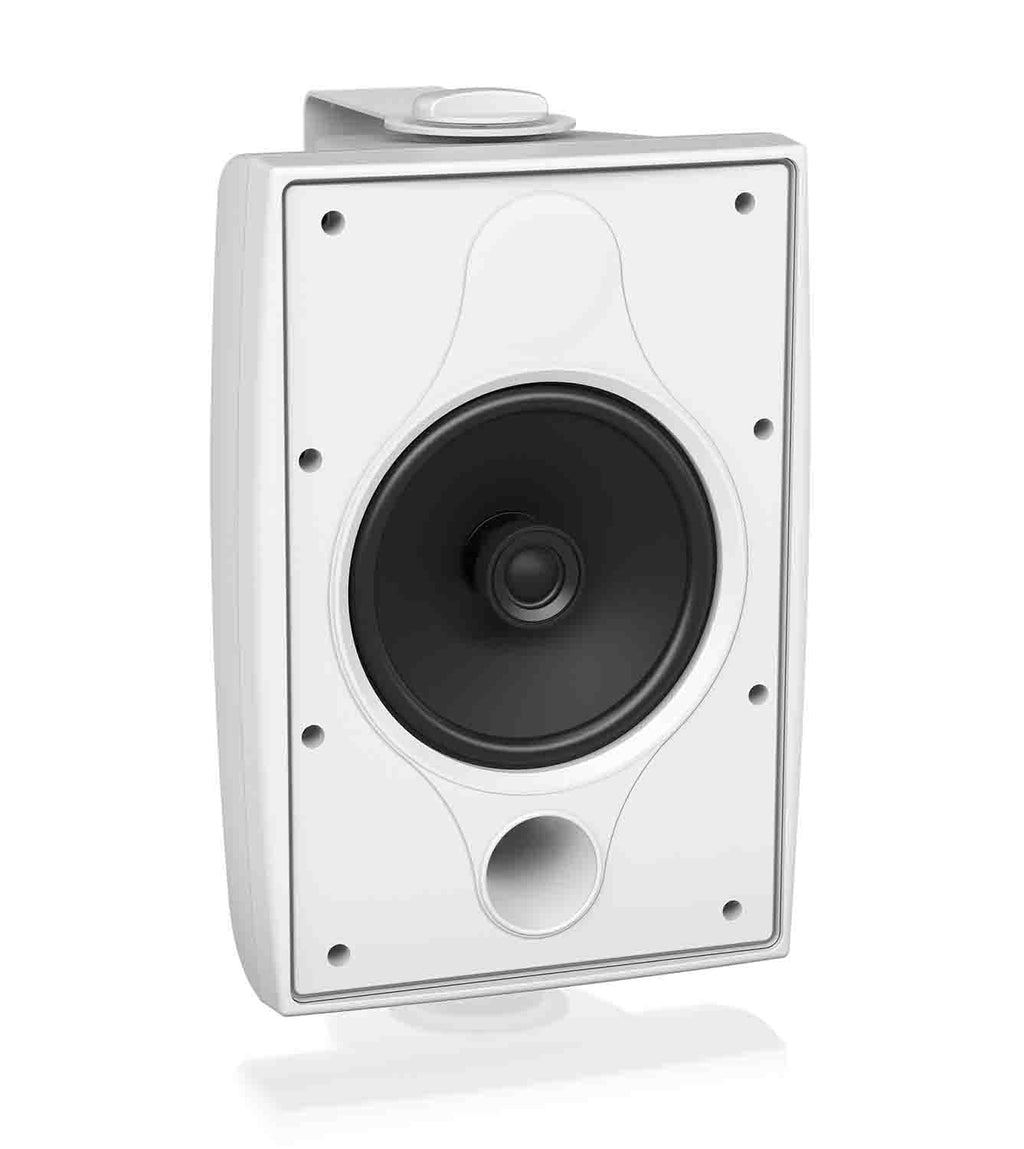

DVS 6-WH’s point-source design comprises a 150 mm (6.00”) mid bass driver with a coaxially mounted 19 mm (0.75") high frequency section mounted in a stylish injection molded ABS enclosure. Certified for water and dust ingress protection to IP64 standard, the DVS 6-WH is an exceptional choice for challenging environments such as indoor swimming pools, saunas, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.
Attractive and Easy to Install

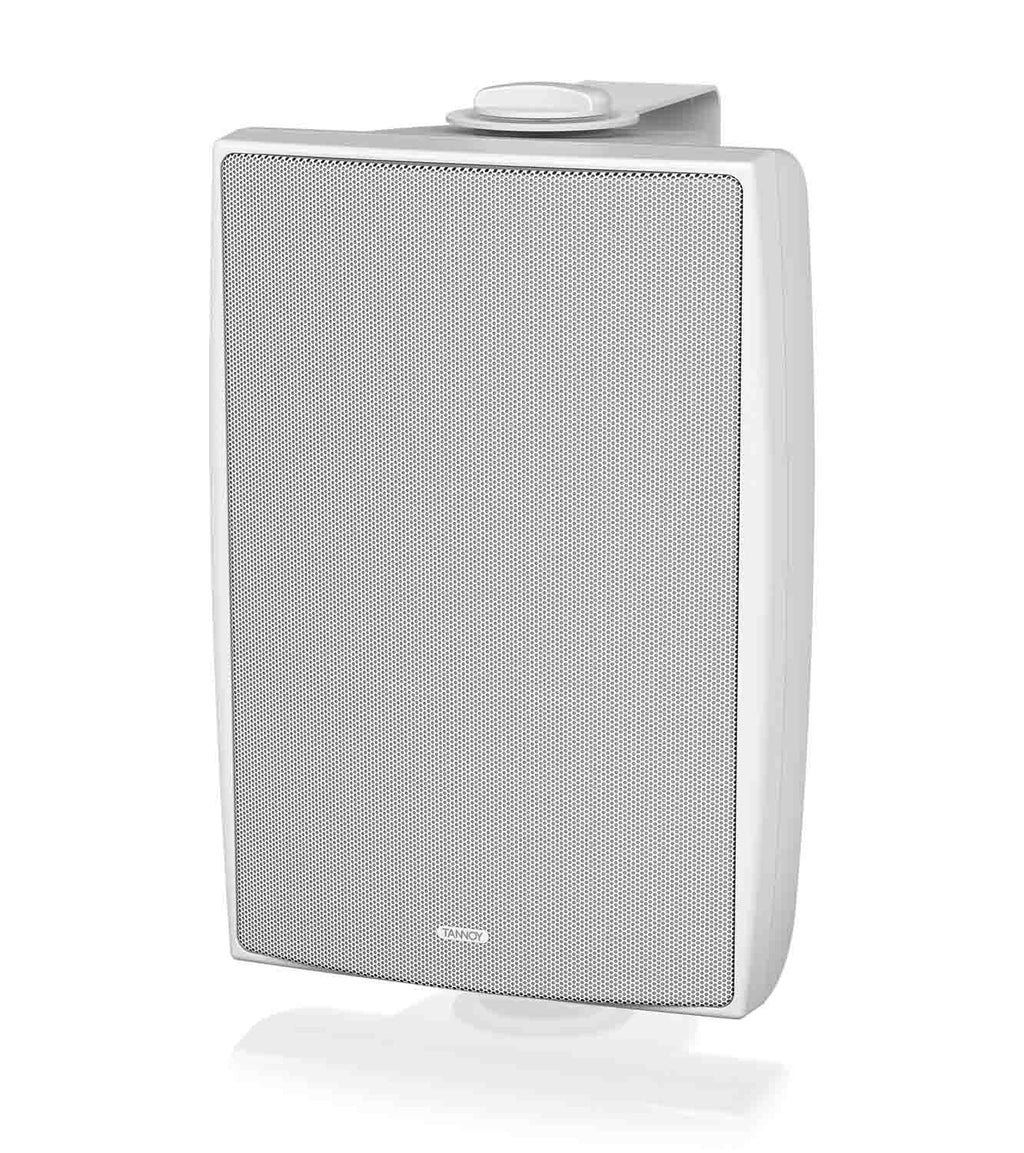

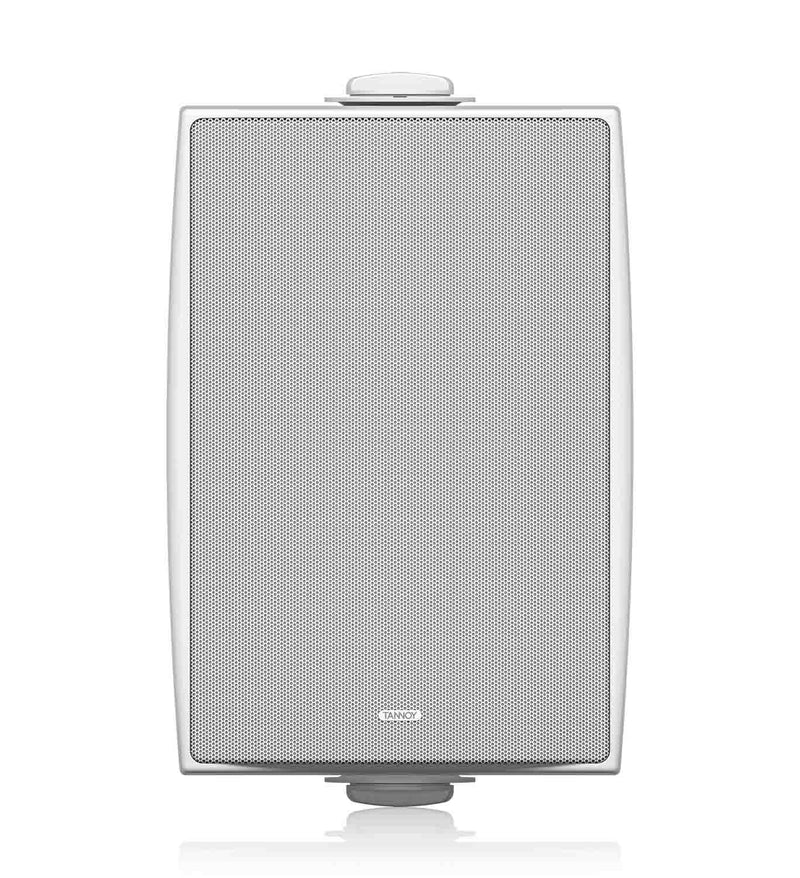

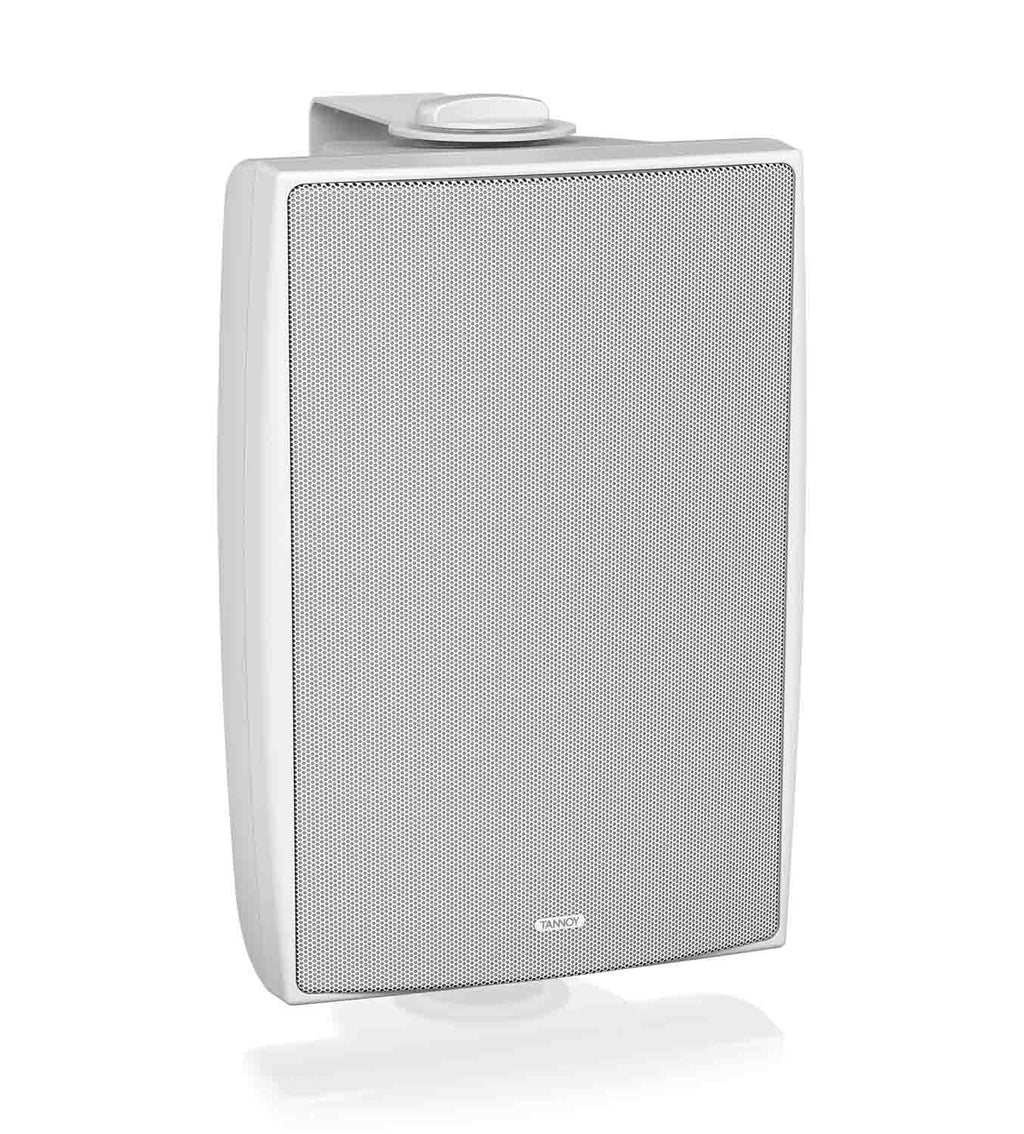

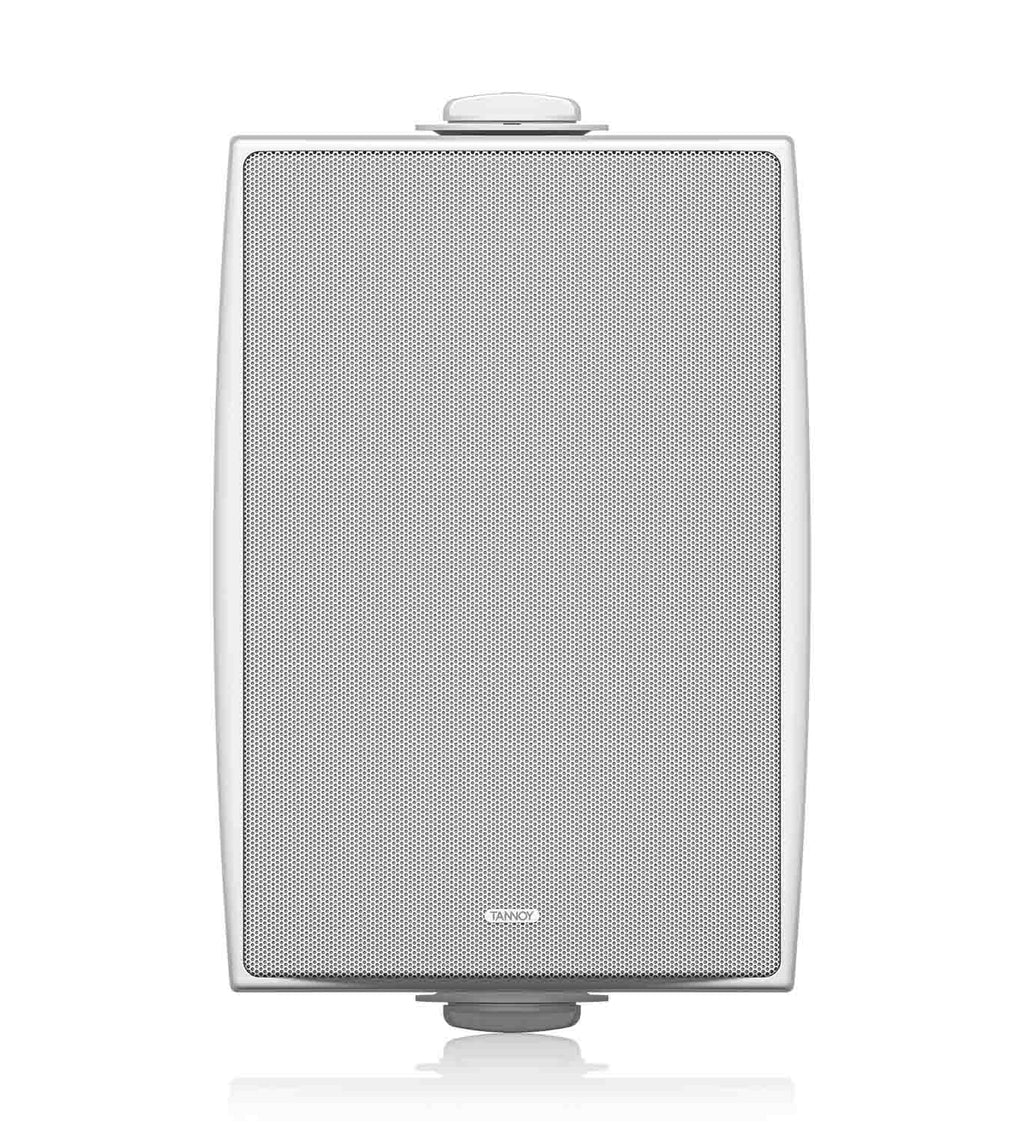

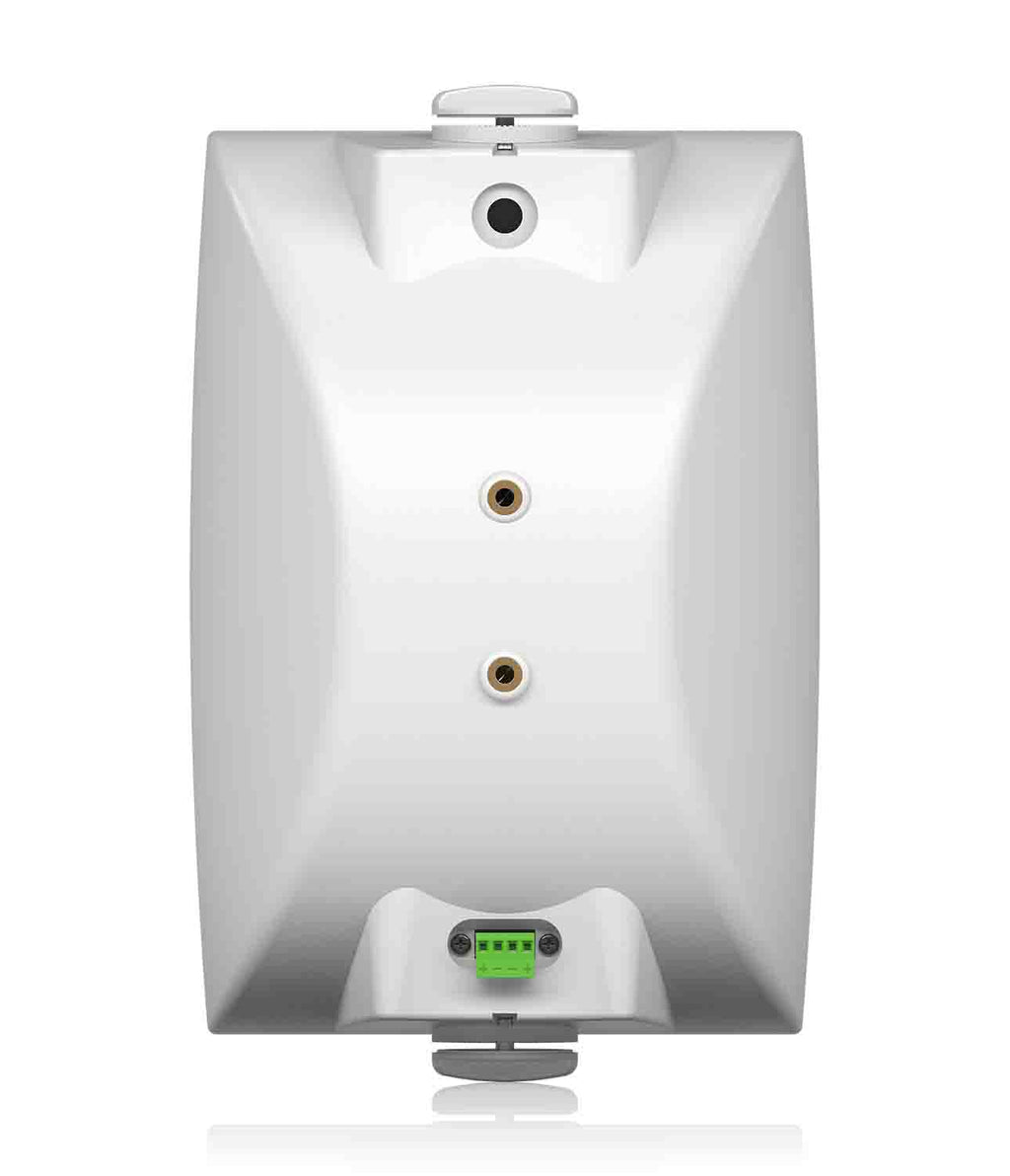

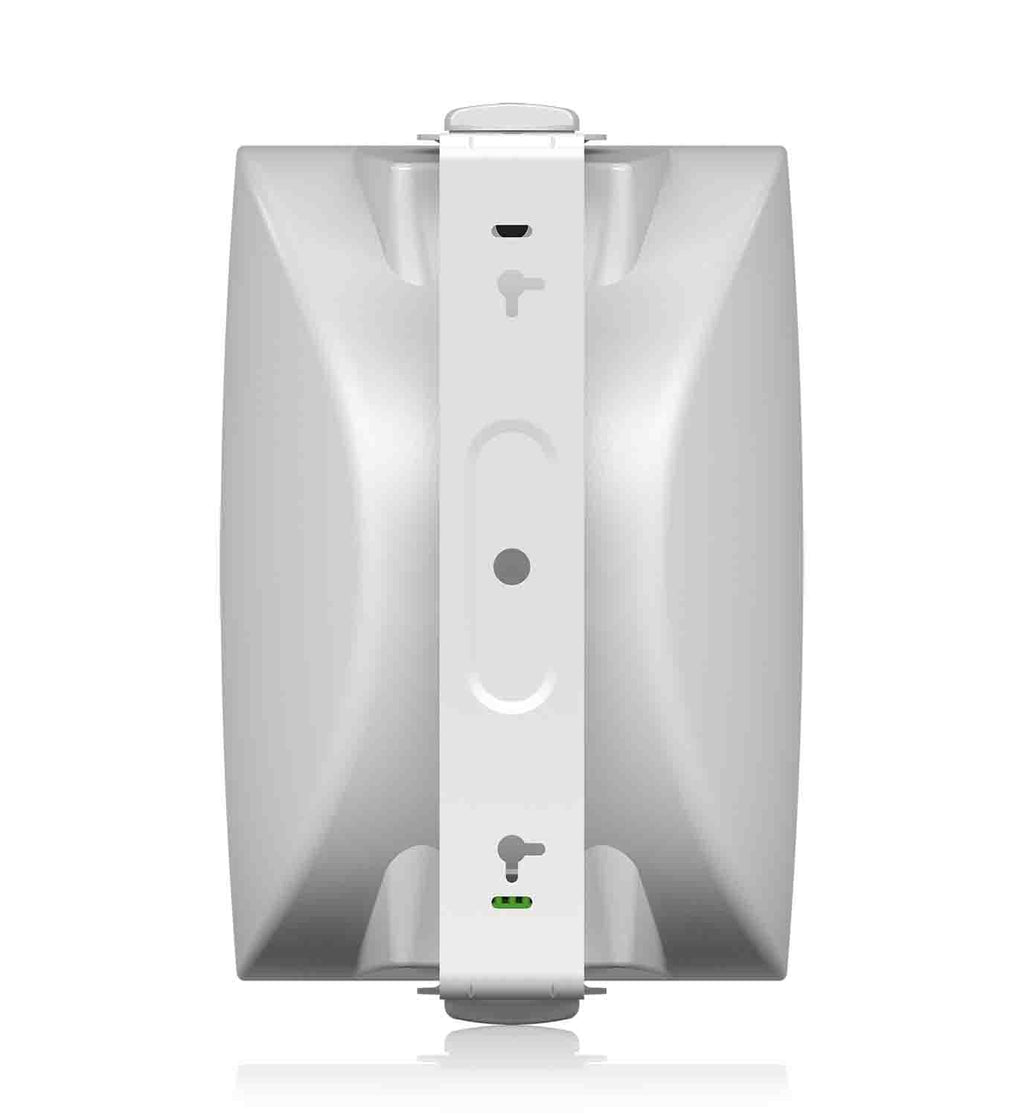

The highly durable and scuff resistant ABS enclosure features a white painted finish, and comes with an aesthetically pleasing aluminum grille. Installation is quick and easy, thanks to the included color matched steel mounting bracket and finger-adjustable hardware on the enclosure top and bottom. Phoenix connectors for input and link output are provided for convenience.
Product Specifications
Frequency response (-3 dB)1: 80 Hz - 20 kHz
Frequency response (-10 dB)1: 65 Hz - 30k Hz
System sensitivity (1 W @ 1 m)2: 88 dB
Dispersion (-6 dB): 90 degrees conical
Transducers: Coaxial
Low frequency: 165mm (6.5") mineral loaded cone material
High frequency: 20 mm (0.79)
Crossover: 4.3 kHz - 2nd order LF, 2nd order HF
Directivity (Q): 10.6 averaged 1 kHz to 10 kHz
Directivity (DI): 9.6 averaged 1 kHz to 10 kHz
Rated maximum SPL 2
105 dB (average)
111 dB (peak)
Maximum wire gauge for connector: 2.5 mm CSA (AWG12)
Safety Agency Ratings: UL-1480, CE
Average: 60 W
Programme: 120 W
Peak: 240 W
Recommended amplifier power: 120 W @ 6 Ohms
Nominal impedance: 6 Ohms
Enclosure: ABS
Grille: Aluminum, painted
Dimensions: 9 × 9 × 14 in
Weight: 20 lbs
