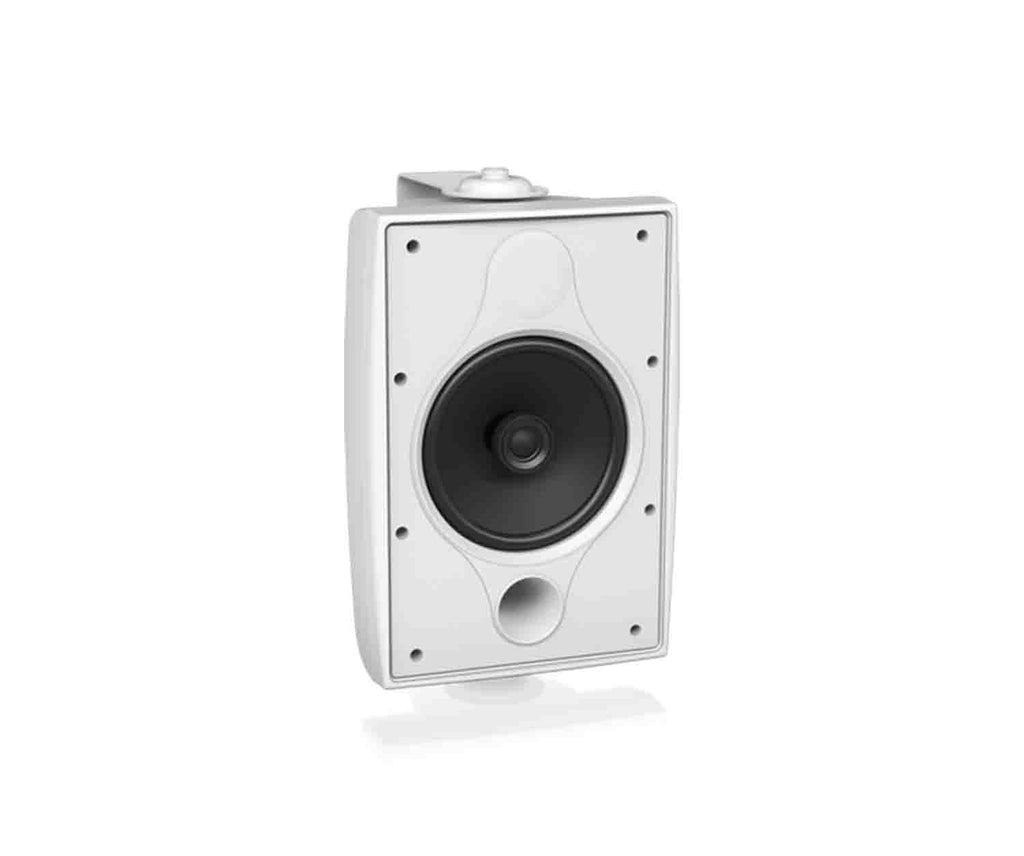

Tannoy DVS 6T (EN 54)-WH, 6-InchCoaxial Surface-Mount Loudspeaker - White

The Tannoy DVS 6T (EN 54)-WH, 6-InchCoaxial Surface-Mount Loudspeaker – White is Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 6T (EN 54)-WH is an ultra-compact 240-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 6T (EN 54)-WH is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship. EN 54-24 certification for fire detection and fire alarm systems makes the DVS 6T (EN 54)-WH the perfect choice where safety is a top priority

Superb Point-Source

DVS 6T (EN 54)-WH’s point-source design comprises a 150 mm (6.00") mid bass driver with a coaxially mounted 19 mm (0.75") high frequency section mounted in a stylish injection moulded ABS enclosure. Certified for water and dust ingress protection to IP64 standard, the DVS 6T (EN 54)-WH is a exceptional choice for challenging environments such as indoor swimming pools, saunas, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.

Attractive and Easy to Install

The highly durable and scuff resistant ABS enclosure features a semi mat white painted finish, and comes with an aesthetically pleasing aluminium grille. Installation is quick and easy, thanks to the included colour-matched steel mounting bracket and finger-adjustable hardware on the enclosure top and bottom. Additionally, two threaded inserts are provided on the back of the cabinet, which are compatible with industry standard brackets. Phoenix* I/O connectors with ABS cover and EN 54 compliant strain relief clamping mechanism for fire rated cable are provided for added convenience.

Product Specifications:

Frequency Response (-3 Db): 80 Hz – 20 Khz

Frequency Response (-10 Db): 65 Hz – 30 Khz

Rated Sensitivity (1 W, Lo Z): 88 Db

Directivity Factor (Q): 10.6 Averaged 1 Khz To 10 Khz

Directivity Index (Di): 9.6 Averaged 1 Khz To 10 Khz

Power Handling: Average 60 W

Programme: 120 W

Peak: 240 W

Recommended Amplifier Power: 120 W @ 6 Ω

Nominal Impedance (Lo Z): 6 Ω

Rated Maximum Spl (1 M, Lo Z): Average 105 Db

Peak: 111 Db

Crossover Point: 4.3 Khz – 2nd Order Lf, 2nd Order Hf

Coverage Angles: 500 Hz 360° Horizontal, 288° Vertical

1 Khz 167° Horizontal, 141° Vertical

2 Khz 99° Horizontal, 109° Vertical

4 Khz 74° Horizontal, 74° Vertical

Transducer:

Low Frequency: 150 Mm (6") Mineral Loaded Cone Material

High Frequency: 19 Mm (0.75") Coaxially Mounted

Physical Enclosure: Abs

Grille: Aluminium, Painted

Transformer Setting: Rotary Switch

Connectors: Removable Locking Connector with Screw Terminals With “Loop Through” Facility

Included Accessories: Yoke Bracket

Packed Quantity: 2

Net Weight: 4.8 Kg (10.6 Lbs)

Dimensions H X W X D: (14 X 9 X 9")

Shipped Weight: (12 Lbs)
