Description
The Tannoy DVS 8T-WH, 8-Inch Coaxial Surface-Mount Loudspeaker with Transformer - White designed to excel in a wide variety of sound reinforcement applications, the full range DVS 8T-WH is an ultra-compact 280-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 8T-WH is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.
Superb Point-Source Performance

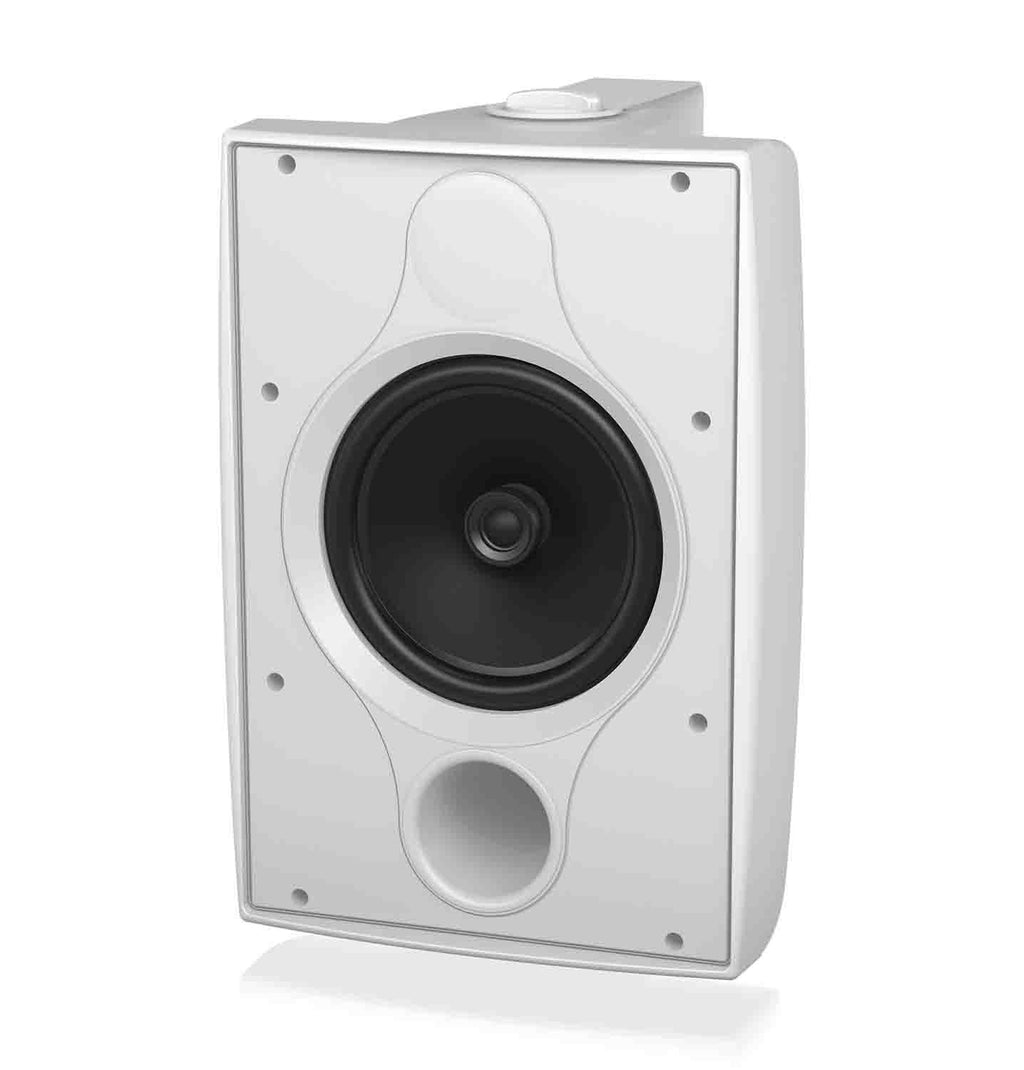

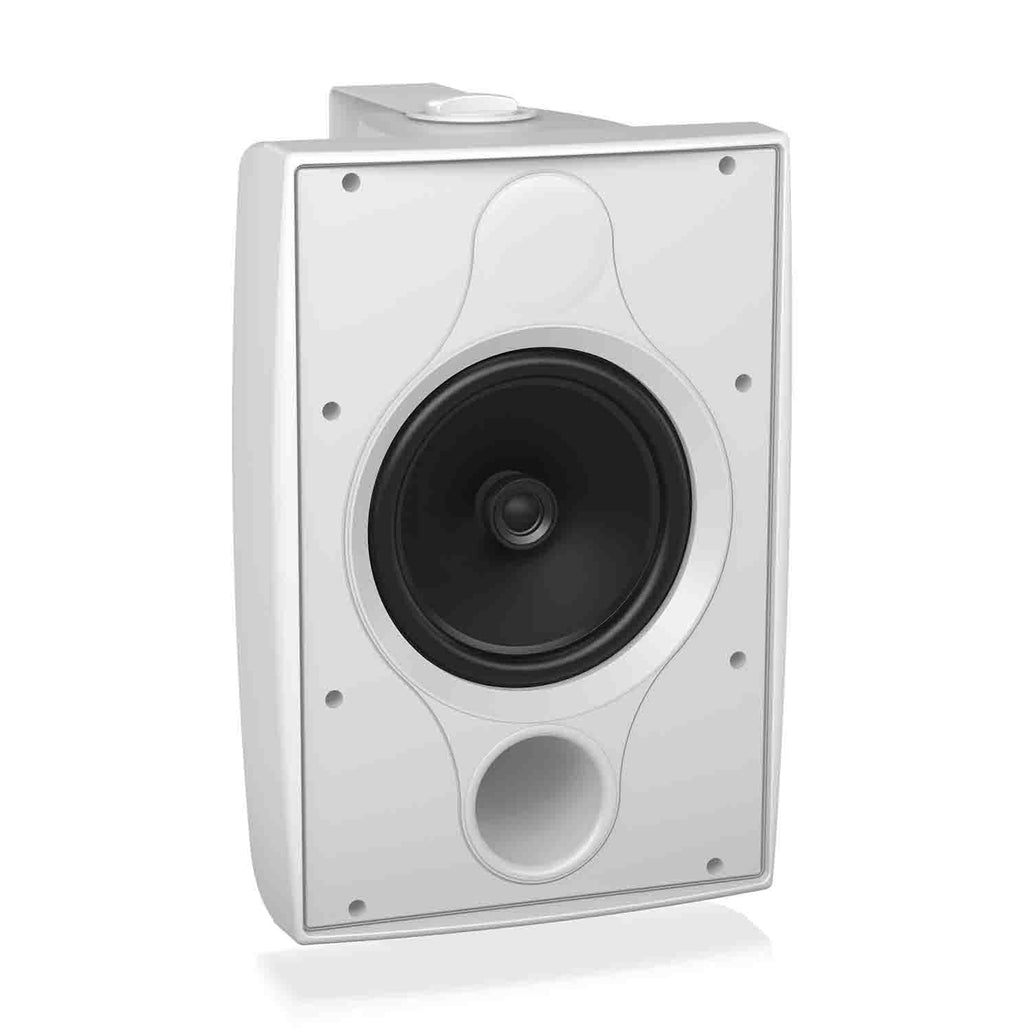

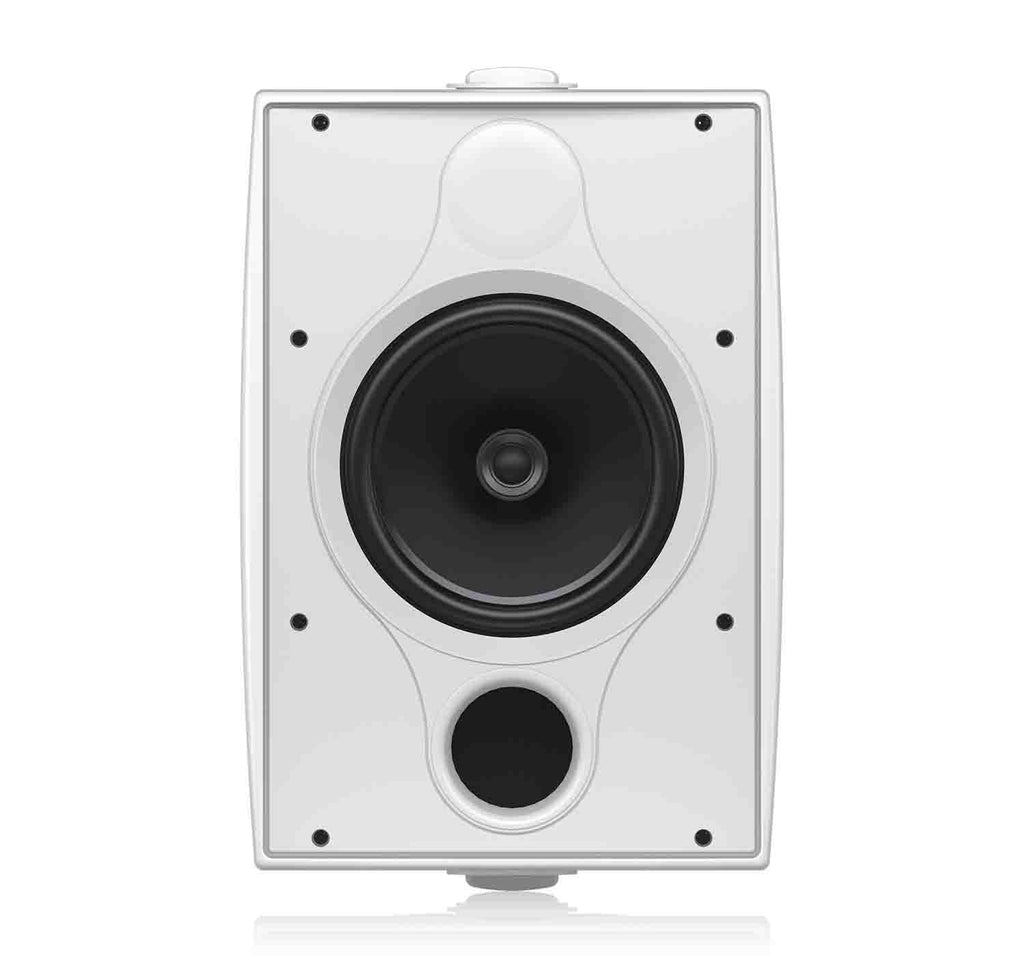

DVS 8T-WH’s point-source design comprises a 200 mm (8.00") mid bass driver with a coaxially mounted 19 mm (0.75") high frequency section mounted in a stylish injection molded ABS enclosure. Certified for water and dust ingress protection to IP64 standard, the DVS 8T-WH is an exceptional choice for challenging environments such as indoor swimming pools, saunas, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.
Attractive and Easy to Install

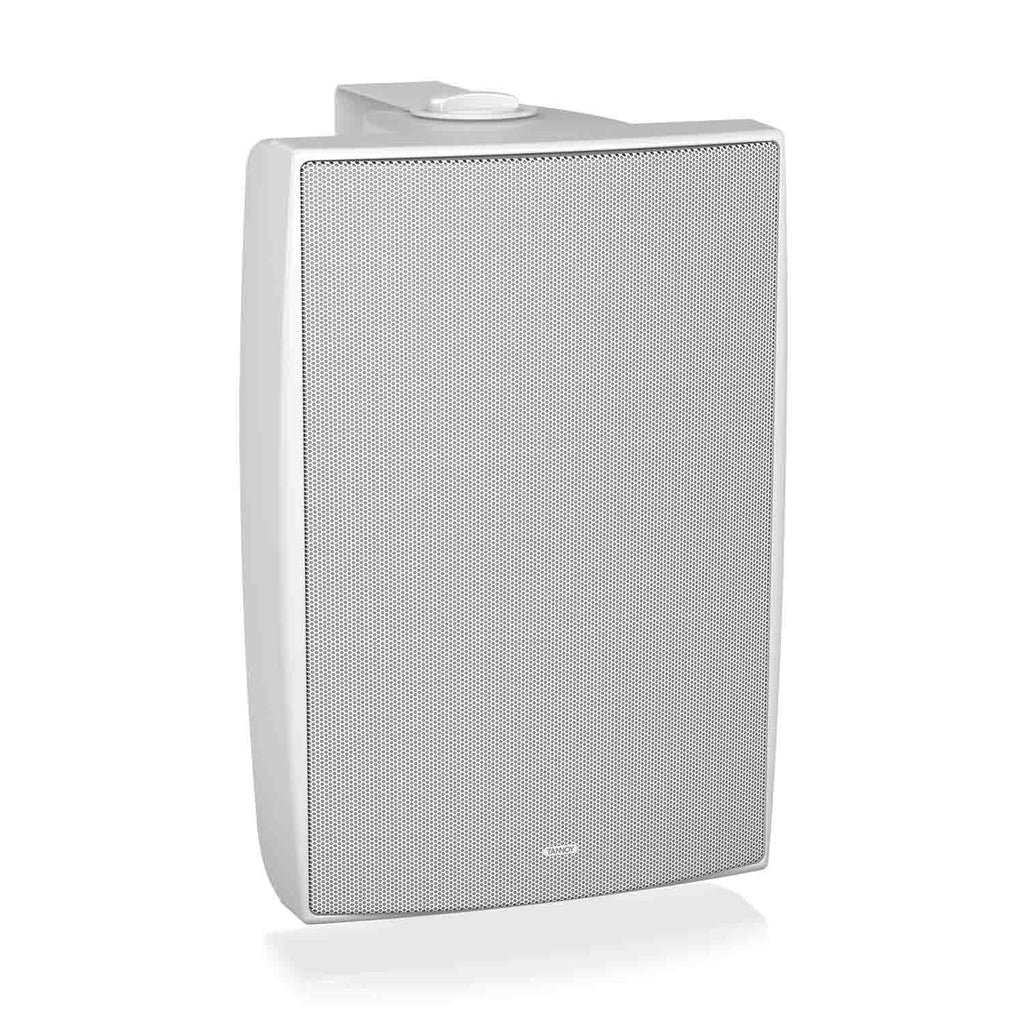

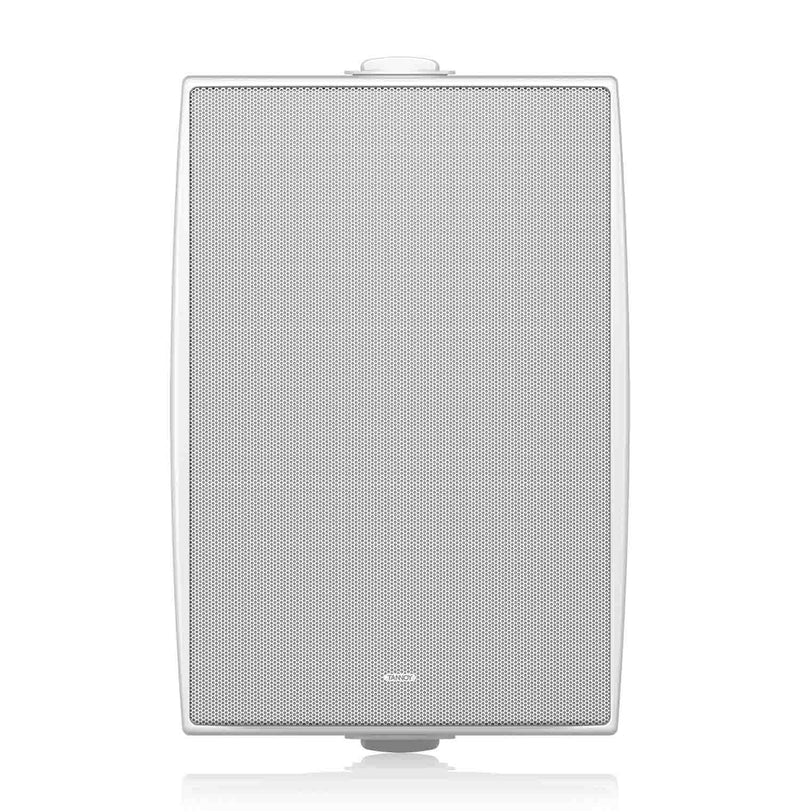

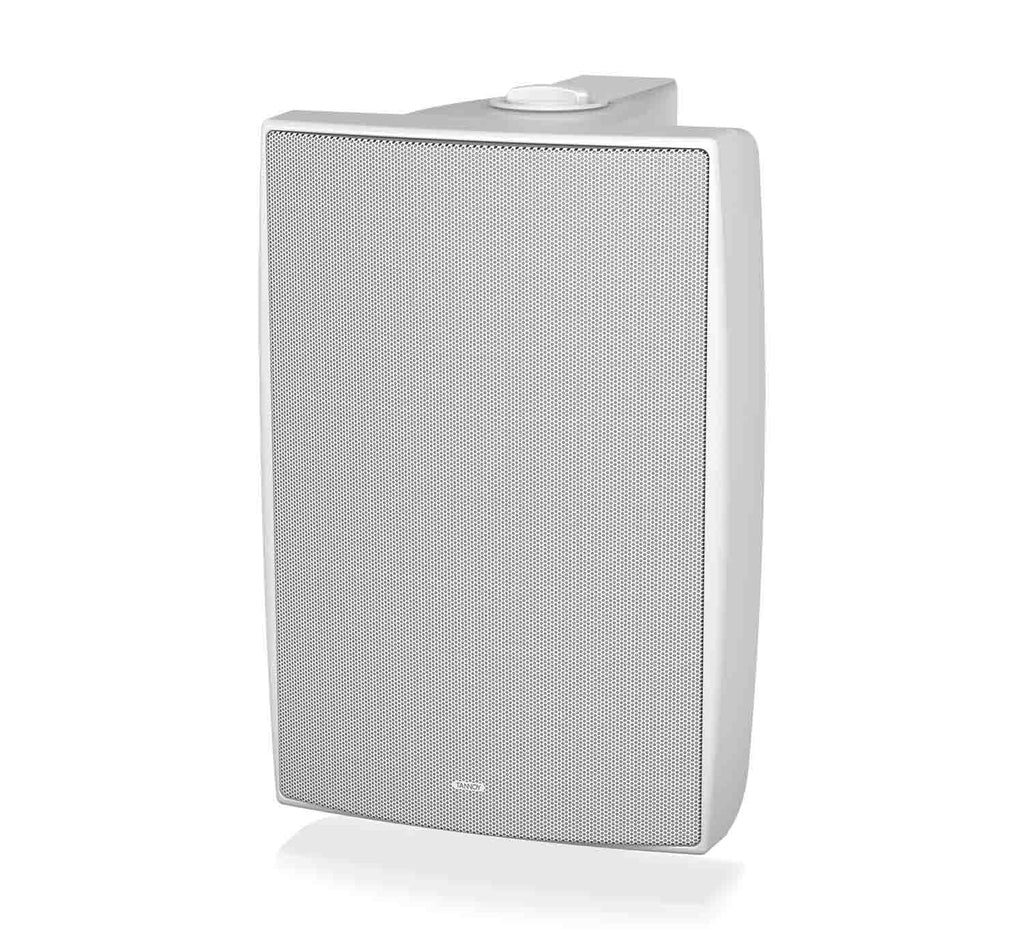

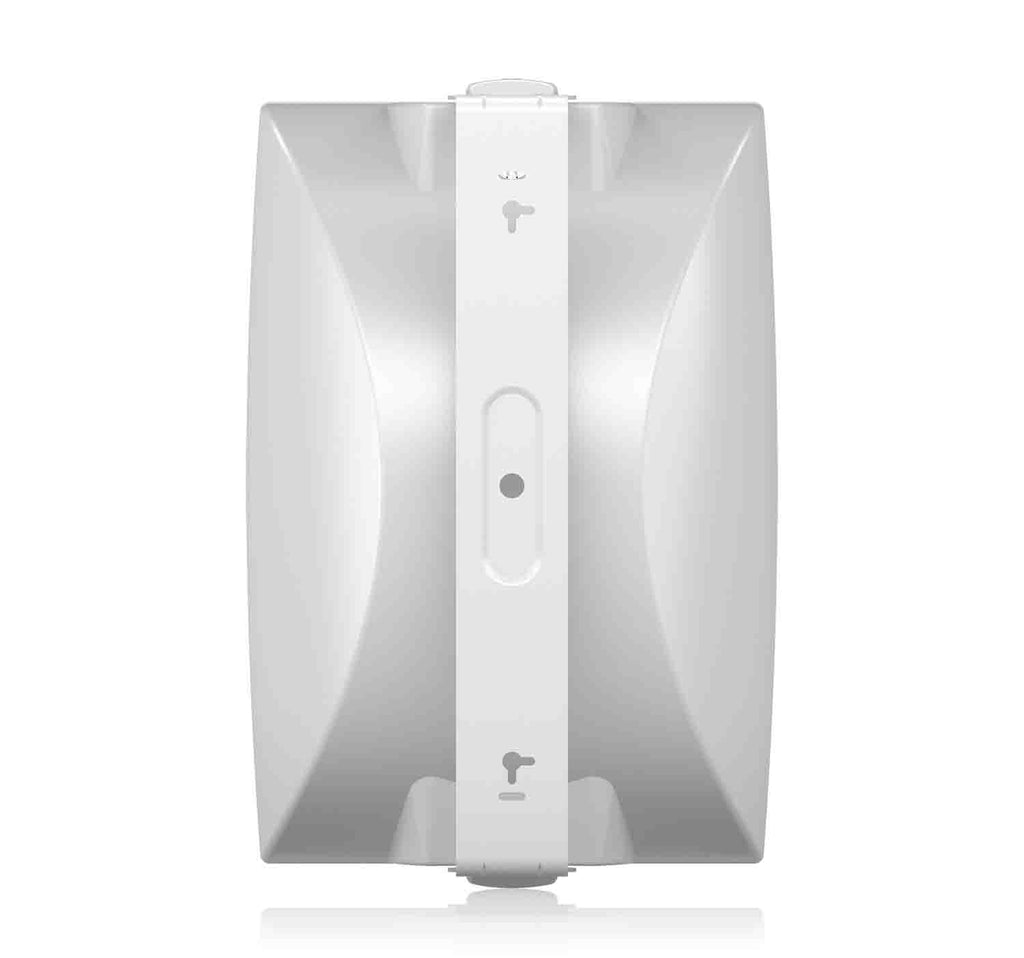

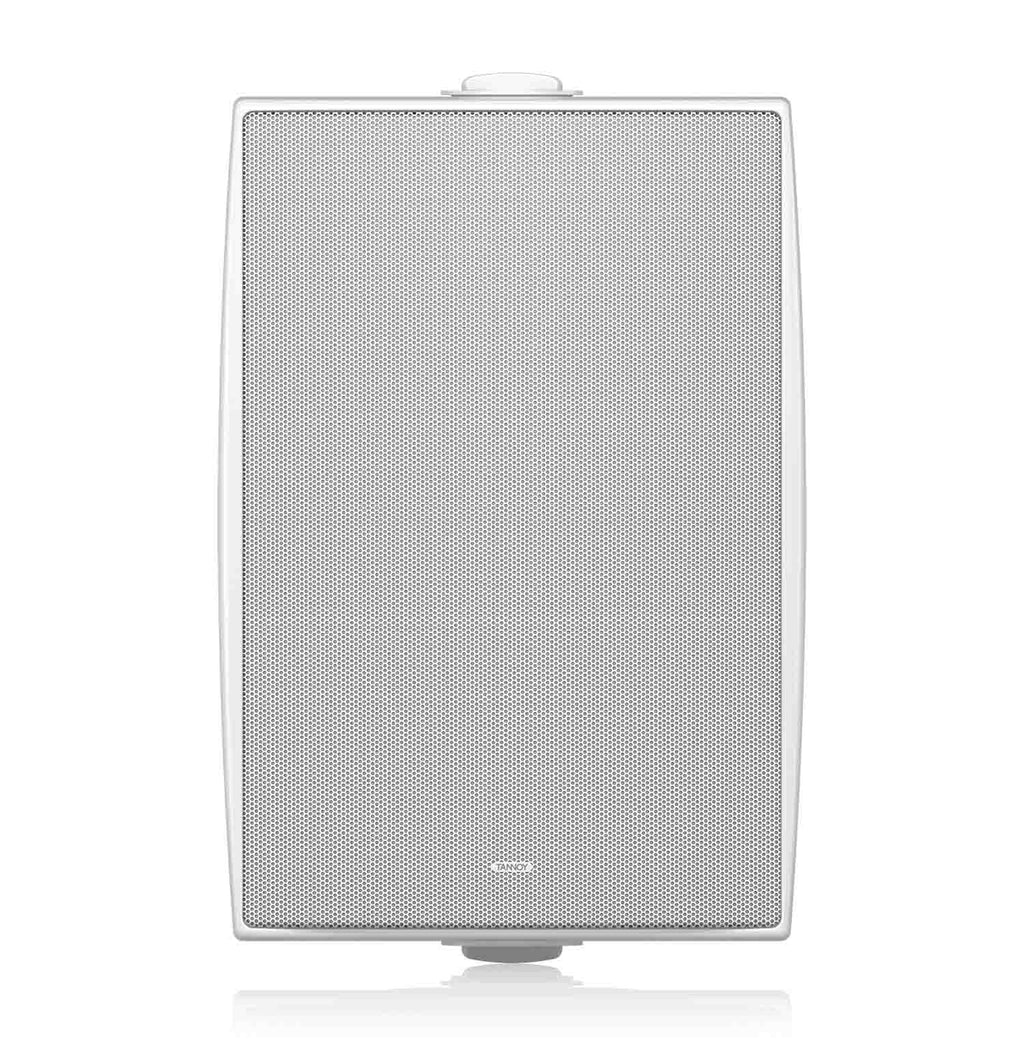

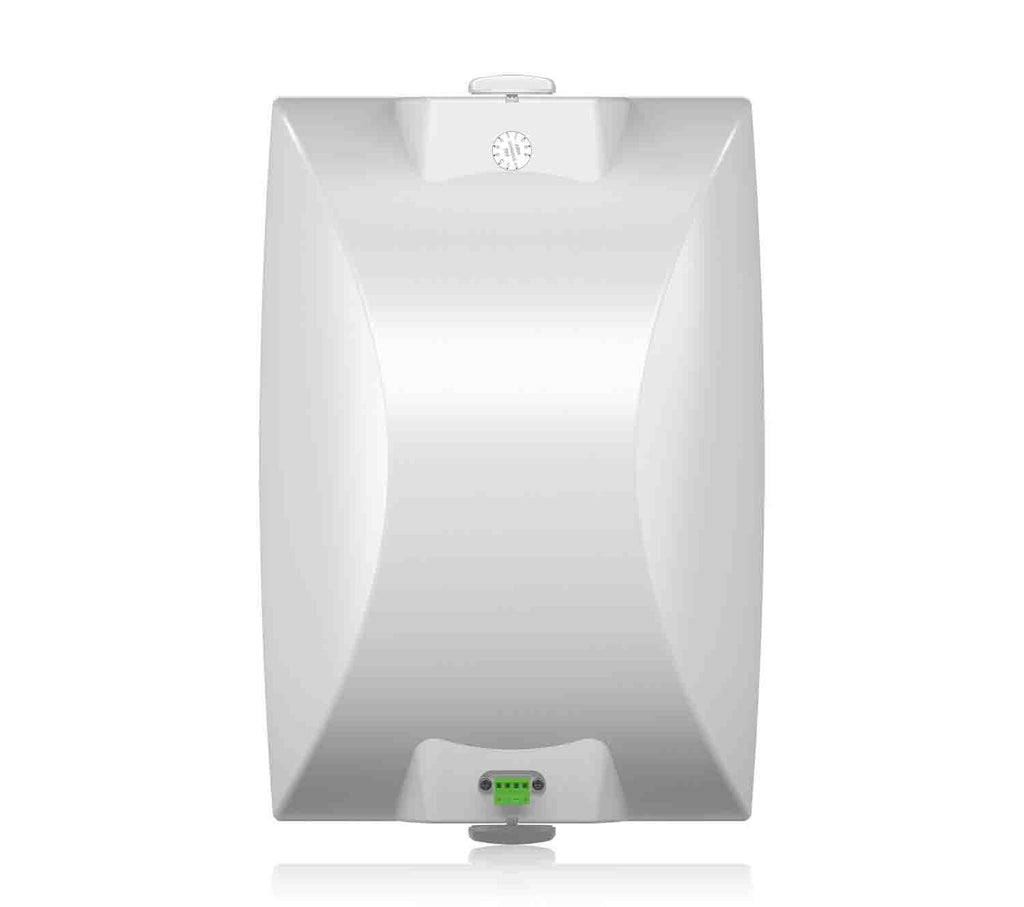

The highly durable and scuff resistant ABS enclosure features a white painted finish, and comes with an aesthetically pleasing aluminum grille. Installation is quick and easy, thanks to the included color-matched steel mounting bracket and finger-adjustable hardware on the enclosure top and bottom. The DVS 8T-WH is equipped with an internally mounted low insertion loss line transformer for 70 V or 100 V distributed sound applications. Wattage taps are configurable over a range of settings via a rotary tapping switch located on the back panel. Phoenix connectors for input and link output are provided for convenience.
Product Specifications
Frequency response (-3 dB) <sup>1</sup>: 75 Hz - 20 kHz
Frequency response (-10 dB) <sup>1</sup>: 60 Hz - 30 kHz
System sensitivity (1 W @ 1 m) <sup>2</sup>: 90 dB
Dispersion (-6 dB): 80 degrees conical
Transducers: Coaxial
Low frequency: 200 mm (8.00") mineral loaded cone material
High frequency: 20 mm (0.79)
Crossover: 3.4 kHz - 2nd order LF, 2nd order HF
Directivity (Q): 12.3 averaged 1 kHz to 10 kHz
Directivity (DI): 10.0 averaged 1 kHz to 10 kHz
Maximum wire gauge for connector: 2.5 mm CSA (AWG12)
Safety Agency Ratings: UL-1480, CE
Average: 70 W
Programme: 140 W
Peak: 280 W
Recommended amplifier power: 140 W @ 6 Ohms
Nominal impedance: 6 Ohms
Enclosure: ABS
Grille: Aluminum, painted
Supplied accessories: Yoke bracket
Packed quantity: 2
Dimensions (H X W X D): 19 X 13 X 13"
Shipping Weight: 39 lbs
