Description

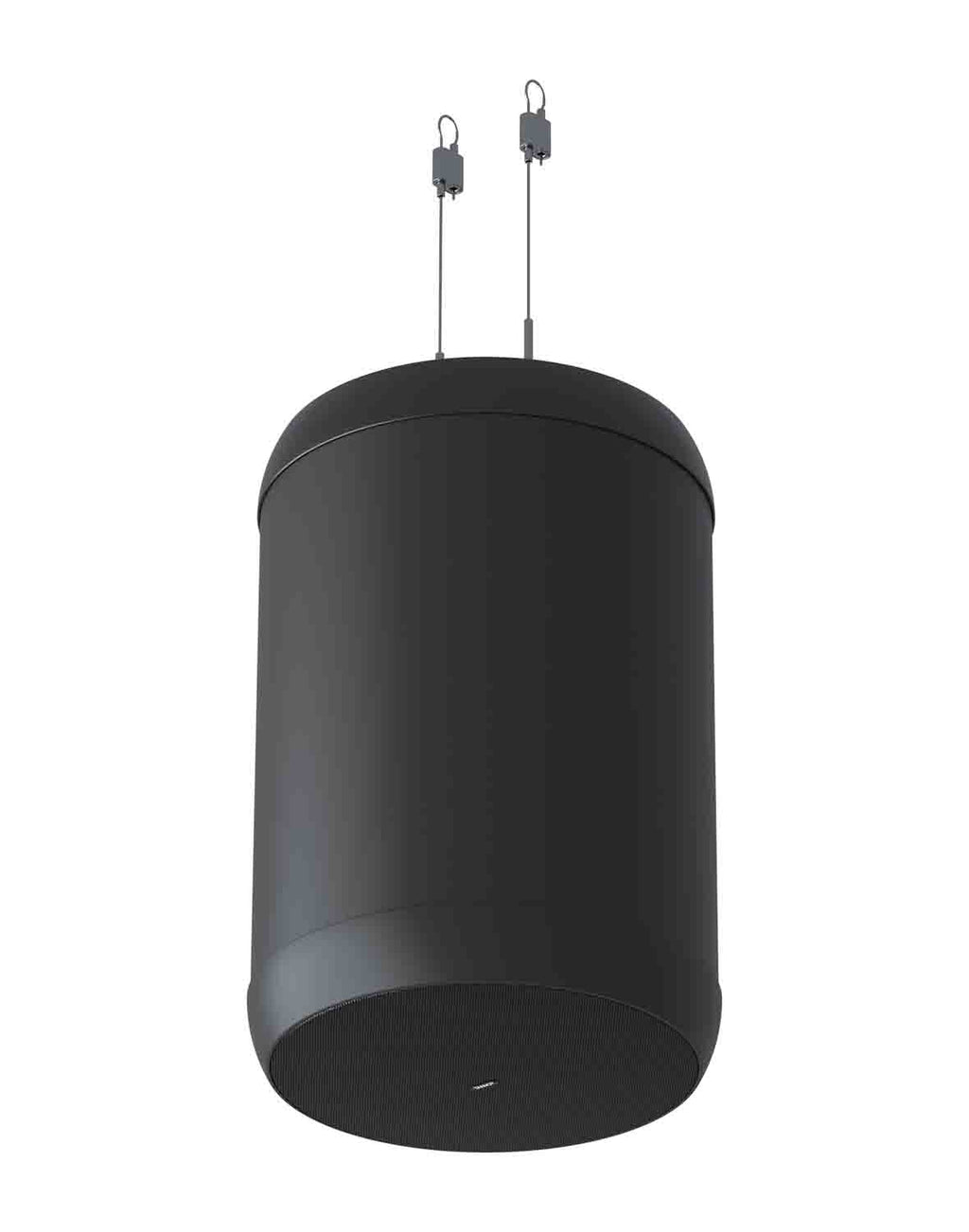

The Tannoy OCV 8, 8-Inch Coaxial Pendant Loudspeaker for Installation Applications is a 280-Watt high sensitivity pendant loudspeaker that delivers wide and consistent broadband directivity with enhanced intelligibility plus the linear response of our legendary studio monitors. Engineered specifically for aesthetically sensitive applications where consistent high-quality audio coverage is required, the OCV 8 is ideally suited for airport and ground transportation terminals, shopping malls, and large double or triple height commercial floors without compromising clarity, intelligibility or Sound Pressure Level (SPL). OCV 8 loudspeakers provide a seamless sound signature within a multi-zoned environment that benefits from additional TANNOY installation loudspeakers.
Weather-Resistant Enclosure

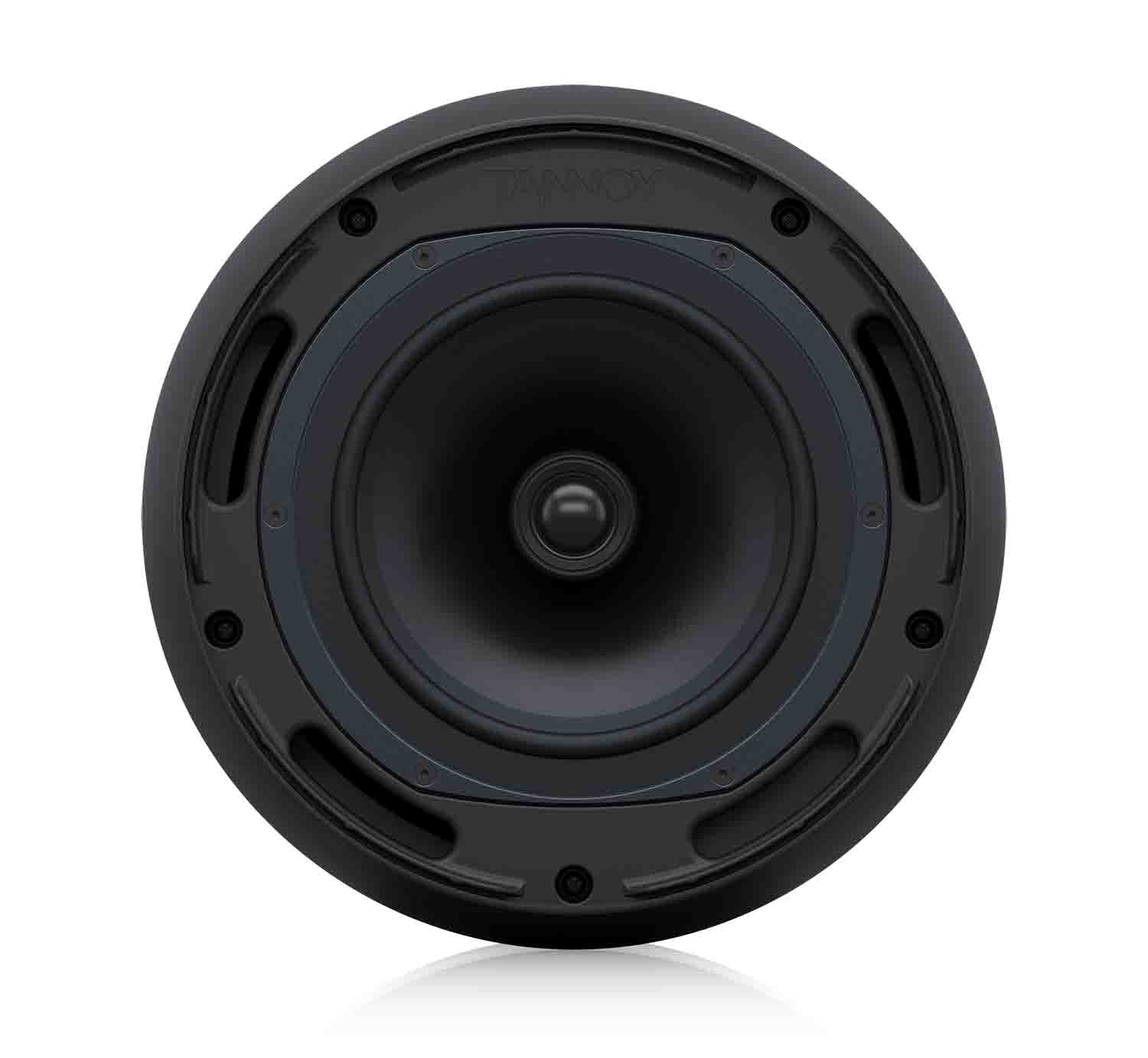

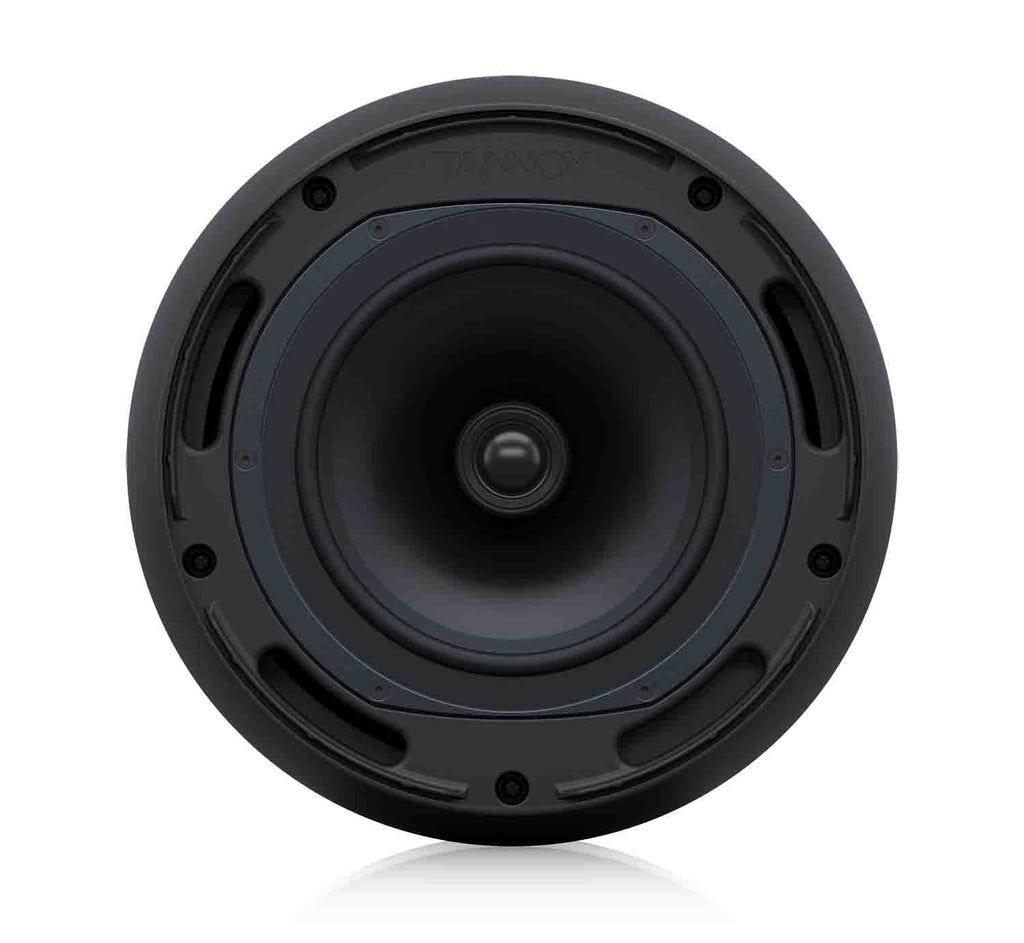

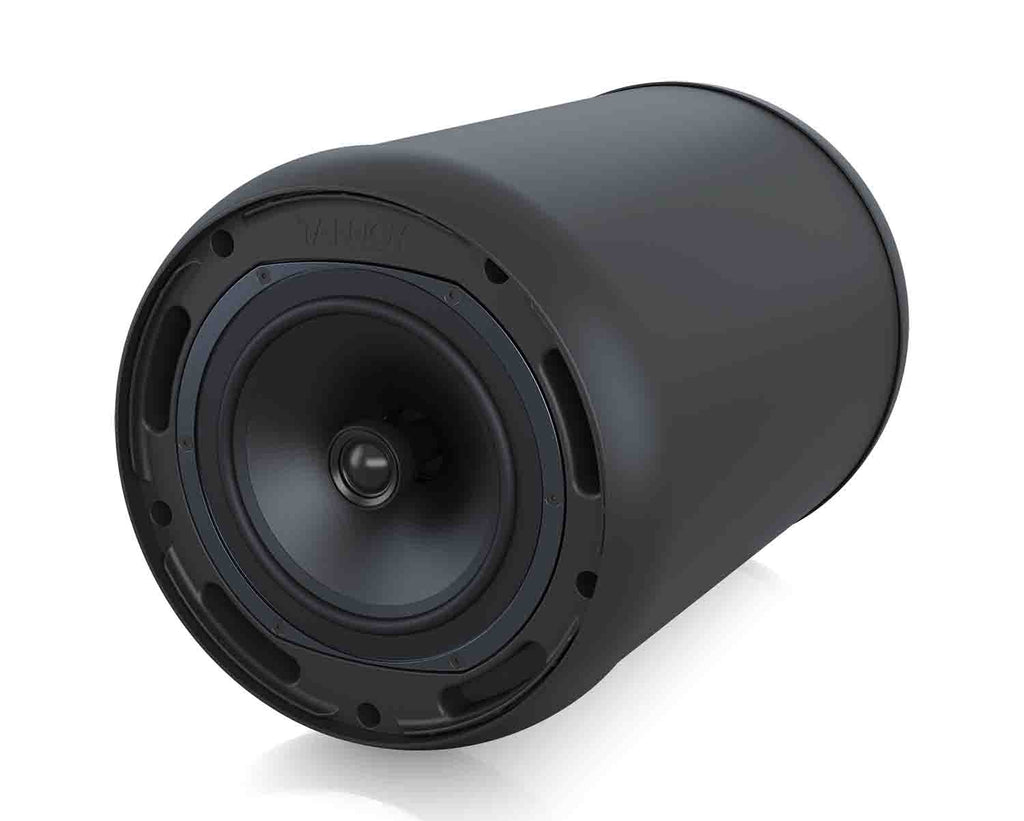

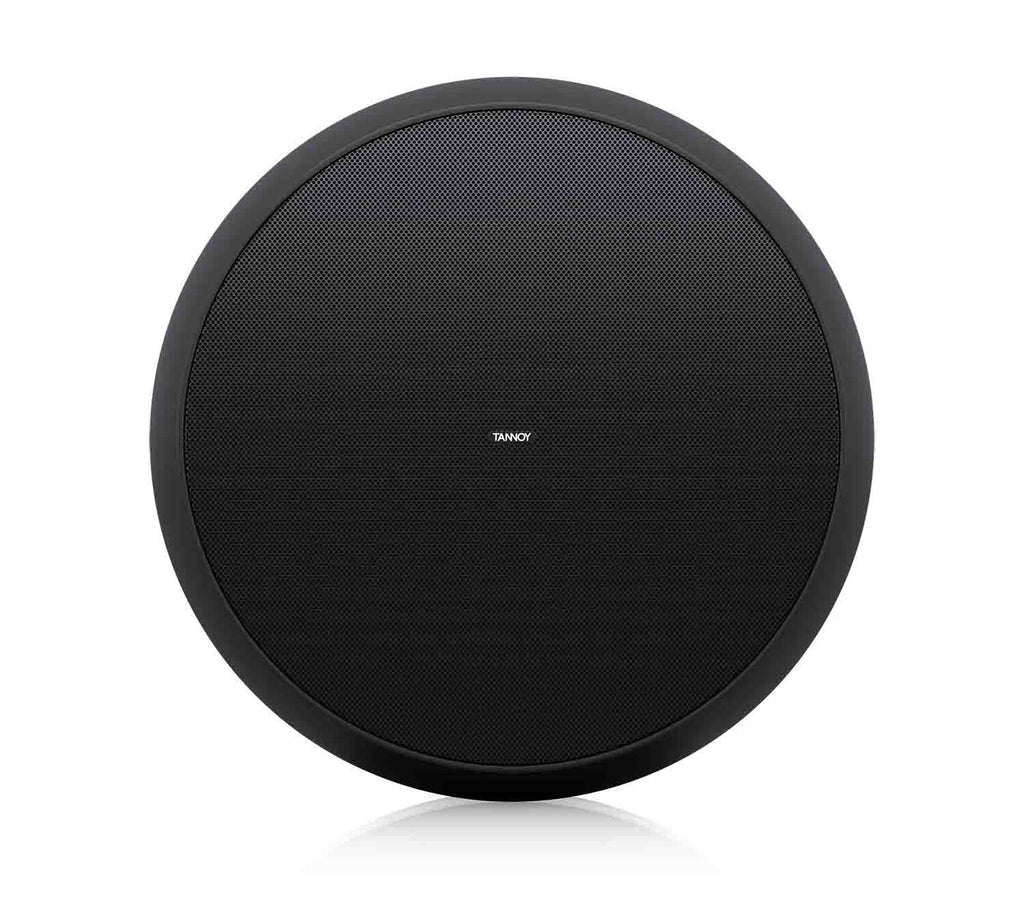

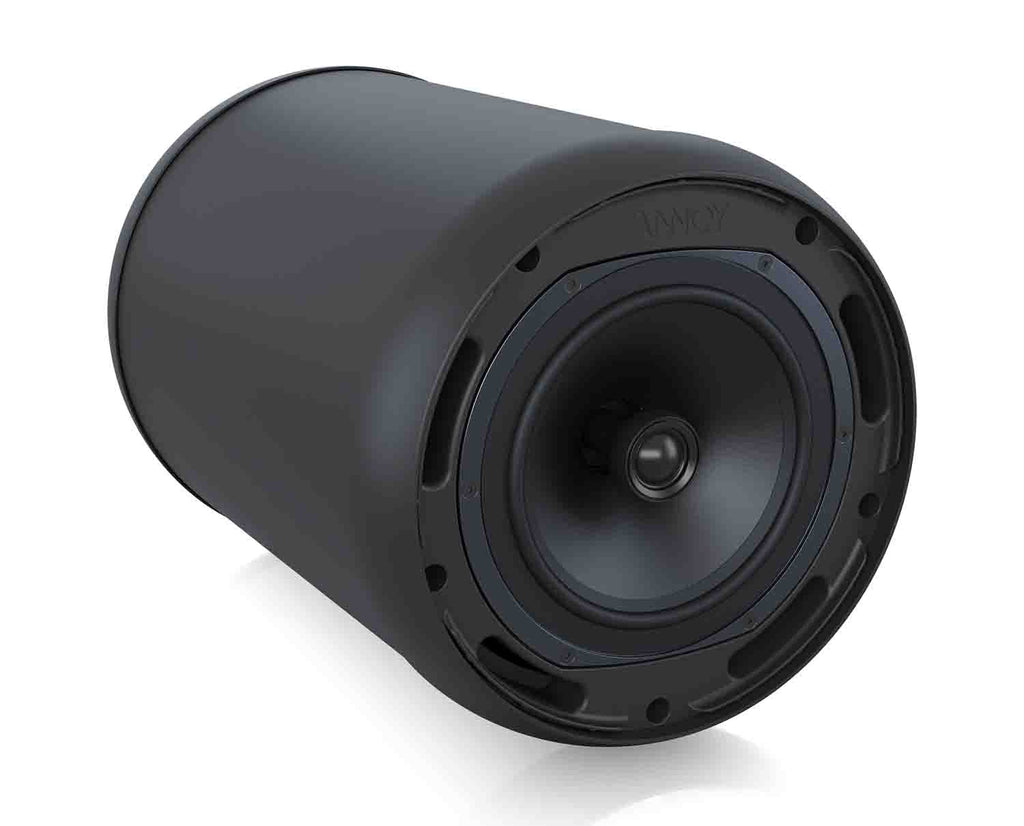

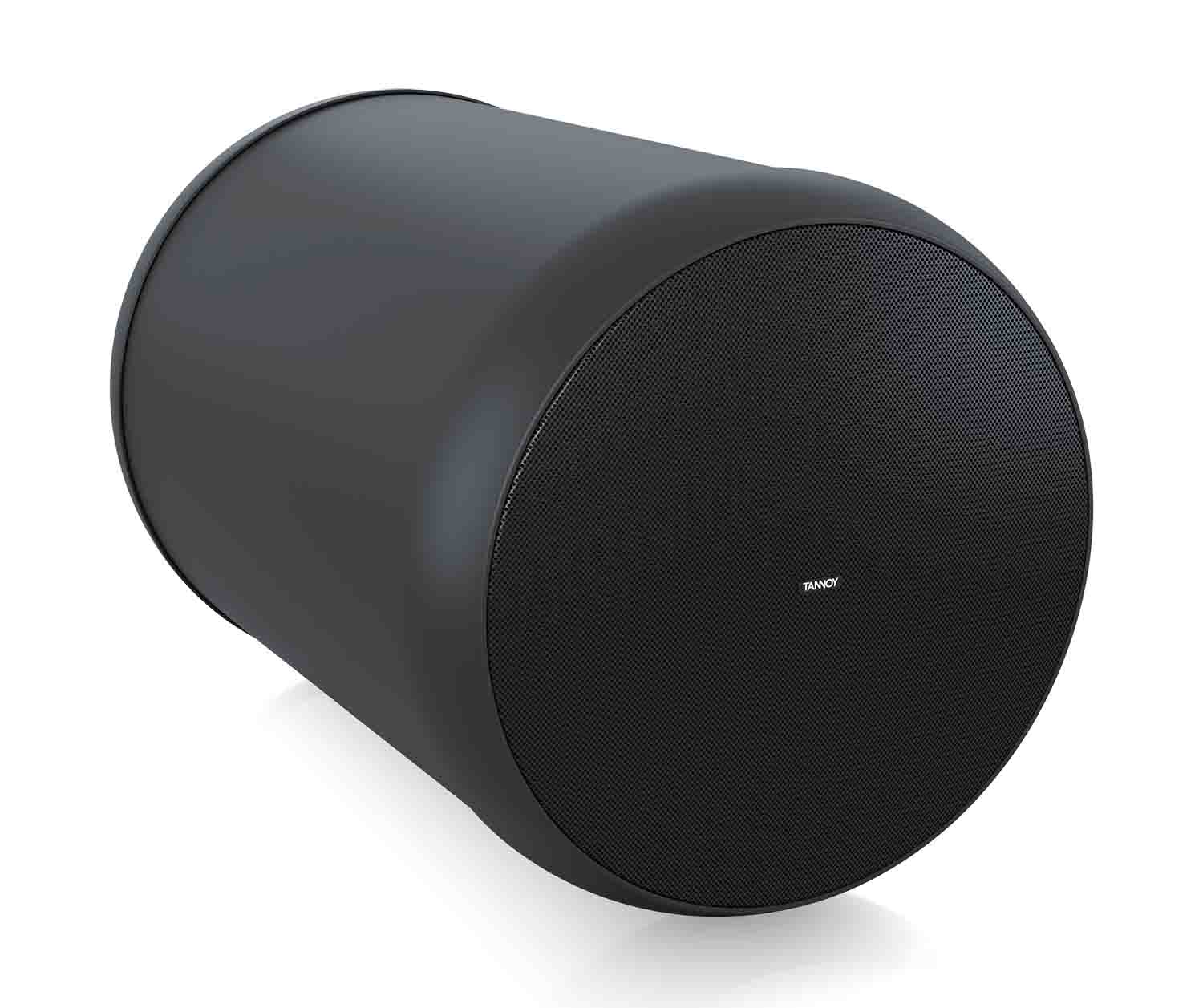

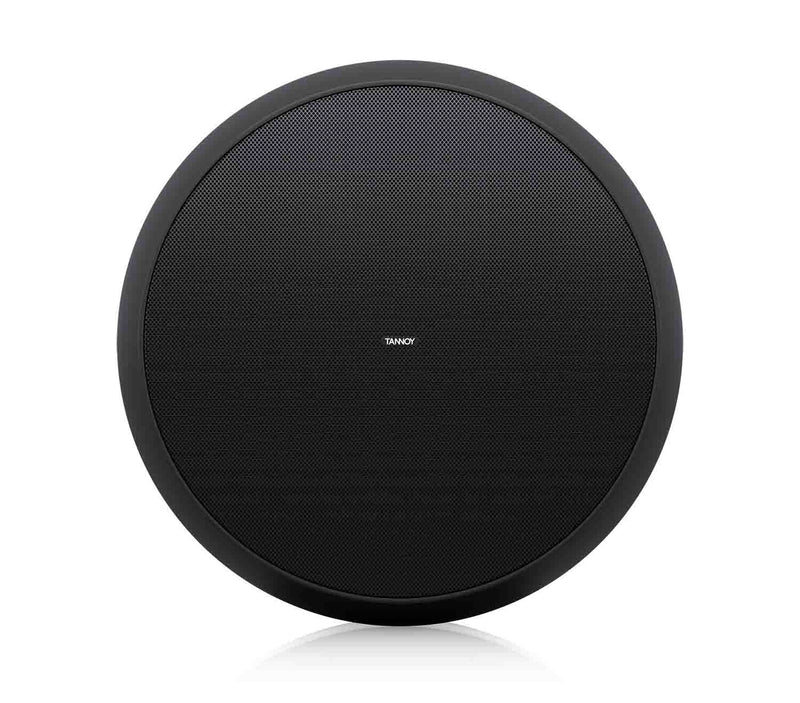

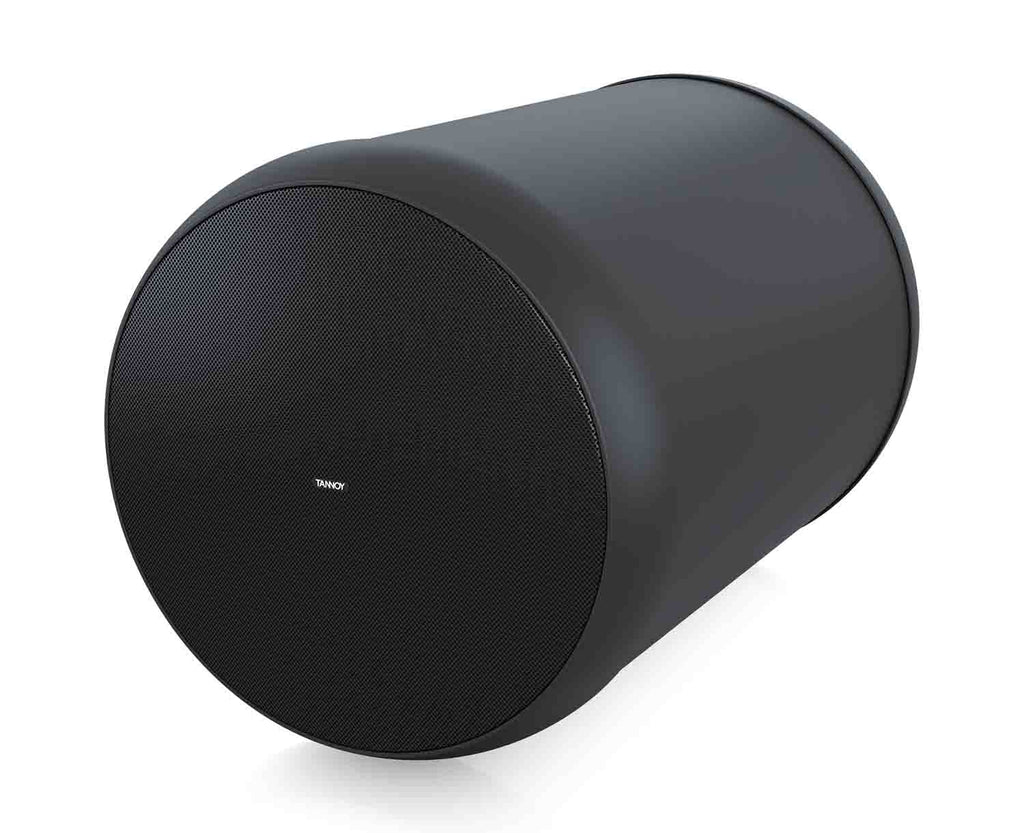

The elegantly styled semi matt black cylindrical enclosure with mild steel powder coated grille blends beautifully into any décor and comprises a 203 mm (8") polypropylene mid bass driver with a coaxially mounted 25 mm (1") ferrofluid cooled soft dome neodymium high frequency driver. Additionally, the OCV 8’s design and performance has achieved an IP64 rating, making it an exceptional choice for both indoor and outdoor environments such as indoor swimming pools, saunas, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.
Attractive and Easy to Install

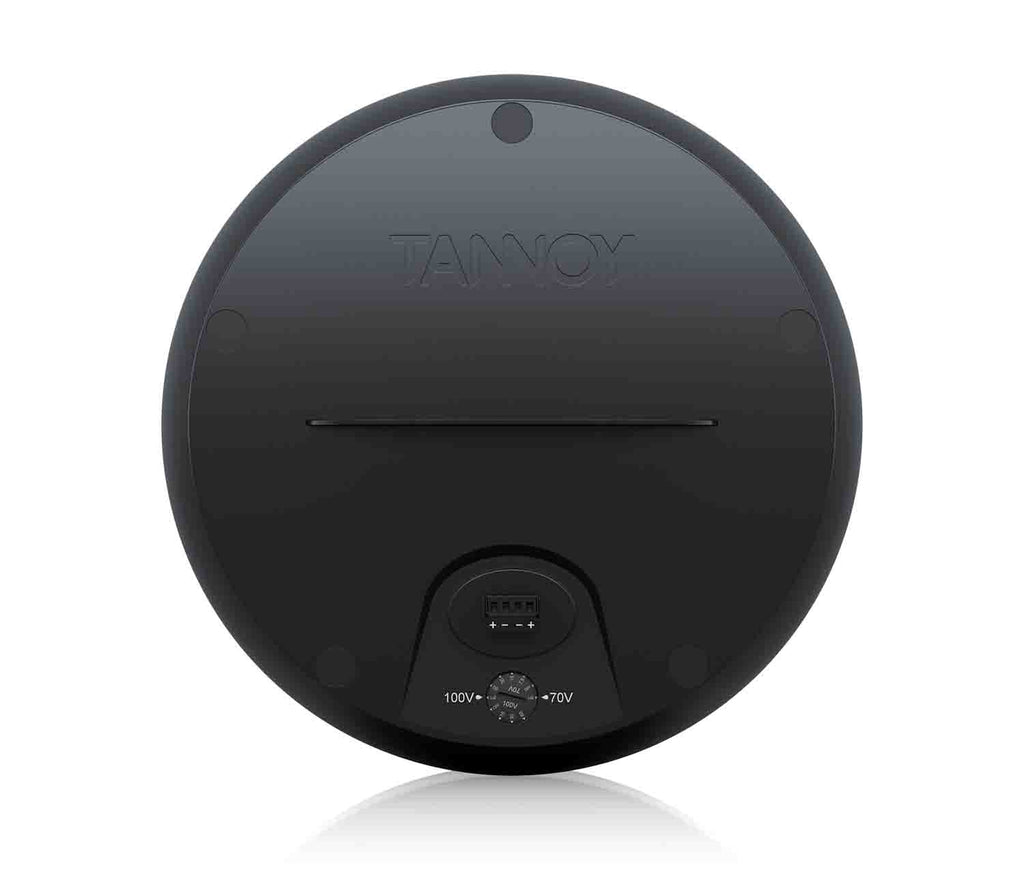

The highly durable and heat resistant plated steel enclosure features a black finish and comes with an aesthetically pleasing grille. Installation is quick and easy and the included weatherproof cable gland protects the Phoenix input and link output connectors, as well as the integral low-insertion loss 60 W transformer with convenient tap switching.
LAB GRUPPEN Ready
The OCV 8 is optimized for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 OCV Series loudspeakers per channel.
Product Specifications
Frequency Response (-3 dB) (1): 80 Hz - 20 kHz
Frequency Range (-10 dB) (1): 50 Hz - 30 kHz
System Sensitivity (1 W @ 1 m) (2): 90 dB
Dispersion (-6 dB): 80 degrees conical
Crossover: 4.5 kHz - 3rd order LF, 2nd order HF
Directivity Factor (Q): 14.4 averaged 1 kHz to 6.3 kHz
Directivity Index (DI): 11.6 averaged 1 kHz to 6.3 kHz
Rated Maximum SPL (2)
Average: 108 dB
Peak: 114 dB
Power Handling
Average: 70 W
Programme: 140 W
Peak: 280 W
Recommended Amplifier Power: 140 W @ 16 Ohms
Nominal Impedance: 16 Ohms
Shipping Dimensions: 20 × 12 × 12 in
Shipping Weight: 23 lbs
