Description

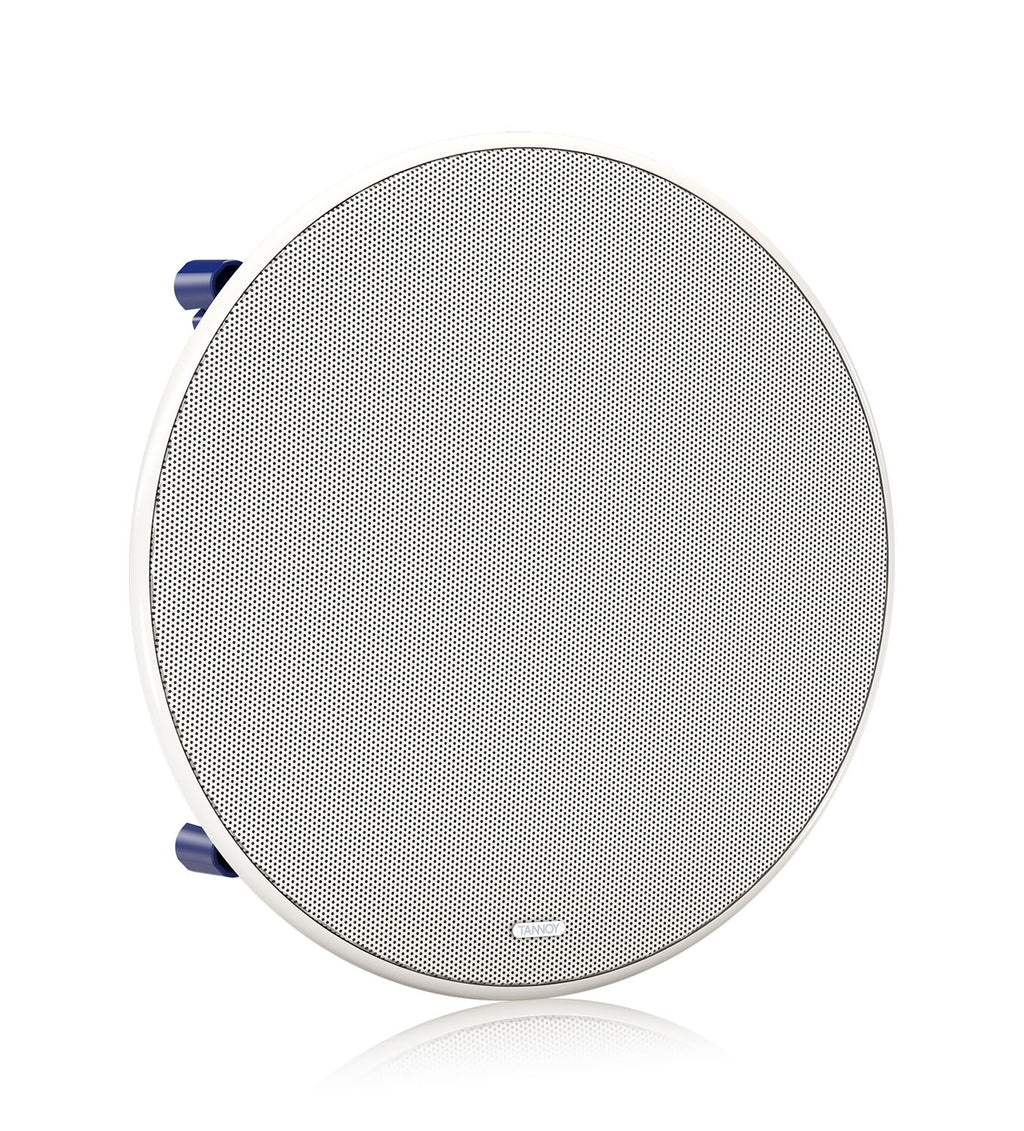

The Tannoy QCI 8DC High-Performance 8-Inch Dual Concentric Ceiling Loudspeaker has been a leader in the pursuit of high-fidelity sound. The most demanding audio professionals around the world rely on Tannoy loudspeakers to create music and sound we love to hear and feel. From recording and mastering engineers to broadcasters and film score composers Tannoy loudspeakers are trusted for their proven reliability, true to source accuracy and ability to reproduce sound the way the artist intended. There really is no substitute for Tannoy. Trusted by music creatives around the world, installed in the world's best venues and locations, perfect for listening at home.
The QCI range is designed with the same high standards and attention to detail as our flagship professional and hi-fi loudspeakers. They deliver high fidelity sound that is extremely natural and detailed. They have the same sonic signature and can be easily mixed and matched to make a stereo, surround or multi-room audiophile system.
Tannoy Dual Concentric
Tannoy Dual Concentric is Designed and engineered it the UK, the full range QCI 8DC comprises a single 200mm (8.00”) driver with a glass fiber cone and high-excursion rubber surround. Capable of handling up to an impressive 320 Watts the QCI 8DC is capable of higher SPL and greater bass authority than its smaller variants whilst remaining extremely easy to drive and suitable for a wide variety of amplifiers and applications.
The QCI 8DC features our legendary and exclusive Tannoy Dual Concentric Driver with Omni magnet technology. With over seven decades of continuous refinement, the Dual Concentric driver delivers a near-perfect point
Torus Ogive Waveguide
Performance is further enhanced by the implementation Tannoy’s highly innovative Torus Ogive Waveguide which allows rapid wave front expansion further improving high frequency directivity for a remarkably focused image placement.
Beautifully Elegant
A powder-coated perforated UV resistant steel mesh grill protects from dust and can be removed and painted to match any décor. Unlike many in-ceiling loudspeakers QCI range has an extremely thin bezel for unobtrusive installation. Round and square baffles are included, an innovative self-aligning clamping system makes the single integrated unit easy to install.
Product Specifications:
Frequency Response (±3 Db): 35 Hz – 20 Khz
Frequency Response (-10 Db): 25 Hz – 20 Khz
Sensitivity (1 W @ 1m): 87 Db
Directivity Factor (Q): 6.8 Averaged 1 Khz to 10 KZ
Directivity Index (DI): 8.3 Averaged 1 Khz to 10 Khz
Programme: 160 W
Peak: 320 W
Recommended Amplifier Power: 240 W @ 8 Ω
Nominal Impedance (Lo Z): 8 Ω
Rated Maximum SPL (1 M, Lo Z): 109 Db
Average: 106 Db
Peak: 112 Db
Crossover Point : 1.6 Khz
Coverage Angles: 500 H 80° Horizontal, 180° Vertical
Baffle: Reflex Loaded UL94 V-0 Rated ABS
Grille: Steel, With Weather Resistant Coating
Clamping Design: Security Toggle Clamp
Connectors: Phoenix Contact Terminal Block
Shipping Dimensions (HxWxD): 12 X 12 X 5"
Shipping Weight: 8 lbs
