Description

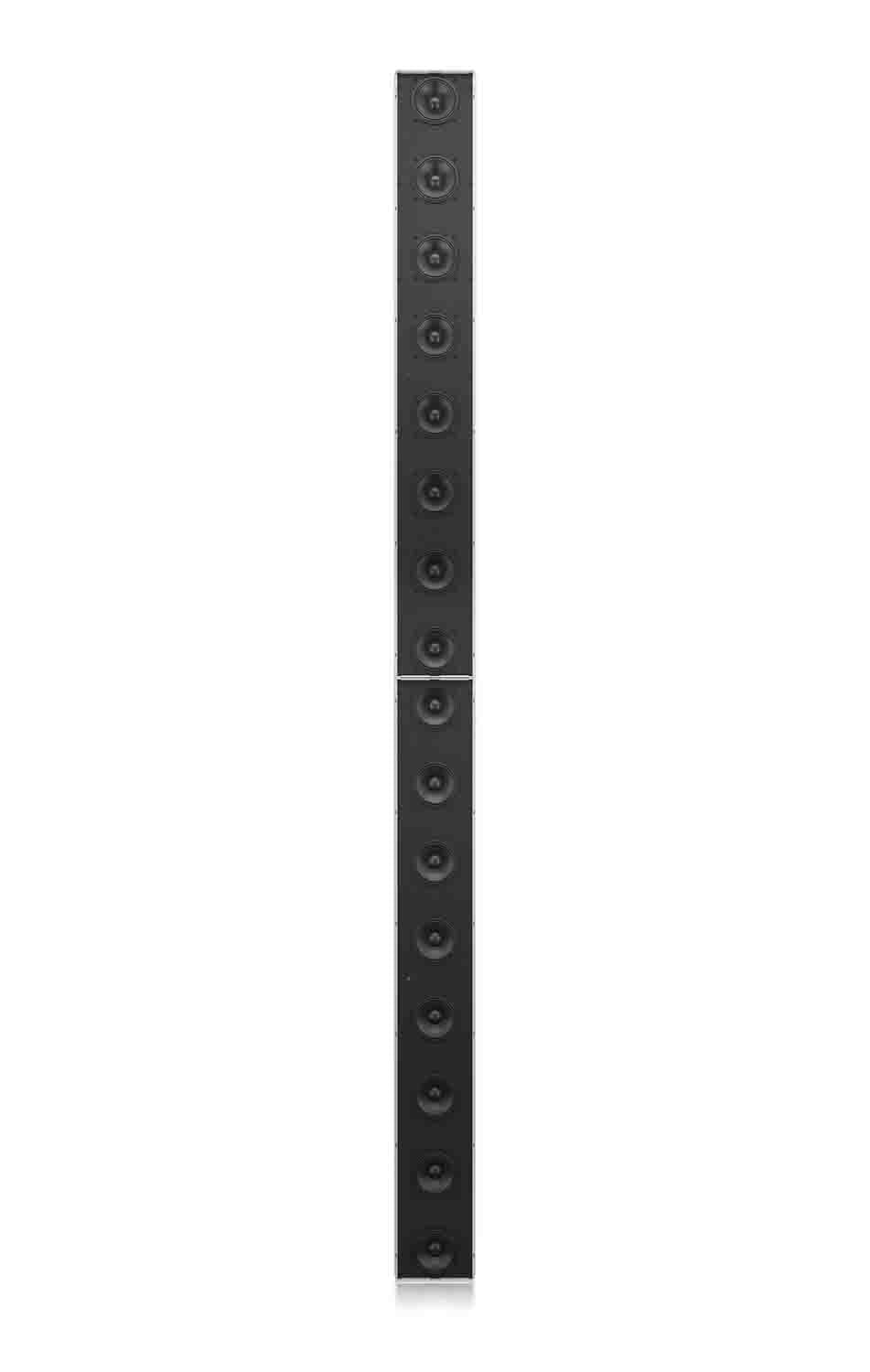

The Tannoy QFLEX 16LS-WP Digitally Steerable Powered Column Array Loudspeaker with 16 Independently Controlled Drivers is designed as a speech reinforcement solution for installed applications with challenging acoustics, such as transportation hubs, convention centers, and shopping malls. Certified for water and dust ingress protection to IP54 standard, QFLEX 16LS-WP is an exceptional choice for indoor swimming pools and areas with unusually high levels of dust or moisture, as well as outdoor applications where weather conditions are moderate. The heart of the system is our proprietary VNET loudspeaker networking platform, which comprises both software and hardware DSP components that produce high speech intelligibility, and complete loudspeaker system diagnostics and monitoring.
A Revolution in Sound Technology
QFLEX 16LS-WP's revolutionary Beam Engine technology steers the sound away from surfaces that cause reflections. The intuitive Beam Engine GUI allows the designer to specify target areas. Rather than only providing a limited palette of opening and steering angles, the Beam Engine GUI generates a steering algorithm that is tailored for that specific area. The resulting asymmetrical pattern delivers similar sound pressure levels (SPL) in both the near and far field for superb coverage and intelligibility all in a very aesthetically-pleasing package.
Drivers, Power & DSP

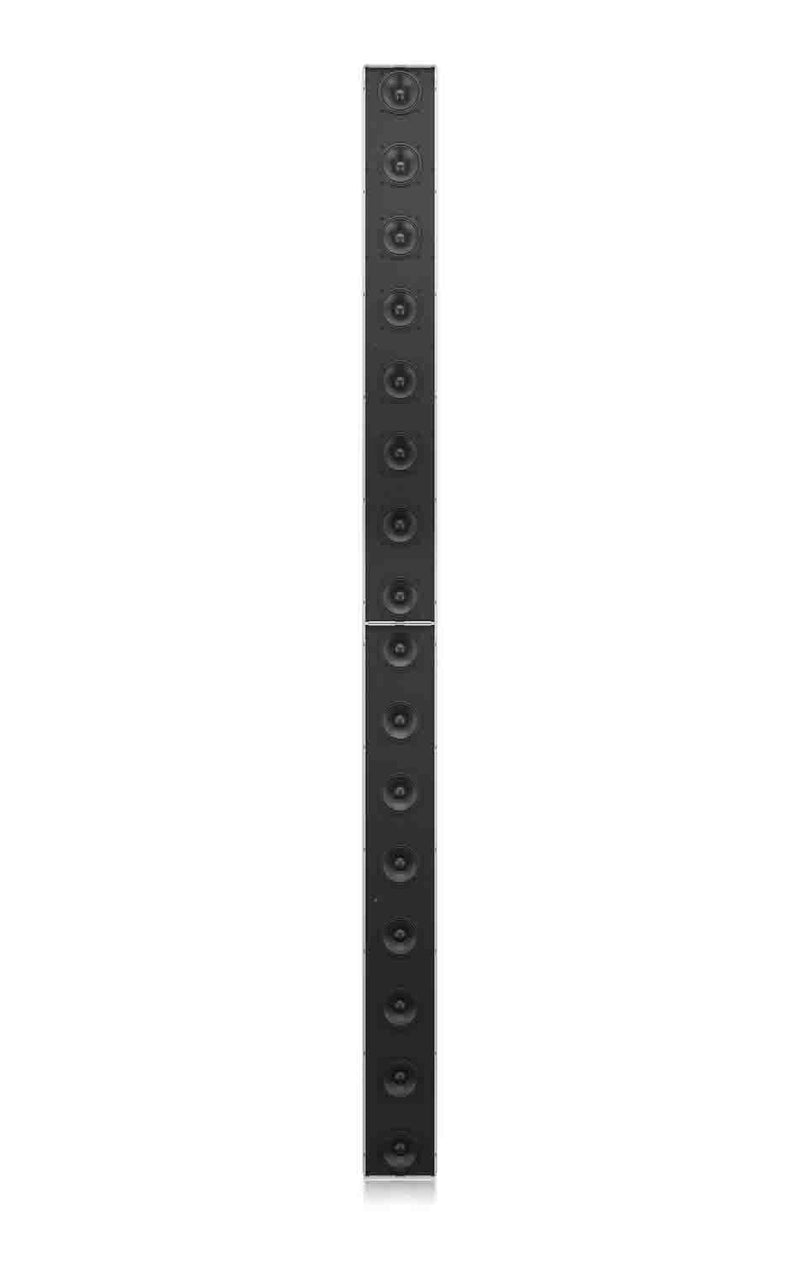

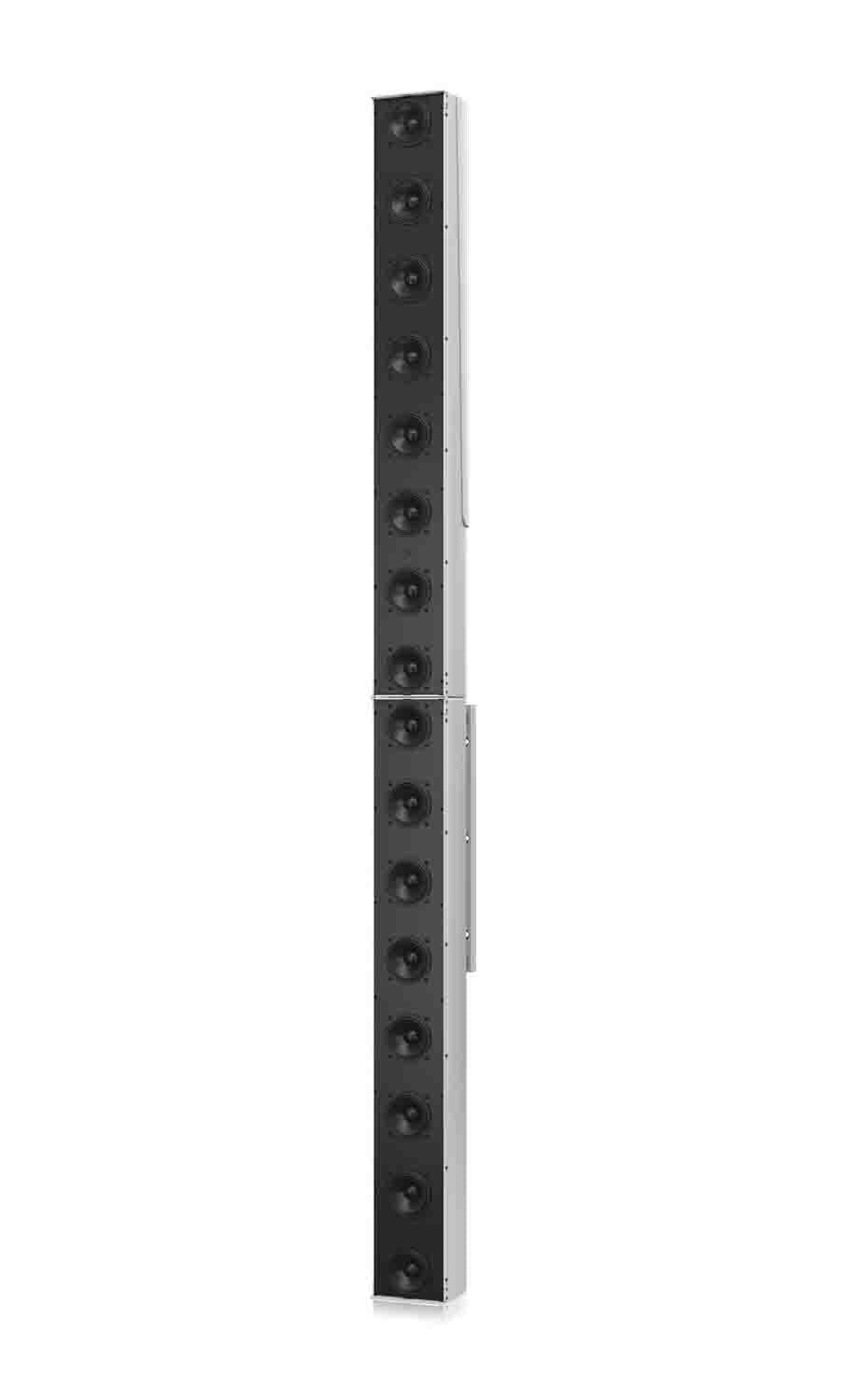

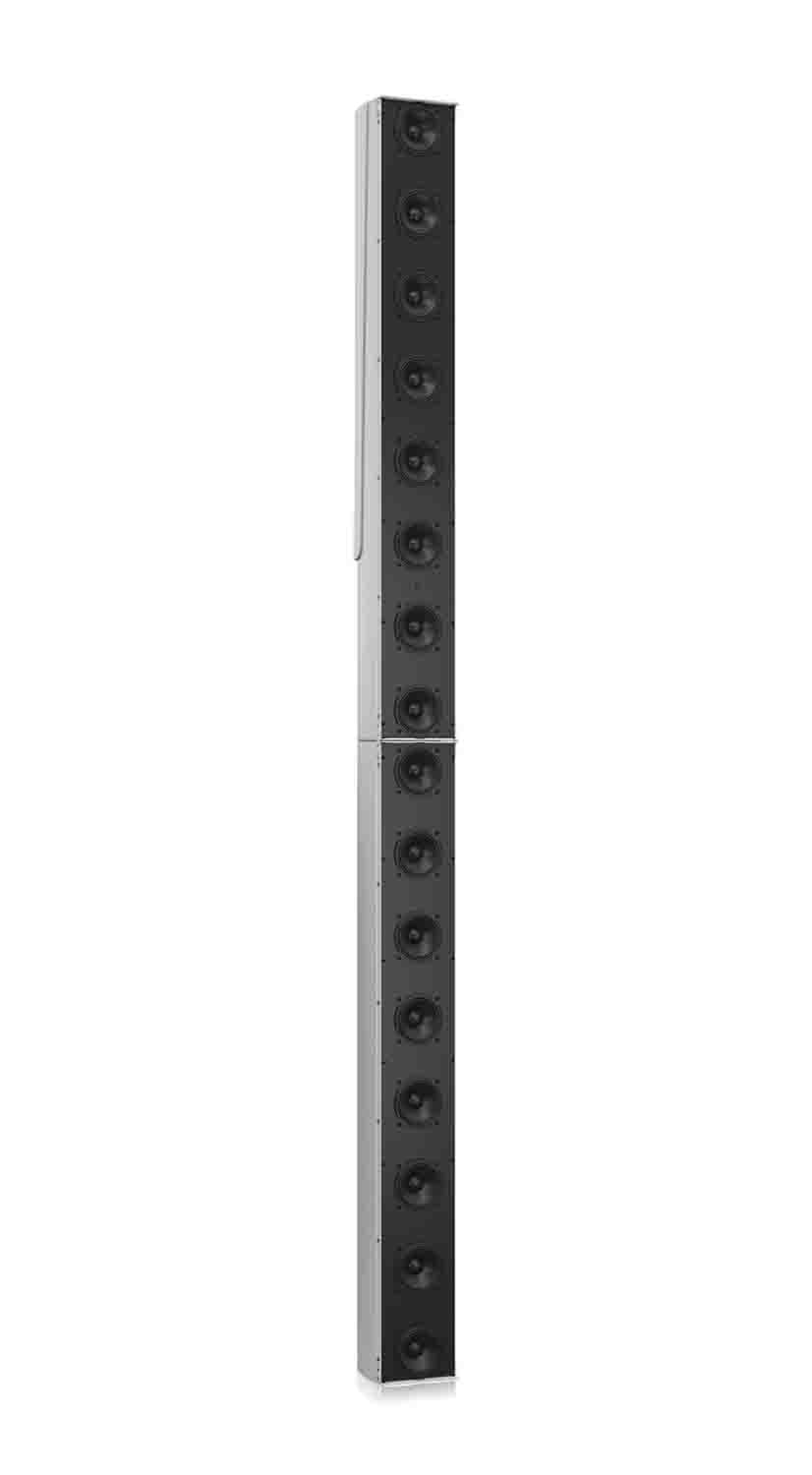

The QFLEX 16LS-WP column array loudspeaker comprises sixteen 4" full range drivers, each with their own individual 100-Watt Class D amplifier and integrated cutting-edge DSP. QFLEX 16LS-WP’s drivers provide digitally-steerable coverage for distances up to 50 m (165'). A robust internal DSP engine works seamlessly with the proprietary VNET and Beam Engine software, both of which are available for free download at tannoy.com.
Scalability
Designed to provide premium-grade performance as a standalone self-powered column array, QFLEX 16LS-WP is also an exceptional choice for multiple-column configurations consisting of other TANNOY VNET enabled products. Implementation of the network between nodes is via high-quality AES3 input and link connections on RJ-45 connectors, and CAT5 cable. Each speaker has a unique address for auto-location on the network.
IP54 & PA/VA Compliant
In addition to its IP54 water and dust resistance certification, QFLEX 16LS-WP’s high level of telemetry functionality renders it fully PA/VA compliant for use in any life safety or mass notification environment.
Build Quality

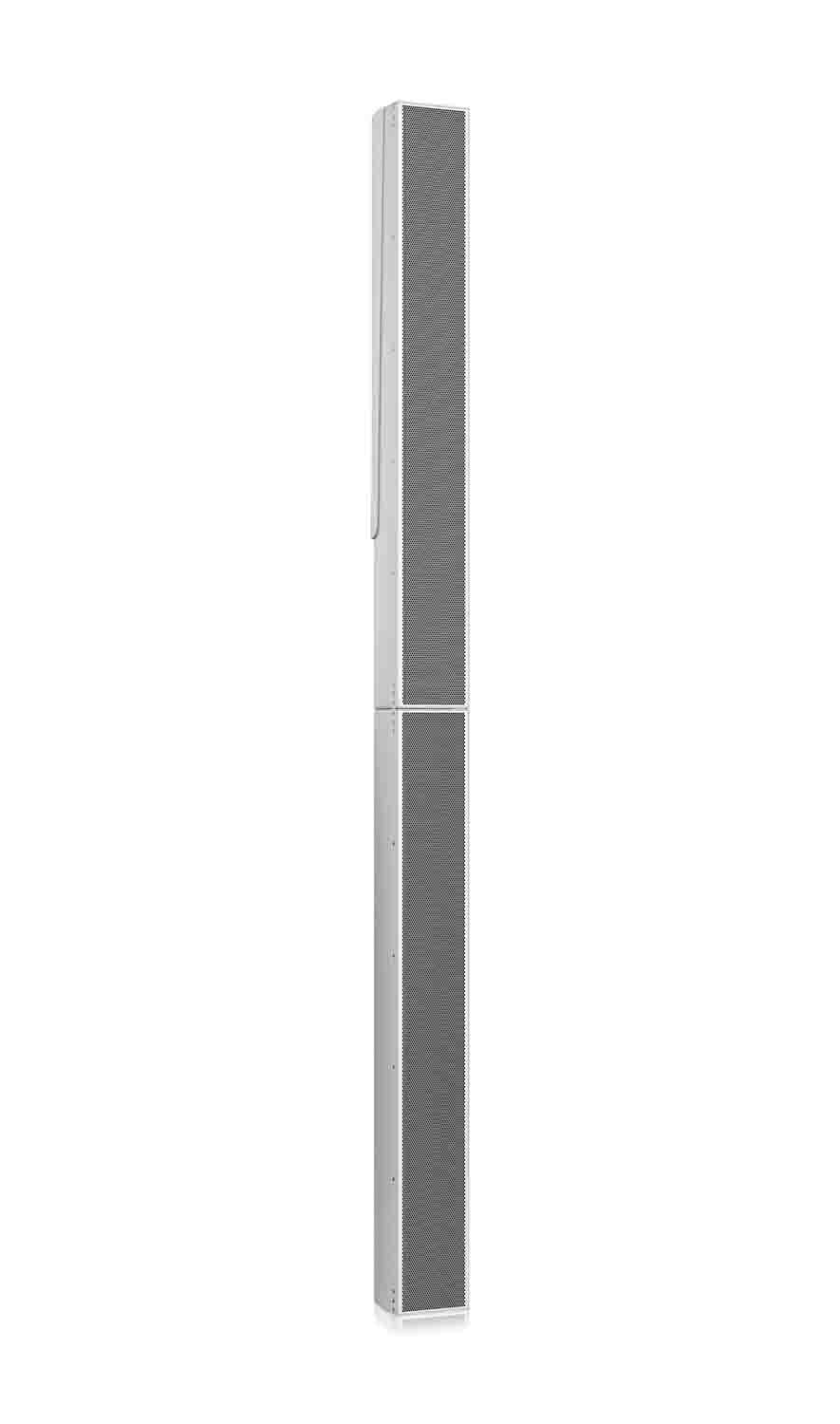

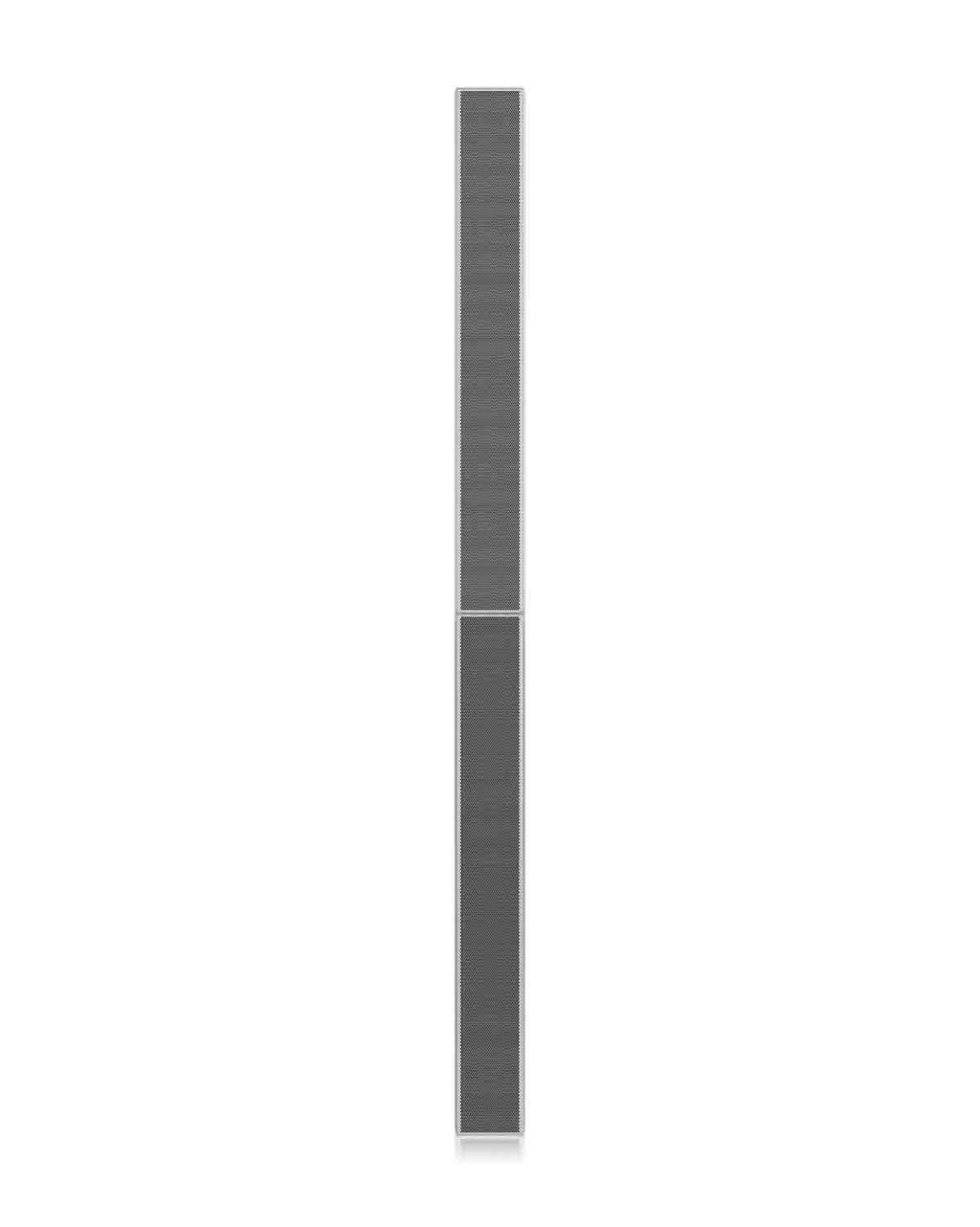

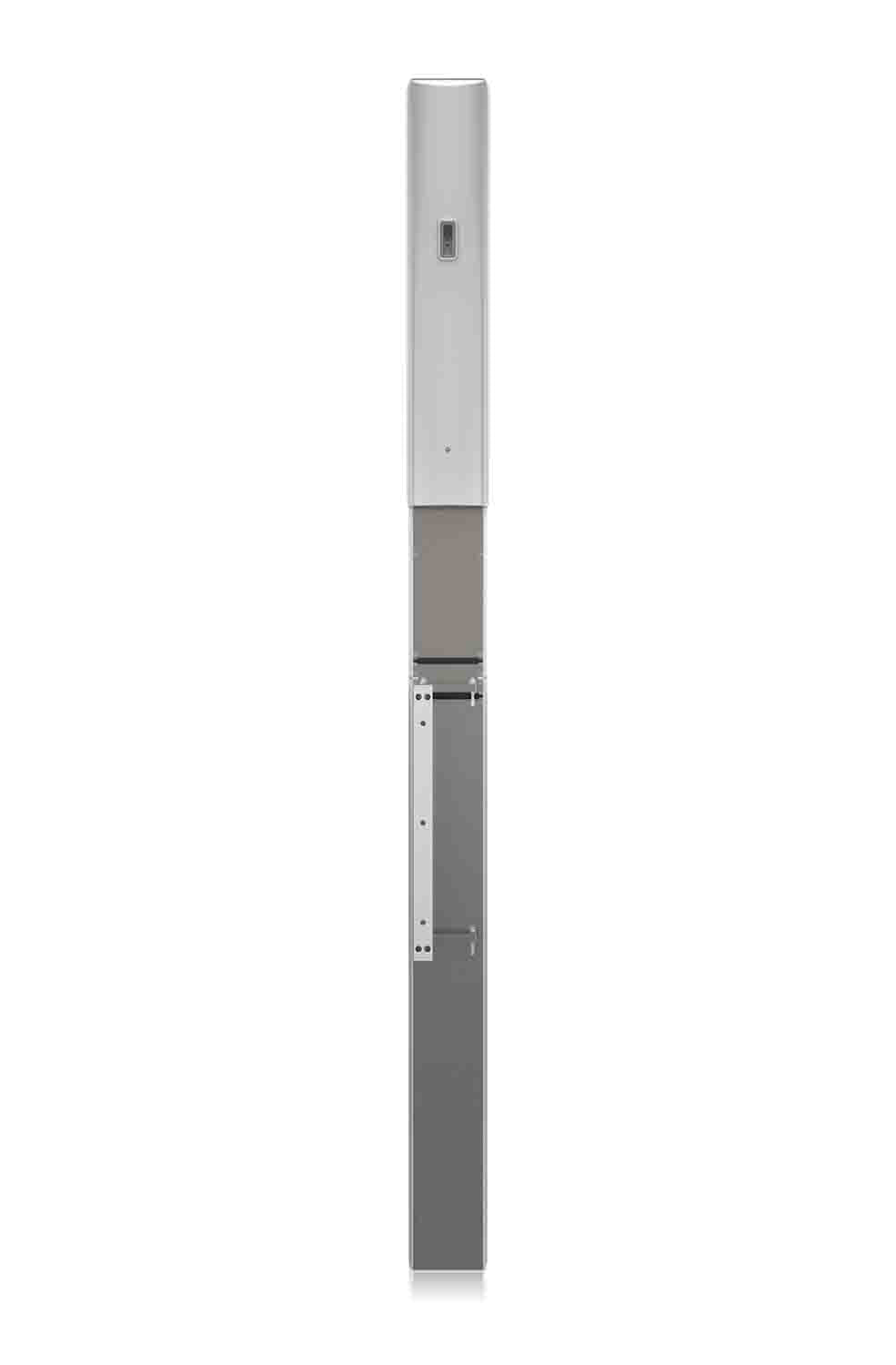

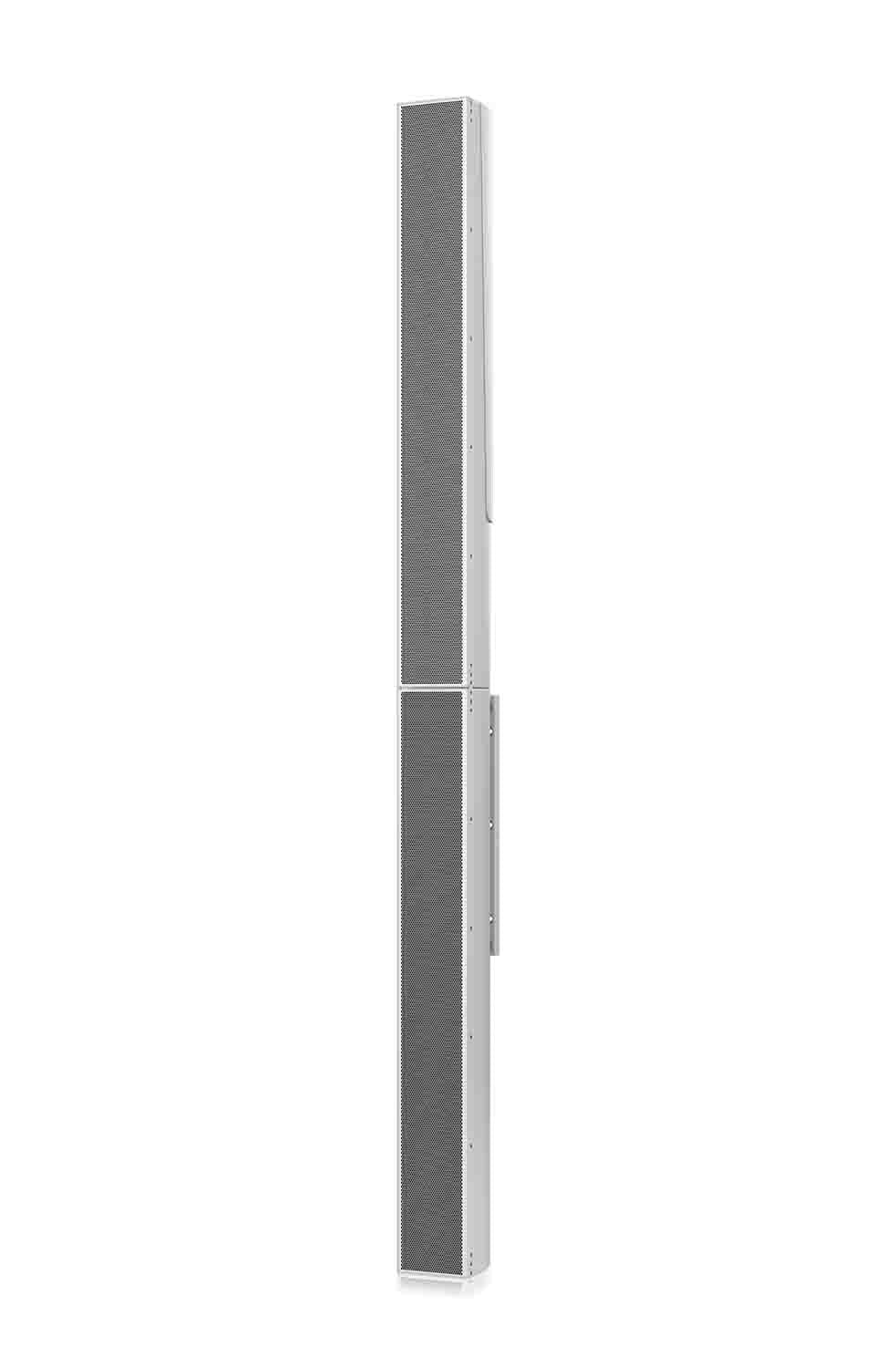

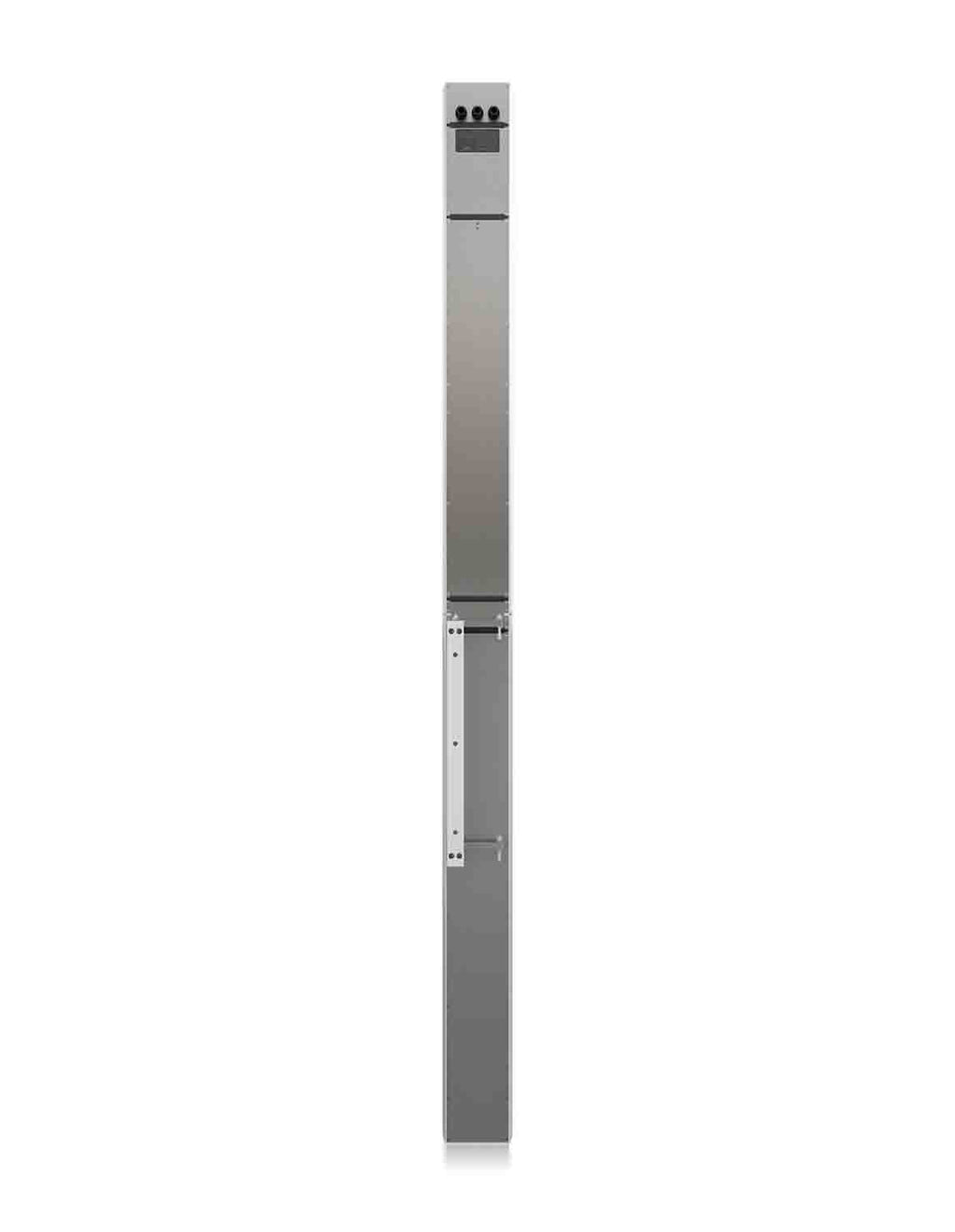

The architecturally styled corrosion resistant aluminum enclosure and perforated grille are finished in a semi matt white paint. The QFLEX 16LS-WP also includes the necessary custom mounting hardware for quick and accurate installation.
Product Specifications
| Specification | Measurement or Description |
|---|---|
| Shipping Dimensions | 9 × 7 × 100 inches |
| Shipping Weight | 83 lbs |
