Tannoy QFLEX 40-WP Digitally Steerable Powered Column Array Loudspeaker with 40 Independently Controlled Drivers

The Tannoy QFLEX 40-WP Digitally Steerable Powered Column Array Loudspeaker with 40 Independently Controlled Drivers is a powered, digitally steerable multi-channel, column array loudspeaker designed as a complete solution for installed applications with challenging acoustics, such as houses of worship, transportation hubs, convention centers, conference facilities, shopping malls, performing arts centers and museums. Certified for water and dust ingress protection to IP54 standard, QFLEX 40-WP is an exceptional choice for indoor swimming pools or work areas with unusually high levels of dust or moisture, as well as outdoor applications where weather conditions are moderate. The heart of the system is our proprietary VNET loudspeaker networking platform, which comprises both software and hardware DSP components that produce extremely-high speech intelligibility, impactful music reinforcement, and complete loudspeaker system diagnostics and monitoring.

Class-Leading Control

While many competing steerable arrays allow only a modest steering range across specific frequencies, the QFLEX 40-WP has a class-leading ±70° steering control, plus 40 channels of integrated DSP and amplification for consistent and highly intelligible full-range voice and music applications.

A Revolution in Sound Technology

The first digitally steerable column array loudspeaker of its kind, QFLEX 40-WP’s revolutionary Beam Engine technology steers the full-range sound away from surfaces that cause reflections. The intuitive Beam Engine GUI allows the designer to specify target areas. Rather than only providing a limited palette of opening and steering angles, the Beam Engine GUI generates a steering algorithm that is tailored for that specific area. The resulting asymmetrical pattern delivers similar sound pressure levels (SPL) in both the near and far field for superb coverage and intelligibility all in a very aesthetically-pleasing package.

Drivers, Power & DSP

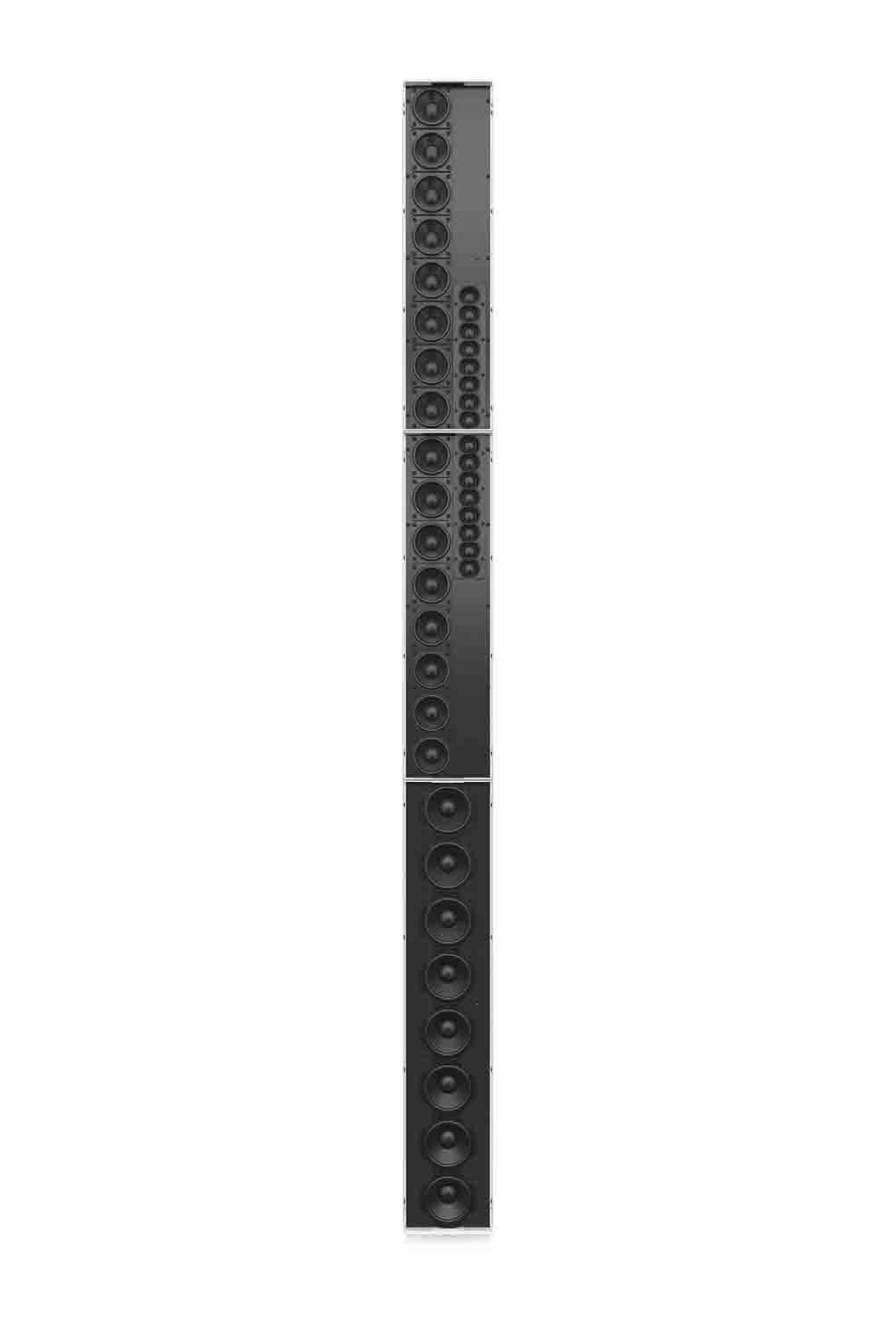

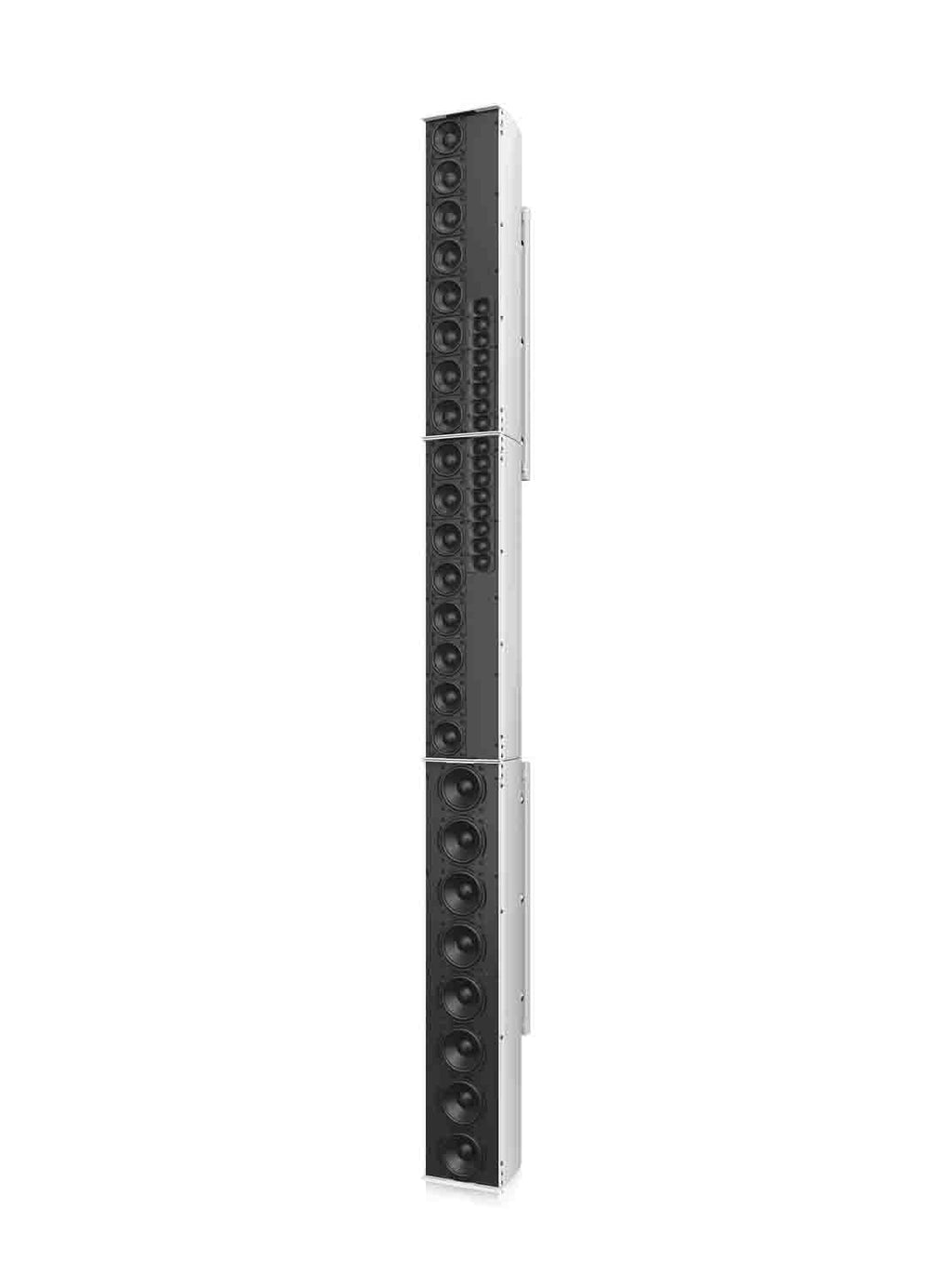

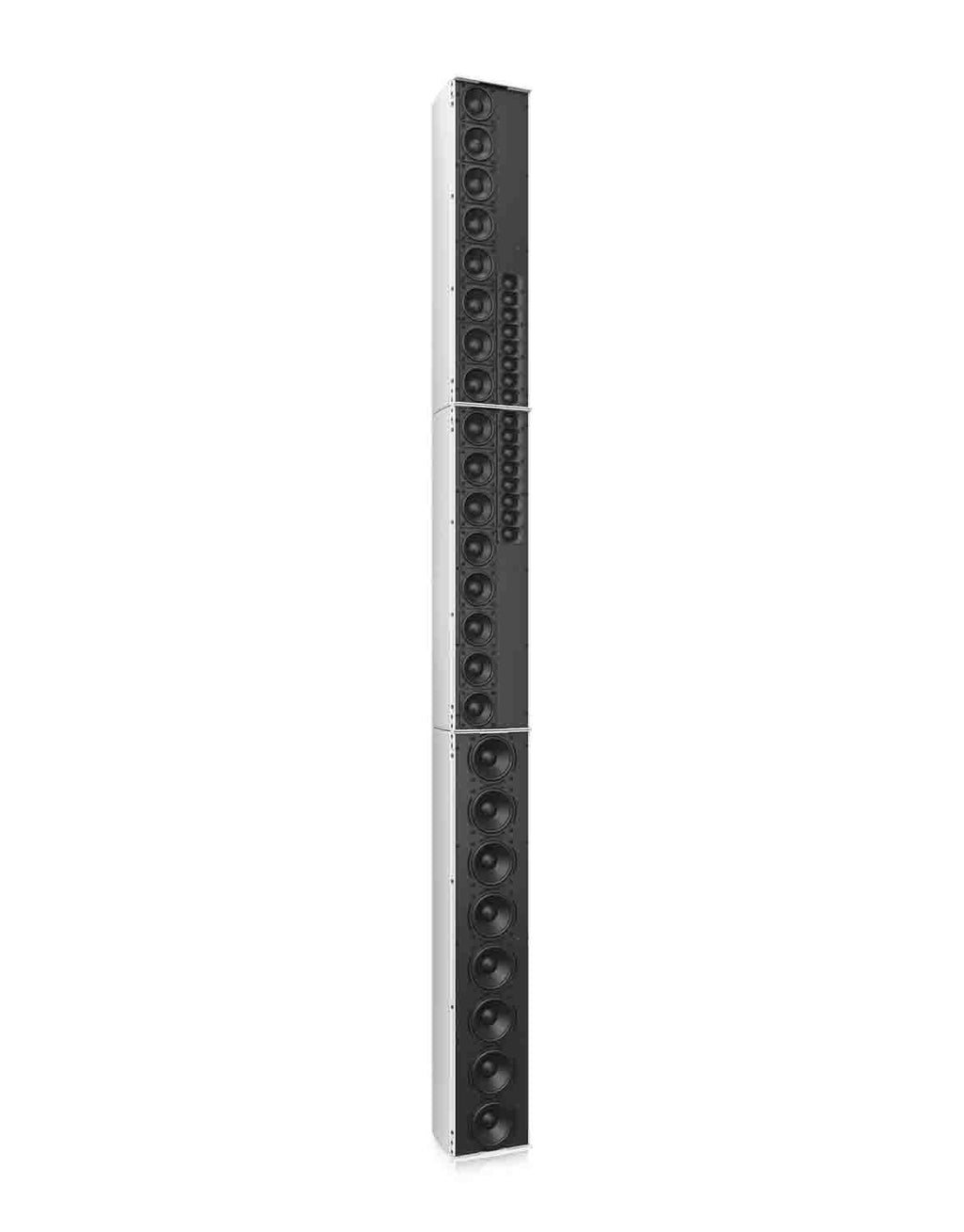

The QFLEX 40-WP column array loudspeaker comprises eight 4" low frequency drivers, sixteen 3" low frequency drivers and sixteen 1" high frequency drivers, each with their own individual 100-Watt Class D amplifier and integrated cutting-edge DSP. Presented in a high-density array with proportional frequency spacing, QFLEX 40-WP’s drivers provide digitally-steerable coverage for distances up to 70 m (230’) – with no aliasing artefacts. A robust internal DSP engine works seamlessly with the proprietary VNET and Beam Engine software, both of which are available for free download at tannoy.com

Scalability

Designed to provide premium-grade performance as a standalone self-powered column array, QFLEX 40-WP is also an exceptional choice for multiple-column configurations consisting of other TANNOY VNET enabled products. Implementation of the network between nodes is via high-quality rugged Neutrik Ethercon connectors, which are compatible with standard RJ45 plugs, and CAT5 cable. Each speaker has a unique address for auto-location on the network.

IP54 & PA/VA Compliant

In addition to its IP54 water and dust resistance certification, QFLEX 40-WP’s high level of telemetry functionality renders it fully PA/VA compliant for use in any life safety or mass notification environment.

Build Quality

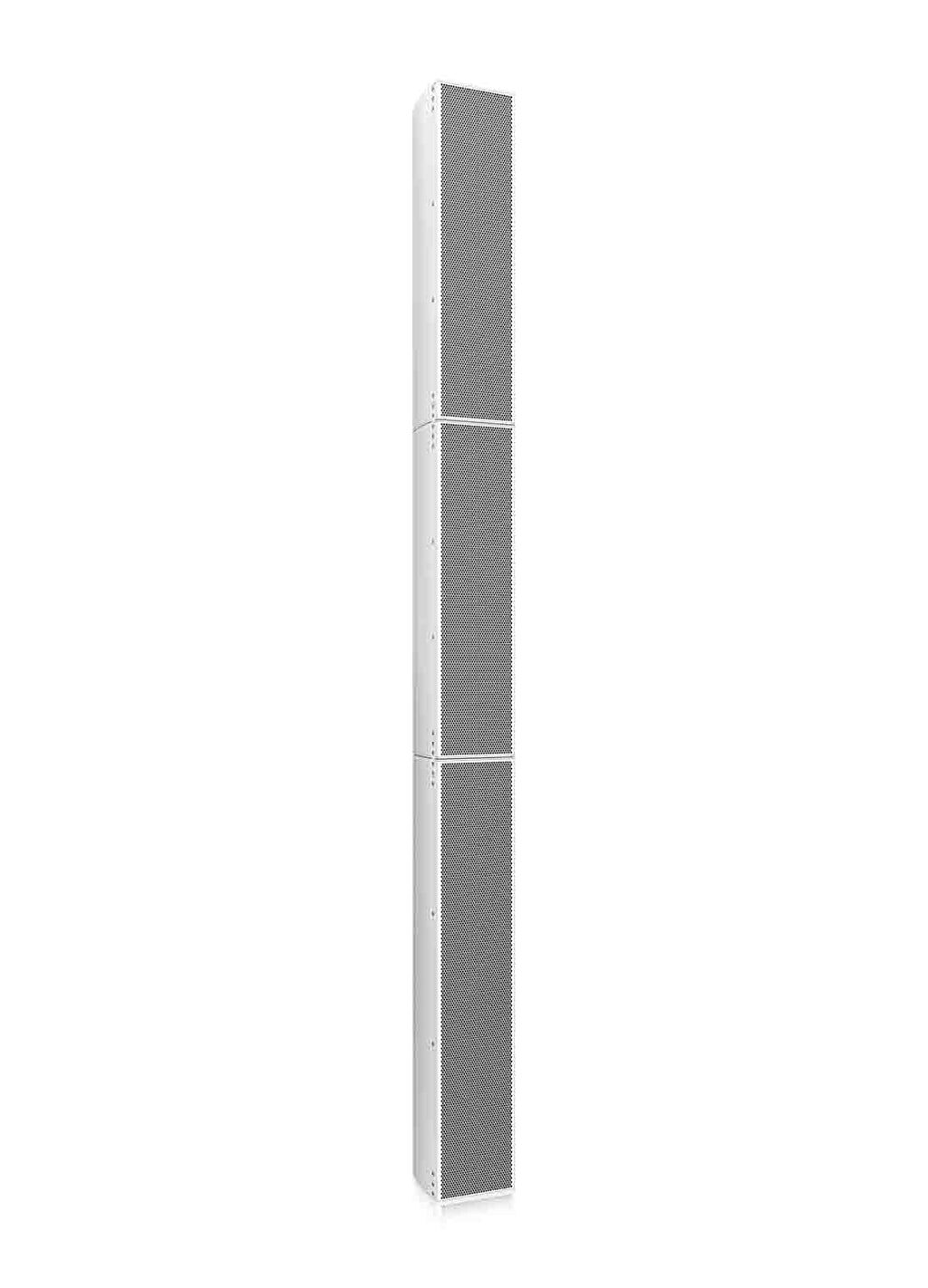

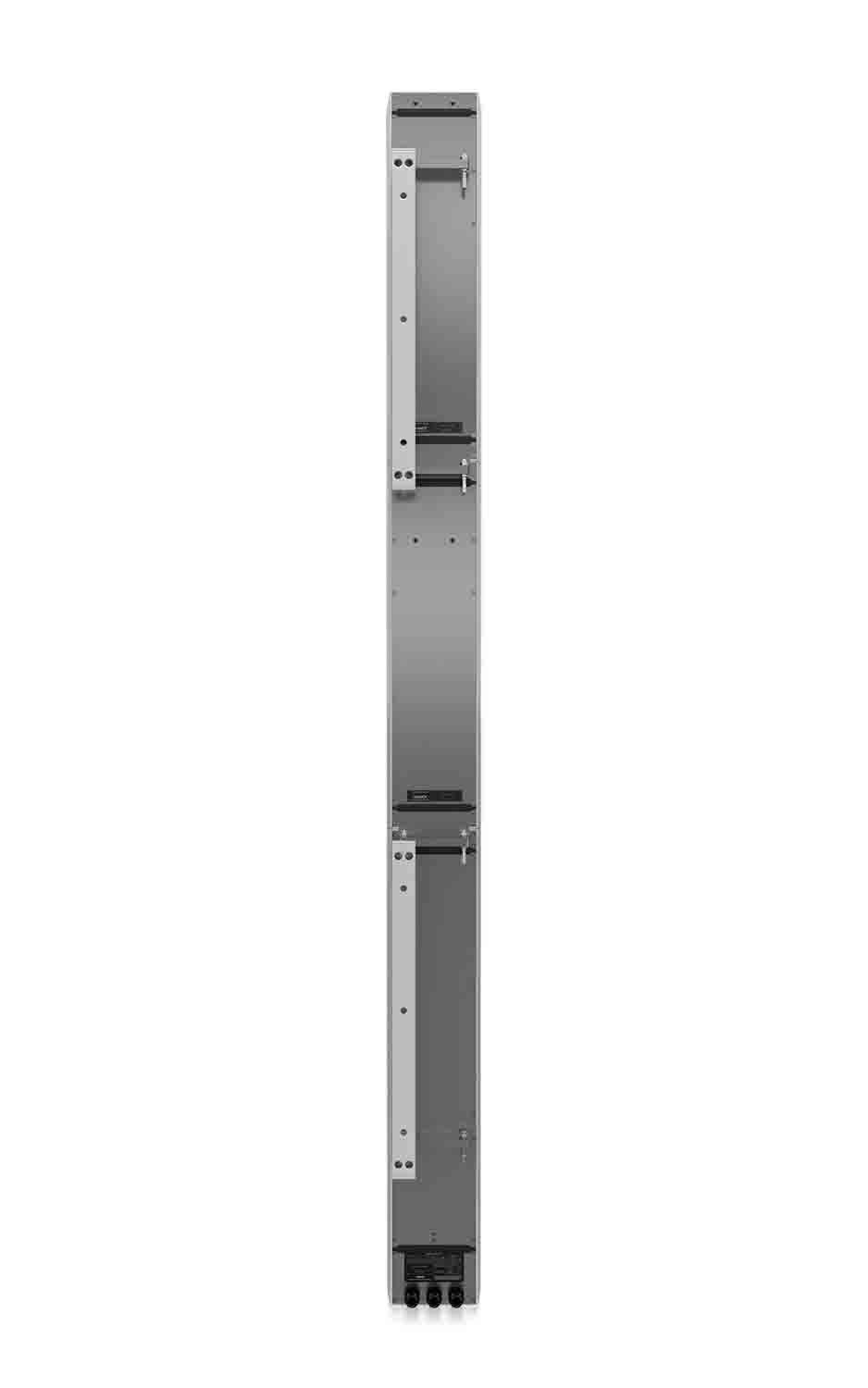

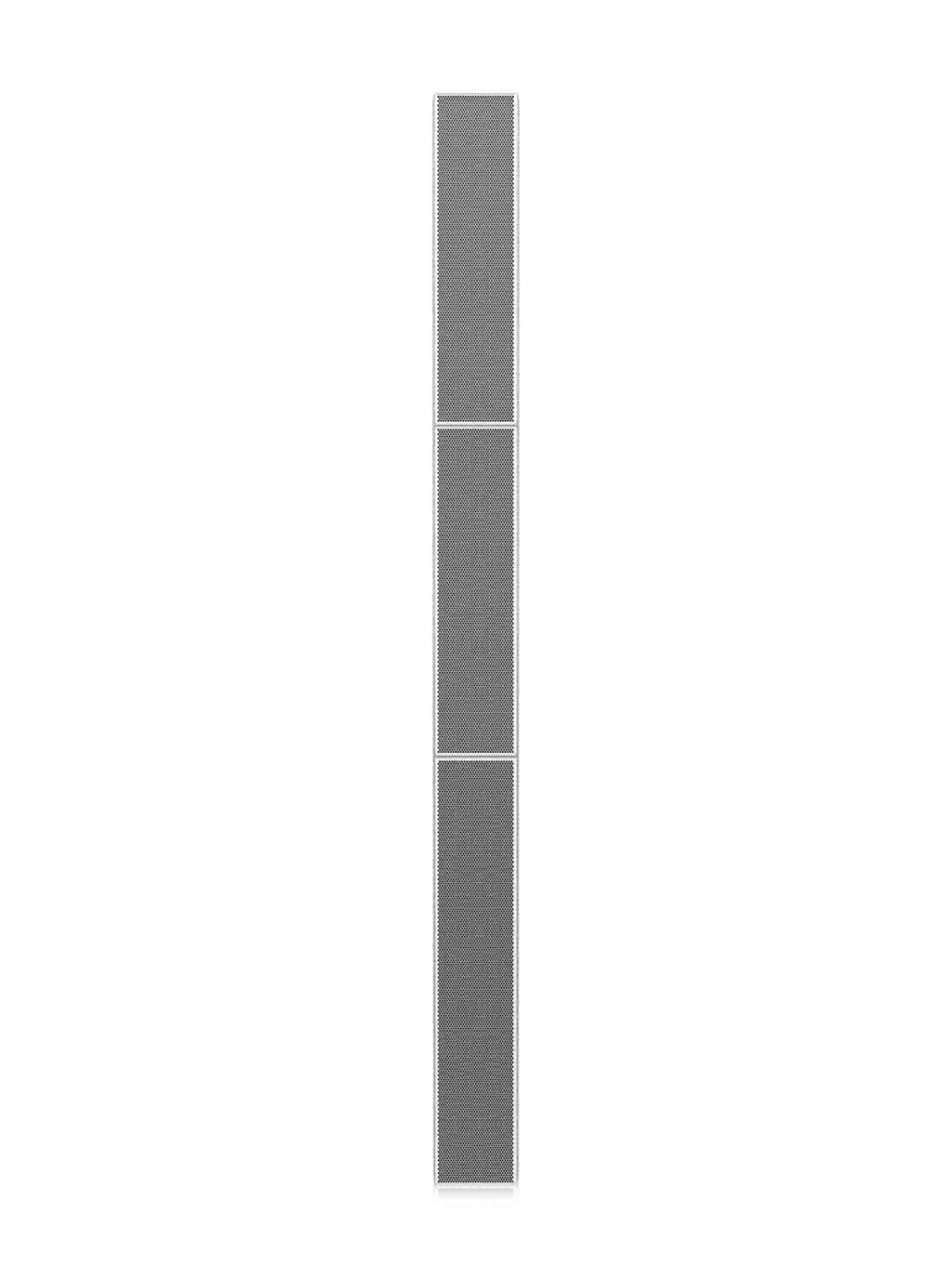

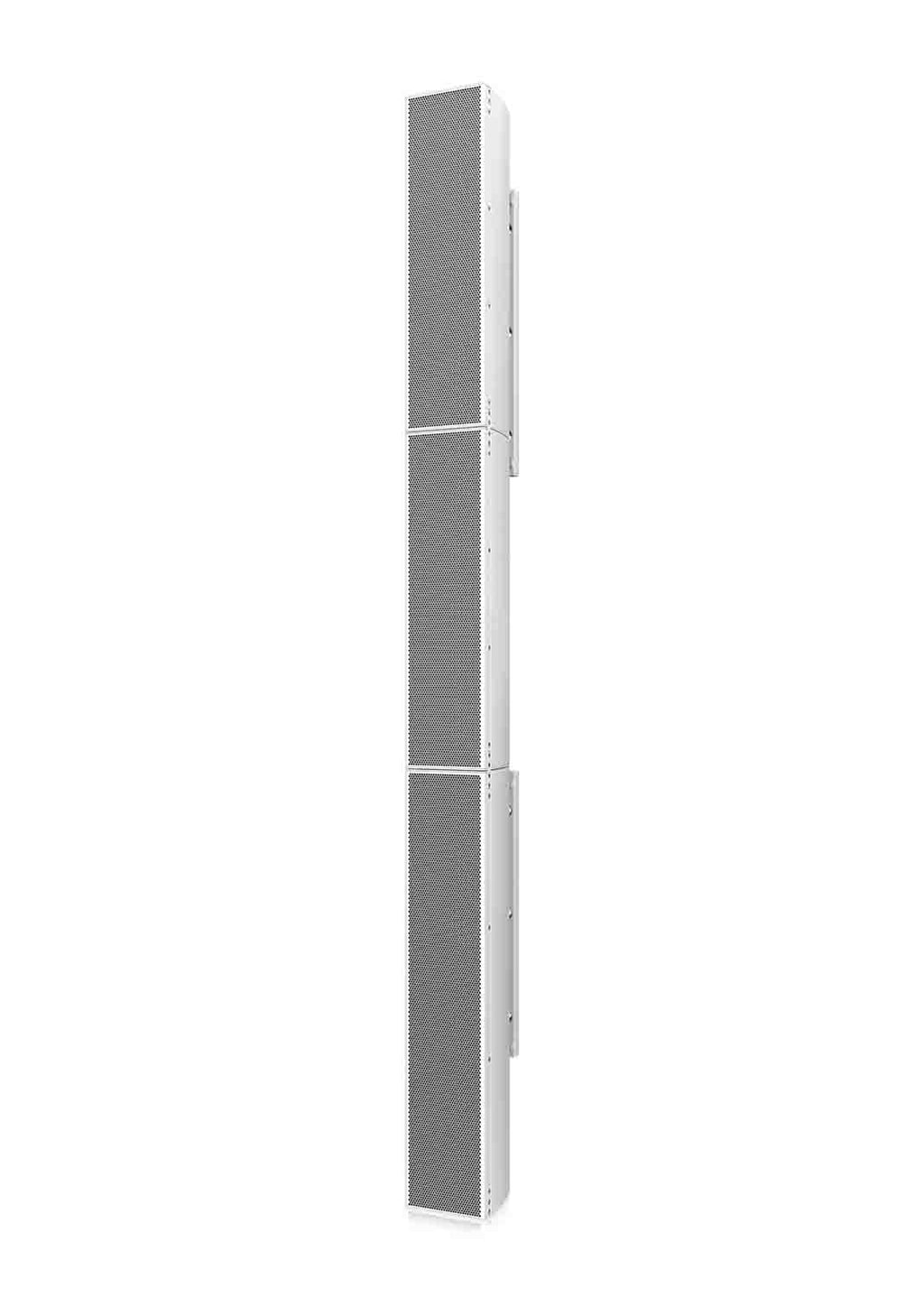

The architecturally styled corrosion resistant aluminum enclosure and perforated grille are finished in a semi matt white paint. The QFLEX 40-WP also includes the necessary custom mounting hardware for quick and accurate installation.
