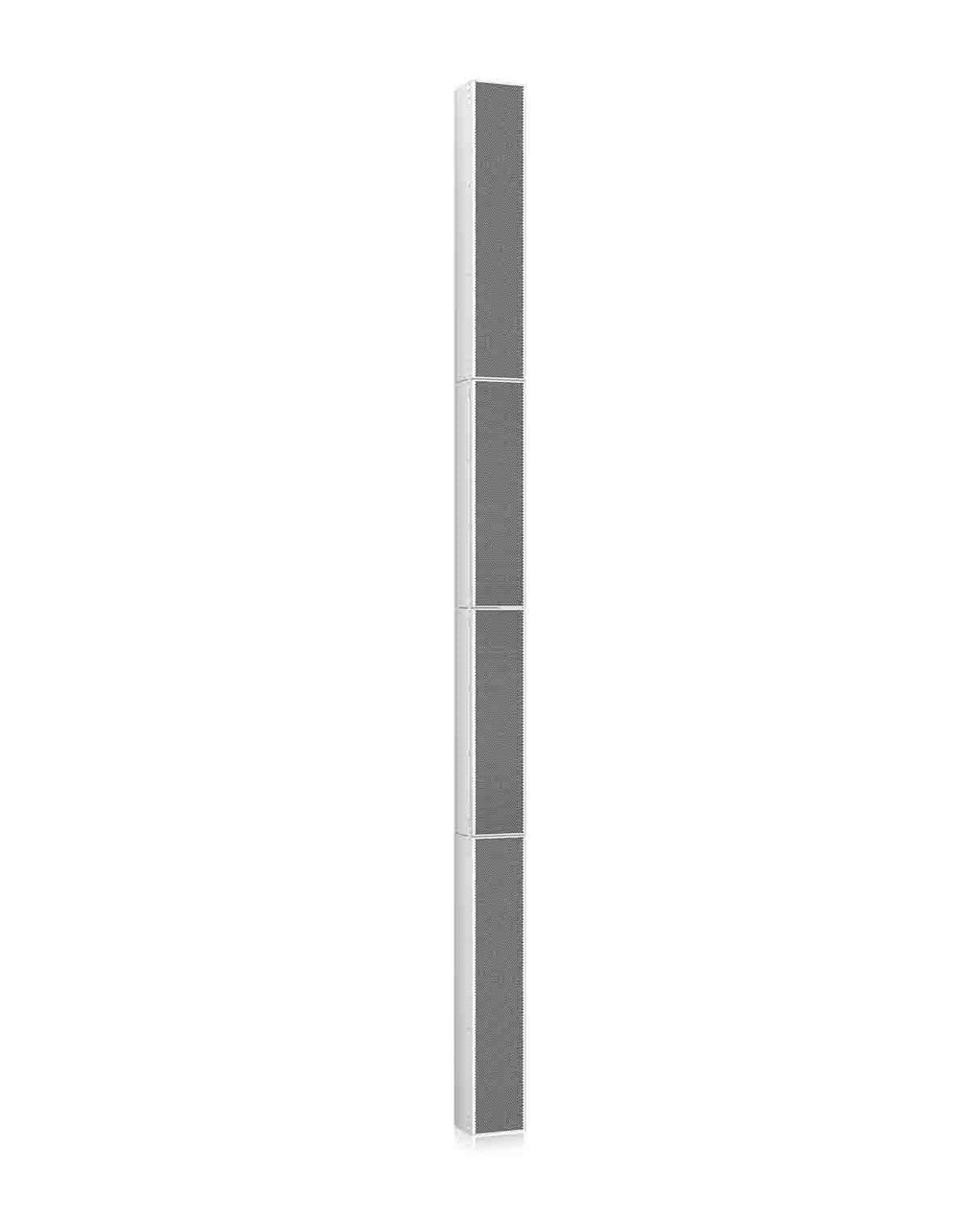

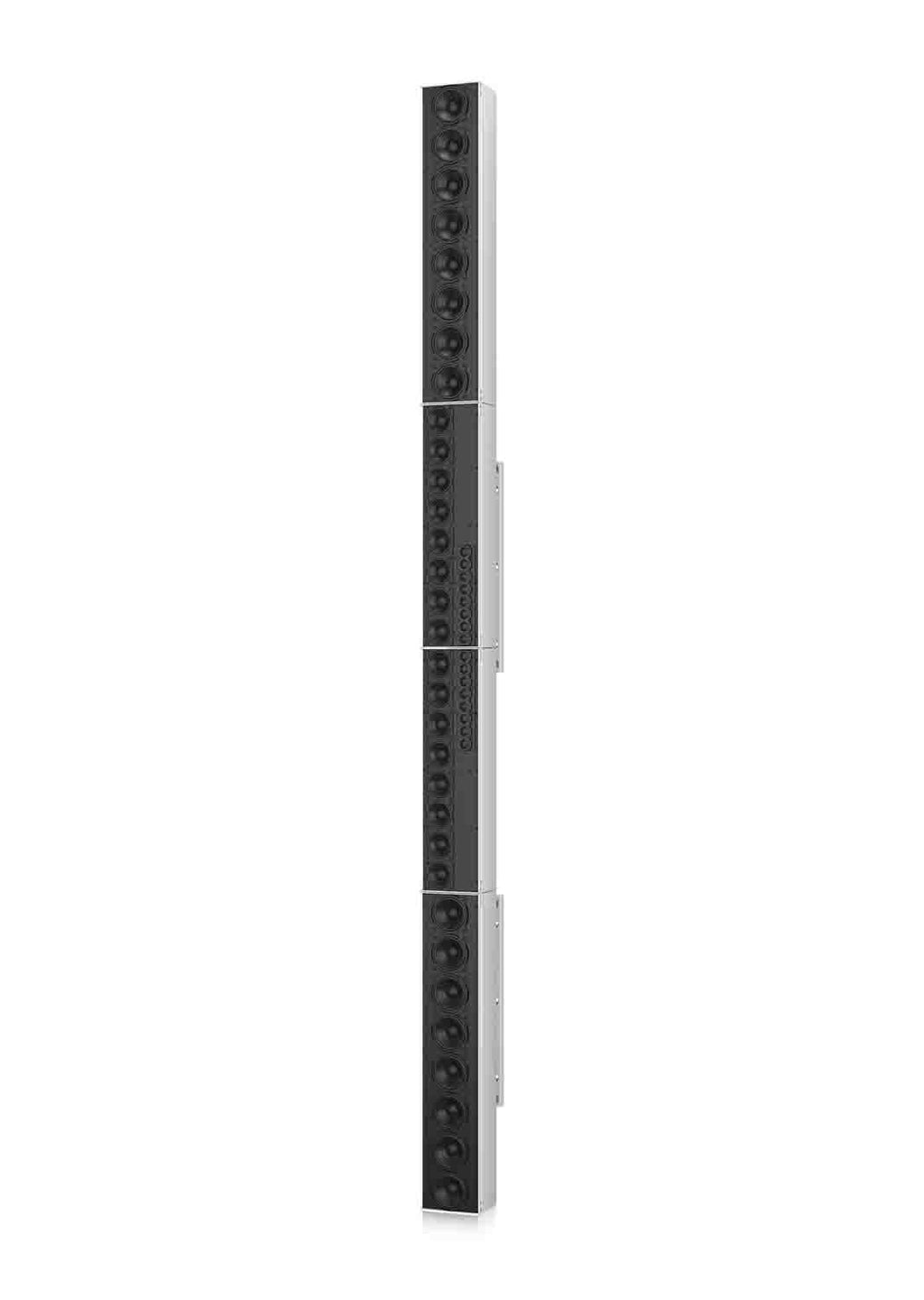

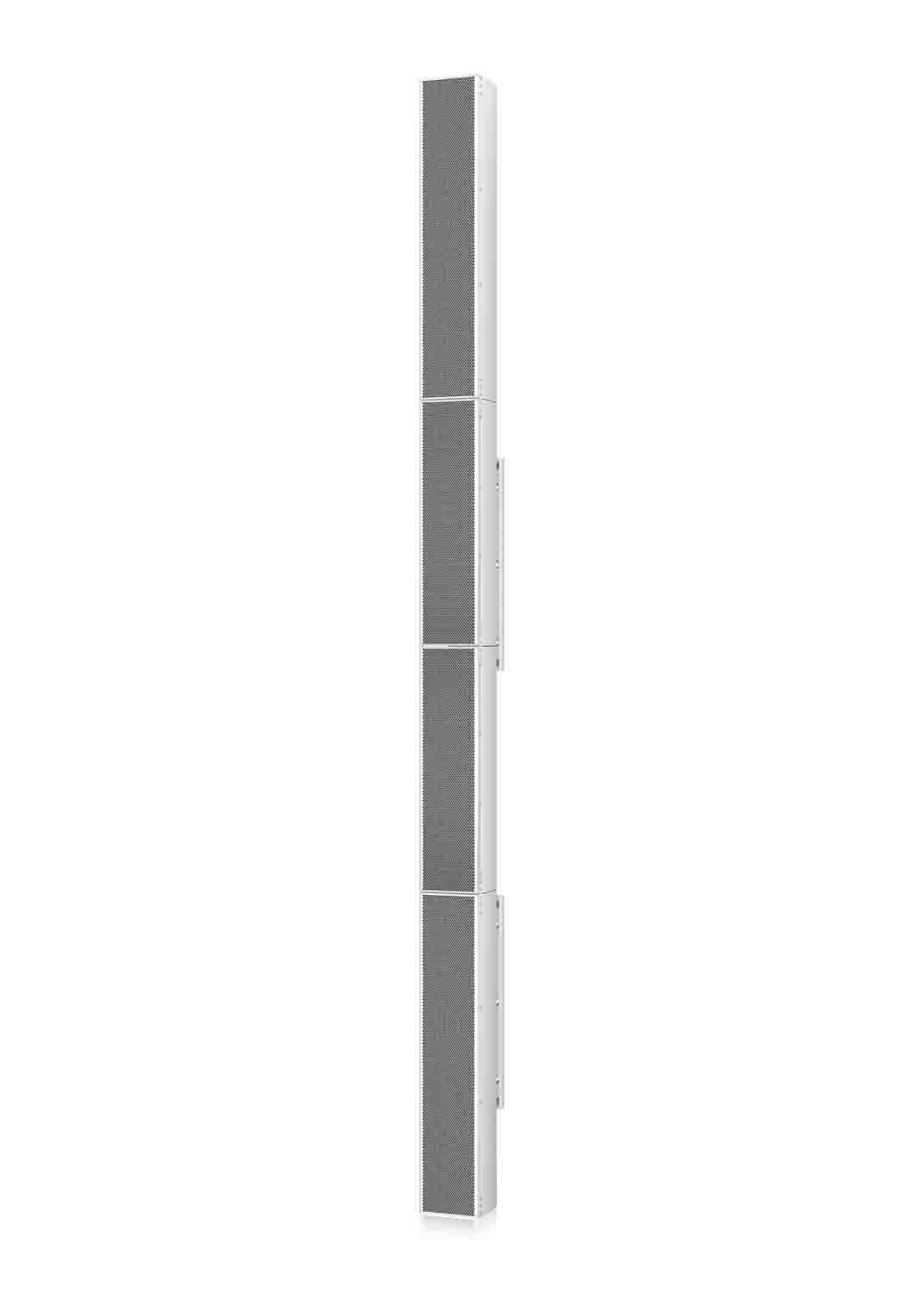

Tannoy QFLEX 48 Digitally Steerable Powered Column Array Loudspeaker with 48 Independently Controlled Drivers

Save 23%
UPC: 4033653107600
Sale price$17,000.00 Regular price$22,100.00
Sold out

2 Day Shipping is Free or heavily discounted on most items! Make sure you select 2nd Day Shipping. We want to ship your order the fastest way possible.

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we can help.

We price match competitor advertised prices.

Our online prices are always honored instore guaranteed.


The Tannoy QFLEX 48 Digitally Steerable Powered Column Array Loudspeaker with 48 Independently Controlled Drivers is a powered, digitally steerable multi-channel, column array loudspeaker designed as a complete solution for installed applications with challenging acoustics, such as houses of worship, transportation hubs, convention centers, conference facilities, shopping malls, performing arts centers and museums. The heart of the system is our proprietary VNET loudspeaker networking platform, which comprises both software and hardware DSP components that produce extremely-high speech intelligibility, impactful music reinforcement, and complete loudspeaker system diagnostics and monitoring.

Class-Leading Control

While many competing steerable arrays allow only a modest steering range across specific frequencies, the QFLEX 48 has a class-leading ±70° steering control, plus 40 channels of integrated DSP and amplification for consistent and highly intelligible full-range voice and music applications.

A Revolution in Sound Technology

The first digitally steerable column array loudspeaker of its kind, QFLEX 48’s revolutionary beam Engine technology steers the full-range sound away from surfaces that cause reflections. The intuitive Beam Engine GUI allows the designer to specify target areas. Rather than only providing a limited palette of opening and steering angles, the Beam Engine GUI generates a steering algorithm that is tailored for that specific area. The resulting asymmetrical pattern delivers similar sound pressure levels (SPL) in both the near and far field for superb coverage and intelligibility all in a very aesthetically pleasing package.

Drivers, Power & DSP

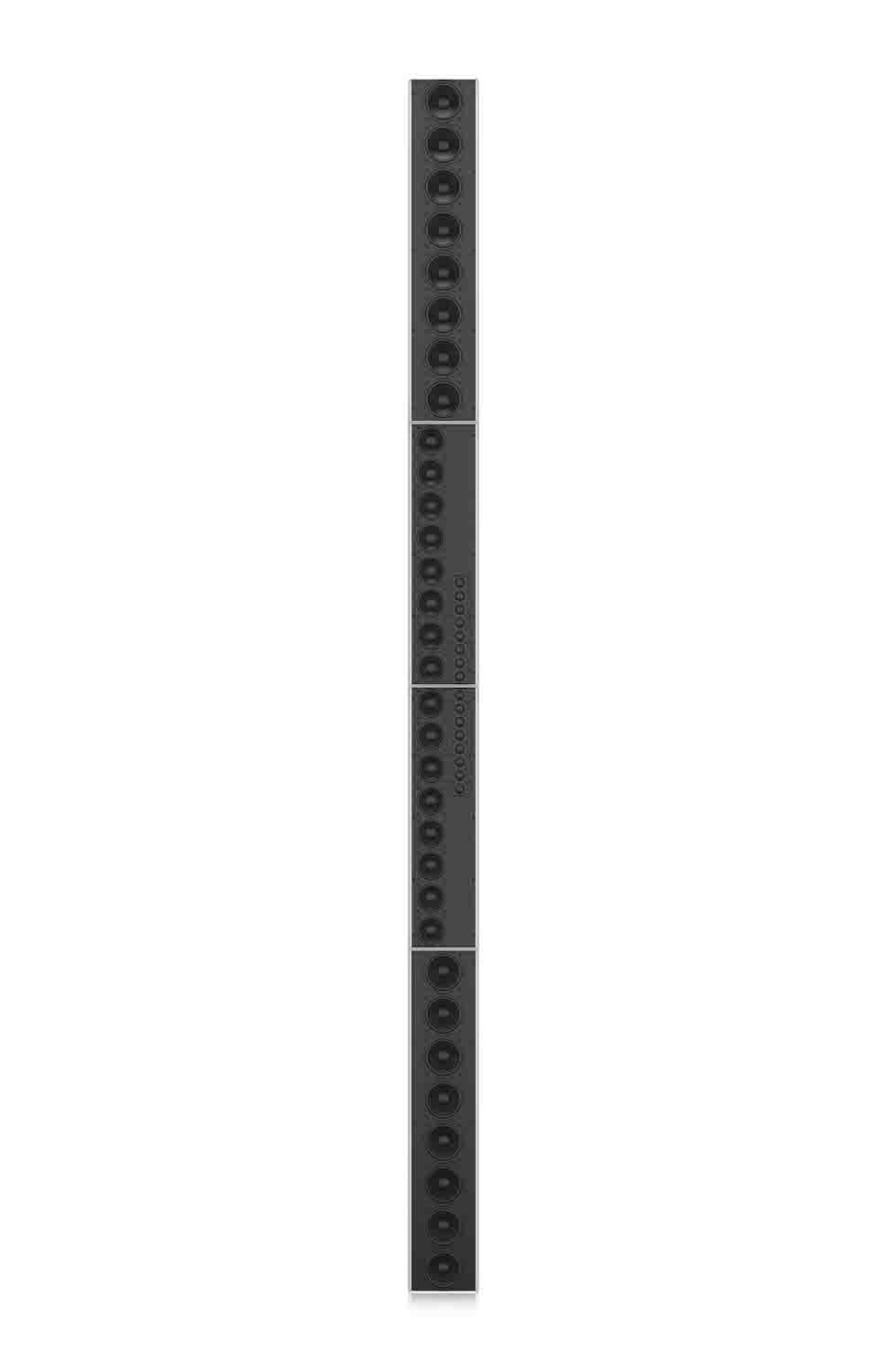

The QFLEX 48 column array loudspeaker comprises sixteen 4” low frequency drivers, sixteen x 3” low frequency drivers and sixteen x 1” high frequency drivers, each with their own individual 100-Watt Class D amplifier and integrated cutting-edge DSP. Presented in a high-density array with proportional frequency spacing, QFLEX 48’s drivers provide digitally-steerable coverage for distances up to 80 m (262’) – with no aliasing artefacts. A robust internal DSP engine works seamlessly with the proprietary VNET and Beam Engine software, both of which are available for free download here.


Designed to provide premium-grade performance as a standalone self-powered column array, QFLEX 48 is also an exceptional choice for multiple-column configurations consisting of other TANNOY VNET enabled products. Implementation of the network between nodes is via high quality rugged Neutrik Ethercon connectors, which are compatible with standard RJ45 plugs, and CAT5 cable. Each speaker has a unique address for auto-location on the network.

PA/VA Compliant

Engineered for the ultimate in reliability, QFLEX 48’s high level of telemetry functionality renders it fully PA/VA compliant for use in any life safety or mass notification environment.

Build Quality

The architecturally styled corrosion resistant aluminum enclosure and perforated grille are finished in a semi matt white paint. The QFLEX 48 also includes the necessary custom mounting hardware for quick and accurate installation. Mains input and output link power connectors are Neutrik powerCON.

Product Specifications

Specification Measurement or Description
4" LF 16
3" LF 16
1" HF 16
No. of Amp Channels 100 W (RMS) @ 4 Ohms: 48
Frequency Range 110 Hz - 20 kHz
Horizontal Dispersion 120 degrees
Aiming Angle Limit ± 70 degrees
LF Beam Control Limit 200 Hz
Maximum SPL @ 100 ft (30 m) 101.5 dB
Column Height 2967 mm (116.8")
Column Width 171.5 mm (6.7")
Column Depth 150 mm (5.9")
Typical Application Distance 80 m (263 ft.)
Sample Rate 96 kHz
Audio Inputs Analogue & AES/EBU
Shipping Weight 110 lbs
Shipping Dimensions 7 × 8 × 118 inches
