The Tannoy QFLEX 8 Digitally Steerable Powered Column Array Loudspeaker with 8 Independently Controlled Drivers is a powered, digitally steerable multi-channel, column array loudspeaker designed as a complete solution for installed applications with challenging acoustics, such as houses of worship, transportation hubs, convention centers, conference facilities, shopping malls, performing arts centers and museums. The heart of the system is our proprietary VNET loudspeaker networking platform, which comprises both software and hardware DSP components that produce extremely-high speech intelligibility and complete loudspeaker system diagnostics and monitoring.
While many competing steerable arrays allow only a modest steering range across specific frequencies, the QFLEX 8 has a class leading ±70° steering control, plus 8 channels of integrated DSP and amplification for consistent and highly intelligible full-range voice and music applications.
A Revolution in Sound Technology
The first digitally steerable column array loudspeaker of its kind, QFLEX 8’s revolutionary Beam Engine technology steers the full-range sound away from surfaces that cause reflections. The intuitive Beam Engine GUI allows the designer to specify target areas. Rather than only providing a limited palette of opening and steering angles, the Beam Engine GUI generates a steering algorithm that is tailored for that specific area. The resulting asymmetrical pattern delivers similar sound pressure levels (SPL) in both the near and far field for superb coverage and intelligibility all in a very aesthetically-pleasing package.
Drivers, Power & DSP

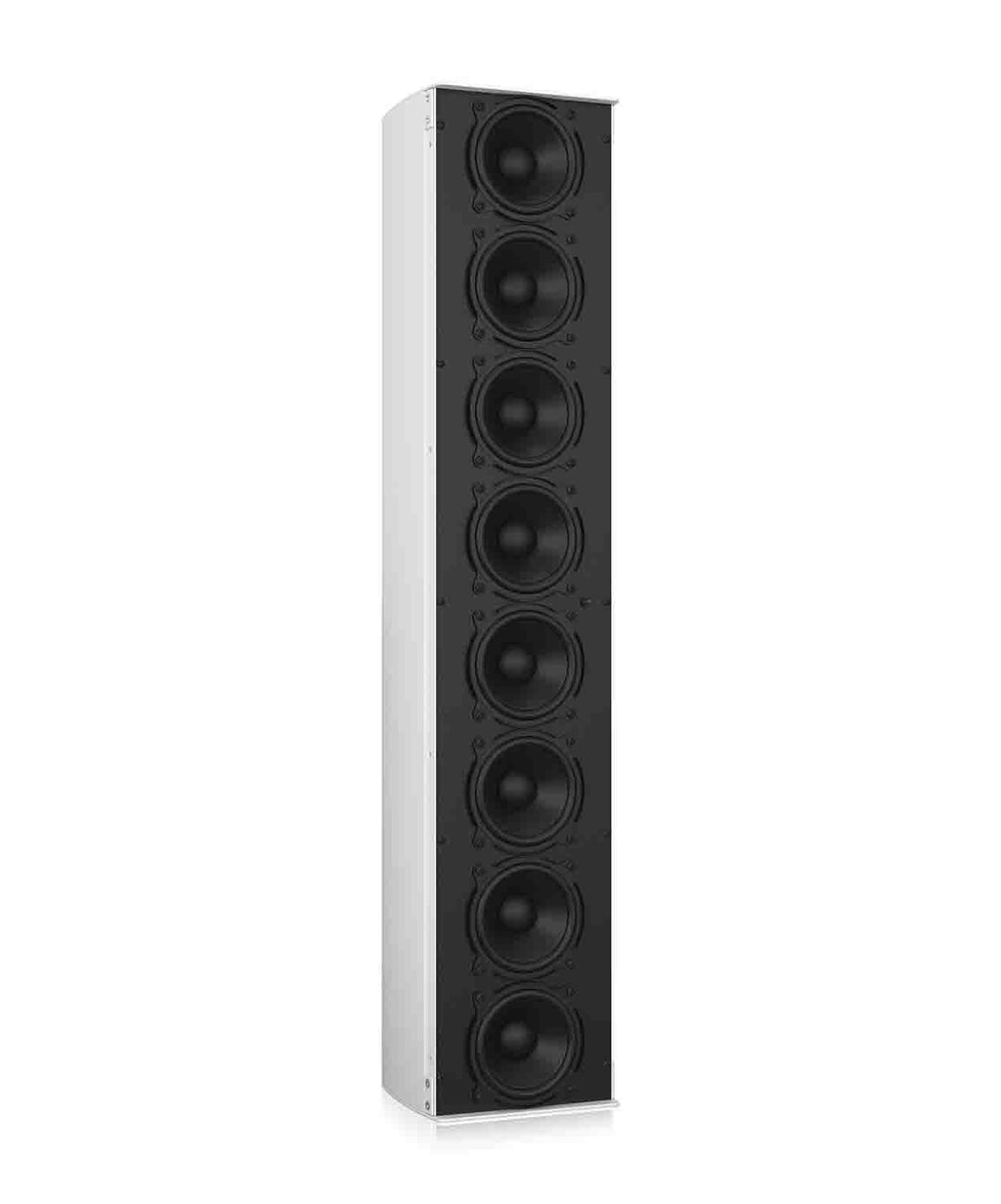

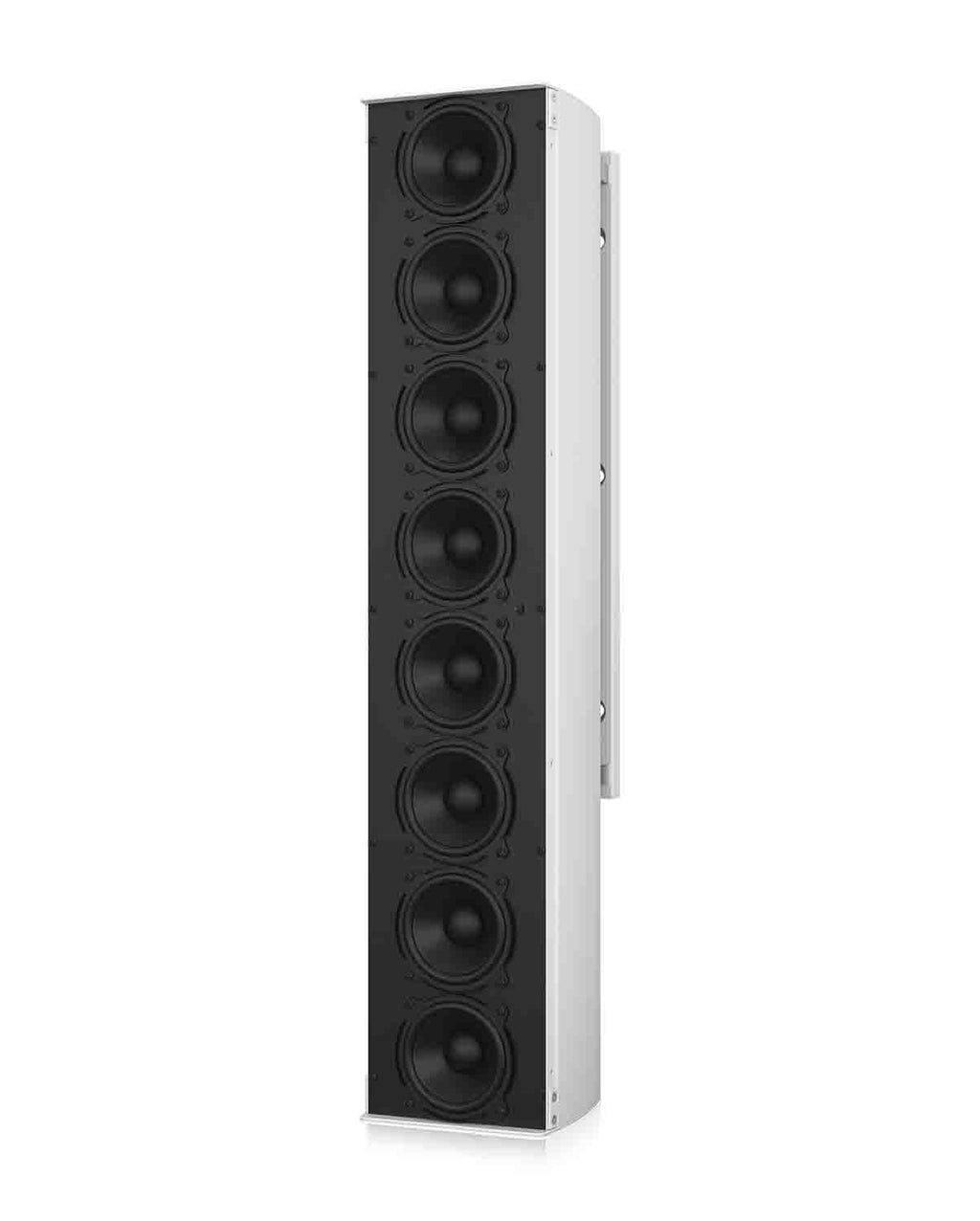

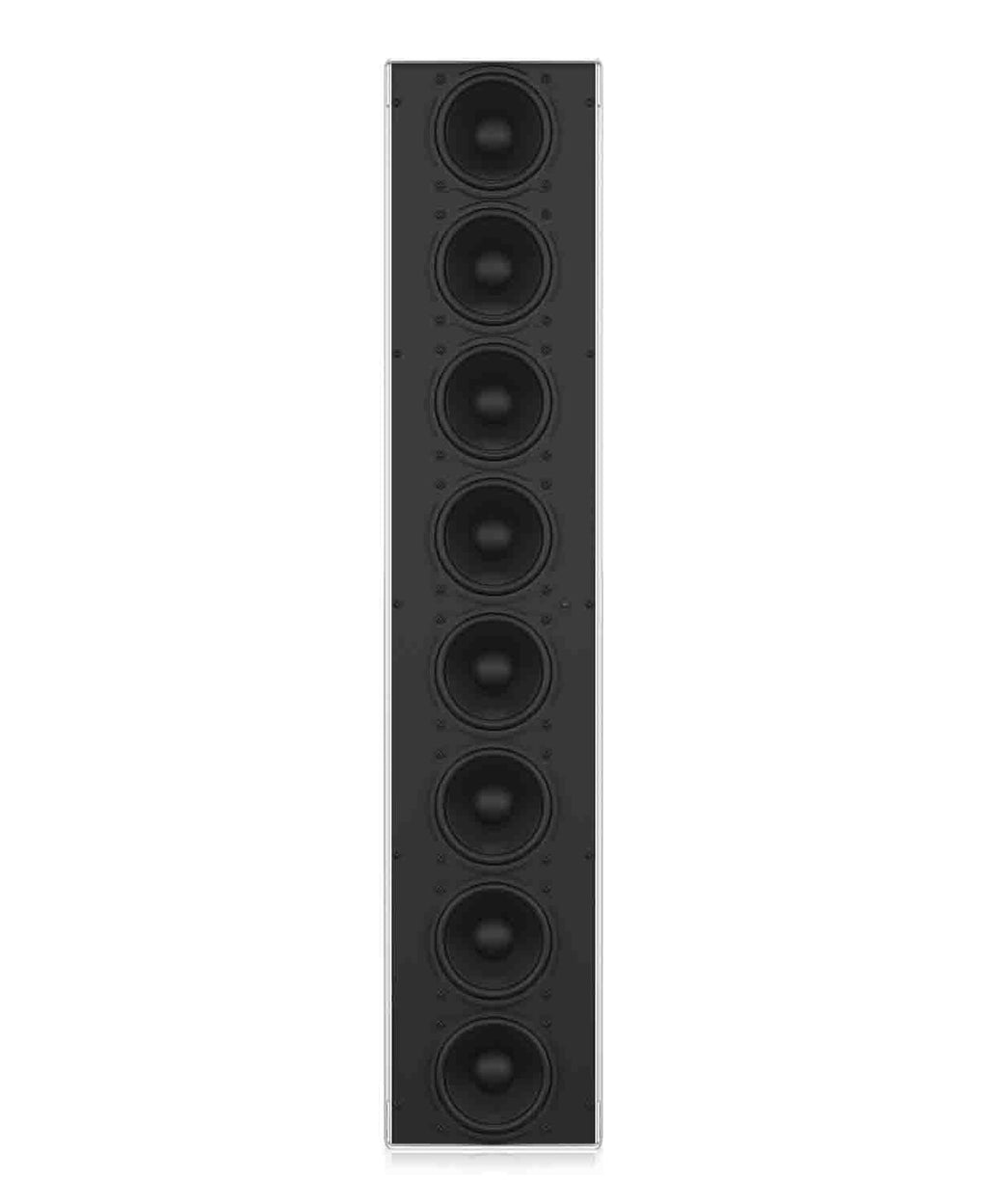

The QFLEX 8 column array loudspeaker comprises eight 4" full-range drivers, each with its own dedication 100-Watt Class D amplifier. QFLEX 8’s drivers provide digitally-steerable coverage for distances up to 20 m (66’). A robust internal DSP engine works seamlessly with the proprietary VNET and Beam Engine software, both of which are available for free download here.
Designed to provide premium-grade performance as a standalone self-powered column array, QFLEX 8 is also an exceptional choice for multiple-column configurations consisting of other TANNOY VNET enabled products. Implementation of the network between nodes is via high-quality rugged Neutrik Ethercon connectors, which are compatible with standard RJ45 plugs, and CAT5 cable. Each speaker has a unique address for auto-location on the network.
Engineered for the ultimate in reliability, QFLEX 8’s high level of voice intelligibility and telemetry functionality renders it fully compliant in any life safety or mass notification environment.

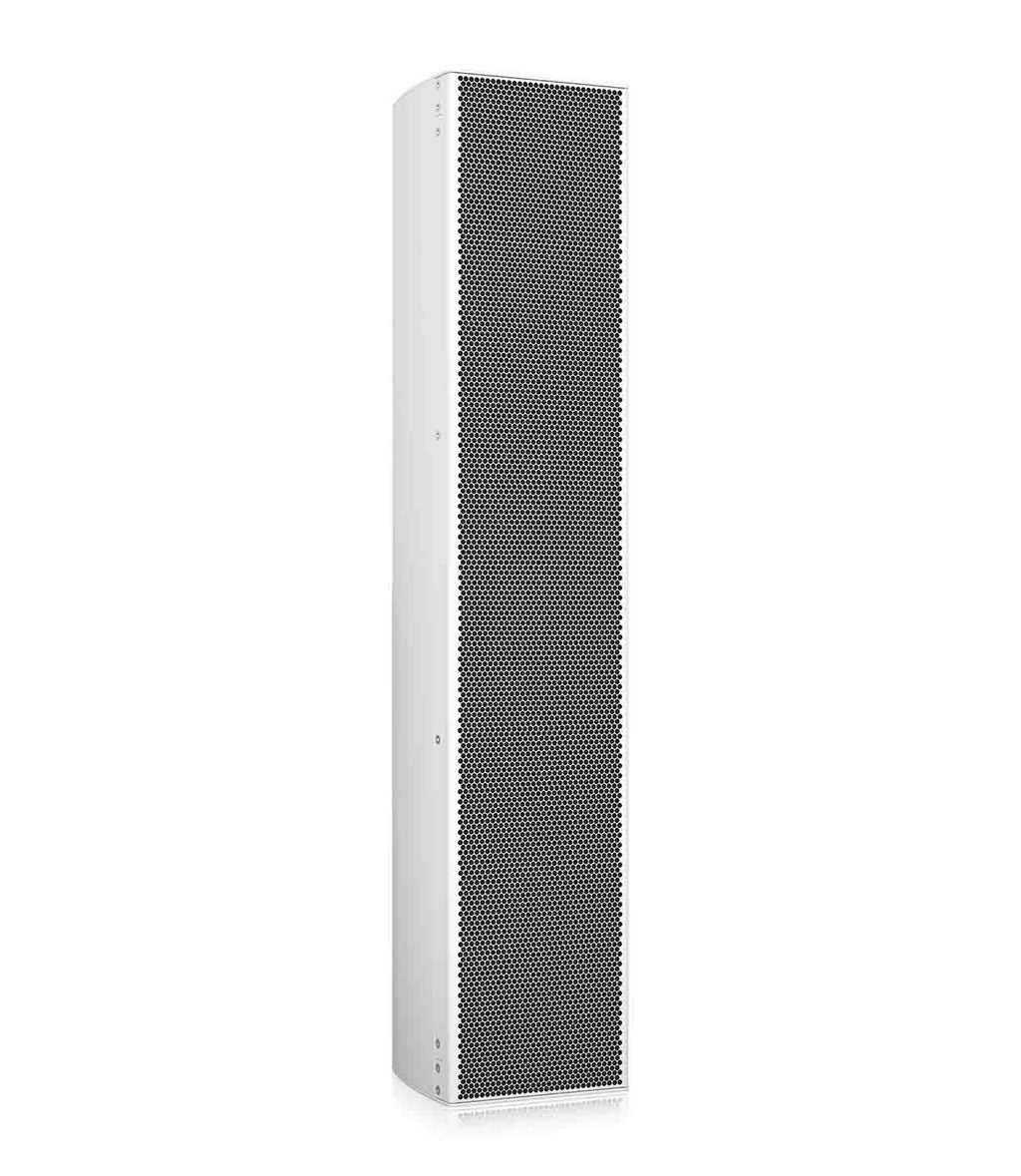

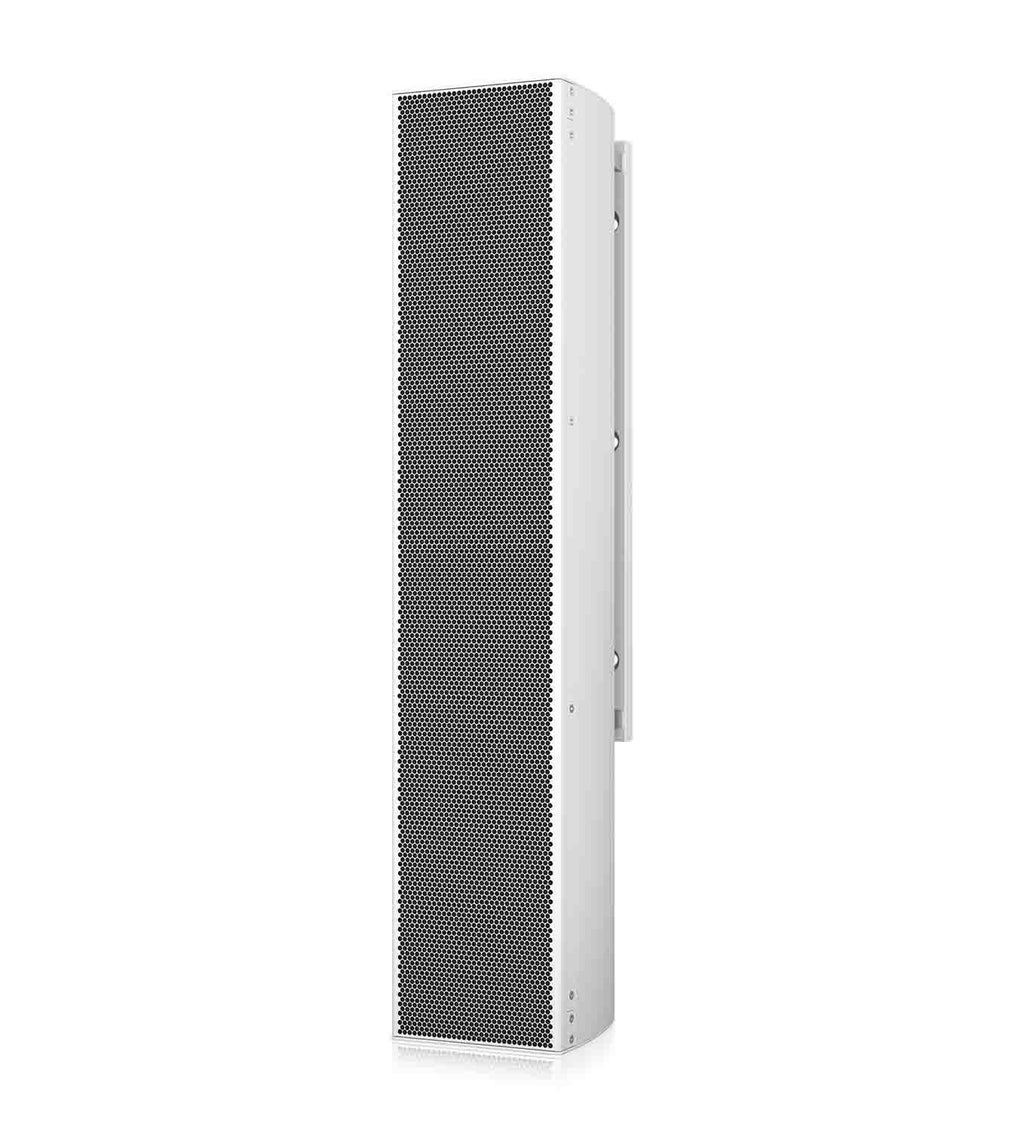

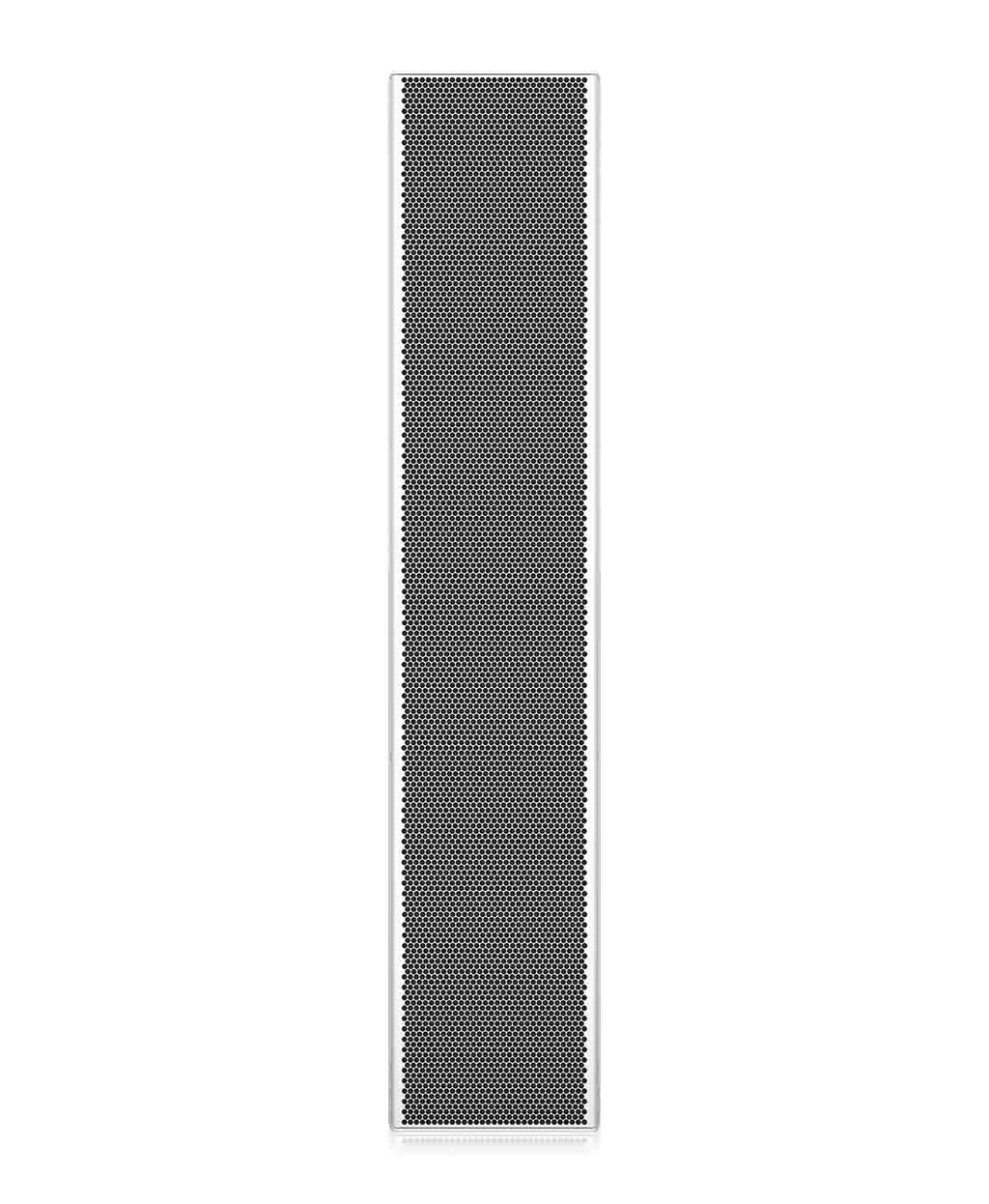

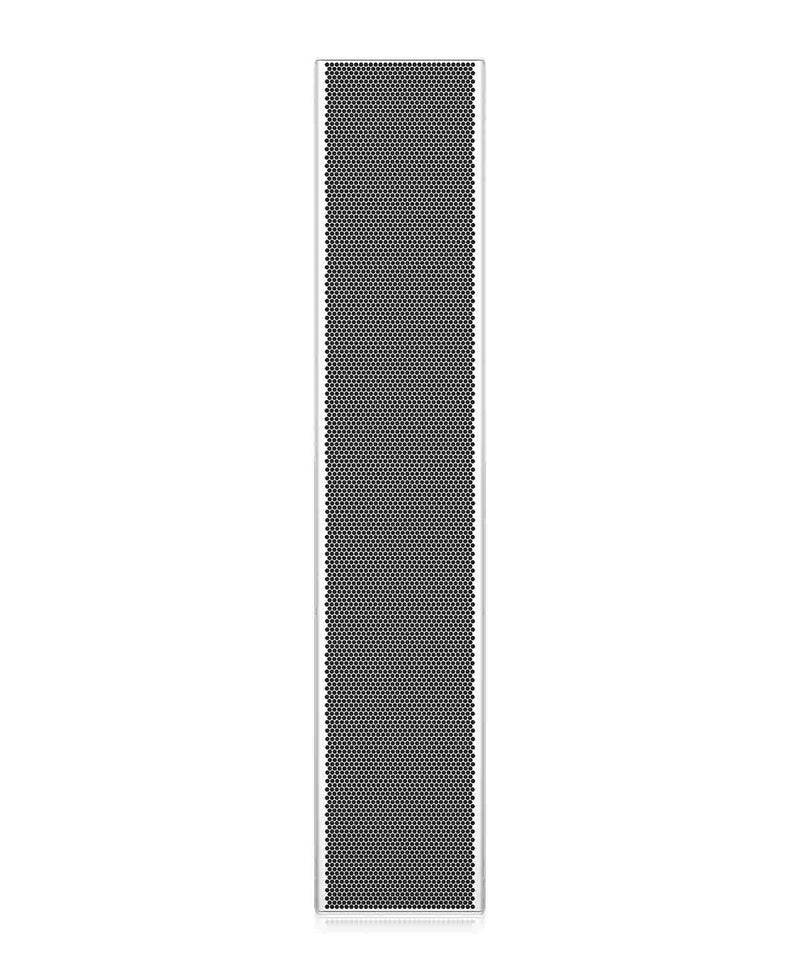

The architecturally styled aluminum enclosure is finished in a semi matt white paint with a corrosion resistant aluminum perforated grille. The QFLEX 8 includes the necessary hardware for quick and accurate installation. Mains input and output link power connectors are Neutrik powerCON.
|Specification||Measurement or Description|
|No. of Amp Channels||100 W (RMS) @ 4 Ohms: 8|
|Frequency Range||110 Hz - 4 kHz|
|Horizontal Dispersion||120 degrees|
|Aiming Angle Limit||± 70 degrees|
|LF Beam Control Limit||700 Hz|
|Maximum SPL @ 100 ft (30 m)||92 dB|
|Column Height||840 mm (33")|
|Column Width||171.5 mm (6.7")|
|Column Depth||150 mm (5.9")|
|Typical Application Distance||50 m (66 ft.)|
|Sample Rate||96 kHz|
|Audio Inputs||Analogue & AES/EBU|
|Shipping Weight||33 lbs|
|Shipping Dimensions||7 × 8 × 34 inches|
