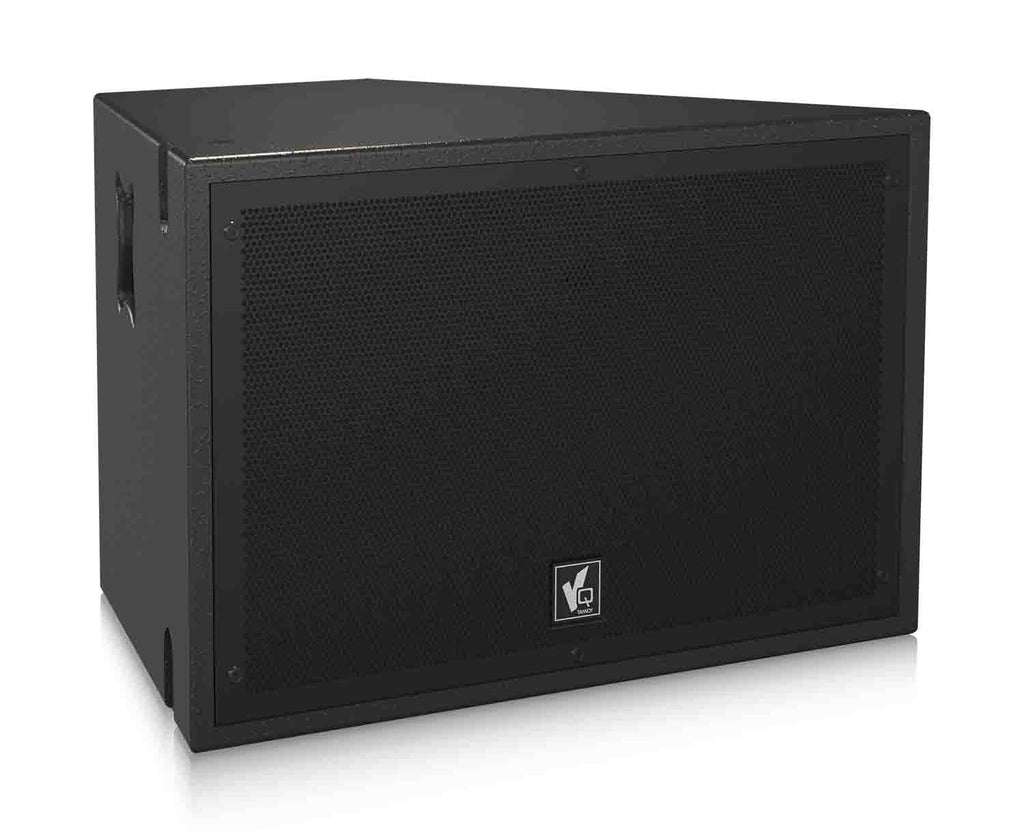

The Tannoy VQ MB High-Performance Dual 12-Inch Mid-Bass Large Format Loudspeaker is a high powered low/mid frequency module that replicates the low frequency section of the VQ 60 & VQ 100 full range loudspeakers and can be flown or ground stacked to provide improved LF pattern control with full range or mid/high systems in the VQ series. Two (12”) low frequency transducers offer high power handling and low power compression for high continuous SPL capability. A newly designed LF loading design provides the highest possible sensitivity for low/mid frequency output (105 dB/w). The VQ MB is principally intended for use with the VQ 60, VQ 100, VQ MH & VQ DF full range systems and can be used construct arrays with extended low frequency pattern control. By fixing a VQ MB at the opposing end of a VQ full range loudspeaker we can effectively extend pattern control to below the cutoff point of the Mid/High PSW waveguide.
Comprehensive Installation Package
The VQ 64DF can be configured for use in Single-Amp or Bi-Amp mode, in conjunction with a Lake LM26/44 digital signal processor (DSP) or Lab Gruppen PLM+ or D series platforms.
Exceptional Sound and Reliability

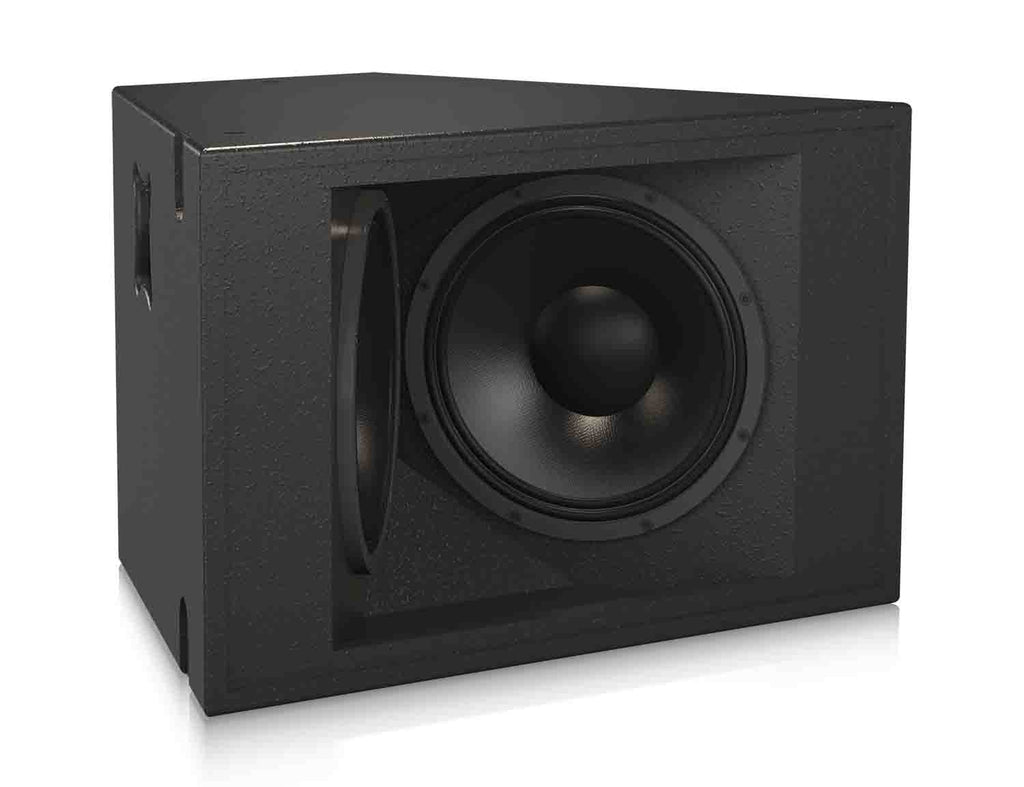

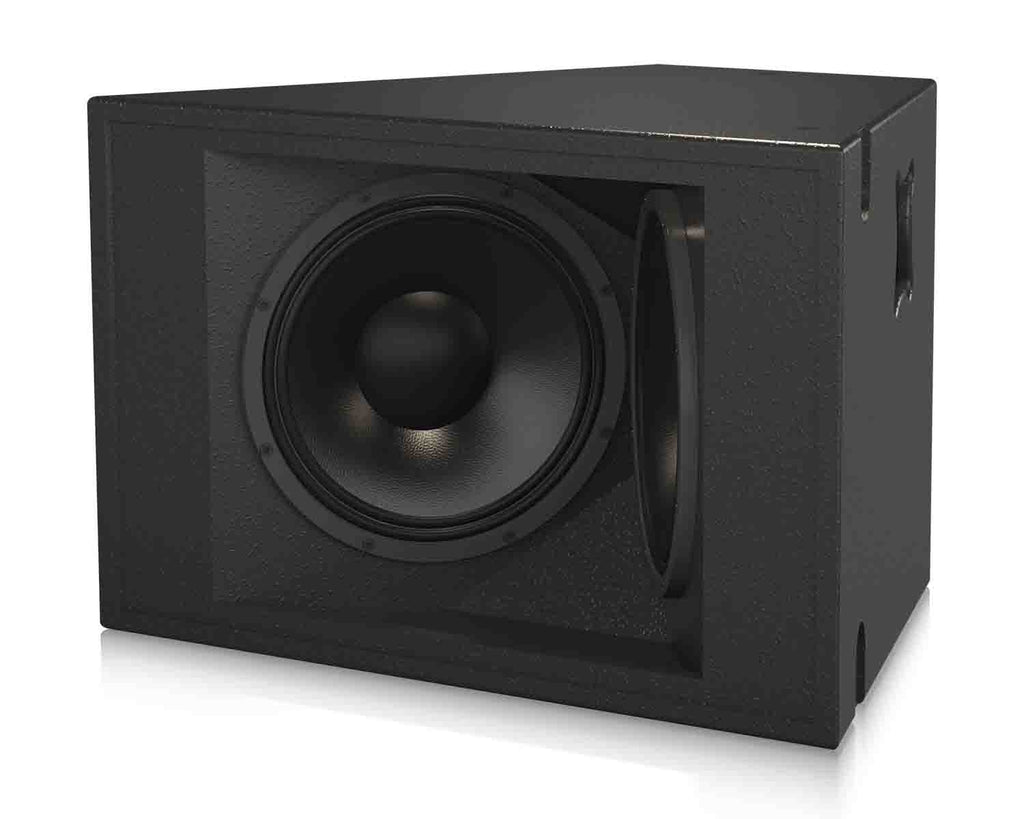

The two (12") low frequency transducers, offer high power handling and low power compression for high continuous SPL capability.
|Specification||Measurement or Description|
|Frequency Response (-3 dB)||115 Hz - 500 Hz|
|Frequency Range (-10 dB)||90 Hz - 600 Hz|
|Sensitivity (1 W @ 1 M)||105 dB|
|Dispersion (-6 dB)||N/A|
|Driver Components||LF - 2 x 300 mm (12") Low Frequency Transducers, Semi Horn Loaded|
|Directivity Factor (Q)||N/A|
|Directivity Index (DI)||N/A|
|Maximum SPL||135 dB averaged, 141 peaks|
|LF @ 4 Ω||1000 W continuous, 2000 W peak|
|MF @ 8 Ω||N/A|
|HF @ 8 Ω||N/A|
|Passive MF/HF @ 8 Ω||N/A|
|Nominal Impedance||LF - 4 Ω|
|Construction||18 mm (0.71") plywood, internally braced|
|Grille||Powder coated perforated steel grille|
|Finish||Textured black paint|
|Connectors||Barrier strip and Speakon connector|
|Fittings||2 x recessed carrying handles, 12 x M10 flying inserts|
|Dimensions||18 x 28 x 21 inches|
