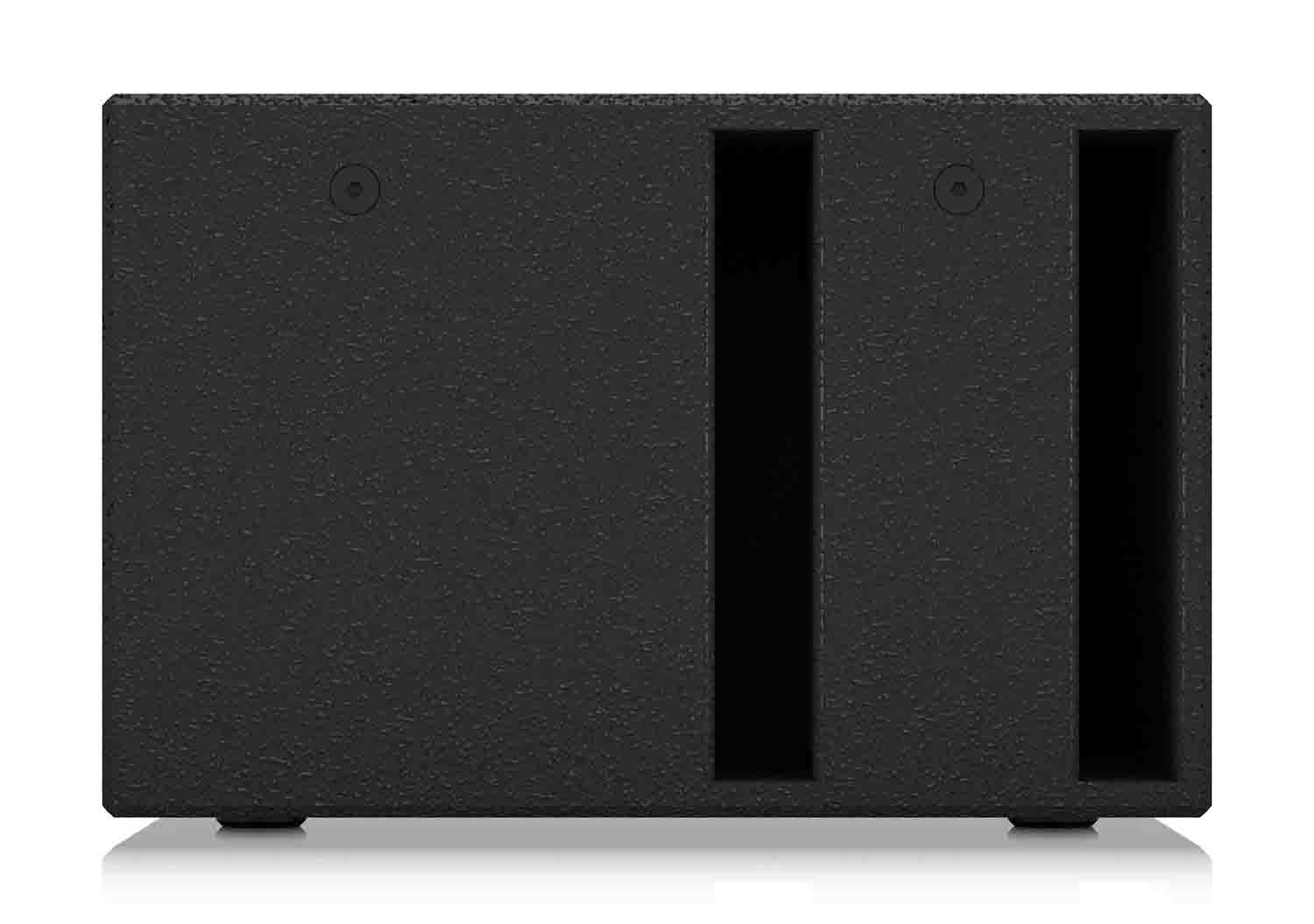

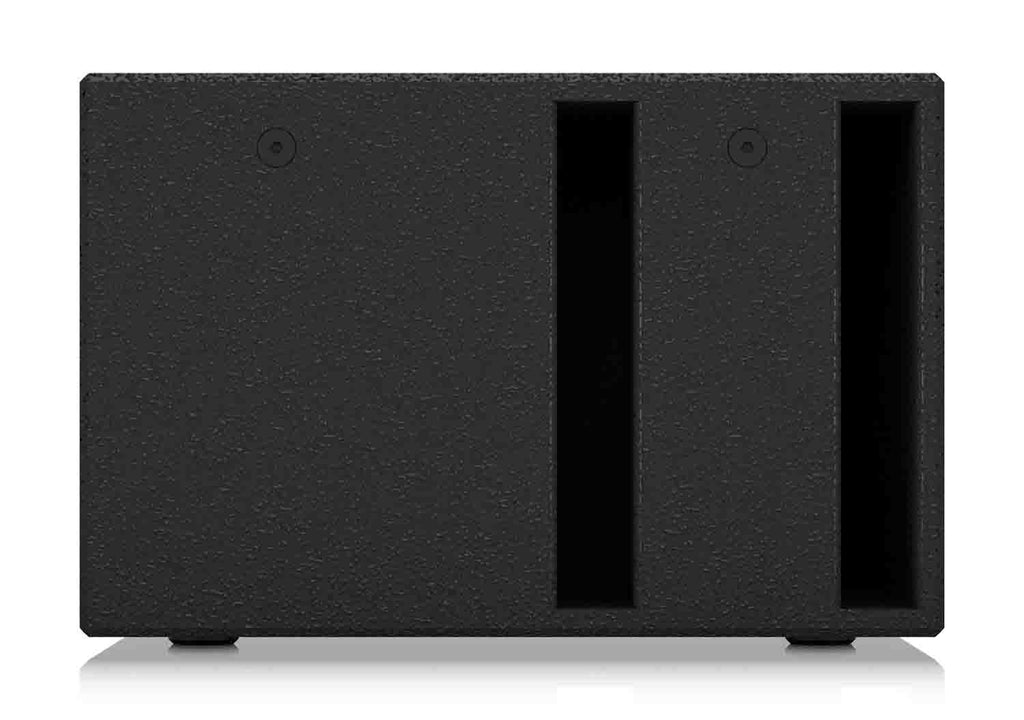

Tannoy VSX 10BP, 10-Inch Compact Band-Pass Passive Subwoofer - Black

The Tannoy VSX 10BP, 10-Inch Compact Band-Pass Passive Subwoofer - Black is a compact 10" 800-Watt passive band pass subwoofer that is ideally suited for a broad range of speech and music sound reinforcement applications in both fixed, portable, and touring audio systems. VSX 10BP’s superb low frequency reproduction makes it the perfect choice for deployment in clubs, bars, theatres and AV applications.

Stunning Performance

A dual ported band pass system, the VSX 10BP features a 10" low frequency driver that provides extended low frequency response to well below 40 Hz for chest-pounding bass. Fast and accurate transient response enables the VSX 10BP Subwoofer to generate copious quantities of tight low-end output that is virtually distortion-free.

Band Pass Enclosure Design

Band pass enclosures are extremely efficient, creating maximum bass output within a specific frequency range by increasing the acoustic load presented to the driver. The low distortion band pass design utilized in the VSX 10BP reinforces the bass musical instrument frequencies, and steep cut-off slopes ensure an effective acoustic transition for use with full-range loudspeakers. A typical application could consist of a VSX 10BP providing the low-frequency bass extension for one, or two VX Series top cabinets.

Versatility

VSX 10BP Subwoofers can be easily deployed in a multitude of configurations, thanks to the integral M10 rigging points and blanking plate for an optional VTH pole mount. For touring and portable applications, the enclosures also feature our Integrip handles, which are ergonomically integrated into the rear of each cabinet.

Construction and Connectivity

Finished in a hard wearing semi matt black paint, the cabinet is constructed of internally braced plywood and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. The rear panel connector plate carries Neutrik speak ON NL4 and barrier strip connectors for input and link connections to accommodate additional subwoofer, or satellite full range loudspeakers.

Product Specifications

System Type: Subwoofer - Band pass

Frequency Response (-3 dB) (1): 42 Hz - 110 Hz

Frequency Response (-10 dB) (1): 36 Hz - 130 Hz

System Sensitivity (1 W @ 1 m) (2): 93 dB (1 W = 2.83 V for 8 ohms)

Nominal Impedance: 8 Ohms

Driver Complement: 250 mm (10") Bass driver

Recommended Crossover: 80 Hz - 110 Hz, 24 dB / octave

Enclosure: 61 liters, 15 mm birch plywood, internally braced

Connectors: 2 x speak ON NL4MP and Barrier strip

Fittings: 8 x M10 flying inserts (landscape mounting, portrait only if ground stacked)

Fittings: 1 x Integrip carrying handle: Packed Quantity

Dimensions (H x W x D): 12 x 19 x 24"

Packed Quantity  1

Shipping Weight: 49 lbs
