Description

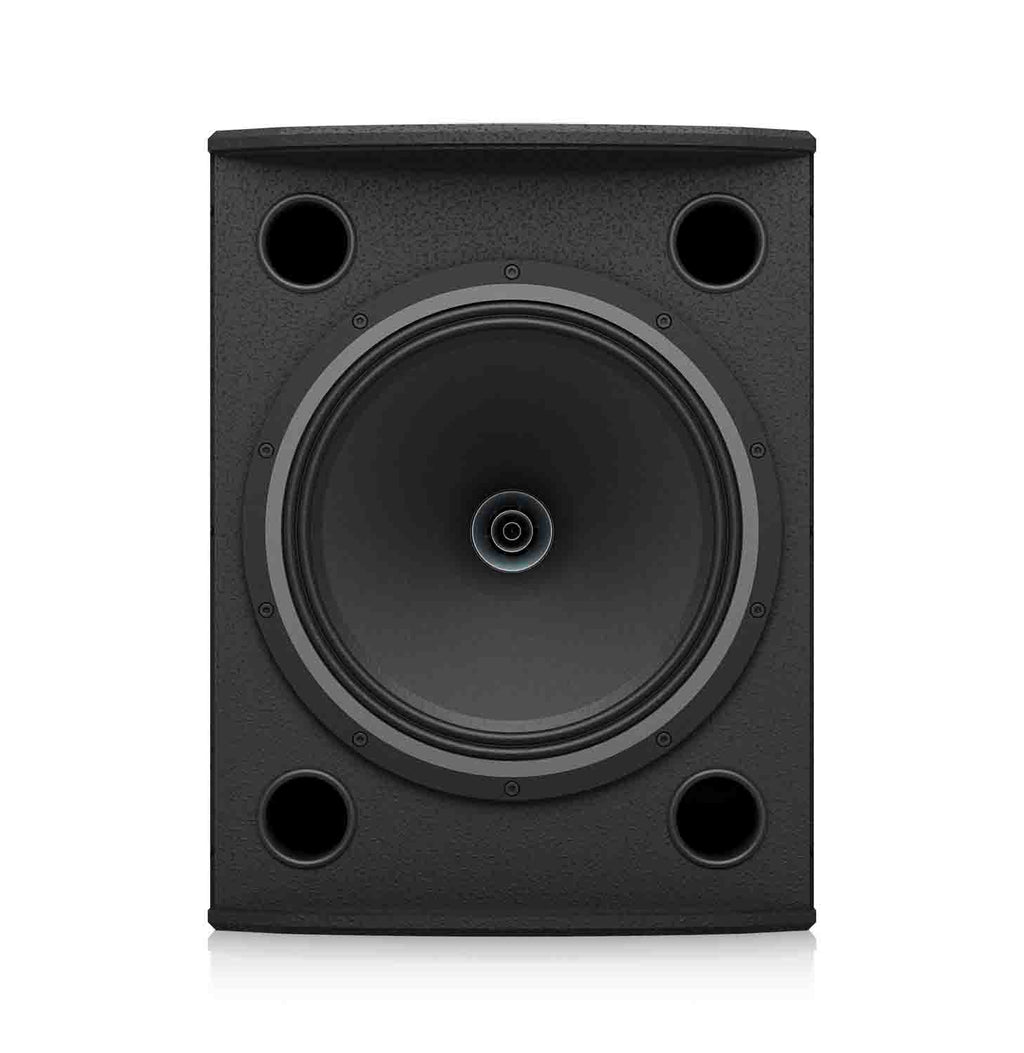

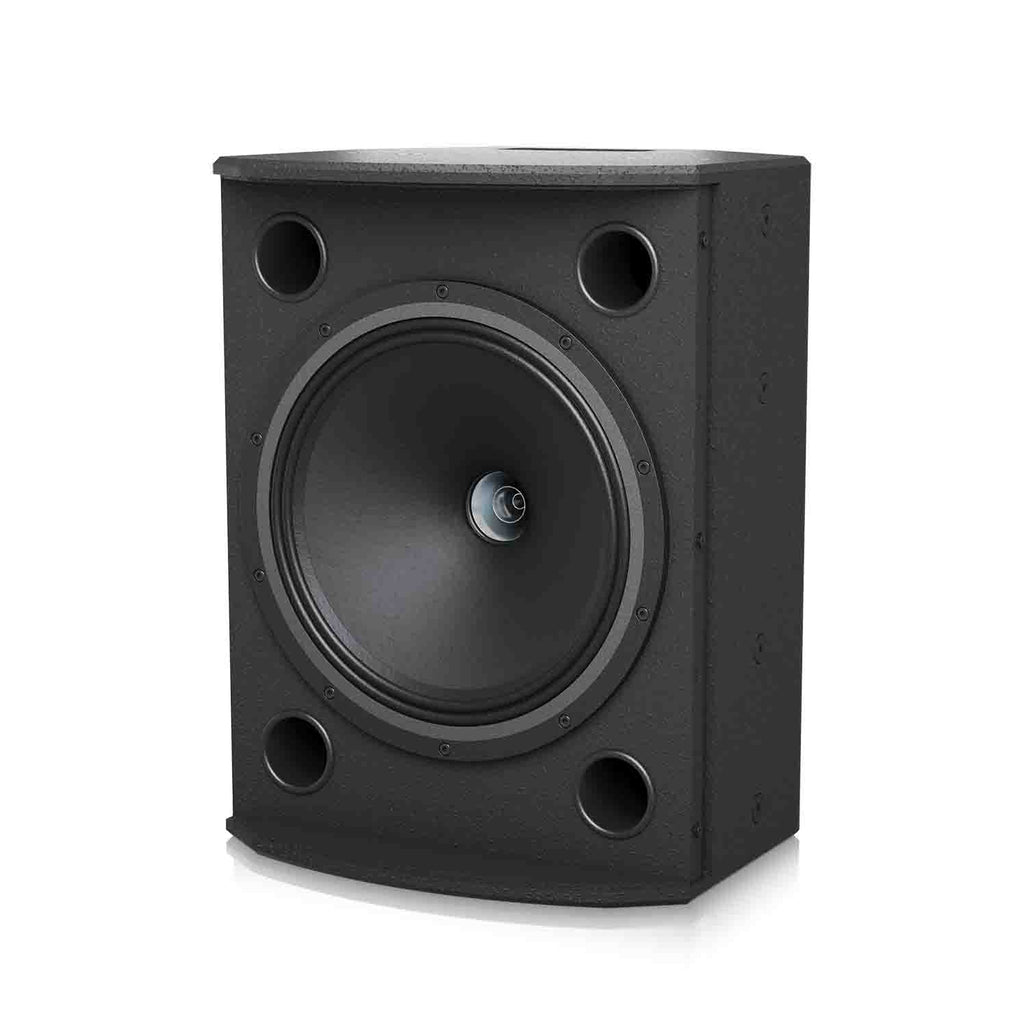

The Tannoy VX 12, 12-Inch Dual Concentric Full Range Loudspeaker for Portable and Installation Applications boasts an exceptional performance-to-size ratio. VX 12 provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VX 12 is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.
Dual Concentric Driver
The 800-Watt 305 mm (12") version of TANNOY’s VX Series exclusive point source loudspeakers, VX 12’s Dual Concentric driver ensures high power output with high sensitivity and exceptional efficiency. VX 12 delivers precise 90º dispersion for optimum coverage, exceptional forward gain plus the added benefit of improved low-mid extension from the twin driver configuration.
Performance Applications
VX 12’s trapezoidal enclosure design provides a multitude of placement options including: FOH, floor monitor, delay, and more. A blanking plate for optional VTH pole mounting is provided for placement atop a subwoofer in small-scale portable PA applications. Mounting options include horizontal and vertical mounting yokes (available separately), an Omni mount for wall and ceiling installation, and items to facilitate pole-mounting. All hardware has been tested and certified for a greater than 5:1 safety ratio giving installers complete peace of mind.
Product Specifications
| Specification | Value |
|---|---|
| Directivity Factor (Q) | 9.6 |
| Directivity Index (DI) | 9.8 |
| Power Handling (IEC) | - Passive: 200 W continuous, 800 W peak |
| Sensitivity | 97 dB (1 W @ 1 m) |
| Crossover Type | Passive with HF protection |
| Components | 1 x 12" (305 mm) constant directivity dual Concentric |
| Shipping Dimensions (HxWxD) | 20 x 16 x 15 inches |
| Shipping Weight | 37 lbs |
