Description
The Tannoy VX 12.2Q-WH 12-Inch Power Dual Full Range Loudspeaker with Low-Frequency Driver and Q-Centric Waveguide boasts an exceptional performance-to-size ratio, and can also be configured for bi-amp operation. VX 12.2Q-WH provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VX 12.2Q-WH is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.
Power Dual Driver

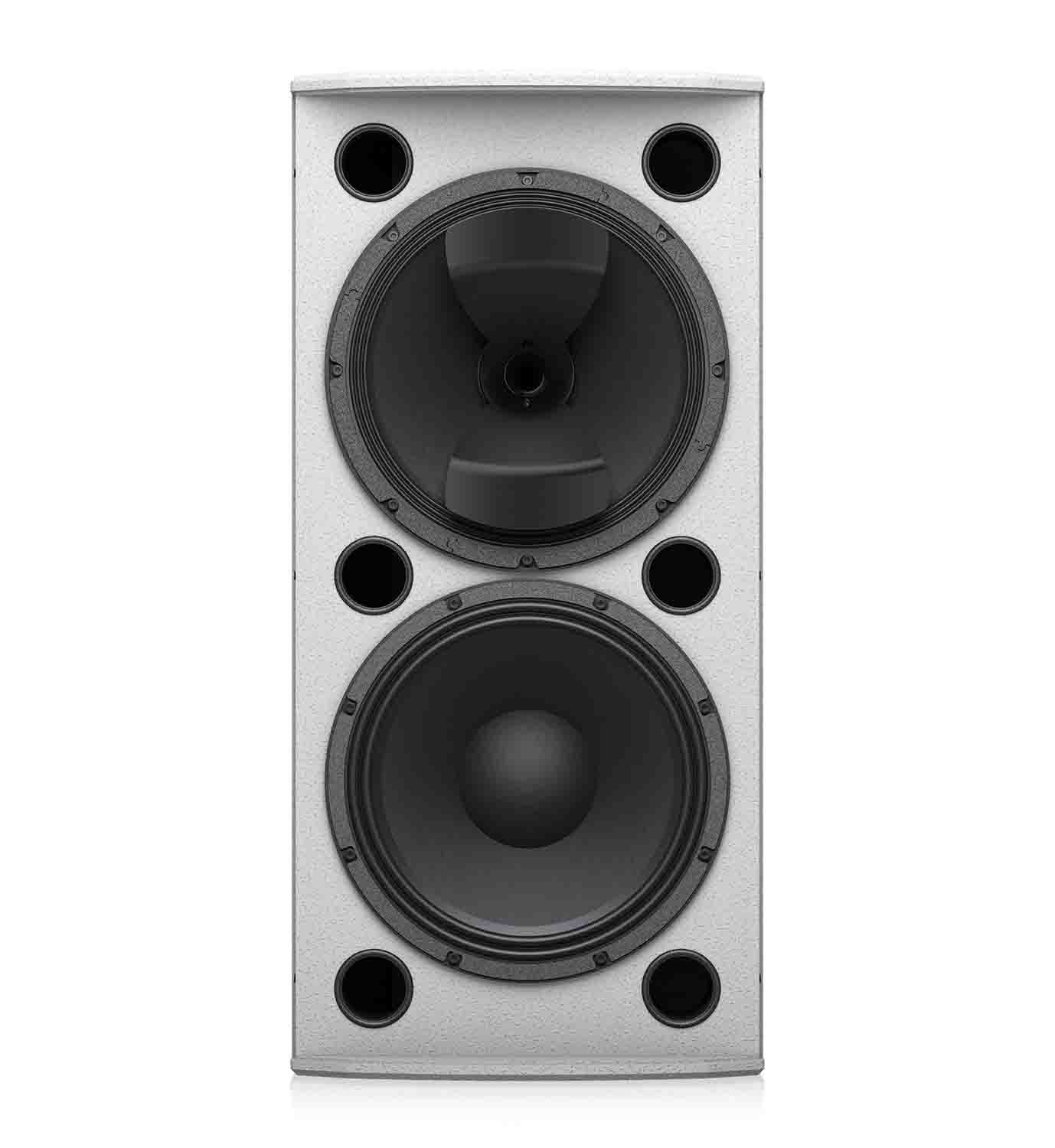

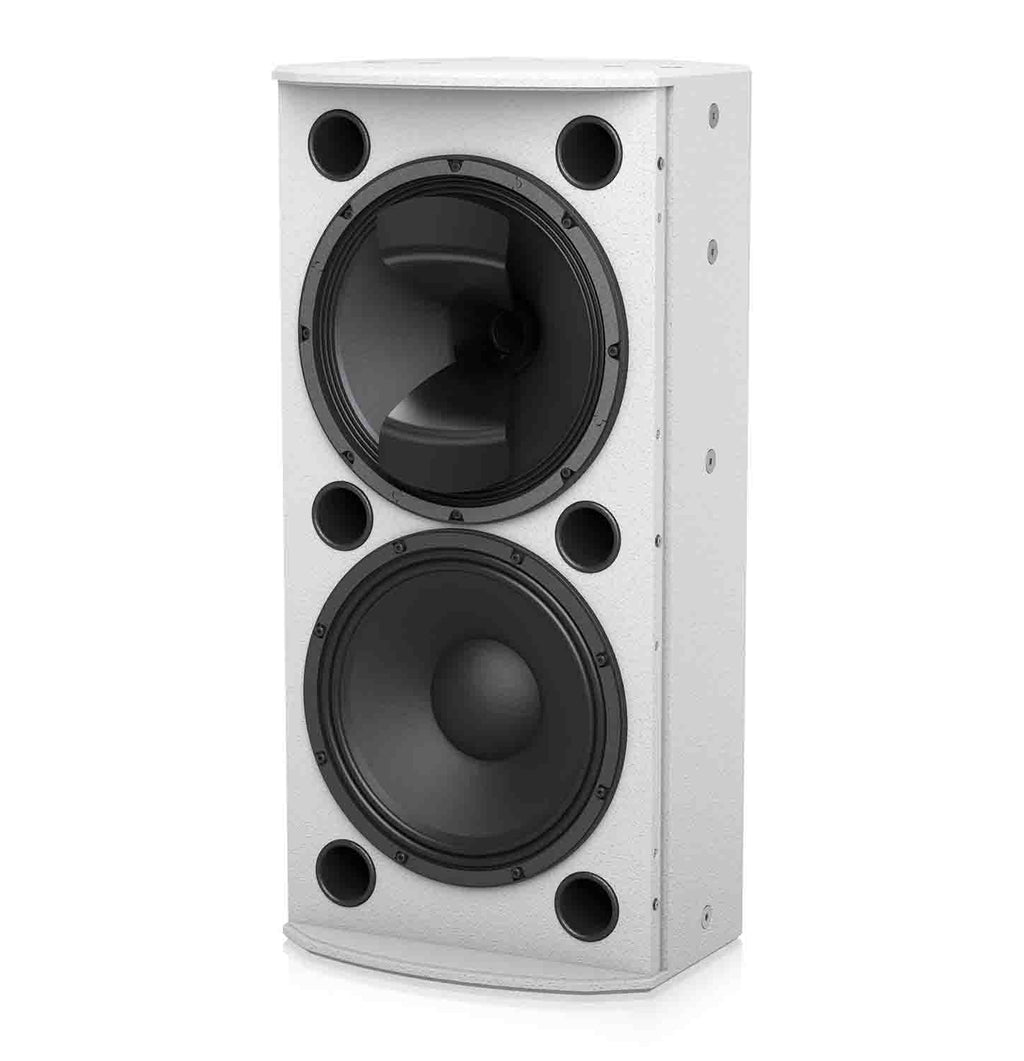

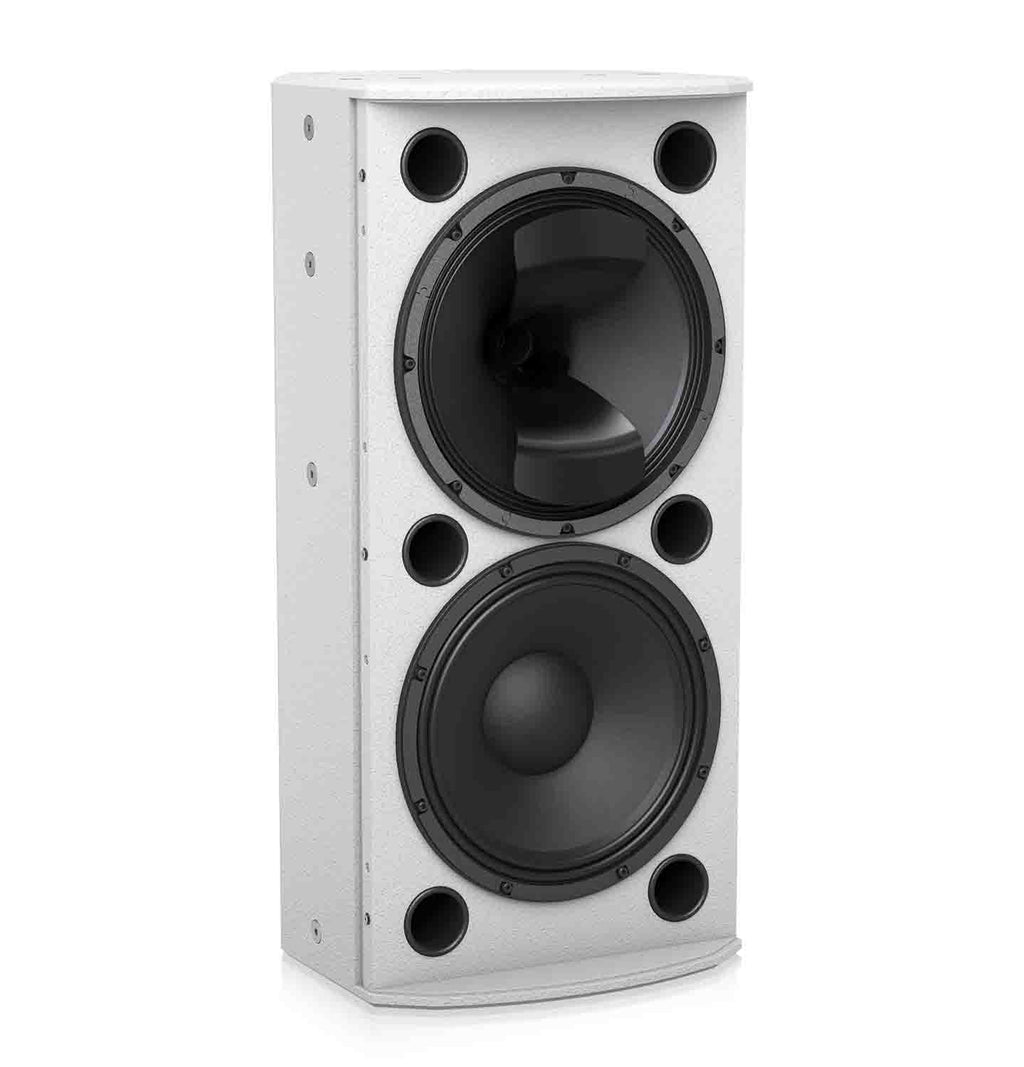

The 2,000-Watt 305 mm (12") version of TANNOY’s VX Series exclusive point source loudspeakers, VX 12.2Q-WH’s Power Dual driver ensures high power output with high sensitivity and exceptional efficiency. A proprietary Q-Centric waveguide is provided for tighter pattern control, delivering precise 75º horizontal x 40º vertical dispersion for optimum coverage, exceptional forward gain plus the added benefit of improved low-mid extension from the twin driver configuration. An additional 305 mm (12") low frequency driver is employed to provide extended bass response.
Performance Applications
VX 12.2Q-WH’s trapezoidal enclosure design provides a multitude of placement options including: FOH, floor monitor, delay and more. A blanking plate for optional VTH pole mounting is provided for placement atop a subwoofer in small-scale portable PA applications. Mounting options include horizontal and vertical mounting yokes (available separately), an Omni mount for wall and ceiling installation, and items to facilitate pole-mounting. All hardware has been tested and certified for a greater than 5:1 safety ratio giving installers complete peace of mind.
Construction

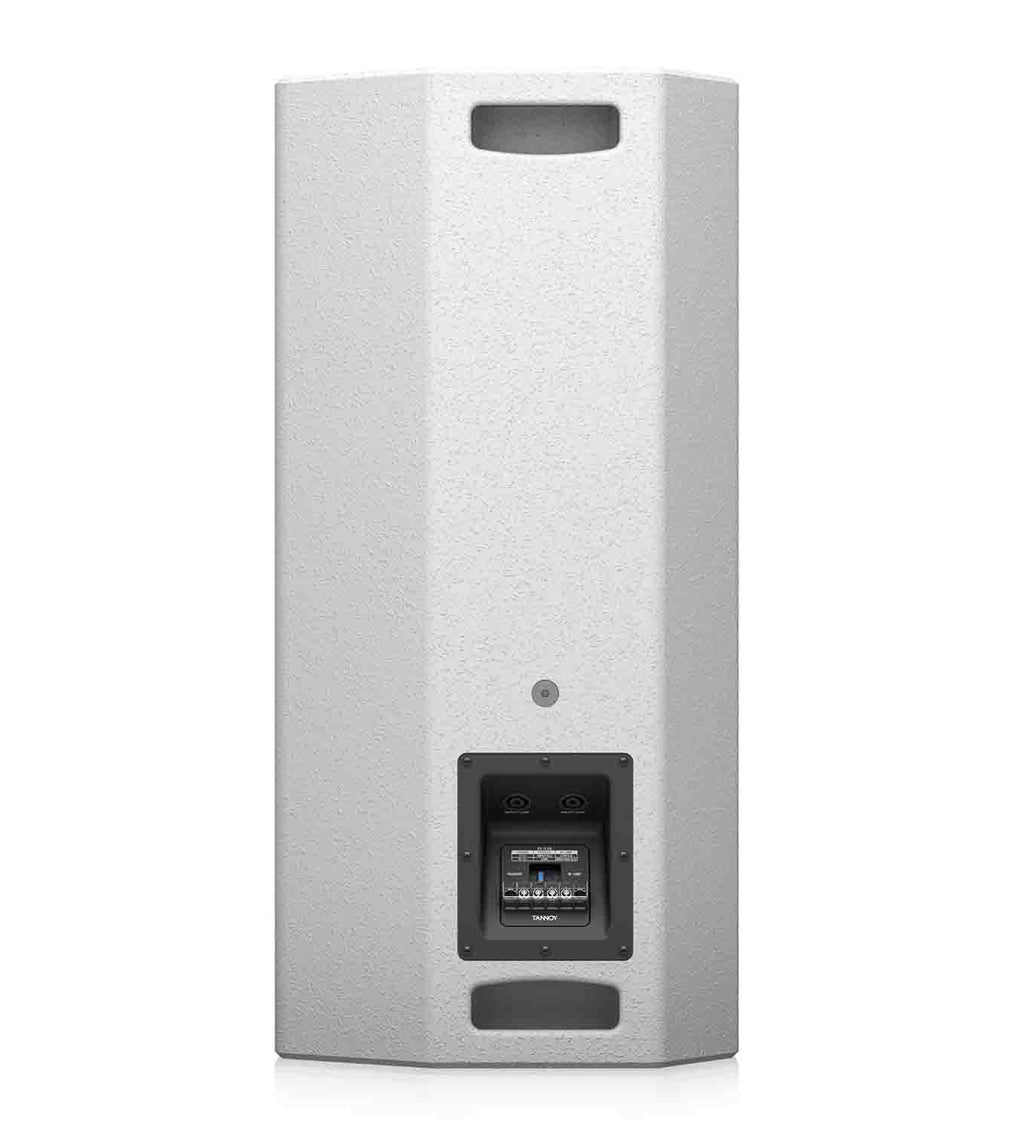

Finished in a hard wearing semi matt white paint, the vented and internally braced cabinet is constructed from a combination of 15 mm (⅝") and 18 mm (¾") plywood – and includes a rugged powder coated perforated steel mesh grille. Integrip handles ergonomically integrated into the top and bottom of cabinet make for easy transport. The rear panel connector plate carries Neutrik speak ON NL4 and barrier strip connectors for input and link connections to additional enclosures. VX 12.2Q-WH loudspeakers are optimized for use with LAB GRUPPEN amplifiers, or LAKE LM Series controllers. A full range of DSP settings to suit many configurations are provided for free download at tannoy.com.
Product Specifications
| Specification | Value |
|---|---|
| Shipping Dimensions | 15 × 15 × 31 inches |
| Shipping Weight | 68 lbs |
