Description

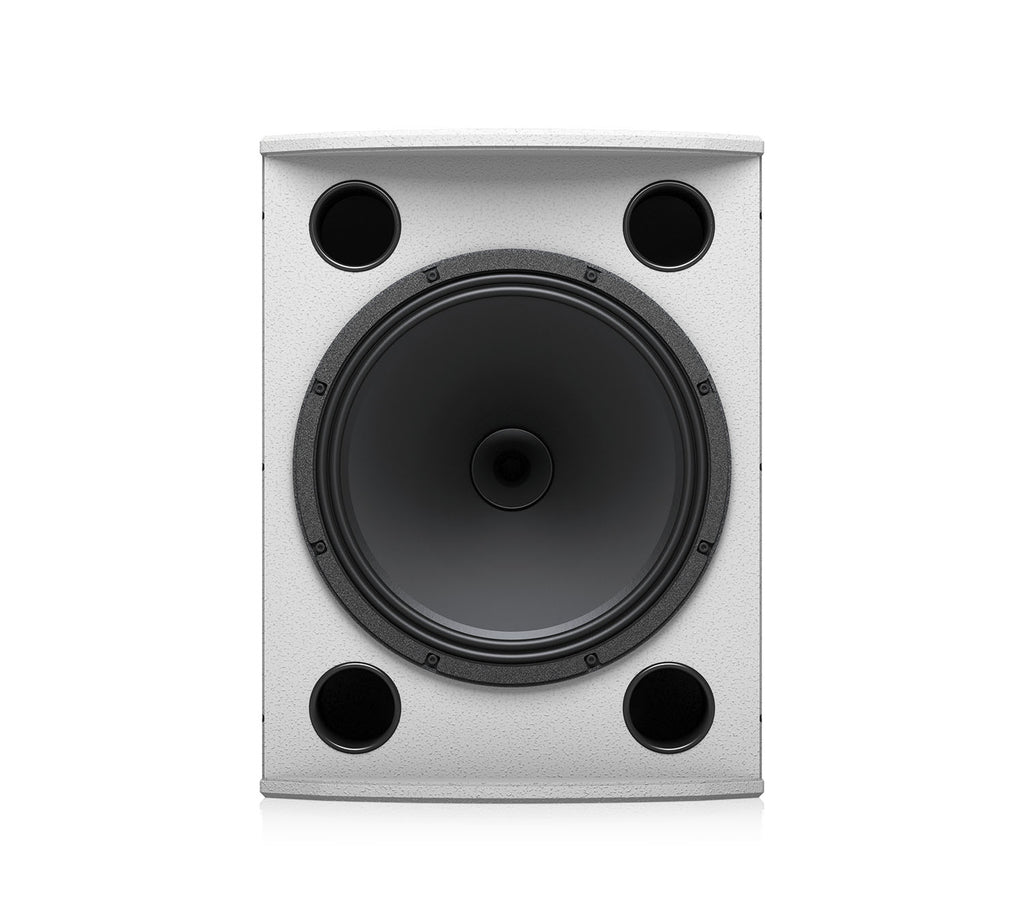

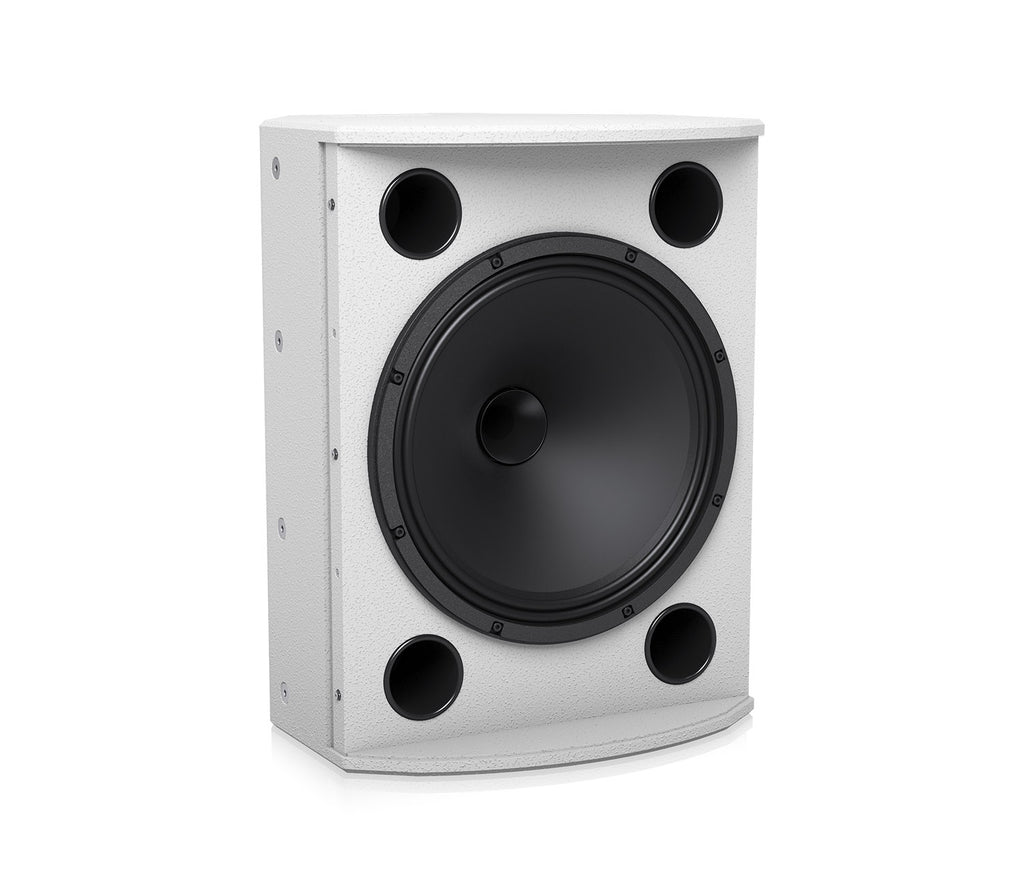

The Tannoy VXP 15HP-WH-UL 1600W 15-Inch Dual Powered Sound Reinforcement Loudspeaker – White boasts an exceptional performance-to-size ratio – plus includes LAB GRUPPEN IDEEA Class-D amplification. VXP 15HP-WH provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications
where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VXP 15HP-WH is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed.
portable applications.
Class-D – Massive Power, Perfect Sound Equipped with a very efficient and lightweight LAB GRUPPEN IDEEA electronics Class-D power amplifier, the VXP 15HP-WH provides an impressive 1,600 Watts of output power in a highly portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and large heat sinks.
Power Dual Driver
The 1,600-Watt 380 mm (15") version of TANNOY’s VXP Series exclusive point source loudspeakers, VXP 15HP-WH’s Power Dual driver ensures high power output with high sensitivity and exceptional efficiency. VXP 15HP-WH delivers precise 75º dispersion for optimum coverage, exceptional forward gain plus the added benefit of improved low-mid extension from the twin driver configuration.
Performance Applications
VXP 15HP-WH’s trapezoidal enclosure design provides a multitude of placement options including: FOH, floor monitor, delay and stage front fill deployment, and more. A blanking plate for optional VTH pole mounting is provided for placement atop a subwoofer in small-scale portable PA applications. Mounting options include horizontal and vertical mounting yokes (available separately), an Omni mount for wall and ceiling installation, and items to facilitate pole-mounting. All hardware has been tested and certified for a greater than 5:1 safety ratio giving installers complete peace of mind.
Construction

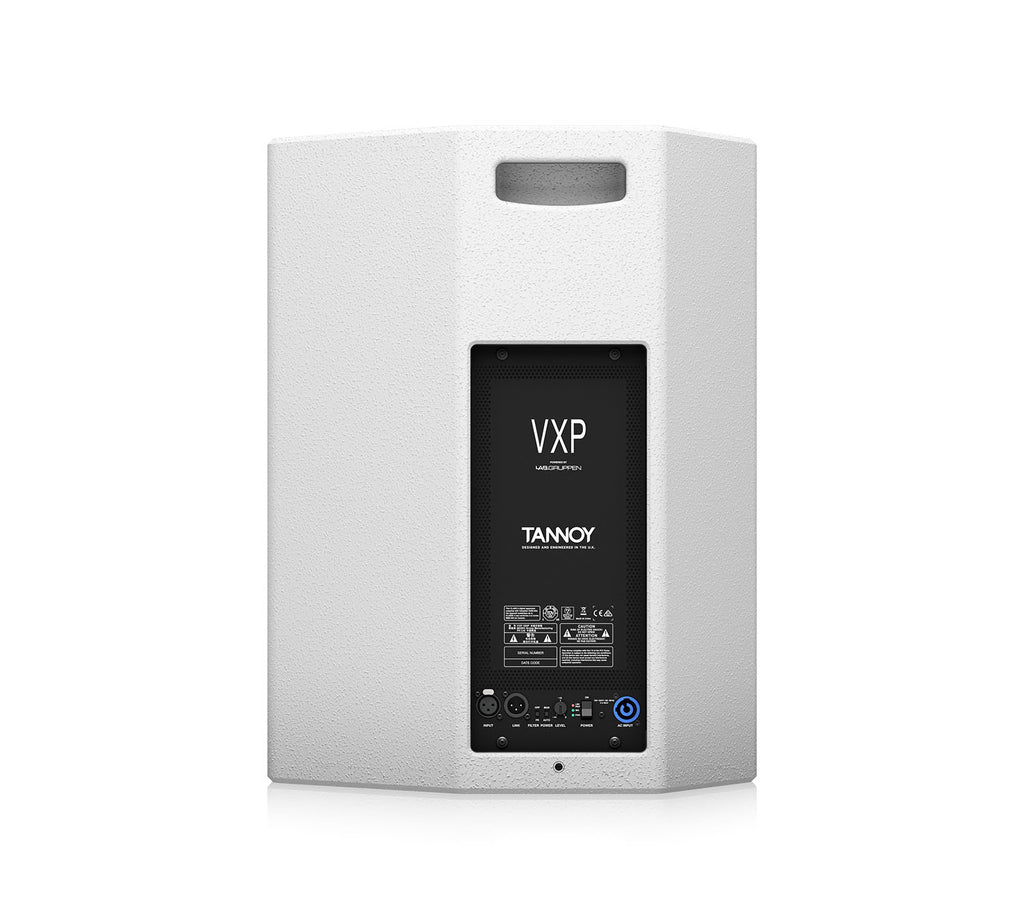

Finished in a hard wearing semi matt white paint, the vented and internally braced cabinet is constructed from 18 mm (3/4") birch plywood – and includes a rugged powder coated perforated steel mesh grille. The rear panel connector plate carries a switch for selecting between full range (FR) or high pass filter (HPF) operation, and fully balanced input and link output on Neutrik XLR connectors for input and link connections to additional powered enclosures. A secure locking Neutrik powerCON connector delivers mains power to the electronics, with a selection switch for either manual (MAN) or auto (AUTO) operation. VXP 15HP-WH loudspeakers are optimized for use LAKE LM Series controllers, and a full range of DSP settings to suit many configurations is available for free download at tannoy.com.
Product Specifications
| Specification | Value |
|---|---|
| Frequency Response (Full Range Mode) | |
| - Low Frequency (±3 dB) | 60 Hz - 25 kHz |
| - High Frequency (-10 dB) | 47 Hz - 30 kHz |
| Frequency Response (Hi-Pass Mode) | |
| - Low Frequency (±3 dB) | 100 Hz - 25 kHz |
| - High Frequency (-10 dB) | 80 Hz - 30 kHz |
| Directivity Factor (Q) | 9.7 |
| Directivity Index (DI) | 9.9 |
| Dynamic Range | 106 dB |
| Maximum SPL | 131 dB Peak |
| Crossover Type | Passive 1.3 kHz |
| Maximum Output Power | 1600 W |
| Type | Class-D |
| Input Impedance | |
| - Unbalanced | 10 kΩ |
| - Balanced | 20 kΩ |
| Maximum Input Level For Clip | +4.5 dBu (Hard Clip At +14.5 dBu Input Signal) |
| Mains Supply | Neutrik Powercon 20A† |
| Level | Recessed Potentiometer |
| Filter | Hi-Pass (HPF)/ Full Range (FR), Switchable |
| Power Mode | Manual (MAN)/ Auto (AUTO), Switchable |
| Mains Voltage | 100-240 V~, 50/60 Hz |
| Power Consumption | 150 W @ 1/8 Max Power |
| Net Weight | 27.3 kg (60.1 lbs) |
| Construction | 18 mm (¾") Plywood, Vented And Internally Braced |
| Finish | Semi Matt White Paint |
| Grille | Powder Coated Perforated Steel |
| Shipping Dimensions (HxWxD) | (24 x 18 x 17 inches) |
| Shipping Weight | 63 lbs |
