Description
The Tannoy VXP 6-UL 1600W 6-Inch Dual Concentric Powered Sound Reinforcement Loudspeaker may be one of the smaller Dual Concentric full range loudspeakers in the VXP range, but it boasts an exceptional performance-to-size ratio – plus includes LAB GRUPPEN IDEEA Class-D amplification. VXP 6 provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VXP 6 is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.
Class-D – Massive Power, Perfect Sound
Equipped with a very efficient and lightweight LAB GRUPPEN IDEEA electronics Class-D power amplifier, the VXP 6 provides an impressive 1,600 Watts of output power in a highly portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and large heat sinks.

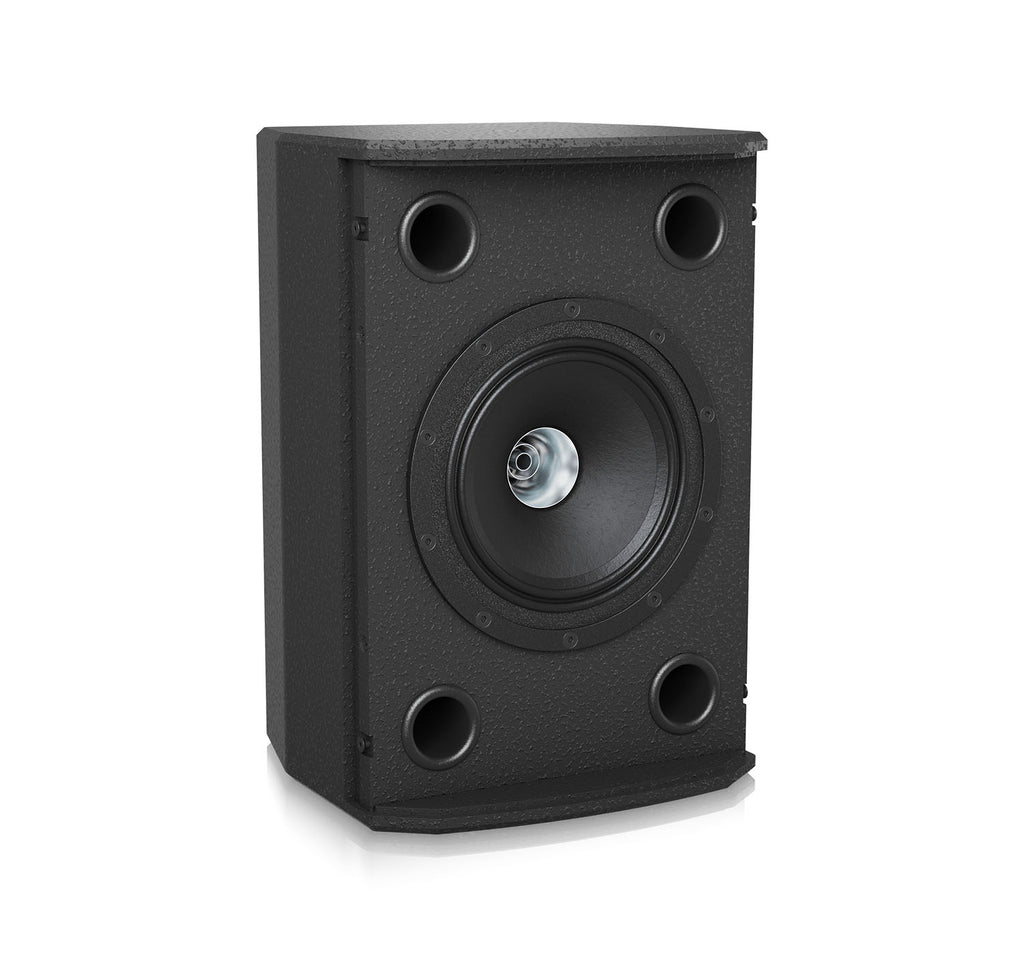

Dual Concentric Driver
The 1,600-Watt 150 mm (6") version of TANNOY’s VXP Series point source loudspeakers, VXP 6’s constant directivity Dual Concentric drive unit technology ensures high power output with high sensitivity and exceptional efficiency. VXP 6 delivers precise 90º dispersion for optimum coverage, exceptional forward gain plus the added benefit of improved low-mid extension from the twin driver configuration.
Performance Applications
VXP 6’s trapezoidal enclosure design provides a multitude of placement options including: small scale FOH, floor monitor, delay and stage front fill deployment, and more. A blanking plate for optional VTH pole mounting is provided for placement atop a subwoofer in small-scale portable PA applications. An extensive range of optional VXP 6 high performance steel mounting hardware (available separately) includes a horizontal yoke bracket, an Omni mount for wall and ceiling installation, and items to facilitate pole-mounting. All hardware has been tested and certified for a greater than 5:1 safety ratio giving installers complete peace of mind.
Construction

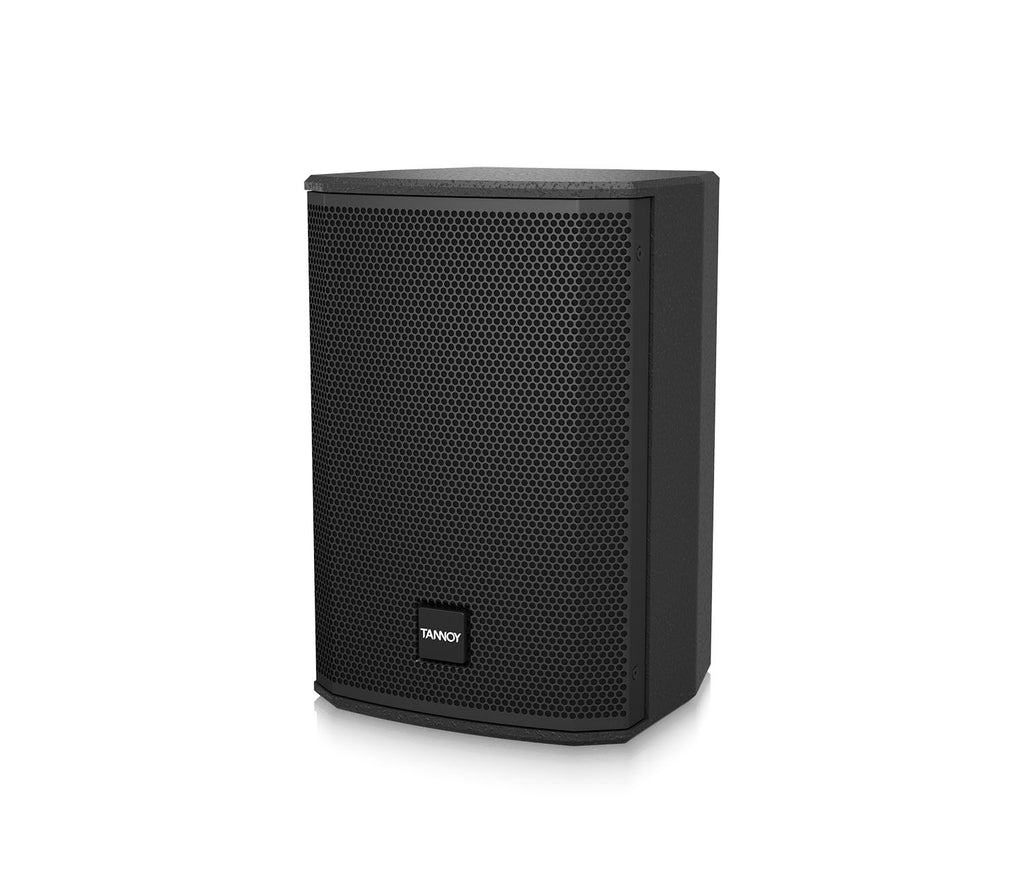

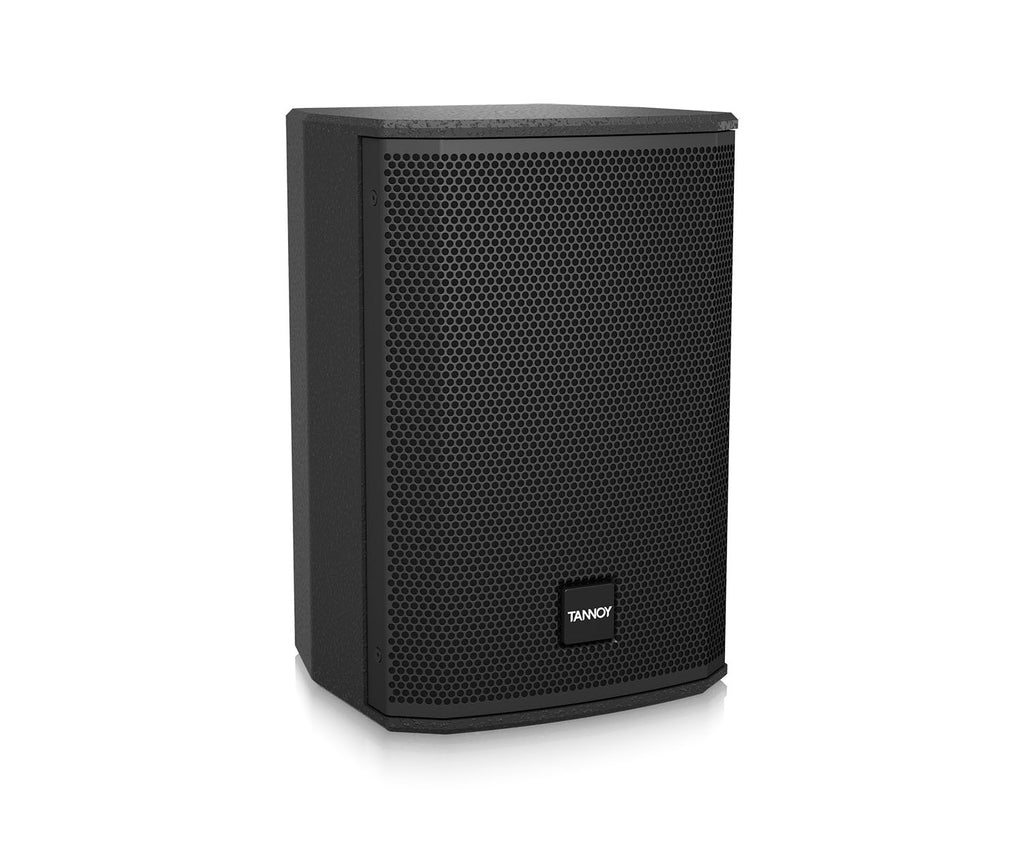

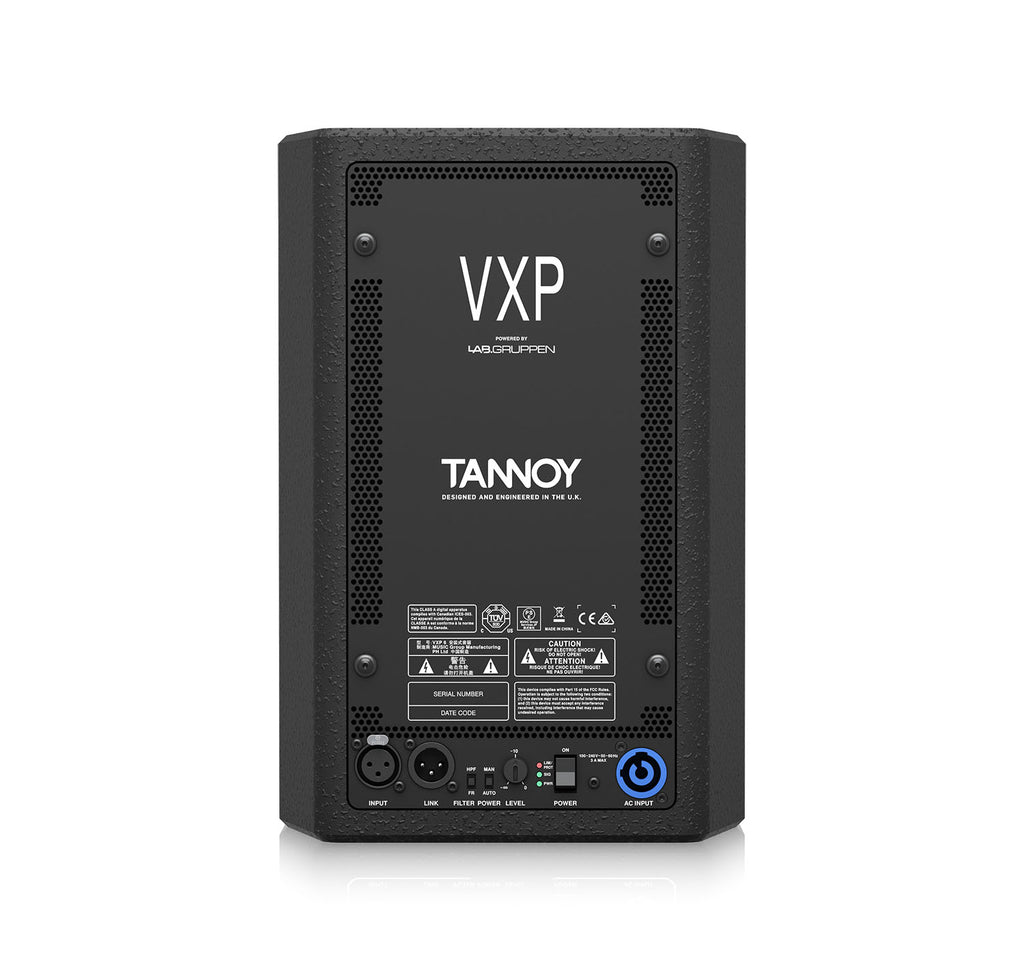

Finished in a hard wearing semi matt black paint, the vented and internally braced cabinet is constructed from 12 mm (1/2") birch plywood – and includes a rugged powder coated perforated steel mesh grille. The rear panel connector plate carries a switch for selecting between full range (FR) or high pass filter (HPF) operation, and fully balanced input and link output on Neutrik XLR connectors for input and link connections to additional powered enclosures. A secure locking Neutrik powerCON connector delivers mains power to the electronics, with a selection switch for either manual (MAN) or auto (AUTO) operation. VXP 6 loudspeakers are optimized for use LAKE LM Series controllers, and a full range of DSP settings to suit many configurations is available for free download at tannoy.com.
Product Specifications
| Specification | Value |
|---|---|
| Frequency Response (Full Range Mode) | |
| - Low Frequency (±3 dB) | 88 Hz - 35 kHz |
| - High Frequency (-10 dB) | 80 Hz - 45 kHz |
| Frequency Response (Hi-Pass Mode) | |
| - Low Frequency (±3 dB) | 120 Hz - 35 kHz |
| - High Frequency (-10 dB) | 100 Hz - 45 kHz |
| Nominal Dispersion | 90° Conical @ -6 dB Point |
| Directivity Factor (Q) | 5.6 |
| Directivity Index (DI) | 7 |
| Dynamic Range | 106 dB |
| Maximum SPL | 123 dB Peak |
| Crossover Type | Passive 1.6 kHz With Dynamic HF Protection |
| Transducers | 150 mm (1 x 6") Constant Directivity Dual Concentric |
| Maximum Output Power | 1600 W |
| Protection | Output Current Limiter, Clip Limiter, Brownout Protection And Recovery, Thermal |
| Input | 1 x XLR, Balanced |
| Input Impedance | 10 kΩ Unbalanced, 20 kΩ Balanced |
| Maximum Input Level For Clip | +4.5 dBu (Hard Clip At +14.5 dBu Input Signal) |
| Mains Supply | Neutrik Powercon 20A† |
| Level | Recessed Potentiometer |
| Filter | Hi-Pass (HPF)/ Full Range (FR), Switchable |
| Power Mode | Manual (MAN)/ Auto (AUTO), Switchable |
| Power Supply | Switch-Mode Autorange Power Supply |
| Mains Voltage | 100-240 V~, 50/60 Hz |
| Power Consumption | 60 W @ 1/8 Max Power |
| Net Weight | 7.2 kg (16 lbs) |
| Construction | 12 mm (½") Plywood, Vented And Internally Braced |
| Finish | Semi Matt Black Paint (White Optional) |
| Grille | Powder Coated Perforated Steel |
| Shipping Dimensions (HxWxD) | (13 x 9 x 9 inches) |
| Shipping Weight | 18 lbs |
