Description

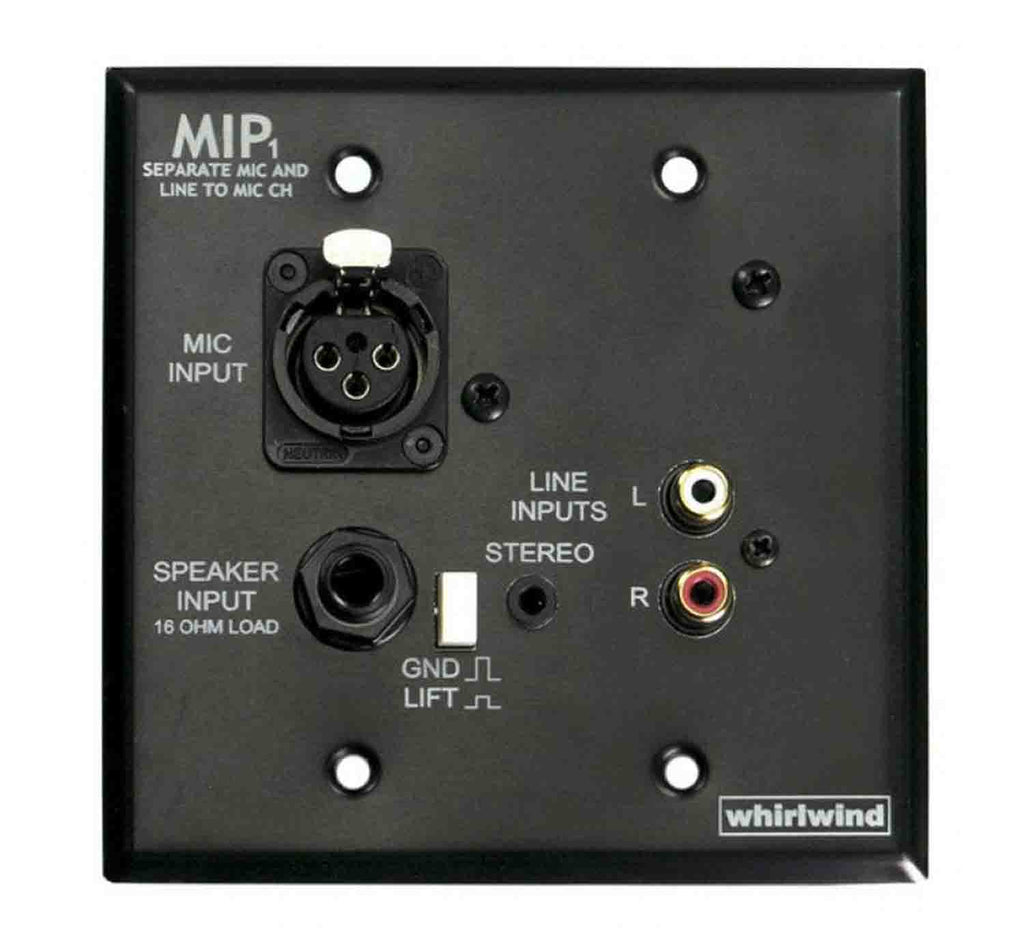

The Whirlwind MIP1B 2-Gang Wall Plate With 4 Audio Inputs and Ground Lift Switch is a wall plate with a mono version of the Whirlwind pcDI computer interface device featuring RCA and 3.5mm stereo input jacks and an additional speaker input terminated with a 16 Ohm load resistor. The line and speaker inputs are summed together and sent to the Dimax transformer which balances the output signal and attenuates it by 20 db. A Ground Lift switch breaks the ground connection between the inputs and the output screw terminal. The MIP1 plate has an additional female XLR for connection of a separate mic channel to the plate.
Product Specifications
Input Connectors: XLR, 3.5mm TRS, dual RCA, 1/4" speaker
Output Connectors: Balanced Screw Terminal, Ground Lift
Package Weight: 1 lb
Box Dimensions (LxWxH): 5 x 5 x 4"
