The Yamaha AG03 Multipurpose 3-channel mixer with USB audio interface can Transform your PC, Mac or even your iPad into a virtual radio station and spread your message to the world. With a surprisingly easy setup process, the AG lets you produce online content with high-resolution sound, either for real-time broadcast over digital streaming platforms such as USTREAM or YOUTUBE LIVE, or producing on-demand podcasts and videos. Your AG will elevate your production value considerably with background music, sound effects, and a level of sound quality that can’t be matched with a conventional computer / headset configuration.
LOOPBACK Function for Internet Live Streaming
The LOOPBACK function enables live broadcasting of all the microphones, instruments and other audio sources along with background music from your PC / Mac or iPad.
D-PRE-Studio Quality Mic Preamp
AG features the same premium mic preamps developed by Yamaha for high-end recording consoles, capturing most detailed nuances of your vocal or instrumental performance.
AG comes equipped with an input featuring phantom power as well as a headset input, giving you the option to use a professional condenser mic, or conventional computer headset.

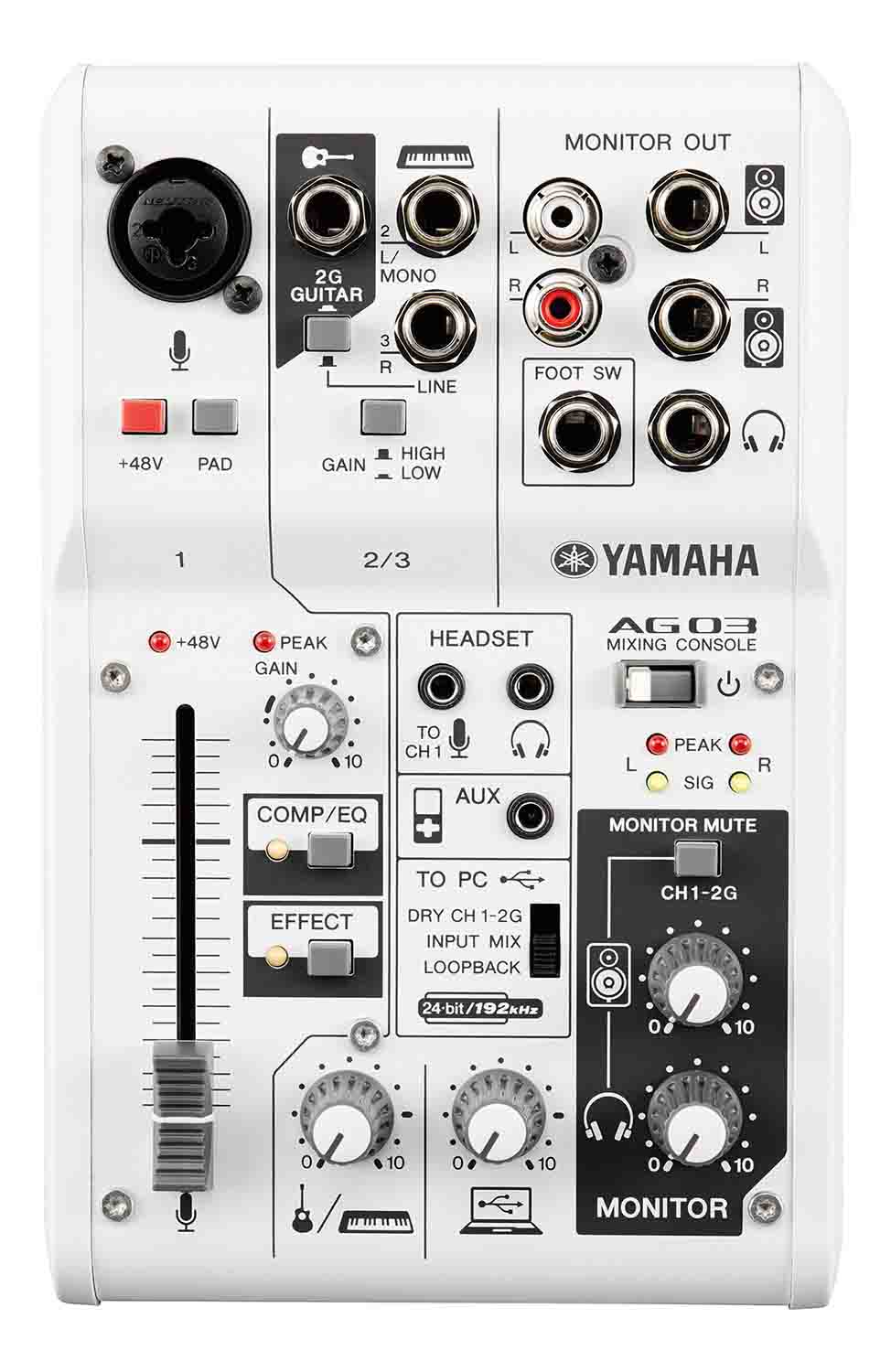

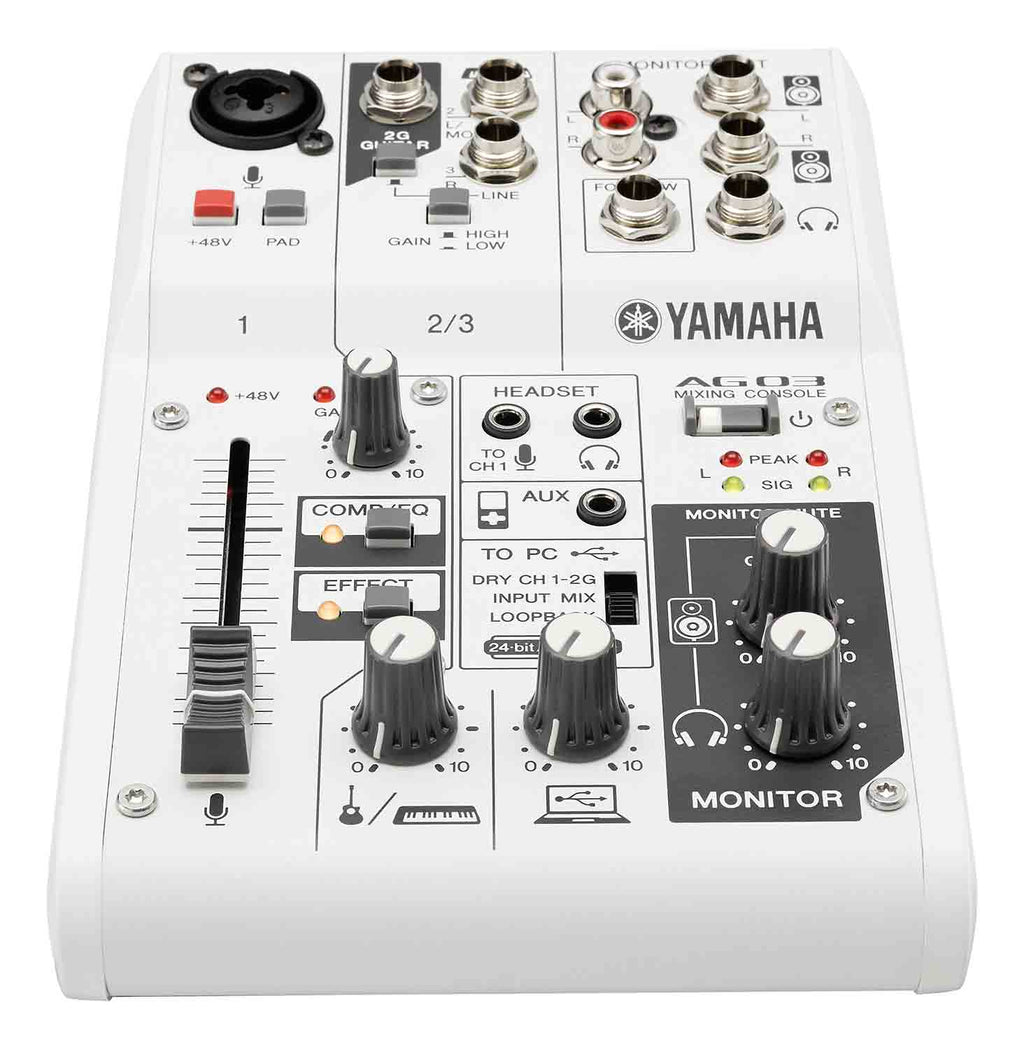

AG03 model feature volume knobs and a 60mm fader on the front panel for simple manual control of your voice, background music, and other audio content or sound effects.
TOUCH DSP Offers Professional Sound With A Single Touch
TOUCH COMP / EQ can add clarity and focus to your sound with the simple click of a button. Just like an authentic radio broadcast, you can add reverb with the 1-TOUCH EFFECT or sound effects from an external device at will.
Class Compliant Mode For Ipad Connection
AG is compatible with Apple’s second generation iPad or later, allowing you to create high quality recording and playback using an iOS compatible music app such as Cubasis.
Cubasis LE Multitouch Sequencer For The Ipad
"Cubasis LE" is available in the App Store. You just need to connect your iPad to an AG03 to make it work. Cubasis LE is the compact version of Steinberg’s streamlined, multitouch sequencer for the iPad, providing the same look and feel of its bigger brother Cubasis. Specially designed for quick and easy operation, Cubasis LE makes recording, editing and mixing a breeze. Cubasis LE places touch-intuitive production tools in your hands, opening a new world of possibilities for your creativity.

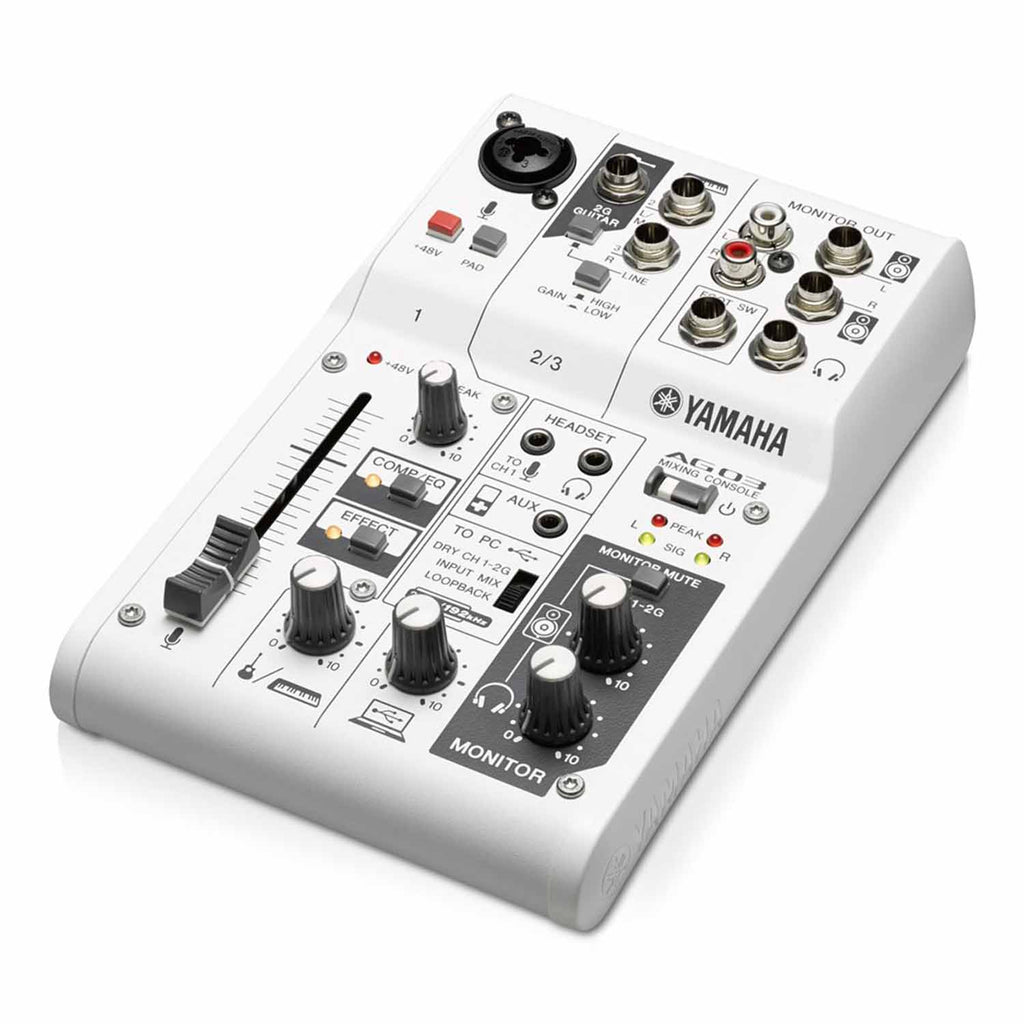

Durable, Compact Metal Chassis
The tough metal body of the AG is extremely portable and easy to place on a keyboard, on a guitar case, or even on a mic stand using an optional adapter.
AG DSP Controller Allows Additional Control Of DSP Settings
With the multi-platform AG DSP Controller software app you can access, and edit the compressor, EQ, high-pass filter, reverb, and amp simulator parameters of your 1-TOUCH DSP. EASY mode gives you precise, intuitive control, while EXPERT mode allows you more detailed adjustment of your parameters.
Cubase Ai Music Production Software
Cubase AI Digital Audio Workstation (DAW) software is included with your AG purchase giving you a streamlined but powerful music production tool for making high-quality recordings right out of the box.
High Resolution (192 / 24bit) Playback And Recording
AG’s high-quality design enables 192kHz / 24bit sound that can reproduce even the most subtle nuances of your original recordings. If you useASIO compatible playback software, you can even bypass the internal Kernal mixer and reproduce the original sound faithfully. AG’s 192kHz/24bit sound quality is ideal for capturing the purest reproduction of your analog recordings when archiving your treasured collection.

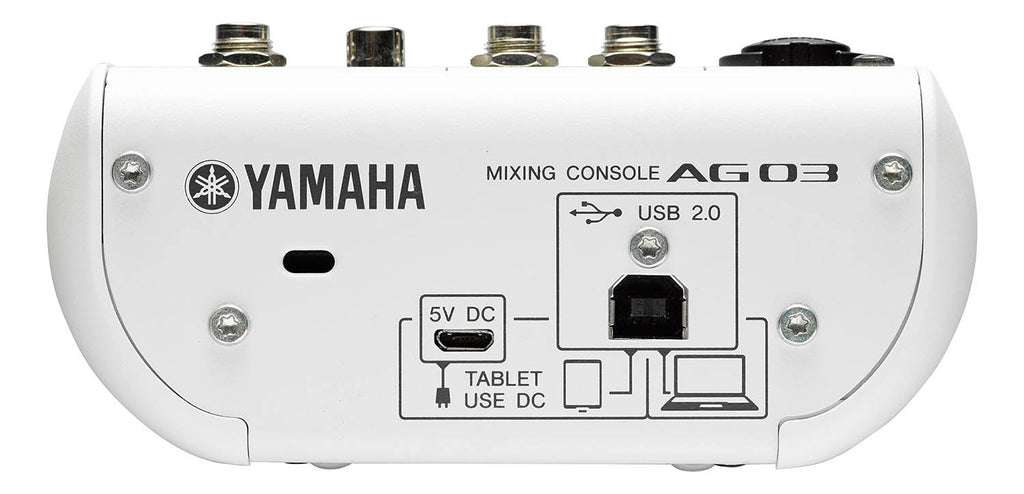

USB Bus Powered Or Mobile Battery
The compact and durable AG can be operated using USB bus power or a mobile battery, giving you a powerful mobile setup that can fit easily into a backpack.
Form Factor: Tabletop
Channels of I/O: 3 Input / 4 Output
Maximum Sampling Rate: 192 kHz / 24-Bit
Number of Microphone Preamps: 1 Preamp
Built-In Microphone: None
Input Level Adjustment : 2 x Knob,1 x Fader
Expansion Slots: None
Pad: -26 dB
Solo/Mute: Mute per Master
Analog Audio I/O: 1 x Combo XLR-1/4" TRS Mic/Line Input,1 x 1/4" TRS Mic/Line Input,2 x 1/8",3.5 mm TRS Headset In/Out,2 x 1/4" TRS Stereo Input,2 x Stereo RCA TS Stereo Output,2 x 1/4"TRS Stereo Output,1 x 1/4" TRS Headphone Output
Phantom Power: 48 V, Selectable On/Off
Digital Audio I/O: None
Host Connection / USB: 1 x USB Type-B (Class-Compliant USB 2.0)
USB (Non-Host): None
Sync I/O: None
Network I/O: None
MIDI I/O: None
Wireless Connectivity: None
Sample Rates: Up to 192 kHz
Sample Rate Conversion: None
Bit Depths: Up to 24-Bit
Sync Sources: None
Memory Card Slot: None
OS Compatibility: Windows 7 or Later, macOS 10.7 or Later
Included Software: Cubase AI
Included Plug-Ins: None
Mobile Device Compatibility: iPad 2nd Gen. or Later (with USB OTG (On-The-Go))
Required Hardware: USB Port
Internet Connection: Required for Software/Driver Download, Media Streaming
Power Requirements: USB Bus Power
AC/DC Power Adapter: 5 V at 500 mA
Power Consumption: 2.5 W (Maximum)
Dimensions: 8 x 5.1 x 2.5" / 202 x 129 x 63 mm
Weight: 1.8 lb. / 0.8 kg
Package Weight: 3.09 lb.
Box Dimensions: 9.7 x 8.35 x 4.7"
