Description

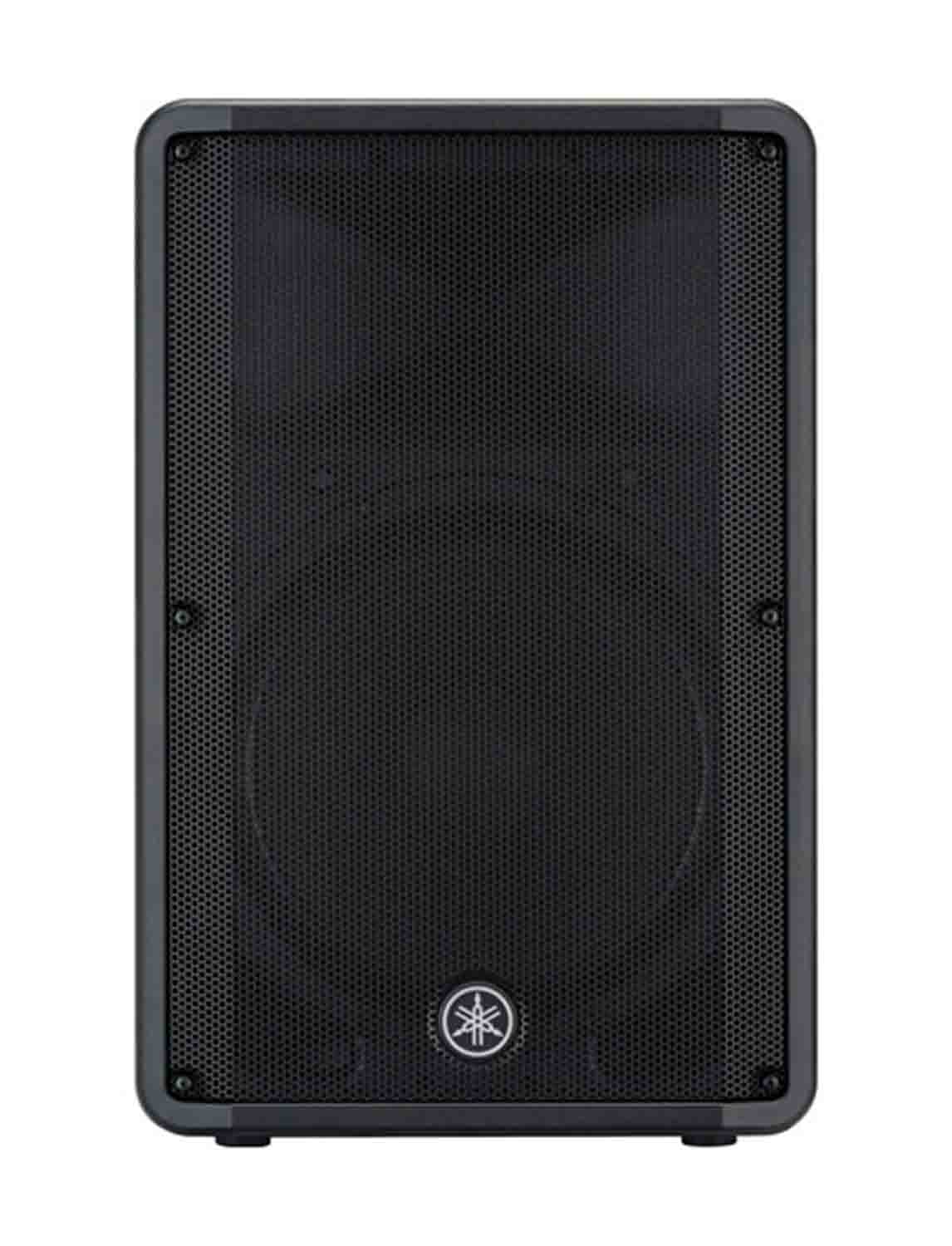

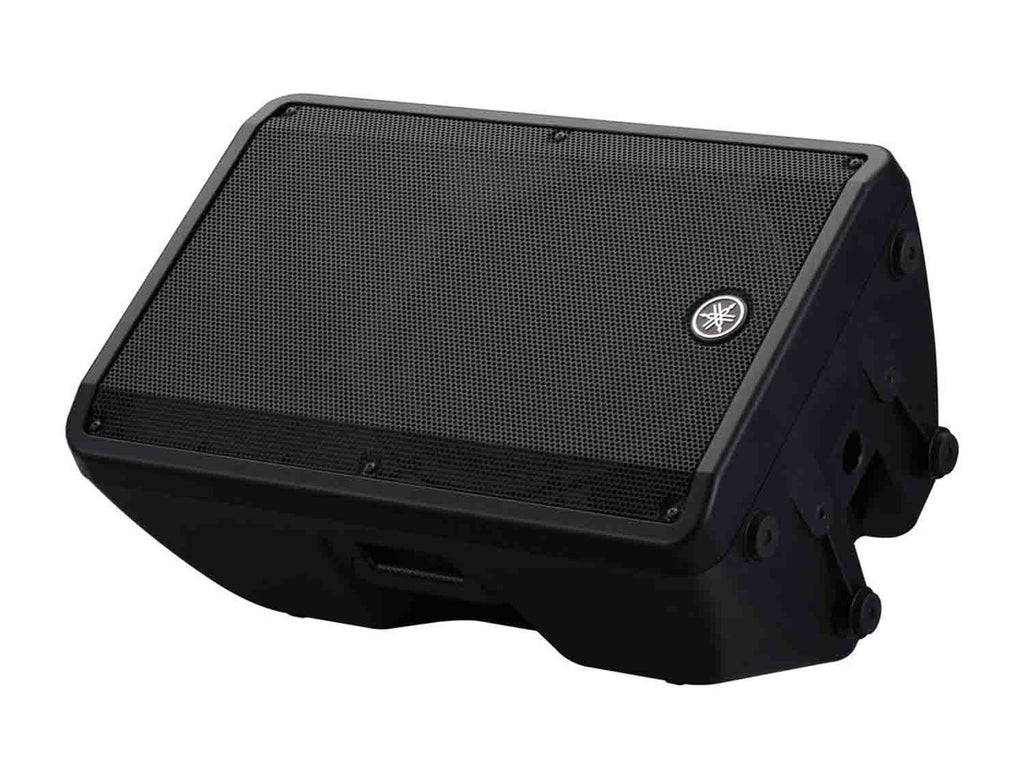

The Yamaha CBR15 is a Portable 2-Way 15" 1000W Passive Loudspeaker. The CBR Series is a new lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker designand acoustic technologies that Yamaha has accrued over a long and storied history of making speakers of every kind.Combining a meticulous materials selection process, thorough customization of the audio components, and a fresh, innovativeapproach to speaker design, our engineering team's primary focus was to deliver high-power, high-definition sound in a highlyportable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.- Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound- HF Protection Function and Highly Responsive LF Unit for Reliable Performance at Any Output Level- Rugged, Highly Portable Enclosure Design- Simple Connectivity- Versatility for a Variety of Applications.
Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn
CBR Series speakers come equipped with carefully selected and customized transducers that feature a highly responsive woofer and a precise 2.5” compression driver (CBR15) or 2” compression driver (CBR10 and CBR12), ensuring consistent high-definition sound with minimal distortion even at high output levels. Additionally, a newly designed wide-dispersion constant directivity horn minimizes the radiation pattern deterioration in oblique directions that more conventional horns are prone to, allowing sound to expand in a more rectangular pattern, evenly dispersing wide-frequency sound to the outer-most edges of the coverage area.
Simple Connectivity
CBR Series speakers are equipped with one speakON jack and one 1/4" Phone jack that allow for fast and easy connectivity in both personal and professional environments.
Product Specifications:
Powered: No
LF Driver Size: 1 x 15"
HF Driver Size: 1.4"
Power Rating: 500W
Total Power: 1000W
Inputs: 1 x 1/4", 1 x speakON
Impedance: 8 ohms
Frequency Range: 46Hz-20kHz (-10 dB)
Crossover Frequency: 2kHz
Maximum Peak SPL: 126dB
Horizontal Coverage Angle: 90 Degrees
Vertical Coverage Angle: 60 Degrees
Enclosure Material: Plastic
Mounting Options: Pole Mount with 1.37" socket, M8 Fly Points: 2 x Bottom, 1 x Rear
Height: 27.6"
Width: 17.9"
Depth: 14.9"
Weight: 39 lbs.
