Description

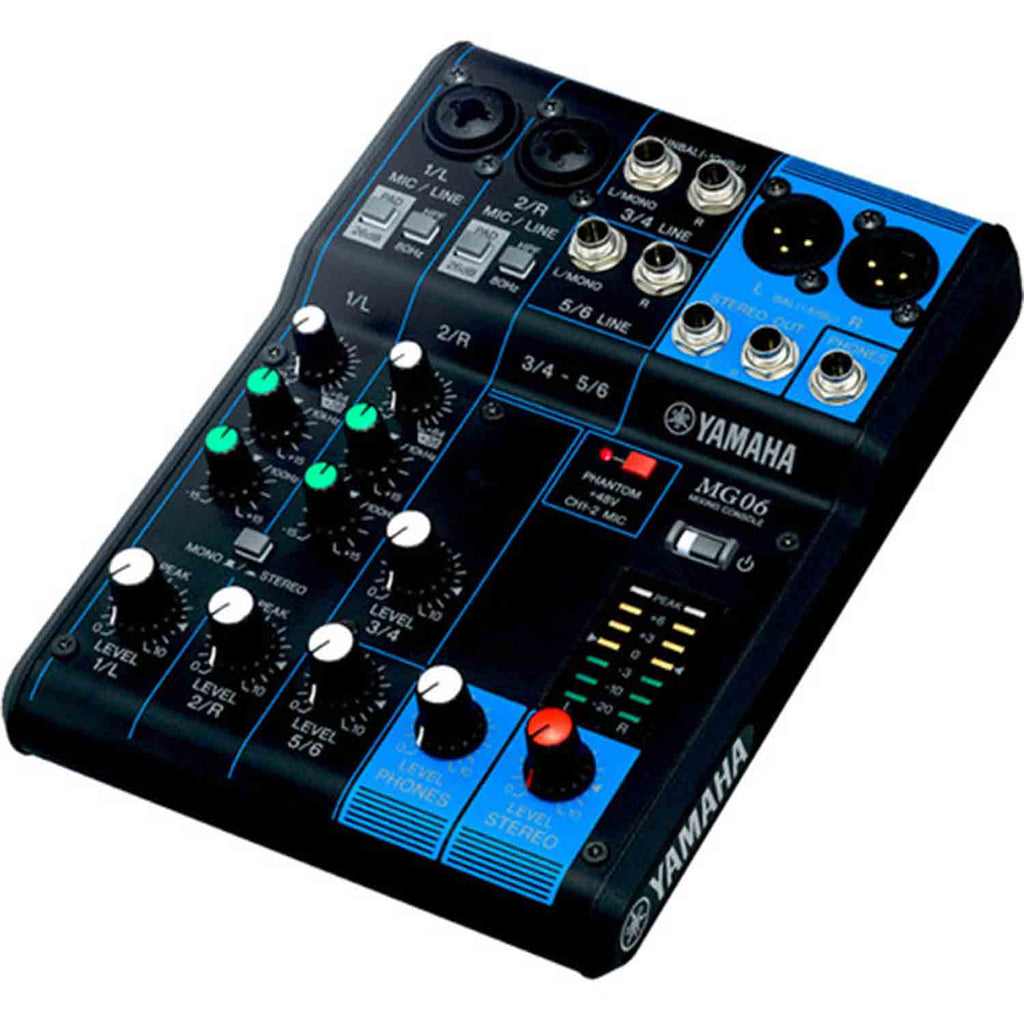

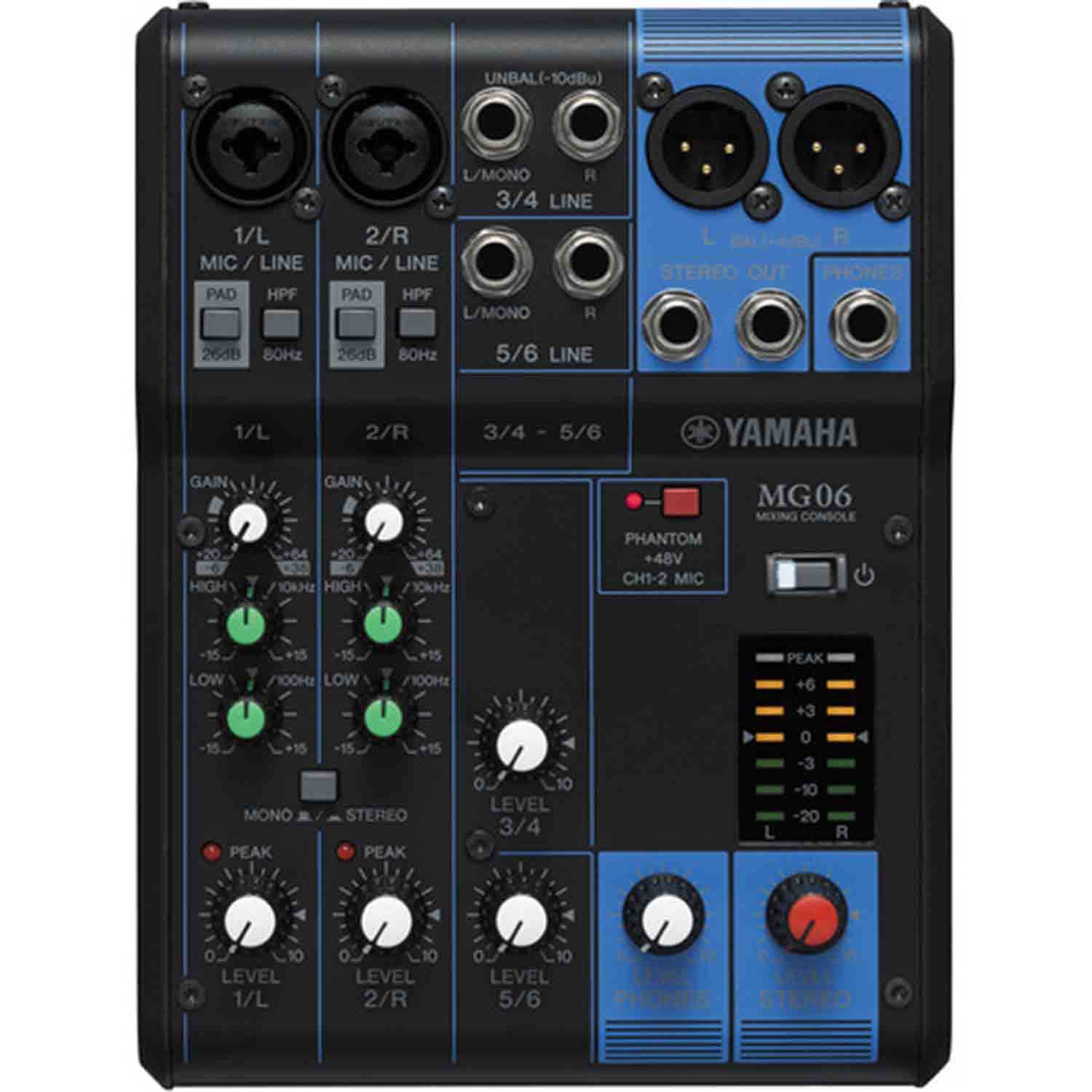

The Yamaha MG06 6-Input Compact Stereo Mixer from Yamaha is a compact six-input mixer for small performances, lectures, recordings, and similar applications. The mixer features two XLR-1/4" combo mic/line inputs with D-PRE mic preamps as well as two 1/4" stereo line inputs with level controls.
Each of the two mic/line inputs is equipped with a 2-band EQ and a high-pass filter. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. They also each feature 26 dB attenuation switches for recording loud sound sources such as guitar amplifiers.
The Yamaha MG06 analog mixer is well-suited for ultra-compact mixing rigs. The MG06's quality op-amp ensures that your mix sounds transparent and articulate. The MG06's crystal clear D-PRE preamps will squeeze every drop of tone from your mics, with natural-sounding bass and smooth highs. Featuring switchable phantom power, a pad switch, EQ, and LED metering, the tiny MG06 can take on just about any task you throw at it. Utilizing many state-of-the-art features from Yamaha's high-end consoles, the MG06 is ready to work for you.
D-PRE-Discrete Class-A Mic Preamps Deliver Clean And Natural Sound
Nobody wants to hear mics that are plugged into thin, distorted, or underpowered preamps. MG Series mixing consoles employ Yamaha's transparent D-PRE preamps, which provide more power with lower impedance, delivering natural-sounding bass and smooth highs. D-PREs simply sound good - without hyping any specific elements of your mix. The D-PRE's pure sound will ensure that you won't need to spend hours EQ-ing just to get a barely-acceptable sound, like you would with low-quality mic preamps.
EQ And High Pass Filter Allow For Effective Sound-Shaping
Whether you're tweaking your sound to perfection or whether you're removing some unwanted frequencies, effective and powerful EQ is necessary for building a successful mix. Featuring equalizers on all mono channels, the Yamaha MG Series mixing consoles provides you with ample control over the tonal balance of your mix. Additionally, a highpass filter allows you to get rid of any mud that might be present in your mix by eliminating unwanted low-frequency noise.
High Quality Op-Amp Ensures Transparent Sound Reproduction
We know that few things will kill tone as quickly as sub-par op-amps. The Yamaha MG Series utilizes new, high-quality MG01 op-amps, ensuring that your mix sounds its best. When designing these op-amps, Yamaha focused on sound quality, rather than prioritizing electrical design and efficiency. Yamaha has always strived to deliver the purest possible signal instead of imparting their signature to your sound, and the MG Series is no exception. You can count on a transparent, natural, and articulate sound when you mix through a MG Series analog mixer.
Product Specification:
Input Channels: 2 x XLR-1/4" Combo (Mic/Line),2 x 1/4" / 6.3 mm Stereo (Line)
Phantom Power: +48 V Switchable, Channels 1, 2
Output Channels: 2 x XLR Stereo,2 x 1/4" / 6.3 mm Stereo,1 x 1/4" / 6.3 mm Headphone
Bus: 1 x 1/4" / 6.3 mm Stereo
Pad: 26 dB (Mono Channels)
HPF: 80 Hz, 12 dB/Oct (Mono Channels)
Equalizer: EQ High (Mono Channels) Gain: ±15 dB, Frequency: 10 kHz Shelving,EQ Low (Mono Channels) Gain: ±15 dB, Frequency: 100 Hz Shelving
LED: LED Turns On When Post EQ Signal Reaches 3 dB Below Clipping
Level Metering: 2 x 7-Segment LED Meter (Peak, +6, +3, 0, -3, -10, -20 dB)
Total Harmonic Distortion: 0.01% @ +8 dBu (20 Hz to 20 kHz), Gain Knob: Min, 0.003% @ +18 dBu(1 kHz), Gain Knob: Min
Frequency Response: 20 Hz to 20 kHz ±0.5 dB, Refer to the Nominal Output Level @ 1 kHz, Gain Knob:Min
Equivalent Input Noise: -128 dBu (Mono Input Channel, Rs: 150 Ohms, Gain Knob: Max)
Residual Output Noise: -102 dBu (Stereo Out, Stereo Level Knob: Min)
Crosstalk: -88 dB
Power Requirements: PA-130 (12 VDC / 1 A), 120 VAC, 60 Hz, MU18 (12 VDC / 1.5 A), 100-240 VAC,50/60 Hz,Or Equivalent Recommended by Yamaha
Power Consumption: 12 W
Dimensions: 5.9 x 2.4 x 7.9" / 149 x 62 x 202 mm
Net Weight: 1.98 lb / 0.9 kg
Package Weight: 3.27 lb
Box Dimensions: 10.65 x 9.65 x 4.8
