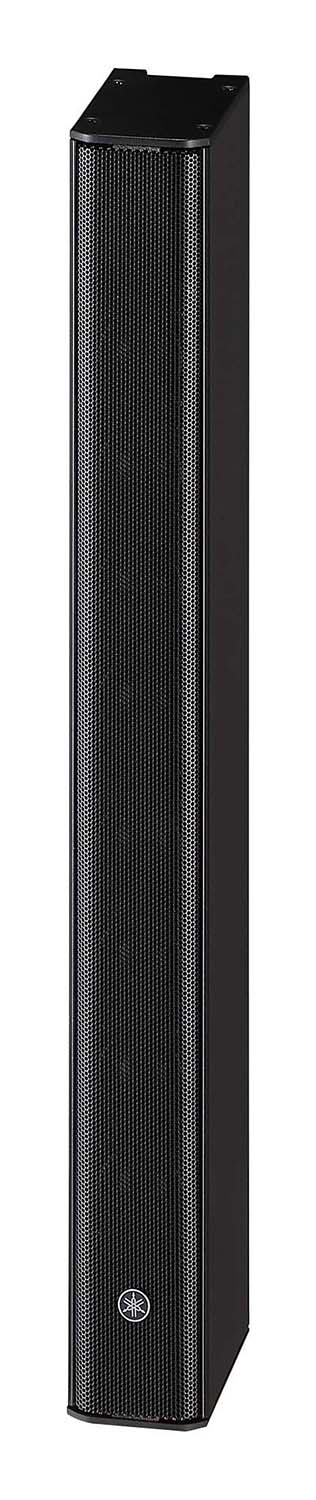

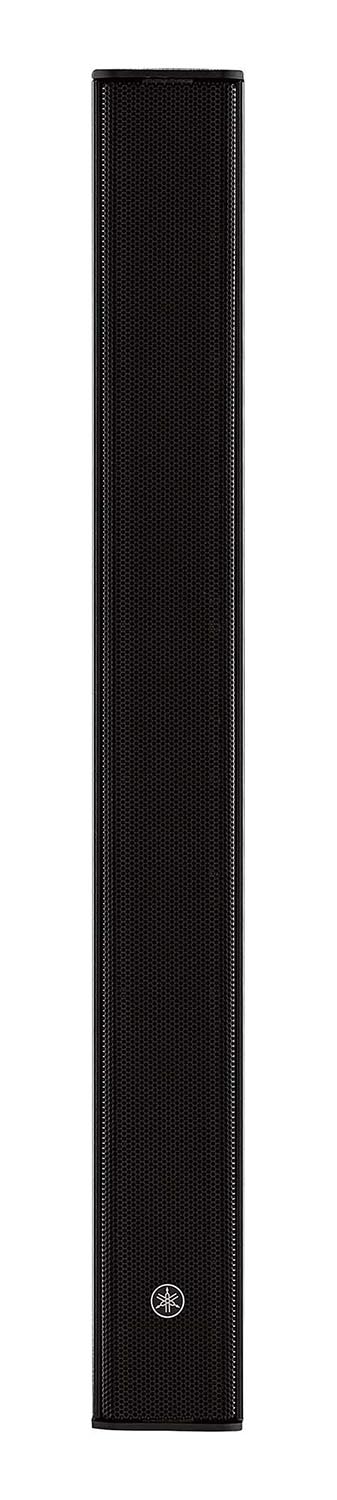

Yamaha VXL1B-8 Slim Line Array Speaker With 8 X 1.5" Drivers - Black

VXL series line source loudspeakers offer a unique combination of outstanding sound quality and slim form-factor that is ideal for a variety of environments. VXL line source loudspeakers offer excellent projection as well as uniform volume and sound quality over a wide listening area, making them a great choice for highly reflective rooms, lecture halls, conference rooms, and other facilities that require maximum intelligibility throughout the listening area.

The VXL series includes three models VXL1-8, VXL1-16 and the VXL1-24 each featuring 1.5-inch full range drivers, that can be combined to optimally serve a variety of installations and spaces. The slim 2.1-inch (54mm) wide enclosures feature elegantly curved grille designs that blend beautifully with any décor to deliver superior and uniform speech and music reproduction in a wide variety of applications.

Product Specification:

Speaker Type: Full-range, Bass reflex

Frequency Range (-10dB): 70 Hz - 20 kHz 110 Hz - 20kHz 1 (w/ port cover)

Coverage Area: Horizontal: 170°, Vertical:40° (+20° - -20°)

Components (LF-HF): 1.5" (3.75 cm) Cone + 8

Power Rating (Noise/PGM/Peak): 40 W / 80 W / 160 W

Nominal Impedance: 16Ω

SPL Sensitivity (W; 1m on axis): 89 dB SPL (1 m/1 W)

SPL Peak (Calculated): 111 dB SPL (1 m)

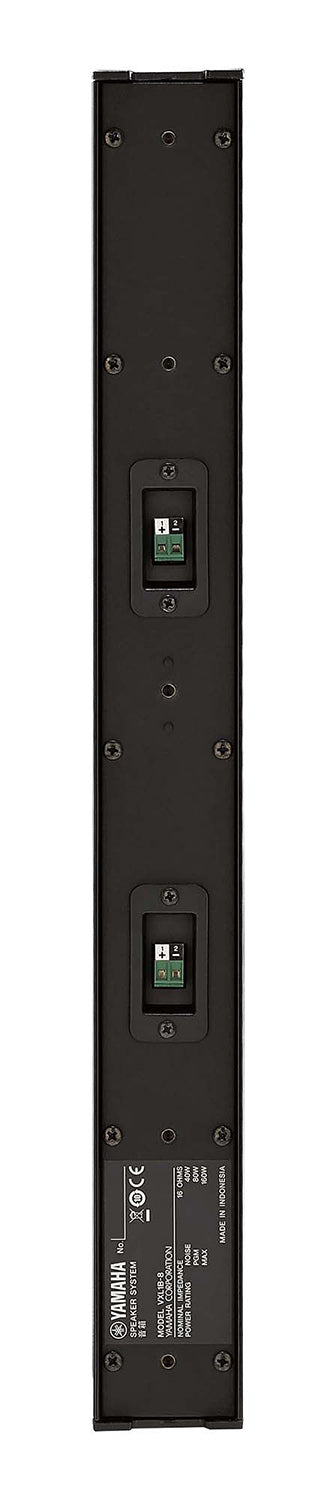

I/O Connectors: Euro block (2 pin) + 2 (input: +/-) Max. wire size AWG 12 (3.3 mm²)

Load Protection: Full-range power limiting to protecting network and transducers

Finish: Black painting (approximate value: Munsell N3.0)

IP-Rating-Dust and water resistant: IP35

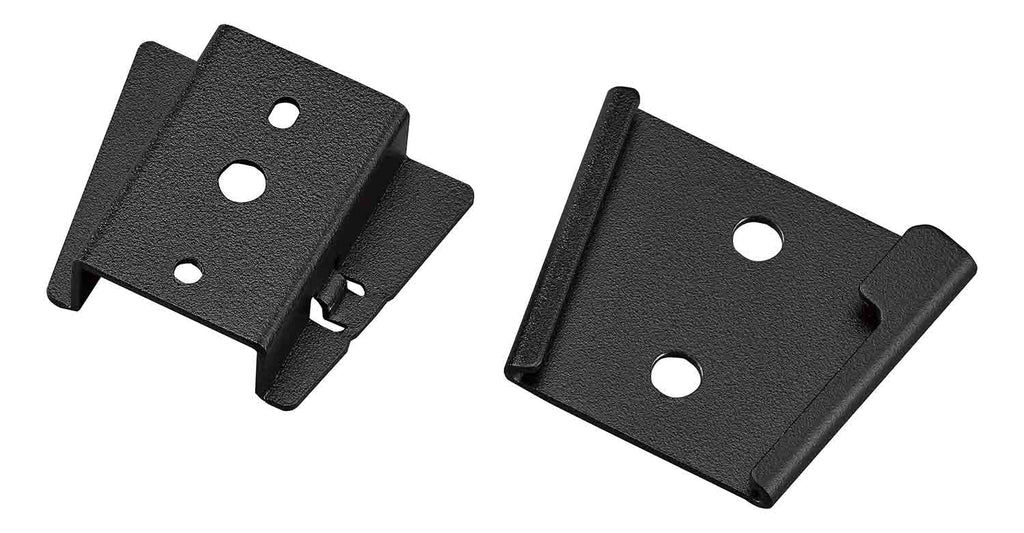

Dimensions (W x H x D): 2.1 x 18.9 x 4.1 in. (54 x 480 x 104 mm) - Speaker Only, 2.1 x 18.9 x 4.4 in. (54 x 1212 x 111.5 mm) - with Included Bracket

Weight: 2.1 kg / 4.6 lbs. (Speaker only)
