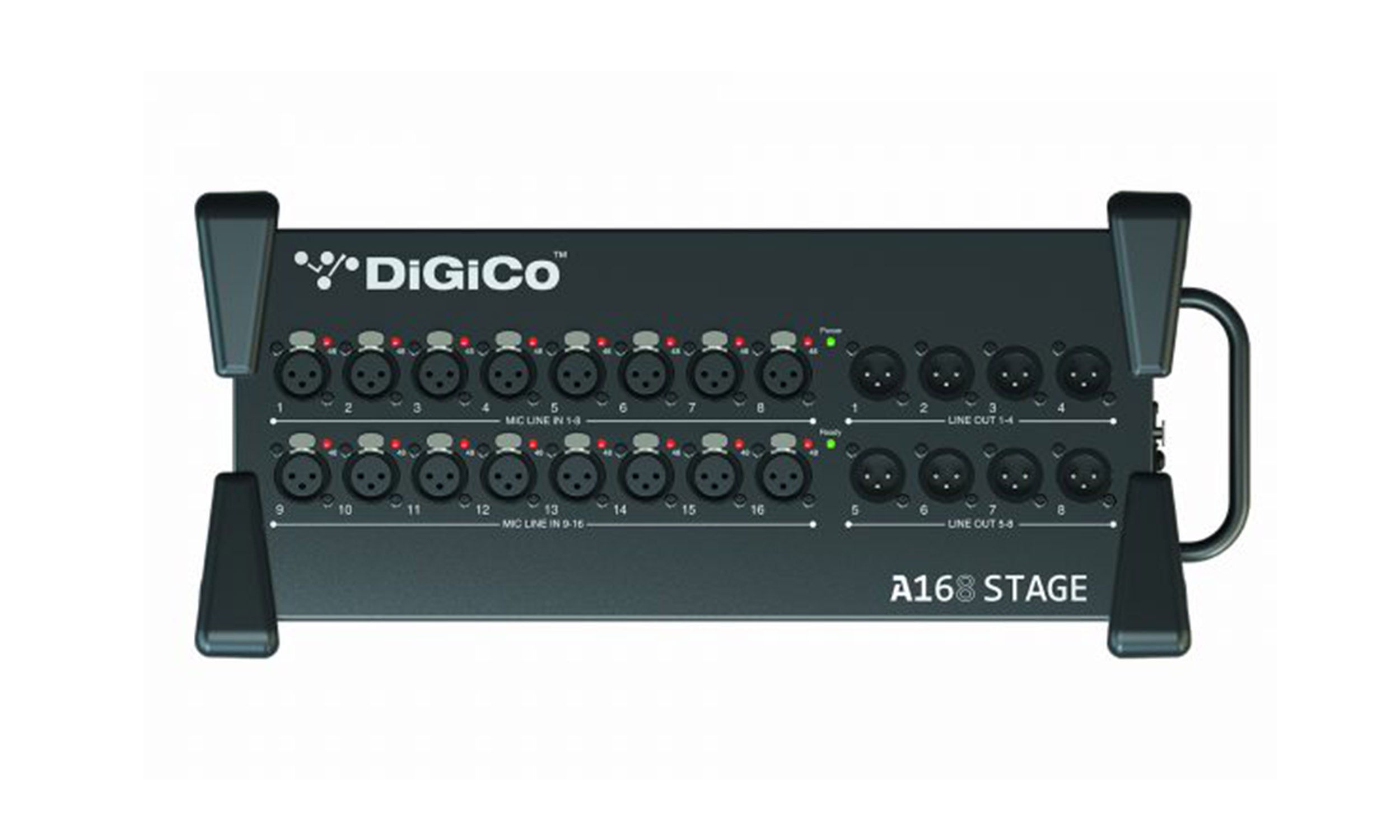

DiGiCo X-A-168, 16 Input/8 Output I/O Expander Stage Box
Passez votre souris pour zoomer Cliquez sur l'image pour zoomer
DiGiCo X-A-168, 16 Input/8 Output I/O Expander Stage Box

DiGiCo X-A-168, 16 Input/8 Output I/O Expander Stage Box
Economisez $196.17
DiGiCo
0 avis
SKU H-DIGI-XA168 UPC 5056078700231
Prix:
$3,727.27 $3,923.44
Earn 1863635 points (worth $186.36)
Price Match Guaranteed if we lower the price within 30 days of your purchase, we’ll issue a store credit for the difference. Shop confidently knowing you’ll always get our best price. Free 2nd Day Air Delivery We offer Free 2nd Day Air on most items! Some exceptions apply, including oversized, truss, and stage products. Reward Points Earn 5% Back in HDJ Points on every purchase — use your points toward future gear purchases with us.

2 Day Shipping is Free or heavily discounted on most items! Make sure you select 2nd Day Shipping. We want to ship your order the fastest way possible.

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we can help.

We price match competitor advertised prices.

Our online prices are always honored instore guaranteed.

Hassle Free Financing Available

Get the gear you need now with Financing options. As an artist or sound professional your business needs high speakers, lighting and cases to do your job, be professional and competitive.

Choose Shop Pay or After Pay in checkout for instant financing. We also offer Accima, Synchrony, Progressive or Snap financing just give us a call 1-800-700-4542.

Description

The DiGiCo X-A-168 is a portable 16-input/8-output I/O expander designed to provide additional analogue I/O anywhere on a compatible DiGiCo A3232 network. It features 16 mic/line inputs with recallable preamps and phantom power, along with 8 balanced XLR line outputs. Two A3232 network ports allow units to be daisy-chained or configured for network redundancy.

16-Channel Input Section

The X-A-168 provides 16 balanced XLR mic/line inputs with +48V phantom power, recallable preamps, and +5 to +60 dB analogue gain in 1 dB steps. A -20 dB pad supports higher-level input sources.

8-Channel Output Section

Eight balanced XLR line outputs provide professional signal distribution with a maximum output level of +22 dBu. Relay protection helps safeguard the analogue outputs during operation.

A3232 Network Connectivity

Two proprietary A3232 ports provide CAT5e network connectivity for integrating the X-A-168 into compatible DiGiCo systems. The second port can be used for daisy-chaining another A168 STAGE or creating a redundant network connection.

Flexible Stage I/O Expansion

The X-A-168 provides a compact solution for expanding input and output capacity in professional live sound, touring, theatre, broadcast, and installation applications.

Product Specifications:

Product Type: 16 Input / 8 Output I/O Expander

Input Channels: 16 x Mic/Line

Mic/Line Inputs: Balanced XLR with +48V Phantom Power

Mic/Line Preamp: Fully Recallable

Analogue Gain: +5 to +60 dB, 1 dB Steps

Pad: -20 dB Active Pad

Maximum Input Level: +30 dBu with Pad

Input Impedance: >4 kΩ Pad Out / >10 kΩ Pad In

Mic EIN: -127 dB with 150Ω Source

Output Channels: 8 x Line Outputs

Analogue Outputs: Balanced XLR, Relay Protected

Nominal Output Level: +4 dBu

Maximum Output Level: +22 dBu

Residual Output Noise: -93 dBu (22 Hz to 22 kHz)

Network Connectivity: 2 x A3232 Ports

Network Cable: CAT5e

Network Protocol: DiGiCo A3232

Power Supply: 100-240V AC, 50/60 Hz

Power Consumption: 35 W Max

Operating Temperature: 0°C to 35°C

Product Weight: 7.7 lbs

Product Dimensions (L x W x H): 11.8" x 8.7" x 3.5"
