Description

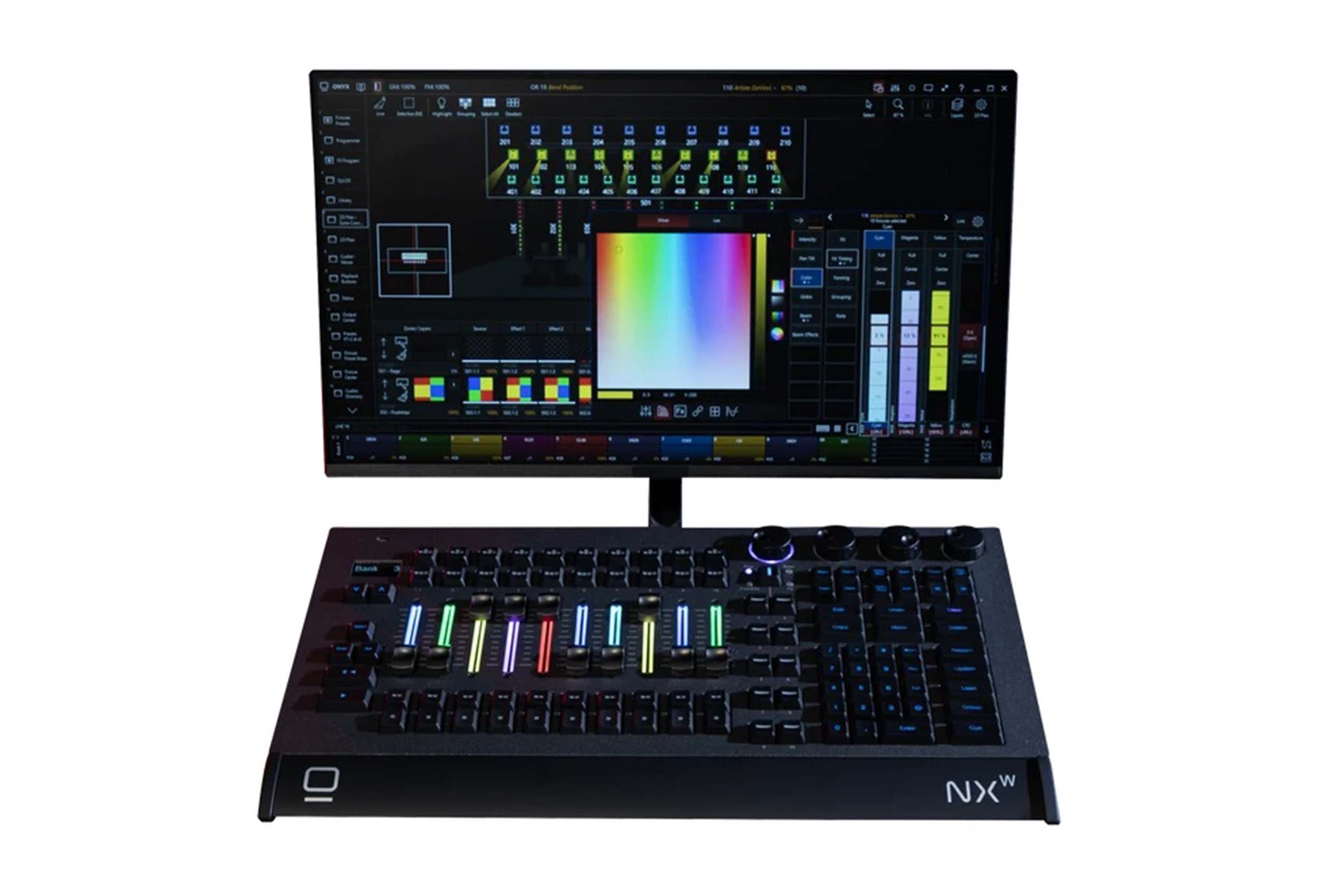

The Elation NX W is a professional USB control surface designed as a powerful companion to the Obsidian Control Systems ONYX platform. Its ergonomic layout is comparable to the NX K and NX P, giving ONYX users an intuitive hardware interface for fast and accurate lighting control. Through its USB-C connection, the NX W connects directly to a user-provided PC running ONYX without requiring additional setup or installation.
Motorized Faders & RGB-Backlit Controls

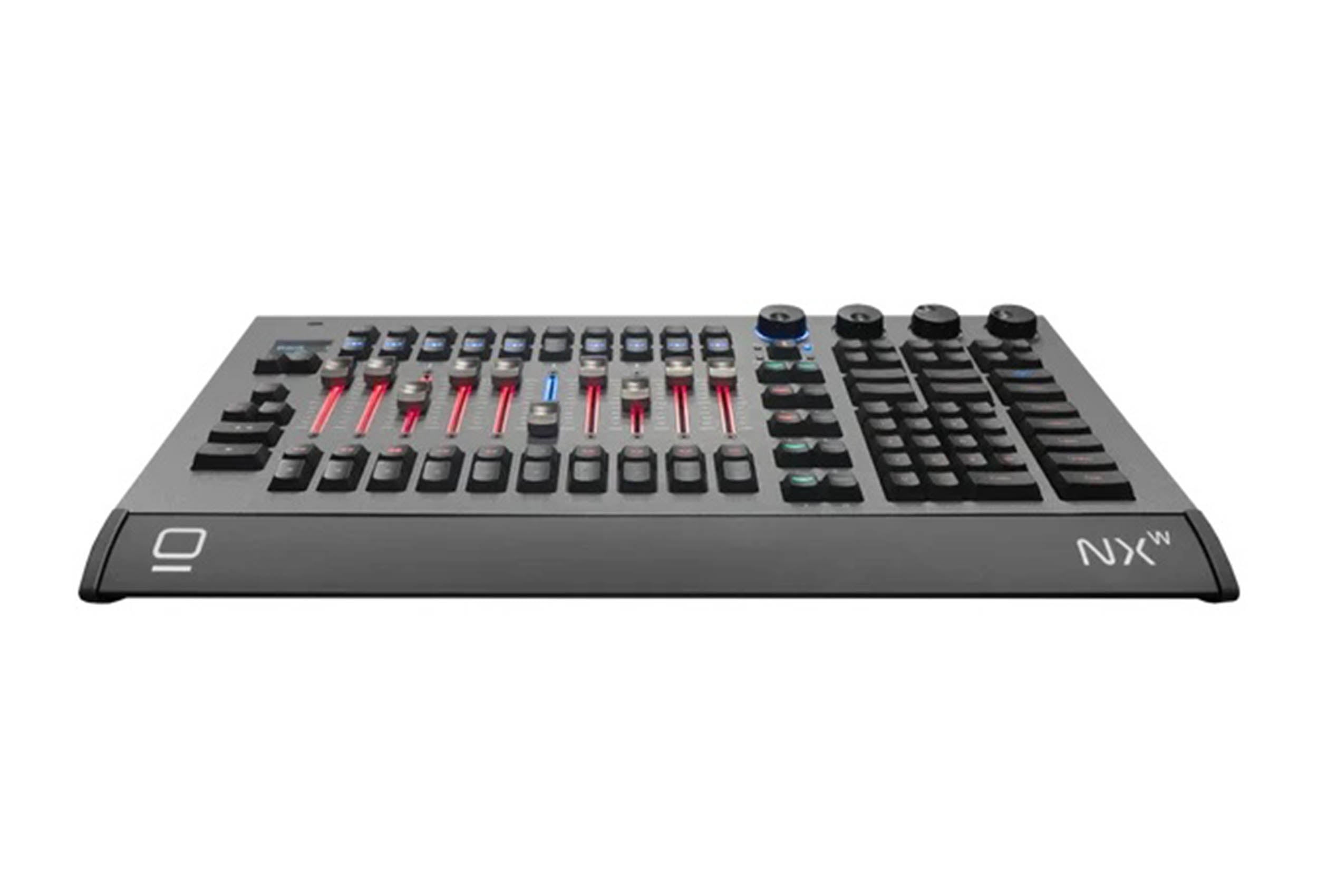

Designed for speed and accuracy, the NX W features 10 × 60 mm motorized playback faders, each equipped with four function-assignable buttons. Ten customizable multifunction keys provide additional control flexibility, while high-speed optical buttons with RGB backlighting help ensure precise cue execution and fast keypad entry. The illuminated motorized faders clearly indicate playback type and status, making the surface easy to operate even in dark production environments.
Extensive Lighting Connectivity
The NX W provides four DMX/RDM universe inputs and outputs through 5-pin locking XLR connectors, along with a Gigabit RJ45 Ethernet connection for Art-Net, sACN, and ONYX X-Net. This extensive connectivity allows the controller to integrate directly into professional lighting networks while providing responsive data distribution and control. A USB-A expansion slot is also provided for ONYX License Keys.
Advanced Playback & Fixture Control
A dedicated Master Go section includes Go, Pause, Snap, and Release controls for streamlined playback operation. Four digital rotary encoders with push functionality and RGB status LEDs provide intuitive fixture parameter adjustment. Additional Blind, Highlight, Last, and Next controls, along with a full numerical keypad and command keys, give operators the physical controls needed for fast programming and live operation.
Portable & Expandable ONYX System

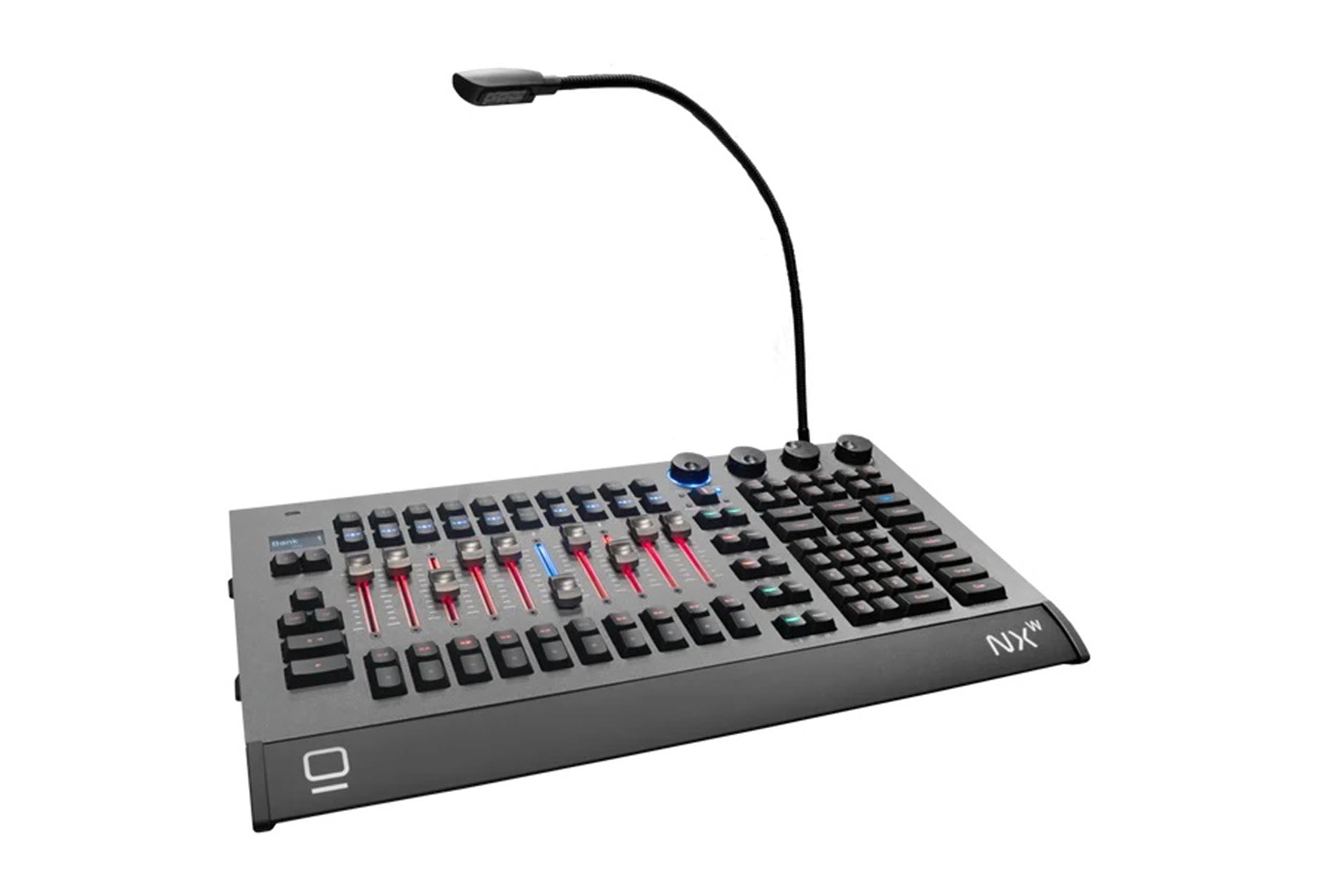

The NX W unlocks 16 universes of ONYX control when connected to an ONYX PC system, with licensing options available to expand the system up to 128 universes. Its compact 21.3" × 12.2" × 3.15" design and 13.2 lbs weight make it practical for touring, mobile production, and professional lighting control environments. Included accessories such as the desk lamp, dust cover, USB-C cable, adapters, recovery key, and locking power cable provide a complete setup for immediate use.
Product Specifications:
Product Type: USB Lighting Control Surface
Platform: Obsidian Control Systems ONYX
Base ONYX License: 16 Universes
Expandable License: Up to 128 Universes
Faders: 10 × 60 mm Motorized RGB-Backlit Playback Faders
Fader Buttons: 4 Function-Assignable Buttons per Fader
Multi-Function Keys: 10 Customizable
Master Go Section: Go, Pause, Snap, Release
Rotary Encoders: 4 Digital Encoders with Push Function and RGB Status LEDs
Additional Controls: Blind, Highlight, Last, Next, Numerical Keypad, Command Keys
Button Type: High-Speed Optical
Button Backlighting: RGB
DMX/RDM Ports: 4 Universe In/Out
DMX/RDM Connectors: 5-Pin Locking XLR
Network Connection: 1 × Gigabit RJ45 Ethernet
Network Protocols: Art-Net, sACN, ONYX X-Net
USB Expansion: USB-A for ONYX License Keys
PC Connection: USB-C
Power Connection: Locking Power In / Thru
Operating System: Windows 10/11 64-bit Home, Pro, Enterprise
Processor Requirement: 8th-Generation Intel Core or Newer, or Comparable AMD Processor
Memory Requirement: 16 GB RAM
Storage Requirement: SSD with 40 GB+ Available Space
Monitor Requirement: Widescreen, Minimum 1280 × 768; Capacitive Multi-Touchscreen Recommended
USB Requirement: USB-C 3.0
Input Voltage: 100–240V Nominal
Frequency: 50/60 Hz
Power Consumption: 30W
Product Weight: 13.2 lbs
Product Dimensions: 21.3" L × 12.2" W × 3.15" H
Shipping Weight: 15.2 lbs
Shipping Dimensions: 23.3" L × 14.2" W × 5.15" H
