Description
Professional 4-Speaker Ceiling Audio Solution

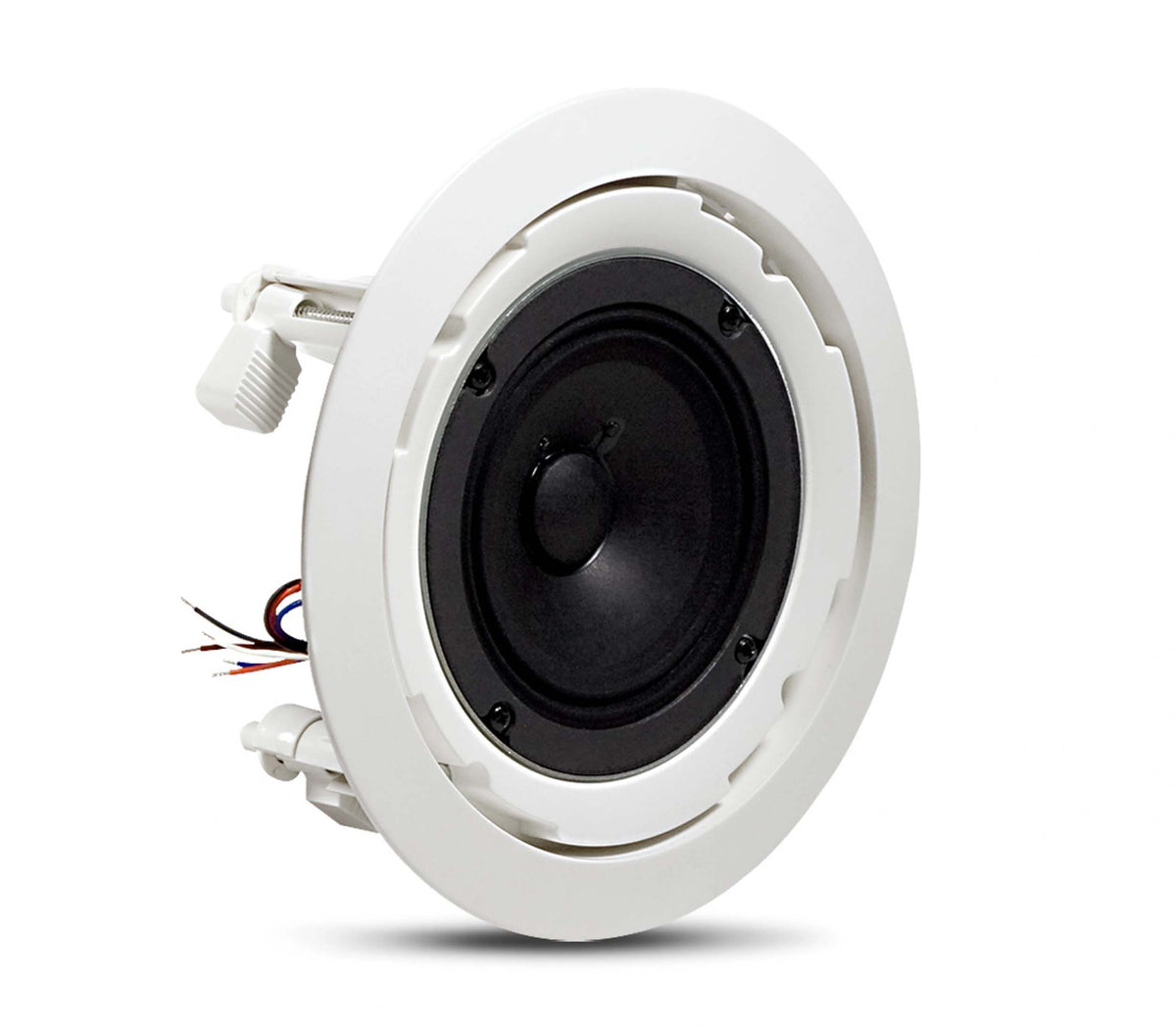

The JBL 8124 4-Pack includes four 4-inch full-range in-ceiling loudspeakers designed to deliver clear, high-fidelity sound throughout commercial environments. Each speaker uses a high-sensitivity driver capable of producing strong sound levels while requiring minimal amplifier power, making this 4-speaker package a practical solution for distributed audio systems in retail spaces, offices, hospitality venues, commercial facilities, and other ceiling-mounted applications.
Efficient 70V/100V Distributed Audio
Each JBL 8124 features a 6W transformer with multiple 70V/100V taps, including 6W, 3W, 1.5W, and 0.75W at 70V only. With four speakers in the package, installers can create broader and more consistent sound coverage while selecting appropriate power levels for different zones and amplifier requirements. The 93 dB sensitivity and 130° conical coverage provide efficient sound distribution across commercial spaces.
Easy Installation & Clean Ceiling Integration

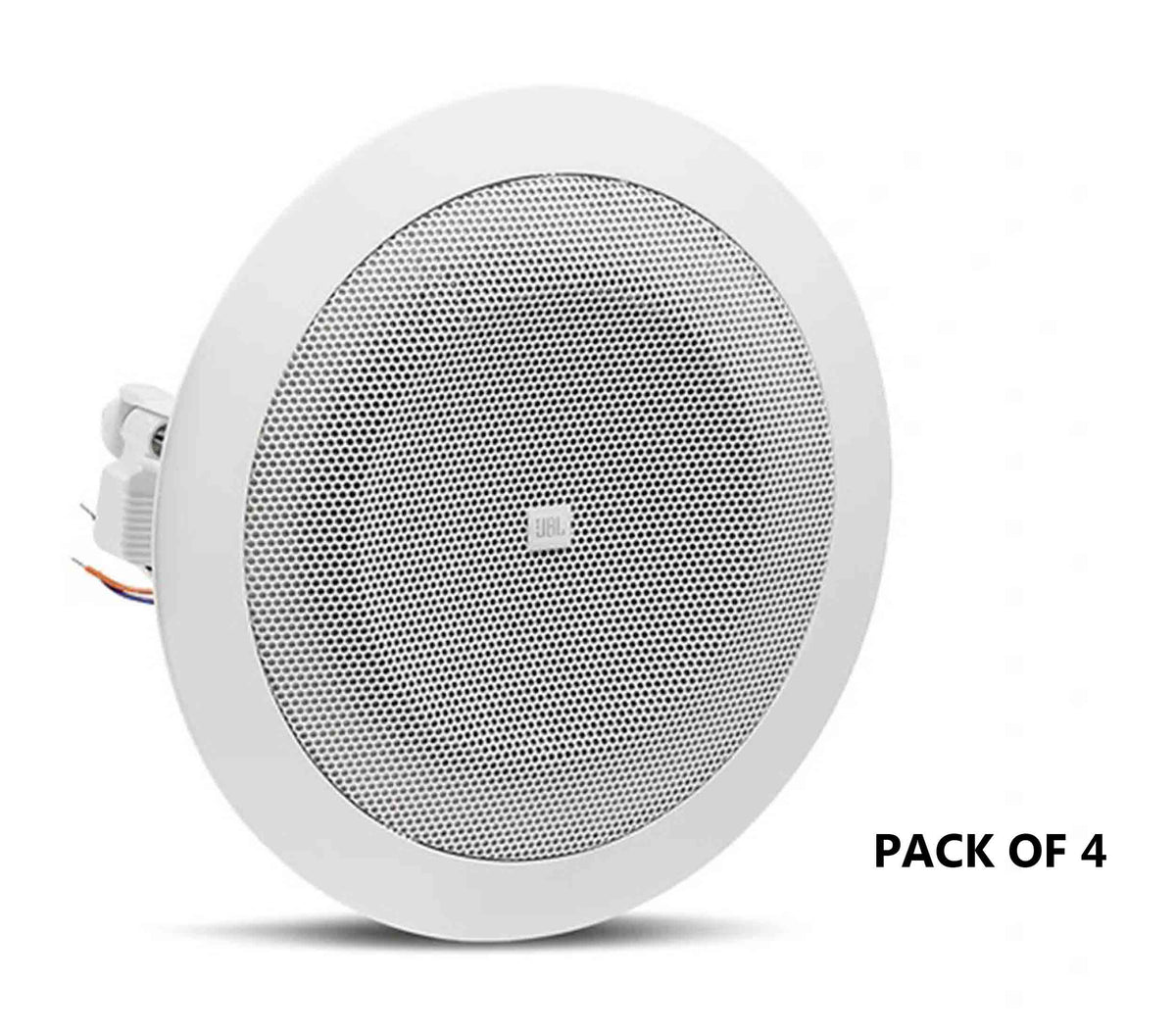

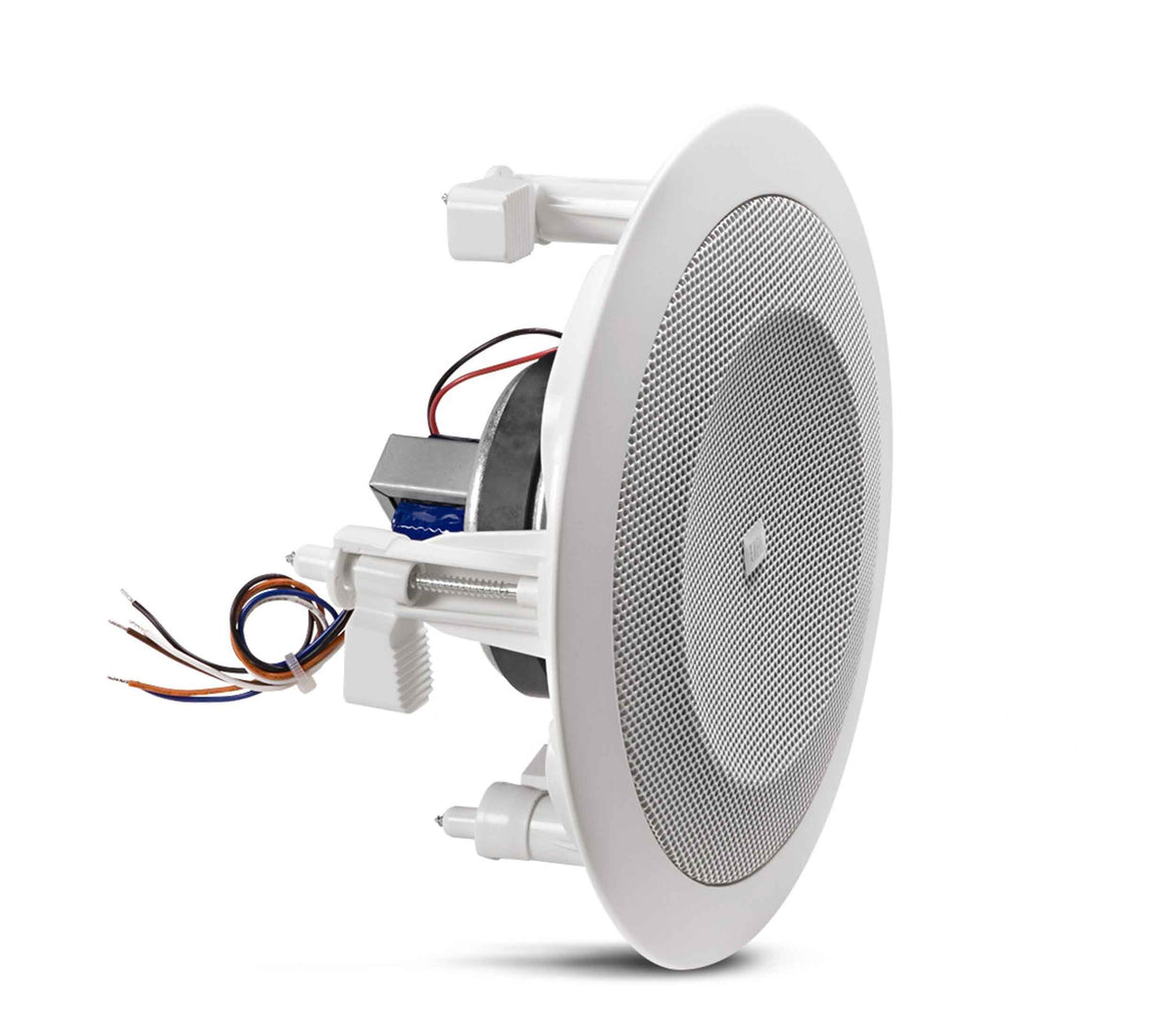

The 8124 features dog-ear mounting hardware for convenient retrofit and blind-mount installations, while its open-back design eliminates the need for a dedicated backcan in applications where one is not required. Each speaker includes a contemporary sculpted grille and white plastic baffle for a clean ceiling appearance. Optional accessories such as the MTC-8124C C-ring and MTC-RAIL tile rails can also support compatible suspended-ceiling installations.
Product Specifications:
Product Type: In-Ceiling Loudspeaker
Speaker Type: Full-Range Commercial Loudspeaker
Driver Size: 4" (100 mm)
Driver Configuration: Full-Range Driver
Frequency Range: 60 Hz – 18 kHz
Sensitivity: 93 dB (1 kHz – 8 kHz, 1W, 1m)
Coverage: 130° Conical
Nominal Driver Impedance: 8 Ohms
Driver Power Capacity: 20W
Transformer Type: 70V/100V Transformer
Transformer Taps: 6W, 3W, 1.5W, 0.75W at 70V Only
Maximum SPL: 101 dB Average at 1m, Top 70V/100V Tap
Input Connection: Bare Wires
Installation Type: In-Ceiling
Mounting: Dog-Ear / Blind-Mount Installation
Design: Open-Back
Backcan: No
Baffle/Rim Material: Plastic
Grille: Sculpted Grille Included
Ceiling Cutout Diameter: 6.9" (175 mm)
Optional Accessories: MTC-8124C C-Ring, MTC-RAIL Tile Rails
Plenum Usage: Not intended for use in return air plenums
Commercial Applications: Basic Commercial Sound Systems, Distributed Audio, Retail, Hospitality, Office and Ceiling-Mounted Installations
Product Weight: 2.5 lbs
Product Dimensions: 3.5" H × 8.1" W × 8.1" L
Shipping Weight: 4.5 lbs
Shipping Dimensions: 5.5" H × 10.1" W × 10.1" L
