Description

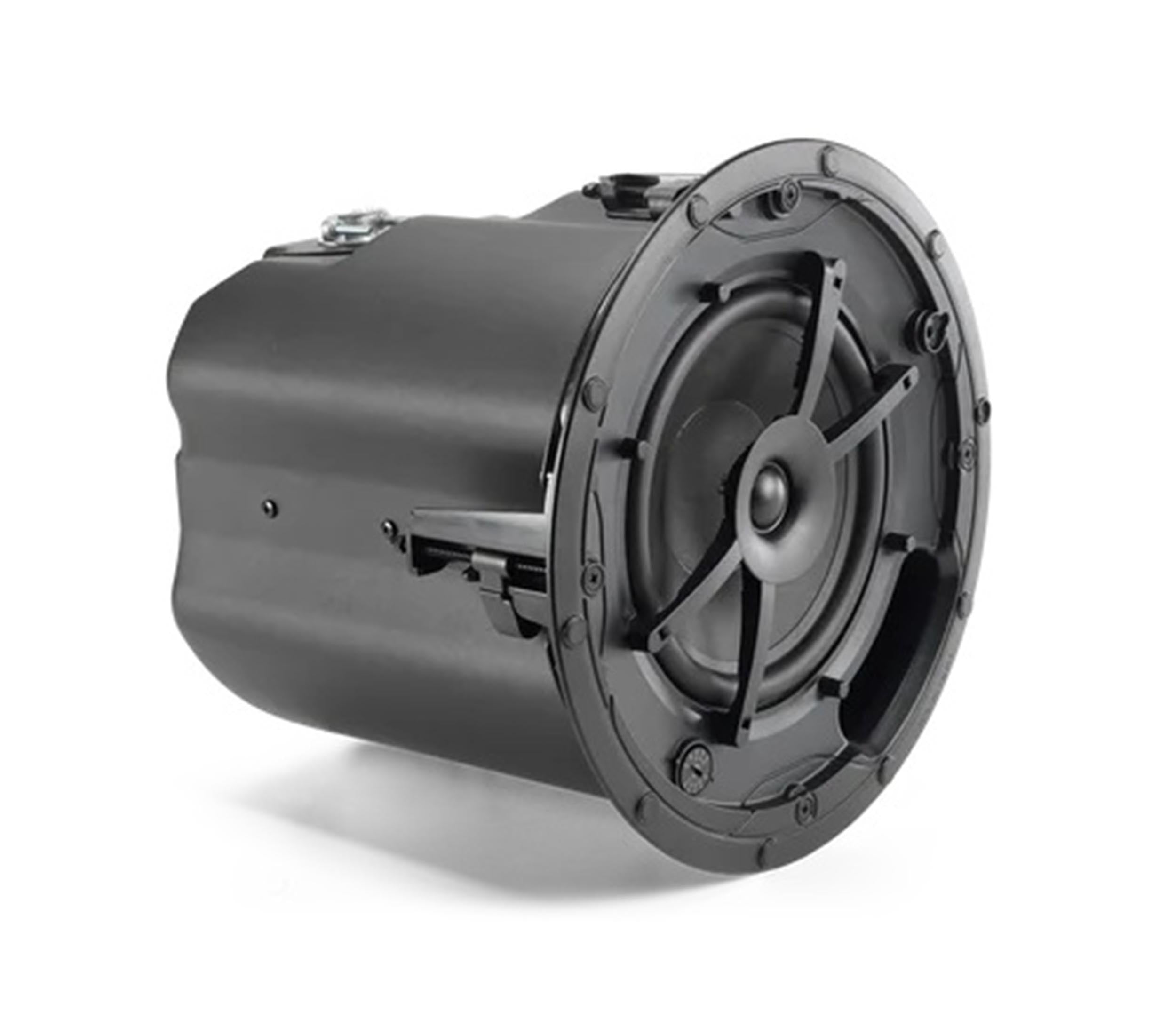

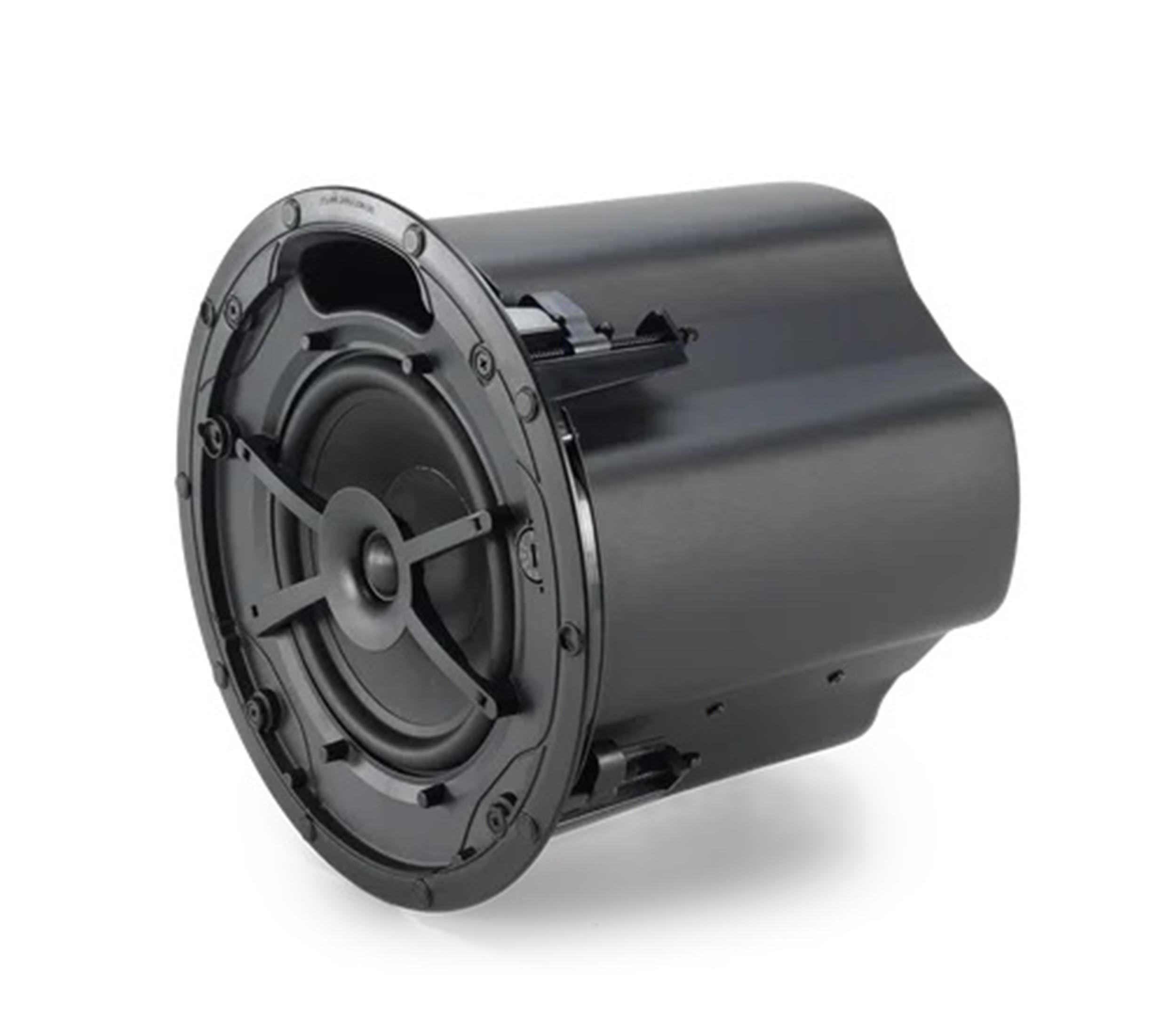

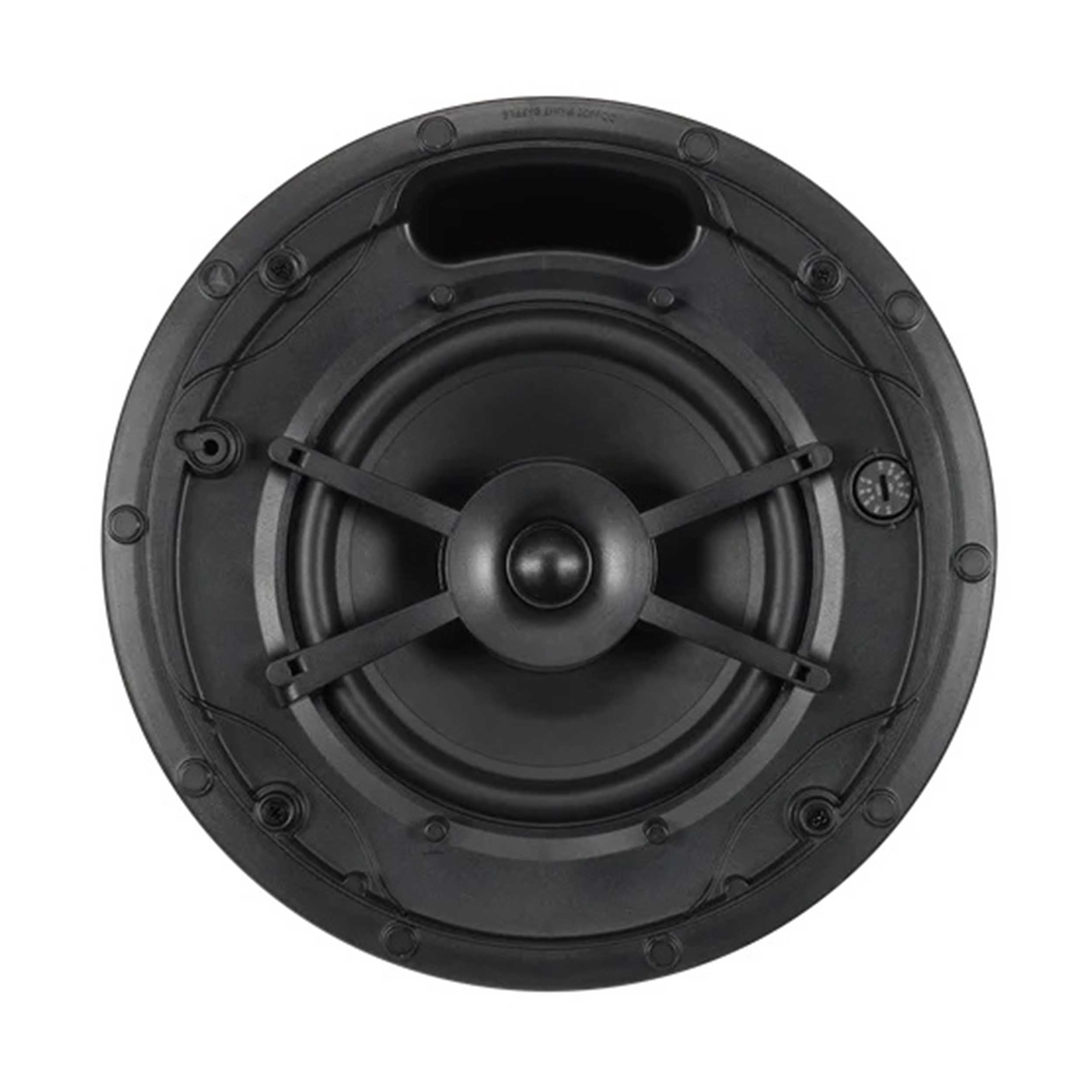

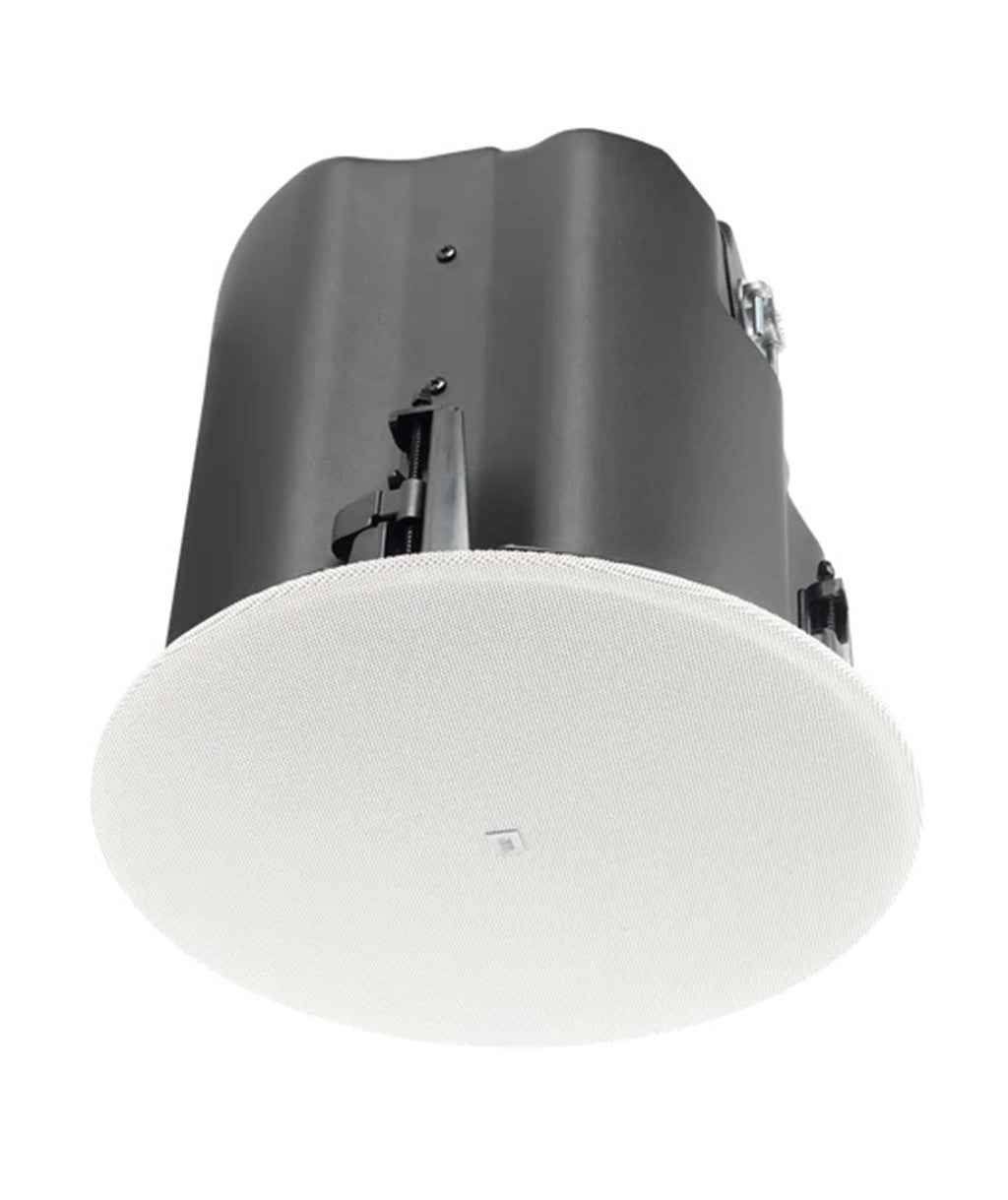

The JBL Control 418C/T is a premium two-way coaxial ceiling loudspeaker designed for commercial installed sound applications. Equipped with an 8-inch woofer and a 1-inch soft-dome tweeter, it delivers powerful bass, clear vocals, and detailed high frequencies. Its coaxial design ensures consistent sound coverage across a wide listening area. The speaker is ideal for background music, paging, and speech reinforcement. Its bezel-free grille blends seamlessly into modern interiors. It is well suited for hotels, museums, retail stores, offices, restaurants, and educational facilities.
The built-in 70V/100V multi-tap transformer provides flexible integration into distributed commercial audio systems while supporting high-quality sound reproduction. With up to 360 watts peak power handling and an extended frequency range down to 57 Hz, the speaker delivers rich, balanced audio for demanding applications. Premium JBL components ensure reliable long-term performance and excellent speech intelligibility. The efficient coaxial driver design produces even sound distribution throughout the space. It is engineered for professional installed sound systems. Performance remains consistent even during extended operation.

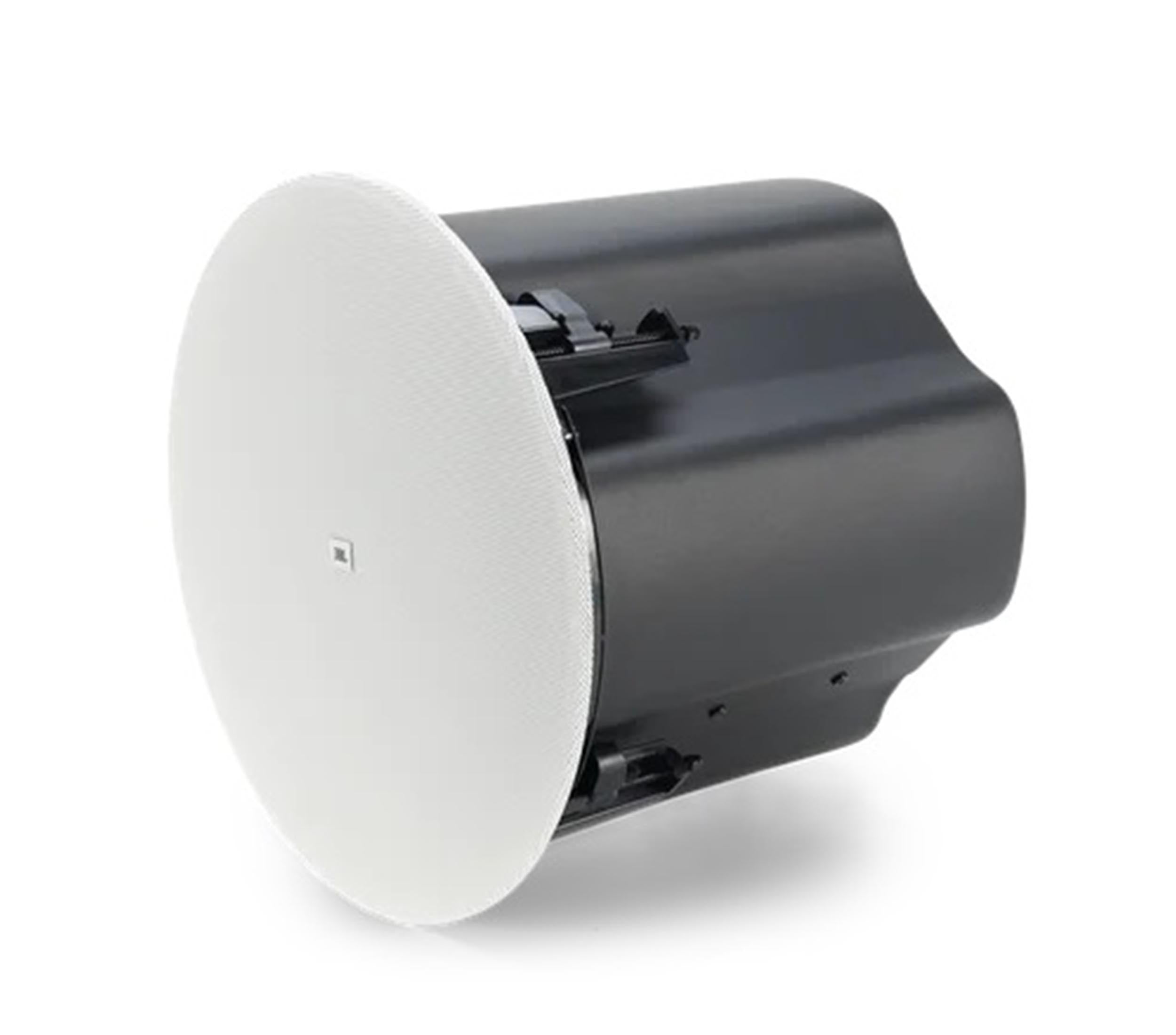

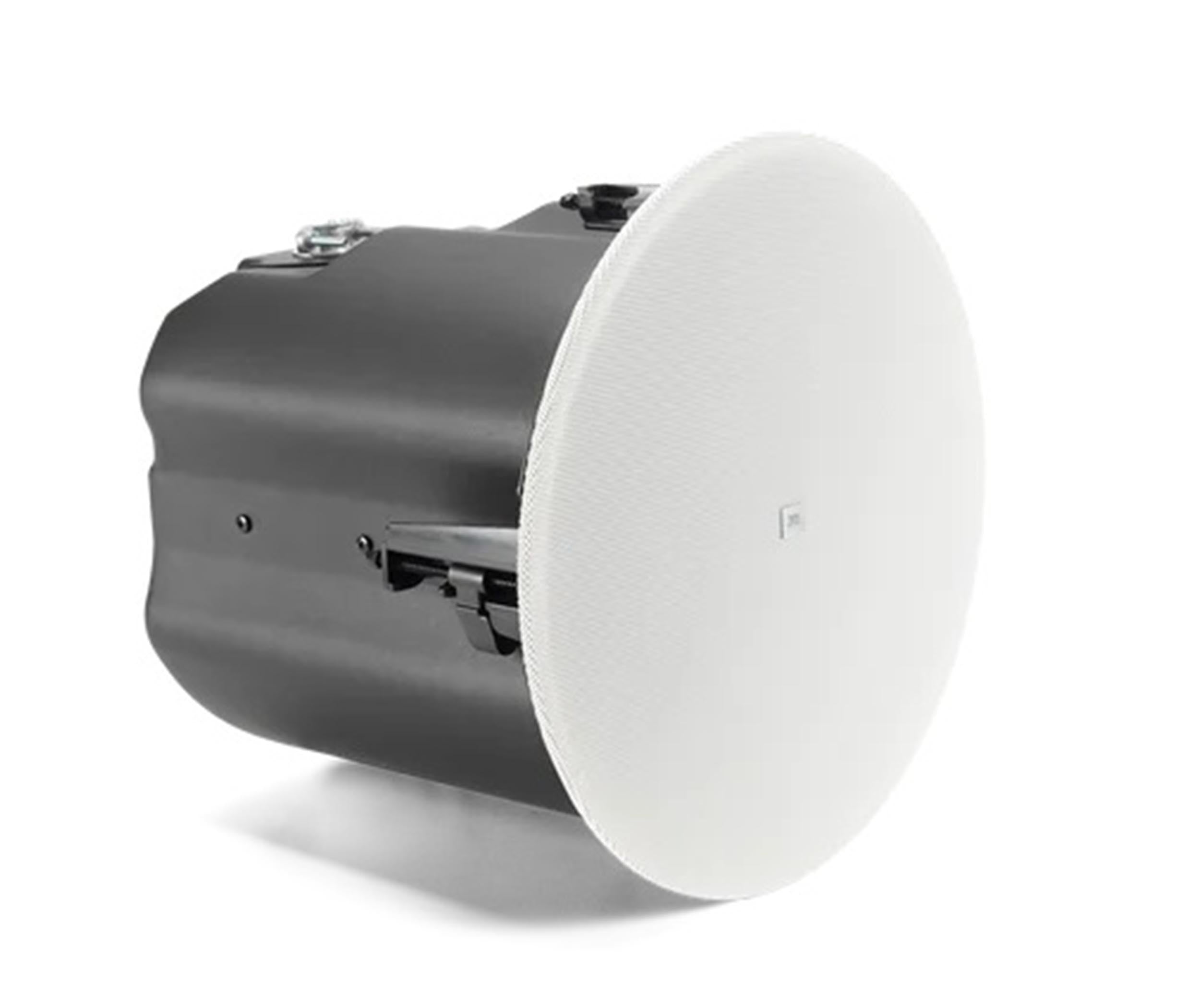

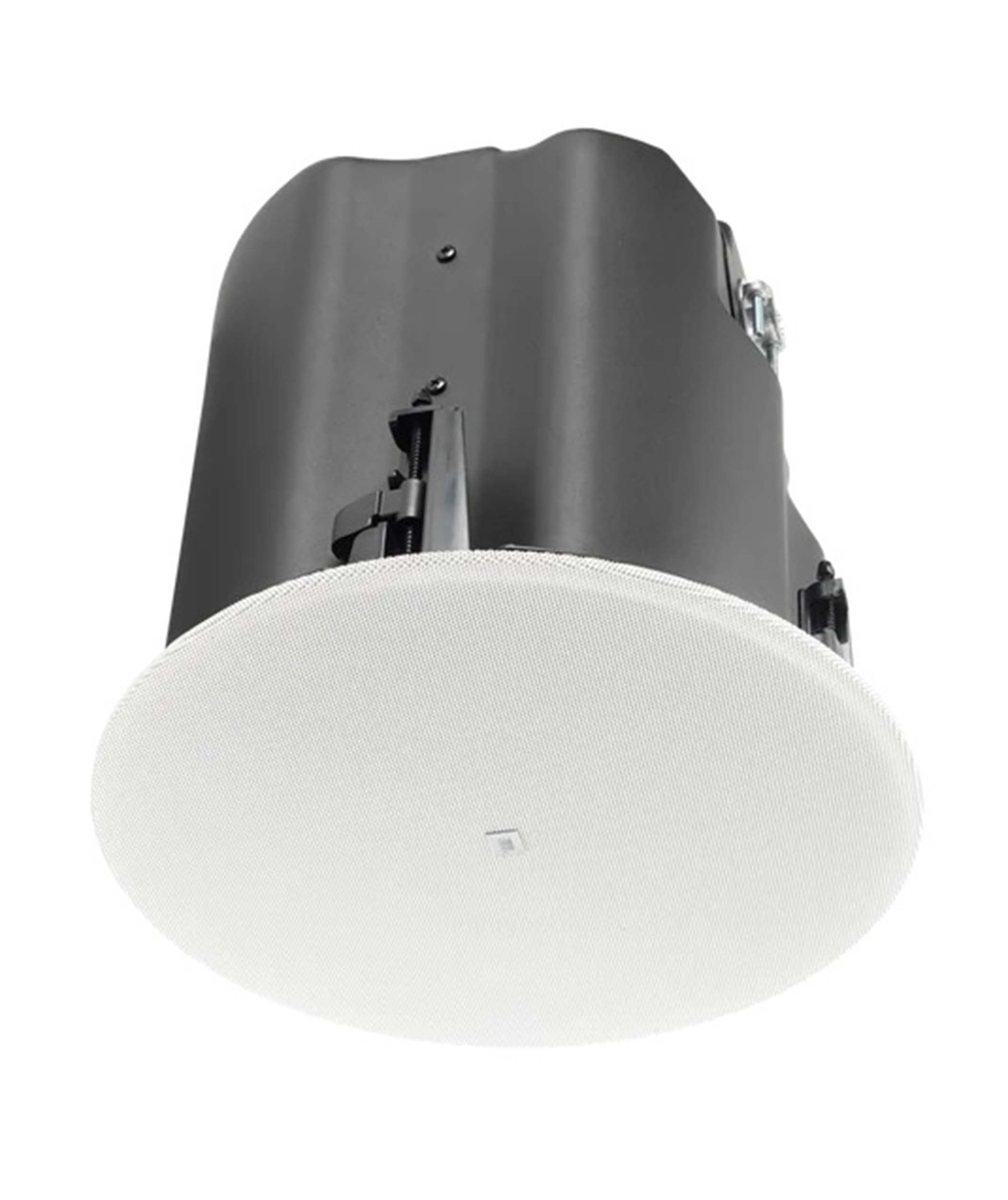

Installation is simple using the included mounting hardware and professional ceiling mounting system. The stylish bezel-free grille is paintable, allowing the speaker to blend naturally into virtually any architectural environment. Durable construction ensures dependable performance in commercial settings with frequent daily use. The integrated design minimizes installation time while maintaining a clean appearance. JBL's proven Control 400 Series engineering delivers years of reliable operation. The result is a versatile ceiling loudspeaker for a wide range of commercial audio installations.
Product Specifications:
Speaker Type: Two-Way Coaxial Ceiling Loudspeaker
Series: JBL Control 400 Standard Coverage Series
System Type: Passive
LF Driver: 203 mm (8 in) Woofer
HF Driver: 25 mm (1 in) Soft-Dome Tweeter
Enclosure: Integrated Backcan
Frequency Range (-10 dB): 57 Hz – 20 kHz
Power Capacity: 90 W Continuous (360 W Peak, 2-Hour Pink Noise); 60 W Continuous (240 W Peak, 100-Hour Pink Noise)
Sensitivity (1W/1m): 91 dB
Coverage Angle: 110° Conical
Maximum SPL: 111 dB Continuous / 117 dB Peak
Nominal Impedance: 8 Ω
Transformer Taps (70V): 60 W, 30 W, 15 W, 7.5 W
Ceiling Cutout Size: 274 mm (10.8 in)

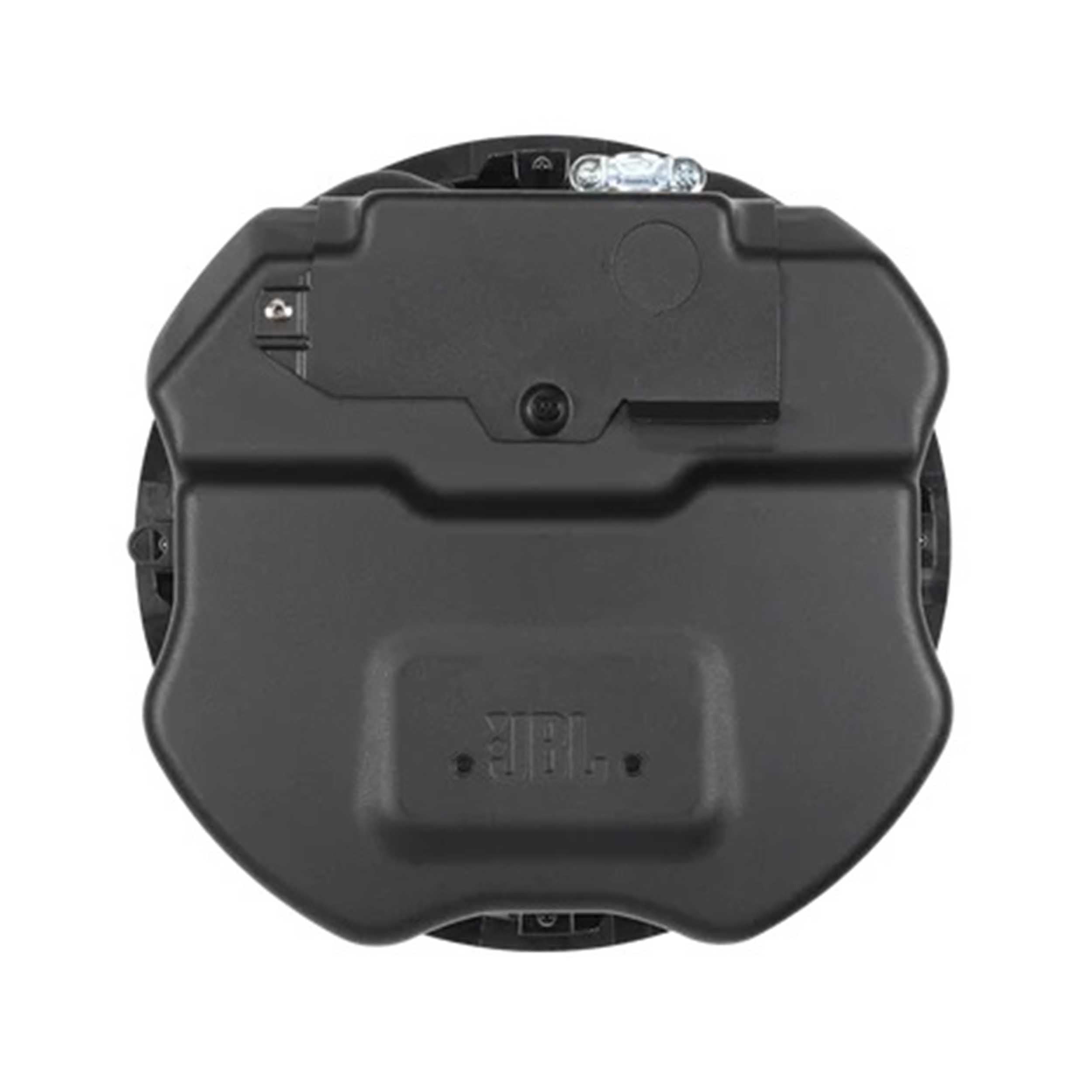

Cable Entry: Top and Side Entry

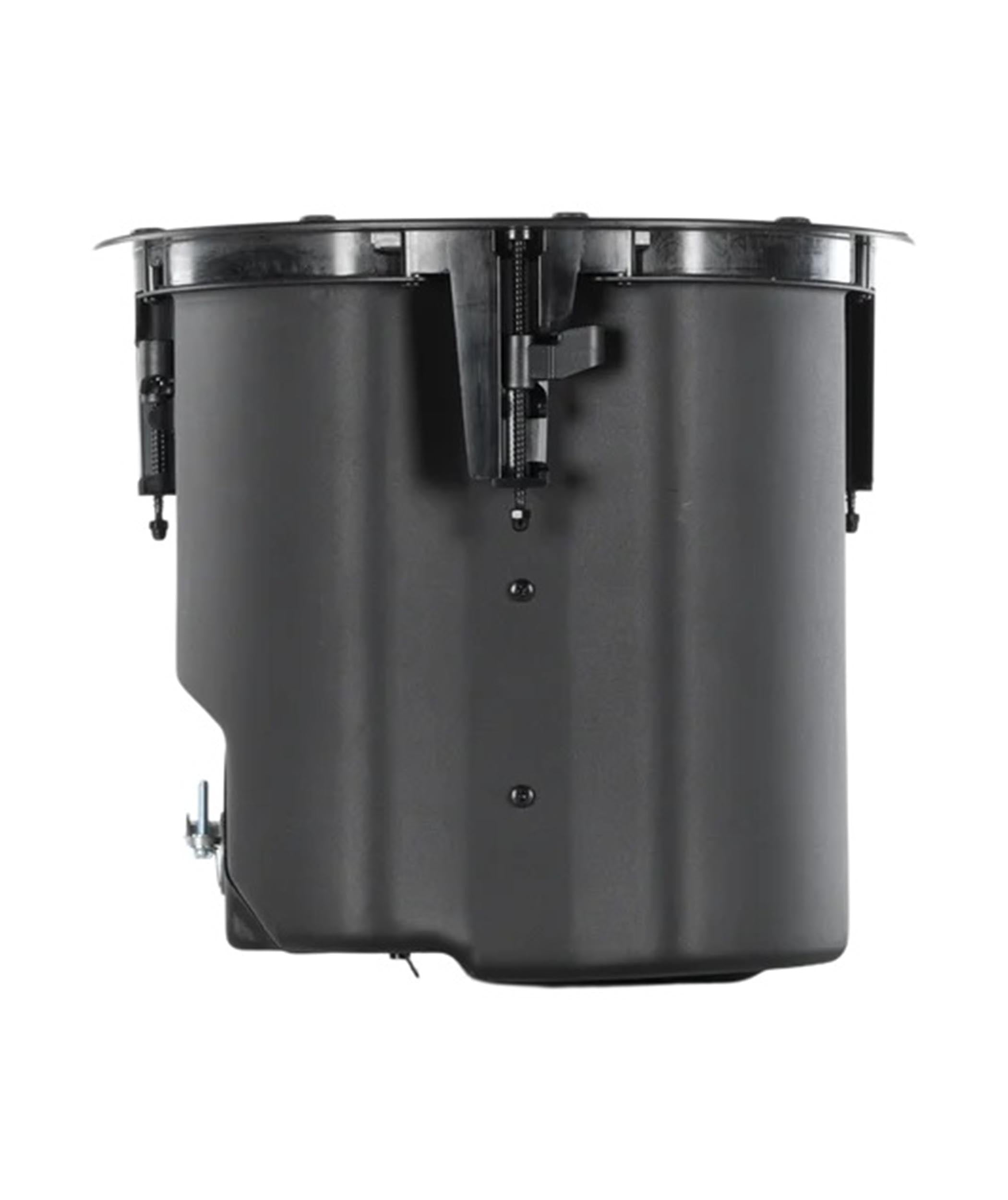

Mounting System: Captive Dogear Clamps
Grille: Full-Face Magnetic, Paintable with Safety Tether
Environmental Rating: IP33 (EN/IEC 60529)
Safety Compliance: UL 2043, NFPA 90A, NFPA 70, UL 1480A, CSA C22.2 No. 205, UL Registered Transformer
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Color: White (RAL9003), Paintable
Product Weight: 11.24 lbs (5.10 kg)
Product Dimensions (L × W × H): 12.2 × 12.2 × 10.6 in (310 × 310 × 269 mm)
