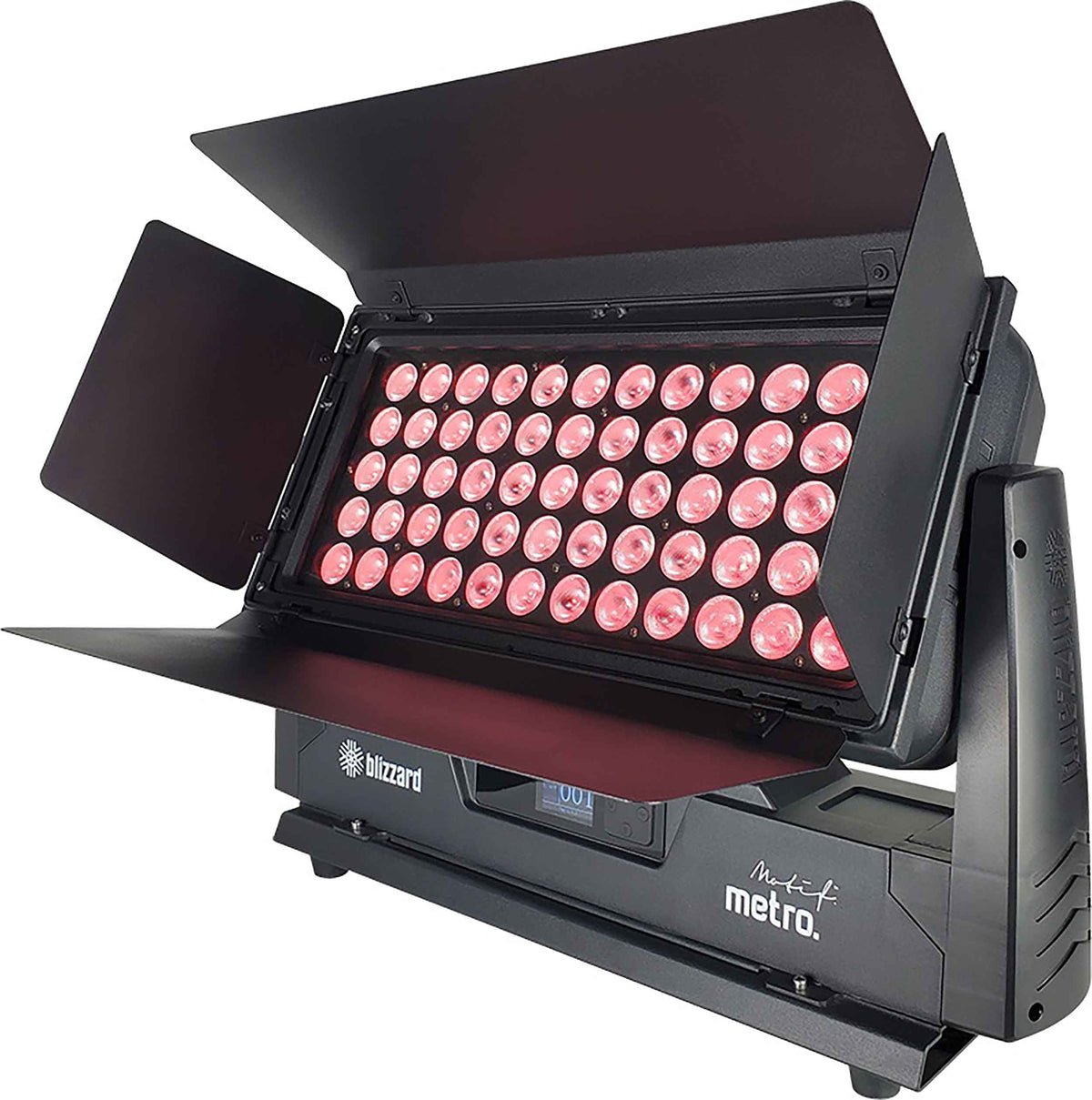

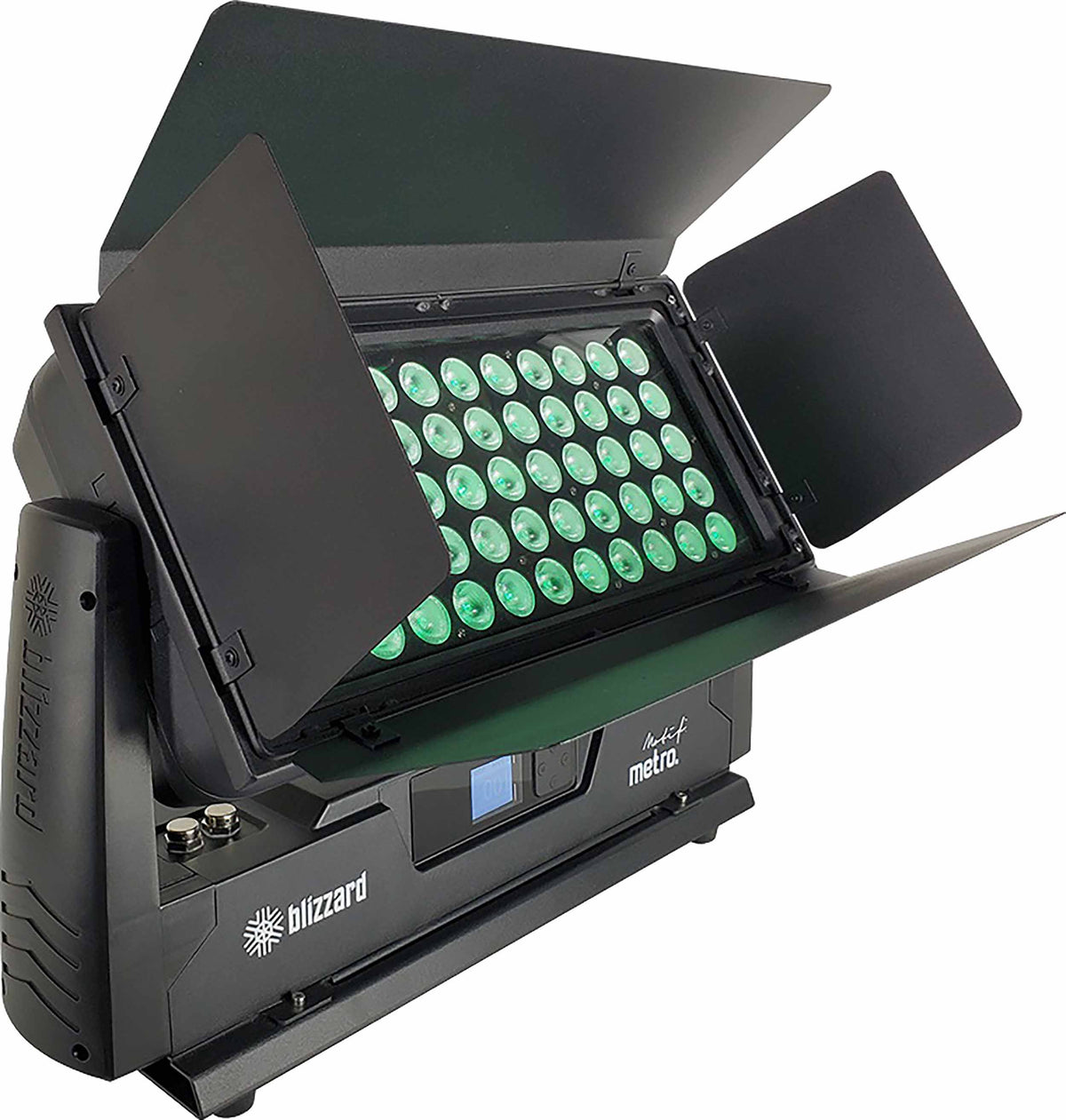

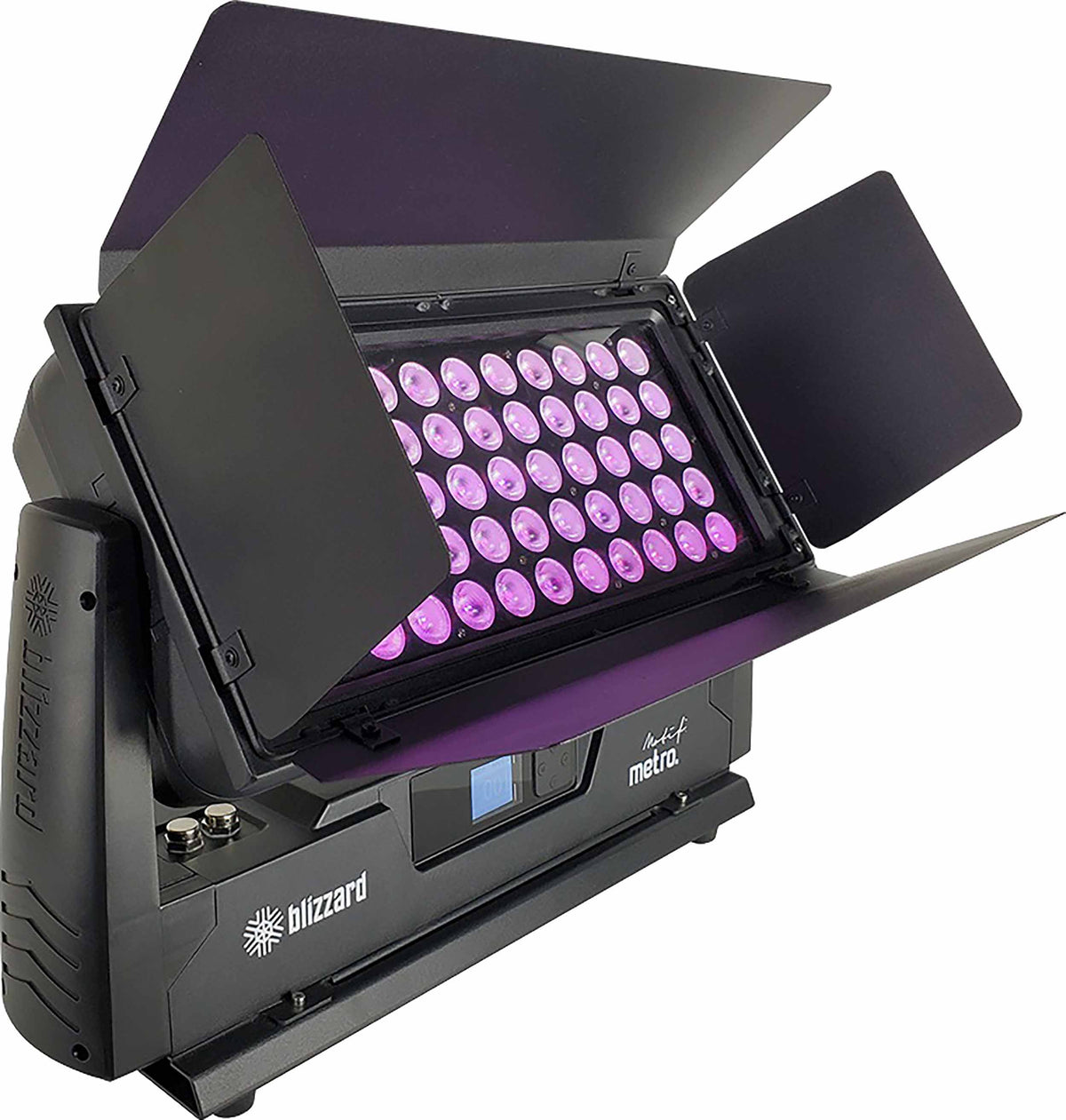

Blizzard Lighting Motif Metro is a powerful IP65-rated architectural wash fixture designed to illuminate walls, facades, stages, and large spaces with rich, vibrant color. Equipped with 60 × 10W RGBW 4-in-1 LEDs, it delivers intense output and smooth color mixing while maintaining a wide 40° beam angle for even coverage. The fixture features a 180° manual tilt head and an adjustable barndoor attachment, providing flexibility for directing and shaping light in both indoor and outdoor environments.

Built for creative lighting applications, the Motif Metro offers seven built-in color presets, customizable RGBW color mixing, and dynamic flash, fade, and pulse effects with adjustable speed control. Users can operate the fixture in standalone, Automatic, DMX, or Primary/Secondary modes, making it suitable for everything from permanent installations to mobile productions.

Constructed with a rugged aluminum and ABS enclosure, the Motif Metro is engineered to withstand demanding environments while maintaining reliable performance. Its IP65-rated 3-pin DMX and power input/output connections support outdoor installations, while the LCD display and four-button control panel simplify setup and programming. Dual Omega mounting brackets with quarter-turn fasteners provide secure mounting options.

Key Features

• 60 × 10W RGBW 4-in-1 LEDs deliver powerful and vibrant color washes.
• IP65-rated housing allows reliable indoor and outdoor operation.
• 40° beam angle provides wide and even wall-washing coverage.
• 180° manual tilt head enables flexible fixture positioning.

Ideal For

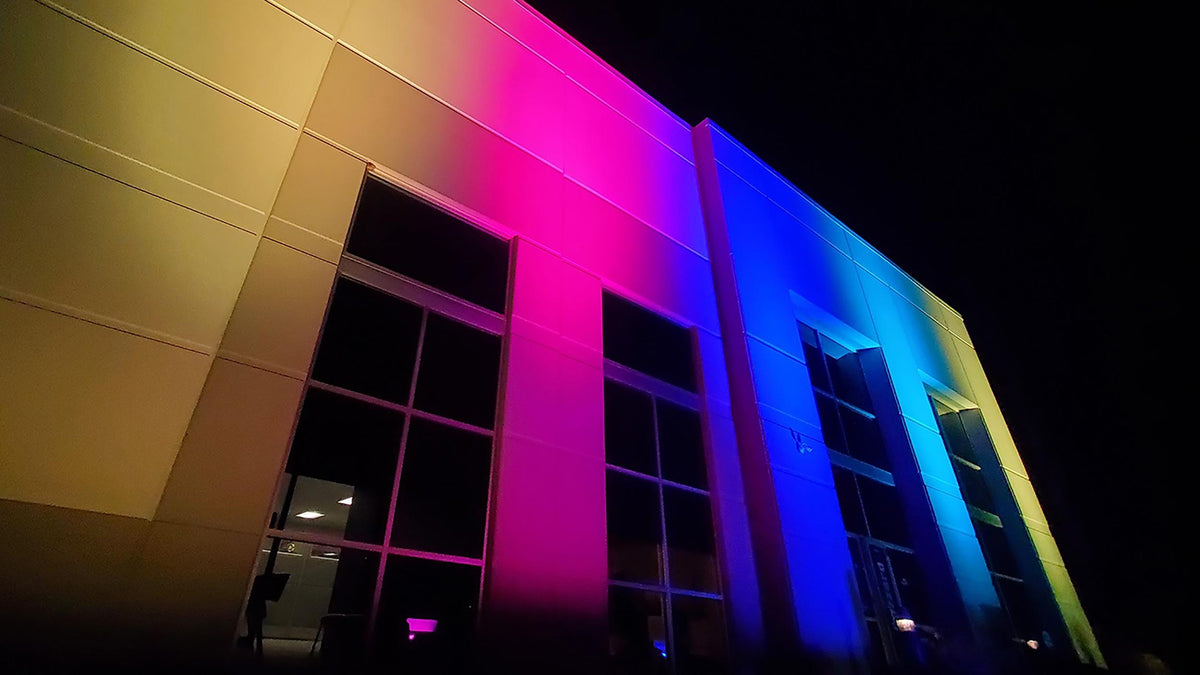

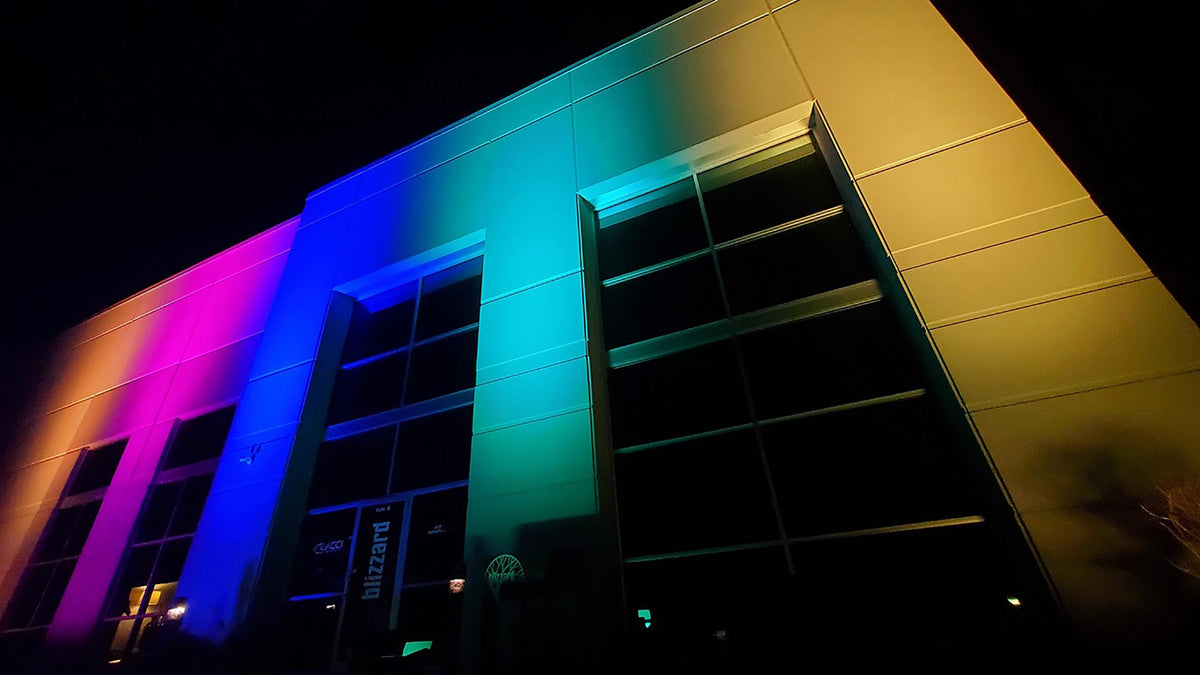

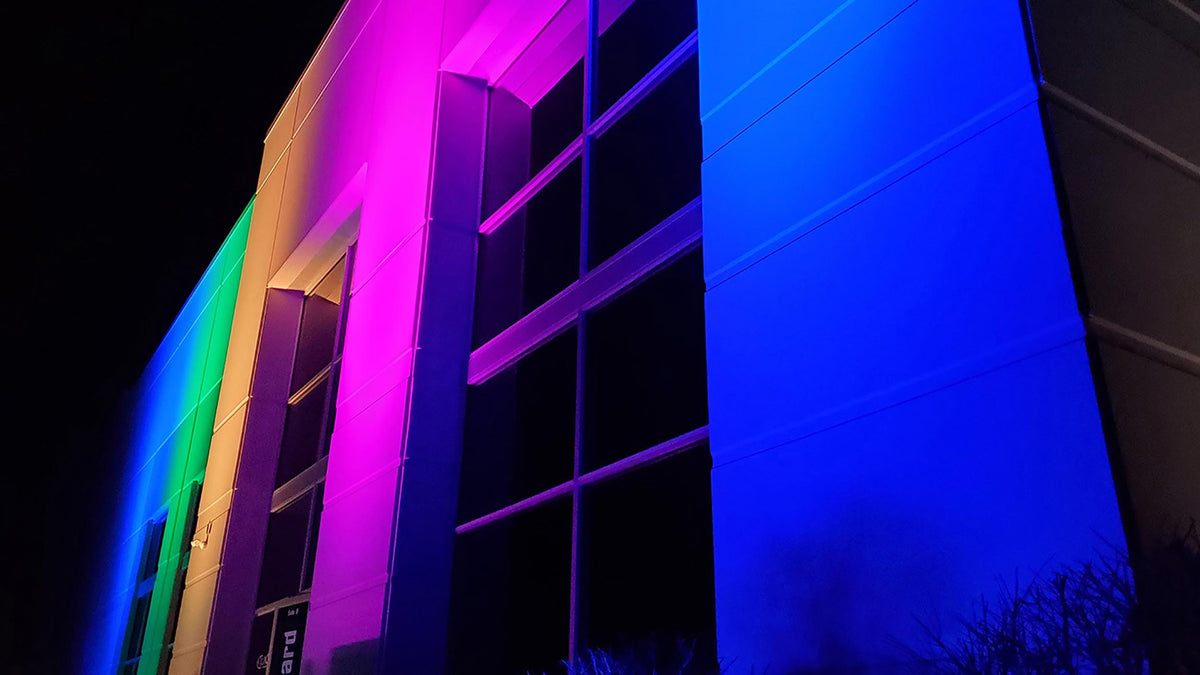

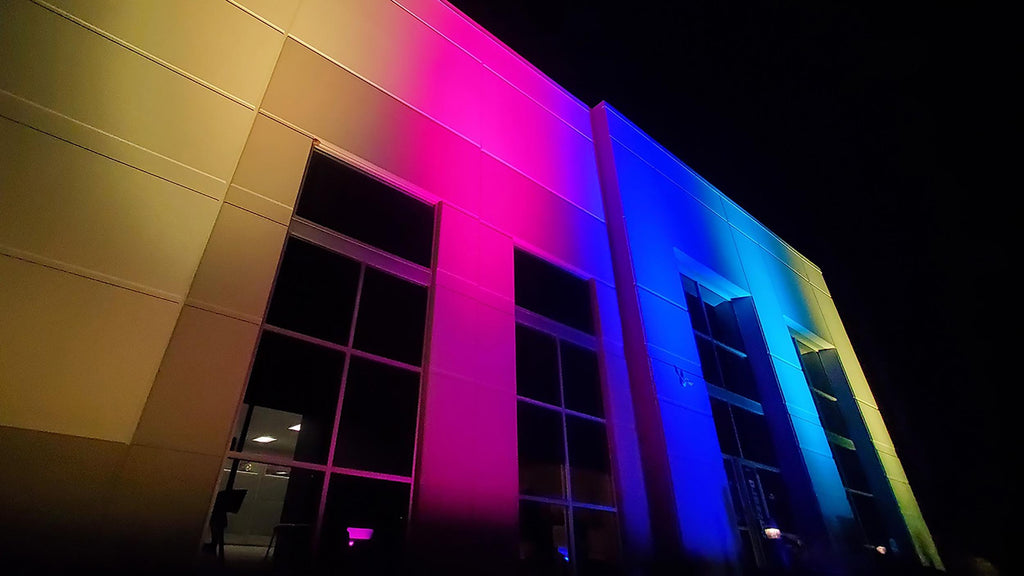

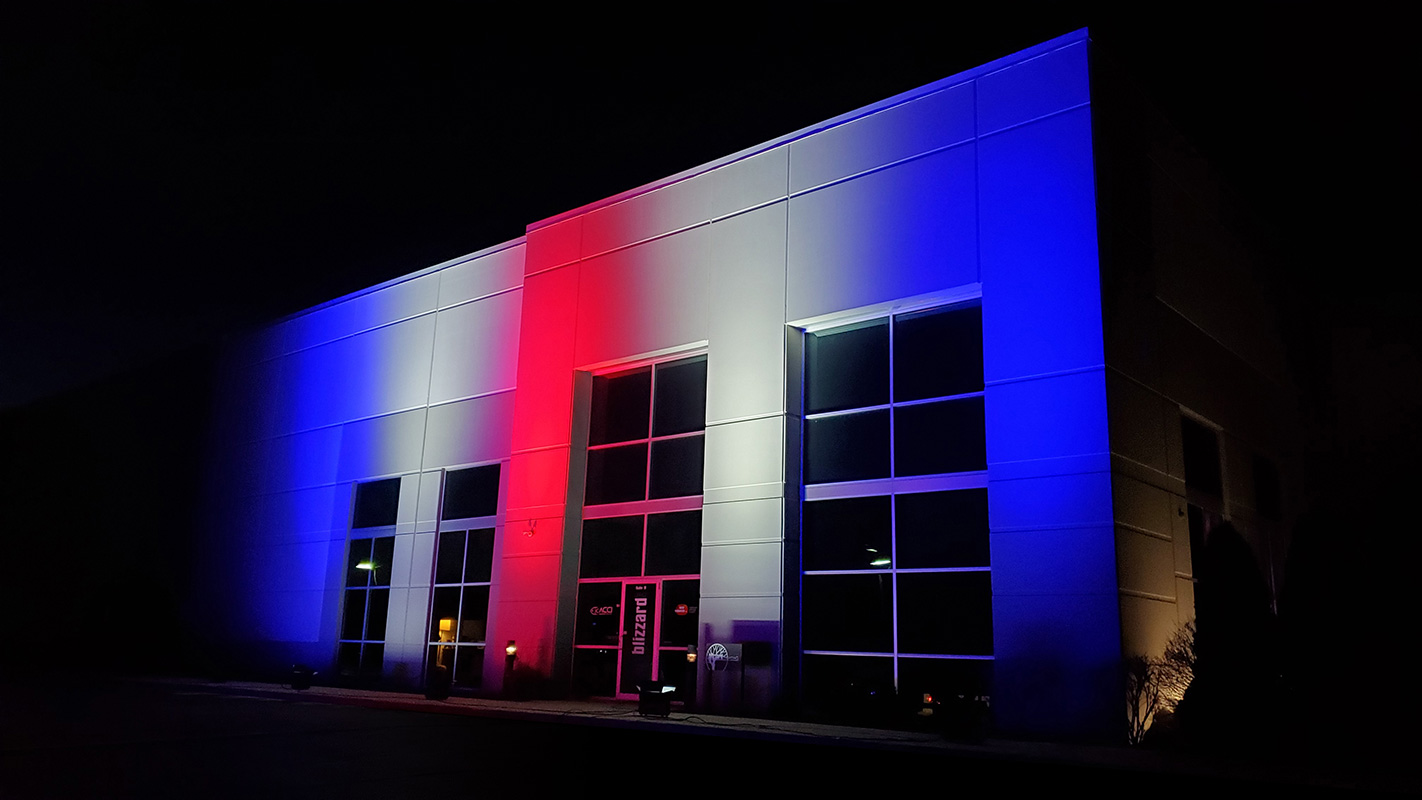

• Architectural wall washing and façade lighting.
• Outdoor events and festivals.
• Concerts and live performances.
• Weddings and special events.
• Clubs, bars, and entertainment venues.
• Stage and theatrical productions.
• Corporate events and presentations.
• Houses of worship.

What's in the Box

• Blizzard Motif Metro 600W 4-In-1 RGBW LED IP-Rated Architectural Wash Light
• IP-Rated IEC Power Cord
• 2 x Mounting Brackets

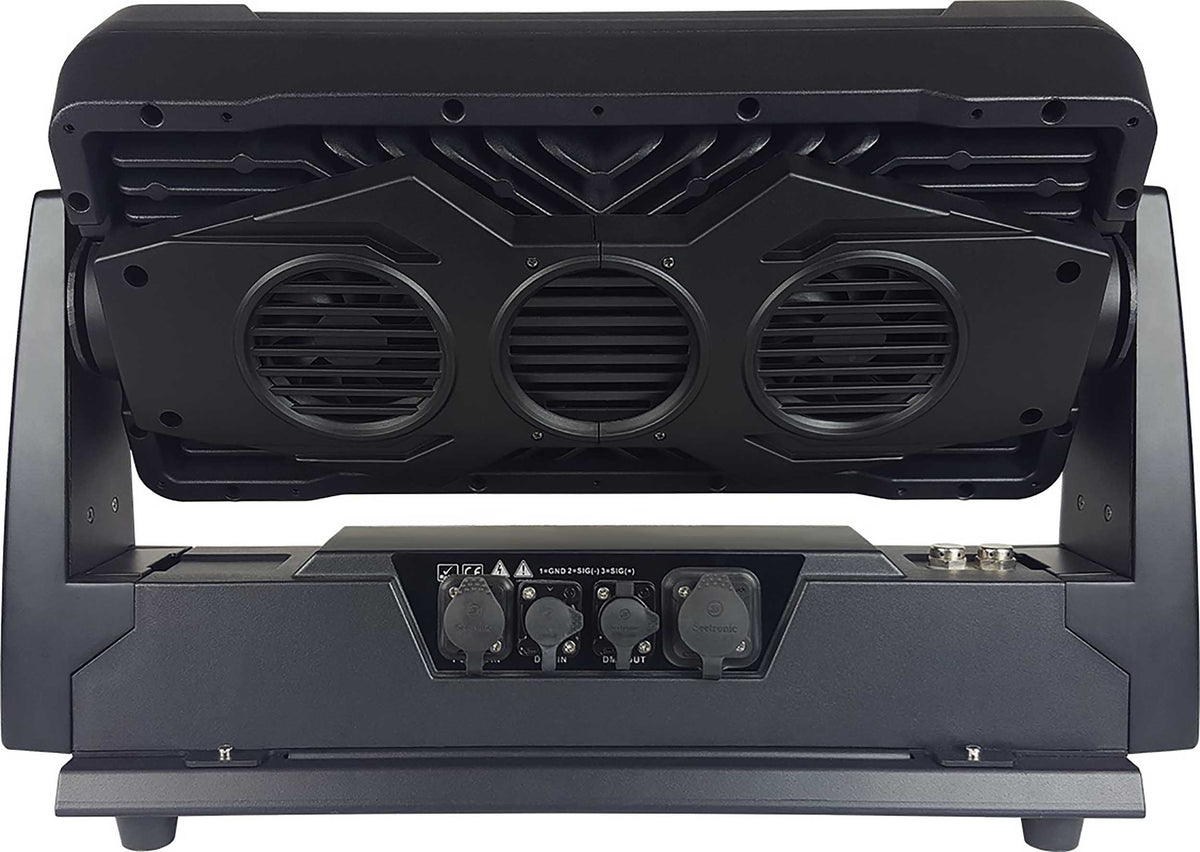

Inputs & Outputs

• 1 × 3-pin XLR DMX Input.
• 1 × PowerCON TRUE1 Power Input.
• 1 × 3-pin XLR DMX Output.
• 1 × PowerCON TRUE1 Power Output.

Frequently Asked Questions

Is the Motif Metro suitable for outdoor use?

Yes. The fixture features an IP65-rated housing and IP65-rated DMX and power connections for outdoor installations.

What light source does the Motif Metro use?

It uses 60 × 10W RGBW 4-in-1 LEDs for bright color mixing and architectural wash effects.

What control options are available?

The fixture supports DMX512 control with 4-, 6-, and 9-channel modes, as well as Automatic and Primary/Secondary operation.

Can the light output be adjusted and shaped?

Yes. It features 0–100% electronic dimming, four selectable dimming curves, a 180° manual tilt head, and an adjustable barndoor attachment for light shaping.

Full Technical Specifications

Audio Performance

Fixture Type	1 × LED Panel
Light Source	60 × 10W RGBW 4-in-1 LEDs
LED Colors	Blue, Green, Red, White
Beam Angle	40°
Photometrics:	13,220 lux / 1,228 fc at 8.2 ft / 2.5 m; 3,414 lux / 317 fc at 16.4 ft / 5 m; 1,610 lux / 150 fc at 24.6 ft / 7.5 m; 887 lux / 82 fc at 32.8 ft / 10 m
Shutter/Strobe	Electronic
Tilt Range	180° manual tilt
Operating Modes	Automatic, DMX, Primary/Secondary
Gobos	No
Control Protocol	DMX512
DMX Channel Modes	4, 6, and 9 channels
Display/Controls	LCD display with 4-button control
Remote Control	No
Mobile App Compatible	No
Wireless	No
Color Presets	7 built-in color presets
Effects	Flash, fade, and pulse effects with speed control
Environmental Rating	IP65 dust- and water-resistant
Mounting	Omega bracket

Connectors

DMX Input	3-pin XLR.
DMX Output	3-pin XLR.
Power Input:	PowerCON
Power Output	PowerCON
Wireless	No wireless connectivity.

Power & Operation

Power Supply	100–240VAC, 50/60Hz
Power Consumption	409W / 3.41A
Power Input	1 × powerCON
Power Output	1 × powerCON
Control Protocol	DMX512
DMX Modes	4-, 6-, and 9-channel profiles
Operating Modes	Automatic, DMX, and Primary/Secondary
Dimming	0–100% electronic dimming
Dimming Curves	4 user-selectable curves
Effects	Flash, fade, and pulse effects with speed control
Color Presets	7 built-in color presets plus RGBW color mixing
Tilt	180° manual tilt

Dimensions & Weight

Dimensions	22" W × 5.8" D × 15" H (55.75 × 14.7 × 37.95 cm).
Weight	32.75 lbs (14.86 kg).
