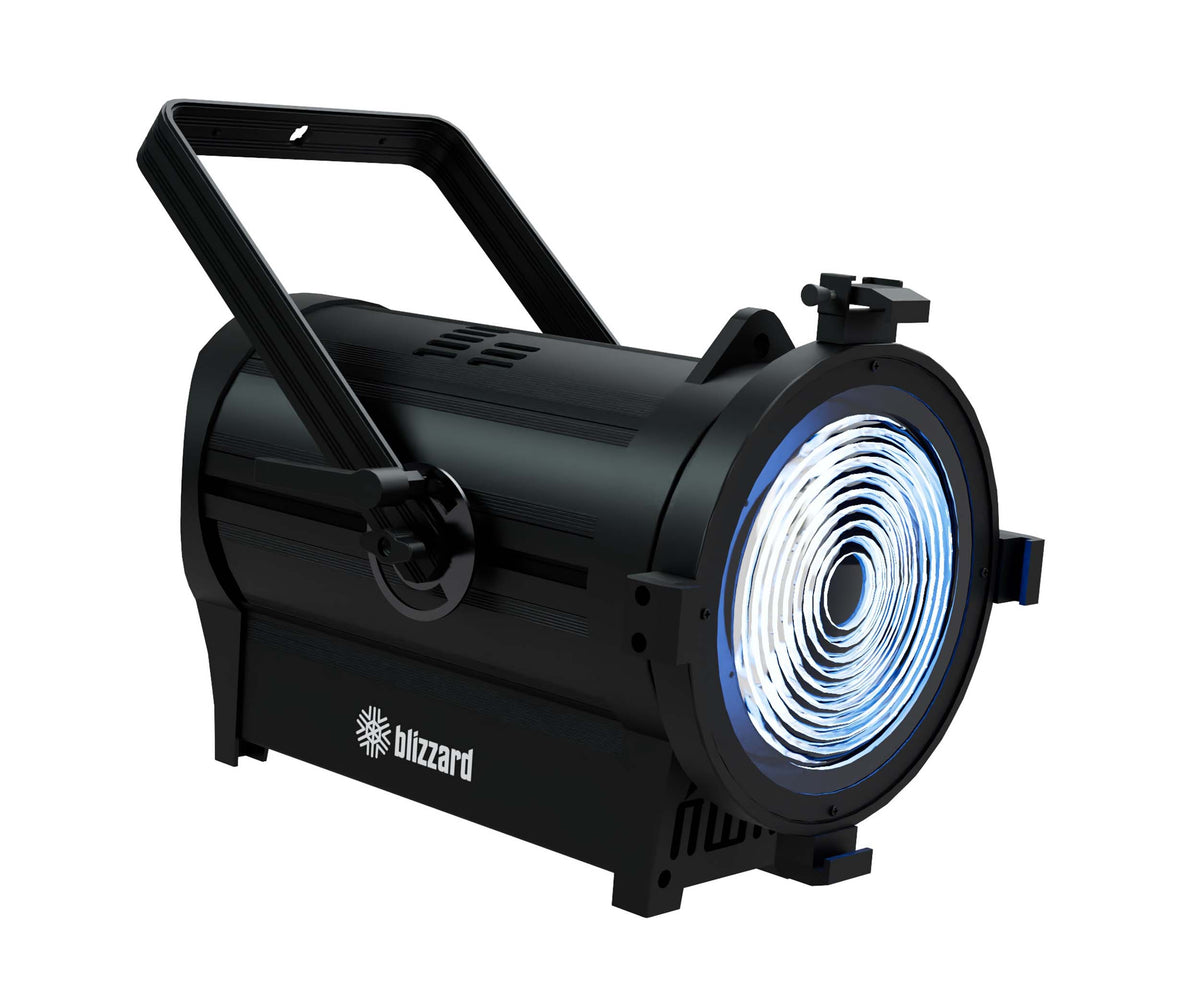

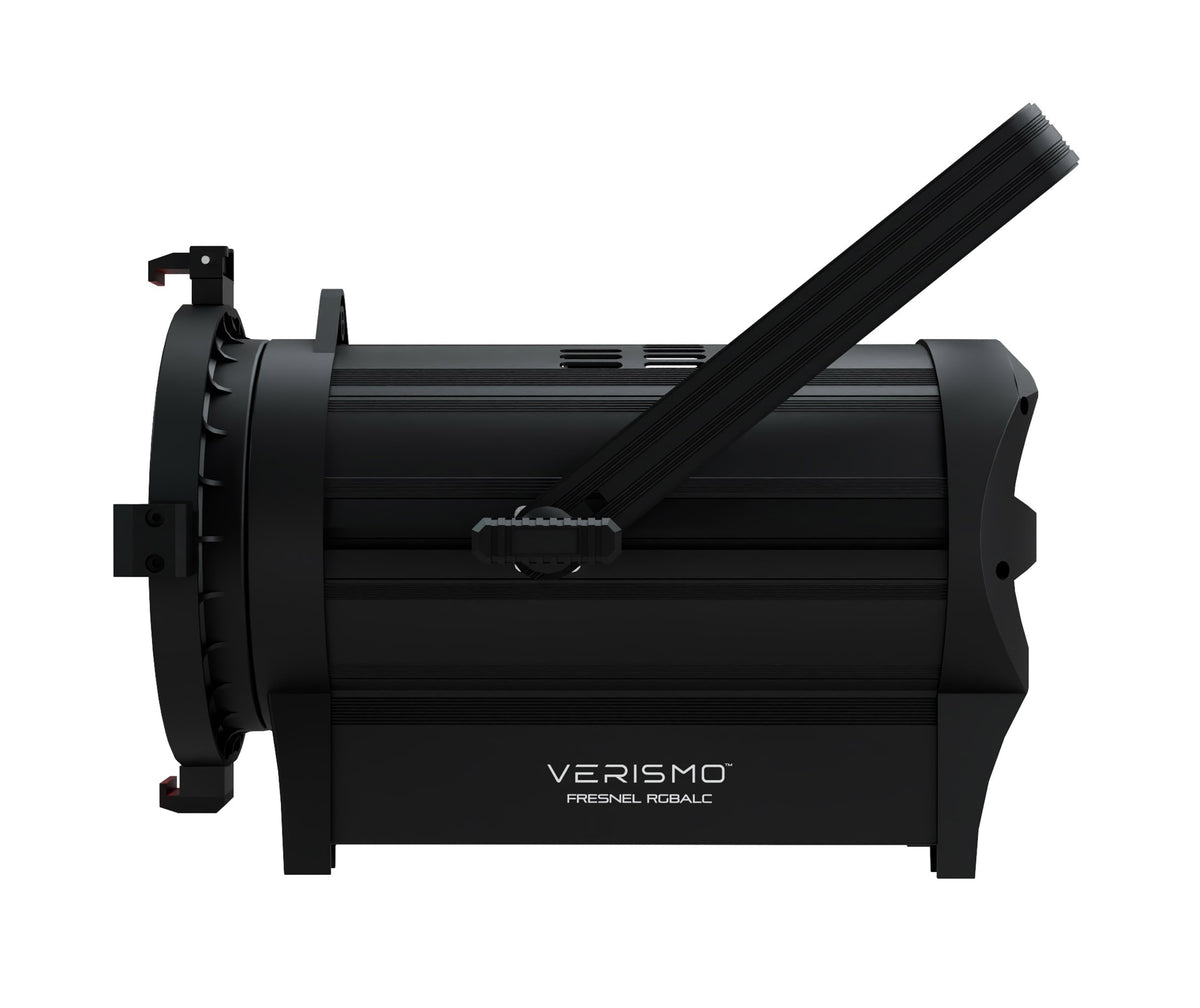

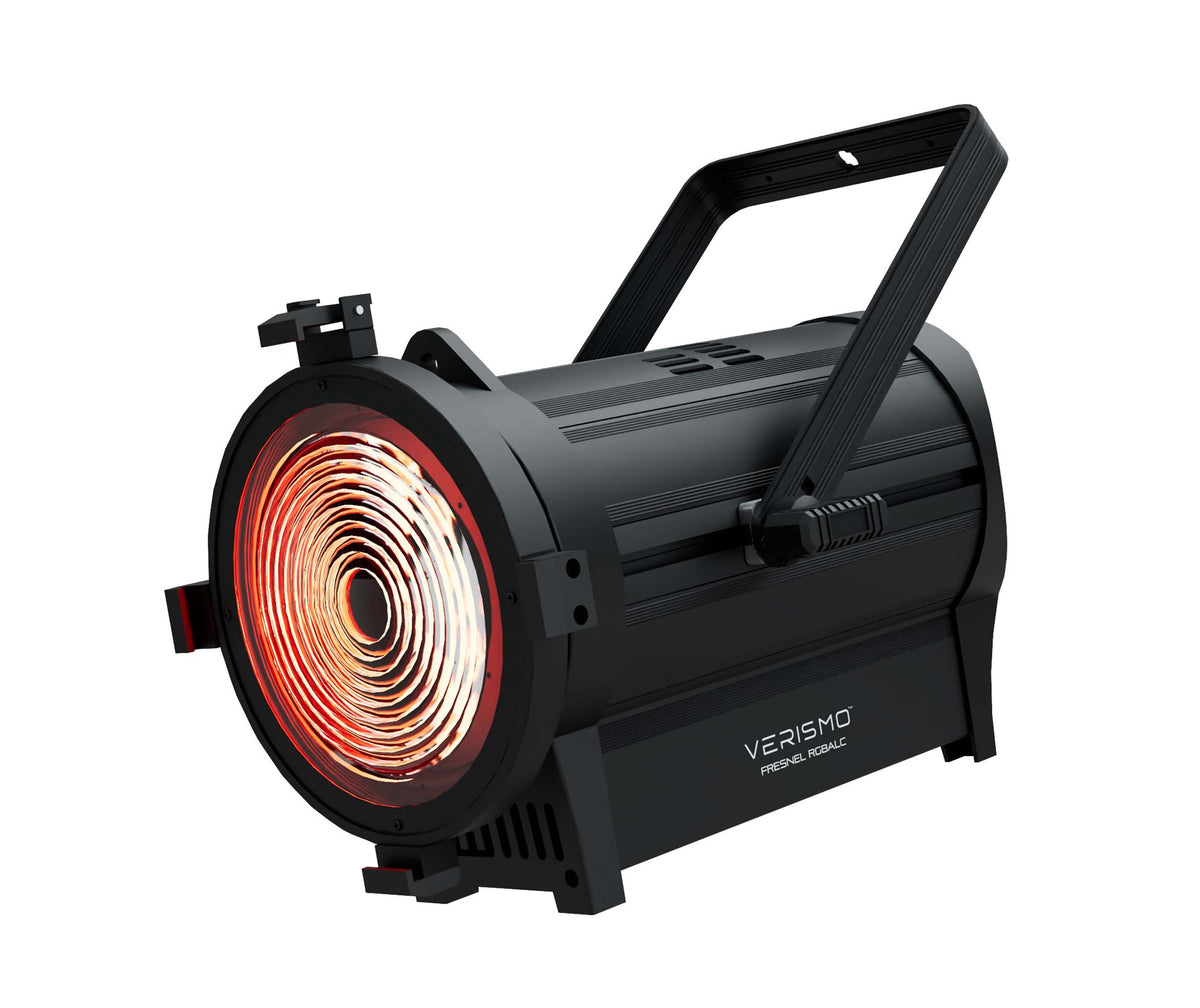

The Blizzard Lighting Verismo Fresnel RGBALC is a professional full-color LED Fresnel fixture featuring a high-output 300W RGBALC LED module. Its advanced RGBALC + HSIC color mixing system provides extensive color control for theater, video, production studios, and other professional lighting applications.
The 200mm (8-inch) Fresnel lens produces a bright circular beam with a soft edge, while its DMX-controllable motorized zoom provides continuously adjustable beam angles from 18° to 65°. The fixture also provides 16-bit fine dimming, four selectable dimming curves, adjustable dimming speeds, and direct access to white CCT presets from 2200K–10000K.
Designed for professional production environments, the Verismo Fresnel RGBALC combines a CRI of 96 with flicker-free operation, 1–25Hz strobe effects, and selectable refresh rates from 1,000–8,000Hz. Its standard 10-inch single-slot frame/barndoor holder, PowerCON TRUE1-compatible power connections, and 3/5-pin DMX/RDM connectivity provide flexible integration into professional lighting systems.
Key Features
- 300W RGBALC LED light source.
- RGBALC + HSIC color mixing.
- 2200K–10000K CCT range and presets.
- 200mm (8-inch) Fresnel lens.
- 18°–65° motorized zoom.
- High CRI of 96.
- 16-bit dimming.
- 1–25Hz strobe effects.
- 1,000–8,000Hz refresh rates.
- DMX and RDM control.
Ideal For
- Theater and stage lighting.
- Video and production studios.
- Professional Fresnel lighting.
- Concert and event production.
- Broadcast and camera environments.
- Architectural and entertainment lighting.
- Applications requiring soft-edge beams.
- Professional color mixing applications.
What’s in the Box
- Blizzard Lighting Verismo Fresnel RGBALC fixture.
Inputs & Outputs
- DMX Input 3-pin and 5-pin male XLR for DMX/RDM control.
- DMX Output 3-pin and 5-pin female XLR for DMX signal pass-through.
- Power Input PowerCON TRUE1-compatible input.
- Power Output PowerCON TRUE1-compatible output for power linking.
- Control Menu Four-button OLED display for fixture settings.
Frequently Asked Questions
What is the Blizzard Lighting Verismo IP Profile RGBALC?
The Verismo IP Profile RGBALC is an IP65-rated full-color LED profile fixture featuring a 300W RGBALC LED module for theater, video, production, and other professional lighting applications.
What color mixing system does the Verismo IP Profile RGBALC use?
It combines RGBALC color mixing with two dedicated HSIC control modes for precise hue, saturation, intensity, and color temperature adjustment.
What CCT range does the fixture provide?
The Verismo IP Profile RGBALC offers direct access to white CCT presets ranging from 2200K to 10,000K.
What lens options are available?
The fixture supports 19°, 26°, 36°, and 50° lens tubes, which are sold separately.
Does it support framing and gobo projection?
Yes. Four manually adjustable framing shutters allow custom shaping or blackout, while the included B-sized gobo holder supports image and pattern projection.
What dimming features are available?
It provides 16-bit dimming, four selectable dimming curves, and user-selectable dimming speeds for precise output control.
What refresh rates and strobe effects are supported?
The fixture offers selectable refresh rates from 1,000Hz to 8,000Hz and strobe effects from 1–25Hz.
What are the dimensions and weight of the Verismo IP Profile RGBALC?
The fixture measures approximately 25.6 × 12.6 × 18 inches and weighs 21.2 lbs.
Full Technical Specifications
Optical & Lighting Specifications
|
Light Source |
300W RGBALC LED module |
|
Color Mixing |
RGBALC + HSIC |
|
CCT Range |
2200K–10,000K |
|
CRI |
96 |
|
Fresnel Lens |
200 mm (8-inch) |
|
Beam Angle |
18°–65° motorized zoom |
|
Strobe Effects |
1–25 Hz |
|
Refresh Rate |
1,000–8,000 Hz |
|
Dimming Resolution |
16-bit |
|
Dimming Curves |
4 selectable |
|
Dimming Speed |
User selectable |
|
Zoom Control |
DMX-controllable motorized zoom |
|
Frame/Barndoor Holder |
10-inch single-slot |
|
18° Beam |
7,031 Lux @ 2.5 m / 2,464 Lux @ 5 m |
|
65° Beam |
1,140 Lux @ 2.5 m / 440 Lux @ 5 m |
|
Flicker-Free |
Yes |
Control & Connectivity Specifications
|
Control Protocols |
DMX, RDM |
|
DMX Channels |
8 / 9 / 10 / 11 / 18 |
|
DMX Connectors |
3-pin and 5-pin XLR male/female input and output |
|
Control Modes |
DMX512, Master/Slave, Standalone |
|
Display |
4-button OLED menu |
|
Power Connectors |
PowerCON TRUE1 compatible input/output |
|
Housing |
Black aluminum |
Power & Electrical Specifications
|
Input Voltage |
100–240 VAC |
|
Frequency |
50–60 Hz |
|
Power Consumption |
294 W |
|
Current Draw |
2.56 A |
|
Power Factor |
0.99 |
|
Warranty |
2-year limited |
|
Certification |
cETLus |
Physical Specifications
|
Product Weight |
21 lbs. |
|
Product Dimensions (L x W x H) |
18" x 17" x 12" |
