Descripción

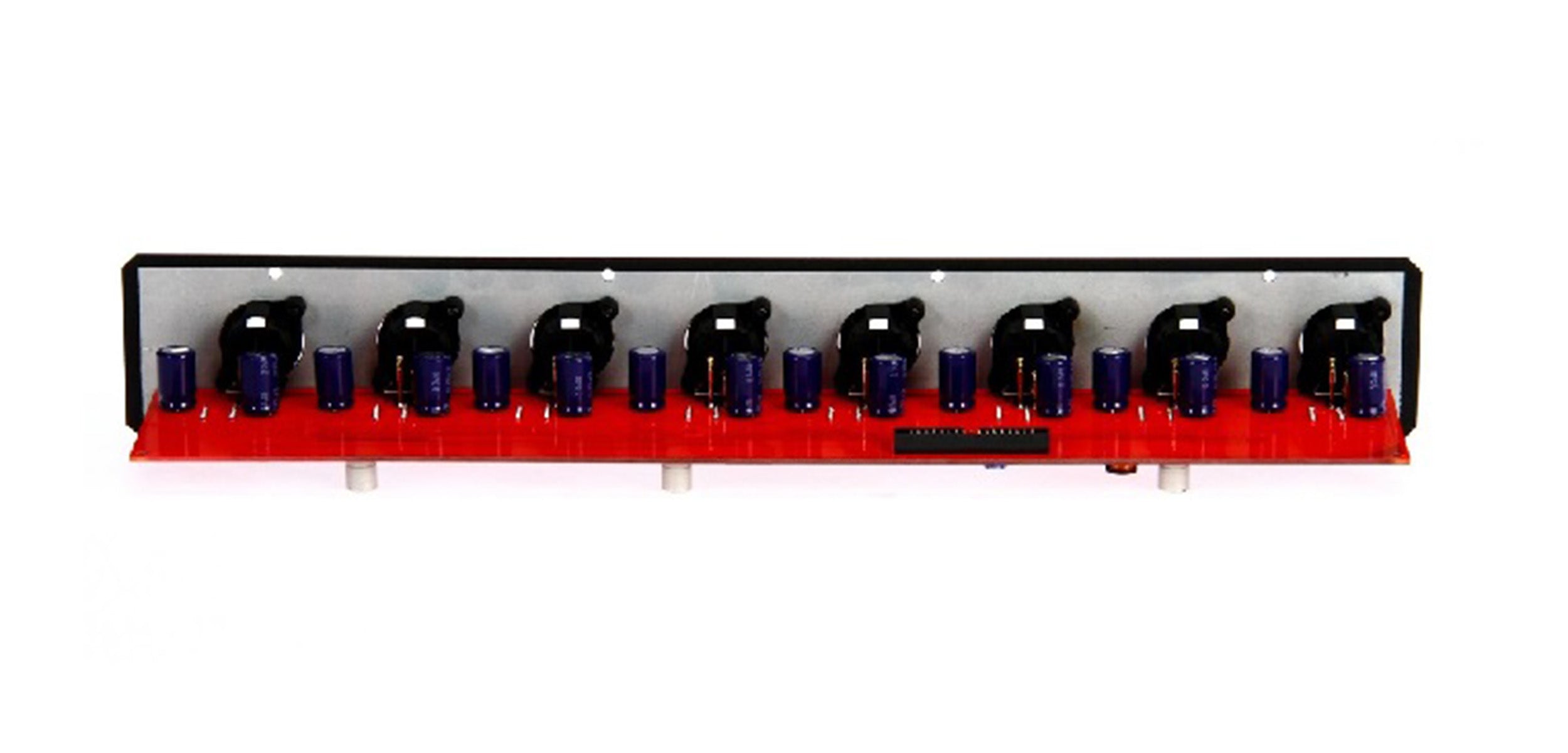

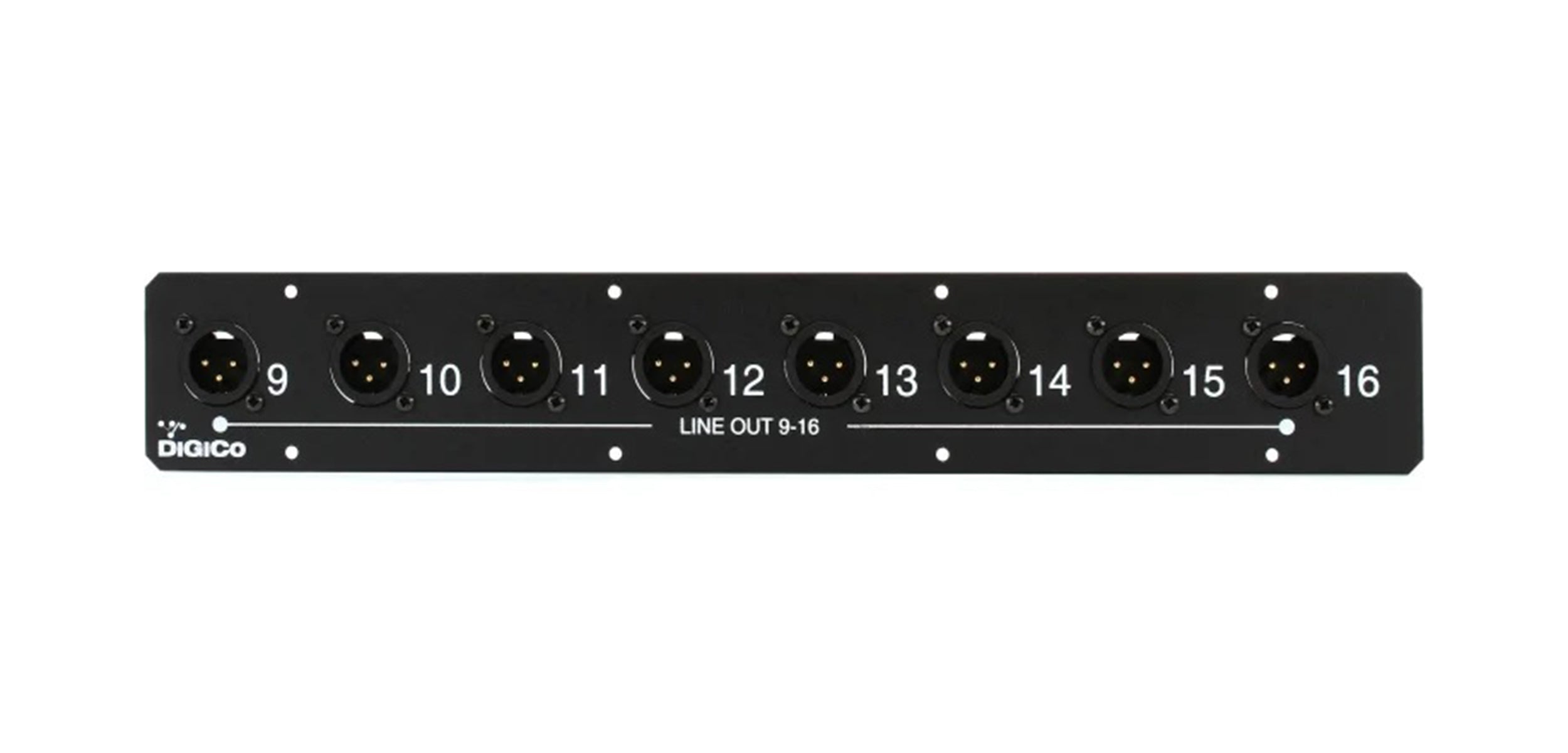

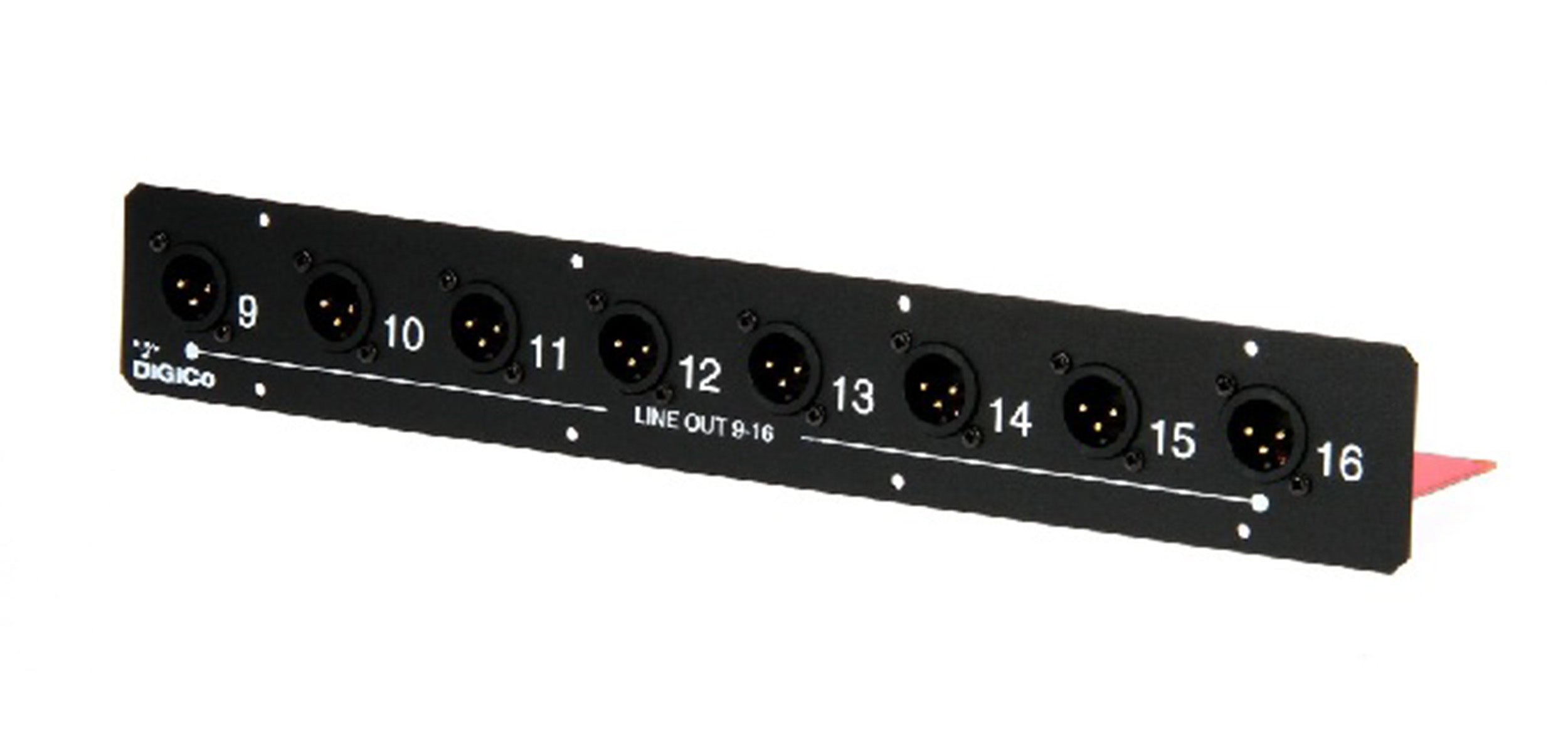

The DiGiCo D-RACK-DAC is an 8-channel analog output card designed to expand the output capability of the DiGiCo D-Rack stagebox. It installs into the D-Rack's option card slot and provides additional analog output connectivity for compatible DiGiCo systems. The card is designed for applications where additional analog outputs are required beyond the D-Rack's standard connectivity. Its eight-channel configuration provides a convenient way to expand available output capacity. The D-RACK-DAC is an ideal solution for professional users requiring additional analog signal distribution from their D-Rack.
Flexible D-Rack I/O Expansion
The D-RACK-DAC takes advantage of the D-Rack's flexible expandable I/O architecture. The D-Rack provides 32 microphone inputs and eight standard analog outputs, while its expansion slot can accommodate an additional eight analog or AES outputs. Installing the D-RACK-DAC provides eight additional analog outputs through this expansion capability. This allows the D-Rack to reach up to 16 total analog outputs when configured with the appropriate expansion card. The flexible architecture makes it easier to adapt the stagebox to different production requirements.
Integration With DiGiCo Consoles
The D-RACK-DAC is designed to work as part of a DiGiCo digital audio system and provides additional output connectivity for compatible S-Series and SD-Series consoles. The D-Rack can be positioned onstage and connected to the console using a single Cat 5e cable. This digital connection simplifies system setup while reducing the hum and noise issues commonly associated with long analog signal runs. The D-RACK-DAC extends this system by providing additional analog outputs at the stagebox. It is well suited to professional live sound environments requiring centralized stage I/O.
Professional Stagebox Applications
The additional eight analog outputs provided by the D-RACK-DAC can be used for a variety of professional audio routing requirements. These outputs can help accommodate additional monitor feeds, speaker system connections, recording feeds, or other analog signal destinations. By adding output capacity directly to the D-Rack, the card helps reduce the need for additional external analog distribution equipment. Its dedicated design maintains the D-Rack's compact and flexible approach to stage I/O. This makes it particularly useful for touring productions, live events, theaters, and installed audio systems.
Expandable Digital Audio Infrastructure
The D-Rack provides a practical method of transporting audio between the stage and a compatible DiGiCo console using digital networking. Its Cat 5e connection provides a streamlined link between the stagebox and console while maintaining flexible I/O capabilities. The D-RACK-DAC complements this architecture by adding eight analog outputs through the D-Rack's expansion slot. Users can therefore configure the stagebox according to the output requirements of their particular system. The card provides a scalable approach to expanding analog connectivity without replacing the complete D-Rack.
Professional Output Expansion Solution
The DiGiCo D-RACK-DAC is an excellent choice for users who need additional analog outputs from a D-Rack system. Its eight-channel analog output configuration provides practical expansion while preserving the D-Rack's flexible stagebox architecture. The card is designed for professional applications where reliable signal distribution and efficient system setup are important. It complements DiGiCo S-Series and SD-Series console systems by providing additional output capacity at the stage. For productions that require more than the D-Rack's standard eight analog outputs, the D-RACK-DAC provides a straightforward expansion solution.
Product Specifications:
Product Type: Analog Output Expansion Card
Card Function: Analog Audio Output Expansion
Output Type: Analog Audio
Analog Output Channels: 8
Expansion Capacity: Up to 8 Additional Outputs
D-Rack Standard Analog Outputs: 8
Maximum Analog Outputs With Card: 16
Installation Type: D-Rack Option Card Slot
Compatible Stagebox: DiGiCo D-Rack
Compatible Console Series: DiGiCo SD-Series
System Connection: Cat 5e Digital Connection
Primary Application: Stage I/O Expansion
Signal Distribution: Analog Output
Expansion Type: Modular I/O Expansion
Intended Use: Professional Live Sound
Application: Theater and Installed Audio
Output Expansion: 8 Additional Analog Channels
Stagebox Architecture: Expandable I/O
Product Weight: 1.0 lbs.
Product Dimensions (L × W × H): 7.5" × 5.5" × 1.5"
Shipping Weight: 1.5 lbs.
Shipping Dimensions (L × W × H): 10" × 8" × 3"
