Descripción
The DiGiCo MOD-DMI-DAC is a professional digital-to-analog converter card designed to expand the analog output capacity of compatible DiGiCo systems. It provides 16 analog line-level outputs through two 25-way D connectors. The card is designed specifically for line-level output applications and provides a maximum output level of +22 dBu at Digital Full Scale. Its high channel count makes it suitable for connecting external amplifiers, processors, monitoring systems, recording equipment, and other professional audio devices. The MOD-DMI-DAC integrates directly into supported DiGiCo hardware. It provides a straightforward solution for adding additional analog outputs without requiring an external interface.
Professional Line-Level Outputs
The MOD-DMI-DAC is a dedicated line-level output card designed for professional audio environments. Its 16 analog outputs provide multiple channels for routing processed audio from a compatible DiGiCo system to external equipment. The card supports a maximum output level of +22 dBu at Digital Full Scale, providing suitable headroom for professional audio systems. Because it is designed as a line-level card, it is intended for connection to equipment with appropriate line-level inputs. This makes it useful for distributed audio, monitoring, amplification, recording, and system integration. Its straightforward architecture keeps the output interface efficient and practical.
Dual D-Connector Configuration

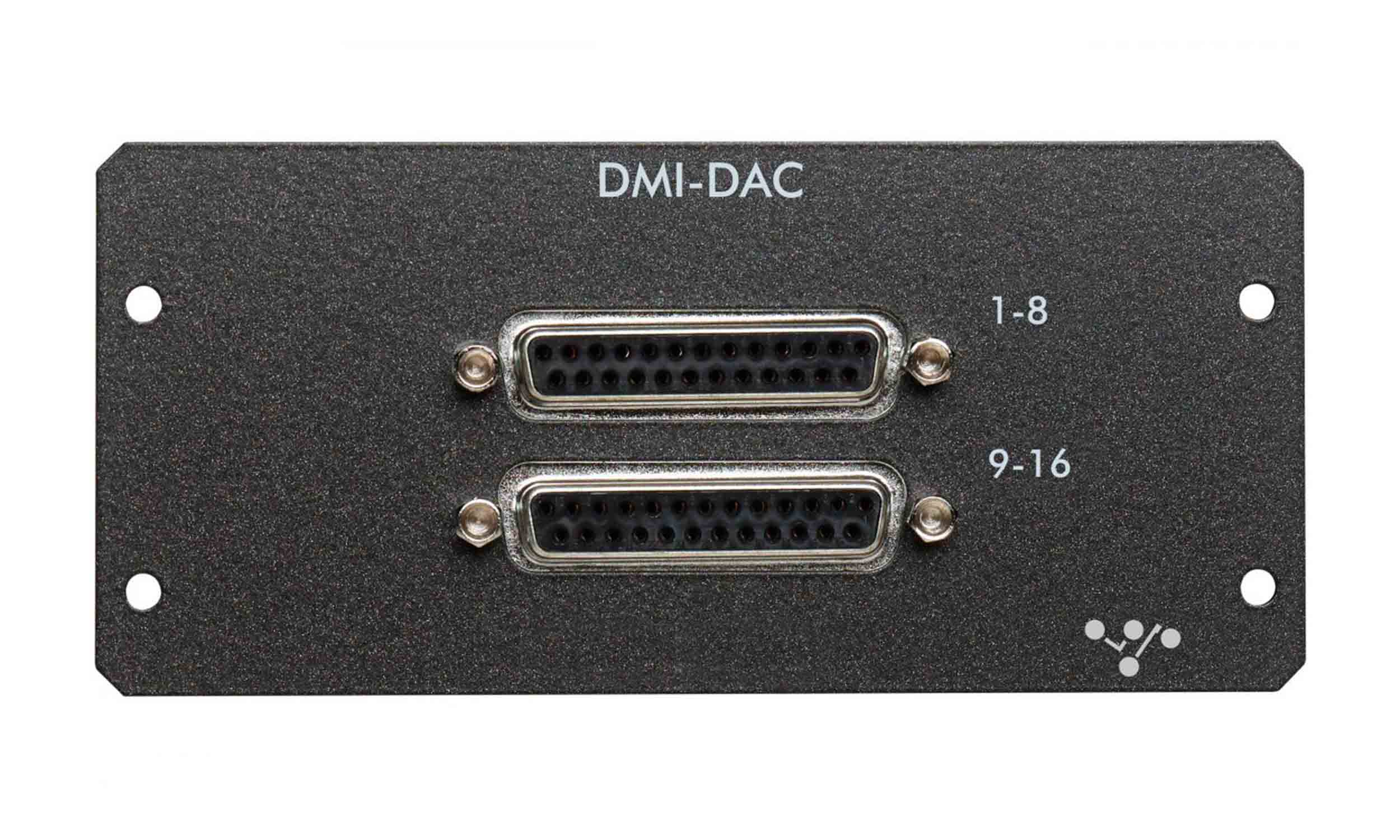

The MOD-DMI-DAC uses two 25-way D connectors to provide access to all 16 analog output channels. This high-density connection format allows multiple analog outputs to be accommodated within a compact modular card. The two connectors simplify the integration of multichannel analog output cabling into compatible DiGiCo systems. The connector configuration is particularly useful where rack space and connection density are important considerations. Professional breakout and multicore cabling can be used to interface the D connectors with external audio equipment. This provides a clean and organized method of distributing multiple analog outputs.
Flexible System Expansion
The MOD-DMI-DAC provides a simple way to expand the local I/O capabilities of compatible DiGiCo systems. It can be used alongside other DMI cards to create a system configuration tailored to the required input and output capacity. Its 16-channel output capacity provides additional routing options for external processing and amplification systems. The card is suitable for applications where a greater number of analog outputs are required directly from the DiGiCo system. Its modular design allows it to be installed as part of supported hardware configurations. This makes it a practical choice for expanding system connectivity.
DiGiCo Compatibility
The MOD-DMI-DAC is compatible with DiGiCo S-Series and Quantum Range systems as well as SD12, Orange Box, and 4REA4. This broad compatibility allows the analog output expansion solution to be used across multiple supported DiGiCo platforms. The card integrates into appropriate DMI-enabled hardware and provides access to its 16 analog output channels. Compatibility with the Orange Box and 4REA4 further expands its usefulness in distributed and integrated audio systems. The modular format makes it suitable for touring and permanent installation environments. Users should confirm the specific system configuration and available DMI connectivity before installation.
Professional Audio Applications
The MOD-DMI-DAC is designed for professional applications requiring reliable multichannel analog output connectivity. Its 16 outputs can be routed to amplifiers, powered speakers, external processors, monitoring systems, recording equipment, and other analog audio devices. The +22 dBu maximum output level provides substantial output capability for professional line-level applications. Its compact two-connector design helps simplify high-channel-count installations. The card is well suited to live sound, touring, broadcast, installation, and system integration applications. Overall, the MOD-DMI-DAC provides an efficient method of adding 16 analog outputs to compatible DiGiCo systems.
Product Specifications:
Product Type: MOD-DMI-DAC 16-Channel Analog Output Card
Output Channels: 16
Output Type: Analog Line-Level
Converter Type: Digital-to-Analog Converter (DAC)
Connectors: 2 x 25-Way D
Maximum Output Level: +22 dBu (Digital Full Scale)
Output Configuration: Line-Level Only
Console Compatibility: DiGiCo S-Series, Quantum Range, SD12
Additional Compatibility: Orange Box and 4REA4
Primary Applications: Live Sound, Touring, Broadcast, Recording, Installation and Analog I/O Expansion
Product Weight: 0.55 lbs.
Product Dimensions (L x W x H): 6.94" x 4.98" x 2.28"
