Descripción

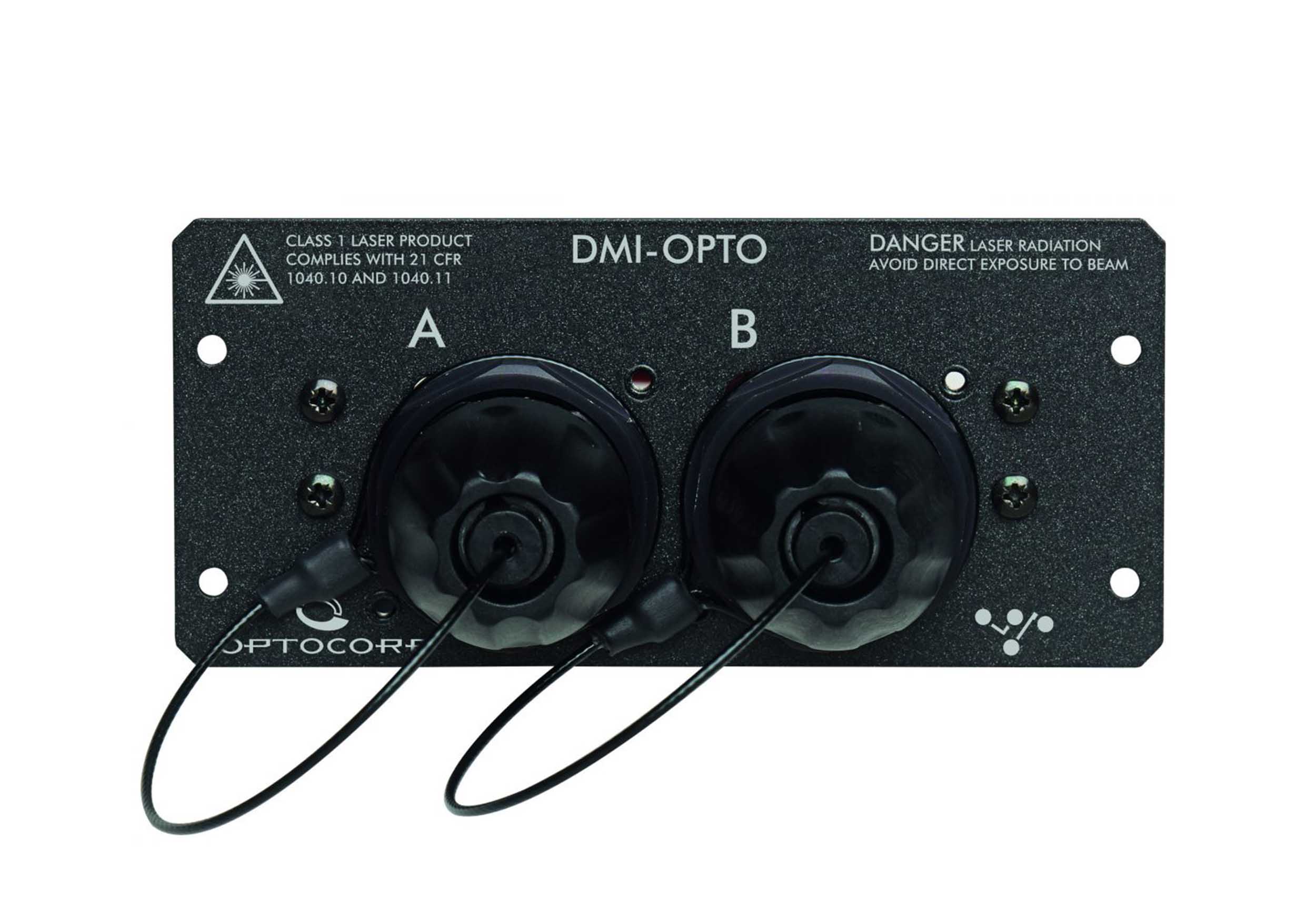

The DiGiCo MOD-DMI-OPTO is an Optocore expansion card designed to provide high-capacity optical audio connectivity through HMA connectors. When installed in a compatible DiGiCo Orange Box, the card allows the Orange Box to be added to an Optocore loop and connected with another compatible DMI card. It supports up to 128 channels of I/O at 48 kHz or up to 64 channels at 96 kHz. The card provides a flexible solution for expanding digital audio networks in professional live sound environments. It is also compatible with the DiGiCo 4REA4 system.
Optocore Connectivity
The MOD-DMI-OPTO enables Optocore audio networking through HMA optical connections. It allows compatible DiGiCo equipment to communicate over a high-capacity fiber-based audio network. The card can connect the Orange Box to an Optocore loop and interface with another DMI card. This provides flexible signal distribution for large-scale digital audio systems. Multi-Mode and Single-Mode configurations are available depending on system requirements.
High-Capacity I/O
The card provides substantial channel capacity for professional digital audio networks. At 48 kHz, it supports up to 128 channels of I/O, while operation at 96 kHz supports up to 64 channels. This allows large amounts of audio to be transported over the optical network without requiring multiple connections. The high channel count makes the card suitable for touring productions, large venues, broadcast facilities, and complex installations.
Orange Box Integration
When combined with a compatible DiGiCo Orange Box, the MOD-DMI-OPTO allows the converter to become part of an Optocore loop. This provides a convenient method for integrating different DiGiCo I/O formats into an Optocore-based network. The card can interface with another compatible DMI card for expanded system connectivity. This modular approach provides flexibility when designing or expanding professional digital audio systems.
4REA4 System Compatibility
The MOD-DMI-OPTO is also compatible with the DiGiCo 4REA4 system. When integrated with SD and 4REA4 systems, it allows an SD console to control I/O connected to the 4REA4. This provides centralized control and flexible routing between compatible DiGiCo equipment. The integration makes the card useful for installations requiring distributed I/O and centralized console control.
Optical Transmission and System Expansion
The card supports 1G and 2G fiber transmission speeds for reliable high-capacity audio networking. Its optical architecture helps support long-distance signal distribution while reducing the need for conventional copper connections. The HMA connector format provides a robust connection for professional production environments. With compatibility across Orange Box and 4REA4 systems, the MOD-DMI-OPTO provides a scalable solution for expanding DiGiCo audio networks.
Product Specifications:
Product Type: Optocore Multi-Mode Optics Expansion Card
Optical Interface: HMA
Network Protocol: Optocore
Optical Mode: Multi-Mode
Available Optical Mode: Single-Mode
I/O Capacity at 48 kHz: Up to 128 Channels
I/O Capacity at 96 kHz: Up to 64 Channels
Fiber Speed: 1G / 2G
Application: Optocore Audio Networking
Orange Box Compatibility: Yes
4REA4 Compatibility: Yes
SD Console Integration: Supports SD Console I/O Control via 4REA4
Network Configuration: Optocore Loop
DMI Card Interface: Compatible with Another DMI Card
Connector Type: HMA Optical
System Expansion: Distributed Digital Audio I/O
Product Weight: 1.5 lbs.
Product Dimensions (L x W x H): 8.0 x 4.5 x 1.5 in.
