Descripción

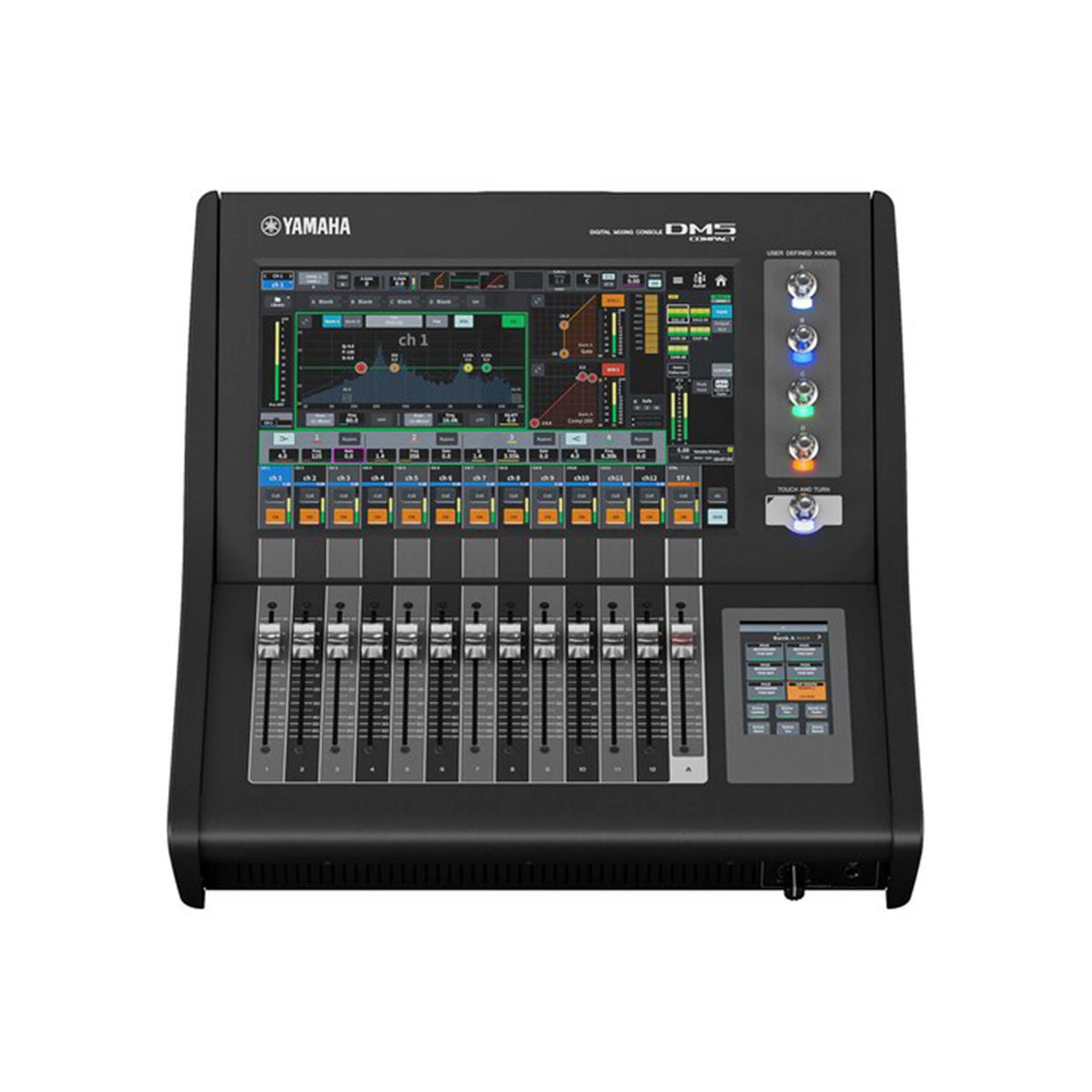

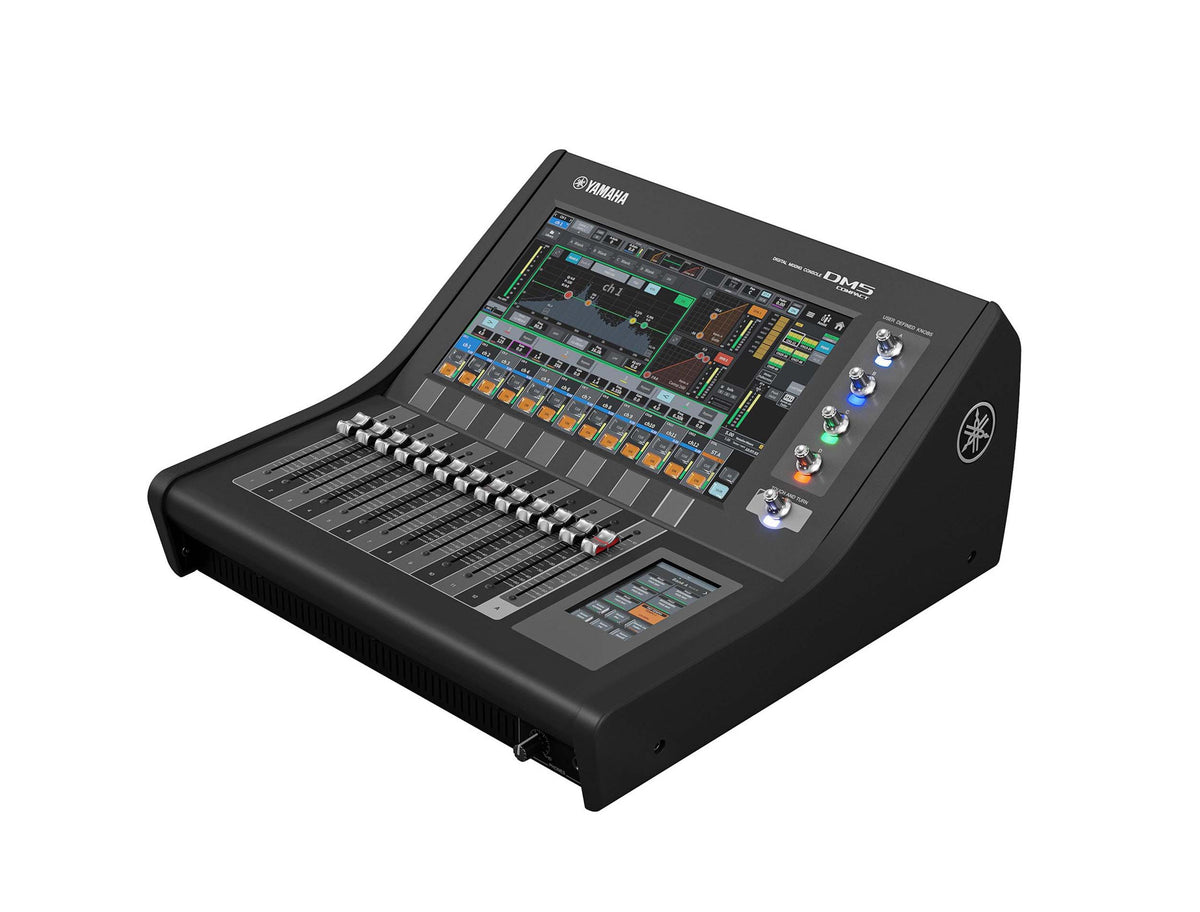

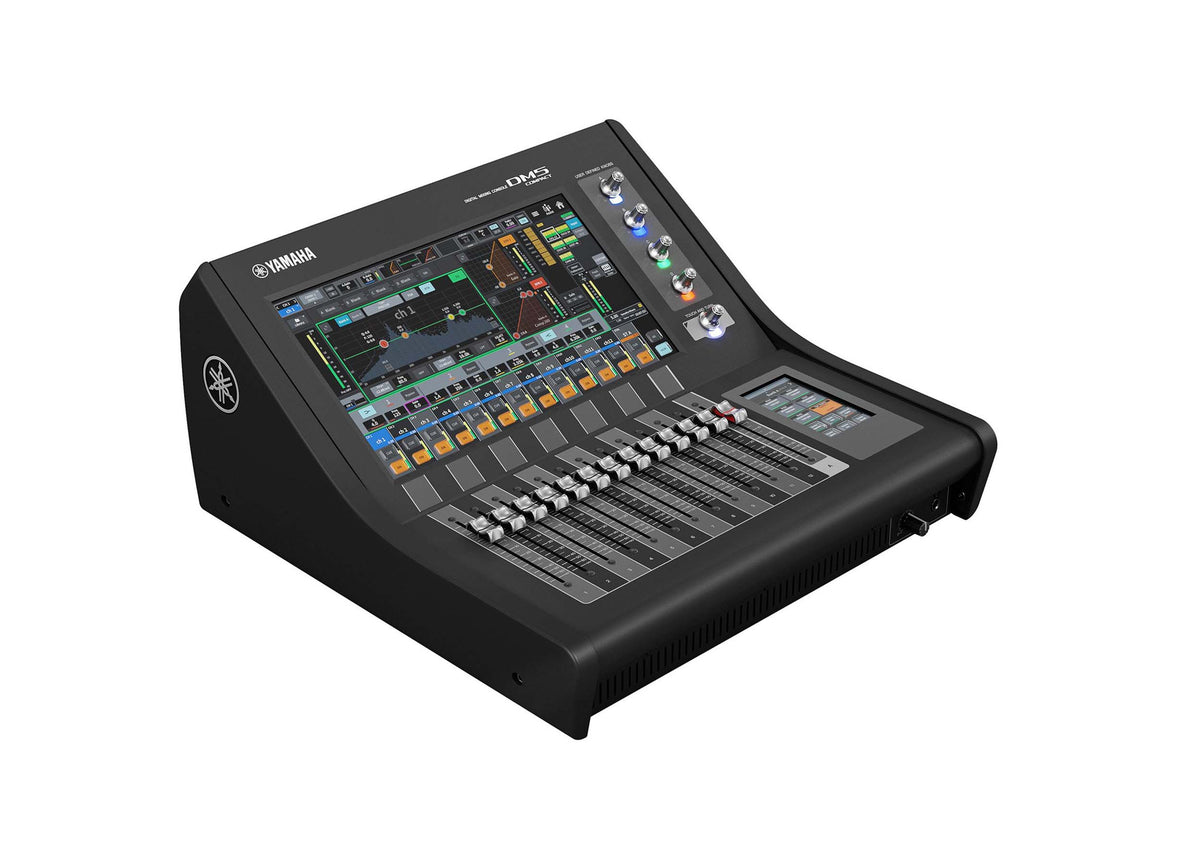

The Yamaha DM5 Compact is a versatile digital mixing console featuring Dante networking, exceptional sound quality, intuitive operation, and high reliability. Designed for professional audio applications, it delivers flexible mixing capabilities in a compact configuration.
Featuring 48 mono input channels, 24 Mix buses, 12 Matrix buses, and 2 Stereo buses, the DM5 Compact provides extensive routing and mixing options for demanding live sound and installed audio environments.

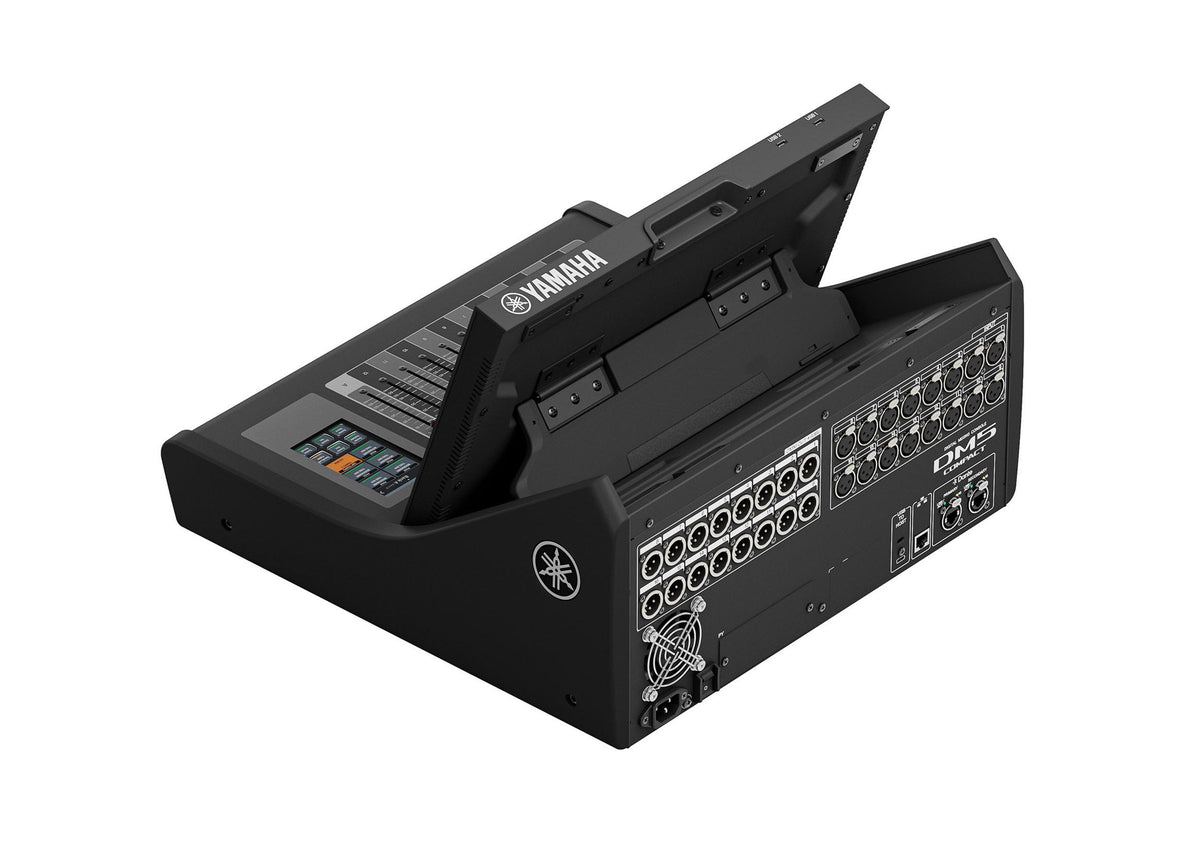

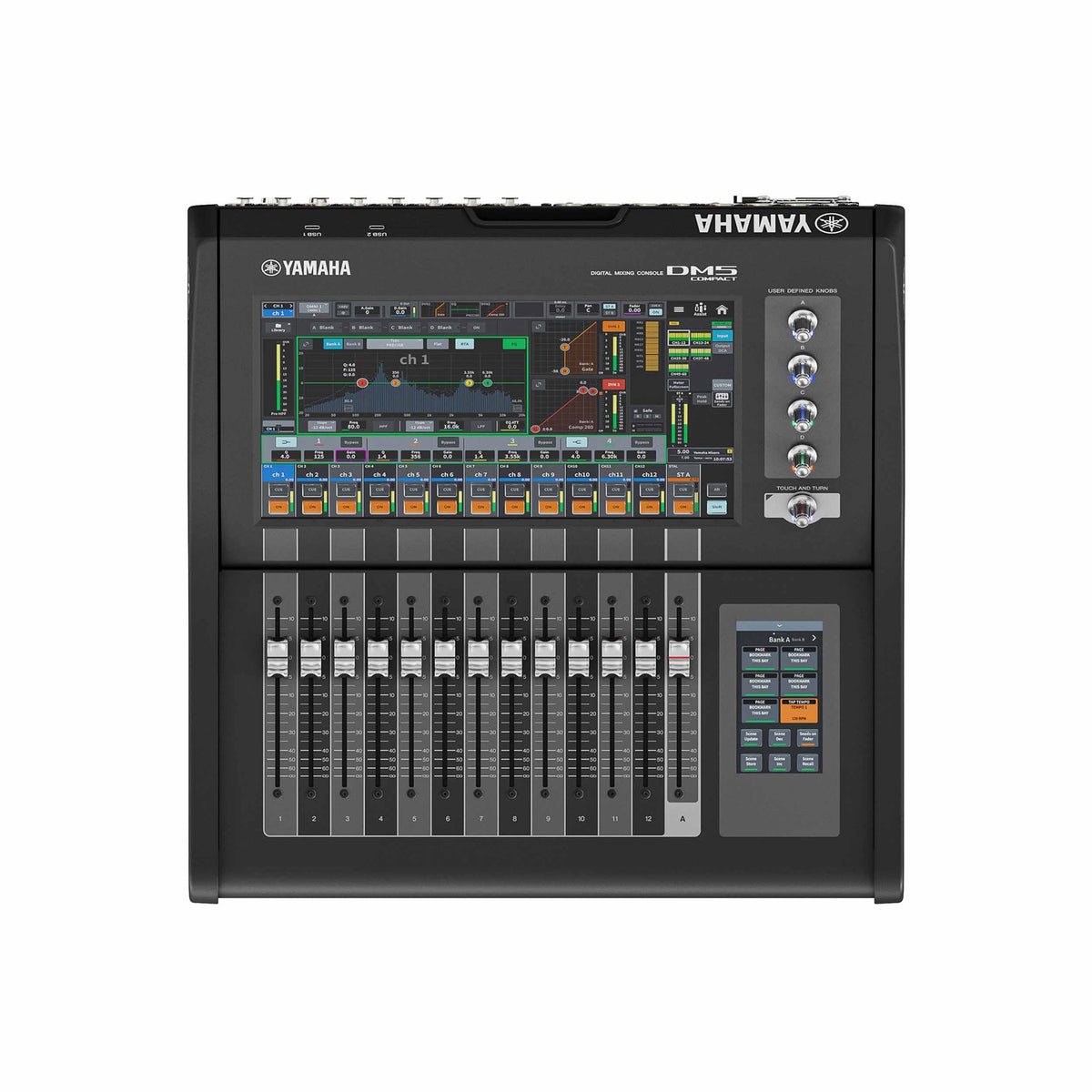

The console features a 13.3-inch multi-touch display, a 4.3-inch multi-touch display, and 13 faders for efficient hands-on control. With 16 analog inputs and 16 analog outputs, 64-channel Dante input and output capacity, a PY expansion slot, and an 18-in/18-out USB audio interface, it offers versatile connectivity for modern audio workflows.
Key Features
- Compact digital mixing console with Dante networking
- 48 mono input mixing channels
- 24 Mix buses, 12 Matrix buses, and 2 Stereo buses
- One 13.3-inch multi-touch display and one 4.3-inch multi-touch display
- 13 faders configured as 12 + 1
- 16 analog inputs and 16 analog outputs
- 64 Dante inputs and 64 Dante outputs
- One PY expansion slot
- 18-in/18-out USB audio interface
- Power consumption of 130 W
- Designed for professional audio applications requiring reliable, flexible mixing
Ideal For
- Live sound reinforcement
- Theaters and performance venues
- Houses of worship
- Corporate events and conferences
- Professional audio installations
- Dante-based audio systems
- Digital mixing and recording workflows
What's in the Box
- Yamaha DM5 Compact Digital Mixing Console

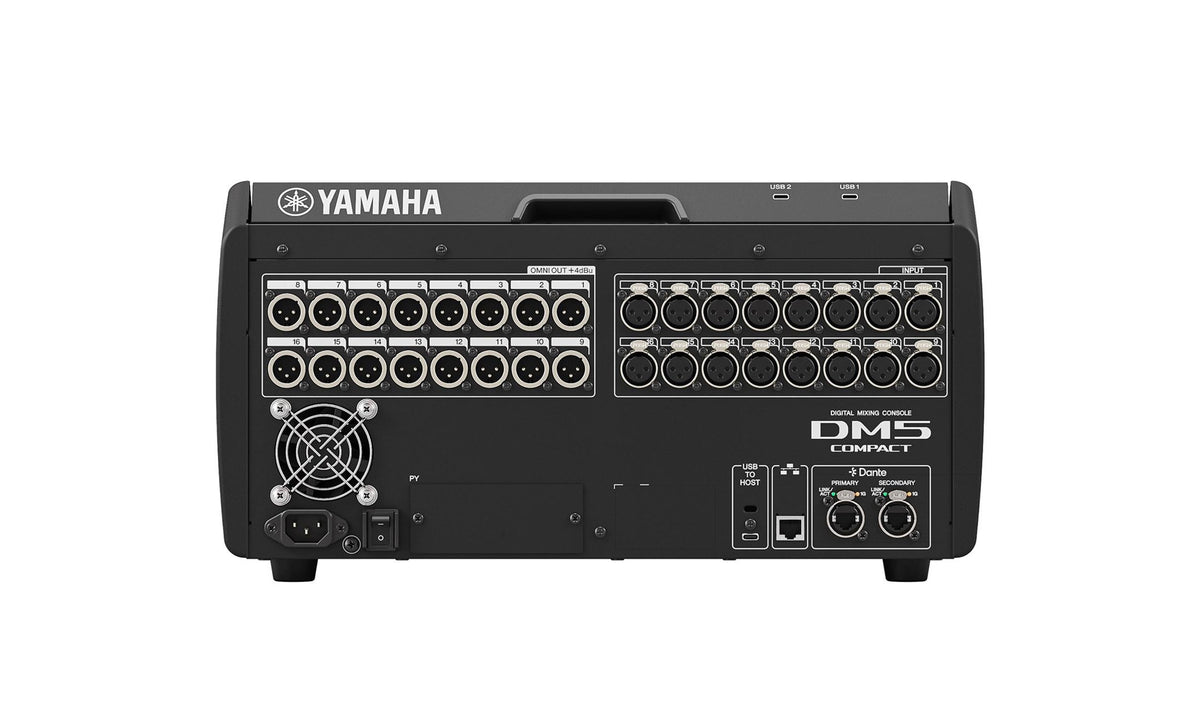

Inputs & Outputs
- Analog I/O: 16 inputs / 16 outputs
- Dante: 64 inputs / 64 outputs
- USB Audio Interface: 18 inputs / 18 outputs
- Expansion: 1 PY slot
Frequently Asked Questions
How many input channels does the Yamaha DM5 Compact support?
It supports 48 mono input mixing channels.
How many buses are available?
The console provides 24 Mix buses, 12 Matrix buses, and 2 Stereo buses.
What displays does the DM5 Compact feature?
It features one 13.3-inch multi-touch display and one 4.3-inch multi-touch display.
How many faders does it have?
It has 13 faders configured as 12 + 1.
Does it support Dante networking?
Yes. It supports 64 Dante inputs and 64 Dante outputs.
What is the USB audio interface capacity?
The USB audio interface supports 18 inputs and 18 outputs.
What is the power consumption?
The specified power consumption is 130 W.
Full Technical Specifications
Product Overview
|
Analog I/O |
16 inputs / 16 outputs |
|
Dante |
Primary / Secondary; 64 inputs / 64 outputs |
|
PY Expansion Slot |
1 |
|
MIDI Connector |
No dedicated MIDI connector; MIDI protocol supported |
|
USB TO DEVICE |
2 USB Type-C ports for file save/load and 2-track recording/playback |
|
USB TO HOST |
1 USB Type-C, USB 2.0 |
|
USB Audio I/O |
18 inputs / 18 outputs |
|
USB MIDI |
Yes |
|
Ethernet |
Yes |
|
Phones |
1 |
|
AC Connector |
1 V-Lock type |
|
Meter Bridge |
On-screen |
Output & Input Channel Functions
|
PEQ |
8-band full PEQ |
|
GEQ |
Virtual Rack (EQ Rack) |
|
Dynamics |
Legacy Comp, Comp260, Gate, De-Esser, Expander, Ducking, FET Limiter, Diode Bridge Comp |
|
Output Channel Delay |
0–1,000 ms |
|
Mute Groups |
12 |
|
Inserts |
4 slots at 1 insert point |
|
Input A/B |
Yes |
|
Gain Compensation |
Yes |
|
Digital Gain |
-96 dB to +24 dB |
|
Attenuator |
-96 dB to +24 dB |
|
High-Pass Filter (HPF) |
20 Hz–2,000 Hz; selectable -6/-12/-18/-24 dB/oct |
|
PEQ |
4-band full PEQ, 4 algorithms, RTA overlay |
|
Dynamics 1 & 2 |
Legacy Comp, Comp260, Gate, De-Esser, Expander, Ducking, FET Limiter, Diode Bridge Comp |
|
Input Delay |
0–1,000 ms |
|
Pan |
Center Nominal / LR Nominal |
|
DCA Groups |
12, including output DCA support |
|
DCA Rollout |
Yes |
|
Mute Groups |
12 |
|
Inserts |
4 slots at 1 insert point |
|
Dan Dugan Automixer |
12 channels; expandable up to 64 channels with license |
|
Direct Out |
Yes |
Premium Rack, Effect Rack & EQ Rack
|
Premium Rack DSP Resources |
0; up to 32 with PY-DSP |
|
Premium Rack Plug-ins |
RND Portico5033, RND Portico5043, Portico 5045, U76, Opt-2A, Comp276, Buss Comp 369, MBC4, DaNSe, EQ-1A, Equalizer601, Dynamic EQ, Dynamic EQ4, REV-X, OpenDeck, Analog Delay, Max100, Vintage Phaser, Dual Phaser, HQ.Pitch |
|
Effect Rack DSP Resources |
16 |
|
Effect Types |
43 |
|
EQ Rack DSP Resources |
24 |
|
EQ Rack Devices |
31BandGEQ, Flex15GEQ, 8Band PEQ with RTA overlay |
Dante & Monitoring
|
Dante I/O Channels |
64 in / 64 out |
|
Discoverable Dante I/O Devices |
127 |
|
Mountable Dante I/O Devices |
24 |
|
Devices with HA Remote Control |
24 |
|
Dante Patch from Console |
Yes |
|
Solo Mode |
Yes |
|
Oscillator |
Sine Wave 1ch, Sine Wave 2ch, Pink Noise, Burst Noise |
Software
|
Editor |
DM Editor (Windows / Mac) |
|
StageMix |
DM StageMix |
|
MonitorMix |
Yes |
|
Console File Converter |
Yes |
|
ProVisionaire Control PLUS / Kiosk |
Yes |
|
Power Consumption |
130 W |
Physical Specifications
|
Width |
17.6 in |
|
Height |
9.3 in (including rubber feet) |
|
Depth |
17.4 in |
|
Net Weight |
29.3 lbs |
