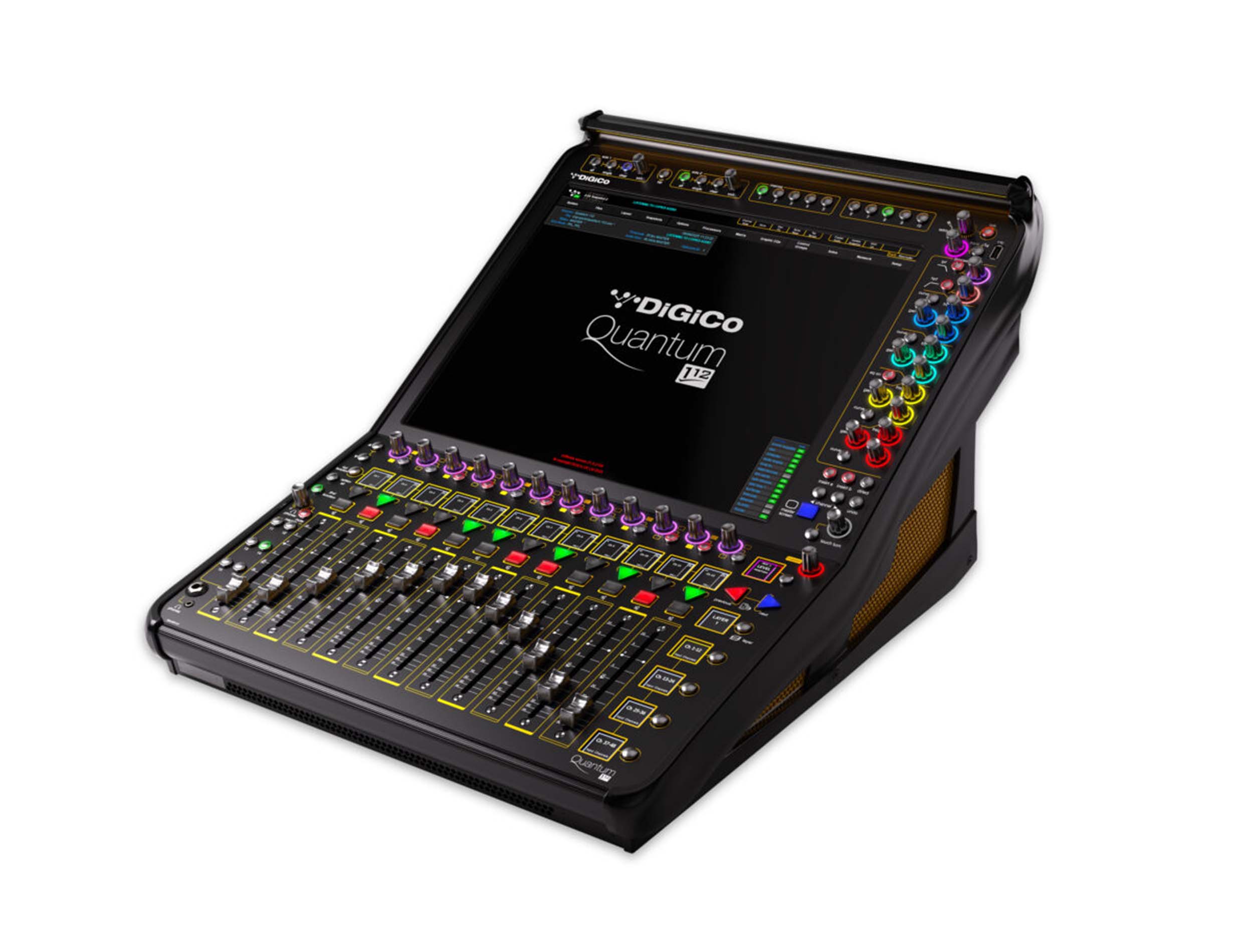

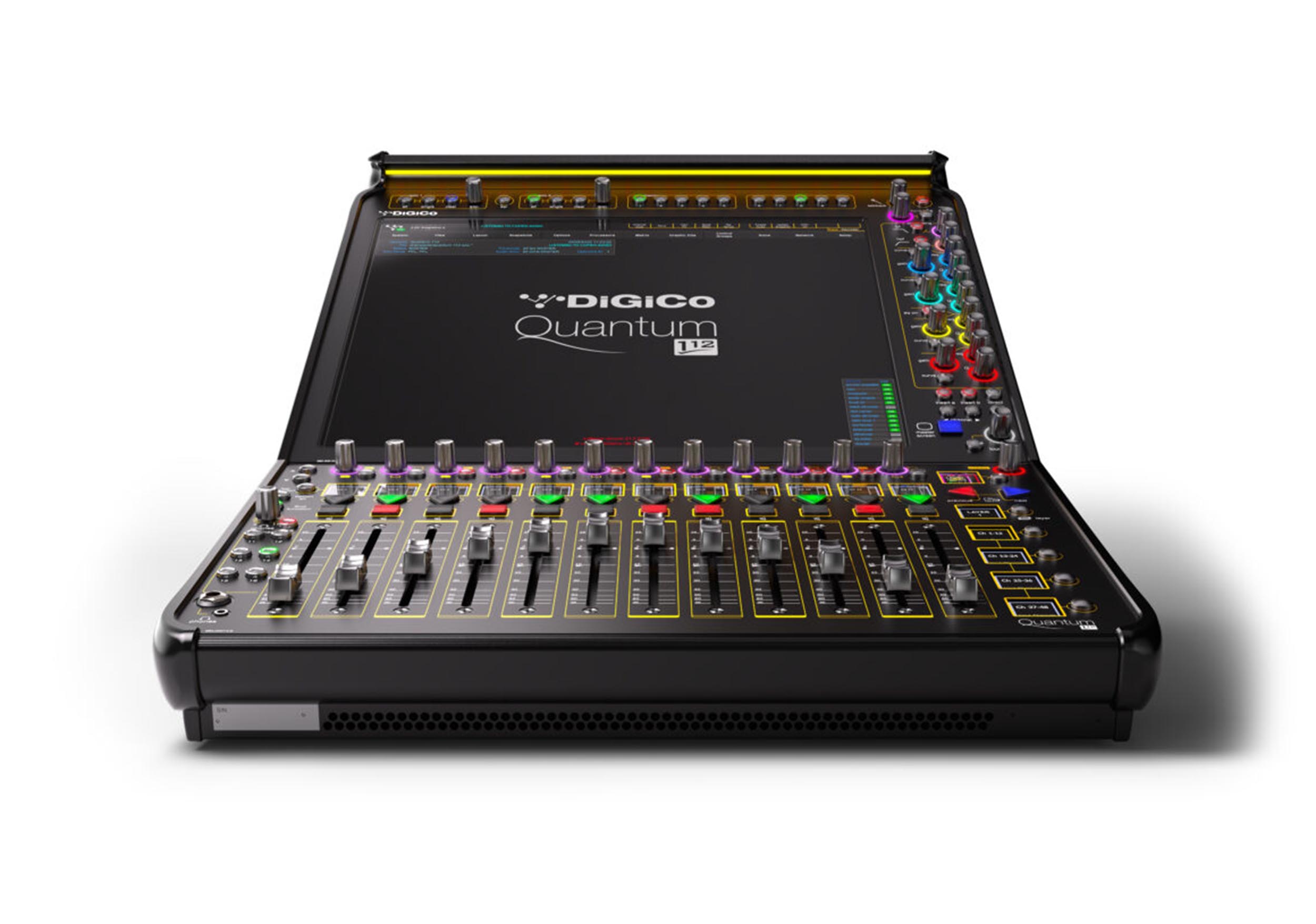

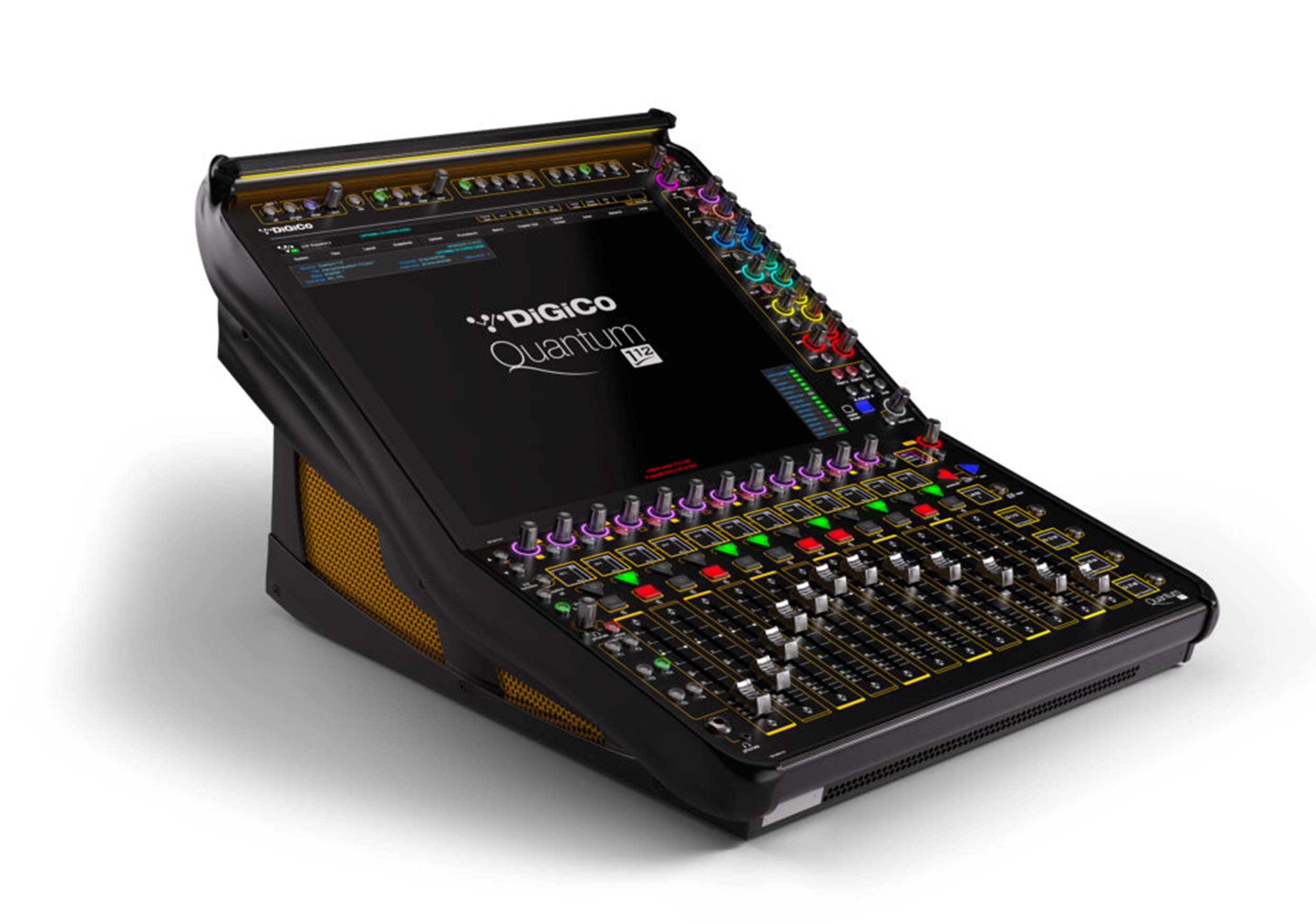

DiGiCo X-Q112-WS-OP Digital Mixing Console with Waves SoundGrid and OpticalCON Optocore Connector

The DiGiCo X-Q112-WS-OP delivers outstanding digital mixing performance in a compact and highly capable console platform. Powered by DiGiCo's advanced Quantum processing engine, it provides exceptional audio quality with ultra-low latency operation. Engineers can confidently manage complex routing, channel processing, and demanding live productions with ease. The intuitive interface provides fast access to essential mixing functions throughout every performance. Its flexible architecture supports a wide variety of professional production environments.

Integrated Waves SoundGrid

Built-in Waves SoundGrid compatibility enables real-time access to industry-leading audio plugins with extremely low latency. Engineers can enhance vocals, instruments, and complete mixes using premium Waves processing tools. The console integrates seamlessly with compatible SoundGrid servers and network devices for expanded DSP capabilities. Advanced equalization, dynamics, reverbs, and creative effects can be applied without disrupting workflow. This powerful integration delivers studio-quality audio processing in live production environments.

OpticalCON Optocore Connectivity

The OpticalCON Optocore connector provides a rugged fiber networking solution for professional live sound systems. It supports high-speed transmission of multiple audio channels over long cable distances while maintaining exceptional signal integrity. The durable OpticalCON connector protects fiber connections during demanding touring applications. It integrates seamlessly with compatible Optocore-enabled stage racks, consoles, and network infrastructure. Redundant fiber networking improves reliability for mission-critical productions. This connectivity is ideal for touring, broadcast, theater, and large-scale live events.

Advanced Quantum Processing

The Quantum processing architecture delivers exceptional DSP performance for demanding productions. Every channel benefit from advanced equalization, dynamics, filtering, delay, and flexible routing capabilities. Powerful onboard processing maintains consistent performance across all inputs and outputs without sacrificing resources. High-resolution DSP preserves exceptional audio clarity throughout complex productions.

Intuitive Control Surface

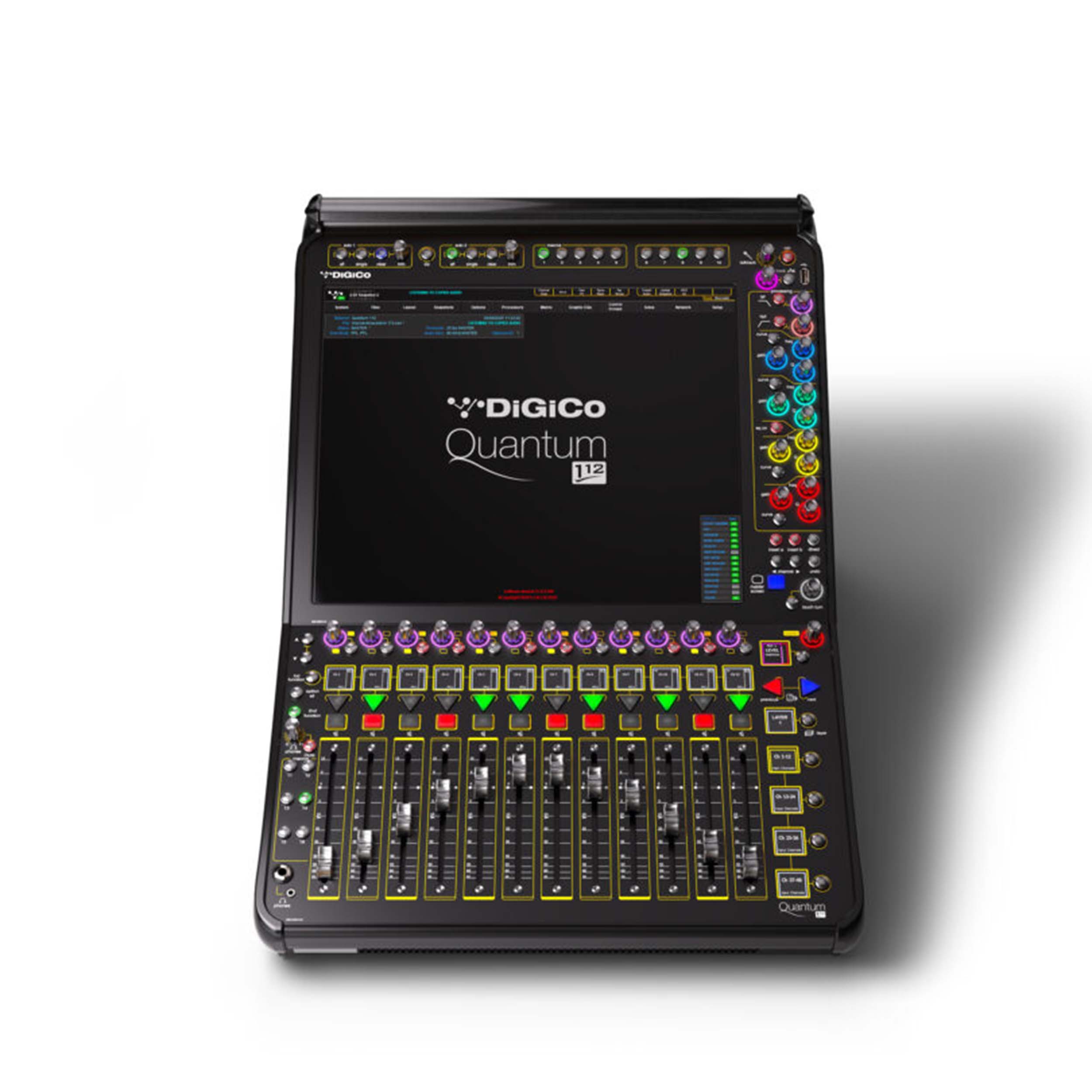

The console features a high-resolution touchscreen interface designed for fast and efficient operation. Engineers can quickly access channel processing, routing, metering, and system controls through an intuitive workflow. The ergonomic control surface simplifies operation during demanding live performances. Customizable layouts improve productivity by placing essential functions within easy reach.

Built for Professional Productions

The X-Q112-WS-OP is engineered for touring, broadcast, theater, corporate events, and houses of worship. Its powerful Quantum processing, Waves SoundGrid integration, and OpticalCON Optocore connectivity provide exceptional flexibility for professional audio systems. Rugged construction ensures dependable operation throughout continuous use in demanding environments. The scalable platform adapts easily as production requirements evolve. Engineers can rely on its advanced capabilities to deliver consistent results in every production.

What’s in the Box:

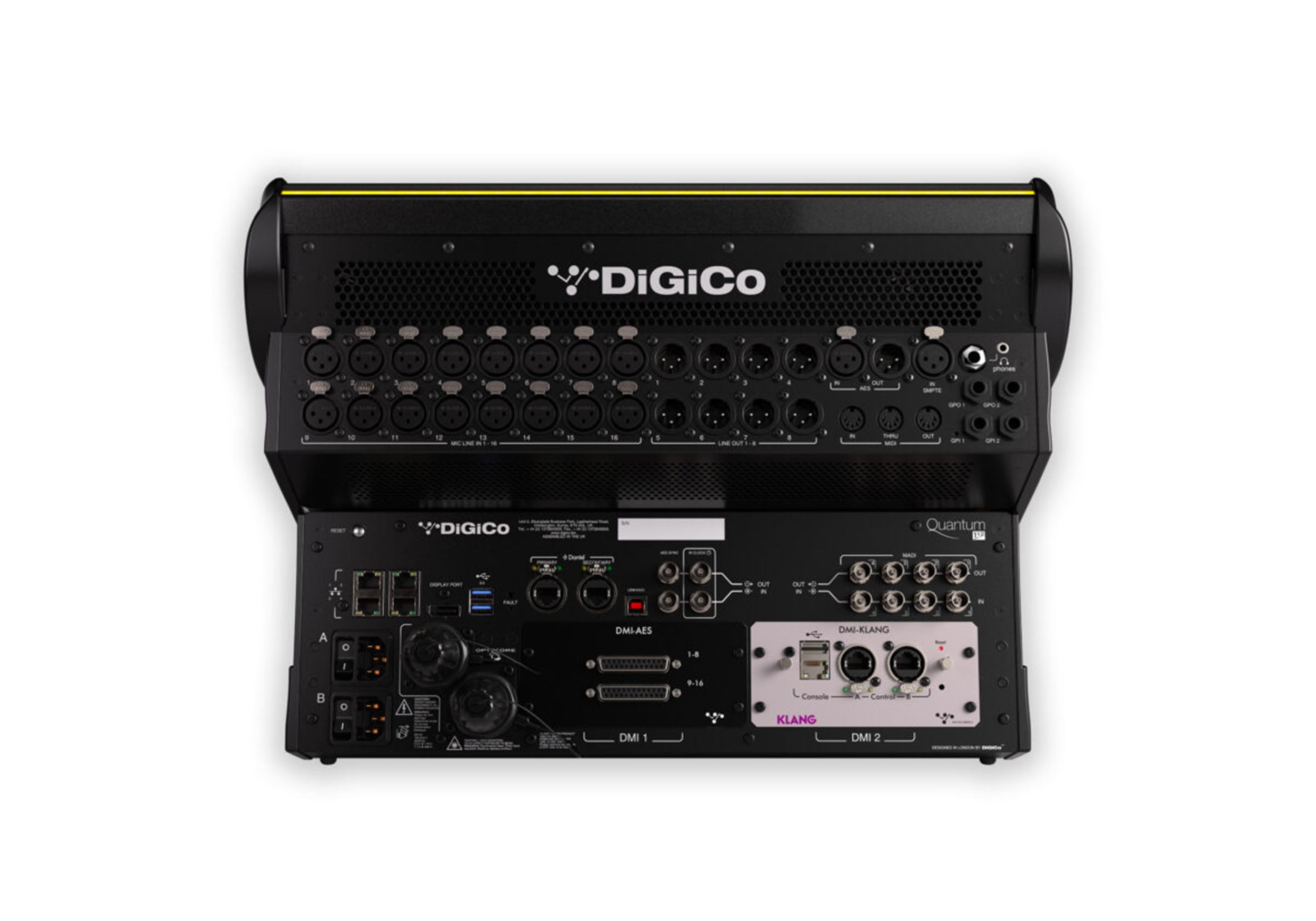

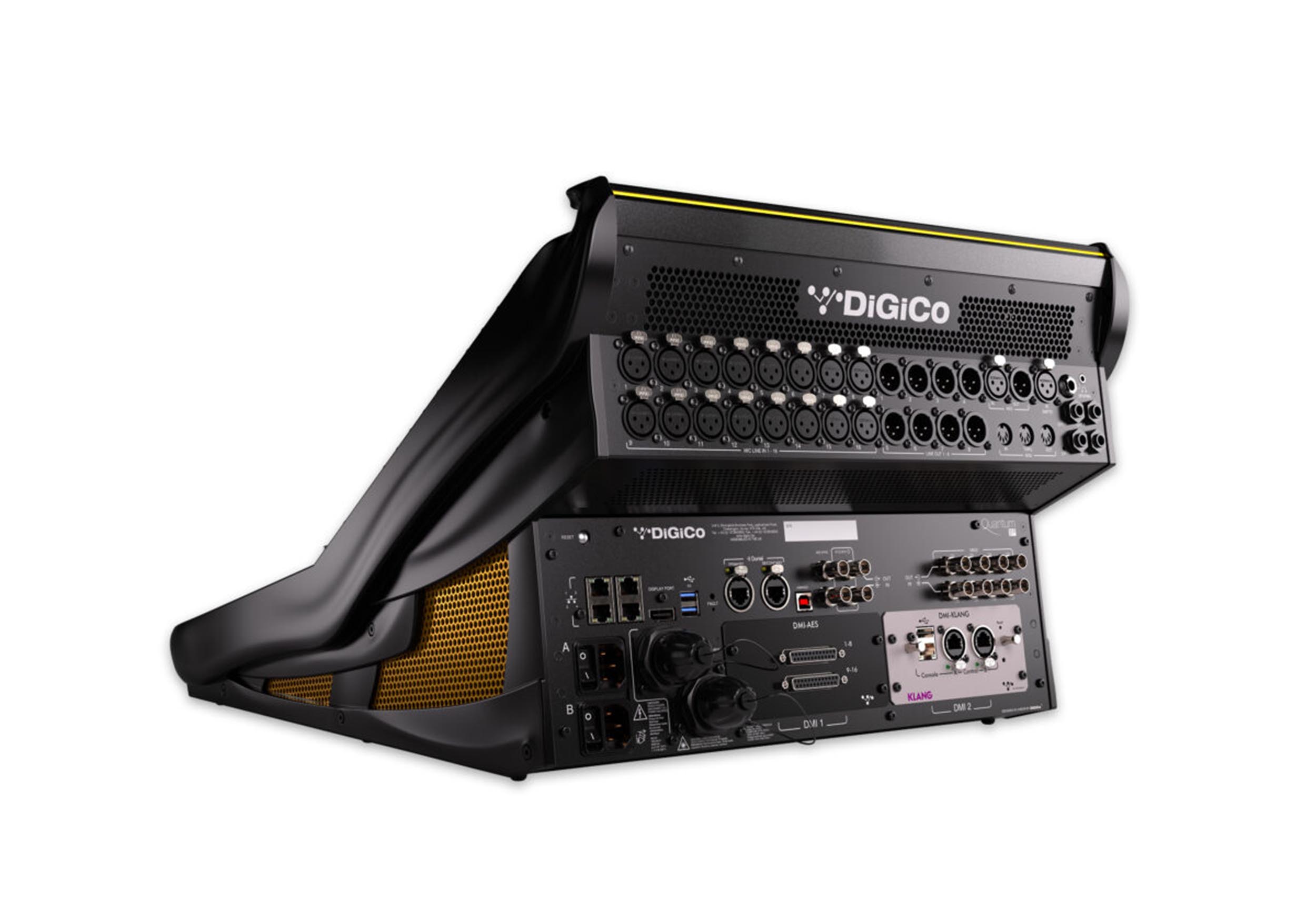

• Connections: MADI x 4, Internal Fourier/Dante2 - Hyperport Card
• UB-MADI, DMI Port x 2
• Connectors: BNC, HMA

Product Specifications:

Integrated Networking: Waves SoundGrid

Connector: OpticalCON Optocore Connector.

Faders: 12 x 100 mm touch-sensitive, motorized faders.

Touchscreen: 1 x 17" high-brightness, high-resolution LCD touchscreen.

TFT Displays: 18 x full-color TFT LCD displays.

Power Supply: Dual internal redundant PSUs.

Input Channels: 80 mono input channels.

Solo Busses: 2 dedicated solo busses.

Aux/Sub Groups: 24 fully processed Aux/Sub-Group busses.

Matrix: 12 input x 8 output full-processing matrix.

Control Groups: 12 configurable Control Groups (CGs).

Graphic EQ: 12 x 32-band Graphic EQs.

Internal FX: 6 stereo effects processors.

Spice Rack: 6 internal Spice Rack slots.

Mustard Processing: 20 Mustard processing strips.

Nodal Processing: 24 processors with 4-band Parametric/Dynamic EQ.

Local I/O: Stadius 32-bit local I/O.

MADI Connectivity: Up to 4 MADI interfaces or 2 redundant MADI interfaces at 48 kHz; 2 interfaces at 96 kHz.

Optocore Interface: Optional MultiMode Optocore interface.

Sample Rates: 48 kHz and 96 kHz.

DMI Slots: 2 x DMI expansion slots supporting up to 64 I/O per slot.

GPI: 2 input jack connectors.

GPO: 2 output jack connectors.

Processing Delay: Typical 0.5 ms (Mic In to Line Out without channel processing).

Internal Processing: Up to 40-bit floating-point processing.

Converter Resolution: 32-bit A/D and D/A converters.

Frequency Response: ±0.2 dB (20 Hz–20 kHz).

THD+N (Mic In to AES Out): <0.002% @ 1 kHz.

THD+N (AES In to Line Out): <0.002% @ 1 kHz.

Channel Separation: >100 dB @ 10 kHz.

Equivalent Input Noise (EIN): <-127.5 dBu (A-weighted).

Maximum Input Level: +22 dBu.

Maximum Output Level: +22 dBu.

Channel Processing: Mustard and SD processing available on all input channels.

Input Controls: Analog Gain, Phase Invert, Gain Tracking, Digital Trim, Variable Delay, and DiGiTube.

Filters: HPF/LPF with 24 dB/octave slope.

Equalization: 4-band Parametric/Dynamic EQ on every input channel.

Dynamics: Compressor, Multiband Compressor, De-Esser, Gate, Ducker, and External Input Compressor.

Insert Points: 2 insert points per channel.

Direct Outputs: Available on every input channel.

Bus EQ: 8-band EQ with Parametric and Dynamic EQ options.

FX Library: Delays, Reverbs, Choruses, Pitch Shifters, and Audio Enhancer.

Spice Rack Effects: 6-band Dynamic Multiband Compressor/Expander and 6-band Dynamic EQ.

Mustard EQ: 4-band EQ with All-Pass Filter capability.

Mustard Dynamics: RMS, VCA, Optical, and FET compressor models plus Gate and Ducker.

Multiband Compressors: Available on every channel, buss, and nodal processor.

Dynamic EQ: Available on every channel, buss, and nodal processor.

DiGiTube: Available on every input channel and buss.

Virtual Soundcheck: Fully supported for recording and playback workflows.

Product Weight: 46 lbs.

Product Dimensions (L x W x H): 30.3" x 23.2" x 10.2"
