Description

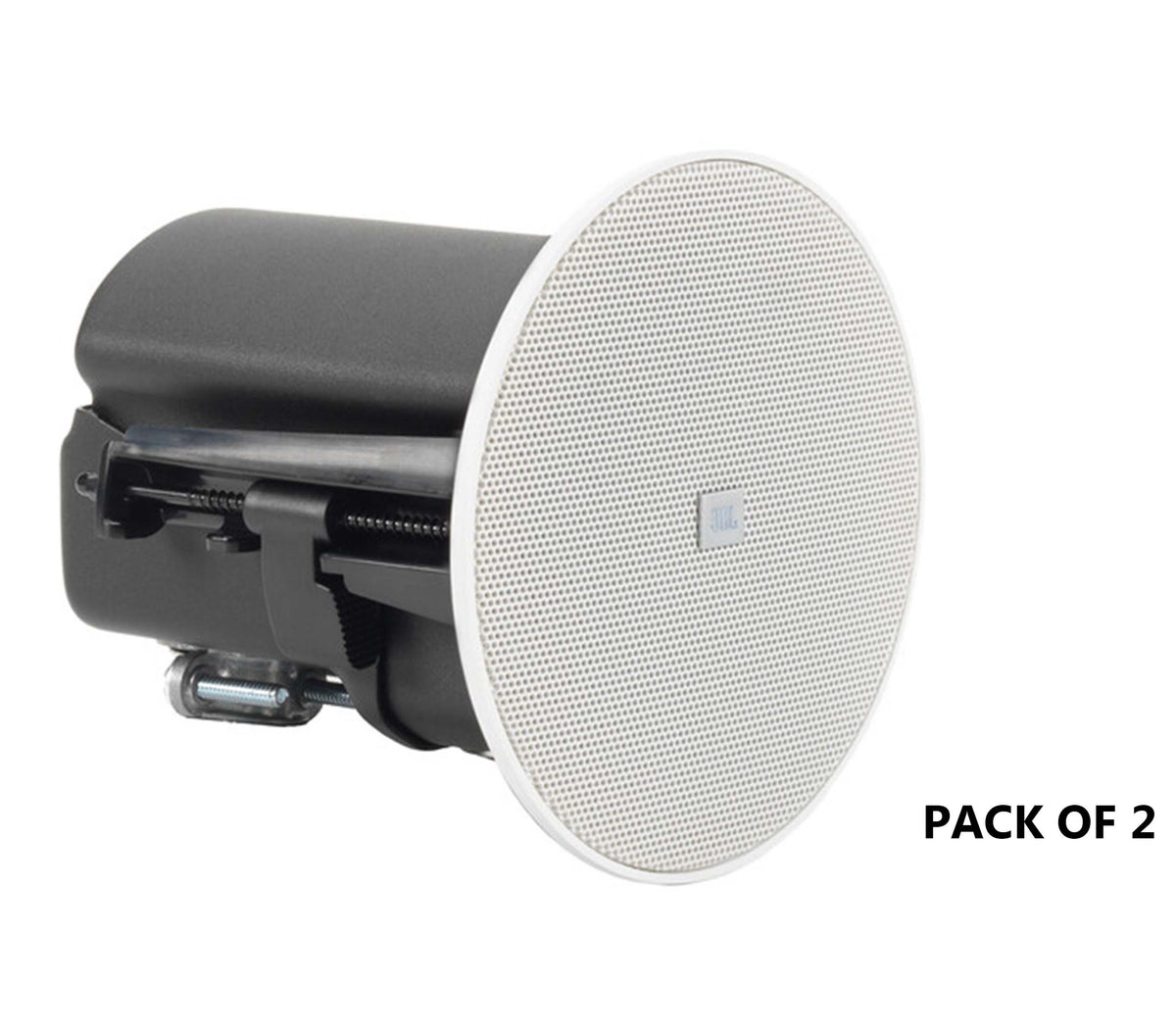

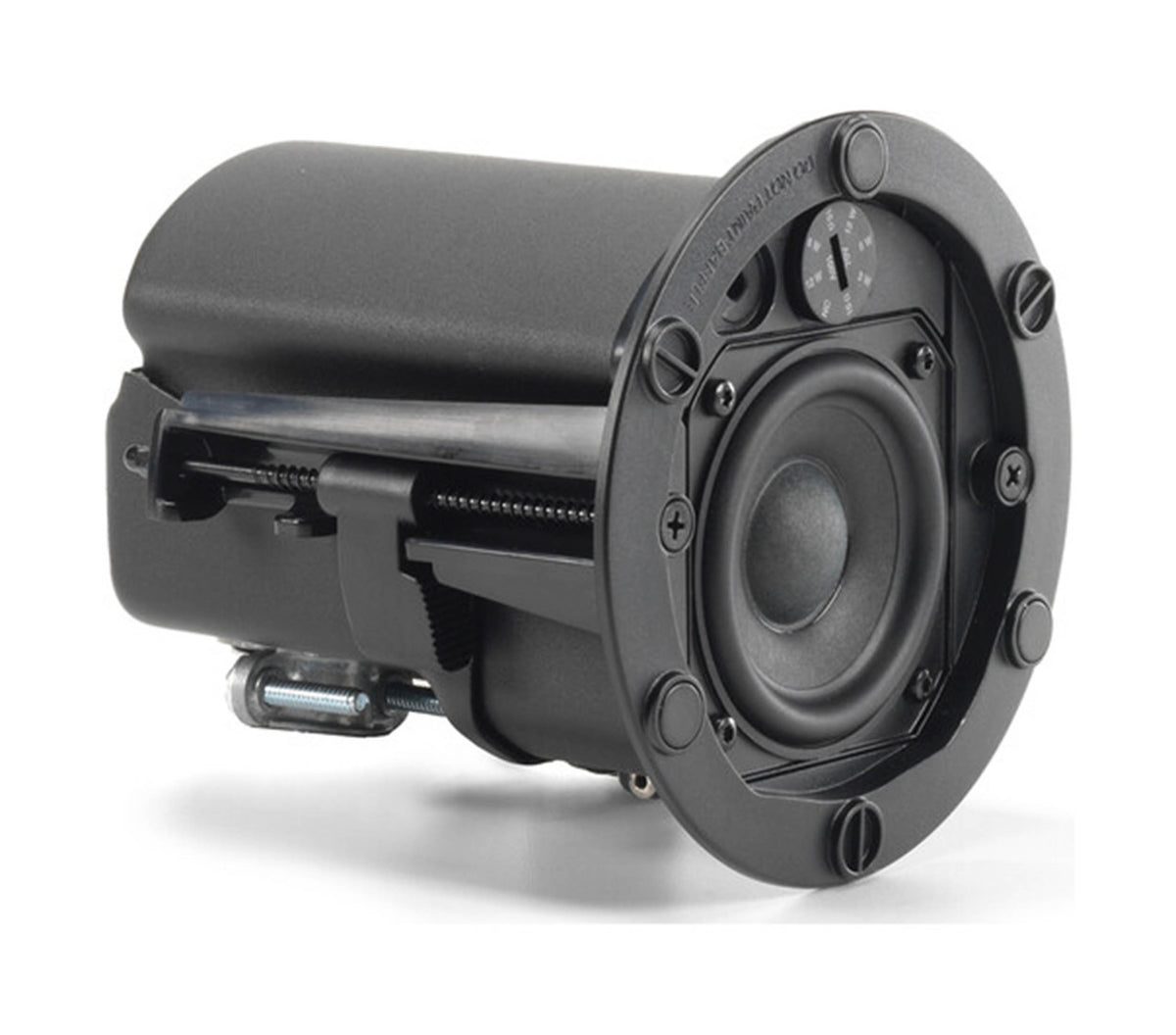

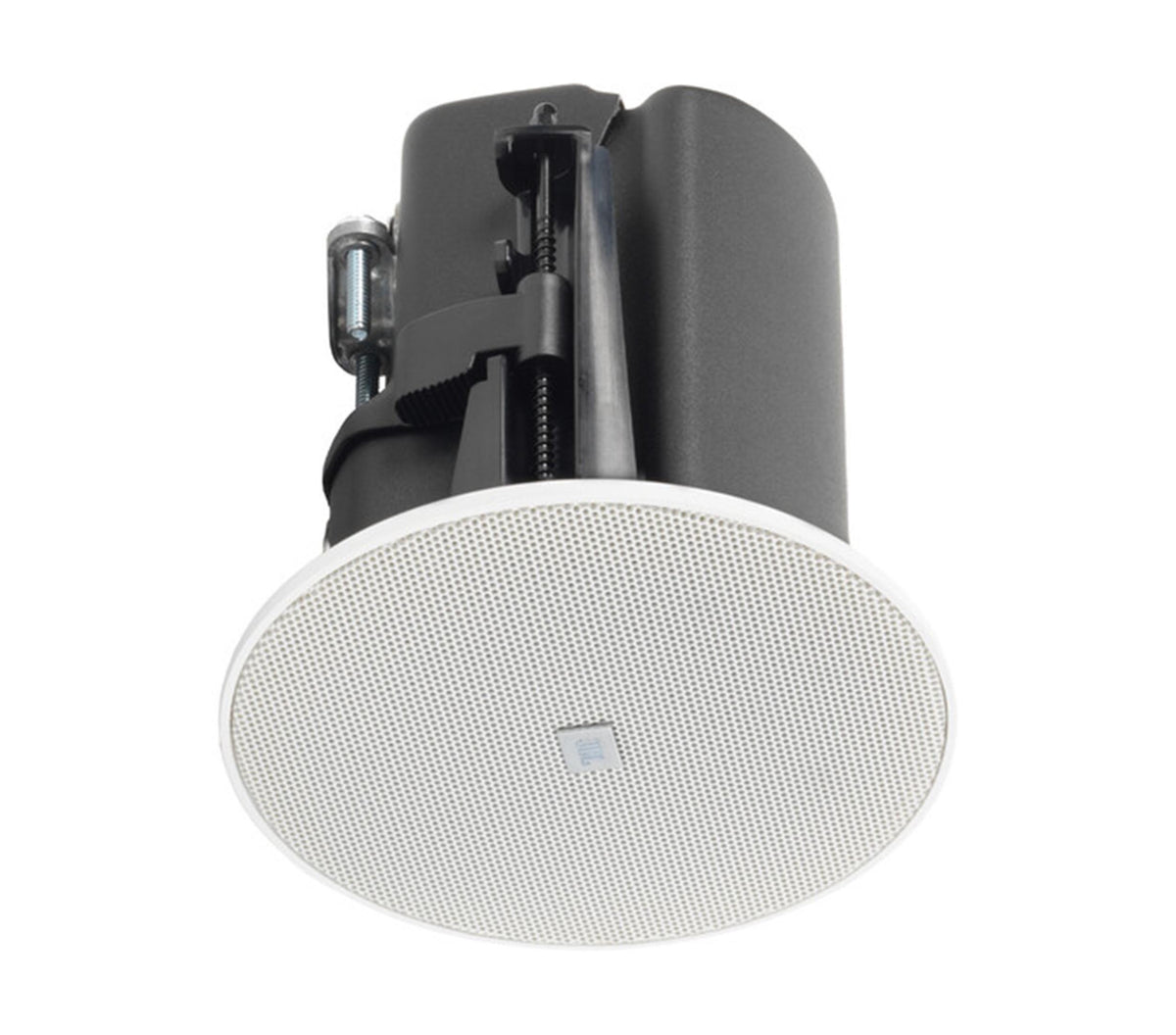

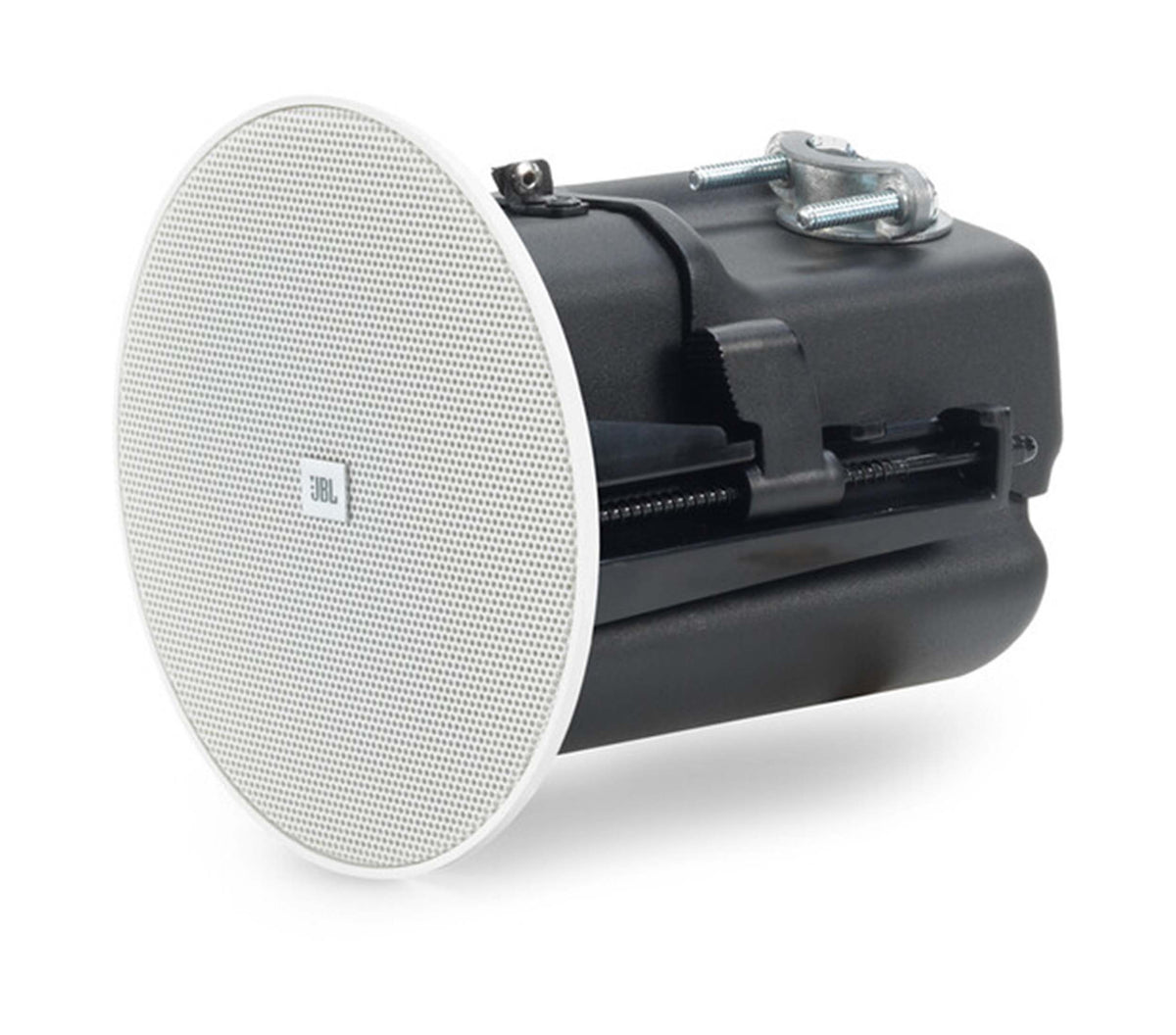

The JBL Control 442C/T 2-Pack delivers clear, wide-coverage audio through two compact ceiling loudspeakers from the flagship Control 400 Premium Coverage Series. Each speaker features a 63.5 mm (2.5-inch) full-range driver and integrated enclosure designed for installation in most ceiling plenum spaces. With a 130 Hz–20 kHz frequency range, 86 dB sensitivity, and 160° conical coverage, the pair provides broad and consistent sound distribution for commercial environments.
Flexible 70V/100V & 16Ω Operation
Each Control 442C/T supports both 70V/100V distributed audio and direct 16Ω low-impedance operation. The built-in transformer provides 70V taps of 12W, 6W, and 3W, while 100V operation supports 12W and 6W. Each speaker handles 22.5W continuous pink-noise power for 2 hours and up to 90W peak, with a 60W peak rating under the 100-hour continuous pink-noise specification. The compact design also makes the Control 442C/T an ideal complement to the JBL 440CS/T subwoofer.
Efficient Installation & Modern Architectural Design

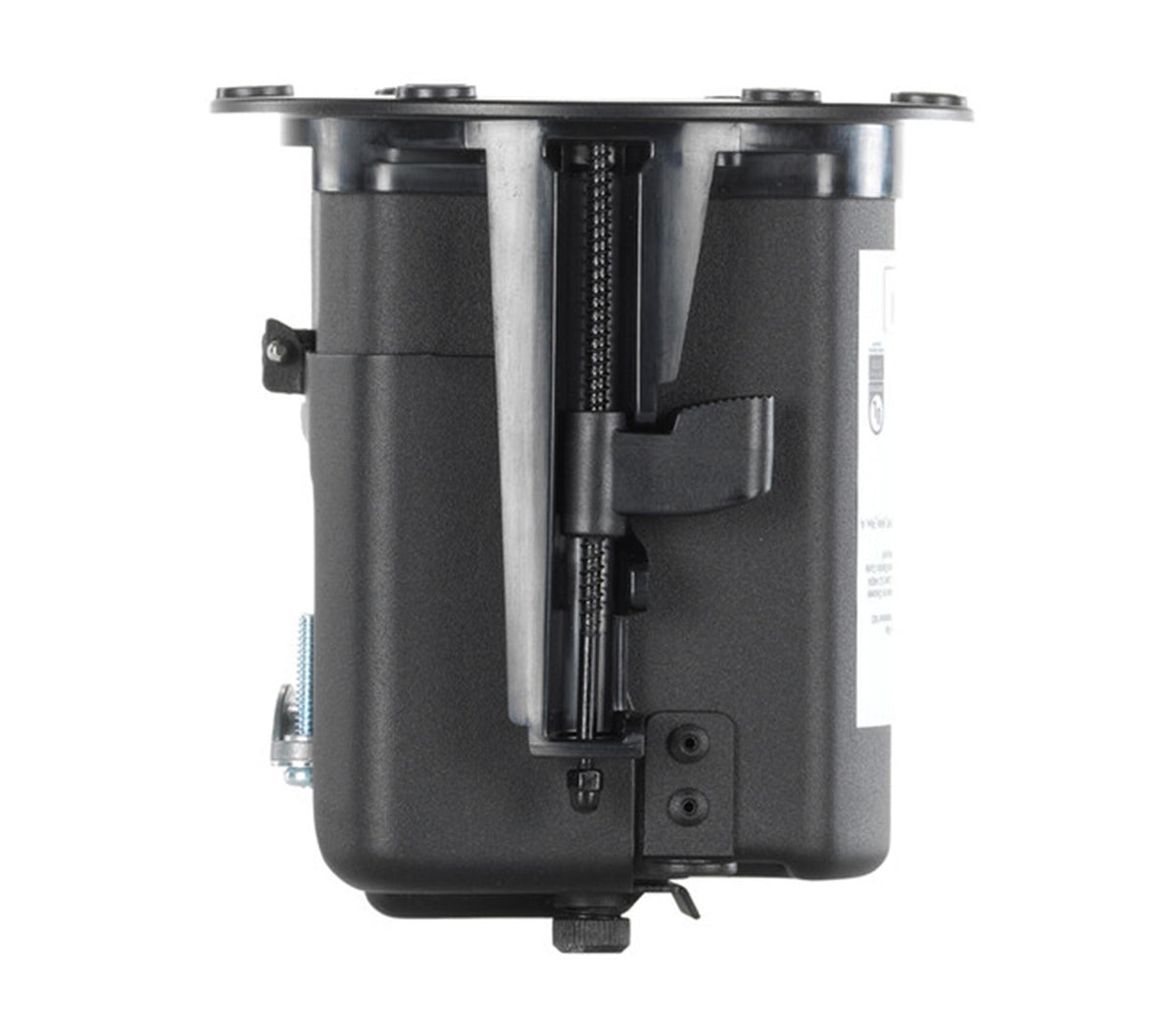

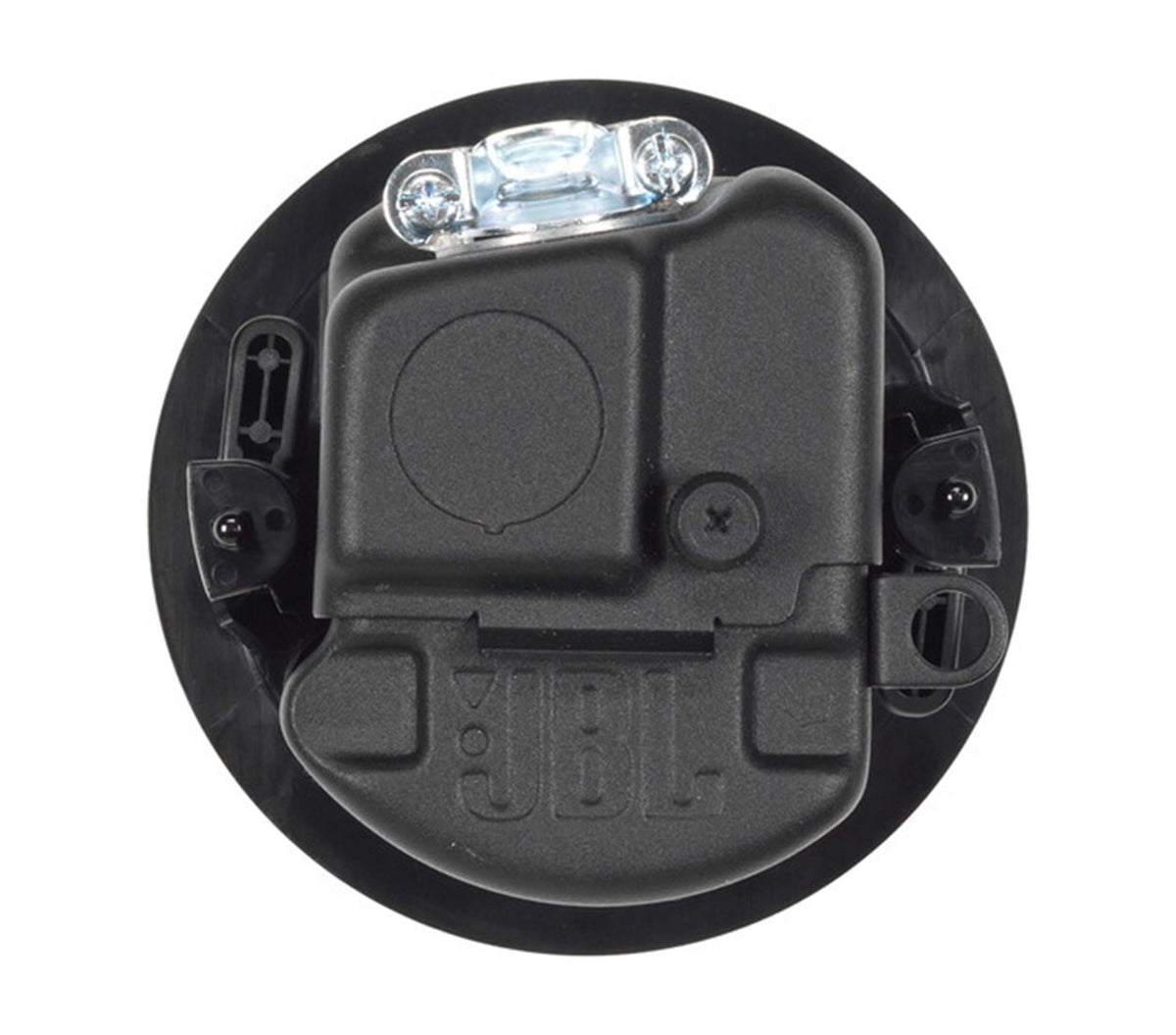

The integrated enclosure and adaptable captive dogear mounting system simplify installation across a wide range of ceiling thicknesses. Terminal covers provide convenient top and side cable entry and use captive hand-screws for efficient access, while the full-face magnetic grille offers a clean, paintable finish with an integrated safety tether. The 2-pack includes mounting hardware and is well suited for commercial spaces, hotels, museums, background music, and other installed audio applications.
Product Specifications:
Package Quantity: 2 Loudspeakers
Product Type: Compact Ceiling Loudspeaker
Series: Control 400 Premium Coverage Series

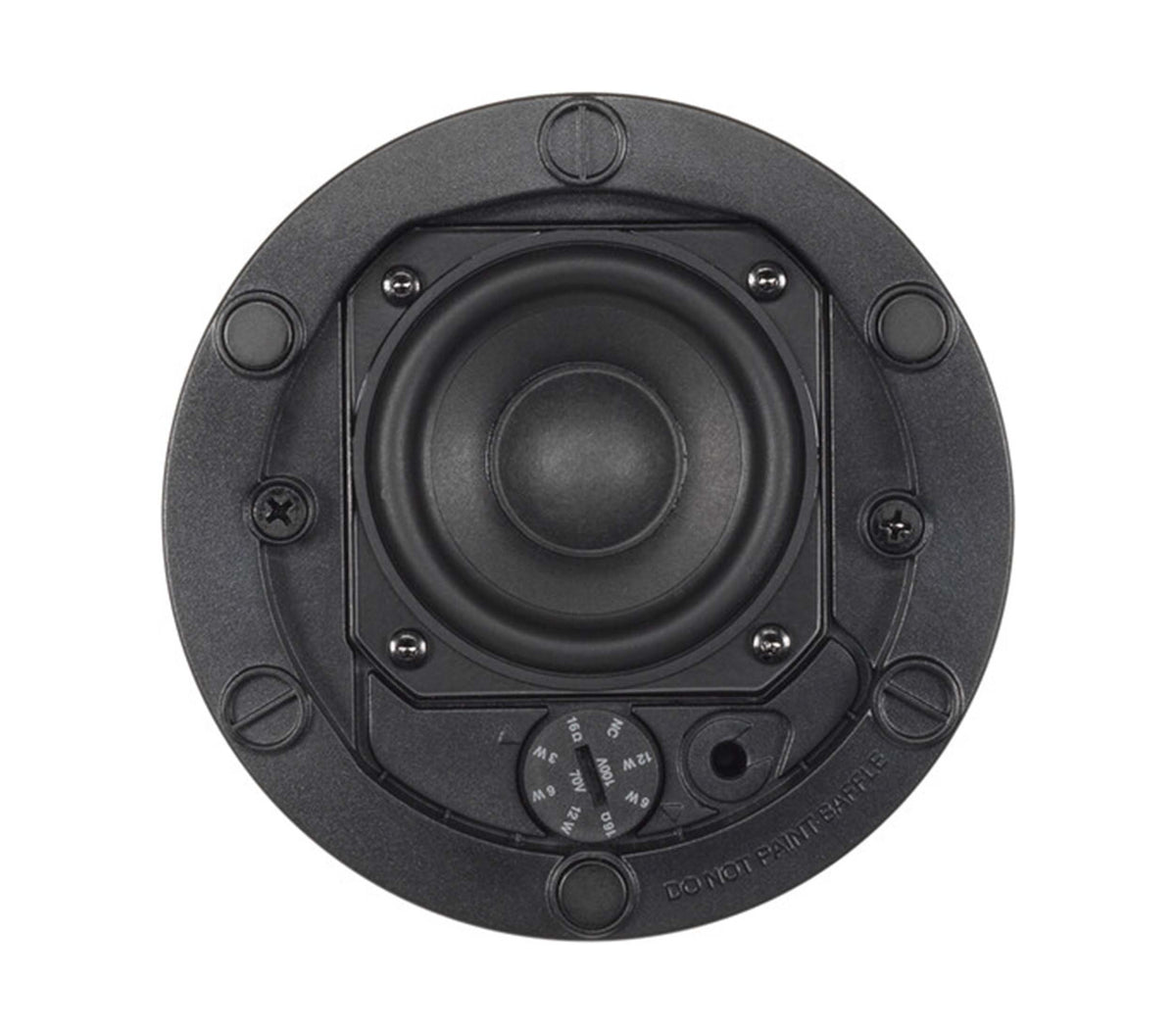

Driver Size: 63.5 mm (2.5")
Driver Type: Full-Range
Enclosure Type: Integrated Ceiling Enclosure
Frequency Range (-10 dB): 130 Hz–20 kHz
Frequency Response (±3 dB): 178 Hz–20 kHz
Power Capacity: 45W Continuous Program (2 hrs) per Speaker
Continuous Pink Noise Power: 22.5W (2 hrs), 15W (100 hrs) per Speaker
Peak Power Handling: 90W (2 hrs), 60W (100 hrs) per Speaker
Sensitivity: 86 dB
Nominal Coverage Angle: 160° Conical
Directivity (Q): 2.9
Directivity Index (DI): 4.6 dB
Rated Maximum SPL @ 1 m: 99.5 dB Continuous Pink Noise, 105.5 dB Peak
Nominal Impedance: 16Ω
Minimum Impedance: 13.3Ω at 570 Hz
Transformer Type: 70V/100V Multi-Tap
70V Transformer Taps: 12W, 6W, 3W
100V Transformer Taps: 12W, 6W
Direct Input: 16Ω Low-Impedance Operation
Recommended High-Pass Filter: 120 Hz, 24 dB/oct LR
Transformer Insertion Loss: 0.7 dB @ 3W, 0.7 dB @ 6W, 0.7 dB @ 12W
Maximum Input Voltage: 17.3V RMS, 34V Peak at 16Ω Input
Grille Type: Full-Face Bezel-Free Magnetic Grille
Grille Safety: Integrated Safety Tether
Cable Entry: Top and Side
Terminal Covers: Captive Hand-Screw Design
Mounting System: Captive Dogear
Ceiling Cutout Size: 104 mm (4.1")
Plenum Installation: Suitable for Most Ceiling Plenum Spaces
Environmental Rating: IP33
Compatible Subwoofer: JBL 440CS/T
Primary Applications: Commercial Spaces, Hotels, Museums, Background Music, Installed Sound
Included Accessories: Mounting Hardware
