Descripción

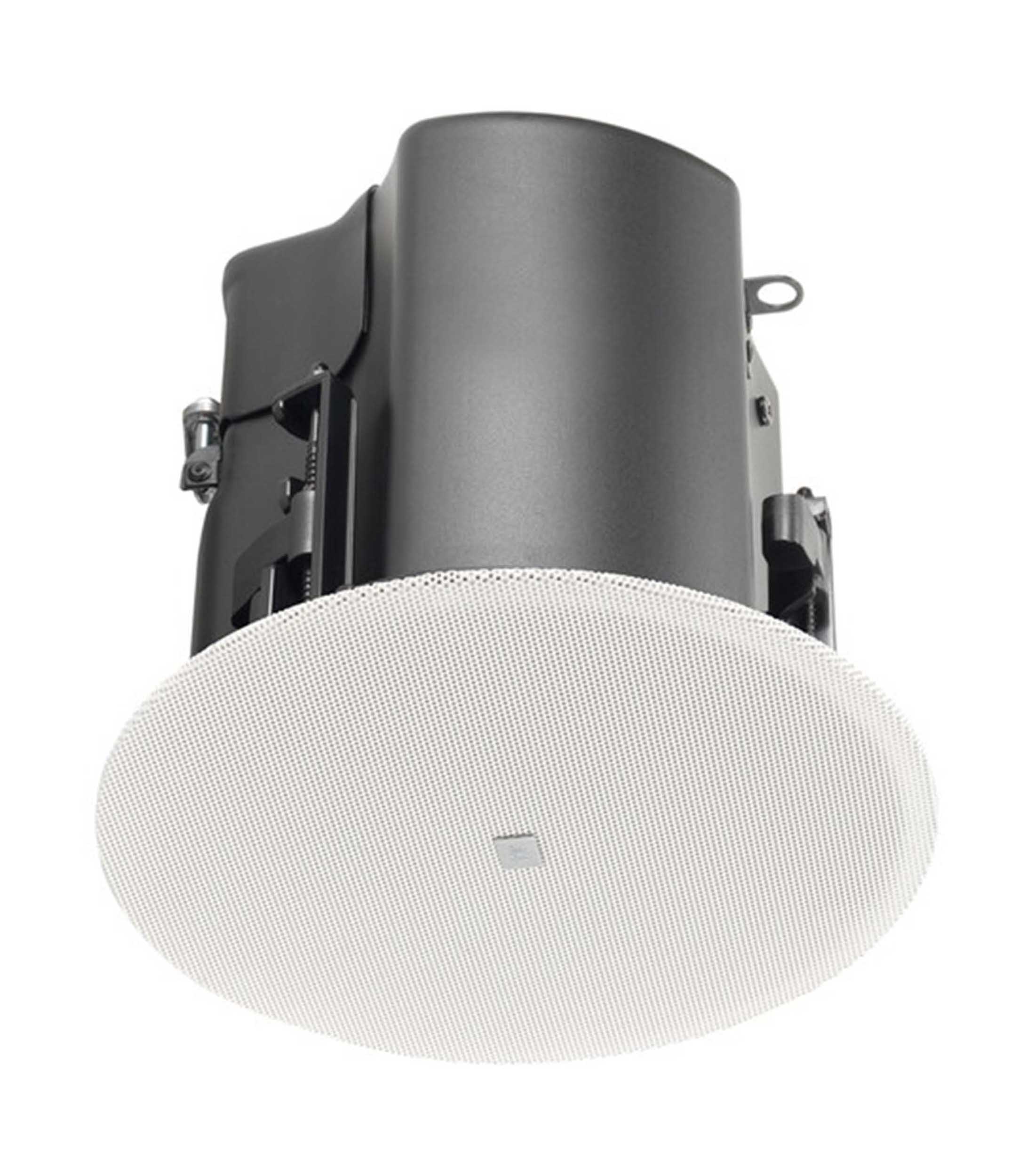

The JBL Control 414C/T is a high-performance two-way in-ceiling loudspeaker designed for commercial and public audio installations. Featuring a 4-inch woofer and a 0.75-inch coaxially mounted soft-dome tweeter, it delivers balanced sound with excellent speech clarity and music reproduction. Its wide 130° conical coverage ensures even audio distribution across large listening areas. The ported enclosure enhances low-frequency response while maintaining natural high-frequency detail. This makes the speaker ideal for retail stores, offices, hotels, restaurants, airports, and educational facilities.
Designed for versatile installations, the Control 414C/T supports both 70V/100V distributed audio systems and 8-ohm direct-drive applications. The built-in 25W multi-tap transformer provides multiple power tap selections with low saturation for clean, distortion-free performance. With 30W RMS, 90W program, and 120W peak power handling, the speaker delivers dependable output for background music and paging systems.
The locking removable 2-pin terminal block provides secure wiring connections, while the paintable bezel-less grille allows the speaker to blend into virtually any ceiling design. Its durable IP33-rated construction offers protection against dust and water for long-term reliability. Optional black and square grilles provide additional installation flexibility. The Control 414C/T combines professional JBL sound quality with dependable performance for commercial audio systems.
Product Specifications:
Product Type: Passive 2-way in-ceiling loudspeaker.
Included Speakers: 2.
Speaker Configuration: 2-way.
Power Handling (RMS): 30 W.
Power Handling (Program): 90 W.
Power Handling (Peak): 120 W.
Constant Voltage Taps (70V): 25 W / 12.5 W / 6.3 W / 3.2 W / 8-ohm bypass.
Constant Voltage Taps (100V): 25 W / 12.5 W / 6.3 W / 8-ohm bypass.
Impedance: 7–8 ohms (paralleled).
Transformer: 25 W multi-tap transformer.
HF Driver: 0.75" (1.91 cm) waveguide-coupled soft-dome tweeter.
LF Driver: 4" (10.2 cm) paper woofer.
Magnet: Neodymium.
Frequency Range: 65 Hz – 20 kHz (-10 dB).
Frequency Response: 83 Hz – 20 kHz.
Maximum SPL: 103 dB continuous / 109 dB peak.
Sensitivity: 86 dB.
Coverage Angle: 130° conical.
Directivity Factor (Q): 4.
Directivity Index (DI): 6 dB.
Protection: Integrated output limiter.
Input Connection: Locking removable 2-pin terminal block (Input/Thru).
Environmental Rating: IP33 dust and water resistant.
Certifications: RoHS.
Operating Temperature: 32°F to 113°F (0°C to 45°C).
Mounting Type: In-ceiling.
Cutout Size: 6.6" (16.8 cm).
Cutout Depth: 7.1" (18 cm).
Construction Materials: ABS, aluminum, paper, polycarbonate, and steel.
Color: Black or White.
Product Weight: 5.5 lbs. (2.5 kg) each.
Product Dimensions (L × W × H): 8.1" × 7.4" × 7.1"
