Descripción
The DiGiCo MOD-SD5-ST is a factory-fit Standard (ST) interface module designed specifically for the SD5 digital mixing console. It enhances the console with professional fiber-optic connectivity for demanding live sound applications. The module integrates directly into the SD5 platform, providing reliable optical communication without altering the familiar workflow. Designed by DiGiCo, it maintains complete compatibility with the console's hardware and software architecture. Its factory-installed design ensures dependable long-term performance. It is an ideal solution for expanding professional audio connectivity.
Reliable ST Fiber Connectivity
The Standard (ST) interface delivers stable, high-speed digital audio transmission over fiber-optic cable. It supports long-distance communication while preserving signal quality and maintaining extremely low latency. Fiber technology minimizes interference, making it ideal for professional touring, broadcast, and installation environments. The ST connector is widely used throughout the audio industry for dependable optical networking. Engineers benefit from consistent performance across complex production systems. This reliable connection supports mission-critical live audio applications.
Seamless SD5 Integration
The MOD-SD5-ST is engineered exclusively for the DiGiCo SD5, ensuring smooth integration with the console's existing architecture. Factory installation provides a fully optimized solution using genuine DiGiCo hardware. The module works seamlessly with compatible DiGiCo stage racks and fiber-based audio systems. Existing workflows remain familiar while adding expanded networking capabilities. The integrated design preserves system stability and operational efficiency. This results in dependable performance for professional productions.
Built for Professional Networks
The ST interface enables the SD5 to become part of large-scale professional fiber networks used in live sound, broadcast, and installed audio systems. High-bandwidth optical communication supports efficient signal transport across extended distances. The scalable architecture allows engineers to build flexible audio systems that grow with production requirements. Stable fiber connectivity ensures consistent operation throughout demanding events. This makes the module well suited for complex audio infrastructures. It provides reliable networking for modern production environments.
Efficient System Performance
Designed for continuous professional use, the MOD-SD5-ST supports fast and dependable communication between connected audio devices. The optical connection helps maintain clean signal transmission while reducing the possibility of electrical interference. Engineers can confidently deploy the system in challenging environments where reliability is essential. The streamlined hardware design integrates naturally with existing SD5 installations. This improves workflow while maintaining premium system performance. It is a practical upgrade for professional audio operations.
Built for Demanding Productions
The MOD-SD5-ST is designed for touring companies, broadcast facilities, theaters, corporate venues, and houses of worship requiring reliable fiber connectivity. Its rugged factory-built construction ensures dependable operation throughout continuous professional use. The module expands the SD5's networking capabilities while maintaining the console's renowned performance and reliability. Flexible integration allows it to support a wide variety of professional audio systems. Engineers can rely on stable optical communication for every production. It is a premium connectivity upgrade for the DiGiCo SD5 digital mixing console.
What’s in the Box:
- Connections: Optics x1 (Same part# for second Loop)
- Connectors: ST
Product Specifications:
Product Type: Factory-Fit Optocore Interface Module
Compatibility: DiGiCo SD5 Digital Mixing Console
Installation Type: Factory-Fit
Networking Technology: Standard (ST) Fiber-Optic Audio Networking
Audio Transport: High-Channel-Count Digital Audio
Transmission Medium: Fiber Optic
Faders: 37 x 100 mm touch-sensitive motorized faders
Main Displays: 3 x 15-inch high-resolution LCD touchscreens

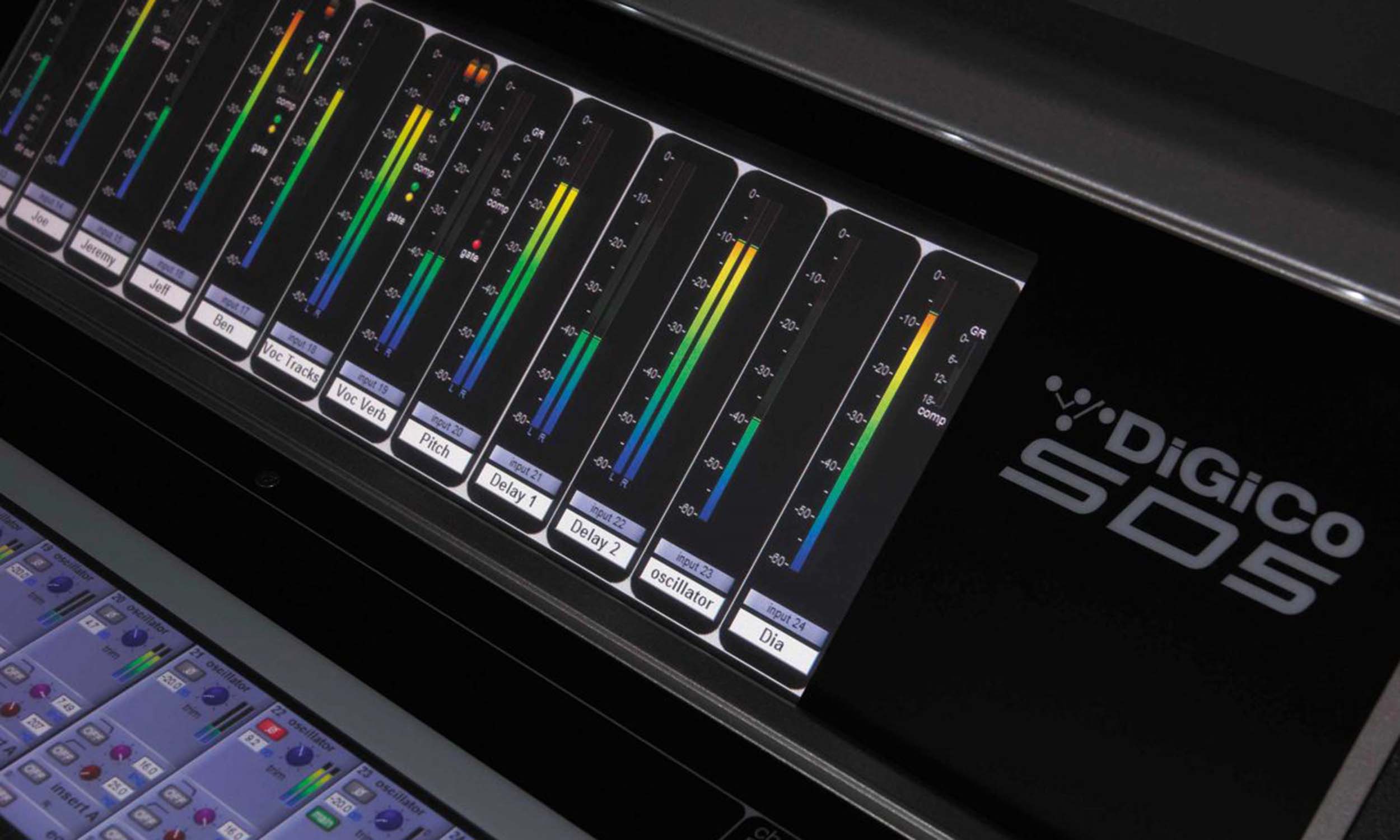

Meterbridge Displays: 2 x custom-mounted high-resolution TFT-LCD screens
Maximum Input Channels: Up to 253
Mix Busses: Up to 128 plus master busses
Master Bus Formats: LR, LCR, and 5.1
Matrix: Up to 24 x 24 with full processing
Control Groups: Up to 36
Graphic EQ: 32 x 32-band, ±12 dB
Internal Effects: Up to 32 stereo effects
Reverbs: Up to 16 floating-point reverbs
Delay/Modulation Effects: Up to 24 delay, chorus, pitch, and enhancer effects
Local Mic/Line I/O: 8 inputs/outputs
Local AES I/O: 8 AES channels
MADI Interfaces: 4 redundant BNC interfaces
Supported Sample Rates: 48 kHz / 96 kHz
GPIO: 2 x D-Sub 37 connectors
External Sync: Word Clock, AES, Video, MADI, and Optics
Internal Processing: Up to 40-bit Floating Point
A/D & D/A Conversion: 24-bit
Processing Delay: 2 ms @ 48 kHz, 1.1 ms @ 96 kHz
Frequency Response: 20 Hz – 20 kHz (±0.6 dB)
Maximum Input Level: +22 dBu
Maximum Output Level: +22 dBu
Microphone Input Noise: Better than -126 dB EIN
Power Requirements: 90–260 VAC, 50/60 Hz
Power Consumption: 532 VA (340 W)
Product Weight: 116 kg (256 lbs.)
Product Dimensions (L × W × H): 32.99" × 57.68" × 18.03"
