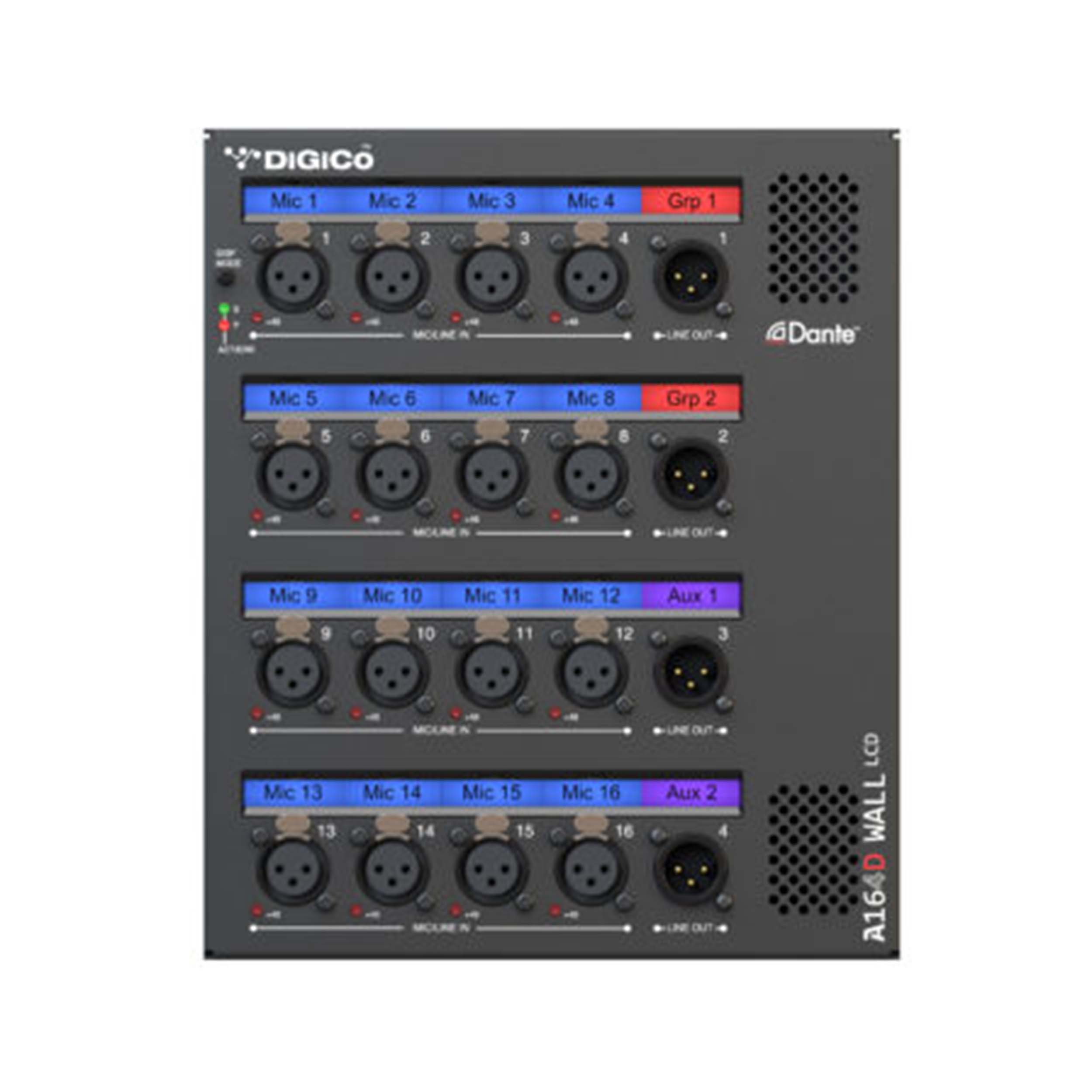

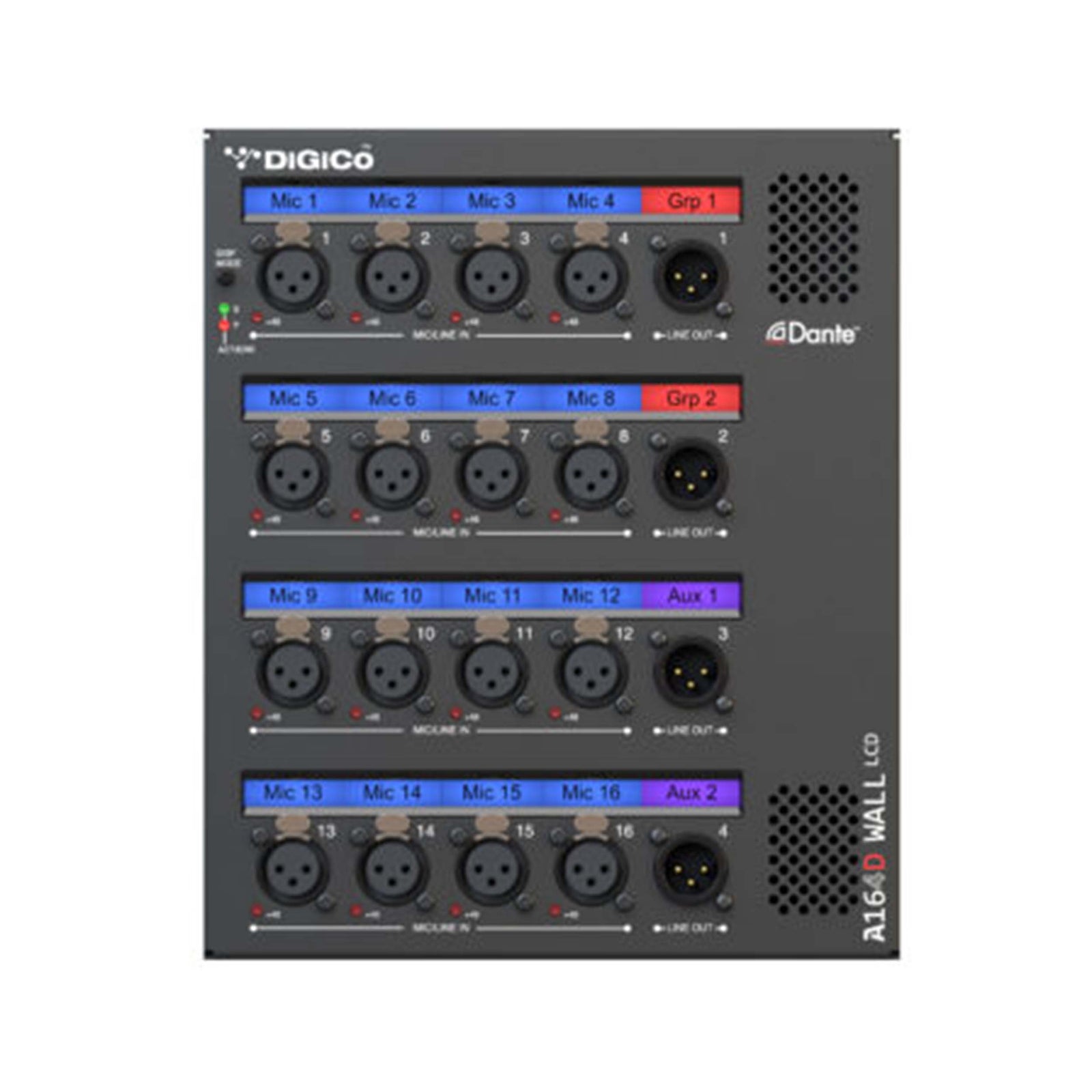

DiGiCo X-A-164D-W-L, A164D WALL LCD 16 Input 4 Output Dante I/O Expander
Pasa el cursor sobre la imagen para ampliarla. Clic en la imagen para aumentar
DiGiCo X-A-164D-W-L, A164D WALL LCD 16 Input 4 Output Dante I/O Expander

DiGiCo X-A-164D-W-L, A164D WALL LCD 16 Input 4 Output Dante I/O Expander
Ahorrar $254.79
DiGiCo
0 reseña
SKU H-DIGI-XA164DWL UPC 5056078701207
Precio:
$4,840.84 $5,095.63
Earn 2420420 points (worth $242.04)
Price Match Guaranteed if we lower the price within 30 days of your purchase, we’ll issue a store credit for the difference. Shop confidently knowing you’ll always get our best price. Free 2nd Day Air Delivery We offer Free 2nd Day Air on most items! Some exceptions apply, including oversized, truss, and stage products. Reward Points Earn 5% Back in HDJ Points on every purchase — use your points toward future gear purchases with us.

2 Day Shipping is Free or heavily discounted on most items! Make sure you select 2nd Day Shipping. We want to ship your order the fastest way possible.

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we can help.

We price match competitor advertised prices.

Our online prices are always honored instore guaranteed.

Hassle Free Financing Available

Get the gear you need now with Financing options. As an artist or sound professional your business needs high speakers, lighting and cases to do your job, be professional and competitive.

Choose Shop Pay or After Pay in checkout for instant financing. We also offer Accima, Synchrony, Progressive or Snap financing just give us a call 1-800-700-4542.

Descripción

The DiGiCo X-A-164D-W-L is a 16 input and 4 output I/O expander designed to provide fixed local connectivity for remote performance and installation areas. It combines 16 mic/line inputs and 4-line outputs with Dante networking for flexible digital audio distribution. Integrated S-LCD displays provide intelligent labeling and visual feedback, while customizable and dimmable LCD labels can be configured using 4REA4 software.

Flexible Remote I/O

The X-A-164D-W-L provides 16 microphone-line inputs and 4-line outputs for convenient local audio connectivity. It is designed for remote performance areas where accessible fixed I/O is required.

Dante Network Connectivity

Built-in Dante connectivity allows the unit to integrate with compatible Dante audio networks. AES67 compatibility further expands its suitability for professional networked audio installations.

Intelligent LCD Feedback

Integrated S-LCD displays provide clear channel labeling and visual feedback. Labels can be customized and dimmed through 4REA4 software, allowing the unit to be tailored to different installation requirements.

Professional Microphone Inputs

The 16 XLR microphone inputs provide integrated microphone preamps and phantom power. Individual phantom power status LEDs provide clear visual indication during operation.

Flexible Installation

The unit can be mounted on a wall or positioned for floor-mounted applications. Its fixed I/O design makes it suitable for performance spaces, conference environments, installed audio systems, and other professional applications.

Product Specifications:

Product Type: Wall Mounted I/O Expander

Input Channels: 16

Output Channels: 4

Input Type: Mic/Line

Microphone Inputs: 16x XLR

Line Outputs: 4x XLR

Microphone Preamps: 16

Phantom Power: Yes

Phantom Power Indicators: Status LEDs

Network Connectivity: Dante

Network Audio Compatibility: AES67

Display Type: S-LCD

LCD Labels: Customizable and Dimmable

LCD Configuration: 4REA4 Software

Mounting Options: Wall or Floor Mounting

Application: Remote Performance Areas and Fixed Local I/O

Audio Networking: Dante and AES67

Software Compatibility: DiGiCo 4REA4

Product Weight: 6.6 lbs.

Product Dimensions (L × W × H): 15.7" × 7.9" × 3.9"

Shipping Weight: 8 lbs.

Shipping Dimensions (L × W × H): 19" × 12" × 7"
