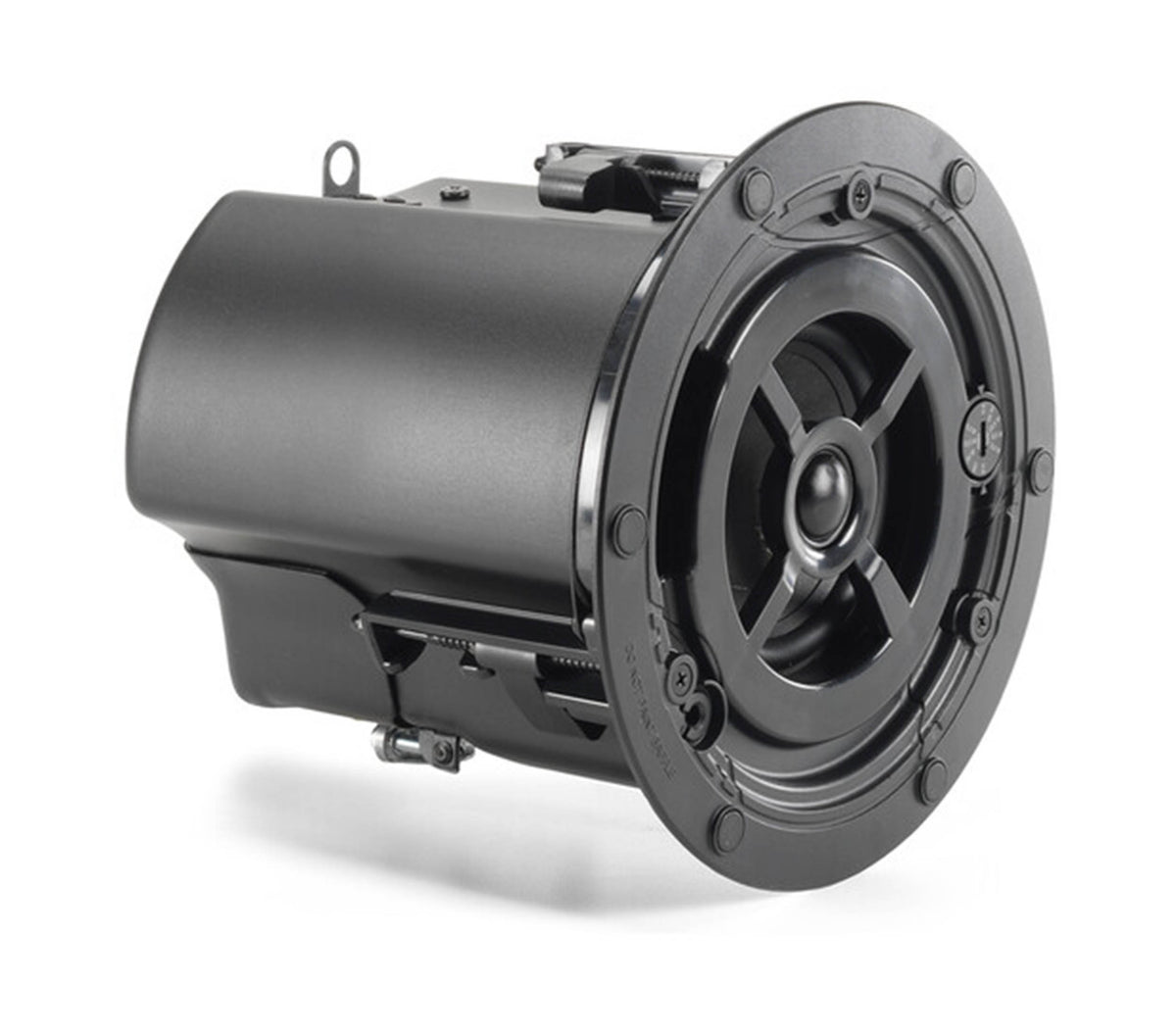

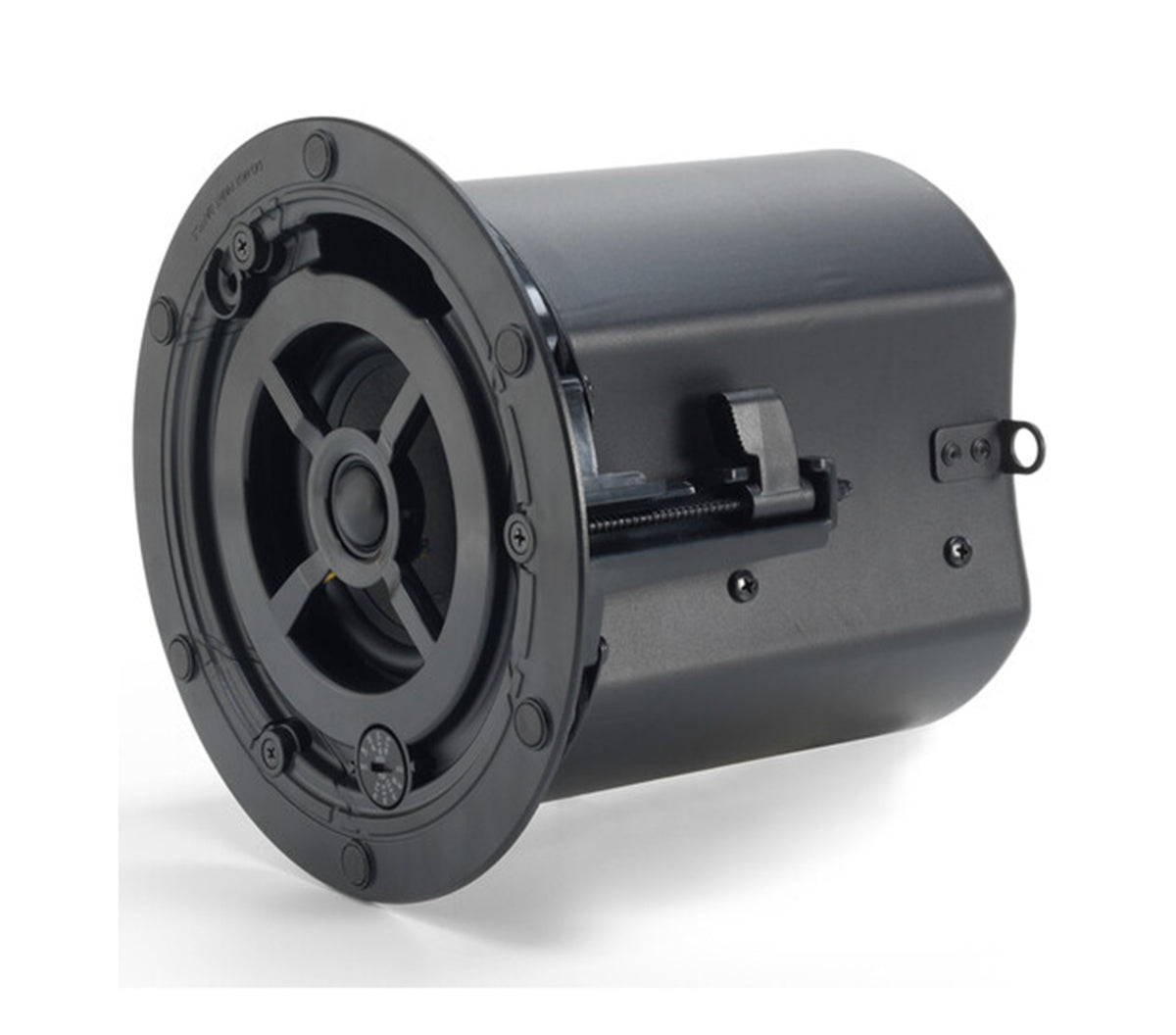

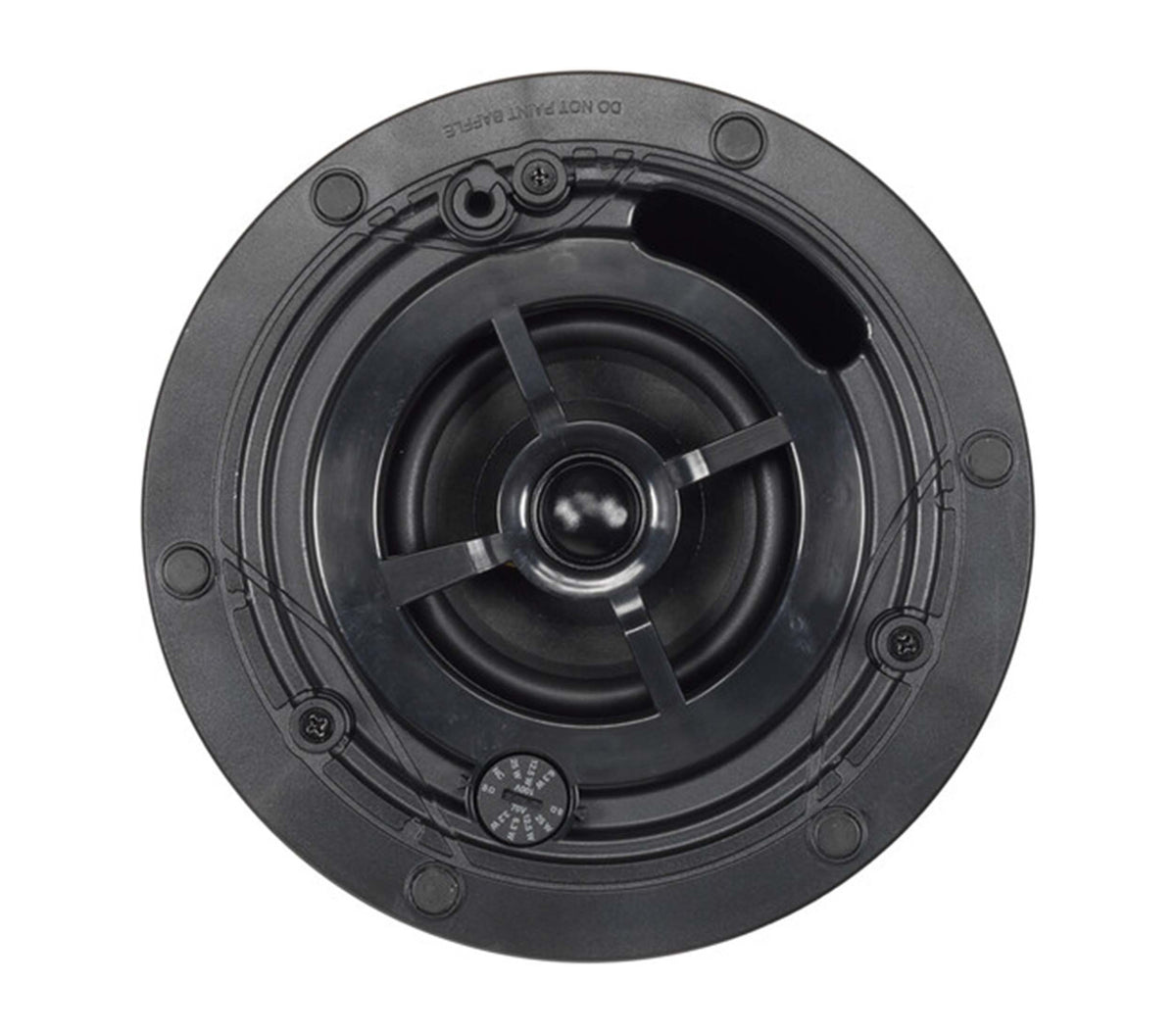

The JBL Control 414C/T is a two-way coaxial ceiling loudspeaker from JBL's Control 400 Standard Coverage Series, featuring a 4-inch woofer and 0.75-inch soft-dome tweeter mounted coaxially for balanced full-range sound reproduction. This listing includes two speakers, each with an integrated enclosure and pre-attached backcan designed for fast installation in commercial and architectural ceiling environments.
Flexible 70V/100V & 8Ω Operation
Each Control 414C/T supports both distributed 70V/100V systems and low-impedance 8Ω operation, providing installation flexibility across a variety of commercial audio applications. Its integrated 25W multi-tap transformer offers selectable 70V taps of 25W, 12.5W, 6.3W and 3.2W, while 100V operation provides 25W, 12.5W and 6.3W taps. The direct 8Ω input supports up to 30W continuous power and 120W peak performance.
Wide Coverage & High-Fidelity Sound
With a 65 Hz–20 kHz frequency range, 86 dB sensitivity and 130° conical coverage, the Control 414C/T delivers consistent sound throughout the listening area. The two-way driver configuration combines a paper-cone woofer with a soft-dome tweeter to provide detailed high-frequency response and controlled full-range reproduction for music, paging and business audio systems.
Professional Commercial Applications
The two-speaker package is well suited for cafés, retail stores, hotels, airports, reception areas, lounges, courtrooms, convention centers, educational facilities, business music systems and other professional commercial spaces. With an IP33 rating and suitability for air-handling spaces, the Control 414C/T provides a versatile solution where reliable sound quality, flexible system integration and clean ceiling aesthetics are required.
Product Specifications:
Package Quantity: 2 Speakers
Product Type: Two-Way Coaxial In-Ceiling Loudspeaker 2-Pack
Series: Control 400 Standard Coverage Series
Woofer Size: 4" (100 mm) Each
Tweeter Size: 0.75" (20 mm) Each
Driver Configuration: Two-Way Coaxial
Woofer Type: Paper Cone with SBR Surround
Tweeter Type: Soft-Dome Tweeter

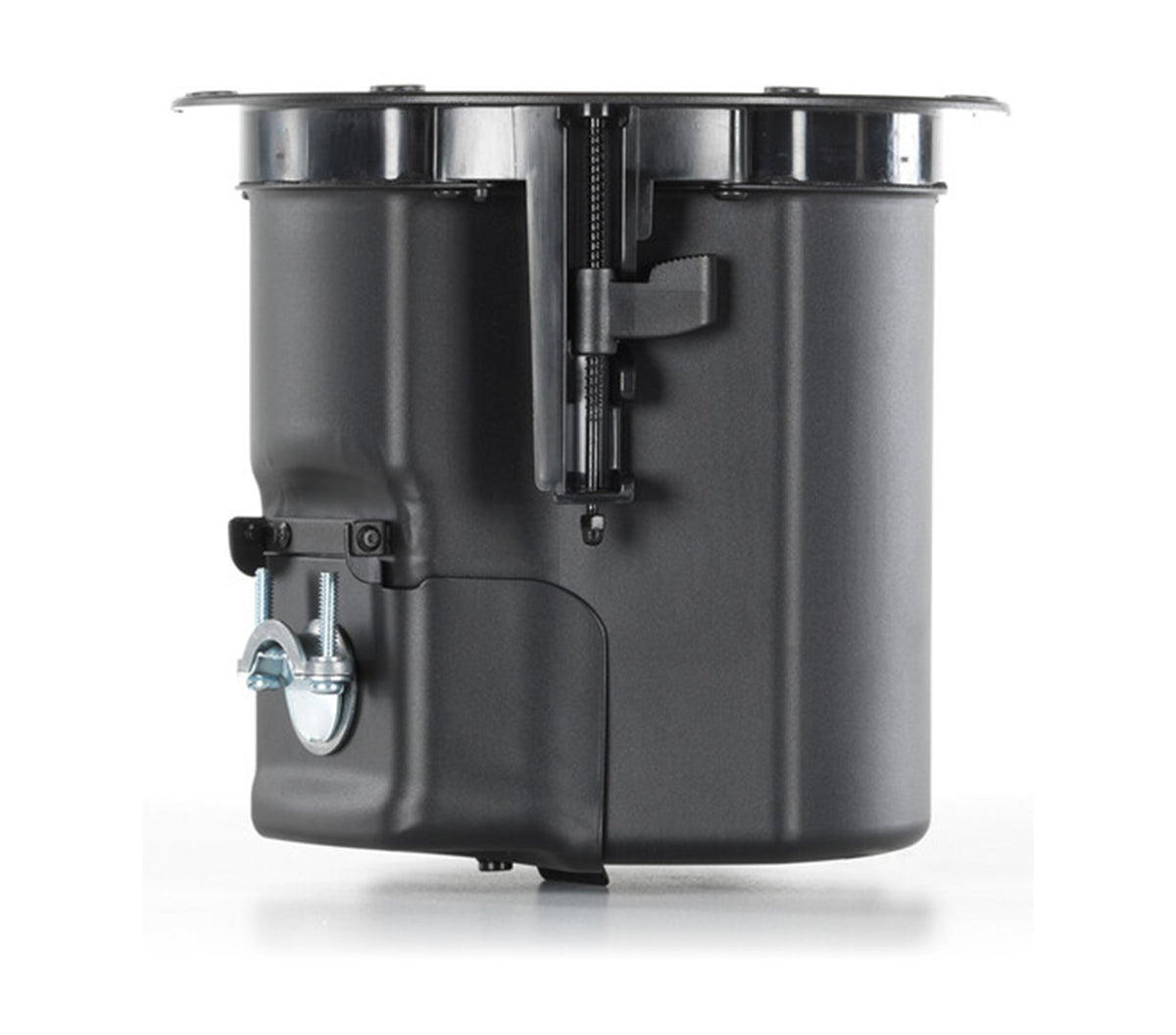

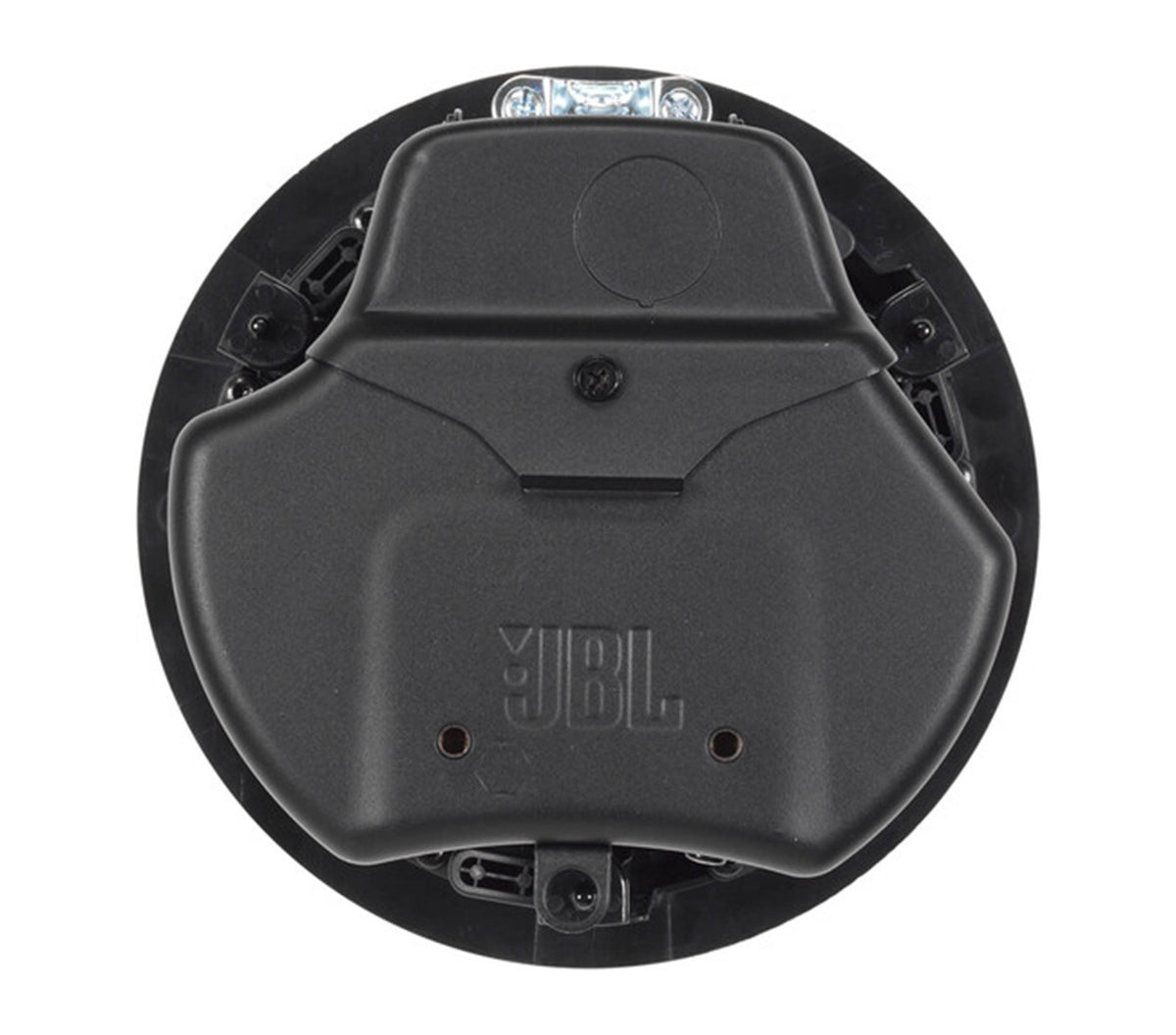

Enclosure: Integrated Backcan / Ported Baffle
Frequency Range: 65 Hz – 20 kHz (-10 dB)
Power Capacity: 45W Continuous, 180W Peak Each
Long-Term Power Capacity: 30W Continuous, 120W Peak Each
Sensitivity: 86 dB (1W/1m)
Maximum SPL: 103 dB Continuous, 109 dB Peak at 1m
Coverage Angle: 130° Conical
Nominal Impedance: 8Ω
Transformer Power: 25W Each
70V Transformer Taps: 25W, 12.5W, 6.3W, 3.2W
100V Transformer Taps: 25W, 12.5W, 6.3W
Low-Impedance Operation: 8Ω Direct Input
Direct Input Power: 30W Continuous, 120W Peak

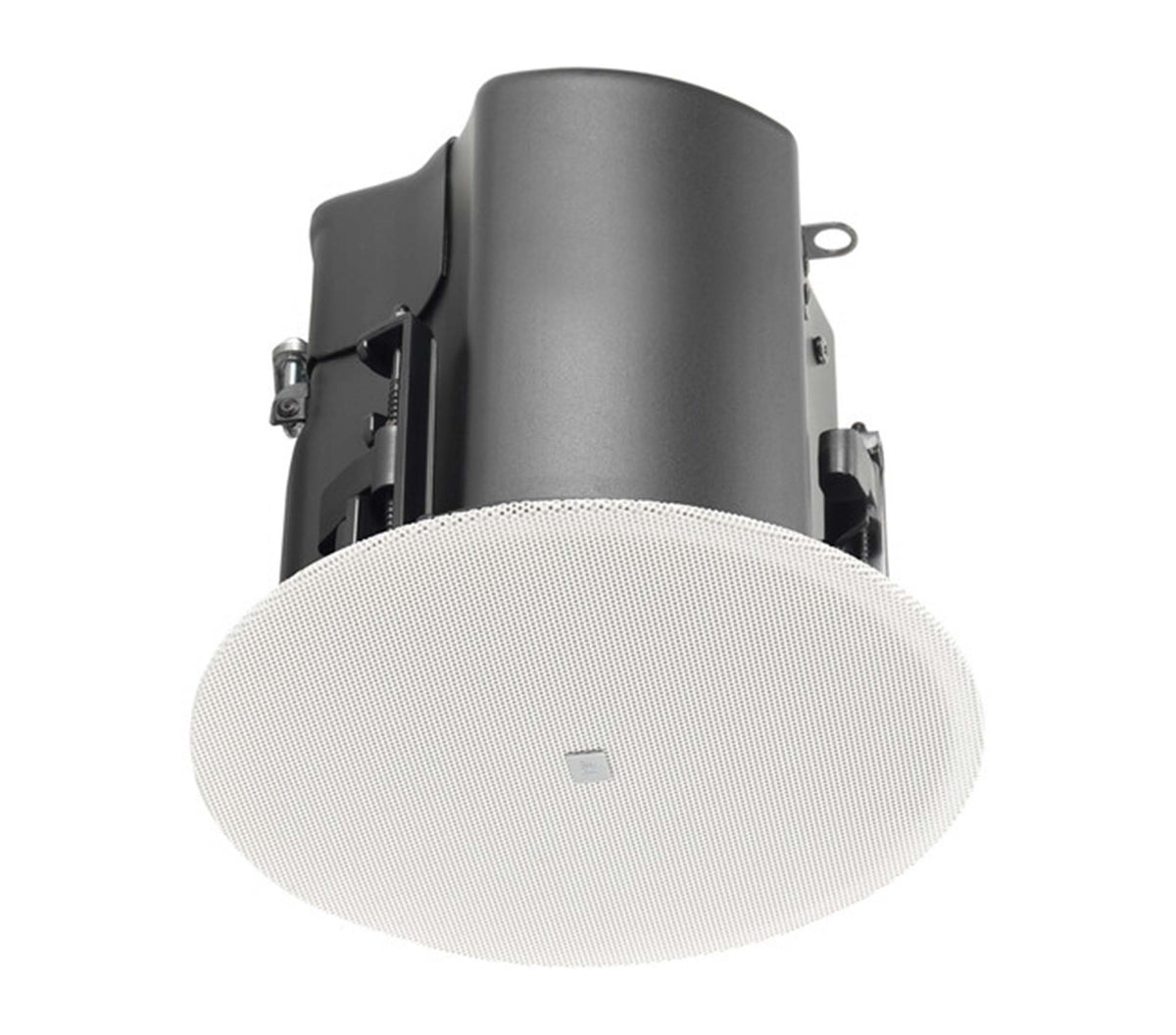

Grille Type: Full-Face Bezel-Less Magnetic Grille
Grille Attachment: Magnetic with Safety Tether
Grille Options: Black Round, White Square, White Weather Grille
Cable Entry: Top and Side Entry
Mounting System: Captive Dogear Mounting
Ceiling Compatibility: Wide Range of Ceiling Thicknesses
Ceiling Cutout Size: 6.6" (168 mm) Each
Backcan Depth: 7.1" (177 mm) from Bottom of Ceiling Tile
Safety Agency Rating: Suitable for Use in Air-Handling Spaces
Safety Standards: UL 2043, NFPA 90A, NFPA 70, CSA C22.2 No. 205
Commercial Speaker Listing: UL 1480A
Transformer Certification: UL Registered Transformer
Environmental Rating: IP33 per EN/IEC 60529
Operating Temperature: 0°C to 45°C
Included Installation Components: 2 × Grilles, 2 × Integral Backcans, C-Rings and Tile Rails
Application: Commercial, Retail, Hospitality, Educational, Transportation, Architectural and Paging Audio Systems
