The Audio-Technica ATW-3212-C510EE1 is a professional handheld wireless microphone system from the fourth-generation 3000 Series, designed for presenters, lecturers, clergy, vocalists, performers, and production professionals. The system combines a rack-mountable receiver with a handheld transmitter fitted with the ATW-C510 dynamic cardioid microphone capsule. Its UHF operating band, true-diversity reception, and wide tuning range help provide reliable wireless performance for business presentations, educational facilities, houses of worship, live stages, and permanent installations.

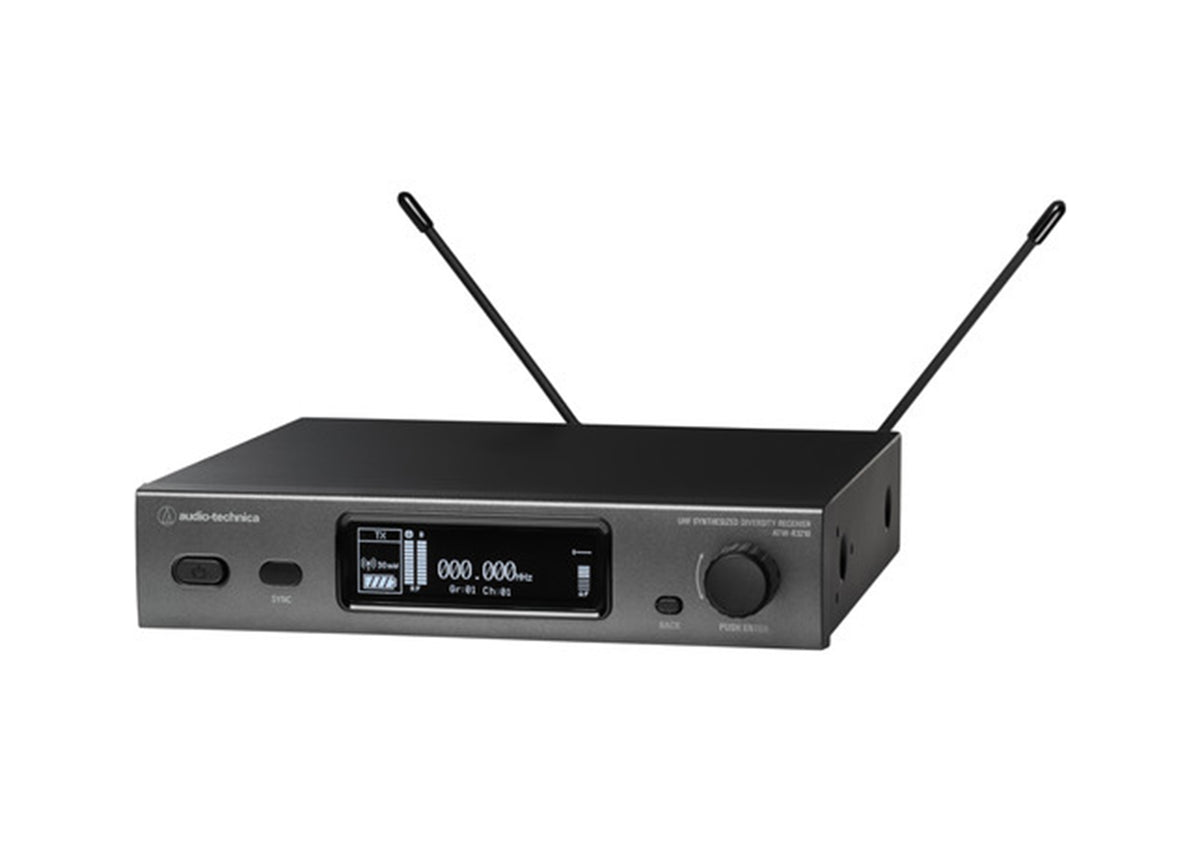

The receiver offers automatic frequency scanning to help locate a suitable operating frequency, along with a dual-mode OLED display for monitoring RF signal strength, operating frequency, mute status, audio modulation, and transmitter battery information. Infrared synchronization simplifies transmitter setup, while the backup-frequency function allows users to prepare an alternate channel for quick switching if interference occurs. The receiver's balanced XLR and unbalanced 1/4-inch outputs support connection to mixers, PA systems, and other compatible audio equipment.

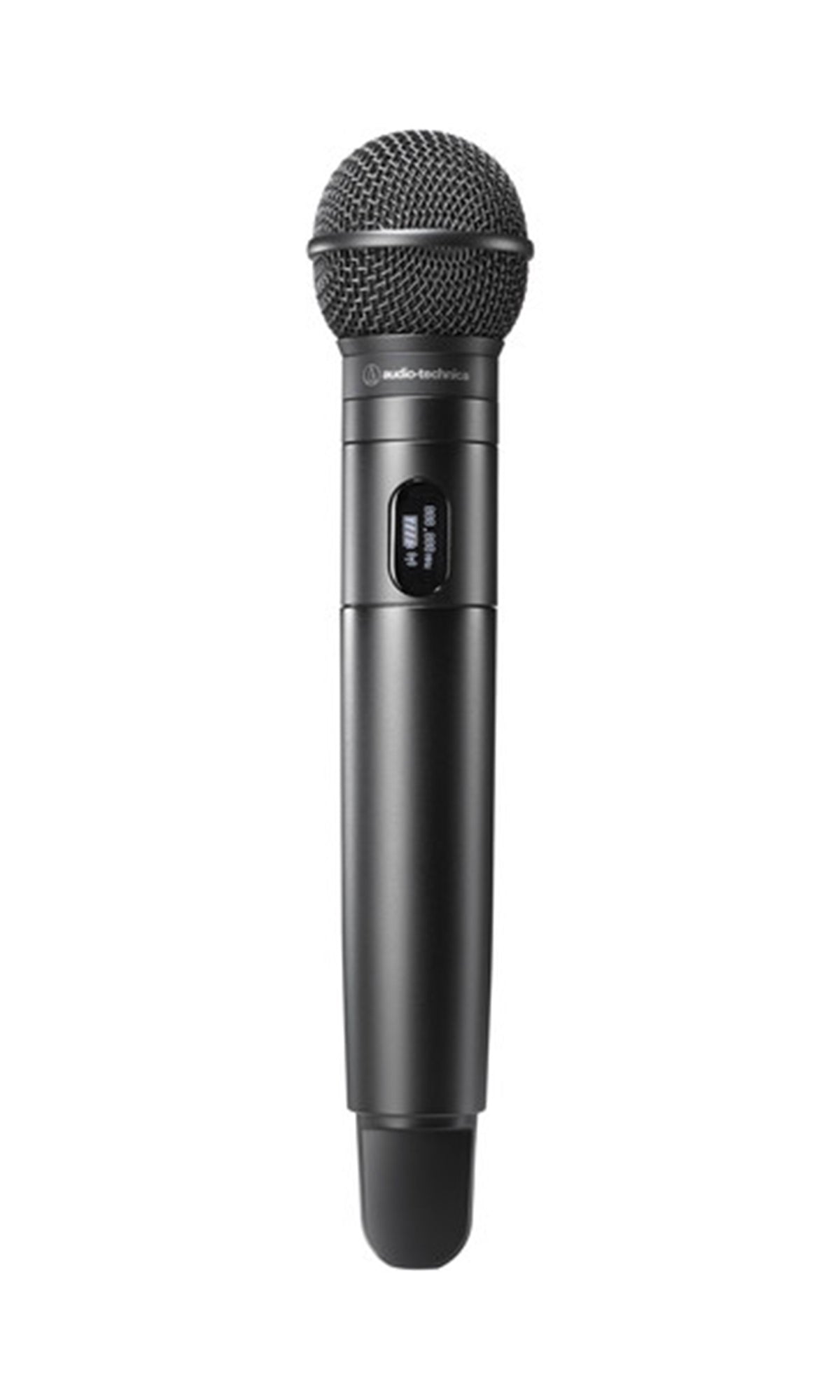

The included ATW-T3202 handheld transmitter features an interchangeable capsule connection and the ATW-C510 cardioid dynamic capsule, designed for natural vocal reproduction and rejection of unwanted off-axis sound. Adjustable transmitter gain, a programmable multifunction button, and selectable 10 mW or 30 mW RF output provide flexibility for different operating environments. The receiver features a rugged metal chassis and half-rack mounting design, while the transmitter's metal construction and locking battery compartment are suited to regular professional use. Two AA batteries are required for the transmitter and are sold separately.

Key Features

• Professional UHF wireless microphone system with true-diversity reception.
• Includes ATW-R3210 receiver and ATW-T3202 handheld transmitter with ATW-C510 capsule.
• Interchangeable microphone capsule design for flexible vocal applications.
• Wide 60 MHz tuning bandwidth with band-dependent selectable frequencies.
• Automatic frequency scanning for interference-conscious channel selection.
• Switchable 10 mW and 30 mW RF output power.
• Up to 100 m (328 ft) operating range in open environments.
• OLED receiver display with detailed RF and audio monitoring.
• Infrared synchronization between receiver and transmitter.
• Half-rack receiver with included rack-mount hardware.

Ideal For

• Live vocal performances.
• Presentations and public speaking.
• Houses of worship.
• Educational institutions and lecture halls.
• Conferences and corporate events.
• Stage performances and entertainment venues.
• Permanent installations and portable PA systems.

What's in the Box

• 1 × Audio-Technica ATW-R3210 receiver.
• 1 × Audio-Technica ATW-T3202 handheld transmitter.
• 1 × Audio-Technica ATW-C510 dynamic cardioid microphone capsule.
• 2 × Flexible UHF antennas.
• 1 × AC power adapter.
• 1 × Half-rack mounting hardware kit.

Inputs & Outputs

• Receiver XLR Output Balanced 3-pin XLR audio output.
• Receiver 1/4-Inch Output Unbalanced 6.3mm audio output.
• Receiver Antenna Inputs Two rear-mounted BNC antenna connections.
• Transmitter Capsule Connection Interchangeable microphone capsule connector.
• Transmitter Controls Adjustable gain and programmable multifunction mute/backup-frequency button.
• Synchronization Infrared receiver-to-transmitter synchronization.
• RF Output Selectable 10 mW or 30 mW.
• Receiver Ground Lift Ground-lift switch for helping reduce audible ground-loop hum.

Frequently Asked Questions

What microphone capsule is included?

The system includes the ATW-C510 dynamic cardioid microphone capsule, designed for speech and vocal applications.

What is the operating range?

The specified maximum operating range is approximately 328 feet (100 meters) in an open environment without interfering signals. Actual performance depends on the venue and RF conditions.

Can the transmitter use other microphone capsules?

Yes. The handheld transmitter uses an interchangeable capsule connection and supports compatible Audio-Technica capsules and compatible third-party capsules.

Does the system support rack mounting?

Yes. The receiver is a half-rack unit and includes rack-mount adapters and hardware.

What are the RF power settings?

The transmitter supports selectable low output at 10 mW and high output at 30 mW.

How many systems can operate together?

The supplied specifications indicate up to 40 simultaneous channels per frequency band, subject to regional restrictions and frequency coordination.

Are batteries included?

No. The handheld transmitter requires two AA batteries, which must be purchased separately.

Full Technical Specifications

General Specifications

Product Series	Audio-Technica 3000 Series, 4th Generation
System Configuration	Wireless handheld microphone system
Receiver Model	ATW-R3210
Transmitter Model	ATW-T3202
Included Microphone Capsule	ATW-C510
Wireless Technology	Analog UHF
Modulation	FM
Diversity	True diversity
Operating Range	Up to 100 m (328 ft), open environment
Frequency Step	25 kHz
Maximum Simultaneous Channels	Up to 40 per band, subject to region and coordination
Dynamic Range	115 dB, as listed in the supplied product overview
Total Harmonic Distortion	Less than 1.0% at 1 kHz, ±17.5 kHz deviation
Operating Temperature	23°F–113°F (-5°C–45°C)

Receiver Specifications

Model		ATW-R3210
Receiver Type		Tabletop / rack-mountable
Receiving System		True diversity
Antennas		2 removable external UHF antennas
Antenna Connections		BNC, 50 ohms
Antenna Power		12V DC, 160 mA combined
RF Sensitivity		20 dBµV at 60 dB signal-to-noise ratio, 50-ohm termination
Image Rejection		60 dB nominal
Maximum Balanced Output		+14 dBV, XLR
Maximum Unbalanced Output		+8 dBV, 6.3mm (1/4-inch)
Audio Outputs		1 × balanced XLR; 1 × unbalanced 1/4-inch
Gain Range		-60 to 0 dB, in 2 dB steps
Frequency Response		25 Hz–16.7 kHz, depending on microphone
Display		Dual-mode OLED
Frequency Scanning		Automatic
Synchronization		Infrared
Power Supply		100–240V AC, 50/60 Hz to 12V DC, 1A
Adapter Polarity		Center-positive

Handheld Transmitter Specifications

ATW-T3202 Without Capsule Dimensions	7.60 inches long × 1.46 inches maximum diameter
ATW-T3202/C510 Dimensions	10.43 inches long × 2.13 inches maximum diameter
ATW-T3202/C710 Dimensions	10.67 inches long × 1.97 inches maximum diameter
ATW-T3202 Without Capsule Weight	7.1 oz (200 g), without batteries
ATW-T3202/C510 Weight	11.6 oz (330 g), without batteries
ATW-T3202/C710 Weight	11.1 oz (314 g), without batteries
Battery Compartment	Locking door
Charging Compatibility	Optional ATW-CHG3 or ATW-CHG3N charging dock with compatible rechargeable AA NiMH batteries

Included Microphone Capsule Specifications

Model	ATW-C510
Type	Dynamic handheld microphone capsule
Polar Pattern	Cardioid
Intended Application	Speech and vocal reproduction
Capsule Design	Interchangeable
Color	Black

Physical Specifications

Receiver Dimensions (W × D × H)	8.27 × 7.52 × 1.71 inches
Receiver Weight	2.43 lbs (1,100 g), without accessories
Package Weight	5.765 lbs
Box Dimensions (L × W × H)	15.2 × 12.7 × 4.05 inches
