Description

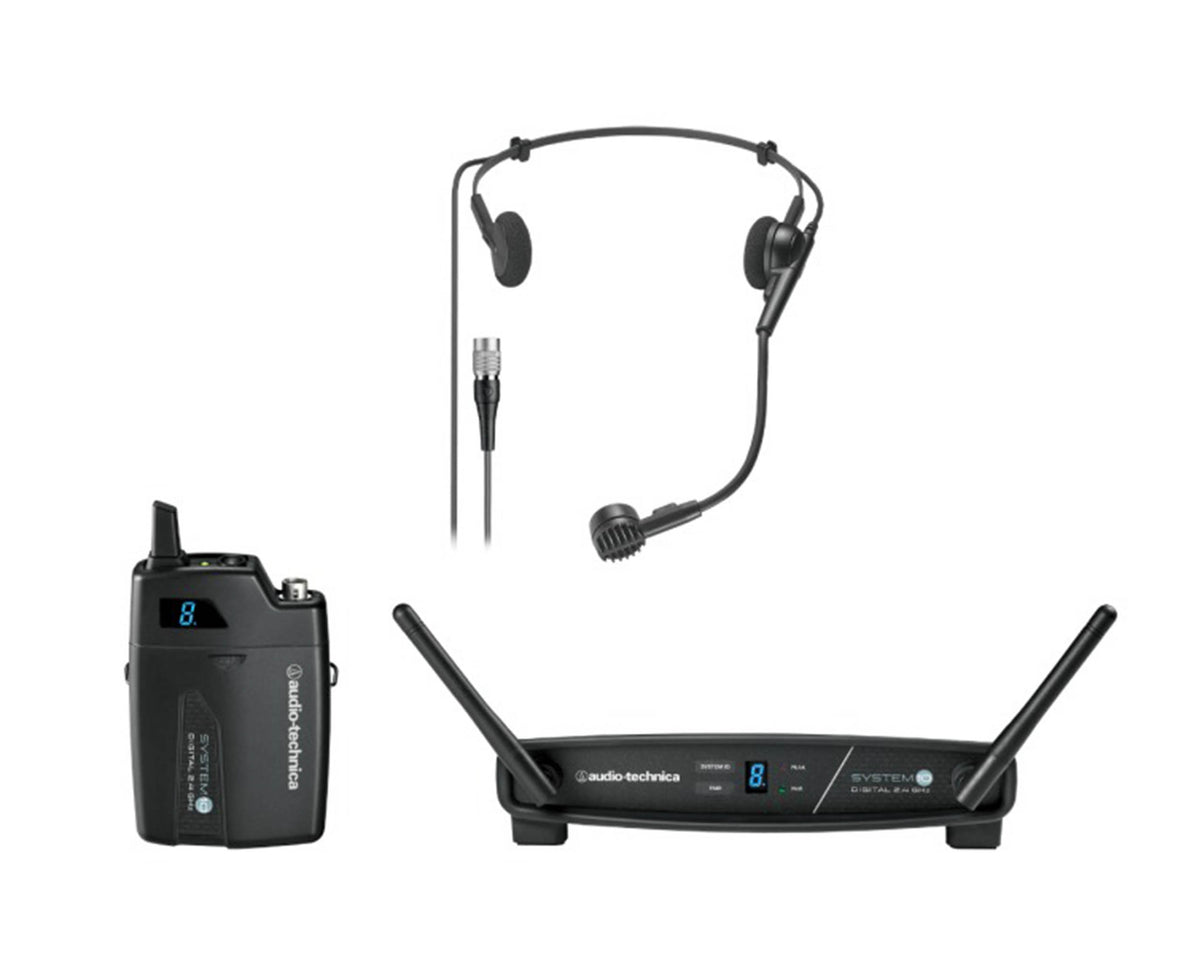

The Audio-Technica ATW-1101/H System 10 Digital Wireless Headset Microphone System delivers clear digital audio and convenient hands-free operation for presentations, lectures, live performances, conference rooms, educational facilities, and houses of worship. The system includes an ATW-R1100 tabletop receiver, a bodypack transmitter, and a PRO 8HEcW dynamic headset microphone. Operating in the 2.4 GHz ISM band, it combines straightforward setup with reliable wireless performance for speech-focused applications.
Clear Digital Audio and Reliable Wireless Reception
The System 10 transmits 24-bit/48 kHz digital audio and features triple-diversity reception using space, time, and frequency diversity to help maintain signal integrity. Automatic frequency selection identifies a suitable operating frequency, while the system monitors the 2.4 GHz band and can switch frequencies to help avoid interference. The receiver provides balanced XLR and unbalanced 1/4-inch TS audio outputs, along with front-panel LED indicators and a System ID display for convenient monitoring.
Comfortable Headset and Flexible Bodypack Operation
The included PRO 8HEcW dynamic headset microphone features a hypercardioid polar pattern for focused pickup, a low-visibility headband, cushioned support pads, and a flexible boom that can be positioned on either side. The lightweight bodypack transmitter features a locking 4-pin Hirose cW-style microphone input, adjustable input trim, and a power switch that also functions as a mute control. Powered by two AA batteries, the transmitter provides approximately 7 hours of operation with alkaline batteries under specified conditions, with a typical line-of-sight range of up to 100 feet.
Product Specifications:
Product Type: Digital Wireless Headset Microphone System
Wireless Technology: Digital 2.4 GHz
RF Frequency Band: 2400–2483.5 MHz
Audio Resolution: 24-Bit / 48 kHz
Diversity: Space, Time, and Frequency Diversity
Maximum Operating Range: 100 ft (30.5 m), Line of Sight
Receiver Antennas: 2 Fixed External Front-Mount Antennas
Receiver Power Supply: 12 VDC, 0.5 A, Center-Positive Adapter
Power Input: 100–240 VAC, 50/60 Hz
Included Transmitter: 1 Bodypack Transmitter
Transmitter RF Output Power: 10 mW
Transmitter Battery Type: 2 × AA Batteries (Not Included)
Transmitter Battery Life: Approximately 7 Hours with Alkaline Batteries
Microphone Frequency Response: 200 Hz–18 kHz
Microphone Sensitivity: -55 dB
Microphone Connector: Hirose cW-Style 4-Pin Female
Microphone Color: Black
Receiver Dimensions (W × H × D): 7.5 × 1.8 × 5.1 Inches
Transmitter Dimensions (W × H × D): 3.1 × 2.2 × 0.7 Inches
Microphone Dimensions: 3.2 × 0.8 Inches
Package Weight: 2.35 lbs
Box Dimensions (L × W × H): 13.8 × 10.9 × 4.3 Inches
