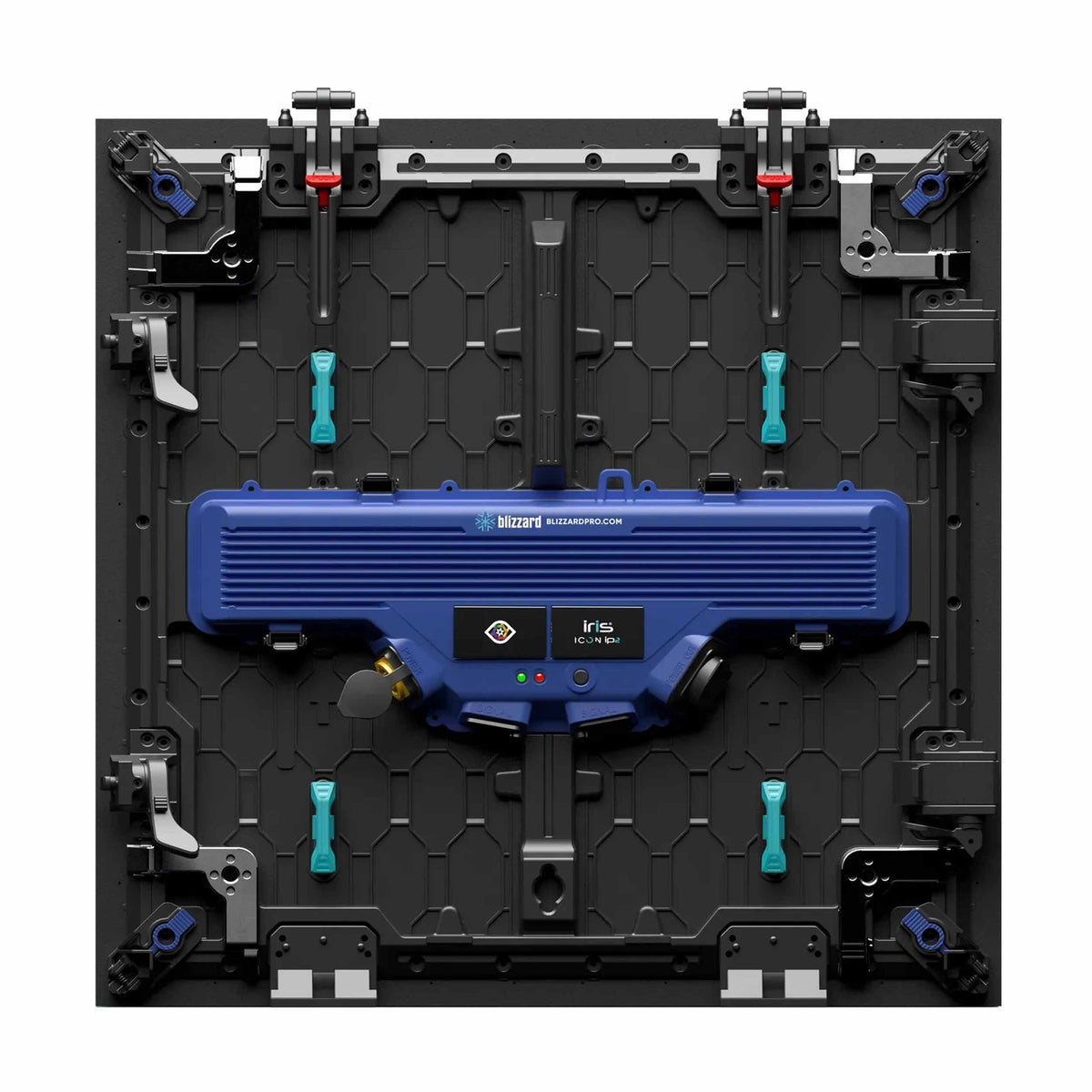

The Blizzard Lighting IRiS ICON IP2 is a high-brightness LED video wall panel designed for professional indoor and outdoor display applications. Featuring a fine 2.9mm pixel pitch, 4500-nit brightness, 168 × 168 pixel resolution, and a refresh rate of at least 3,840Hz, it delivers detailed and smooth visuals for large-format video walls, live events, stages, corporate productions, and other multipurpose installations.

Built around NovaStar A8s-N receiving cards, the ICON IP2 supports HDR10-Optima and HLG, automatic module calibration, image rotation, and advanced 3-in-1 SMD LED technology. Its 14-bit color depth and 14-bit grayscale provide detailed image reproduction, while ±6° curvature allows flexible creative configurations.

Quick-thumb locks, blackout gaskets, retractable corner protectors, and ground support locks simplify setup and transportation, while front and rear service access makes maintenance easier.

Key Features

• 9mm pixel pitch with 168 × 168 pixel resolution.
• 4500-nit brightness for high-visibility applications.
• ≥3,840Hz refresh rate for smooth video reproduction.
• 14-bit color depth and 14-bit grayscale.
• HDR10-Optima and HLG support.
• NovaStar A8s-N receiving card.
• Optional Brompton processing compatibility.
• IP65 front and IP54 rear protection.
• ±6° curvature capability.
• Front and rear service access.
• Quick-thumb locking and blackout gaskets.
• 100,000-hour LED lifespan.

Ideal For

• Outdoor LED video walls.
• Concerts and live events.
• Stage and theatrical productions.
• Corporate events and presentations.
• Trade shows and exhibitions.
• Broadcast and production environments.
• Houses of worship.
• Large-format commercial displays.

What’s in the Box

• IRiS ICON IP2 LED Video Wall Panel.

Inputs & Outputs

• Receiving Card NovaStar A8s-N.
• Video Processing Compatible with connected LED display processing systems.
• Data Connection LED display data through the receiving card.

Frequently Asked Questions

What is the pixel pitch of the IRiS ICON IP2?

The ICON IP2 features a 2.9 mm pixel pitch with a panel resolution of 168 × 168 pixels.

How bright is the ICON IP2?

It delivers 4500 nits of brightness for high-visibility performance in demanding environments.

Is the ICON IP2 suitable for outdoor use?

Yes. It has an IP65 rating on the front and IP54 on the rear for outdoor applications.

Does the ICON IP2 support HDR?

Yes. It supports HDR10-Optima and HLG for enhanced image quality and dynamic range.

What is the refresh rate of the ICON IP2?

The panel provides a refresh rate of at least 3,840 Hz for smooth video playback.

What are the panel dimensions and weight?

Each panel measures approximately 19.7 × 19.7 × 3.15 inches and weighs 16.6 lbs.

Full Technical Specifications

Panel Specifications

Pixel Pitch	2.9 mm
Brightness	4500 Nit
Panel Resolution	168 x 168
Pixel Density	112,896 Dots/m²
Color Depth	14 Bit
Grayscale	14 Bit
HDR	HDR10-Optima / HLG
LED Configuration	SMD 1415
Refresh Rate	≥3,840 Hz
Scan Mode	1/21S
Receiving Card	NovaStar A8s-N, customizable with Brompton processing
Curvature	±6°
IP Rating	IP65 front / IP54 rear
Module Quantity	2 x 1
Lifespan	100,000 Hours
Primary Usage	Multipurpose
Serviceability	Front and Rear
Special Features	Corner Protectors, Ground Support Locks, Blackout Gaskets, Quick-Thumb Locking

Power & Environmental Specifications

Input Power	1000 W/m²
Maximum Power Usage	700 W
Working Temperature	-20°C to +50°C
Working Humidity	10%–90% RH
Certifications	FCC, ETL, CE, RoHS

Physical Specifications

Product Weight	16.6 lbs.
Product Dimensions (L x W x H)	19.69" x 19.69" x 3.15"
