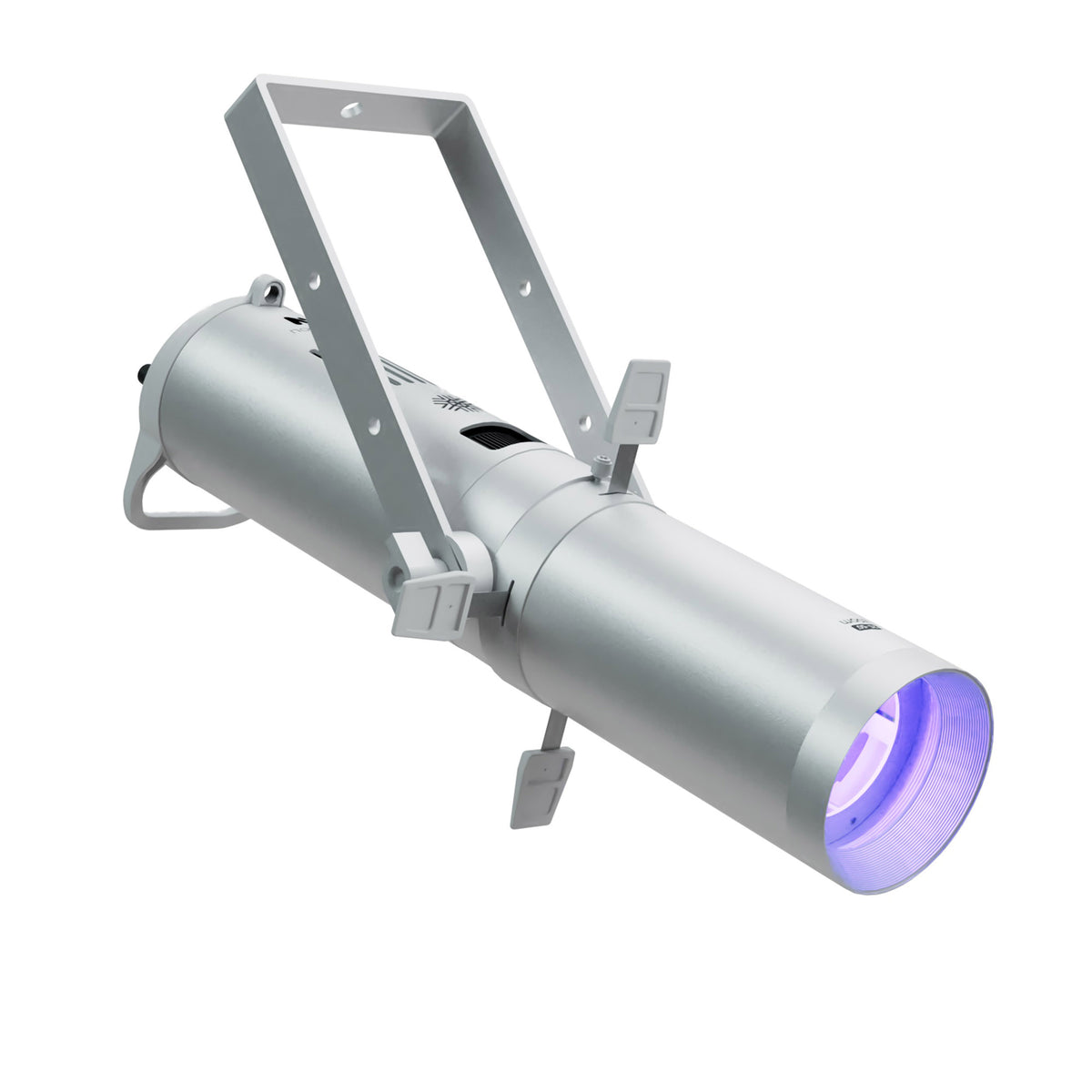

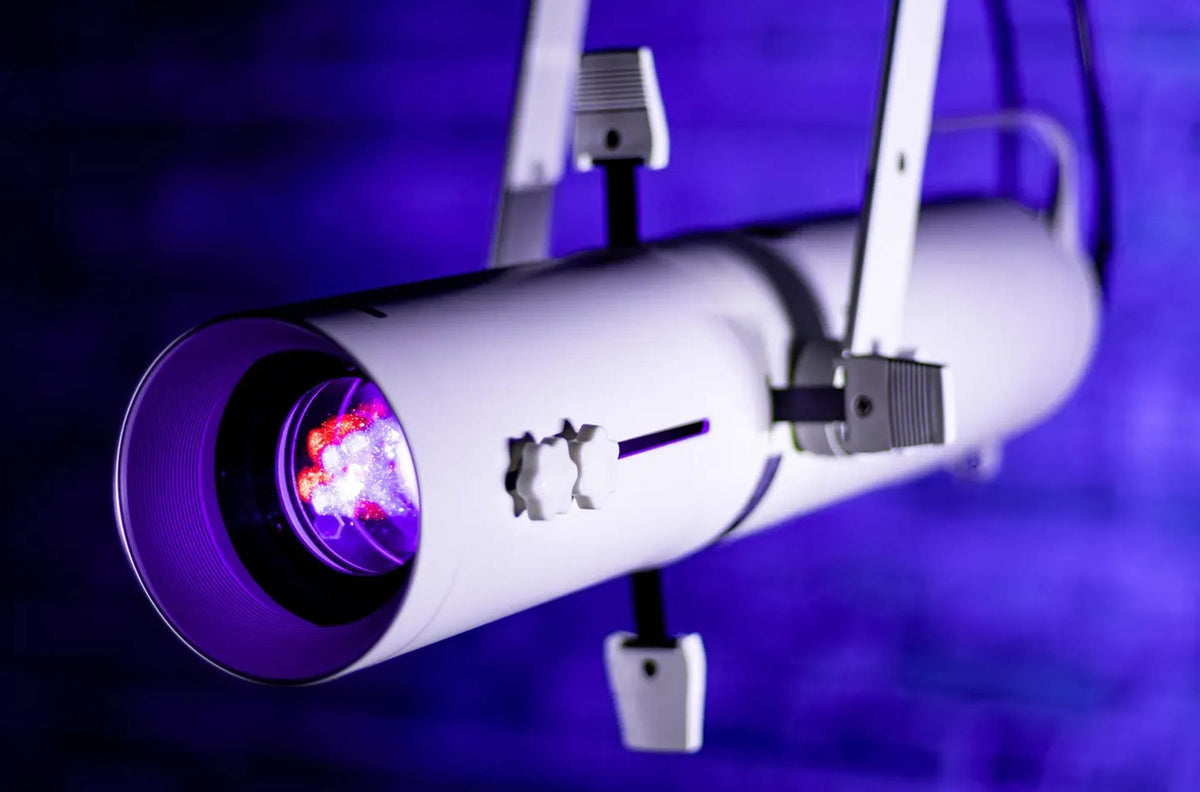

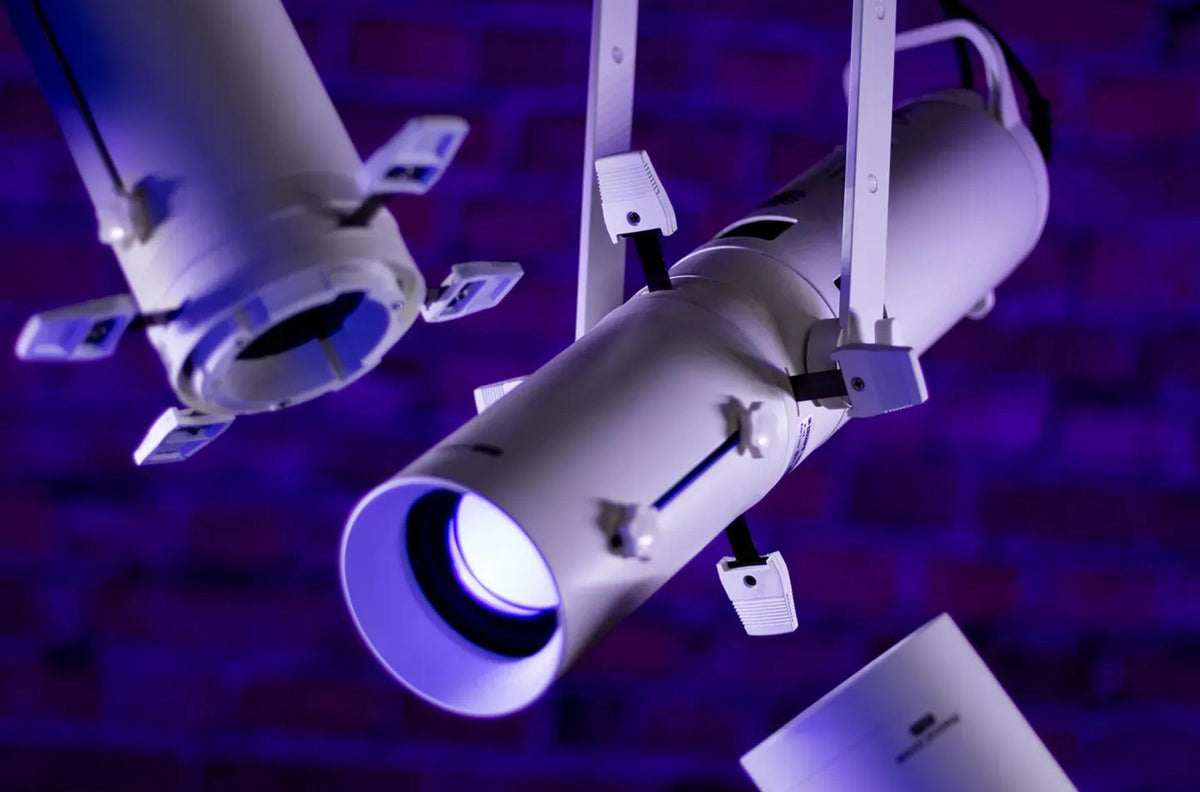

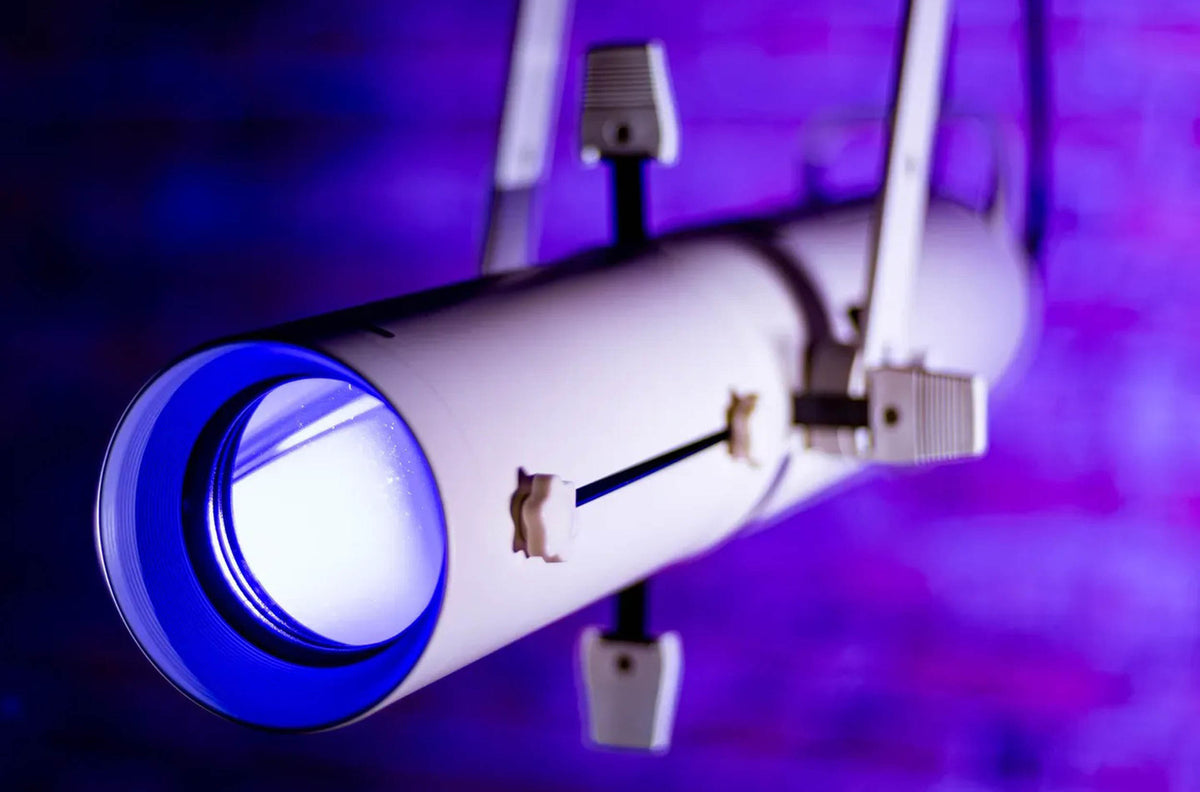

The Blizzard Lighting node:b RGBAL (W) is a compact, ETL-listed full-color LED fixture featuring a high-output 200W RGBAL LED light engine and interchangeable lens options. Its modular optical system allows the fixture to be configured for gobo projection, hard-edged profile lighting, or smooth and vibrant wash applications.

Three replaceable lens options provide flexible beam control, including 15–30° and 25–36° profile zoom lenses with manual shutters and focus, plus a 16–65° Fresnel zoom lens. The fixture also provides 16-bit dimming, four selectable dimming curves, adjustable dimming speeds, and LED refresh rates from 1,000–8,000Hz.

Designed for professional lighting environments, the node RGBAL combines a high-CRI 90 LED engine with flicker-free operation, 1–25Hz strobe effects, multiple fan modes, and DMX/RDM control.

Key Features

• 200W RGBAL LED light source.
• Compact 10cm fixture diameter.
• Three interchangeable zoom lens options.
• High CRI of 90.
• 16-bit dimming.
• 1–25Hz strobe effects.
• Adjustable 1,000–8,000Hz LED refresh rates.
• DMX and RDM control.
• 4-button OLED control menu.
• Dual mounting brackets.

Ideal For

• Theater and stage lighting.
• Gobo projection.
• Profile and spot lighting.
• Concert and event production.
• Architectural lighting.
• Corporate and entertainment events.
• Professional lighting installations.
• Applications requiring flexible beam control.

What’s in the Box

• Blizzard Lighting node:b RGBAL White fixture.
• Heavy-duty fixed power cord.

Inputs & Outputs

• DMX Input 5-pin male XLR for DMX/RDM control.
• DMX Output 5-pin female XLR for DMX signal pass-through.
• Power Input Heavy-duty fixed power cord.
• Control Menu Four-button OLED display for fixture settings.

Frequently Asked Questions

What is the Blizzard Lighting node:b RGBAL White?

The node:b RGBAL White is a compact, ETL-listed full-color architectural lighting fixture with a 200W RGBAL COB LED engine. Its modular design supports interchangeable profile and Fresnel lens barrels for gobo projection, profile lighting, and wash applications.

What color is the housing?

This version features a white housing. Blizzard lists the White version separately from the Black node:b RGBAL.

What lens options are available?

The node:b RGBAL supports three interchangeable lens options: a 15–30° profile zoom, 25–50° profile zoom, and 16–65° Fresnel zoom. The profile lenses feature four-blade manual shutters and manual focus.

What is the LED source?

It uses a 200W RGBAL COB LED with a CRI of 90 and flicker-free operation.

What dimming capabilities does it offer?

The fixture provides 16-bit dimming, four user-selectable dimming curves, and selectable low, medium, and high dimming speeds.

What refresh rates are available?

The LED refresh rate can be adjusted from 1,000Hz to 8,000Hz, making the fixture suitable for video-sensitive environments.

Does it support DMX and RDM?

Yes. The node:b RGBAL supports both DMX and RDM through its DMX connections and can operate in DMX512, Master/Slave, and Standalone modes.

What are the power requirements?

The fixture operates from 100–240VAC, 50–60Hz, with a listed power consumption of 156W, current draw of 2.03A, and power factor of 0.95.

What are the product dimensions and weight?

The node:b RGBAL measures 13.4" × 3.94" × 3.94" and weighs 5.3 lbs.

Full Technical Specifications

Optical & Lighting Specifications

Light Source	200W RGBAL LED
Optical Lens	Glass optical lens
CRI	90
Flicker-Free	Yes
Strobe Effects	1–25 Hz
LED Refresh Rate	1,000–8,000 Hz
Dimming Resolution	16-bit
Dimming Curves	4 selectable
Dimming Speeds	Low, Medium, High
Gobo Holder	68.6 mm outer, 24 mm inner, 0.4 mm thickness
Lens Options	15–30° Profile Zoom, 25–36° Profile Zoom, 16–65° Fresnel Zoom
15–30° Profile Zoom	4,542 Lux @ 2.5 m / 1,549 Lux @ 5 m
25–36° Profile Zoom	1,813 Lux @ 2.5 m / 1,090 Lux @ 5 m
16–65° Fresnel Zoom	427 Lux @ 2.5 m / 288 Lux @ 5 m

Control & Connectivity Specifications

Control Protocols	DMX, RDM
DMX Channels	6 / 9
DMX Connectors	5-pin XLR male/female input and output
Control Modes	DMX512, Master/Slave, Standalone
Display	4-button OLED menu
Fan Settings	Full, Auto, Silent
Mounting	Dual mounting brackets
Housing Options	Black or White
Power Cable	Heavy-duty fixed power cord

Power & Electrical Specifications

Input Voltage	100–240 VAC
Frequency	50–60 Hz
Power Consumption	156 W
Current Draw	2.03 A
Power Factor	0.95
Warranty	2-year limited
Certification	cETLus

Physical Specifications

Housing Color	White
Product Weight	5.3 lbs.
Product Dimensions (L x W x H)	13.4" x 3.94" x 3.94"
