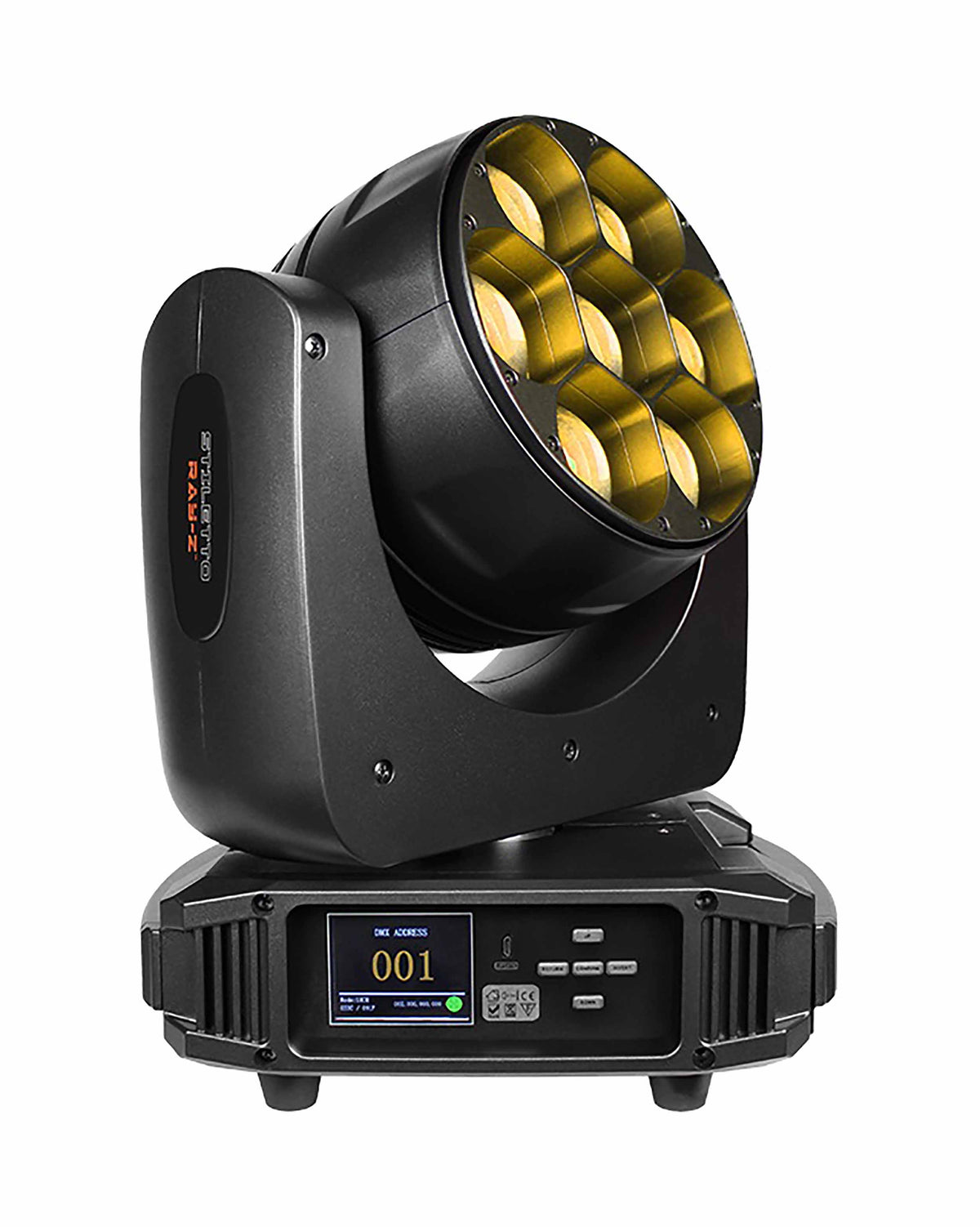

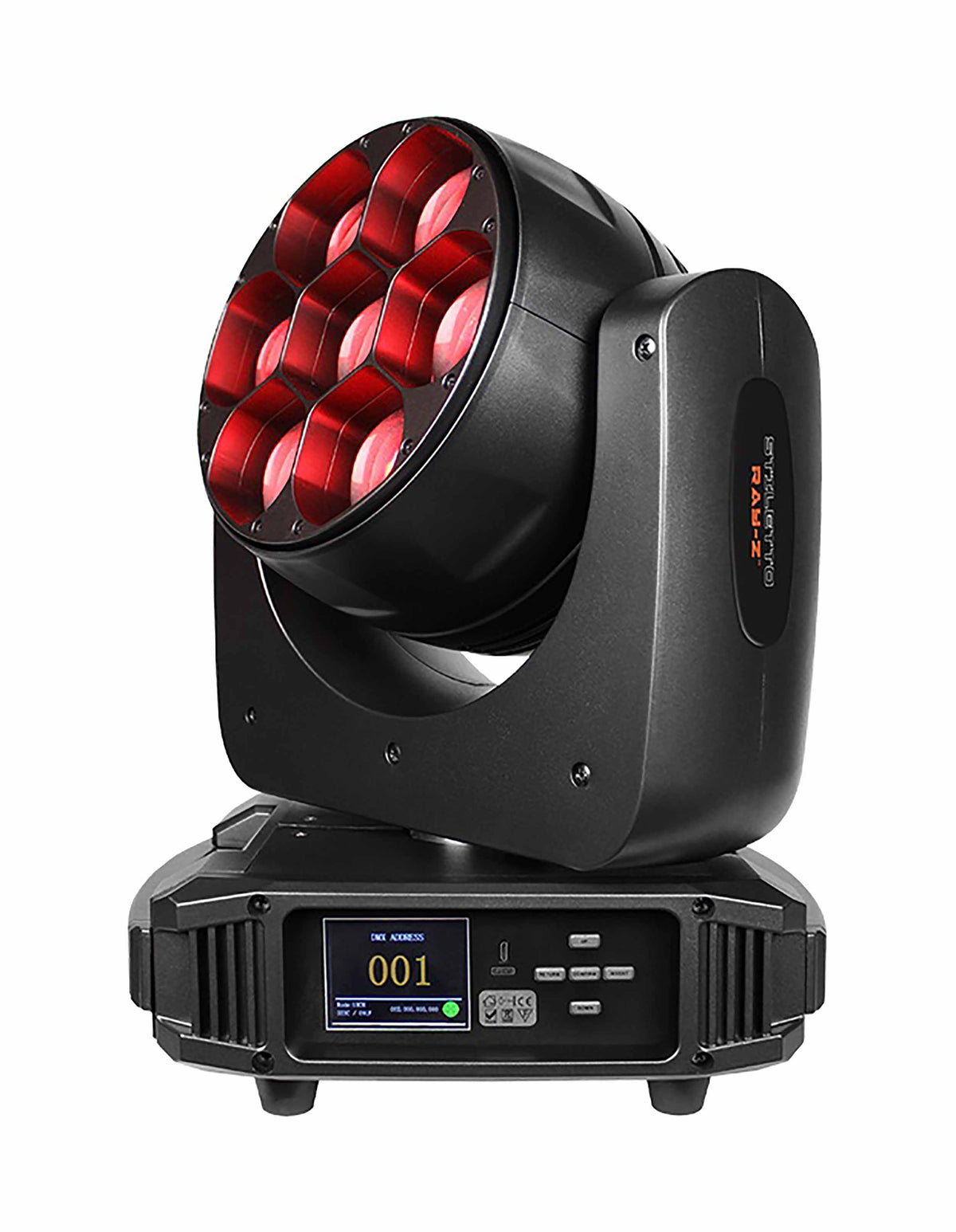

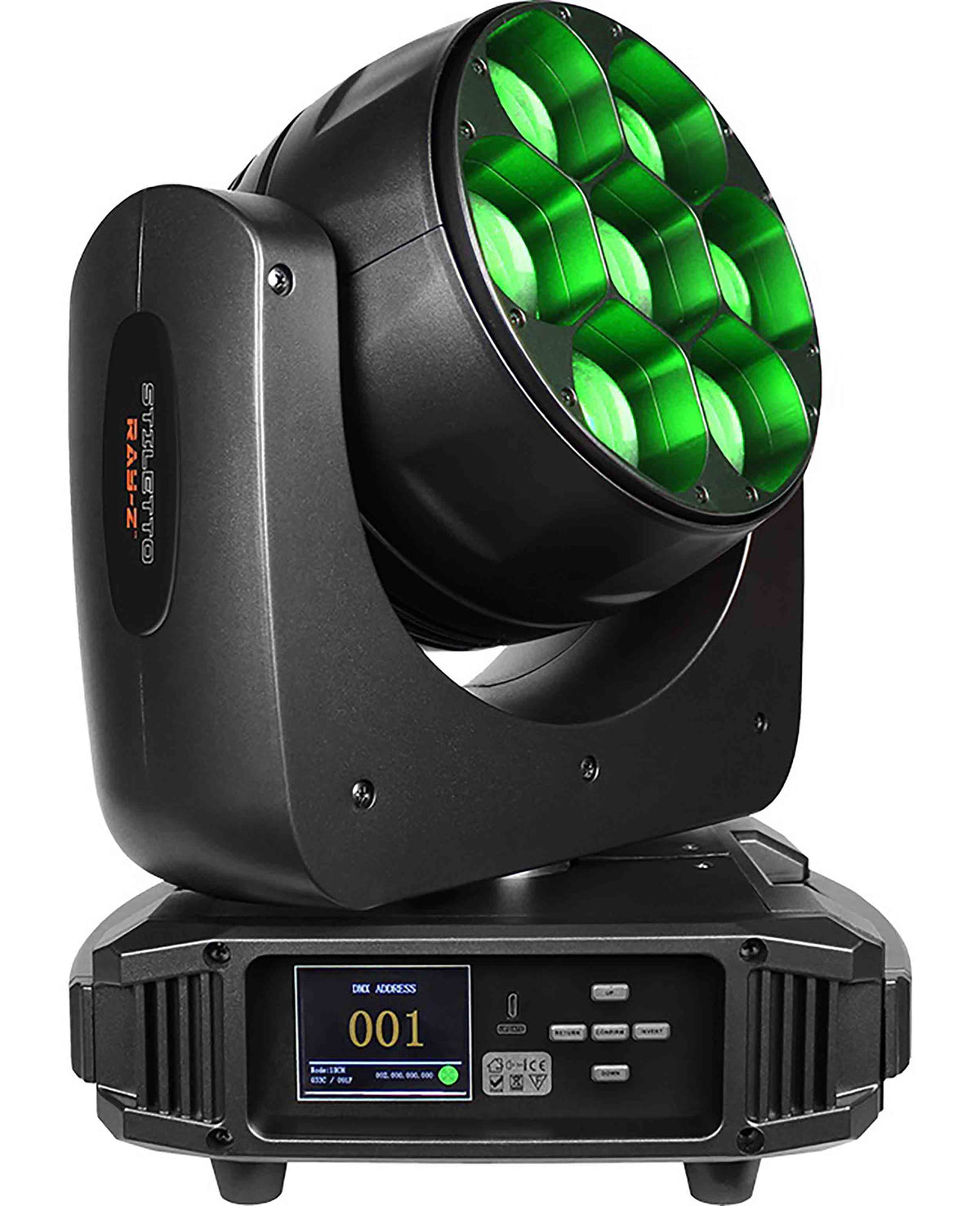

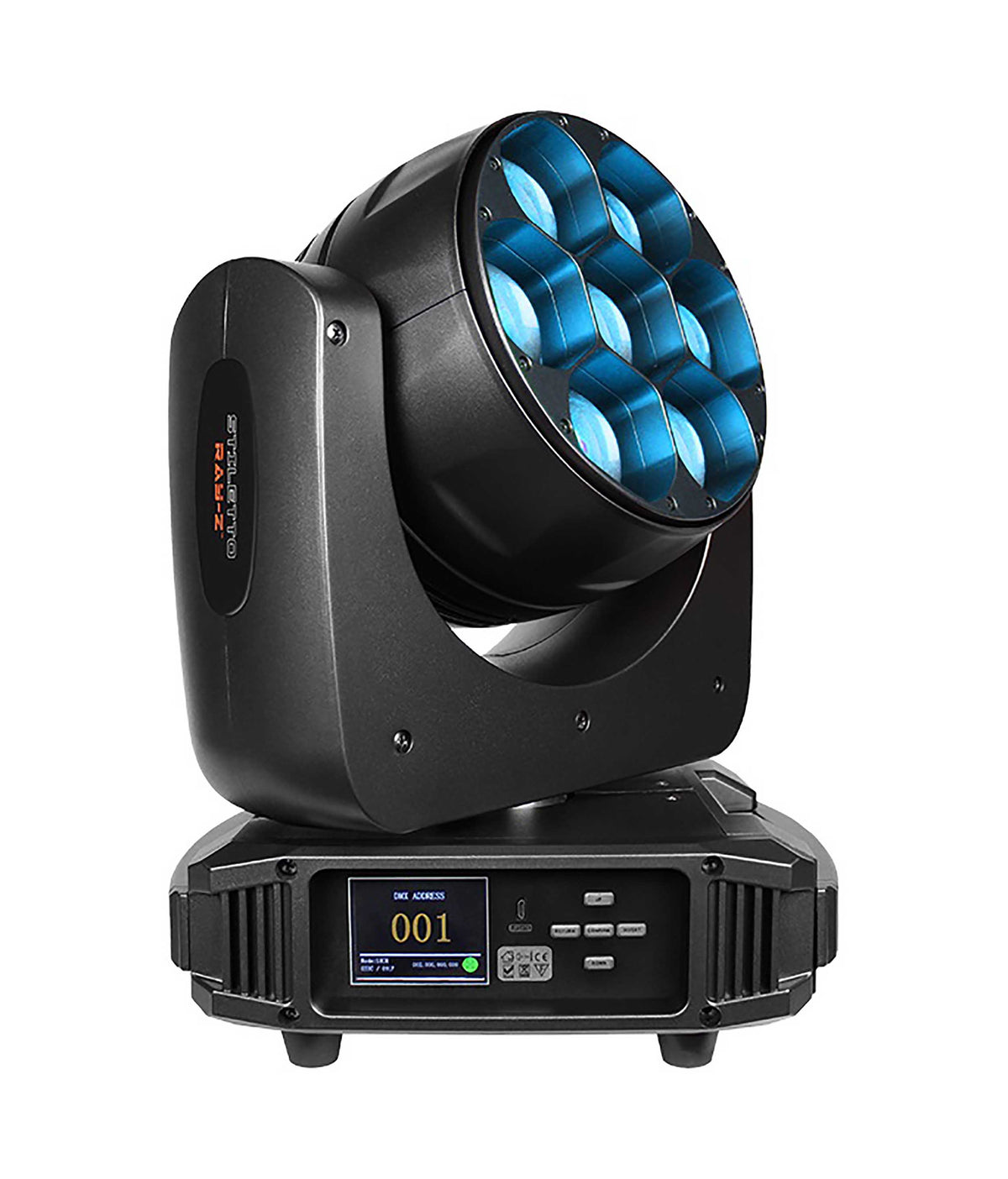

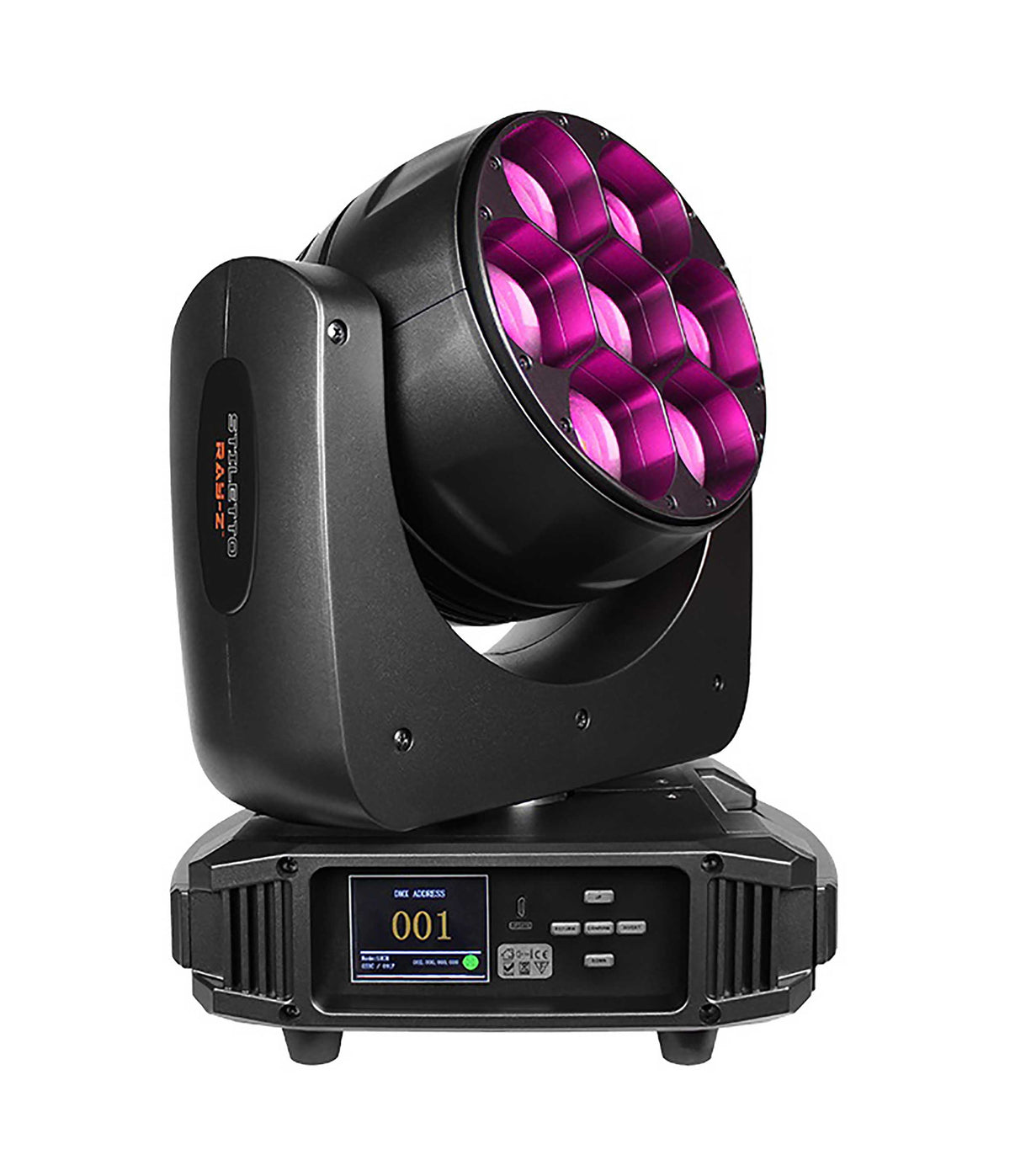

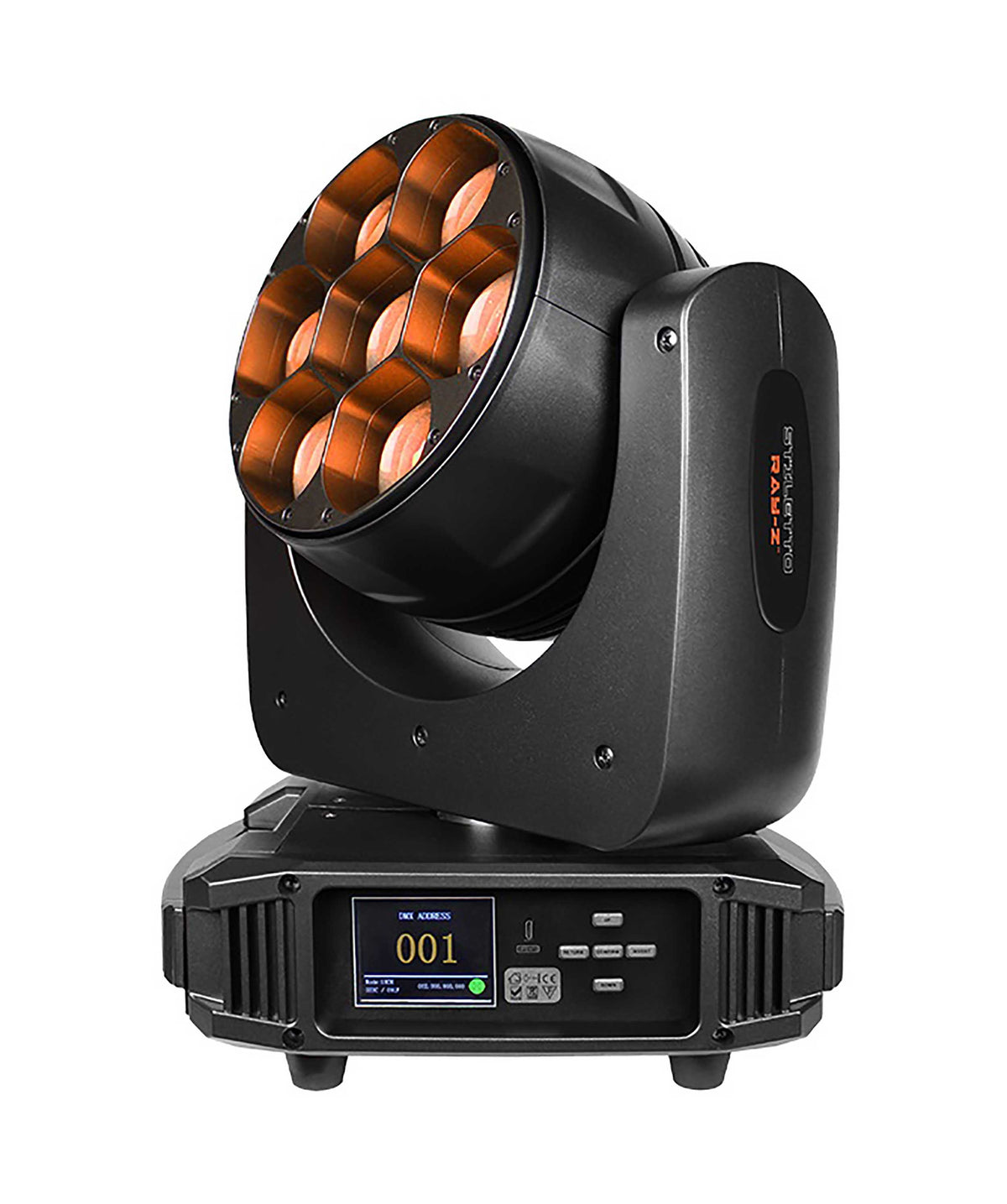

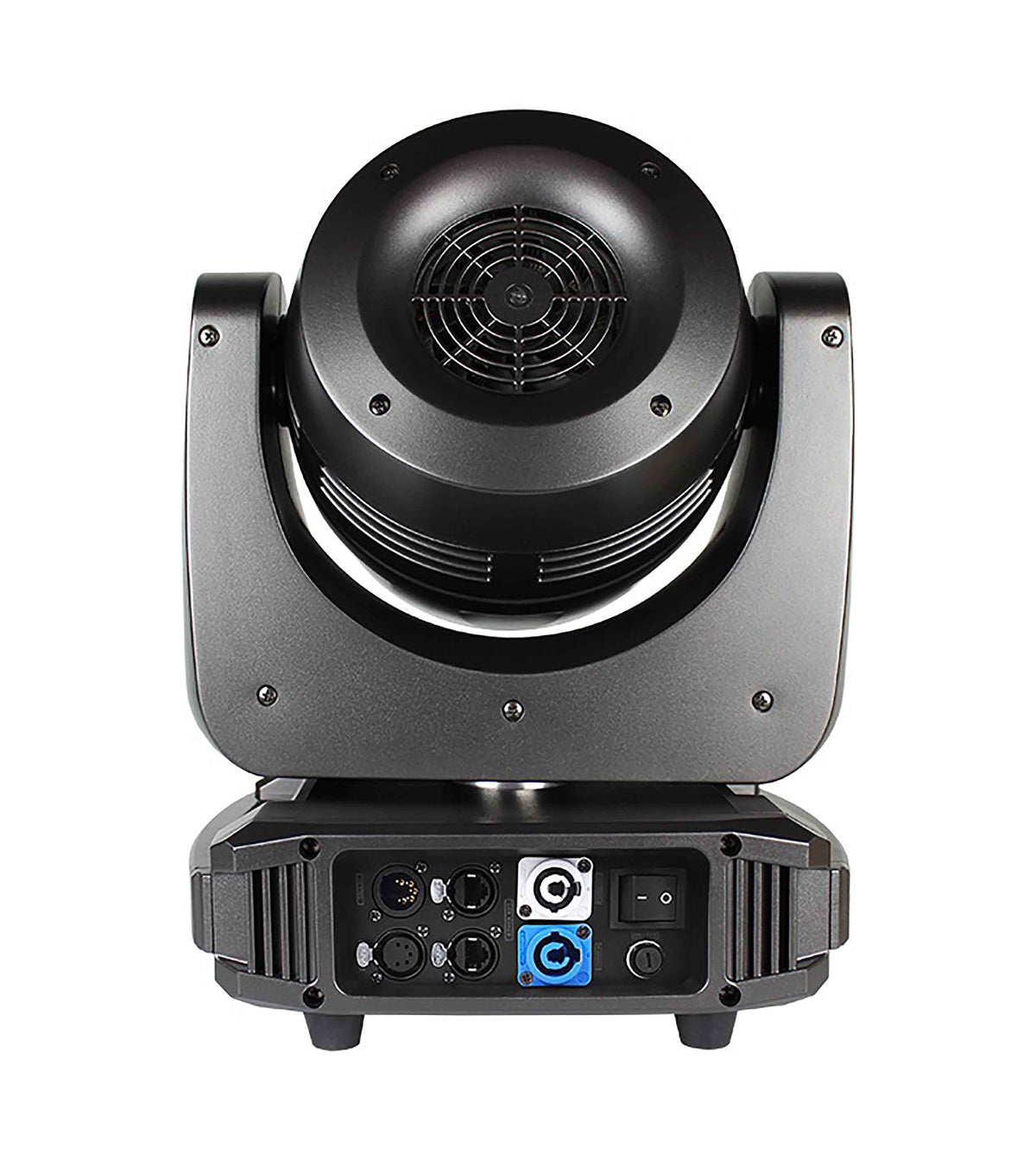

Blizzard Lighting Stiletto Ray-Z is a professional moving head fixture featuring seven 40W OSRAM Ostar RGBW 4-in-1 LEDs designed to deliver powerful, vibrant lighting effects. With a fast and precise motorized zoom range of 4.5° to 36°, it can produce narrow moving beams or wider coverage for stages, concerts, clubs, and event productions. The flicker-free LEDs provide smooth RGBW color mixing and up to 100,000 hours of LED life.

The Stiletto Ray-Z delivers fast and accurate movement with 540° pan and 200° tilt using three-phase motors, along with 8–16-bit resolution and automatic pan/tilt position correction. Full pixel mapping through DMX allows individual LED control for creative effects, while speed-controllable shape macros.

Designed for professional lighting systems, the Stiletto Ray-Z supports USITT DMX-512, Art-Net, Kling Net, and SCAN protocols with selectable 15-, 18-, and 38-channel DMX modes. It features a five-button LCD control panel, efficient low-noise fan cooling, and dual Omega brackets.

Key Features

• 7 × 40W OSRAM Ostar RGBW 4-in-1 LEDs deliver powerful, vibrant output.
• Motorized 4.5°–36° zoom provides narrow beams to wide coverage.
• 540° pan and 200° tilt with fast 3-phase motors enable smooth movement.
• 8–16-bit pan and tilt resolution provides precise positioning.

Ideal For

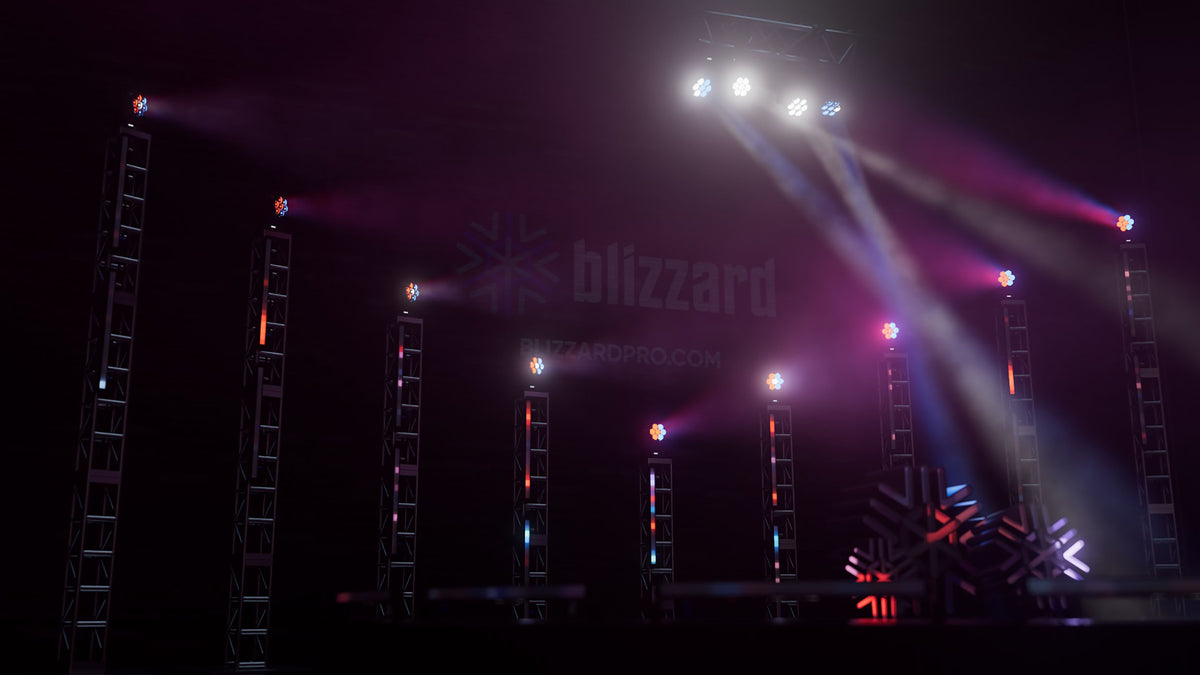

• Concerts and live stage performances.
• Nightclubs and dance venues.
• DJs and mobile entertainment.
• Festivals and large events.
• Theaters and stage productions.
• Corporate events and presentations.
• Touring and rental productions.

What's in the Box

• Blizzard Lighting Stiletto Ray-Z Moving Head Fixture.
• Dual Omega Mounting Brackets.
• Power Cable.
• User Manual.

Inputs & Outputs

• 1 × 5-Pin DMX Input / Output
• 1 × RJ45 Network Input / Output
• 1 × PowerCON-compatible AC Power Input / Output

Frequently Asked Questions

What type of fixture is the Stiletto Ray-Z?

It is a professional RGBW moving head fixture with 7 × 40W OSRAM Ostar 4-in-1 LEDs.

What is the zoom range?

It features a fast motorized zoom range of 4.5°–36°.

What are the pan and tilt ranges?

The fixture provides 540° pan and 200° tilt with 8–16 bit resolution.

What DMX modes and control protocols are supported?

It supports 15-, 18-, and 38-channel DMX modes, along with DMX512, Art-Net, Kling Net, and SCAN protocols.

Full Technical Specifications

Audio Performance

Model	Blizzard Lighting Stiletto Ray-Z
Fixture Type	RGBW 4-in-1 LED Moving Head
Light Source	7 × 40W OSRAM Ostar RGBW 4-in-1 LEDs
LED Life	Up to 100,000 hours
Color Mixing	RGBW
Beam Angle	Motorized 4.5°–36° zoom
Pan	540°
Tilt	200°
Movement Resolution	8–16 bit
Motors	3-phase pan/tilt motors
Position Correction	Automatic pan/tilt position correction
Pixel Mapping	Full pixel mapping via DMX
Shape Macros	Speed-controllable shape macros
Color Presets	Background color presets
DMX Channels	15/18/38-channel modes
Protocols	USITT DMX-512, Art-Net, Kling Net, SCAN
Operating Modes	DMX512, Master/Slave, Auto, Sound Active
Control Panel	5-button control panel with LCD display
Cooling	Efficient low-noise fan cooling

Connectors

DMX Input	5-pin XLR
DMX Output	5-pin XLR
Network Input	RJ45
Network Output	RJ45

Power & Operation

Light Source	7 × 40W OSRAM Ostar RGBW 4-in-1 LEDs
Beam Angle	Motorized 4.5°–36° zoom
Pan	540° with 8–16-bit resolution and 3-phase motor
Tilt	200° with 8–16-bit resolution and 3-phase motor
Position Correction	Automatic pan/tilt position correction
Pixel Mapping	Full pixel mapping via DMX
Color Mixing	RGBW color mixing
Shape Effects	Speed-controllable shape macros and background color presets
DMX	15/18/38-channel modes
Protocols	DMX-512, Art-Net, Kling Net, and SCAN
Operating Modes	DMX512, Master/Slave, Auto, and Sound Active
Operating Voltage	90–250 VAC, 50–60 Hz

Dimensions & Weight

Unit Dimensions	12.2" L × 8.6" W × 14.6" H (31 × 22.5 × 37 cm)
Unit Weight	19.9 lbs (9 kg)
