Description

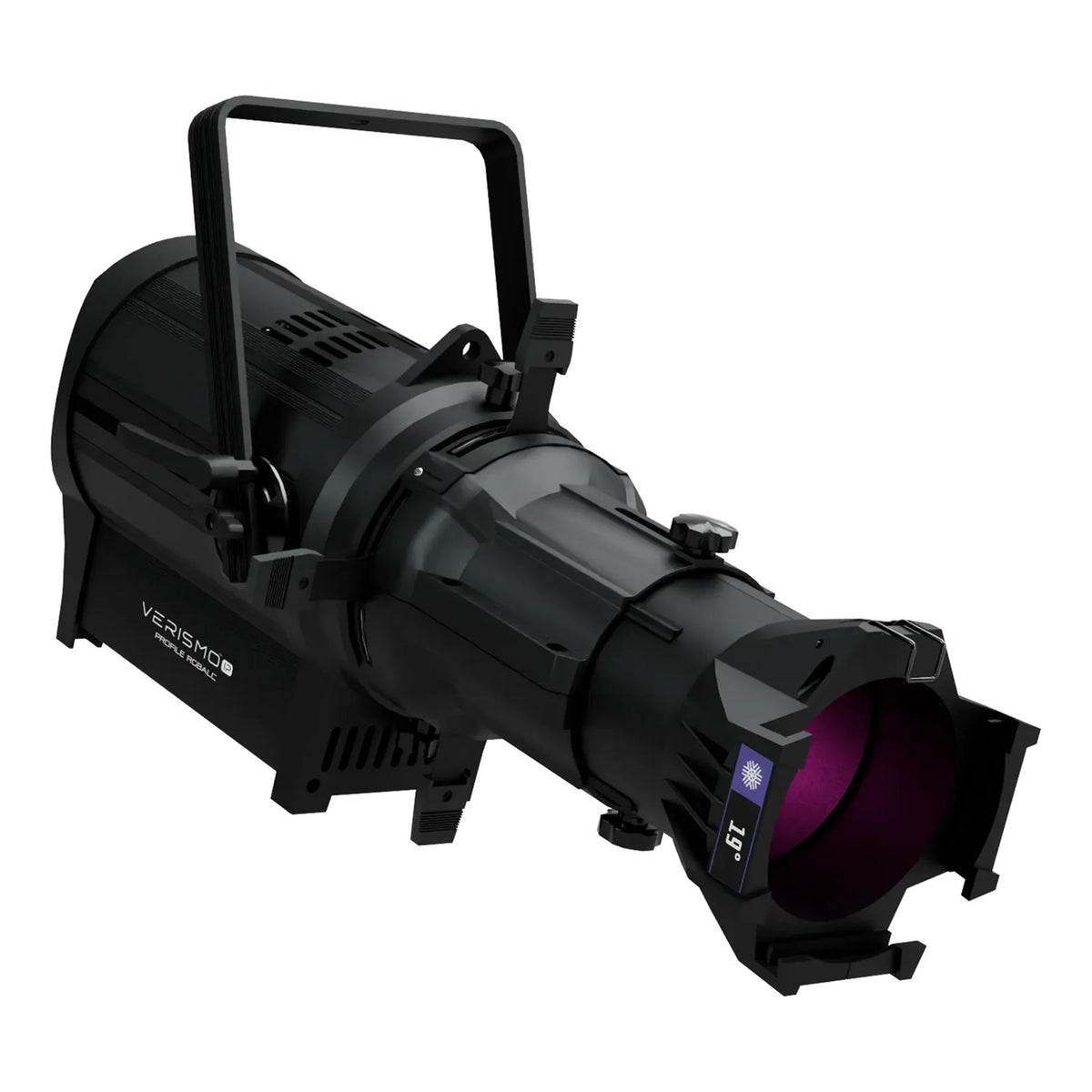

The Blizzard Lighting Verismo IP Profile RGBALC is an IP65-rated full-color LED profile spot featuring a high-output 300W RGBALC LED module. Its advanced RGBALC color mixing system delivers flexible color control for theater, video, production studios, and other professional lighting applications.
The fixture combines RGBALC color mixing with two dedicated HSIC control modes and direct access to white CCT presets from 2200K–10000K. Four interchangeable lens options provide 19°, 26°, 36°, or 50° beam angles, while four manually adjustable framing shutters and manual focus allow users to create custom shapes or complete blackout.
Designed for demanding professional environments, the Verismo IP Profile RGBALC provides 16-bit dimming, selectable dimming curves and speeds, 1–25Hz strobe effects, and refresh rates from 1,000–8,000Hz.
Key Features
- 300W RGBALC LED light source.
- RGBALC + HSIC color mixing.
- IP65-rated construction.
- 2200K–10000K CCT range and presets.
- Four interchangeable lens options.
- 16-bit dimming.
- 1–25Hz strobe effects.
- 1,000–8,000Hz refresh rates.
- 4-blade manual framing shutters.
- DMX and RDM control.
Ideal For
- Theater and stage lighting.
- Video and production studios.
- Professional profile lighting.
- Outdoor entertainment applications.
- Gobo projection.
- Architectural and event lighting.
- Broadcast and camera environments.
- Applications requiring flexible CCT control.
What’s in the Box
- Blizzard Lighting Verismo IP Profile RGBALC fixture.
- B-sized gobo holder.
Inputs & Outputs
- DMX Input 5-pin male XLR for DMX/RDM control.
- DMX Output 5-pin female XLR for DMX signal pass-through.
- Power Input PowerCON TRUE1-compatible input.
- Power Output PowerCON TRUE1-compatible output for power linking.
- Control Menu Four-button OLED display for fixture settings.
Frequently Asked Questions
What is the Blizzard Lighting Verismo IP Profile RGBALC?
The Verismo IP Profile RGBALC is an IP65-rated full-color LED profile fixture featuring a 300W RGBALC LED module for theater, video, production, and other professional lighting applications.
What color mixing system does the Verismo IP Profile RGBALC use?
It combines RGBALC color mixing with two dedicated HSIC control modes for precise hue, saturation, intensity, and color temperature adjustment.
What CCT range does the fixture provide?
The Verismo IP Profile RGBALC offers direct access to white CCT presets ranging from 2200K to 10,000K.
What lens options are available?
The fixture supports 19°, 26°, 36°, and 50° lens tubes, which are sold separately.
Does it support framing and gobo projection?
Yes. Four manually adjustable framing shutters allow custom shaping or blackout, while the included B-sized gobo holder supports image and pattern projection.
What dimming features are available?
It provides 16-bit dimming, four selectable dimming curves, and user-selectable dimming speeds for precise output control.
What refresh rates and strobe effects are supported?
The fixture offers selectable refresh rates from 1,000Hz to 8,000Hz and strobe effects from 1–25Hz.
What are the dimensions and weight of the Verismo IP Profile RGBALC?
The fixture measures approximately 25.6 × 12.6 × 18 inches and weighs 21.2 lbs.
Full Technical Specifications
Optical & Lighting Specifications
|
Light Source |
300W RGBALC LED module |
|
Color Mixing |
RGBALC + HSIC |
|
CCT Range |
2200K–10,000K |
|
CRI |
94 |
|
Flicker-Free |
Yes |
|
Beam Angle Options |
19°, 26°, 36°, 50° |
|
Strobe Effects |
1–25 Hz |
|
Refresh Rate |
1,000–8,000 Hz |
|
Dimming Resolution |
16-bit |
|
Dimming Curves |
4 selectable |
|
Dimming Speed |
User selectable |
|
Framing Shutters |
4 manual shutters |
|
Focus |
Manual |
|
Gobo Holder |
B-sized gobos |
|
19° Lens |
10,229 Lux @ 2.5 m / 2,483 Lux @ 5 m |
|
26° Lens |
5,032 Lux @ 2.5 m / 1,289 Lux @ 5 m |
|
36° Lens |
3,043 Lux @ 2.5 m / 791 Lux @ 5 m |
|
50° Lens |
1,481 Lux @ 2.5 m / 330 Lux @ 5 m |
|
Lens Tubes |
19°, 26°, 36°, 50°; sold separately |
|
IP Rating |
IP65 |
Control & Connectivity Specifications
|
Control Protocols |
DMX, RDM |
|
DMX Channels |
7 / 8 / 9 / 10 / 17 |
|
DMX Connectors |
5-pin XLR male/female input and output |
|
Control Modes |
DMX512, Master/Slave, Standalone |
|
Display |
4-button OLED menu |
|
Power Connectors |
PowerCON TRUE1 compatible input/output |
Power & Electrical Specifications
|
Input Voltage |
100–240 VAC |
|
Frequency |
50–60 Hz |
|
Power Consumption |
289 W |
|
Current Draw |
2.56 A |
|
Power Factor |
0.99 |
|
Warranty |
2-year limited |
|
Certification |
cETLus |
Physical Specifications
|
Product Weight |
21.2 lbs. |
|
Product Dimensions (L x W x H) |
18" x 25.6" x 12.6" |
