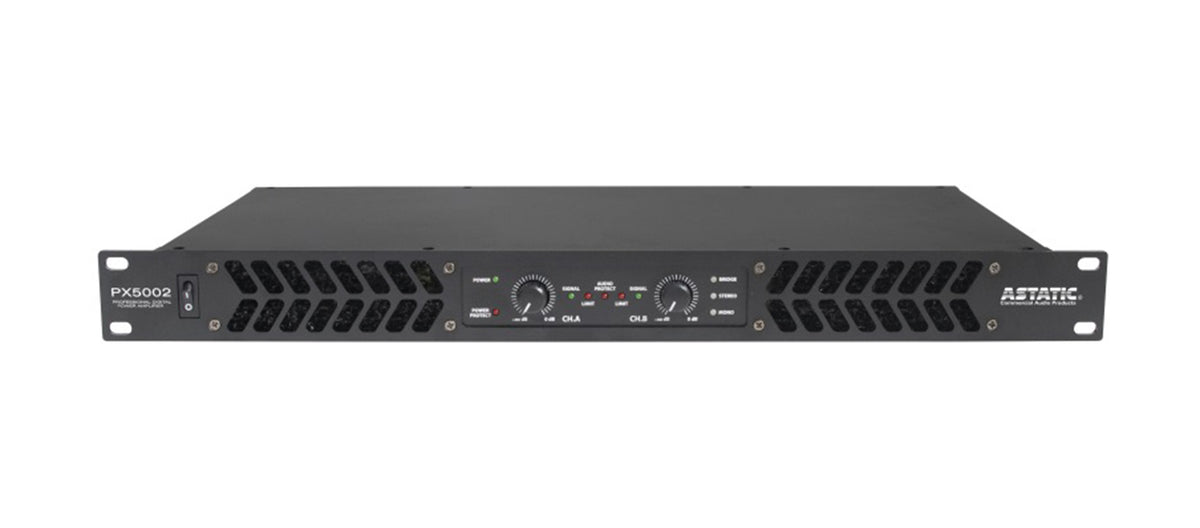

The CADAudio PX5002 Astatic is a high-performance, 2-channel Class-D professional power amplifier designed for commercial audio installations, portable sound systems, houses of worship, educational facilities, and corporate AV environments. Delivering up to 2 × 500W at 4 ohms in stereo mode and 1000W in bridge mode at 4 ohms, it provides powerful amplification in a compact, space-saving 1U rackmount design.

Built for flexible system configuration, the PX5002 supports stereo, mono (parallel), and bridge operation to accommodate different loudspeaker setups. Its high-efficiency switch-mode power supply with soft-start circuitry helps deliver reliable performance while maintaining efficient operation. Selectable input sensitivity allows the amplifier to integrate with a variety of professional audio sources.

For dependable operation, the PX5002 features a peak limiter, switchable 75 Hz low-cut filter, and comprehensive protection against DC faults, overheating, overloads, and short circuits. Temperature-controlled variable-speed fans manage heat, while balanced XLR connections, loop-through outputs, and three Speakon speaker outputs provide practical connectivity for professional sound systems.

Key Features

• Two-channel Class-D amplifier delivering 2 × 500W at 4 ohms.
• 1000W bridged output at 4 ohms for high-power mono applications.
• Compact 1U, 19-inch rackmount chassis.
• Stereo, mono parallel, and bridge operating modes.
• Peak limiter and switchable 75 Hz low-cut filter.
• Comprehensive protection with temperature-controlled fan cooling.

Ideal For

• Commercial installed sound systems.
• Touring and portable PA systems.
• Houses of worship and performance venues.
• Educational facilities and auditoriums.
• Corporate AV and presentation systems.
• Professional loudspeaker systems requiring flexible amplification.

What’s in the Box

• Astatic PX5002 power amplifier.

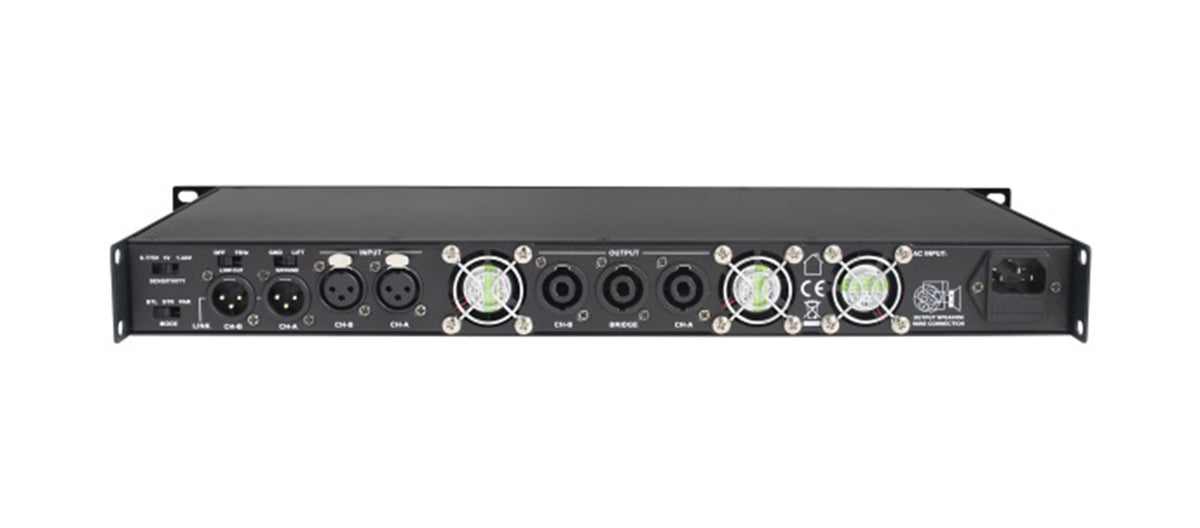

Inputs & Outputs

• Audio Inputs Balanced female XLR connectors.
• Loop Outputs Balanced male XLR connectors for signal pass-through.
• Speaker Outputs Three Speakon connectors for CH-A, CH-B, and bridge operation.
• Operating Modes Stereo, mono parallel, and bridge.
• Power Connection AC power input for region-dependent 115V or 230V operation.

Frequently Asked Questions

What type of amplifier is the Astatic PX5002?

The PX5002 is a professional two-channel Class-D power amplifier for installed audio, touring, and commercial AV systems.

How much power does the PX5002 deliver?

It delivers 2 × 300W at 8Ω stereo, 2 × 500W at 4Ω stereo, or 1 × 1000W bridged at 4Ω.

What operating modes are available?

It supports stereo, parallel mono, and bridge modes.

What input connections are provided?

It features balanced female XLR inputs with selectable sensitivity of 0.775V, 1.0V, or 1.44V.

Does the PX5002 support signal daisy-chaining?

Yes, balanced male XLR loop-through outputs allow connection to additional equipment.

What speaker outputs are included?

It provides three Speakon outputs: Channel A, Channel B, and Bridge.

What protection features does it offer?

Protection includes DC fault, overheating, overload, and short-circuit protection, along with a peak limiter and ground lift switch.

Does it have a low-cut filter?

Yes, a switchable 75Hz low-cut filter with a 24dB-per-octave slope helps protect loudspeakers.

How is the amplifier cooled?

Variable-speed, temperature-controlled fans manage heat during operation.

What are the PX5002's dimensions and weight?

It measures approximately 19 × 9.45 × 1.75 inches, weighs 9.26 lbs, and fits a standard 1U rack space.

Full Technical Specifications

Amplifier Performance

Amplifier Type	Class D
Channels	2
Power Output (8 Ω, Stereo)	2 × 300 W
Power Output (4 Ω, Stereo)	2 × 500 W
Power Output (Bridge, 4 Ω)	1 × 1000 W
Frequency Response	20 Hz–20 kHz (±1 dB)
THD+N (8 Ω, Stereo)	< 0.1%
Signal-to-Noise Ratio (A-weighted)	> 100 dB
Slew Rate	> 20 V/µs

Input & Signal Control

Input Sensitivity	0.775 V / 1.0 V / 1.44 V, switchable
Low-Cut Filter	75 Hz, −24 dB/octave
Limiter	Peak limiter
Operating Modes	Stereo, Mono (Parallel), Bridge

Connections & Protection

Input Connectors	Balanced XLR female
Loop Outputs	Balanced XLR male
Speaker Outputs	Speakon® CH-A, CH-B, Bridge
Cooling	Variable-speed, temperature-controlled fans
Protection	DC fault, over-temperature, overload, short circuit
Ground Lift	Yes
Power Supply	Switch-mode with soft-start
Power Requirements	115 V / 230 V AC, region dependent

Physical Specifications

Rack Format	19-inch, 1U
Product Dimensions (W × D × H)	19 × 9.45 × 1.75 inches
Product Weight	9.26 lbs
