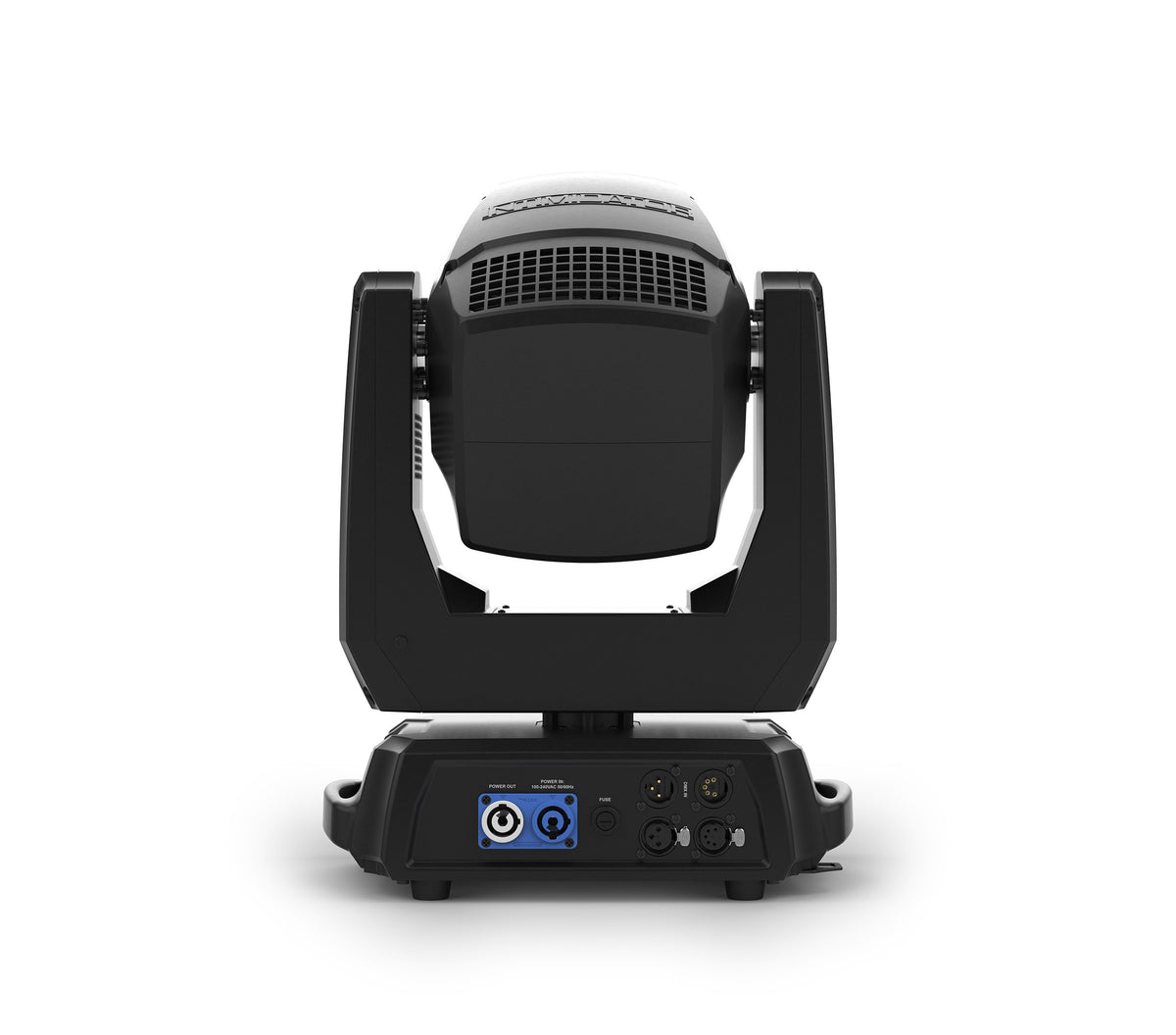

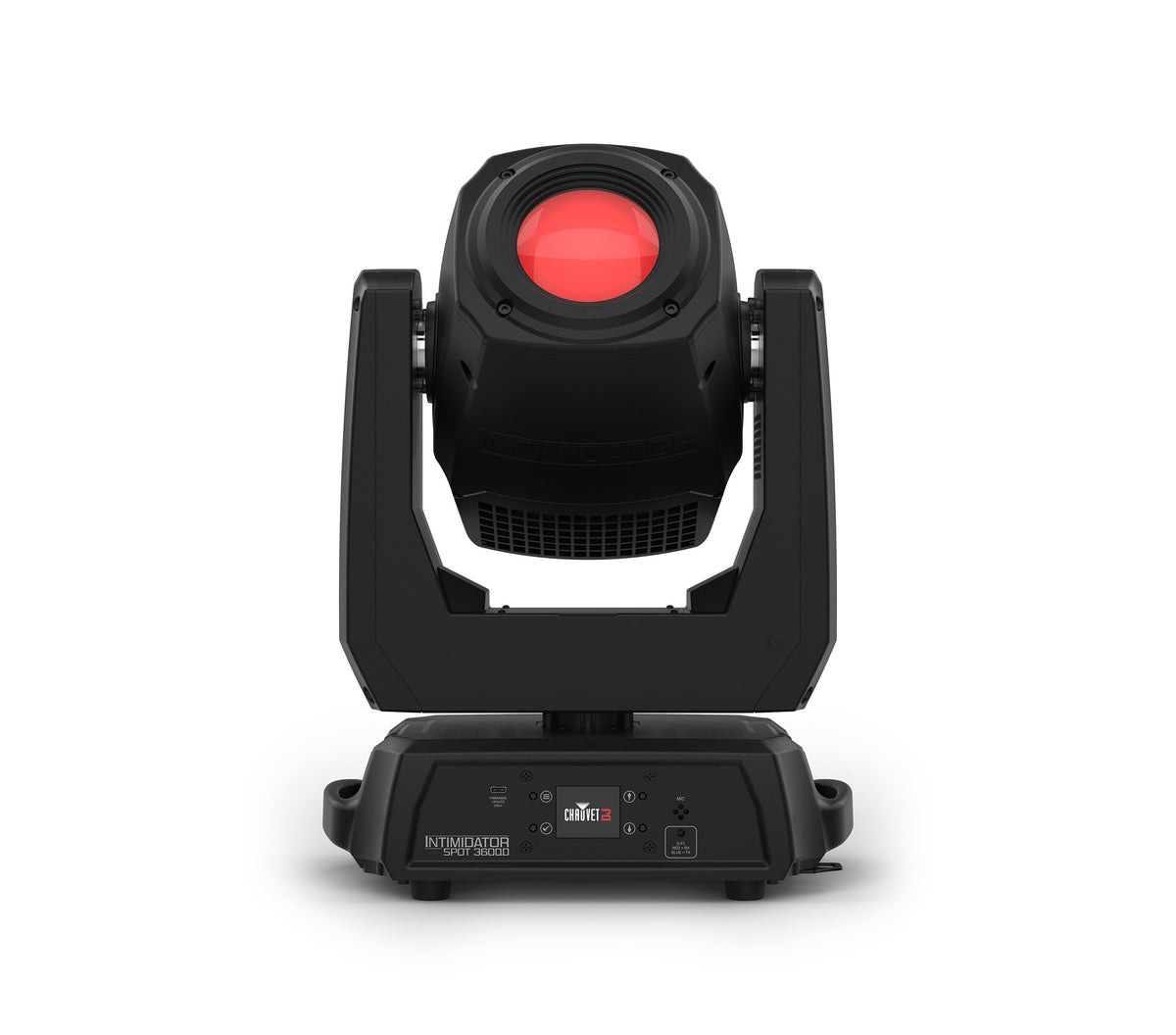

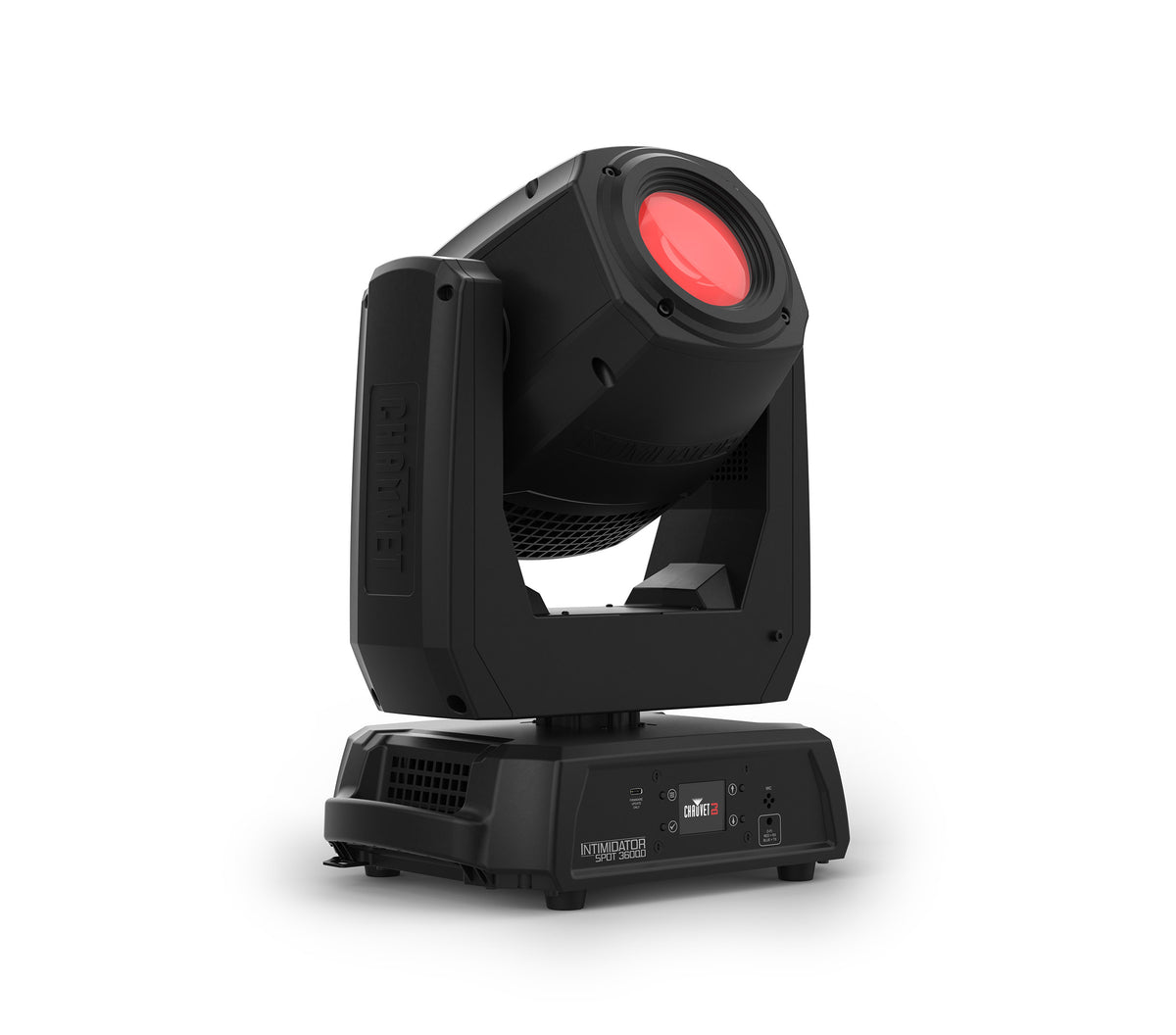

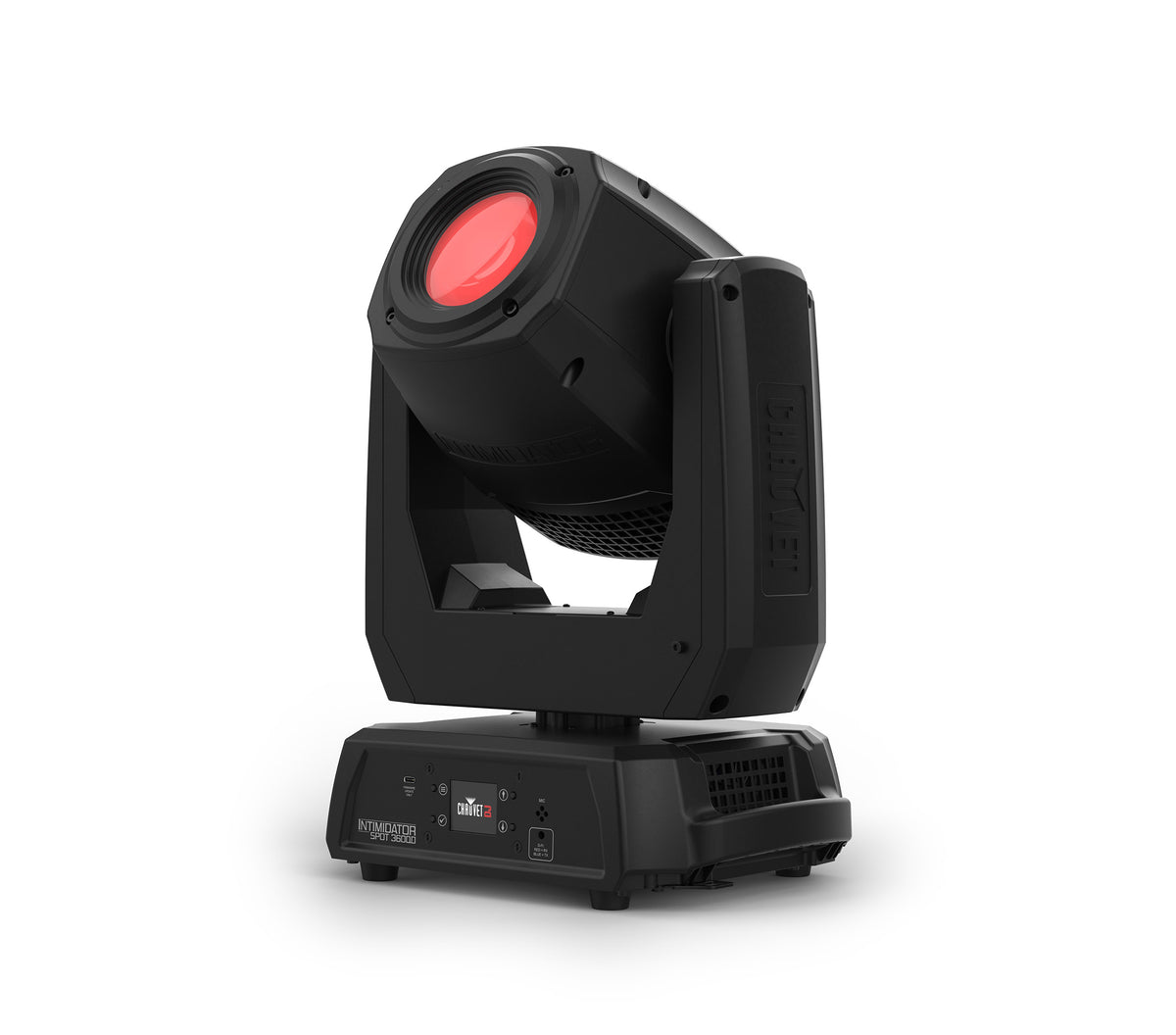

The CHAUVET DJ Intimidator Spot 360 QD is an innovative moving head spot fixture designed for mobile entertainers and permanent installations. Its 220 W quad-color RGBL LED light engine produces a wide color range, enhanced CRI, and crystal-clear optical output, delivering 4,474 lumens with a 17° beam angle and 17,242 lux at 2 meters. The fixture provides 540° pan and 270° tilt movement for dynamic beam positioning and versatile lighting effects.

The Intimidator Spot 360 QD features seven rotating, interchangeable gobos plus open, with indexing, slot-n-lock, continuous scrolling, and variable-speed operation. Dual rotating prisms include a 5-facet linear prism and a 6-facet round prism, both offering bi-directional variable-speed rotation to split the beam and create larger effects.

Built for demanding mobile and installation applications, the fixture uses a strong carbon fiber composite housing that resists corrosion while reducing overall weight. Integrated D-Fi wireless DMX and master/slave communication, along with an RF receiver for optional RFC and RFC-XL remotes.

Key Features

• 540° pan and 270° tilt.
• Selectable 540°, 360°, or 180° pan ranges.
• Selectable 270°, 180°, or 90° tilt ranges.
• 11 or 18 DMX channels.
• 3-pin and 5-pin XLR DMX connectors.
• 7 + open rotating gobos.
• 5-facet linear and 6-facet round rotating prisms.
• Motorized focus.
• 17° beam angle.
• 4,474 lumens.
• 17,242 lux at 2 m.
• Built-in D-Fi wireless DMX transceiver.
• Built-in RF receiver for RFC and RFC-XL remotes.
• PowerCON®-compatible power input/output.
• USB-C software update port.

Ideal For

• Mobile entertainers and DJs.
• Nightclubs and dance floors.
• Concerts and live performances.
• Touring and event production.
• Permanent entertainment installations.
• Stage and theater lighting.
• Weddings and private events.
• Clubs, lounges, and venues.

What’s in the Box

• CHAUVET DJ Intimidator Spot 360 QD moving head fixture.
• Power connection accessories as supplied by the manufacturer.

Inputs & Outputs

• DMX Input/Output: 3-pin and 5-pin XLR.
• Power Input: 100–240 VAC, 50/60 Hz, auto-ranging.
• Power Output: PowerCON®-compatible power linking.
• USB-C: Software updates.
• Wireless DMX: Built-in D-Fi transceiver.
• Wireless Control: Built-in RF receiver for RFC and RFC-XL optional remotes.

Frequently Asked Questions

What is the CHAUVET DJ Intimidator Spot 360 QD?

The Intimidator Spot 360 QD is a moving head spot fixture featuring a 220 W RGBL LED engine, rotating gobos, dual rotating prisms, motorized focus, and wireless control capabilities.

How many DMX channels does it use?

It offers selectable 11-channel or 18-channel DMX modes.

What are the pan and tilt ranges?

The fixture provides up to 540° pan and 270° tilt, with selectable pan ranges of 540°, 360°, or 180° and tilt ranges of 270°, 180°, or 90°.

What type of light source does it use?

It uses one 220 W quad-color RGBL LED light engine with an expected lifespan of approximately 50,000 hours.

What prisms are included?

The fixture includes a 5-facet linear prism and a 6-facet round prism. Both offer bi-directional rotation at variable speeds.

Full Technical Specifications

Lighting & Optical Specifications:

Light Source	1 × 220 W Quad-Color RGBL LED
LED Current	2.5 A
LED Life Expectancy	50,000 hours
Beam Angle	17°
Illuminance	17,242 lux @ 2 m
Lumens	4,474
Strobe Rate	0–25 Hz
Color Engine	RGBL

Movement Specifications:

Pan	540°
Tilt	270°
Pan Ranges	540°, 360°, 180°
Tilt Ranges	270°, 180°, 90°
Totem Mode	Yes
Motorized Focus	Yes

Gobo Specifications:

Gobos	7 + Open
Gobo Construction	6 Metal + 1 Glass
Gobo Type	Rotating, Interchangeable
Gobo Features	Indexing, Slot-n-Lock, Continuous Scroll
Gobo Speed	Variable
Gobo Outside Diameter	24 mm
Gobo Image Diameter	20 mm
Maximum Gobo Thickness	0.5 mm

Prism Specifications:

Linear Prism	5-Facet, Bi-Directional, Variable Speed
Round Prism	6-Facet, Bi-Directional, Variable Speed
Prism Rotation	Bi-Directional
Prism Speed	Variable

Control & Connectivity Specifications:

DMX Channels	11 or 18
DMX Connectors	3-Pin and 5-Pin XLR
Wireless DMX	Built-In D-Fi Transceiver
Wireless Communication	D-Fi Wireless DMX / Master-Slave
RF Receiver	Built-In
Optional Controllers	RFC, RFC-XL

Electrical Specifications:

Input Voltage	100–240 VAC, 50/60 Hz
Voltage Type	Auto-Ranging
Power @ 120 V	324 W
Current @ 120 V	2.7 A
Frequency @ 120 V	60 Hz
Power @ 230 V	322 W
Current @ 230 V	1.3 A
Frequency @ 230 V	50 Hz
Power Linking @ 120 V	4 Units
Power Linking @ 230 V	8 Units

Housing & Construction Specifications:

Housing Material	Carbon Fiber Composite
Housing Benefits	Strong, Corrosion Resistant, Lightweight
Approvals	CE, RoHS, MET
Application	Mobile Entertainment / Permanent Installation

Physical Specifications:

Product Weight	20.28 lbs
Product Dimensions	17.1" H × 8.6" W × 12.5" L
Shipping Weight	25.13 lbs
Shipping Dimensions	20.08" H × 11.61" W × 15.35" L
