Description

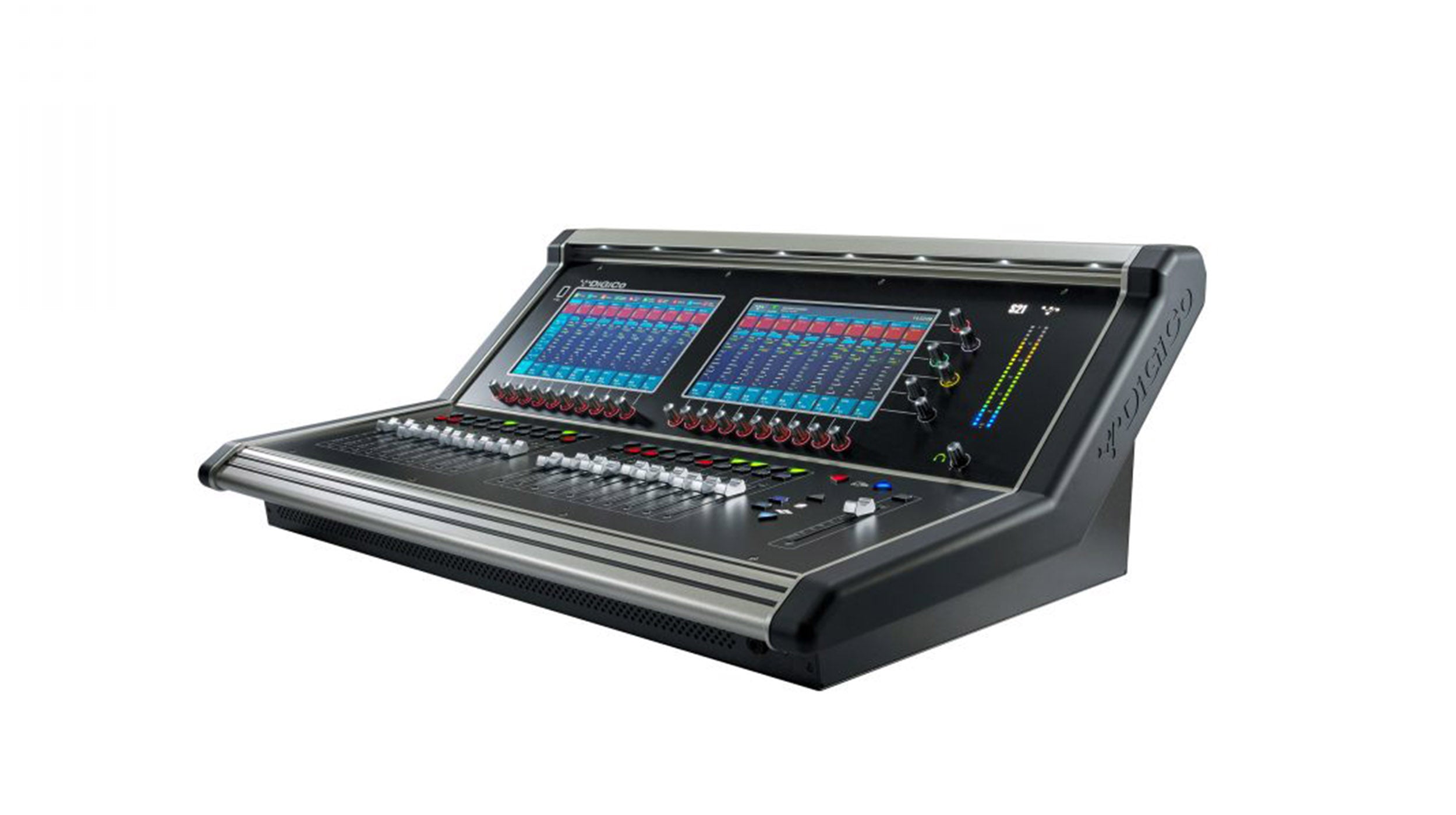

The DiGiCo X-S21-WS combines the renowned S21 digital mixing console with native Waves SoundGrid integration, delivering powerful real-time plugin processing alongside DiGiCo's exceptional audio quality. Designed for engineers who demand flexibility and premium sound, the console provides intuitive operation, advanced DSP, and seamless workflow. Its compact footprint makes it suitable for both portable and installed systems. Every aspect of the console is optimized for speed, precision, and reliability.
Integrated Waves SoundGrid

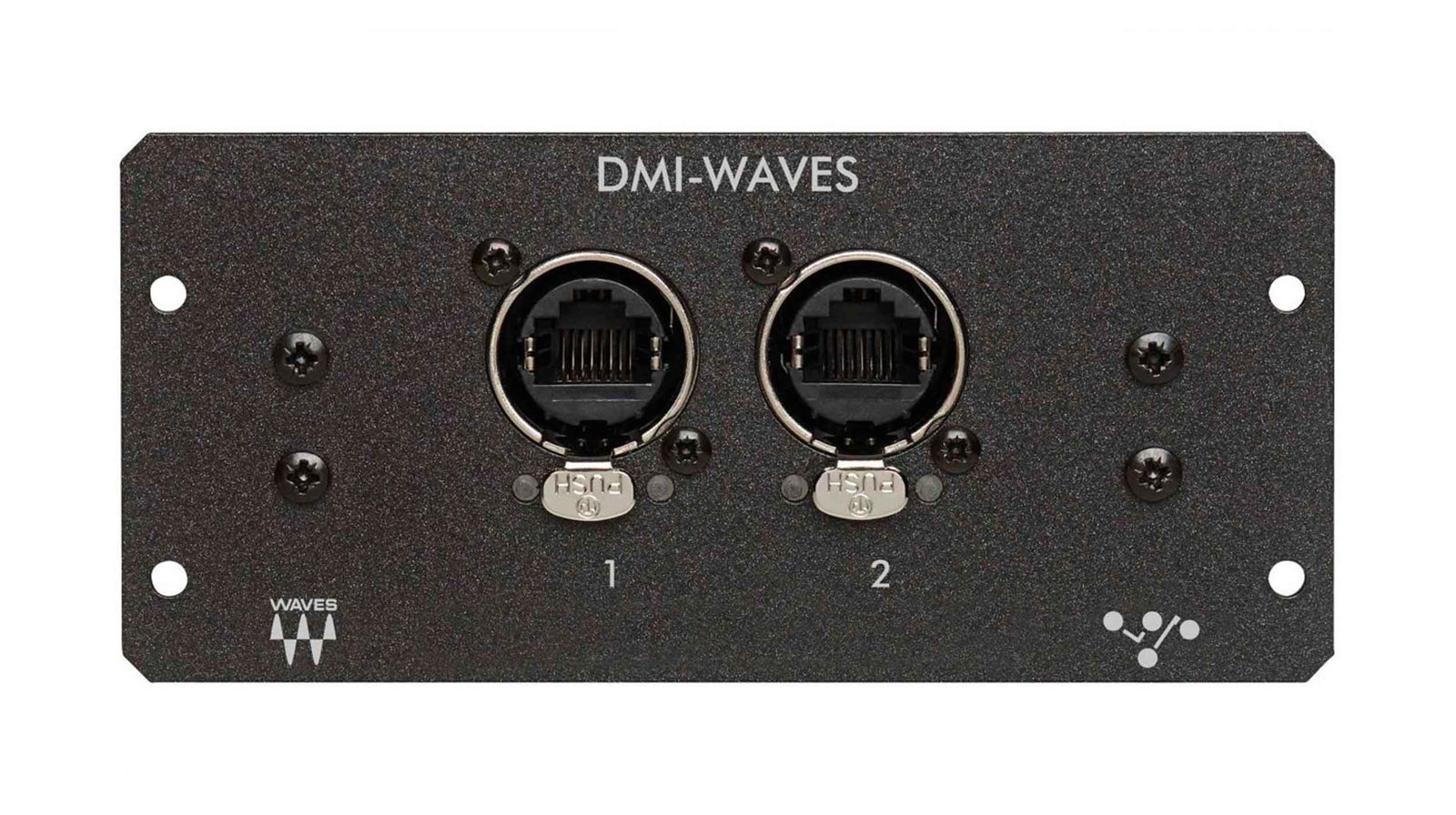

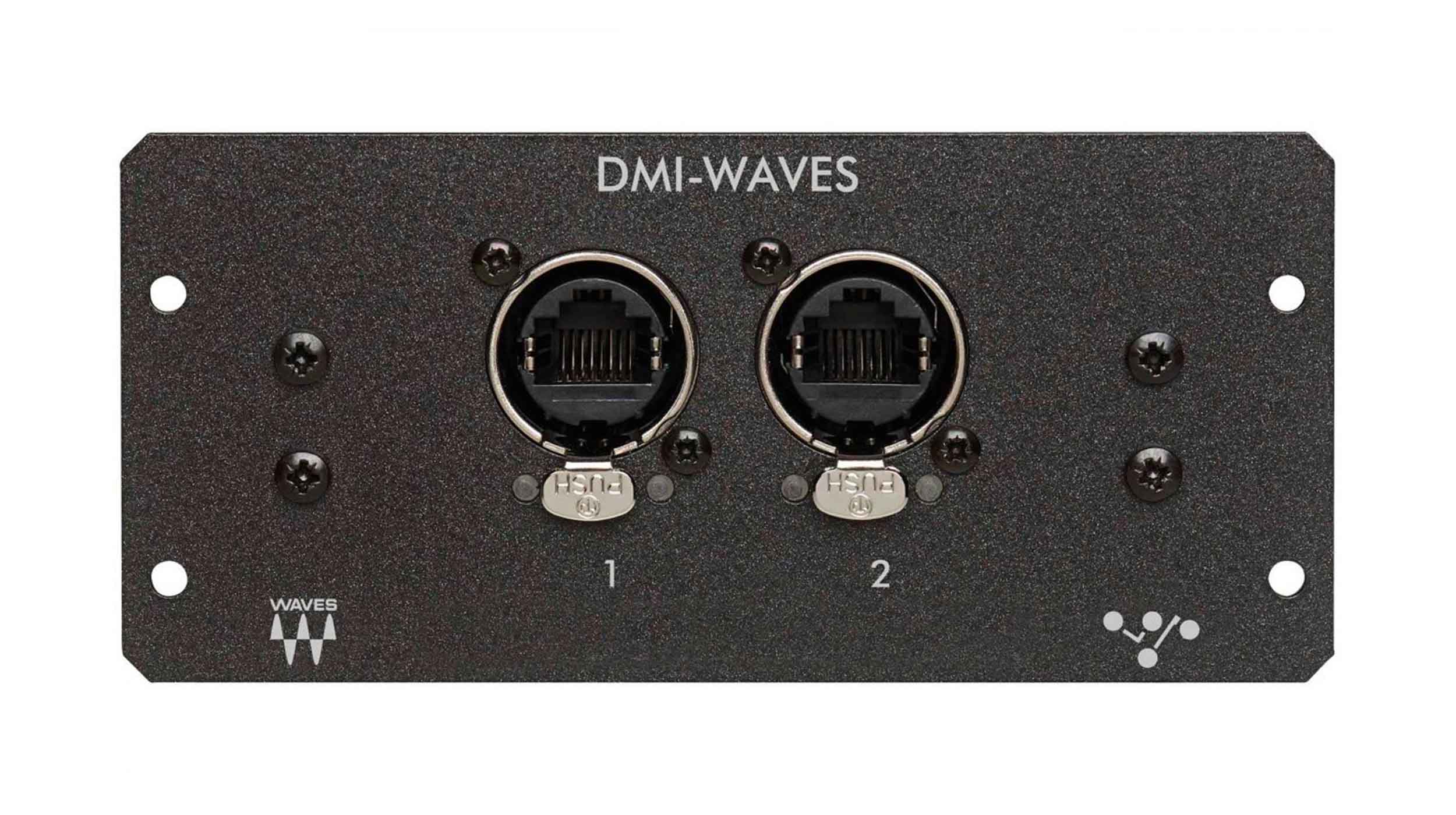

Built-in Waves SoundGrid compatibility gives engineers access to low-latency Waves plugin processing directly within the mixing environment. When paired with a compatible DMI-Waves interface, SoundGrid server, and host computer, the console supports premium EQs, compressors, reverbs, and other studio-quality effects during live operation. This integration significantly expands processing capabilities while maintaining exceptional performance.
Powerful DSP Performance
The S21 delivers 48 Flexi-Channels with the equivalent of 96 DSP channels and 46 flexible buses operating at up to 96kHz. Each channel includes comprehensive processing such as compressors, gates, Dynamic EQ, DiGiTuBe saturation, Multiband Compression, graphic EQ, and premium onboard effects. Low-latency processing ensures transparent sound quality throughout complex productions. Advanced DSP resources allow engineers to build sophisticated mixes without sacrificing performance.
Intuitive Dual-Screen Workflow

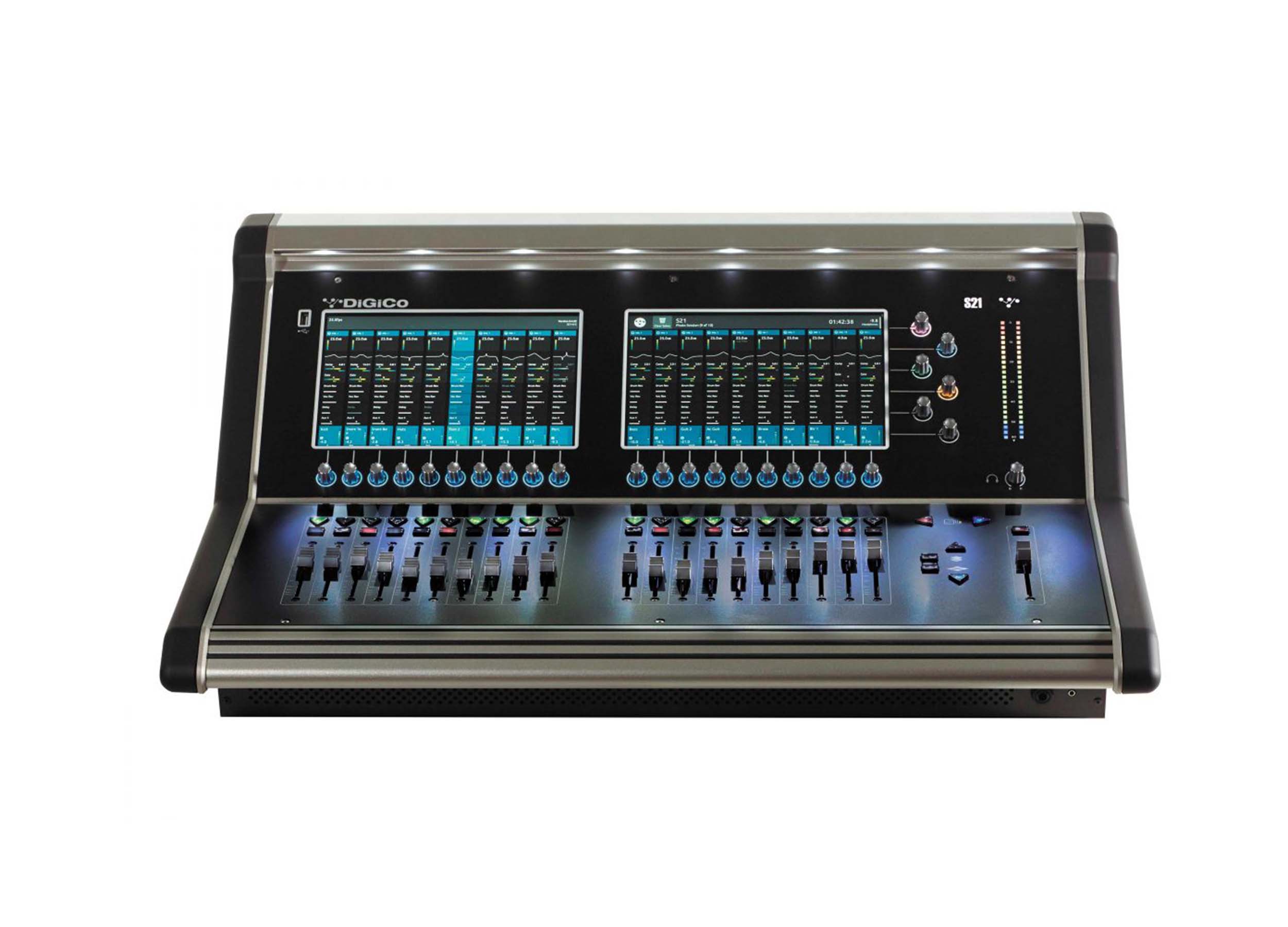

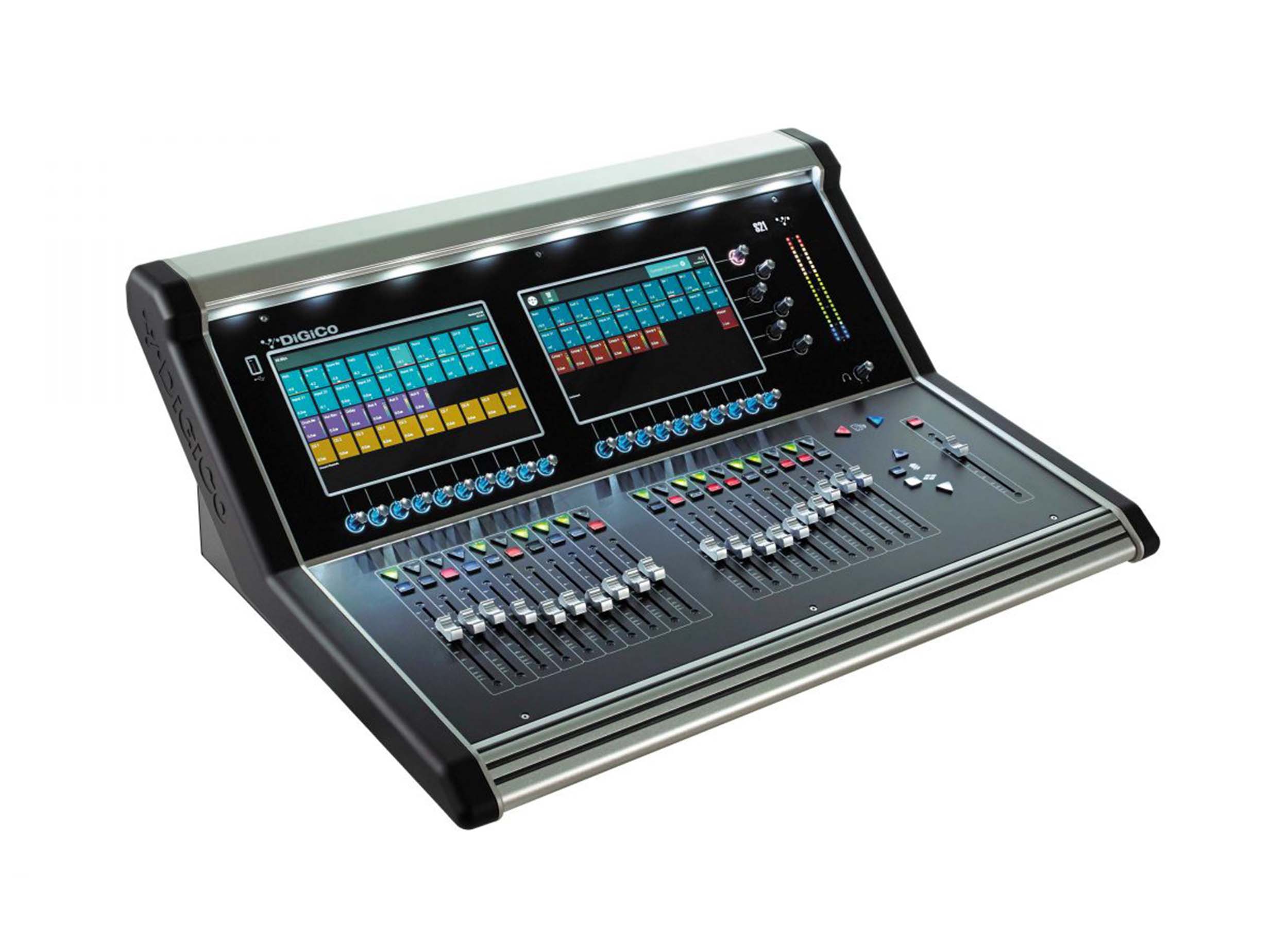

Two responsive multi-touch displays provide fast access to channel processing, routing, metering, and system configuration. Twenty-one touch-sensitive motorized faders are arranged across four customizable layers for efficient operation. Drag-and-drop channel assignment and snapshot automation simplify setup and live performance. Hidden Till Lit encoder technology provides clear visual feedback while reducing operator distraction.
Flexible Connectivity

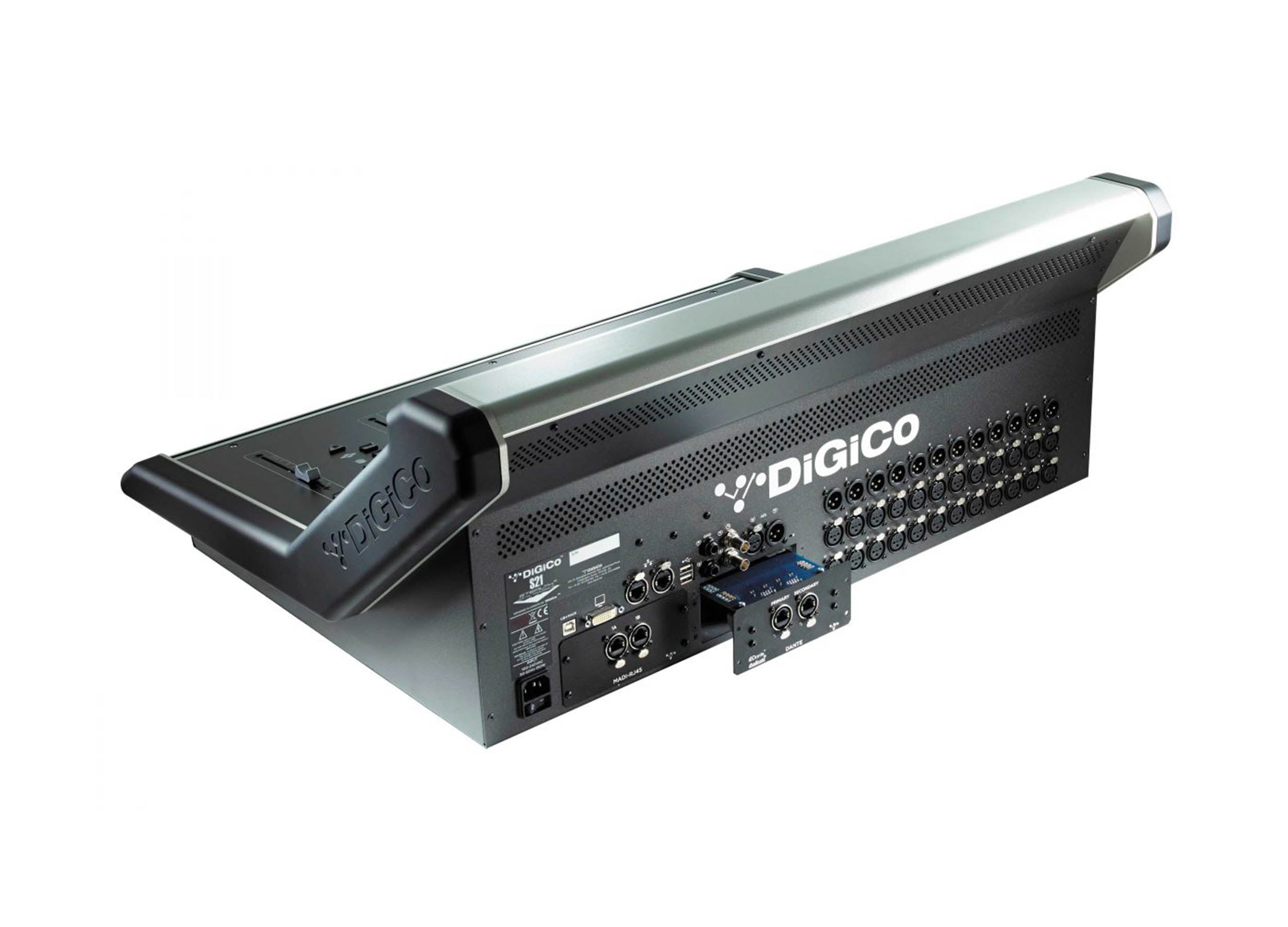

The X-S21-WS includes 24 microphone/line inputs, 12 analog outputs, AES/EBU I/O, dual Ethernet ports, Word Clock, USB multitrack recording, and two DMI expansion slots. These expansion slots support industry-standard protocols including Dante, MADI, Waves SoundGrid, Hydra2, and additional analog interfaces. The console integrates easily with DiGiCo D-Rack systems and modern networked audio infrastructures. Its flexible architecture allows future expansion as system requirements evolve.
Built for Professional Applications
The DiGiCo X-S21-WS is ideal for touring productions, broadcast facilities, theaters, houses of worship, corporate events, and permanent installations. Its combination of premium audio quality, advanced DSP, integrated Waves SoundGrid support, and intuitive operation provides everything needed for demanding professional productions. Rugged construction ensures dependable performance under continuous use. Engineers benefit from exceptional flexibility, scalable connectivity, and industry-leading workflow.
What’s in the Box:
- X-S21-WS, DMI-BLANK x 2, Dust Cover
- Connections: 24 Mic/Line In, 12 Line Out, 2 Ch AES In/Out,
- DMI Slot x 2, USB-B 48 Track Recording Interface
- Connectors: Dependent on cards loaded in DMI Slots, USB-Type B
Product Specifications:
Integrated Networking: Waves SoundGrid
Mixing Channels: 48 Flexi-Channels (Mono/Stereo, equivalent to 96 DSP Channels)
Busses: 46 Total (16 Flexi Mono/Stereo Busses, Stereo Master, 2 Stereo Solo Busses, 10 x 8 Matrix)
Control Groups: 10
Compressor: 1 Per Channel and Buss
Gate/Ducker: 1 Per Channel and Buss (Switchable to Ducker or Compressor with Side Chain)
Graphic EQ: 16 Assignable 32-Band Graphic EQs
FX Engines: 8 Internal Effects (Reverb, Delay, Modulation, Enhancer)
DiGiTuBes: 21 Assignable
Multiband Compressors: 21 Assignable
Dynamic EQs: 21 Assignable
Sample Rate: 48kHz / 96kHz
Internal Processing: Up to 40-Bit Floating Point
Mic/Line Inputs: 24
Analog Outputs: 12
AES/EBU I/O: 2 Mono
Word Clock: Input / Output
GPIO: 1 GPI, 1 GPO
DVI Output: Yes (External Monitor Support)
DMI Expansion: 2 DMI Card Slots (Up to 64 I/O Per Slot)
Network Ports: 2 Ethernet Connections
Master Meters: Dual 24-Segment Master/Solo Meters
Screens: 2 Multi-Touch Displays
Faders: 21 Touch-Sensitive 100mm Motorized Faders
Fader Layers: 4 Banks of 10 Faders
Headphone Output: 1/4" and 3.5mm Mini Jack
Snapshots: Supported
USB Audio Interface: Integrated USB 2.0 (Up to 48 Channels Record/Playback)
Frequency Response: ±0.6dB (20Hz–20kHz)
THD: <0.05% @ Unity Gain, 10dB Input @ 1kHz
Channel Separation: Better Than 90dB (40Hz–15kHz)
Microphone Input Noise: Better Than -126dB EIN
Maximum Input Level: +22dBu
Maximum Output Level: +22dBu
Processing Delay: 2ms @ 48kHz, 1.1ms @ 96kHz
Local I/O Expansion: Compatible with DiGiCo D-Rack
Supported DMI Formats: Analog, MADI, Dante, Waves SoundGrid, Hydra2
Product Weight: 28.7 lbs. (13 kg)
Product Dimensions (L x W x H): 31.9" x 30.5" x 10.8" (810 x 775 x 275 mm)
