Description

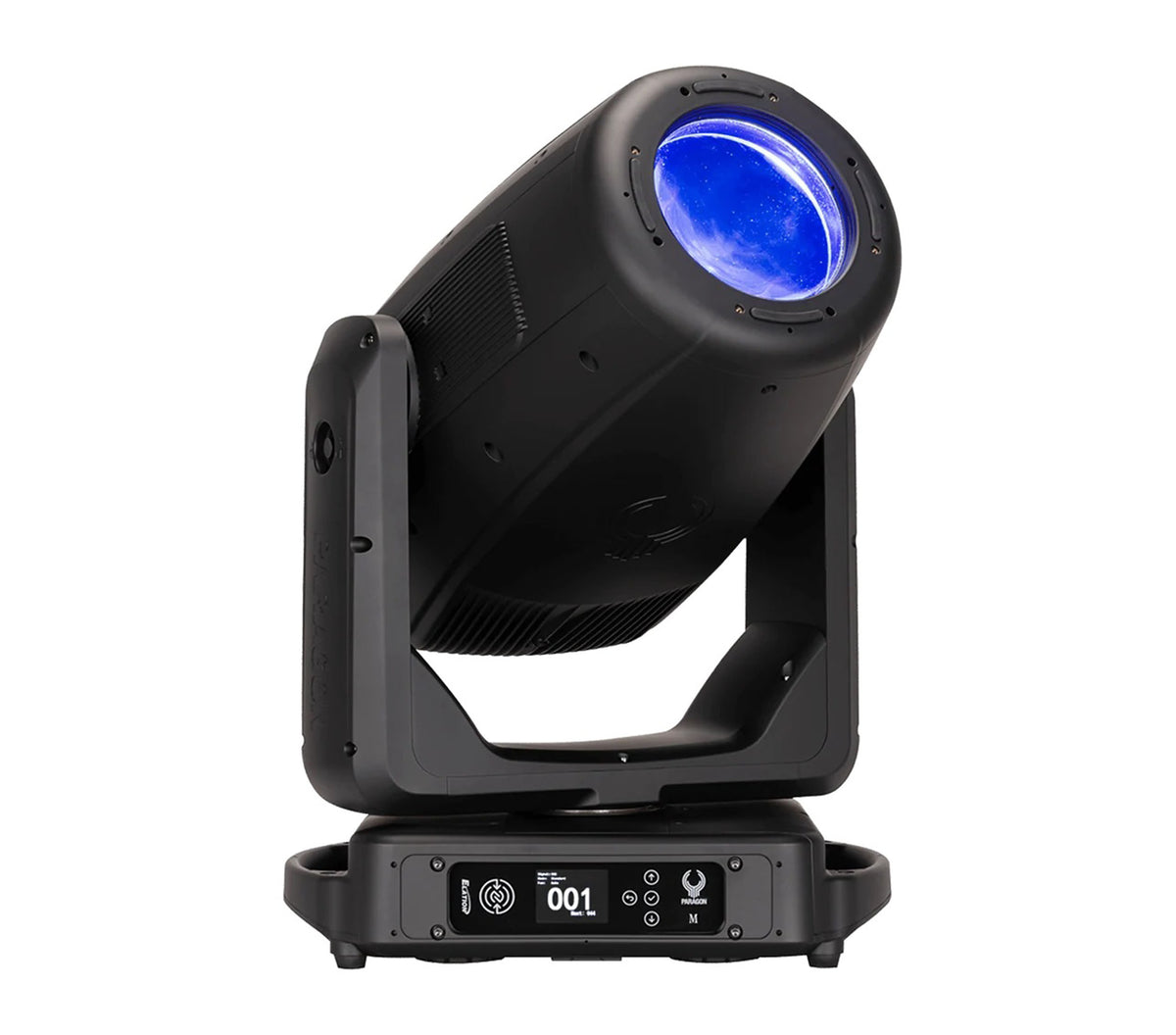

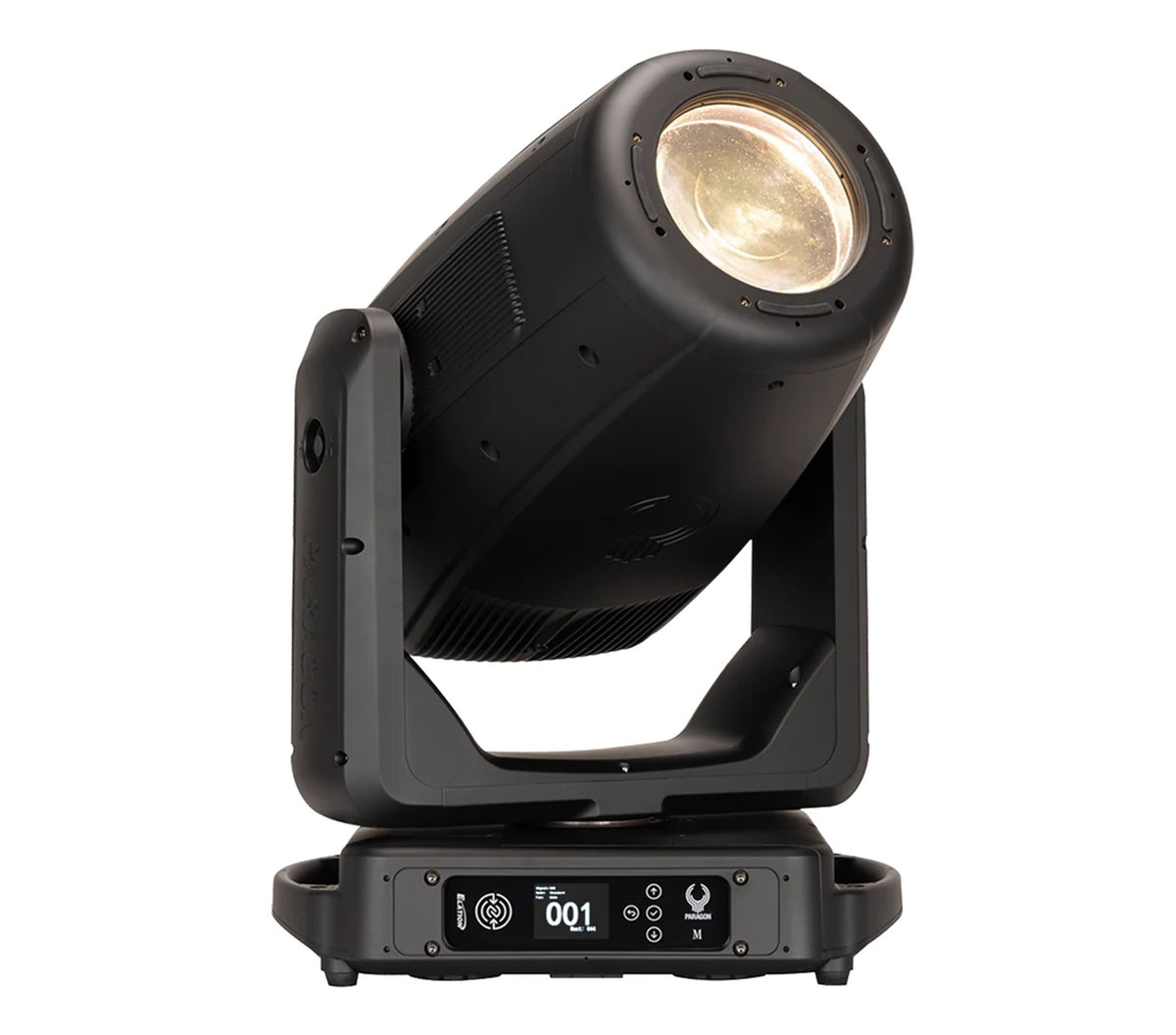

The Elation Professional PAR112 PARAGON M is a powerful IP54-rated LED framing profile fixture engineered for demanding professional lighting applications. Its high-efficiency 900W 6,500K Variable CRI white LED engine delivers an impressive 37,200-lumen total fixture output at CRI 80, providing the brightness and punch needed for large-scale stages, touring productions, theaters, concerts, and live events. The fixture incorporates Elation's TruTone variable CRI technology, allowing designers to continuously adjust color fidelity from CRI 70 through CRI 93. This provides greater control over the quality and appearance of white light, helping achieve accurate and refined illumination across different production requirements.
Fast CMY Color Mixing & Precision Color Control

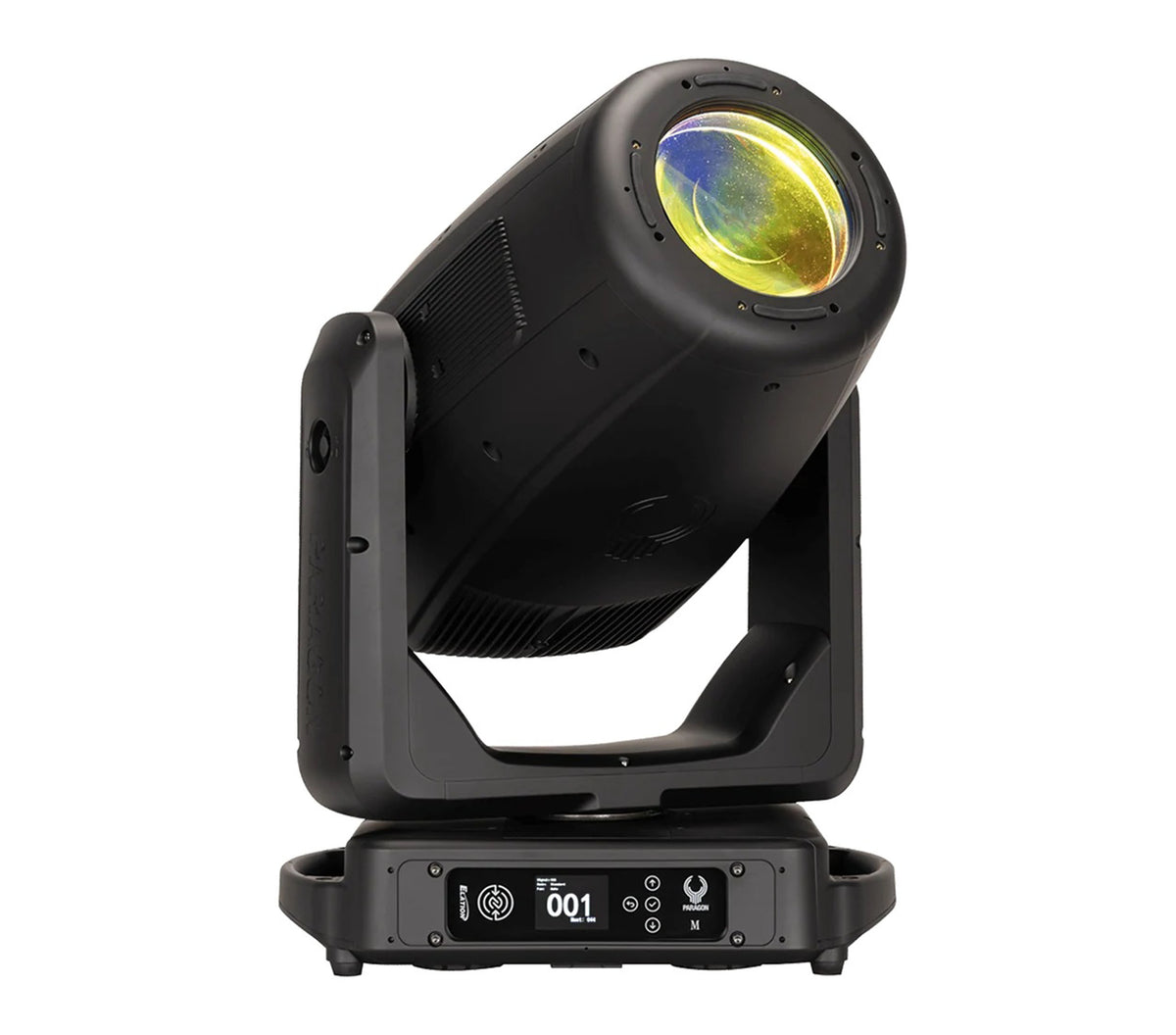

PARAGON M combines its Variable CRI engine with Elation's fast and quiet CMY color mixing system for smooth, precise color transitions. A linear CTO system provides additional color-temperature correction, while the six-position dichroic color wheel includes UV-filter functionality and quad-color options for expanded color effects. The fixture is designed for quiet operation with five selectable fan modes, making it suitable for environments where acoustic performance matters. Its professional control platform supports DMX, RDM, Art-Net, and sACN protocols, while the full-color 180° reversible LCD menu display and four-button touch control panel provide convenient local configuration.
Advanced FX, Gobos & Animation
PARAGON M features an extensive effects package designed for creative projection and beam manipulation. Two interchangeable rotating/indexing glass gobo wheels provide seven gobos each, while the full 360° bi-directional animation wheel adds dynamic texture and movement effects. The animation system can also accommodate an optional interchangeable seven-position gobo disc. Additional effects include 4-facet round and linear rotating prisms, two variable frost filters for light and wash effects, and a motorized iris with variable pulse effects. A high-speed electronic shutter and strobe system, variable 16-bit dimming curves, and DMX-controllable LED refresh rate further expand the fixture's creative capabilities.
Precision Framing & Flexible Beam Control
The PARAGON M delivers professional beam shaping through four full-blackout framing blades with ±45° indexing and a 240° indexable framing system. The 45° blade angles enable precise shaping and cutting of the projected beam, while full-blackout shutter cuts provide clean and controlled framing effects. Its motorized zoom ranges from 4.5° to 52°, allowing the fixture to transition from tight projection and beam effects to wider coverage. The standard profile lens provides a 4°–48.6° beam angle and 4.4°–52° field angle, while optional PC and Fresnel lenses can further expand the fixture's wash and beam capabilities.
Touring-Ready IP54 Construction
Built for professional production environments, PARAGON M features an impact-resistant lightweight polycarbonate chassis and IP54-rated protection for indoor and temporary outdoor use. Its weather-resistant chassis, sealing, and cooling construction provide additional protection in demanding environments without compromising the fixture's compact professional design. The fixture supports 540° pan and 260° tilt movement and can be mounted in any orientation using its two 180mm Omega brackets and M12 mounting points. For transport, PARAGON M includes a custom-fitted polyurethane FIL foam inlay inside its cardboard packaging, designed to provide enhanced impact protection and fit into a compatible custom flight case.
Product Specifications:
Product Type: LED Framing Profile Fixture
Fixture Type: Moving Head Profile / Framing Fixture
LED Engine: High-Efficiency 900W 6,500K Variable CRI White LED
LED Life: 30,000 Hours Average
Total Fixture Output: 37,200 Lumens at CRI 80
Variable CRI: TruTone CRI 70–93
Optical System: Flat Field Engine
Standard Lens: Profile Lens
Profile Zoom Range: 4.5°–52°
Profile Beam Angle: 4°–48.6°
Profile Field Angle: 4.4°–52°
Profile Cutoff Angle: 4.5°–54.2°
PC Lens Zoom Range: 6°–50°
PC Lens Beam Angle: 3.7°–44.5°
PC Lens Field Angle: 5.8°–50.2°
PC Lens Cutoff Angle: 6.7°–52.1°
Fresnel Lens Zoom Range: 9°–55°
Fresnel Lens Beam Angle: 4.5°–46.8°
Fresnel Lens Field Angle: 8.9°–54°
Fresnel Lens Cutoff Angle: 13.4°–60.4°
Zoom: Motorized
Framing System: 4 Full-Blackout Framing Blades, ±45° Index
Framing Index: ±120° / 240° Indexable System
Dimming: Variable 16-Bit Dimming Curves
Shutter/Strobe: High-Speed Electronic Shutter and Strobe
Animation: Full 360° Bi-Directional Animation Wheel
Prisms: 4-Facet Round and Linear Rotating Prisms
Frost: 2 Variable Frost Filters, Light and Wash
Iris: Motorized Iris with Variable Pulse Effects
Color Mixing: CMY Color Mixing, Linear CTO Color Correction
Color Wheel: 6 Dichroic Colors Including UV Filter and Quad Color
Gobos: 2 × 7 Rotating/Indexing Interchangeable Glass Gobos
Animation Disc: Interchangeable, Optional Seven-Position Gobo Disc Compatible
DMX Modes: 2 Modes, 43/65 Channels
Control Protocols: DMX, RDM, Art-Net, sACN
Pan/Tilt/Dimming: 16-Bit Control
Fan Modes: 5 Selectable Modes for Quiet Operation

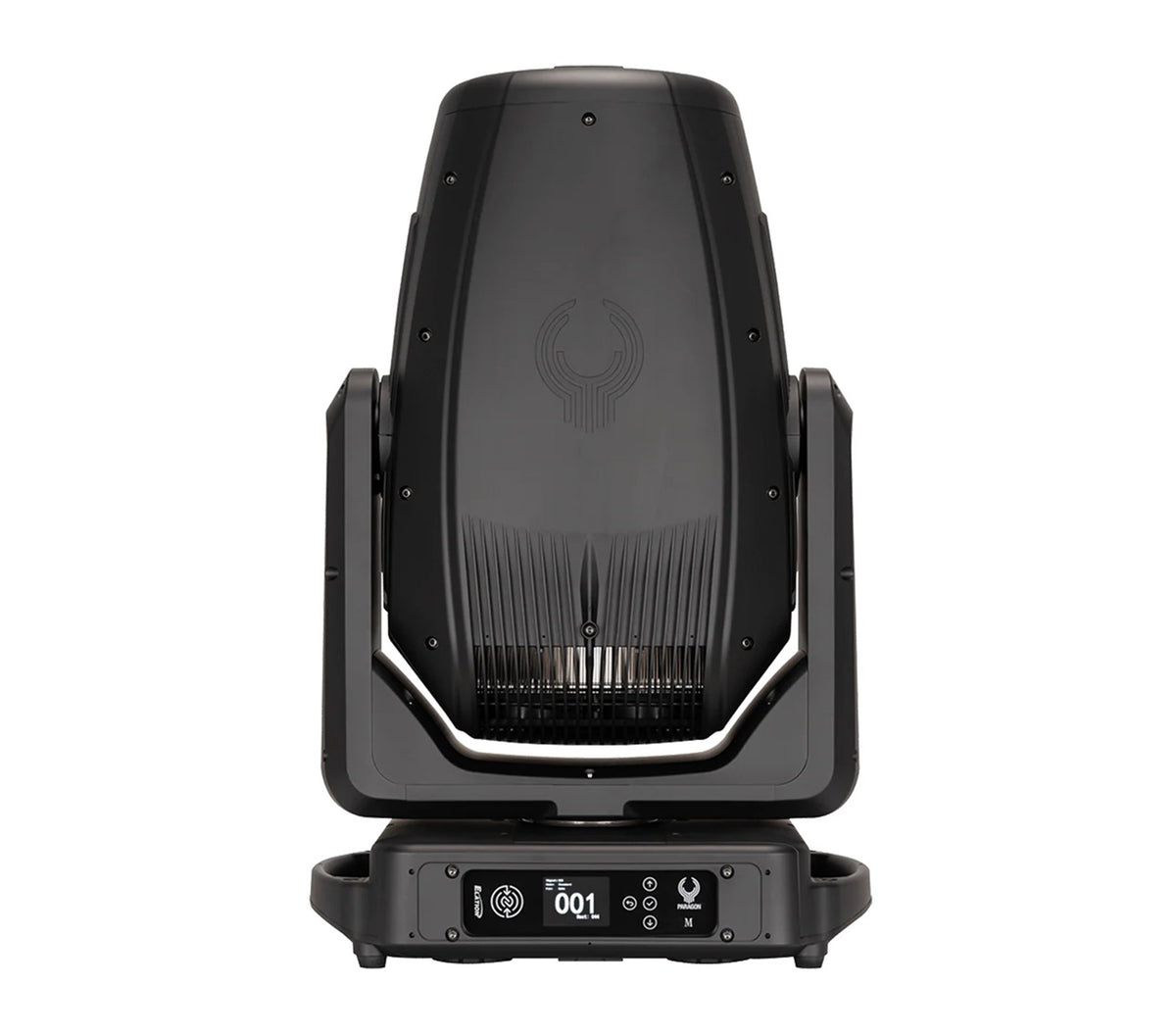

Display: Full-Color 180° Reversible LCD
Local Control: 4-Button Touch Control Panel
Wireless/Configuration: NFC on Bottom and Front of Fixture Base
Power Saving: Hibernation Mode

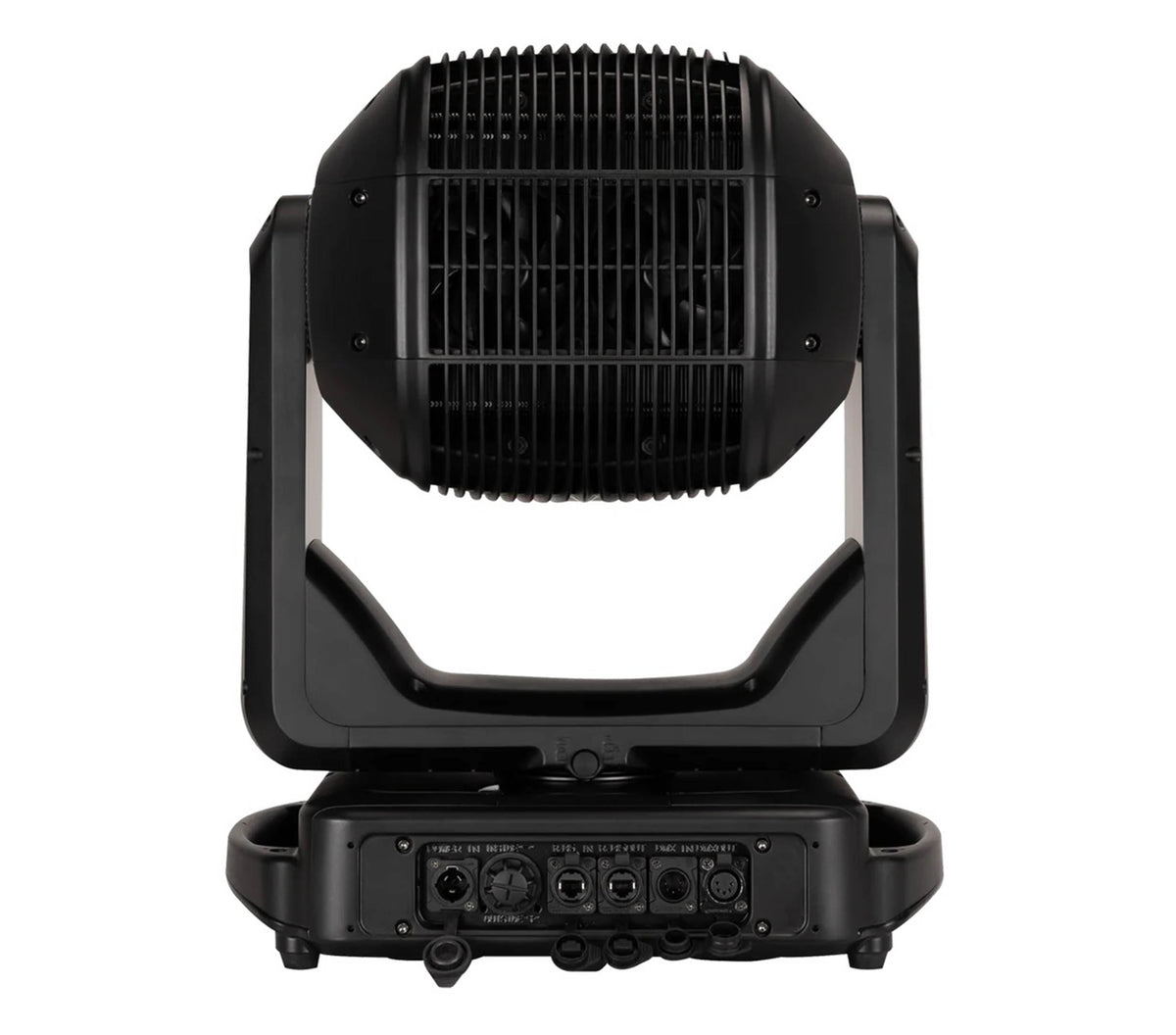

Connections: IP65 Locking 5-Pin XLR In/Out, IP65 Locking RJ45 Ethernet In/Out, IP65 Locking Power In

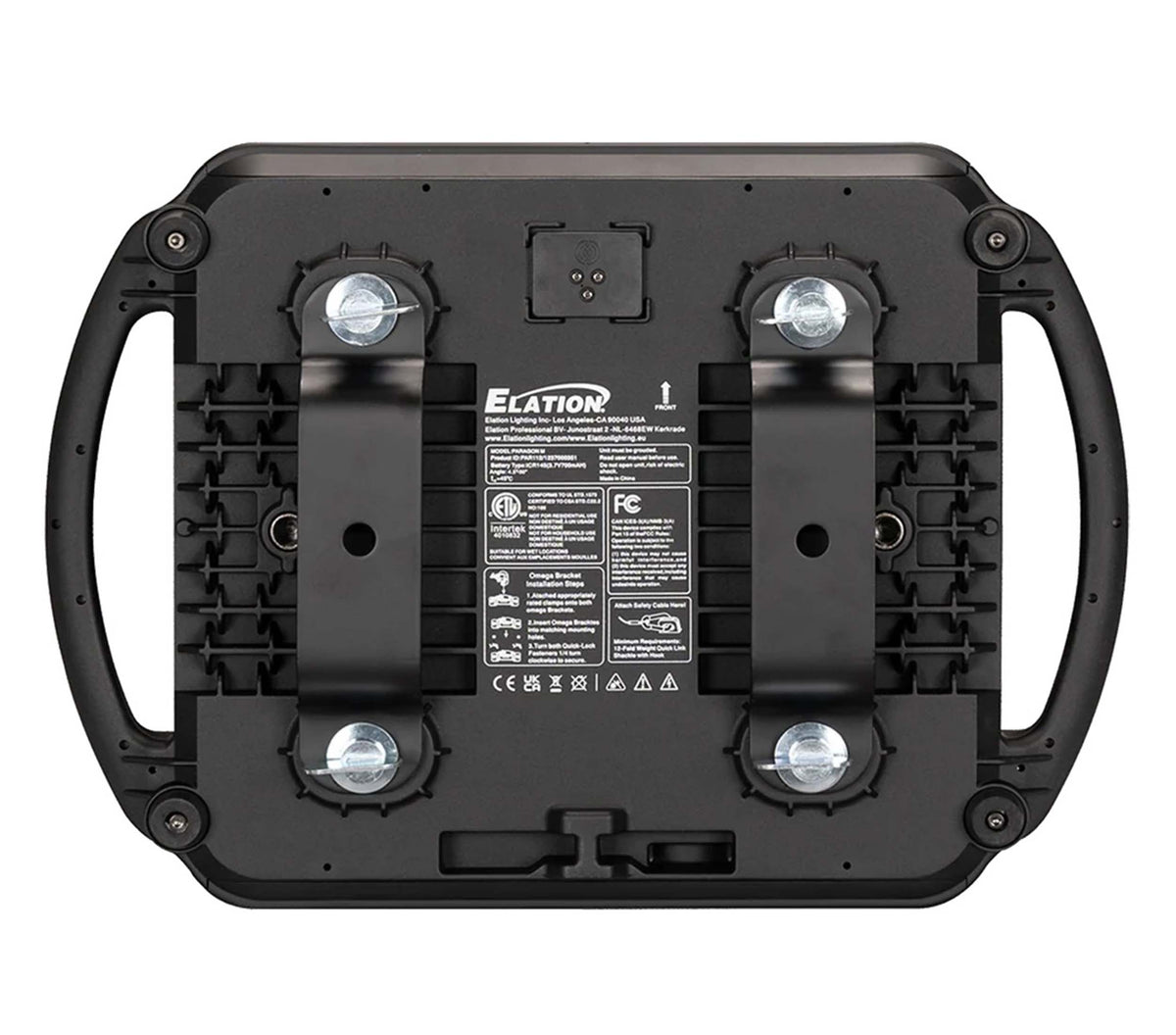

Mounting: 2 × 180mm Omega Brackets, 2 × M12 Screw Holes
Mounting Orientation: Any Orientation
Power Input: AC 100–240V, 50/60Hz
Maximum Power Consumption: 1,400W
Operating Temperature: -4°F to 113°F (-20°C to 45°C)
Construction: Impact-Resistant Lightweight Polycarbonate Chassis
Product Weight: 70.5 lbs
Product Dimensions: 17.5" L × 12.4" W × 26.6" H
Shipping Weight: 72.5 lbs
Shipping Dimensions: 19.5" L × 14.4" W × 28.6" H
